INSTALLATION GUIDE

XR500/XR500N ACCESS CONTROL COMMAND PROCESSOR™ PANEL

MODEL XR500/XR500N COMMAND PROCESSOR

INSTALLATION GUIDE

FCC NOTICE

This equipment generates and uses radio frequency energy and, if not installed and used properly in strict accordance with the manufacturer’s instructions, may cause interference with radio and television reception. It has been type tested and found to comply with the limits for a Class A computing device in accordance with the speciÞ cation in Subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference in a residential installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the installer is encouraged to try to correct the interference by one or more of the following measures:

Reorient the receiving antenna Relocate the computer with respect to the receiver Move the computer away from the receiver Plug the compute into a different outlet so that computer and receiver are on different branch circuits

If necessary, the installer should consult the dealer or an experienced radio/television technician for additional suggestions. The installer may Þ nd the following booklet, prepared by the Federal Communications Commission, helpful:

“How to identify and Resolve Radio-TV Interference Problems.”

This booklet is available from the U.S. Government Printing OfÞ ce, Washington D.C. 20402

Information furnished by DMP is believed to be accurate and reliable.

This information is subject to change without notice.

Stock No. 004-000-00345-4

TABLE OF CONTENTS

Product SpeciÞ cations

1.1 Power Supply ................................................................................................ 1

1.2 Communication ............................................................................................. 1

1.3 Panel Zones .................................................................................................. 1

1.4 Keypad Bus................................................................................................... 1

1.5 LX-Bus™....................................................................................................... 1

1.6 Outputs ........................................................................................................ 1

1.7 Enclosure SpeciÞ cations ................................................................................. 1

Panel Features

2.1 Description.................................................................................................... 2

2.2 Zone Expansion............................................................................................. 2

2.3 Output Expansion .......................................................................................... 2

2.4 Central Station Communication....................................................................... 3

2.5 Before you Begin........................................................................................... 3

2.6 About this Guide............................................................................................ 3

2.7 How to Use this Guide ................................................................................... 3

System Components

3.1 Description.................................................................................................... 3

3.2 Wiring Diagram ............................................................................................. 4

3.3 Lightning Protection....................................................................................... 5

3.4 Accessory Devices ......................................................................................... 5

3.5 NotiÞ cation Appliances .................................................................................. 6

Installation

4.1 Mounting the Enclosure.................................................................................. 7

4.2 Mounting Keypads and Zone Expansion Modules.............................................. 7

4.3 Connecting LX-Bus and Keypad Bus Devices.................................................... 8

Primary Power Supply

5.1 AC Terminals 1 and 2..................................................................................... 8

5.2 Transformer Types ......................................................................................... 8

Secondary Power Supply

6.1 Battery Terminals 3 and 4 .............................................................................. 9

6.2 Earth Ground ................................................................................................ 9

6.3 Battery Only Restart ...................................................................................... 9

6.4 Battery Replacement Period ........................................................................... 9

6.5 Discharge/Recharge....................................................................................... 9

6.6 Battery Supervision........................................................................................ 9

6.7 Battery Cutoff................................................................................................ 9

6.8 XR500/XR500N Power Requirements............................................................... 9

6.9 Standby Battery Selection ............................................................................ 11

Bell Output

7.1 Terminals 5 and 6........................................................................................ 12

Keypad Bus

8.1 Description.................................................................................................. 12

8.2 Terminal 7 - RED ......................................................................................... 12

8.3 Terminal 8 - YELLOW................................................................................... 12

8.4 Terminal 9 - GREEN ..................................................................................... 12

8.5 Terminal 10 - BLACK .................................................................................... 12

8.6 J8 Programming Connection......................................................................... 12

8.7 OVC LED..................................................................................................... 12

Smoke and Glassbreak Detector Output

9.1 Terminals 11 and 12 .................................................................................... 12

9.2 Current Rating............................................................................................. 12

XR500/XR500N Installation Guide Digital Monitoring Products

TABLE OF CONTENTS

Protection Zones

10.1 Terminals 13–24 .......................................................................................... 13

10.2 Operational Parameters................................................................................ 13

10.3 Zone Response Time.................................................................................... 13

10.4 Keyswitch Arming Zone................................................................................ 13

Powered Zones for 2-Wire Smoke Detectors

11.1 Terminals 25–26 and 27–28 ......................................................................... 13

11.2 Compatible 2-Wire Smoke Detector Chart...................................................... 14

Dry Contact Relay Outputs

12.1 Description.................................................................................................. 15

12.2 Contact Rating ............................................................................................ 15

12.3 Model 431 Output Harness Wiring................................................................. 15

Annunciator Outputs

13.1 Description.................................................................................................. 15

13.2 Model 300 Harness Wiring............................................................................ 15

J23 6-Pin Header

14.1 Description.................................................................................................. 16

J22 LX-Bus Expansion Connector

15.1 Description.................................................................................................. 16

15.2 J22 LX-Bus Header ...................................................................................... 16

15.3 LX-Bus Interface Cards................................................................................. 16

15.4 LX-Bus LEDs................................................................................................ 17

15.5 OVC LED..................................................................................................... 17

J21 Serial Connector

16.1 Description.................................................................................................. 17

16.2 Serial Connector LEDs.................................................................................. 17

J1 Ethernet Connector (XR500N only)

17.1 Description ..................................................................................................... 17

17.2 Ethernet LEDs ............................................................................................. 17

J3 Telephone RJ Connector

18.1 FCC Registration.......................................................................................... 17

18.2 Description.................................................................................................. 18

18.3 J10 893A Connector..................................................................................... 18

18.4 NotiÞ cation ................................................................................................. 18

18.5 Phone Line Monitor...................................................................................... 18

Reset and Tamper Headers

19.1 J16 Reset Header ....................................................................................... 19

19.2 J4 Tamper Header ...................................................................................... 19

Universal UL Burglary SpeciÞ cations

20.1 Introduction ................................................................................................ 20

20.2 Wiring ........................................................................................................ 20

20.3 Control Outside of Protected Area................................................................. 20

20.4 Police Station Phone Numbers ...................................................................... 20

20.5 Bypass Reports............................................................................................ 20

20.6 System Maintenance .................................................................................... 20

20.7 UL Listed Receivers...................................................................................... 20

20.8 Power Supply Supervision ............................................................................ 20

Digital Monitoring Products XR500/XR500N Installation Guide

TABLE OF CONTENTS

Area Information

21.1 Ownership .................................................................................................. 21

21.2 Annunciation ............................................................................................... 21

21.3 Trouble Display............................................................................................ 21

21.4 Closing Wait................................................................................................ 21

21.5 Local Bell Supervision .................................................................................. 21

UL 1023 SpeciÞ cations

22.1 Audible Devices ........................................................................................... 21

22.2 Auxiliary Circuits .......................................................................................... 21

22.3 Bell Cutoff................................................................................................... 21

22.4 Entry Delay ................................................................................................. 21

22.5 Exit Delay ................................................................................................... 21

22.6 Weekly Test................................................................................................. 21

UL 1610 AND 1076 SpeciÞ cations

23.1 Opening/Closing Reports.............................................................................. 22

23.2 Closing Wait................................................................................................ 22

23.3 Entry Delay ................................................................................................. 22

23.4 Exit Delay ................................................................................................... 22

23.5 Proprietary Dialer ........................................................................................ 22

23.6 Grade B Central Station................................................................................ 22

23.7 Bell Cutoff................................................................................................... 22

23.8 AA Network Communication ......................................................................... 22

UL 1635 SpeciÞ cations

24.1 System Trouble Display ................................................................................ 22

24.2 Digital Dialer Telephone Number................................................................... 22

24.3 Test Time.................................................................................................... 22

24.4 Closing Wait................................................................................................ 22

UL 365 SpeciÞ cations

25.1 System Trouble Display ................................................................................ 23

25.2 Entry Delay ................................................................................................. 23

25.3 Exit Delay ................................................................................................... 23

25.4 Grade A Bell................................................................................................ 23

25.5 Bell Cutoff................................................................................................... 23

25.6 Automatic Bell Test ...................................................................................... 23

25.7 Line Security for Police Connect.................................................................... 23

25.8 High Line Security ...................................................................................... 23

UL 609 SpeciÞ cations

26.1 Grade A Mercantile ...................................................................................... 24

26.2 Entry Delay ................................................................................................. 24

26.3 Exit Delay ................................................................................................... 24

26.4 Mercantile Safe and Vault (XR500N only)....................................................... 24

26.5 Grade A Bell................................................................................................ 24

26.6 Bank Safe and Vault (XR500N only) .............................................................. 24

UL 294 SpeciÞ cations

27.1 Panel Designation........................................................................................ 24

27.2 Compatible Devices ..................................................................................... 24

XR500/XR500N Installation Guide Digital Monitoring Products

iii

TABLE OF CONTENTS

Universal UL and NFPA Fire Alarm SpeciÞ cations

28.1 Introduction ................................................................................................ 25

28.2 Wiring ........................................................................................................ 25

28.3 Transformer ................................................................................................ 25

28.4 End-of-Line Resistor..................................................................................... 25

28.5 System Trouble Display ................................................................................ 25

28.6 Fire Display ................................................................................................. 25

28.7 Police Station Phone Number........................................................................ 25

28.8 System Maintenance .................................................................................... 25

28.9 Audible Alarm.............................................................................................. 25

28.10 Fire Zone Programming ................................................................................ 25

28.11 Style D Zones .............................................................................................. 25

28.12 Video Option................................................................................................ 25

28.13 UL Listed Receivers ...................................................................................... 25

UL 864 NFPA 72 (Chapter 9) SpeciÞ cations

29.1 Zone Restoral Reports.................................................................................. 26

29.2 Power Fail Delay .......................................................................................... 26

29.3 Sprinkler Supervisory ................................................................................... 26

29.4 DACT Systems............................................................................................. 26

29.5 Local Protective Signaling Systems................................................................ 26

29.6 Remote Station Protective Signaling Systems................................................. 26

29.7 Fire Protective Signaling Systems using Internet/Intranet Networks................. 26

UL 985 NFPA 72 (Chapter 2) SpeciÞ cations

30.1 Bell Output DeÞ nition................................................................................... 27

30.2 Audible Devices ........................................................................................... 27

30.3 Auxiliary Circuits .......................................................................................... 27

30.4 Bell Cutoff................................................................................................... 27

California State Fire Marshal SpeciÞ cations

31.1 Bell Output DeÞ nition................................................................................... 27

Wiring Diagrams

32.1 Multiple NotiÞ cation Circuit Modules.............................................................. 28

32.2 Multiple NotiÞ cation Circuit Modules for Zoned Annunciation ........................... 29

32.3 Dual Style D Zone Module Installation ........................................................... 30

32.4 Cellular Backup Installation for Derived Channel Burglary ............................... 31

32.5 Rothenbuhler 5110 High Security Bell Wiring ................................................. 32

32.6 LX-Bus™ Module Connection ........................................................................ 33

32.7 Model 860 Relay Module Connection ............................................................. 34

OPERATING INSTRUCTIONS MODEL XR500/XR500N PANELS

Digital Monitoring Products XR500/XR500N Installation Guide

INTRODUCTION

Product SpeciÞ cations

1.1 Power Supply

Transformer Input: Model 327, plug-in — Primary input: 120 VAC, 60 Hz, Secondary output: 16.5 VAC 50 VA Model 322, wire-in — Primary input: 120 VAC, 60 Hz, Secondary output: 16 VAC 56 VA

Standby Battery: 12 VDC, 1.0 Amps Max. charging current Models 365, 366, 367, 368, or 369 Replace every 3 to 5 years

* Auxiliary: 12 VDC output at 1.5 Amp Max

* Bell Output: 12 VDC at 1.5 Amp Max

Note: The combined Auxiliary and Bell outputs total cannot exceed 3 Amps with a 50 VA or 56 VA Transformer.

All circuits are inherent Power Limited except the red battery wire and AC terminal.

* For UL installations, the total current combined from Auxiliary and Bell Power cannot exceed:

1.3 Amps with a 50 VA transformer, 1.0 Amp Max for Auxiliary Power

1.9 Amps with a 56 VA transformer, 1.0 Amp Max for Auxiliary Power and 1.5 Amp Max for Bell

1.2 Communication

Built-in network communication to DMP Model SCS-1/SCS-1R Receivers (XR500N only) Built-in dialer communication to DMP Model SCS-1/SCS-1R Receivers Built-in Contact ID communication to non-DMP receivers Optional 893A Dual Phone Line Module with phone line supervision Can operate as a local panel

1.3 Panel Zones

Eight 1k Ohm EOL burglary zones (zones 1 to 8)

Two 3.3k Ohm EOL powered zone with reset (zones 9 and 10)

1.4 Keypad Bus

You can connect up to 16 of the following supervised keypads and expansion modules to the keypad bus:

• Alphanumeric keypads • Four- and/or single-zone expansion modules

• Single-zone detectors • Access control modules

1.5 LX-Bus™

You can connect the following devices to the LX-Bus™ provided on the panel or by the DMP 481, 462N, 462P, 462FM, and 472 Interface Cards up to the maximum number of LX-Bus™ addresses. See Accessory Devices in section 3.4.

• Four- and/or single-zone expansion modules • Single-zone detectors

• Relay output expansion modules • Graphic annunciator modules

1.6 Outputs

The XR500/XR500N provides two Single Pole, Double Throw (SPDT) relay outputs which require the installation of two Model 305 relays, each rated 1 Amp at 30 VDC resistive (power limited sources only). A Model 431 Output Harness is required to use these outputs.

The XR500/XR500N also provides four open collector outputs rated for 50mA each. The open collector outputs provide ground connection for a positive voltage source. A Model 300 Output Harness is required to use these outputs.

1.7 Enclosure SpeciÞ cations

The XR500/XR500N is shipped in an enclosure with a transformer, End-of-Line resistors, battery leads, user’s guide, and programming sheets.

Model 350A Enclosure Dimensions: 17.5” W x 13.5” H x 3.75” D Color: Gray (G) Construction: Door: 16-gauge cold-rolled steel. Back and Sides: 18-gauge cold-rolled steel

Model 350 Enclosure Dimensions: 17.5” W x 13.5” H x 3.5” D Color: Gray (G), or Red (R) Construction: 18-gauge cold-rolled steel

XR500/XR500N Installation Guide Digital Monitoring Products

INTRODUCTION

Panel Features

2.1 Description

The DMP XR500/XR500N Command Processor™ Panel is a versatile 12 VDC, combined access control, burglary, and Þ re communicator panel with battery backup. The XR500/XR500N provides eight on-board burglary zones and two on-board 12 VDC Class B powered zones. The powered zones have a reset capability to provide for 2-wire smoke detectors, relays, or other latching devices. The XR500/XR500N can communicate to one or two DMP SCS-1/SCS-1R Receivers using digital dialer or network communication, or to non-DMP receivers using the Contact ID format.

Phone Line

Tamper

Power LED

Link LED

Ethernet

J21

J23

Power

RS-232

LED

J22 LX-Bus

OVC

Output 1 Output 2

J2 Battery Start

Alarm Horns

J10

J11

K6 K7

4 5

PROG

Out1 Out2

+B BELLGND SMKGNDREDYEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9- Z10+ Z10-AC -B GND GND GNDGND

1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199202122232425262728

Outputs 3-6

SS SS SS SSSSSS SS SS

Smoke and Heat Detector Circuits

Reset

S S S S

715 Zone Expander

J16

Keypad Expansion Bus

5845LX

791, 793 Security

Command Keypad

Proximity

Reader

Glassbreak

Detector

790, 791, 793 Security

Command Keypad

Model 481, 462N, 462P, 462FM, and 472 Interface Cards

Model 461 Interface Adaptor

FIRE

Manual Pull

Station

XR500/XR500N Command Processor™ Panel System

Manual Pull

Station

Door

Contact

PIR

6155LX PIR

Fire Bell

Single 4-Wire Cable

733 Wiegand

Interface Module

Proximity

Reader

FIRE

714 Zone Expander

Strobe

PIR

6155LX PIR

Keypad Bus - You can connect any combination of Security Command Keypads, 6155LX PIRs, 5845LX Glassbreaks, or 711, 714, or 715 Zone Expanders. Up to 64 zones with all 16 devices.

Window Contact

711 Zone Expander

Roll-Up

Doors

LX-Bus Expansion

Heat

Detector

5845LX Glassbreak

Detector

Exterior Lighting

Door

Contact

711 Zone Expander

716 Output

(Relay)

Expander

6155LX PIR

PIR

Window Contact

711 Zone Expander

717 Graphic Annunciator

Figure 1: Typical XR500/XR500N System ConÞ guration

Single 4-Wire

Module

Cable

SLR Series

Smoke

Detector

521LX (T)

6155LX PIR

Smoke

Detector

Graphic Annunciator

PIR

Up to 100 Zones

and Relays on

each LX-Bus

* * * * * * *

2.2 Zone Expansion

Up to 574 additional zones are available on the XR500/XR500N using DMP Security Command keypad remote zone capability and zone expansion modules. The panel keypad data bus supports up to sixteen supervised device addresses with each address supporting up to four programmable expansion zones.

Up to 500 zones are available using the on board LX-Bus, Model 461 Interface Adaptor, 481, 462N, 462P, 462FM, or 472 Interface Cards, and any combination of single, four, eight, or 16-zone expansion modules and single-zone LX-Bus™ detectors.

Note: Do not use shielded wire for LX-Bus or Keypad Bus circuits.

2.3 Output Expansion

In addition to the two SPDT relays and four open collector outputs on the XR500/XR500N, you can also connect up to 25 Model 716 Output Expansion Modules to each LX-Bus. These modules can provide an additional 500 programmable SPDT relays.

The XR500/XR500N provides 100 Output Schedules you can use for programming the 716 to perform a variety of annunciation and control functions. You can also assign the 716 outputs to any panel Output Options such as Fire Alarm, Communication Fail, or Phone Trouble Outputs. Refer to the 716 Installation Guide (LT-0183).

The LX-Bus™ also supports the Model 717 Graphic Annunciator Module. Each 717 module supplies 20 switched ground outputs that follow the state of their assigned zones. Refer to the 717 Installation Guide (LT-0235) for more information.

Digital Monitoring Products XR500/XR500N Installation Guide

INTRODUCTION

2.4 Central Station Communication

You can program the XR500/XR500N panel for local annunciation only, or for reporting to one or two DMP SCS-1/SCS1R Receivers using digital dialer or network communication. The panel can also communicate to non-DMP receivers using the Contact ID communication format. The XR500/XR500N connects at the premises to a standard RJ31X or RJ38X telephone jack. Use the DMP 893A Dual Phone Line Module when connecting the XR500/XR500N panel to two separate phone lines in Þ re or burglary applications.

2.5 Before you Begin

Before installing the XR500/XR500N, we recommend you read through the entire contents of this guide. Familiarize yourself with the features of the panel and the key points to remember during the installation. Be sure to read and understand all of the caution statements printed in bold italics.

2.6 About this Guide

The information in this guide is organized into Þ ve sections: Table of Contents, Introduction, Installation, Compliance, and System Diagrams.

• The Table of Contents at the front lists the headings and subheadings used throughout each section of the guide. To the right of each heading is the section number where the information can be found.

• The Introduction section provides an overview of the various components that go into an XR500/XR500N system and provides diagrams of typical system conÞ gurations. This section describes the panel, keypads, zone expansion modules, and accessory modules and provides details on how they operate together in the system.

• The Installation section begins with mounting instructions for the enclosure and continues with detailed XR500/XR500N panel operational characteristics.

• The Compliance section describes the various regulations the XR500/XR500N complies with, such as UL.

• The System Diagrams illustrate different ways to wire the XR500/XR500N to a variety of modules.

Caution Notes

Throughout this guide you will see caution notes containing information you need to know when installing the panel. These cautions are indicated with a yield sign. Whenever you see a caution note, make sure you completely read and understand its information. Failing to follow the caution note can cause damage to the equipment or improper operation of one or more components in the system. See the example shown below.

Always ground the panel before applying power to any devices: The XR500/XR500N must be properly grounded before connecting any devices or applying power to the panel. Proper grounding protects against Electrostatic Discharge (ESD) that can damage system components.

2.7 How to Use this Guide

To locate information about the XR500/XR500N installation, Þ rst go to the Table of Contents at the front of this guide. Find the subject heading that best describes the information you need and turn to the section number shown to the right of the heading.

The text that follows the heading is written to provide as much information about the subject as possible. If you cannot Þ nd the information you need under that heading, try scanning through a few of the headings before and after and reading the text under those that sound similar.

3.1 Description

The DMP XR500/XR500N system is made up of an alarm panel with a built-in communicator, an enclosure, battery, one 16.5 VAC transformer, and keypads. You can use up to sixteen supervised 32-character LCD Security Command® keypads; network communications and expansion interface cards; zone and output expansion modules; and initiating and indicating circuit modules. You can also connect auxiliary devices to the panel’s output relays to expand the basic system’s control capability. Combined current requirements of additional modules may require an auxiliary power supply. Refer to section 6.8 in this guide when calculating power requirements.

XR500/XR500N Installation Guide Digital Monitoring Products

System Components

INTRODUCTION

3.2 Wiring Diagram

The XR500/XR500N system below shows some of the accessory modules you can connect for use in various applications. A brief description of each module follows in section 3.4.

TYPES OF SERVICE

Central Station DACT service may be provided. See sections 29.4.

Suitable for Remote Station PPU DACT Service. See sections 29.7. Suitable for manual fire alarm, automatic fire alarm, sprinkler supervisory, or water flow alarm.

Suitable for Grade AA High Line Encrypted Central Station with NET communication. See section 23.8.

Grade B may be provided with dialer communication and DMP 350A Enclosure. See section 23.6.

Suitable for Bank Safe and Vault Service with 350A Enclosure. See section 26.6. Suitable for Household Fire and Grade A Household Burglary.

Suitable for Grade A Local, Police Station Connect, Mercantile, and Proprietary with dialer direct communication and 350A Enclosure. See sections 23.3, 23.5, and 23.6.

Suitable for Proprietary, PPU, other technologies, (iCOM – XR500 only), local.

For UL installations, the Model 327 plug-in transformers shall be installed in a DMP Model ES501 enclosure. The plug-in transformer shall plug into a 120 VAC 60 Hz outlet not controlled by a switch and all

16 to 18 gauge wire

through conduit.

DMP Transformers

Model 327

16.5 VAC 50 VA Class 2 Plug-in.

Model 322 16 VAC 56 VA Class 2 Wire-in.

Secondary Power Supply

1.0 Amps Max. charging current. Use only 12 VDC rechargeable batteries. DMP Models 365, 366, 367, 368, or 369. Replace batteries every 3 to 5 years.

* Bell

12 VDC nominal Minimum cutoff time is 5 minutes.

1.5 Amp Max

Keypads

Model 690 72mA at 8 to 14.5 VDC.

Models 790 and 791 75mA at 8 to 14.5 VDC.

Model 793 108mA at 8 to 14.5 VDC.

Model 630F 60mA at 8 to 14.5 VDC.

See section 11.2 in the XR500 Installation Guide (LT-0681) for a complete list of approved 2-wire smoke detectors for zones 9, 10, and 715 Zone Expansion Module zones.

shall run

16 to 18 gauge wire Maximum AC Wire distance with 16 gauge wire: 70 feet with 18 gauge wire: 40 feet

For UL Grade A burglary applications use Ademco Model AB12M bell and bell housing.

POWER

ARMED

sss

1k Ohm 1k Ohm 1k Ohm

See LT-0164 for a list of approved 4-wire

This equipment should be installed in accordance with Chapter 11 of the National Fire Alarm Code, ANSI/NFPA 72-2002, (National Fire Protection Association, Batterymarch Park, Quincy, MA 02269). Printed information describing proper installation, operation, testing, maintenance, evacuation planning, and repair service is to be provided with this equipment.

All circuits on the Model XR500/XR500N comply with the requirements for inherent power limitation and are Class 2 except the red battery wire and AC terminals.

XR500/XR500N

Command Processor™

Phone Line

Power LED

Link LED

J23

Power

LED

L X

Battery Start

+B BELL GND SMK GNDRED YEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9– Z10+Z10–AC –B GND GND GNDGND

1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199202122232425262728

RED

BLACK

s s

Use UL Listed Power

Supervision Relay

rated at 12 VDC.

Cold Water Pipe Earth Ground

Bell cutoff time range is 5 to 99 minutes marchtime and non-coded.

DISARM

10k

Ohm

Bell

Keyswitch Arming can be connected to any zone. See LT-0681 Section 10.4.

ARM

1k Ohm

POWER LIMITED

Panel

Tamper

Ethernet

J21

RS-232

J22 LX-Bus

22 gauge minimum

s s s s s

RED

GREEN

YELLOW

Smoke

Detector

smoke detectors and power supervision relays.

* For UL installations, total current combined from Auxiliary (terminals 7, 11, 25, and 27) and Bell Power (terminal 5) cannnot exceed:

1.3 Amp with 50 VA transformer, 1.0 Amp Max for Auxiliary Power

1.9 Amp with 56 VA transformer, 1.0 Amp Max for Auxiliary Power and

1.5 Amp Max for Bell

NFPA 72

AC Wiring must be in conduit and exit out the left side of the enclosure.

Wiring on terminals 5 through 22 must exit right and maintain 1/4" separation from the AC and battery positive wiring.

OVC

Output 1 Output 2

J10

PROG

K6 K7

Out1 Out2

Zone 2

Zone 1

Ohm

= Supervised Circuit

22 gauge minimum

* Auxiliary Power

Total current combined from

terminals 7, 11, 25, and 27

BLACK

1.5 Amp Max

RED

RED YELLOW GREEN

BLACK

Zone Expander

Model 714

7mA @ 12 VDC

Models 714-8, 714-16

20mA @ 12 VDC

1k Ohm 1k Ohm 1k Ohm

¼"

UL Listed Resistors

1.0k Ohm - DMP Model 311

3.3k Ohm - DMP Model 309

J11

10K Ohm - DMP Model 308

4 5 6

Outputs 3-6

Ohm

Zone 4

Zone 5

Ohm

Expander Model 711 7mA @ 12

Ohm

Zone 3

Zone 6

Ohm

Zone

VDC

S SS SS SS S

1k Ohm

NFPA 72 OPERATING INSTRUCTIONS

The operating instructions found on LT-0352 1/04 must be located adjacent to the control unit or keypad.

HOUSEHOLD FIRE WARNING

UL recognized limited energy cable must be used for connection of all initiating, indicating, and supplementary devices.

Form C Relays (J2)

Output Color Code–Model 431 Harness Output 1 N/C Violet Output 1 Com Gray Output 1 N/O Orange Output 2 N/C VioletWhite Output 2 Com White/Gray Output 2 N/O Orange/White

Annunciator Outputs (J11)

Output Color Code Output 3 Red Output 4 Yellow Output 5 Green Output 6 Black

J16

Reset

Zone 9Zone

Zone 8

Zone 7

Ohm

S S S S

3.3k Ohm

Ohm

Resistor

Verification

In all applications where more than one wire is under a terminal, the wire must be cut and NOT looped around the screw terminal.

Control Unit

Zones

______

(up to 8 zones)

13.6 sec.

Zone Expander

Model 712-8 19mA @ 12

VDC

S S

1k Ohm

Delay

Heat detectors, pull stations, or any other contact devices listed for Fire Protective Signaling can be connected to zones 9 and 10.

Zones 9 and 10 and Model 715 compatibility identifier: A Maximum operating range: 9.8 VDC to

14.0 VDC. Class B (Style A).

Zones 9, 10, and all expanded zones are suitable for Class B (as applicable for the initiating and signaling line circuits per UL 864 Table 48.2 or 48.3). Installation limits under local Authority Having

Jurisdiction (AHJ). Using verification delays

on zones 9 and 10 is optional. Use the delays marked on the

3.3k smoke detectors or

the smoke detector installation wiring diagram.

Smoke

Model

______

Zone Expander

Model 715

7mA @ 12 VDC

Models 715-8, 715-16

20mA @ 12 VDC

S S S S S S S S

3.3k Ohm 3.3k Ohm 3.3k Ohm 3.3k Ohm

WARNING: Incorrect connections may cause damage to the unit.

WARNING

THIS UNIT MAY BE PROGRAMMED TO USE AN ALARM VERIFICATION FEATURE THAT RESULTS IN DELAY OF THE SYSTEM ALARM SIGNAL FROM THE INDICATED CIRCUITS. THE TOTAL DELAY (CONTROL UNIT PLUS SMOKE DETECTORS) SHALL NOT EXCEED 60 SECONDS. NO OTHER SMOKE DETECTOR SHALL BE CONNECTED TO THESE CIRCUITS UNLESS APPROVED BY THE LOCAL AUTHORITY HAVING JURISDICTION (AHJ).

Front and Rear tamper protection included with Model 350A Attack Resistant Enclosure.

Front

Tamper

Rear

Tamper

Detector

Delay

____sec.

Figure 1: XR500/XR500N Wiring Diagram

Digital Monitoring Products XR500/XR500N Installation Guide

INTRODUCTION

3.3 Lightning Protection

Metal Oxide Varistors and Transient Voltage Suppressors help protect against voltage surges on XR500/XR500N input and output circuits. Additional surge protection is available by installing the DMP 370 or 370RJ Lightning Suppressors.

3.4 Accessory Devices

Interface Adaptor and Interface Cards

461 Interface Adaptor Card Allows you to connect two or more expansion interface cards to the XR500/XR500N panel. The 461 is an

462N Network Interface Card Allows you to connect the XR500/XR500N to any compatible data network and use its communication

462P Printer Interface Card Allows you to connect the XR500/XR500N to any compatible serial printer providing the user with real-time

* 462FM 9600 Baud Modem Allows you to remote-connect to the panel over telephone lines and upload/download at 9600 baud using

481 Expansion Interface Card Provides one LX-Bus for connecting up to 100 zone and output expansion modules. 472 Wireless Interface Card Provides one LX-Bus for connecting up to 200 wireless or hardwired zone expansion modules.

Zone and Output Expansion Modules

710/710F Bus Splitter/Repeater Allows you to increase keypad or LX-Bus™ wiring distance to 2500 feet. Model 710F is for 24 VDC

711/711E Single Point Zone Expanders Provides one Class B zone for connecting burglary devices. 714, 714-8, 714-16 Zone Expanders Provides Class B zones for connecting burglary and non-powered Þ re devices. 712-8 Zone Expander Provides Class B zones for connecting burglary devices. 715, 715-8, 715-16 Zone Expanders Provides 12 VDC Class B powered zones for connecting smoke detectors, glassbreak detectors, and other

725 Zone Expanders Provides 24 VDC Class B powered zones for connecting smoke detectors, glassbreak detectors, and other

716 Output Expander Provides four Form C relays (SPDT) and four switched grounds (open collector) for use in a variety of

717 Graphic Annunciator Module Provides 20 zone following annunciator outputs (open collector) for use in a variety of remote annunciation

Indicating and Initiating Devices

865 Supervised Style Y or Z NotiÞ cation Circuit Module

866 NotiÞ cation Circuit Module Provides supervised alarm current using the XR500/XR500N panel bell output and up to 5 Amps at 12 or

867 Style W LX-Bus NotiÞ cation Circuit Module

869 Dual Style D Initiating Module Provides two Style D, 4-wire initiating zones for connecting waterß ow switches and other non-powered Þ re

Accessory Modules and Keypads

893A Dual Phone Line Module Allows you to supervise two standard phone lines connected to an XR500/XR500N panel. The 893A module

* ePAD™ Virtual Keypads Allows users to control the security system from any computer in the world using the Internet. iCOM™ Internet Alarm Router Allows the XR500 panel to send signals through the Internet/Ethernet. iCOM-E™ High-Security Internet Alarm

Router

Security Command LCD keypads Allows you to control the panel from various remote locations. Connect up to sixteen supervised Model 690,

Addressable Smoke Detectors

521LX SLRLX

* These devices have not been investigated by UL and shall not be used in UL installations.

expansion mother board that plugs into the panel J6 Interface Connector and is required when using two or more Interface Cards. Use combinations of Interface Cards for expanding zones, network interfacing, local printing, and connecting wireless devices. Requires Model 350, or 350A Enclosure.

capability in place of standard dial out telephone lines. The 462N also provides an LX-Bus™ for connecting zone and output expansion modules to the panel. The 462N is listed for Grade AA Burglary communication and supplementary signaling.

event recording. The 462P also provides an LX-Bus™ for connecting zone and output expansion modules.

a standard Hayes compatible modem. The card shares the phone line with the panel and provides 100 LXBus zones and/or outputs.

applications.

2- or 4-wire devices.

2- or 4-wire devices. Requires 710F Bus Splitter/Repeater.

remote annunciation and control applications.

and control applications for use on the keypad bus only.

Provides supervised alarm current when using the XR500/XR500N panel bell output and up to 5 Amps at 12 or 24 VDC when using a listed auxiliary power supply. The 865 can supervise 2-wire Style Y or Z circuits for ground faults, opens, shorts, and shorts with individual LED annunciation.

24 VDC when using a listed auxiliary power supply. The 866 can supervise Style W circuits for opens and shorts.

Provides supervised alarm current using the XR500/XR500N panel bell output and up to 5 Amps at 12 or 24 VDC when using a listed auxiliary power supply. The 867 connects to the XR500/XR500N panel LX-Bus™ and provides one 2-wire Style W notiÞ cation circuit for ground fault, open, and short conditions. Individual Bell Relay addresses Bell Ring styles.

and burglary devices.

monitors the main and backup phone lines for a sustained voltage drop and alerts users when the phone line is bad.

Allow the XR500 panel to send encrypted signals through the Internet/Ethernet. For use when the Advanced Encryption Standard (AES) Rijndael Encryption Algorithm is required. The iCOM-E is NIST certiÞ ed.

790, 791, or 793 Security Command® keypads to the keypad bus using terminals 7, 8, 9, and 10.

Single-zone, addressable module conventional smoke/smoke heat detectors that connect to the LX-Bus. Includes remote maintenance reporting, drift compensation, and multi-criteria detection.

XR500/XR500N Installation Guide Digital Monitoring Products

INTRODUCTION

3.5 NotiÞ cation Appliances

The following table indicates the approved notiÞ cation appliances that can be used with the XR500/XR500N system.

DMP Part Number Description Wheelock Model No. 12V

801 Mini Horn MIZ-12 x

802 Multi-tone Horn MT-12/24 x

803 Standard Horn NH-12/24 x

806-6 Bell, 6 inch MB-G6-12 x

806-10 Bell, 10 inch MB-G10-12 x

821 Strobe, 15/75 candela RSS-121575W-F x

822 Strobe, w/retroÞ t plate RSSP-121575W-F x

823 Horn Strobe, 15/75 candela NS-121575W-F x

831 Sync Module, Single circuit, SM-12/24-R x

832 Sync Module, Dual circuit DM-12/24-R x

Digital Monitoring Products XR500/XR500N Installation Guide

INSTALLATION

Installation

4.1 Mounting the Enclosure

The metal enclosure for the XR500/XR500N must be mounted in a secure, dry place to protect the panel from damage due to tampering or the elements. It is not necessary to remove the XR500/XR500N PCB when installing the enclosure. Below are the mounting hole locations for both the Model 350/350A Enclosures.

Enclosure Mounting Holes

Phone Line

Power LED

Link LED

J23

Power

LED

L X

Battery Start

+B BELL GND SMK GNDRED YEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9– Z10+Z10–AC –B GND GND GNDGND

1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199202122232425262728

Ethernet

J21

RS-232

Tamper

J22 LX-Bus

J10

PROG

XR500/XR500N

Command Processor™

Panel

OVC

Output 1 Output 2

J11

Out1 Out2

3 4 5 6

Outputs 3-6

K6 K7

Interface

Card Expansion Connector

J16

Reset

3-Hole

Pattern for

Accessory

Modules

Dual 1/2" and 3/4" Conduit Knockouts

Front and

Rear Tamper

Switches for 350A Attack

Resistant

Enclosure

Figure 3: XR500/XR500N in Model 350A Enclosure

4.2 Mounting Keypads and Zone Expansion Modules

Security Command® keypads have removable covers that allow you to easily mount the keypad to a wall or other ß at surface using the screw holes on each corner of the base. Before mounting the base, connect the keypad wire harness leads to the keypad cable from the panel and to any device wiring run to that location. Then attach the harness to the pin connector on the PC board, mount the base, and install the keypad cover making sure all of the keys extend through their respective holes.

For mounting keypads on solid walls, or for applications where conduit is required, use the Model 695 1-1/2” deep or the Model 696 1/2” deep backboxes.

The DMP 711, 711E, 712-8, 714, 715, 716, and 717 modules are each contained in molded plastic housings with removable covers. The base provides you with mounting holes for installing the unit to a wall, switch plate, or other surface.

XR500/XR500N Installation Guide Digital Monitoring Products

Battery Shelf holds up to three 7 Ah Batteries

INSTALLATION

4.3 Connecting LX-Bus and Keypad Bus Devices

Several factors determine the DMP LX-Bus™ and keypad bus performance characteristics: the wire length and gauge used, the number of devices connected, and the voltage at each device. When planning an LX-Bus™ and keypad bus installation, keep in mind the following information:

1. DMP recommends using 18 or 22-gauge unshielded wire for all keypad and LX-Bus circuits. Do not use twisted pair or shielded wire for LX-Bus and keypad bus data circuits.

2. On keypad bus circuits, to maintain auxiliary power integrity when using 22-gauge wire do not exceed 500 feet. When using 18-gauge wire do not exceed 1,000 feet. To increase the wire length or to add devices, install an additional power supply that is UL listed for Fire Protective Signaling, power limited, and regulated (12 VDC nominal) with battery backup. Note: Each panel allows a speciÞ c number of supervised keypads. Add additional keypads in the unsupervised mode. Refer to the panel installation guide for the speciÞ c number of supervised keypads allowed.

3. Maximum distance for any one bus circuit (length of wire) is 2,500 feet regardless of the wire gauge. This distance can be in the form of one long wire run or multiple branches with all wiring totaling no more than 2,500 feet. As wire distance from the panel increases, DC voltage on the wire decreases. Maximum number of LX-Bus devices per 2,500 feet circuit is 40.

For additional information refer to the 710 Installation Sheet (LT-0310) and or the LX-Bus/Keypad Bus Wiring Application Note (LT-2031).

Expansion Interface Cards (Models 481, 462N, 462P, 462FM, and 472)

The LX-Bus provided on these cards requires only a 4-wire cable between the card and any devices connected to the bus. You can connect devices (zone or output expansion modules) together on the same cable or provide separate runs back to the card. Each LX-Bus provides up to 100 zones or outputs.

Note: Do not use twisted pair or shielded wire when connecting an LX-Bus or keypad bus.

Primary Power Supply

5.1 AC Terminals 1 and 2

Connect the transformer wires to terminals 1 and 2 on the panel. Use no more than 70 ft. of 16 gauge or 40 ft. of 18 gauge wire between the transformer and the XR500/XR500N.

5.2 Transformer Types

Use Model 327 (16.5 VAC 50 VA) plug-in or Model 322 (16 VAC 56 VA) wire-in transformer. Use Model 322 (16 VAC 56 VA) wire-in transformer when required by the Authority Having Jurisdiction (AHJ).

The transformer must be connected to an unswitched 120 VAC 60 Hz electrical outlet with at least 350mA of available current. Never share the transformer output with any other equipment.

Digital Monitoring Products XR500/XR500N Installation Guide

INSTALLATION

Secondary Power Supply

6.1 Battery Terminals 3 and 4

Connect the black battery lead to the negative battery terminal. The negative terminal connects to the enclosure ground internally through the XR500/XR500N circuit board. Connect the red battery lead to the positive terminal of the battery. Observe polarity when connecting the battery.

You can add a second battery in parallel using the DMP Model 318 Dual Battery Harness.

For UL installations, all batteries shall be installed in a DMP Model 350 enclosure and all wiring shall run through conduit. The enclosure shall be installed to the left of the XR500/XR500N enclosure to ensure Battery and AC wire separation.

Use sealed lead-acid batteries only: Use the DMP Model 365 (12 VDC 9 Ah), DMP Model 367 (12 VDC

7.7 Ah), Model 366 (12 VDC 18 Ah), Model 368 (12 VDC 4.5 Ah), or Model 369 (12 VDC 7 Ah) sealed leadacid rechargeable battery. Batteries supplied by DMP have been tested to ensure proper charging with DMP products.

GEL CELL BATTERIES CANNOT BE USED WITH THE XR500/XR500N PANEL.

6.2 Earth Ground

To provide proper transient suppression, XR500/XR500N panel terminal 4 must be connected to earth ground using 14 gauge or larger wire. DMP recommends connecting to a cold water pipe, ground rod, or building ground only. Do not connect to an electrical ground or conduit, sprinkler or gas pipes, or to a telephone company ground.

6.3 Battery Only Restart

When powering up the XR500/XR500N panel without AC power, brieß y short across the battery start pads to pull in the battery cutoff relay. The leads need a momentary short only. Once the relay has pulled in, the battery voltage holds it in that condition. If the XR500/XR500N panel is powered up with an AC transformer, the battery cutoff relay is pulled in automatically. For more information refer to Figure 2.

6.4 Battery Replacement Period

DMP recommends replacing the battery every 3 to 5 years under normal use.

6.5 Discharge/Recharge

The XR500/XR500N battery charging circuit ß oat charges at 13.9 VDC at a maximum current of 1.0 Amps using a 50 VA or 56 VA transformer. Listed below are the various battery voltage level conditions:

Battery Trouble: Below 11.9 VDC Battery Cutoff: Below 10.2 VDC Battery Restored: Above 12.6 VDC

6.6 Battery Supervision

The XR500/XR500N tests the battery when AC power is present. The test is done every three minutes and lasts for Þ ve seconds. During the test, the panel places a load on the battery; if the battery voltage falls below 11.9 VDC a low battery is detected. If AC power is not present, a low battery is detected any time the battery voltage falls below 11.9 VDC.

If a low battery is detected with AC power present, the test repeats every two minutes until the battery charges above 12.6 VDC indicating the battery has restored voltage. If a weak battery is replaced with a fully charged battery, the restored battery will not be detected until the next two minute test is completed.

6.7 Battery Cutoff

The panel disconnects the battery any time the battery voltage drops below 10.2 VDC. This prevents battery deep discharge damage.

6.8 XR500/XR500N Power Requirements

During AC power failure, the XR500/XR500N panel and all auxiliary devices connected to the XR500/XR500N draw their power from the battery. All devices must be taken into consideration when calculating the battery standby capacity. On the following page is a list of the XR500/XR500N panel power requirements. You must add the additional current draw of Security Command® keypads, zone expansion modules, smoke detector output, and any other auxiliary devices used in the system for the total current required. The total is then multiplied by the number of standby hours required to calculate the total ampere-hours required.

XR500/XR500N Installation Guide Digital Monitoring Products

INSTALLATION

Standby Battery Power Calculations Standby Current Alarm Current

XR500/XR500N Control Panel

Relay Outputs 1-2 (ON) Switch Grounds 3-6 (ON) Active Zones 1-8 Active Zones 9-10 2-Wire Smoke Detectors

Panel Bell Output 893A Dual Phone Line Module Qty ______x 12mA ______ Qty ______x 50mA ______ 461 Interface Adaptor Card 7mA ______ 7mA ______ 462N Network Interface Card Qty ______x 50mA ______ Qty ______x 50mA ______ 462P Printer Interface Card Qty ______x 50mA ______ Qty ______x 50mA ______ 462FM 9600 Baud Modem Qty ______x 265mA ______ Qty ______x 265mA ______ 481 Expansion Interface Card Qty ______x 15mA ______ Qty ______x 15mA ______ 472 Wireless Interface Card Qty ______x 85mA ______ Qty ______x 85mA ______ 865 Style Y or Z NotiÞ cation Module Qty ______x 26mA ______ Qty ______x 85mA ______ 866 Style W NotiÞ cation Module Qty ______x 45mA ______ Qty ______x 75mA ______ 867 LX-Bus Style W NotiÞ cation Module Qty ______x 30mA ______ Qty ______x 85mA ______ 630F Remote Fire Command Center Qty ______x 60mA ______ Qty ______x 90mA ______ 690 Security Command Keypad

Annunciator (ON) 790 Easy Entry Keypad

Active Zones (EOL Installed)

Annunciator (ON) 791 Easy Entry Keypad

Active Zones (EOL Installed)

Annunciator (ON) 793 Easy Entry Keypad

Active Zones (EOL Installed)

Annunciator (ON) 733 Wiegand Interface Module

Active Zones (EOL Installed)

Annunciator (ON) 736P POPIT Interface Module

Radionics Popex, POPITs, OctoPOPITs 738A Ademco Wireless Interface Module Qty ______x 75mA ______ Qty ______x 75mA ______ 740, 741, 743 SC Keypads

Active Zones (EOL Installed)

Annunciator (ON) 710 Bus Splitter/Repeater Module Qty ______x 30mA ______ Qty ______x 30mA ______ 710F Fire Bus Splitter/Repeater Module Qty ______x 40mA ______ Qty ______x 40mA ______ 711, 711E, 714 Zone Expansion Modules

Active Zones (EOL Installed) 712-8 Zone Expansion Module

Active Zones (EOL Installed) 714-8, 714-16 Zone Expansion Module

Active Zones (EOL Installed) 715 Zone Expansion Module

Active Zones (EOL Installed)

2-Wire Smokes 715-8, 715-16 Zone Expansion Modules

Active Zones (EOL Installed)

2-Wire Smokes 716 Output Expansion Module

Active Form C Relays 717 Graphic Annunciator Module

Annunciator Outputs 521LX, 521LXT Smoke Detectors Qty ______x 8.8mA ______ Qty ______x *28mA ______ iCOM, iCOM-E Internet Alarm Routers 78.1mA ______ Aux. Powered Devices on Terminals 7 and 11

Other than Keypads and LX-Bus Modules

*Based on 10% of active zones in alarm

Total Standby______mA x number of Standby Hours needed

Qty ___ 1 Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x

Qty ______x 77mA ______ Qty ______x 84mA

Qty ______x 77mA

Qty ______x Qty ______x

Qty ______x 92mA

Qty ______x Qty ______x

Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x 7mA ______ Qty ______x

Qty ______x 10mA ______ Qty ______x

180mA

1.6mA

0.1mA

1.6mA

___mA

1.6mA

Total Standby

Total Alarm

__180_mA

30mA

______

5mA

______ ______

4mA

______ ______

77mA

______ ______

30mA

______ ______

25mA

______ ______

50mA

______ ______

7mA

______ ______

19mA

______ ______

20mA

______ ______

7mA

______

4mA

______

.1mA

______

20mA

______

4mA

______

.1mA

______

______mA ______mA

______mA ______ = ______mA +

Qty ____1_x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x

Qty ______x 84mA

Qty ______x Qty ______x Qty ______x Qty ______x 120mA

Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x

Qty ______x Qty ______x Qty ______x

Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x Qty ______x

Qty ______x

________mA-hours ________mA-hours

Total

________mA-hours X .001 = ________Amp-hrs

80mA 30mA

*2mA 30mA

0.1mA

1500mA

20mA

*2mA 20mA 84mA *2mA 20mA

*2mA 20mA 30mA *2mA 20mA 25mA

___mA

100mA

*2mA 20mA

*2mA 19mA *2mA 20mA *2mA

*30mA

.1mA

20mA

*30mA

.1mA

28mA 10mA

Total Alarm

5mA

7mA

1mA

__180_mA ______ ______ ______ ______ ______ ______mA

______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______

______ ______ ______

______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______ ______

______mA

Required

Refer to section 6.9 for standby battery selection.

Digital Monitoring Products XR500/XR500N Installation Guide

6.9 Standby Battery Selection

To choose the type and number of batteries needed for 24, 60, or 72 hours of standby power based on the Amp Hours Required calculation from section 6.8 XR500/XR500N Power Requirements, perform the following:

1. Select the desired standby hours required from the table below: 24, 60, or 72 hours

2. Select the desired battery size: Model 368 (12 VDC 4.5 Ah), Model 369 (12 VDC 7 Ah), Model 367 (12 VDC 7.7 Ah), Model 365 (12 VDC 9 Ah), Model 366 (12 VDC 18 Ah).

3. Select a Max. Ah Available number that is just greater than the number calculated as the Amp Hours Required.

4. Install the number of batteries shown in the corresponding No. of Batteries required column.

Example: If the Amp Hours Required calculation equals 22 Ah for 24 hours of standby time and 4.5 Ah batteries are desired, install six (6) Model 368 (12 VDC, 4.5 Ah) batteries.

24 hours of standby power

4.5 Ah Batteries 7 Ah Batteries 7.7 Ah Batteries 9 Ah Batteries 18 Ah Batteries

Max. Ah

Available

82 61 61 81 161 12 3 12 2 13 2 16 2 32 2 16 4 18 3 20 3 24 3 48 3 20 5 24 4 27 4 32 4 24 6 31 5 34 5 40 5 28 7 37 6 41 6 32 8 43 7 36 9 40 10

60 hours of standby power

7 Ah Batteries 7.7 Ah Batteries 9 Ah Batteries 18 Ah Batteries

Max. Ah

Available

13 2 14 2 17 2 17 1 20 3 22 3 26 3 34 2 27 4 29 4 34 4 52 3 33 5 37 5 43 5 69 4 40 6 44 6 52 6 47 7 52 7 61 7 54 8 59 8 69 8 60 9 67 9 67 10

72 hours of standby power

9 Ah Batteries 18 Ah Batteries

Max. Ah

Available

16 2 16 1 25 3 33 2 33 4 50 3 42 5 67 4 50 6 59 7 67 8

Note: If the Amp Hours Required calculation is greater than any Max. Ah Available number shown on a table, then add power supply(s) to power some system devices allowing the Amp Hours Required calculation to be reduced.

XR500/XR500N Installation Guide Digital Monitoring Products

No. of

Batteries

No. of

Batteries

No. of

Batteries

Max. Ah

Available

Max. Ah

Available

Max. Ah

Available

No. of

Batteries

No. of

Batteries

No. of

Batteries

Max. Ah

Available

Max. Ah

Available

No. of

Batteries

No. of

Batteries

INSTALLATION

Max. Ah

Available

Max. Ah

Available

No. of

Batteries

No. of

Batteries

Max. Ah

Available

No. of

Batteries

INSTALLATION

Bell Output

7.1 Terminals 5 and 6

Terminal 5 supplies positive 12 VDC to power alarm bells or horns. This output can be steady, pulsed, or temporal depending upon the Bell Action speciÞ ed in Output Options. Terminal 6 is the ground reference for the bell circuit. This supervised output requires a listed 10k EOL resistor (DMP Model 308) to complete the circuit. The listed 10k EOL resistor (DMP Model 308) is supplied with the XR500/XR500N panel.

Keypad Bus

8.1 Description

XR500/XR500N panel terminals 7, 8, 9, and 10 are for the keypad bus. You can connect up to sixteen supervised keypads and multiple unsupervised keypads to the XR500/XR500N. In addition to Security Command keypads, you can also connect any combination of zone expansion modules to the data bus. Refer to the speciÞ c device Installation sheet for the maximum number of keypad Bus devices.

Refer to the section titled LX-Bus for complete information about the LX-Bus 4-pin header and expansion slot. Note: Do not use shielded wire for LX-Bus/Keypad Bus circuits.

8.2 Terminal 7 - RED

This terminal supplies positive 12 VDC to power Security Command® keypads and zone expansion modules. Terminal 7 also supplies power for any auxiliary device. The ground reference for terminal 7 is terminal 10.

The output current is shared with the smoke power output on terminal 11 and Zones 9 and 10. Current draw for all connected devices must not exceed the panel maximum current rating.

8.3 Terminal 8 - YELLOW

Terminal 8 receives data from keypads and zone expansion modules. It cannot be used for any other purpose.

8.4 Terminal 9 - GREEN

Terminal 9 transmits data to keypads and zone expansion modules. It cannot be used for any other purpose.

8.5 Terminal 10 - BLACK

Terminal 10 is the ground reference for Security Command keypads, zone expansion modules, and all auxiliary devices being powered by terminal 7.

8.6 J8 Programming Connection

A 4-pin header (J8) is provided to connect a keypad when using a DMP Model 330 Programming Cable. This provides a quick and easy connection for panel programming.

You may also use the J8 Programming Header to connect Keypad Bus devices. This is an alternative to connecting keypad bus devices to terminals 7, 8, 9, and 10.

8.7 OVC LED

The Overcurrent LED (OVC) lights Red when the devices connected to the Keypad Bus and LX-Bus(es) draw more current than the panel is rated for. The OVC is located above Outputs 1 and 2 on the panel and turns a steady Red when lit. When the OVC LED lights Red, the LX-Bus(es) and Keypad bus are shut down.

Smoke and Glassbreak Detector Output

9.1 Terminals 11 and 12

Terminal 11 supplies positive 12 VDC to power 4-wire smoke detectors and other powered devices. This output can be turned off by the user for 5 seconds using the Sensor Reset User Menu option to allow latched devices to reset. Terminal 12 is the ground reference for terminal 11. See LT-0164 for a list of approved 4-wire smoke detectors and power supervision relays.

9.2 Current Rating

The Output current from terminal 11 is shared with terminals 7, 25, and 27. The total current draw of all devices powered from the panel must be included with terminal 11

calculations and must not exceed the maximum output rating.

Digital Monitoring Products XR500/XR500N Installation Guide

INSTALLATION

Protection Zones

10.1 Terminals 13–24

Zones 1 to 8 (terminals 13 to 24) on the XR500/XR500N panel are all grounded burglary zones. For programming purposes, the zone numbers are 1 through 8. Listed below are terminal 13 to 24 connection functions.

Terminal Function Terminal Function

13 Zone 1 voltage sensing 19 Zone 5 voltage sensing 14 Ground for Zones 1 and 2 20 Ground for Zones 5 and 6 15 Zone 2 voltage sensing 21 Zone 6 voltage sensing 16 Zone 3 voltage sensing 22 Zone 7 voltage sensing 17 Ground for Zones 3 and 4 23 Ground for Zones 7 and 8 18 Zone 4 voltage sensing 24 Zone 8 voltage sensing

The voltage sensing terminal measures the voltage through a 1k Ohm End-of-Line resistor to ground. Use DMP Model 311 1k Ohm resistors. Dry contact sensing devices can be used in series (normally-closed) or in parallel (normallyopen) with any of the burglary protection zones.

1K Ohm Normally

Closed

1K Ohm

Normally Open

1K Ohm

Combination Normally Open

and Normally Closed

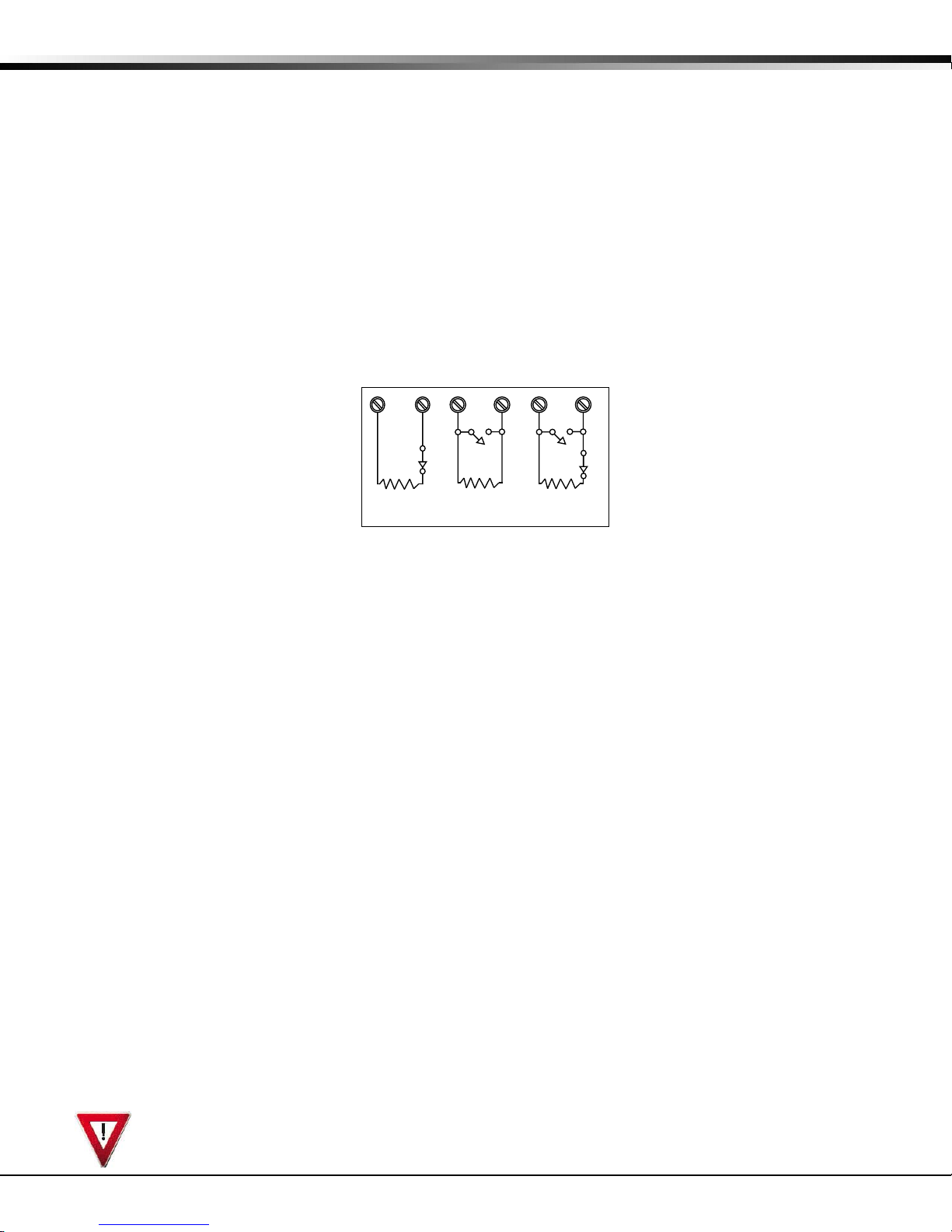

Figure 4: Protection Zone Wiring

10.2 Operational Parameters

Each protection zone detects three conditions: Open, Normal, and Short. Listed below are voltage and resistance parameters for each condition:

Condition Resistance on zone Voltage on positive terminal

Open over 1300 ohms over 2.0 VDC Normal 600 to 1300 ohms 1.2 to 2.0 VDC Short under 600 ohms under 1.2 VDC

10.3 Zone Response Time

A condition must be present on a zone for 500 milliseconds before it is detected by the XR500/XR500N panel. Ensure detection devices used on the protec tion zones are rated for use with this delay. Zones 1-10 can also be programmed for a fast response delay of 160 milliseconds.

10.4 Keyswitch Arming Zone

Using a keyswitch on an Arming type zone allows you to arm and disarm selected areas without having to enter a user code.

Powered Zones for 2-Wire Smoke Detectors

11.1 Terminals 25–26 and 27–28

Panel terminals 25 through 28 provide two resettable Class B, Style A, 2-wire powered zones. For programming purposes the zone numbers are 9 and 10.

Note: The maximum wire length for either zone 9 or zone 10 is 3000 feet using 18 AWG or 1000 feet using 22 AWG.

When using 725 Zone Expansion Modules, use UL Listed Model 316 EOL resistors. The UL compatibility identiÞ er for the zones using 725 Zone Expansion Modules is B. When using all other zone expansion modules, use UL Listed Model 309 EOL resistors. The UL compatibility identiÞ er for the zones is A.

Note: Do not mix detectors from different manufacturers on the same zone.

Caution: Performing a Sensor Reset momentarily drops power to the devices on Zones 9 and 10. The panel views these zones (9 and 10) as “Open” while the power is absent.

XR500/XR500N Installation Guide Digital Monitoring Products

INSTALLATION

11.2 Compatible 2-Wire Smoke Detector Chart

Manufacturer Model Detector

Detection Systems DS230, DS230F B/A MB2W, MB2WL A 8.5-33 10 725

Detection Systems DS250, DS250TH B MB2W, MB2WL A 8.5-33 10/12

Detection Systems DS250HD B MB2W, MB2WL A 8.5-33 10

Detection Systems DS260 B/A MB2W, MB2WL A 8.5-33 17 725

DS282, DS282TH,

Detection Systems

DMP/Hochiki SLR-835 HD-3 NS6-100 HB-55 8-35 7/14 725 DMP/Hochiki SLR-835B HD-6 N/A 8-35 7/14 725

Hochiki

Hochiki SLR-24, SLR-24H HD-3 NS4-220 HB-3 15-33 15 725

Hochiki

Hochiki SLR-24, SLR-24H HD-3 NS6-220 HB-3 15-33 15 725 Hochiki SIJ-24 HD-3 NS6-220 HB-3 15-33 20 725 Hochiki DCD-190, DCD-135 HD-3 NS6-220 HB-3 15-33 16 725

Sentrol/ESL

Sentrol/ESL 731U, 723U S11A

System Sensor 1400 A 8.5-35 10

System Sensor 1151, 2151 A B110PL, B401 8.5-35 10/10

System Sensor 1451, 2451TH A B401, B401B 8.5-35 10

System Sensor 1451DH A DH400 8.5-35 10

System Sensor

System Sensor 2451 A

System Sensor 2W-B, 2WT-B A 8.5-35 10

System Sensor DH100P, DH100LP A 8.5-35 10

DS282THC,

DS282THS

SLR-835B-2

SLR-835BH-2

SIJ-24, DCD-190,

DCD-135

429AT, 521B,

521BXT, 521NB,

521NBXT

429C, 429CT,

521B/BXT

429CRT, 429CST,

429CSST, 521CRXT

711U, 712U, 713-

5U, 713-6U, 721U,

721UT

2100T, 2100B,

2100TB, 2100D,

2100TD

2400, 2400AT,

2400AIT, 2400TH

B 8.5-33 10/12

HD-6 N/A 8-35 14 725

HD-3 NS4-220 HB-3 15-33 15 725

S09A 6.5-20 12

S10A 8.5-33 12 725

S11A 8.5-33 12 725

S10A

A 8.5-35 10

Base Base IDDC

701E, 70-1U,

702E, 702U

701E, 701U, 702E, 702U,

702RE, 702RU

B401, B401B,

DH400

S00 8.5-33 12 725

Voltage

Range

8.5-35 10

Detectors

(12V/24V)

# of

Zone

Expansion

Modules

715, 715-8,

715-16, 725

715, 715-8,

715-16

715, 715-8,

715-16, 725

715, 715-8,

715-16

715, 715-8,

715-16

715, 715-8,

715-16, 725

715, 715-8,

715-16

715, 715-8,

715-16

715, 715-8,

715-16

715, 715-8,

715-16

715, 715-8,

715-16

715, 715-8,

715-16

715, 715-8,

715-16, 725

Figure 5: Compatible 2-Wire Smoke Detectors

Panel

Zones

9 & 10

Digital Monitoring Products XR500/XR500N Installation Guide

INSTALLATION

Dry Contact Relay Outputs

12.1 Description

The XR500/XR500N panel provides two auxiliary SPDT relays when equipped with two DMP Model 305 relays in sockets K6 (Output 1) and K7 (Output 2) and a Model 431 Output Harness on the J2 6-pin Header. Each relay provides one SPDT set of contacts that can be operated by any of the functions listed below:

1) Activation by zone condition: Steady, Pulsing, Momentary, and Follow

2) Activation by 24-hour 7-day schedule: One on and one off time a day for each relay

3) Manual activation from the Security Command keypad menu

4) Communication failure

5) Armed area annunciation 9) System Ready

6) Fire Alarm or Fire Trouble 10) Ground start activation

7) Ambush Alarm 11) Cellular Backup

8) Exit and Entry timers 12) Late to Close

Refer to the XR500/XR500N Programming Guide (LT-0679) for speciÞ c information.

12.2 Contact Rating

The Model 305 relay contacts are rated for 1 Amp at 30 VDC resistive. You can connect auxiliary power to the Relay Output 1 common terminal by installing the gray harness wire to terminal 7. Current draw for all connected devices must not exceed the panel maximum current rating.

12.3 Model 431 Output Harness Wiring

The relay contacts are accessible by installing the DMP 431 Output Harness on the 6-pin header labeled J2. Output 2 uses the top three prongs, and output 1 uses the bottom three prongs. The wire harness and contact locations are shown below:

Contact Color

Output 1 normally closed Violet Output 1 common Gray Output 1 normally open Orange Output 2 normally closed Violet with white stripe Output 2 common White with gray stripe Output 2 normally open Orange with white stripe

The relay contacts must be connected to devices located within the same room as the XR500/XR500N panel.

13.1 Description

The four annunciator outputs can be programmed to indicate the activity of the panel zones or conditions occurring on the system. Annunciator outputs do not provide a voltage but instead switch-to-ground a voltage from another source. The outputs can respond to any of the conditions listed in section 12.1 above.

13.2 Model 300 Harness Wiring

Access the open collector outputs by installing DMP 300 Harness on the 4-pin header labeled J11. The output locations are shown below. For UL applications, devices connected to the outputs must be located within the same room as the panel.

Output Color Wire Output Color Wire

3 Red 1 5 Green 3 4 Yellow 2 6 Black 4

13.3 Model 860 Relay Module

Connect a Model 860 Relay Module to the J11 on the XR500/XR500N panel to provide relays for outputs 3-6. Use these relays for electrical isolation between the alarm panel and other systems or for switching voltage to control various functions. Power is supplied to the relay coils from a single wire connected to the panel auxiliary power terminal 7. The module includes one relay and provides three additional sockets for expansion of up to four relays. Mount the 860 inside the panel enclosure using the 3-hole pattern and plastic standoffs. Refer to the 860 Module Install Sheet (LT-0484) as needed.

Relay Contact Rating: 1 Amp at 30 VDC

XR500/XR500N Installation Guide Digital Monitoring Products

Annunciator Outputs

INSTALLATION

J23 6-Pin Header

14.1 Description

The XR500/XR500N Command Processor™ panel supports RS-232, LX-Bus and future expansion operation. These operations cannot function at the same time. Install a jumper on one pair of J23 headers to indicate how the panel is programmed to operate. Refer to the table below when installing a jumper on J23.

J23 6-Pin Header

Letter Operation

R Standard RS-232 L LX-Bus

J23

R L X

J21

RS-232

J22 LX-Bus

LEDs Xmit Receive

Overcurrent

LED

X Future Expansion

Figure 5: J23 6-Pin Header

J22 LX-Bus Expansion Connector

15.1 Description

The XR500/XR500N Command Processor™ Panel supports up to Þ ve LX-Bus circuits. Each LX-Bus circuit provides 100 additional zones. The maximum number of LX-Bus zones available on a fully populated panel is 500. Use J22 LX-Bus Header for 100 zones. Install a single Interface Card Connector on the board to increase to 200 zones. To install up to Þ ve Interface Cards install a Model 461 Interface Adaptor Card.

15.2 J22 LX-Bus Header

Note: J22 LX-Bus and J21 RS-232 connectors cannot be used at the same time. Either use J21 to connect a serial device for Host Log Reporting, or use J22 to connect an LX-Bus device. This is determined by where you install the jumper on J23 6-Pin Header.

To enable J22 to operate as an LX-Bus, place a jumper on the two pins next to the letter “L” on the J23 6-Pin header. When using J22 as an LX-Bus, connect a DMP Model 300 4-wire Harness to the J22 4-pin header labeled LX-BUS. This provides the Þ rst 100 LX-Bus zones numbered 500-599. No LX-Bus Interface Card is required. Respect wire colors when connecting devices and use all four wires.

Note: Do NOT use shielded wire when using the LX-Bus. Do NOT connect the wires from the 4-wire harness to the panel terminals.

15.3 LX-Bus Interface Cards

You can add one Interface Card (Model 481, 462N, 462P, 462FM, and 472) to the XR500/XR500N using J6 Interface Card Connector located on the board right edge. To add more than one Interface Card install a 461 Interface Adaptor Card using J6 Interface Card Connector on the board right edge. The 461 Adaptor Card allows you to install up to Þ ve Interface Cards. Refer to the 461 Installation Sheet (LT-0736). Each Interface card provides up to 100 LX- Bus Zones. Refer to the following tables to identify zone locations and numbers relative to J22 operation.

J22 LX-Bus Enabled

One Interface Card

LX-Bus Zones Numbers LX-Bus Zones Numbers LX-Bus Zones Numbers

1 100 500-599 2 100 600-699 2 (A) 100 600-699

One Interface Card

J22

LX-Bus

LX-Bus Zones Numbers LX-Bus Zones Numbers

1 100 500-599 1 (A) 100 500-599

NOT

Enabled

AND

461 Adaptor Card and

Multiple Interface Cards

2 (B) 100 600-699 3 (C) 100 700-799

4 (D) 100 800-899 5 (E) 100 900-999

461 Adaptor Card and

Multiple Interface Cards

3 (B) 100 700-799 4 (C) 100 800-899 5 (D) 100 900-999

Digital Monitoring Products XR500/XR500N Installation Guide

INSTALLATION

15.4 LX-Bus LEDs

The two LEDs, located near the bottom-right corner of J21 indicate data transmission and receipt. The top LED ﬂ ashes green to indicate the panel is transmitting LX-Bus data. The bottom LED ﬂ ashes yellow to indicate the panel is receiving LX-Bus data.

15.5 OVC LED

J21 Serial Connector

16.1 Description

Note: J22 LX-Bus and J21 RS-232 connectors cannot be used at the same time. Either use J21 to connect a serial device, or use J22 to connect an LX-Bus device. This is determined by where you install the jumper on the J23 6-Pin Header.

To enable J21 to operate in RS-232 mode place a jumper on the two pins next to the letter “R” on the J23 6-Pin header. The Serial Connector allows the following operation options.

XR500 Panel XR500N Panel

Host Log Reports Host Log Reports Remote Link™ Programming iCOM Installation for Host Log Reports

16.2 Serial Connector LEDs

The two LEDs, located near the bottom-right corner of J21 indicate data transmission and receipt. The top LED ﬂ ashes green to indicate the panel is transmitting serial data. The bottom LED ﬂ ashes yellow to indicate the panel is receiving serial data.

J1 Ethernet Connector (XR500N only)

17.1 Description

The J1 Ethernet Connector is available on the XR500N Network version to connect directly to an Ethernet network using a standard patch cable.

17.2 Ethernet LEDs

The two LEDs, located to the left of J1 Ethernet Connector, indicate network operation. The top, Activity LED ﬂ ashes green to indicate the network trafﬁ c is good. The bottom, Link LED ﬂ ashes yellow to indicate messages are being sent and received.

Activity LED

LED

Link LED

Figure 6: J1 Header and LEDs

Etherne

J3 Telephone RJ Connector

18.1 FCC Registration

The Model XR500/XR500N complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the outside of the enclosure of this equipment is a label that contains, among other information, a product identiﬁ er in the format US:CCKAL00BXR500. If requested this number must be provided to the telephone company.

A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. See installation instructions for details.

The Ringer Equivalence Number (REN) is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed ﬁ ve (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company.

If the XR500/XR500N causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to ﬁ le a complaint with the FCC if you believe it is necessary.

The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modiﬁ cations to maintain uninterrupted service.

XR500/XR500N Installation Guide Digital Monitoring Products

INSTALLATION

If trouble is experienced with the Model XR500/XR500N, for repair or warranty information, please contact DMP at the address and telephone number listed on the back of this document. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved.

If your premises has specially wired alarm equipment connected to the telephone line, ensure the installation of the XR500/XR500N does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualiÞ ed installer.

Caution: To ensure proper operation, this equipment must be installed according to the installation instructions in this manual. To verify that the equipment is operating properly and can successfully report an alarm, this equipment must be tested immediately after installation, and periodically thereafter, according to the test instructions in this document and the XR500/XR500N Programming Guide (LT-0679). Additionally, veriÞ cation of Line Seize capability should be made immediately after installation, and periodically thereafter, in order to ensure that this equipment can initiate a call even when other equipment (telephone, answering system, computer modem, etc.) connected to the same line is in use.

18.2 Description

Connect the panel to the public telephone network by installing a DMP 356 RJ Cable between the panel J3 connector and the RJ31X or RJ38X phone jack.

18.3 J10 893A Connector

Connect an 893A Dual Phone Line Module to J10 on the XR500/XR500N. Refer to the 893A Installation Sheet (LT-0135) for complete information.

18.4 NotiÞ cation

The user must not repair registered terminal equipment. In case of trouble, immediately unplug the device from the telephone jack. The factory warranty provides for repairs. Registered terminal equipment may not be used on party lines or in connection with coin telephones. No tify the telephone company with the following information:

a. The particular line(s) where the service is connected b. The FCC registration number as listed in Section 18.1 c. The ringer equivalence d. The device make, model, and serial number

18.5 Phone Line Monitor

The XR500/XR500N panel has a built-in telephone monitor that monitors the phone line voltage to verify the connection to the central ofÞ ce. Figure 5 and the table below identify the phone block pin layout, wire numbers, and colors.

Wire Number Wire Color

1 Gray 2 Orange 3 Black 4Red 5 Green 6 Yellow 7 Blue 8 Brown

The wires on the RJ31 that feed pins 4 and 5 should be the ONLY wires on the D-marc. All other house phone wiring should be tied to pins 1 and 8 coming back from the RJ31.

Dial tone must come into RJ31X on pins 4 and 5 and go back to house phones from pins 1 and 8. Follow these steps to determine if panel is seizing the line:

1. Unplug phone cord from RJ31X

2. Place butt-set on pins 4 and 5

3. Listen for dial tone. With dial tone present, lift either wire from pins 1 or 8

4. Listen for dial tone again. If the dial tone is present, RJ31X wiring is correct. If no dial tone is present, the RJ31X wiring is backwards. Rewire so dial tone is coming IN on 4 and 5.

If you still have trouble with the phone line, you may need to replace the RJ cord. If the dial tone is still not present, swap out the RJ31X phone block.

Digital Monitoring Products XR500/XR500N Installation Guide

To Telephone

Line

To Premise

Phone

Ring Tip

Ring 1

Tip 1

Figure 7: Phone Jack Wiring

RJ31X or RJ38X

Phone Block

INSTALLATION

Reset and Tamper Headers

19.1 J16 Reset Header

The reset header is located just above the terminal strip on the right side of the circuit board and is used to reset the XR500/XR500N microprocessor. To reset the panel when Þ rst installing the system, install the reset jumper before applying power to the panel. After connecting the AC and battery, remove the reset jumper.

To reset the panel while the system is operational, for example, prior to reprogramming, install the reset jumper without powering down the system. Remove the reset jumper after one or two seconds.

After resetting the panel, begin programming within 30 minutes. If you wait longer than 30 minutes, you must reset the panel again.

Phone Line

Power LED

Link LED

J23

Power

LED

L X

Battery Start

+B BELL GND SMK GNDRED YEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9– Z10+Z10–AC –B GND GND GNDGND

1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199202122232425262728

Ethernet

J21

RS-232

Tamper

J22 LX-Bus

J10

PROG

Output 1 Output 2

OVC

K6 K7

Out1 Out2

Momentarily place the Reset jumper over both of the J16 pins to reset the panel.

J11

3 4 5 6

Outputs 3-6

Interface

Card Expansion Connector

J16

Reset

Figure 8: XR500/XR500N Panel Showing the Reset Jumper

19.2 J4 Tamper Header

The J4 header is for use with the optional DMP 306 Tamper Harness. The harness connects to one or more tamper switches mounted inside the panel enclosure to supervise against unauthorized enclosure opening or removal. Refer to the wiring diagram on the enclosure door for correct tamper switch wiring.

How the Tamper Works

If the enclosure is opened or removed while one or more of the system areas are armed, a panel tamper alarm is indicated. If all areas are disarmed, a panel tamper trouble is indicated.

XR500/XR500N Installation Guide Digital Monitoring Products

COMPLIANCE

Universal UL Burglary SpeciÞ cations

20.1 Introduction

The programming and installation speciÞ cations contained in this section must be completed when installing the XR500/XR500N panel in accordance with any of the UL burglary standards. Additional speciÞ cations may be required by a particular standard.

20.2 Wiring

All wiring must be in accordance with NEC, ANSI/NFPA 70, UL 681, and UL 827 for all burglary installations. All transformer wires must be installed in conduit.

20.3 Control Outside of Protected Area

A Potter EVD or Sentrol 5402 should be used in place of a lined cabinet when the panel is installed outside of the protected area. Front and rear tamper switches are required. Refer to the system wiring diagram and Figure 2.

20.4 Police Station Phone Numbers

The digital dialer telephone number programmed for communication must not be a police station phone number.

20.5 Bypass Reports

The Bypass Reports option must be programmed as YES for all UL burglary applications. See the XR500/XR500N Programming Guide (LT-0679).

20.6 System Maintenance

To ensure continuous satisfactory operation of any alarm system, proper installation and regular maintenance by the installing alarm company and frequent testing by the end user is essential. Offering a maintenance program and acquainting the user with the correct procedures for system use and testing is also the responsibility of the installing alarm company.

20.7 UL Listed Receivers

UL has veriÞ ed operation with the DMP SCS-1 and SCS-1R, Sur-Gard SG-HLR2-DG, FBII CP220PB, Osborne-Hoffman Quick-Alert, and Radionics D6500 receivers. It is the installer’s responsibility to verify compatibility between the XR500/XR500N and the receiver used during installation. The installer shall verify the compatibility of the receiver and the system on a yearly basis.

20.8 Power Supply Supervision

For commercial burglary applications the power supply for all local bells shall be under 24-hour protection. Refer to section 6 in this document.

Digital Monitoring Products XR500/XR500N Installation Guide

COMPLIANCE

Area Information

21.1 Ownership

The control unit system shall be under one ownership.

21.2 Annunciation

The System shall be installed so that when arming any area from any keypad, the local bell shall annunciate.

21.3 Trouble Display

The Status List programming shall be set to annunciate all trouble messages at all keypads. See the XR500/XR500N Programming Guide (LT-0679).

21.4 Closing Wait

The Closing Wait option must be programmed YES. See the XR500/XR500N Programming Guide (LT-0679).

21.5 Local Bell Supervision

When a local bell is employed, the power supply for the bell shall be under 24-hour protection. Proper personnel for maintenance or security of the system shall be able to disarm that area.

UL 1023 SpeciÞ cations

Household Burglar-Alarm System Units

22.1 Audible Devices

At least one listed audible device (Ademco AB12M) rated to operate over the voltage rate of 11.7 VDC to 12.8 VDC and rated at 85 DB minimum must be used.

22.2 Auxiliary Circuits

At least one burglary alarm initiating device shall be used on the system. If the voltage for the device is applied by the control unit the burglary alarm initiating device shall be rated to operate over the range of 11.5 VDC to

12.7 VDC.

22.3 Bell Cutoff

The Bell Cutoff time cannot be less than Þ ve minutes. See the XR500/XR500N Programming Guide (LT-0679).

22.4 Entry Delay

The maximum entry delay used must not be more than 45 seconds. See the XR500/XR500N Programming Guide (LT-0679).

22.5 Exit Delay

The maximum exit delay used must not be more than 60 seconds. See the XR500/XR500N Programming Guide (LT-0679).

22.6 Weekly Test

The product should be tested weekly.

XR500/XR500N Installation Guide Digital Monitoring Products

COMPLIANCE

UL 1610 AND 1076 SpeciÞ cations

Central-Station and Proprietary Burglar-Alarm Units

23.1 Opening/Closing Reports

The Opening/Closing Reports option must be programmed as YES. See the XR500/XR500N Programming Guide (LT-0679).

23.2 Closing Wait

The Closing Wait option must be programmed YES. See the XR500/XR500N Programming Guide (LT-0679).

23.3 Entry Delay

The maximum entry delay used must not be more than 60 seconds when using the Model 350A Grade A Attack Resistant Housing. See the XR500/XR500N Programming Guide (LT-0679).

23.4 Exit Delay

The maximum exit delay used must not be more than 60 seconds. See the XR500/XR500N Programming Guide (LT-0679).

23.5 Proprietary Dialer

The Model XR500/XR500N provides Grade A proprietary service when conÞ gured as a digital dialer.

23.6 Grade B Central Station

Grade B Central Station service can be provided under by adding a Grade A Ademco AB12M bell and bell housing and placing the Model XR500/XR500N panel into the Model 350A Grade A Attack Resistant Housing.

23.7 Bell Cutoff

The Bell Cutoff time cannot be less than 15 minutes. See the XR500/XR500N Programming Guide (LT-0679).

23.8 AA Network Communication

The XR500/XR500N may be installed in a UL AA application when NET communication is used. The NET network check-in time must be set from 01 to 06 minutes or AA. This provides AA Central Station service. When a dialer is required for 06 minute check-in time, an attack resistant enclosure (DMP Model 350A) is required. When the checkin time is set to a number less than 200 seconds, an attack resistant enclosure is not required. See sections 3.2,

3.2.3, and 3.3 of the XR500/XR500N Programming Guide (LT-0679).

The Model XR500/XR500N Protected Premises Control Unit is suitable for Grade AA service when conÞ gured for NET communication with SCS-1/SCS-1R receiving system. This conÞ guration is approved for the following units:

AMCX - Central Station Alarm Units

APAW - Police Station Alarm Units APOU - Proprietary Alarm Units

UL 1635 SpeciÞ cations

Digital Burglar Alarm Communicator System Units

24.1 System Trouble Display

The Status List Display must include at least one keypad that displays system monitor troubles. See the XR500/ XR500N Programming Guide (LT-0679).

24.2 Digital Dialer Telephone Number

Both programmed telephone numbers must begin with a P. See the XR500/XR500N Programming Guide (LT-0679).

24.3 Test Time

The Test Time option must be programmed so that the XR500/XR500N sends a report once every 24 hours. See the XR500/XR500N Programming Guide (LT-0679).

24.4 Closing Wait

The Closing Wait option must be programmed YES. See the XR500/XR500N Programming Guide (LT-0679).

Digital Monitoring Products XR500/XR500N Installation Guide

COMPLIANCE

UL 365 SpeciÞ cations

Police Station Connected and Local Burglar Alarm Units and Systems

25.1 System Trouble Display

The Status List Display must include at least one keypad that displays system monitor troubles. See the XR500/ XR500N Programming Guide (LT-0679).

25.2 Entry Delay

The maximum entry delay used must not be more than 60 seconds when using the Model 350A Grade A housing. See the XR500/XR500N Programing Guide (LT-0679).

25.3 Exit Delay

The maximum exit delay used must not be more than 60 seconds. See the XR500/XR500N Programming Guide (LT-0679).

25.4 Grade A Bell

A Grade A local audible signal appliance must be used such as Ademco AB12M bell and bell housing.

25.5 Bell Cutoff

The Bell Cutoff time cannot be less than 15 minutes. See the XR500/XR500N Programming Guide (LT-0679).

25.6 Automatic Bell Test

The Automatic Bell Test option must be programmed as YES. See the XR500/XR500N Programming Guide (LT-0679).

25.7 Line Security for Police Connect

Basic line security is provided when the Model XR500/XR500N is conÞ gured as a dialer system.

25.8 High Line Security

High Line Security is provided when conÞ gured as a NET system using an XR500N panel or when using and XR500 panel with an iCOM™ Internet Alarm Router. The NET Check-in time must be set from 01 to 06 minutes or AA. When a dialer is required for 06 minute check-in time, an attack resistant enclosure (DMP Model 350A) is required. When the check-in time is set to a number less than 200 seconds, an attack resistant enclosure is not required. See sections 3.2, 3.2.1, and 3.3 of the XR500/XR500N Programming Guide (LT-0679).

To provide High Line Encrypted security, install an XR500 panel and an iCOM-E™ Encrypted Internet Alarm Router.

XR500/XR500N Installation Guide Digital Monitoring Products

COMPLIANCE

UL 609 SpeciÞ cations

Police Station Connected and Local Burglar Alarm Units and Systems

26.1 Grade A Mercantile

For Grade A Mercantile and Police Station Connect operation the Model XR500/XR500N must be mounted in a Grade A Attack Resistant Housing, (DMP Model 350A).

26.2 Entry Delay

The maximum entry delay used must not be more than 60 seconds when using the Model 350A Grade A housing. See the XR500/XR500N Programing Guide (LT-0679).

26.3 Exit Delay

The maximum exit delay used must not be more than 60 seconds. See the XR500/XR500N Programming Guide (LT-0679).

26.4 Mercantile Safe and Vault (XR500N only)

When the DMP Model 350A housing is used, the XR500N provides operation as a mercantile safe and vault alarm. Bell Supervision and wiring must be in accordance with UL 681. If the Model XR500N is mounted outside the safe or vault, tamper protection and the Sentrol Model 5402 or Potter EVD listed vibration detectors should be used.

26.5 Grade A Bell

A Grade A local audible signal appliance must be used such as Ademco AB12M bell and bell housing.

26.6 Bank Safe and Vault (XR500N only)

In addition to the requirements for Mercantile Safe and Vault in section 24.7, the following must be done for Bank Safe and Vault systems. The Bank Safe and Vault option must be programmed as YES. See the XR500/XR500N Programming Guide (LT-0679). The 72 hour battery standby must be provided. A Rothenbuhler Model 5110 High Security Bell must be used. See section 27.5 wiring diagram.

UL 294 SpeciÞ cations

27.1 Panel Designation

The XR500 and XR500N are designated stand alone units.

27.2 Compatible Devices

The following devices are compatible with the XR500 and XR500N panels.

Access Control

733 Wiegand Interface Module Proximity reader connector OP-08CB Motion Detector Infrared sensor.

* PB-2 REX Button Exit control push button

PP-6005B Proxpoint Plus® Reader Proximity reader MP-5365 Miniprox® Reader Slimline proximity reader PDR-5455 ProxPro® II Reader Long range reader with sounder MX-5375 Maxi-Prox™ Reader Long range reader compatible with 1351 Prox Pass

* This device has not been investigated by UL and shall not be used in UL installations.

Digital Monitoring Products XR500/XR500N Installation Guide

COMPLIANCE

Universal UL and NFPA Fire Alarm SpeciÞ cations

28.1 Introduction

The programming and installation speciÞ cations contained in this section must be completed when installing the Model XR500/XR500N in accordance with any of the UL or NFPA Þ re standards. Additional speciÞ cations may be required by a particular standard.

28.2 Wiring

All wiring must be in accordance with NEC, ANSI/NFPA 70.

28.3 Transformer

A wire-in trans former should be used. Use the Model 322 wire-in 16 VAC 56 VA transformer or Model 327 plug-in 16 VAC 50 VA transformer installed inside an ES501 Enclosure with all wiring in conduit. The transformer must be mounted within 20 feet of the panel and connected by conduit.

28.4 End-of-Line Resistor

The DMP Model 310 1K Ohm EOL resistor should be used on all 1K Ohm EOL Þ re zones.

28.5 System Trouble Display

The Status List Display must include at least one keypad that displays system monitor troubles. See the XR500/ XR500N Programming Guide (LT-0679).

28.6 Fire Display

The Status List Display must include at least one keypad that displays troubles and alarms on Þ re type zones. See the XR500/XR500N Programming Guide (LT-0679).

28.7 Police Station Phone Number

The digital dialer telephone number programmed for communication must not be a police station phone number, unless that phone number is speciÞ cally provided for that purpose.

28.8 System Maintenance

28.9 Audible Alarm

Fire Type zones should be programmed to activate an audible alarm. The Bell Action for Fire Type zones should not be programmed as “N”. See the XR500/XR500N Programming Guide (LT-0679).

28.10 Fire Zone Programming

If a retard delay is used on a waterß ow zone, it cannot exceed 90 seconds and any retard delay in the waterß ow initiating devices must be subtracted from the 90 seconds al lowed. See the XR500/XR500N Programming Guide (LT-0679). The retard delay should not be used on a zone with smoke detectors.

28.11 Style D Zones

If required, the DMP 869 Dual Style D Initiating Module provides for connection of two Style D zones to the Model XR500/XR500N. See the 869 Installation Guide (LT-0186) and sections 20.2 and 28.2 of this guide for wiring information.

28.12 Video Option

The Video option must be selected as NO when any Þ re protection is connected to the XR500/XR500N. See the XR500/XR500N Programming Guide (LT-0679).

28.13 UL Listed Receivers

Use the DMP SCS-1/SCS-1R (SDLC), Sur-Gard SG-HLR2-DG (CID), FBII CP220PB (CID), and Osborne-Hoffman Quick-Alert (CID) receivers.

XR500/XR500N Installation Guide Digital Monitoring Products

COMPLIANCE

UL 864 NFPA 72 (Chapter 9) SpeciÞ cations

Control Units for Fire-Protective Signaling Systems

29.1 Zone Restoral Reports

The Restoral Reports option must be selected as YES or Disarm. See the XR500/XR500N Programming Guide (LT-0679).

29.2 Power Fail Delay

The Power Fail Delay option must be selected as required by the service of the panel. For Central Station service: 6-12, for Remote Station service: 12-15. See the XR500/XR500N Programming Guide (LT-0679).

29.3 Sprinkler Supervisory

Any zone used for sprinkler supervisory must be programmed with “SPRINKLR XXX” as the zone name. The last three characters in the zone name may be assigned a number to identify the zone. The Model 893A Dual Phone Line Module must be used on all sprinkler supervisory systems.

29.4 DACT Systems

Two phone lines must be used. The two phone lines cannot be ground start or party lines. The 893A Dual Phone Line Module is used to provide two phone line connections to the system. The 2ND Phone Line communication option must be selected as DD. See the XR500/XR500N Programming Guide (LT-0679).

Two different phone numbers must be programmed for digital communication. See the XR500/XR500N Programming Guide (LT-0679). The Test Time option must be programmed so that the XR500/XR500N sends a report every 24 hours. See the XR500/XR500N Programming Guide (LT-0679).

29.5 Local Protective Signaling Systems

The DMP Model 865, 866, or 867 NotiÞ cation Circuit Module must be used on the bell circuit for detection of shorts and grounds. See sections 32.1 to 32.2 in this guide for wiring diagrams. Model 790 series keypads that are used to display troubles for local Þ re alarm systems must be installed within a DMP Model 777 with 777S 1.0” spacer. Any burglary or other off premises communication must be done with the Model 893A Dual Phone Line Module. For local commercial Þ re installations, the 893A is required.

29.6 Remote Station Protective Signaling Systems

You must provide 60 hours of standby battery. See section 6.9 in this guide for standby battery calculations. Two Radionics Model D127 Reversing Relay Modules provide two reversing polarity telephone connections. See the D127 Installation Instruction sheet for wiring details. A DMP Model 893A is used to provide two line dialer communication.

29.7 Fire Protective Signaling Systems using Internet/Intranet Networks

The XR500/XR500N Command Processor™ Panel must be programmed as described below for Fire Protective Signaling Systems using NET Communication Type or an iCOM™ Internet Alarm Router for communication. Refer to the iCOM™ Internet Alarm Router Installation Sheet (LT-0587) for more information.

• UL AA must be programmed as NO • RETRY TIME must be programmed as 1

• SUB CODE must be programmed as YES • FAIL TIME must be programmed as 1

• CHECKIN must be programmed as 1 • NET TRBL must be programmed as YES

Digital Monitoring Products XR500/XR500N Installation Guide

COMPLIANCE

UL 985 NFPA 72 (Chapter 2) SpeciÞ cations

Household Fire Warning System Units

30.1 Bell Output DeÞ nition

The Model XR500/XR500N panel Bell Output must be programmed to operate steady on burglary alarms and pulsed or temporal on Þ re alarms. See the XR500/XR500N Programming Guide (LT-0679).

30.2 Audible Devices

At least one listed audible device rated to operate over the voltage rate of 11.7 VDC to 12.8 VDC and rated at 85 DB minimum must be used.

30.3 Auxiliary Circuits

At least one Þ re alarm initiating device shall be used on the system. If the voltage for the device is applied by the control unit the Þ re alarm initiating device shall be rated to operate over the range of 11.5 VDC to

12.7 VDC.

30.4 Bell Cutoff

The Bell Cutoff time cannot be less than Þ ve minutes. See the XR500/XR500N Programming Guide (LT-0679).

California State Fire Marshal SpeciÞ cations

31.1 Bell Output DeÞ nition

The Model XR500/XR500N panel Bell Output must be programmed to operate steady on burglary alarms and pulsed, temporal, or California School Code on Þ re alarms. See the XR500/XR500N Programming Guide (LT-0679).

XR500/XR500N Installation Guide Digital Monitoring Products

WIRING DIAGRAMS

Wiring Diagrams

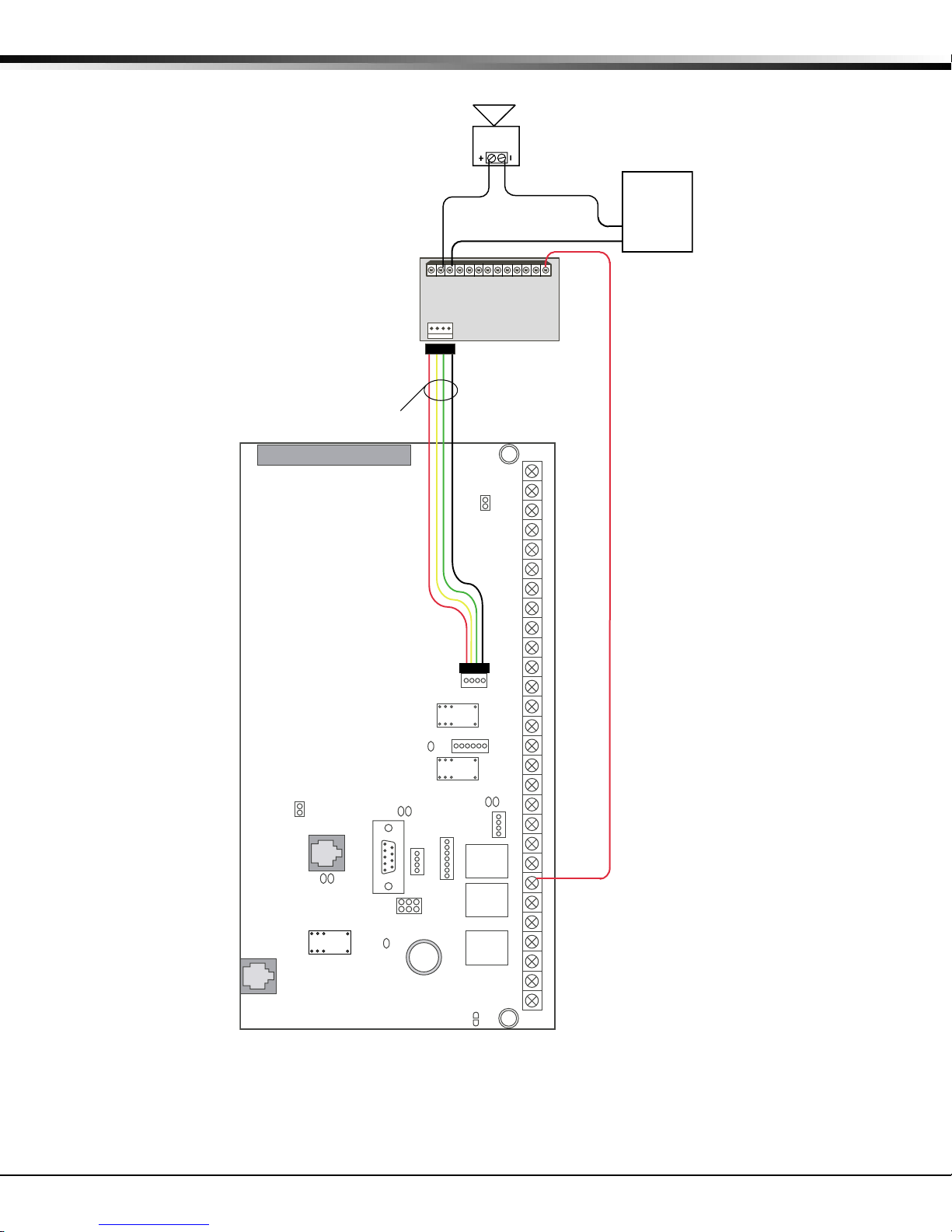

32.1 Multiple NotiÞ cation Circuit Modules

Card

Interface

Expansion

Connector

J16

Reset

Panel

XR500/XR500N

Command Processor™

Tamper

J21

J23

J22

RS-232

J10

J11

Battery

K6 K7

Start

S = Supervised Circuit

The Auxiliary Power Supply and

Notification Circuit Module trouble

contact zone must be programmed as

a Supervisory Type zone and must be

selected for display in the keypad

status list. See section 12.6 in the

Programming Guide (LT-0679).

Each 865 Notification Appliance

Circuit Module in alarm draws up to

59mA through its Terminal 3 Alarm

Input and 26mA from its Terminal 1

Aux Power Input.

+B BELL GND SMK GNDRED YEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9– Z10+Z10–AC –B GND GND GNDGND

1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199202122232425262728

UL Listed,

Polarized

Notification

Style Z

Appliances

Auxiliary Power Supply must be regulated, UL Listed for Fire Protective

Signaling Service. Power Supplies must have battery backup.

Note: If an auxiliary power supply is not used, terminals 3 and 4 can be

jumpered together to supply Bell Power from the XR500 panel.

UL Listed,

Polarized

Notification

Appliances

Module Installation

Optional Notification

10K EOL

Style W

DMP Model 308

Normal/Silence Switch

DMP Model 866

45mA @12 VDC

To additional 866 Notification Circuit Modules. Up to a maximum of twenty-five

866 Modules on the XR500/XR500N panel. All modules must be installed in a

340FC, 349, or 350 enclosure connected by no more than 20 feet of conduit.

Notification Circuit Module

866

Module

1 AUX PWR

2 GND

3 Alarm In

4 Bell PWR In

Digital Monitoring Products XR500/XR500N Installation Guide

5 Bell Out +

6 Bell Out -

Each 866 Notification Appliance

Circuit Module in alarm draws up to

30mA through its Terminal 3 Alarm

Input and 45mA from its Terminal 1

Aux Power Input.

1K EOL

Power

Supply

Auxiliary

+ -

7 Bell Trouble

8 Bell Trouble

Amp

24 VDC 5

Maximum

Contacts N/C

Normal/Silence Switch

Power Supply Trouble

865

Module

1 AUX PWR

2 GND

3 Alarm In

4 Bell PWR In +

5 Bell PWR In -

7 Bell Out A -

8 Bell Out B +

6 Bell Out A +

9 Bell Out B -

10 Bell Trouble

11 Bell Trouble

Trouble

Power Supply

Power

Supply

Auxiliary

+ -

24 VDC 5

DMP Model 865

25mA @12 VDC

Notification Circuit Module

Contacts N/C

Amp

Maximum

WIRING DIAGRAMS

32.2 Multiple NotiÞ cation Circuit Modules for Zoned Annunciation

To additional Zone 1 Notification Circuit Modules.

Install up to a maximum of twenty-five 866 Modules by using the relay outputs available on the XR500 panel.

All modules must be installed in a 340FC, 349, or 350 Enclosure connected by no more than 20 feet of conduit.

Zone 1 Notification

Circuit Module

DMP Model 866

45mA @ 12 VDC

Normal/Silence Switch

866 Module

1 AUX PWR 2 GND 3 Alarm In 4 Bell PWR In 5 Bell Out + 6 Bell Out 7 Bell Trouble 8 Bell Trouble

24 VDC

5 Amp

Maximum

+ -

504-24

Power

Supply

Power Supply Trouble

Contacts N/C

24 VDC

5 Amp

Maximum

504-24

Power

Supply

+ -

Normal/Silence Switch

865 Module

1 AUX PWR 2 GND 3 Alarm In 4 Bell PWR In + 5 Bell PWR In 6 Bell Out A + 7 Bell Out A 8 Bell Out B + 9 Bell Out B 10 Bell Trouble 11 Bell Trouble

Zone 2 Notification

Circuit Module

DMP Model 865

26mA @ 12 VDC

1K EOL

To additional notification circuit modules.

J23

Battery Start

+B BELL GND SMK GNDRED YEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9- Z10+ Z10-AC -B GND GND GNDGND

1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199202122232425262728

S S

= Supervised Circuit

10K EOL

DMP Model 308

UL Listed,

Style W

Polarized Notification Appliances

Each 866 Notification Appliance Circuit Module in alarm draws up to 30mA through its Terminal 3 Alarm Input and 45mA from its Terminal 1 Aux Power Input.

Tam p er

XR500/XR500N

Command Processor™

J21

J22

J10

Common Notification

Circuit Module

DMP Model 866

45mA @ 12 VDC

Normal/Silence Switch

866 Module

1 AUX PWR 2 GND 3 Alarm In 4 Bell PWR In 5 Bell Out + 6 Bell Out 7 Bell Trouble 8 Bell Trouble

24 VDC 5

Amp

Maximum

Power Supply Trouble

Contacts N/C

Style y

Each 865 Notification Appliance Circuit Module in alarm draws up to 59mA through its Terminal 3 Alarm Input and 26mA from its Terminal 1 Aux Power Input.

J2 Output Header

All outputs must be located within the same room as the control panel.

K6 K7

+ -

504-24

Power

Supply

1K EOL

UL Listed, Polarized Notification Appliances

Panel

J11

Relay 1 and 2

Common

Gray

10K EOL

DMP Model 308

Style W

UL Listed, Polarized Notification Appliances

Auxiliary Power Supply must be regulated, UL Listed for Fire Protective Signaling Service. Power Supplies must have battery backup.

The Auxiliary Power Supply and Notification Circuit Module trouble contact zone must be programmed as a Supervisory Type zone and must be selected for display in the keypad status list. See section 12.6 in the Programming Guide (LT-0679).

Note: If an auxiliary power supply is not used, terminals 3 and 4 can be jumpered together to supply Bell Power from the XR500 panel.

Interface

Card Expansion Connector

J16

Reset

Zone 1 Output

Zone 2 Output

Relay 1

N/O

Orange

Relay 1

N/O

Orange

XR500/XR500N Installation Guide Digital Monitoring Products

WIRING DIAGRAMS

32.3 Dual Style D Zone Module Installation

Dual Style D Initiating Module

DMP Model 869

25mA Standby, 75mA Alarm

@ 12 VDC

Model 869

GND Fault A

Zone A

A1 A2 A2

Zone A

GND

Aux Power

Zone B

J23

L X

Battery Start

+B BELL GND SMK GNDRED YEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9– Z10+ Z10–AC –B GND GND GNDGND

1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199202122232425262728

J21

RS-232

Tamper

XR500/XR500N

J22

J10

Command Processor™

Panel

K6 K7

J11

Interface

Card Expansion Connector

J16

Reset

SS S S

S = Supervised Circuit

S S

Heat Detectors, manual pull stations, or any other UL Listed shorting device. Unlimited number of units.

GND Fault B

Digital Monitoring Products XR500/XR500N Installation Guide

WIRING DIAGRAMS

32.4 Cellular Backup Installation for Derived Channel Burglary

Supply

Power

Auxiliary

Cellular

Transceiver

Cellular Data

The Secure-Com Cellular

System must be connected

to a separate power supply.

Use only for supplementary

(backup communication).

893A

Interface

Card

Interface

Expansion

Connector

Panel

XR500/XR500N

Command Processor™

Output Header J2 All outputs must be

connected to devices located within the

Tamper

J21

J23

Phone Line

J16

Reset

J11

J22

J10

Battery

K6 K7

Start

PROG

+B BELL GND SMK GNDRED YEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9– Z10+Z10–AC –B GND GND GNDGND

same room as the panel.

= Supervised Circuit S

S S

1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199202122232425262728

XR500/XR500N Installation Guide Digital Monitoring Products

Telco Jack

STU-2Z

1 2 3 4 5 6

DCX Systems

Auxiliary Power Supply must be

regulated, UL Listed for Fire

Protective Signaling Service.

Use EOL Termination

Assembly P/N 21024-0003

(590 Ohm 1/2 W Resistor)

Power Supplies must have battery backup.

Panel Auxiliary Power - Terminal 7

Panel Common - Terminal 10

Supervisory Zone Input - Terminal 13

Note 1

Note 1: Use EOL Termination Assembly P/N

21024-0001 (2.2k Ohm 1/2 W Resistor).

WIRING DIAGRAMS

32.5 Rothenbuhler 5110 High Security Bell Wiring

Card

Interface

Expansion

Connector

Panel

XR500/XR500N

Command Processor™

J2 Output Header

within the same room as

All outputs must be located

Tamper

J21

the control panel.

J22

RS-232

J10

J11

J16

Reset

S = Supervised Circuit

K6 K7

Model 431 Output

Harness

308

10K EOL

DMP Model

10K EOL

DMP Model 308

Output 1 Common

Output 2 Common

J23

Battery

Start

+B BELL GND SMK GNDRED YEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9– Z10+Z10–AC –B GND GND GNDGND

1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199202122232425262728

Output 2 N/C

BLO

Silence

Red LED

Green LED

High Security Bell

Rothenbuhler 5110

Output 1 N/C

BLI

Test

Common

+ 12 VDC

Digital Monitoring Products XR500/XR500N Installation Guide

32.6 LX-Bus™ Module Connection

LX-Bus Expansion

Interface Card

DMP Models 481, 462N,

462P, 462FM, or 472

Each LX-Bus Module must have its own independent

address ranging from 00 to

99. A Supervisory zone must be programmed into the XR500/XR500N to properly supervise each module.

Bell Relay Address Supervisory Address

WIRING DIAGRAMS

Auxiliary Power Supply must be regulated (12 VDC Nominal), UL Listed for Fire Protective Signaling Service. Power Supplies must have battery

Model 867

Notification Module

Normal/Silence Switch

Ground Fault LED

Bell Trouble LED

1 Bell In +

2 Bell In -

3 Bell Out +

4 Bell Out -

5 Bell Trouble

6 Bell Trouble

7 PWR Mon.

8 Mon. RTN

TENS ONES

LX-Bus™ Wiring

backup and be power limited.

12 or 24 VDC

Bell Power

10K EOL Resistor

DMP Model 308

Supply

Connect to panel

Bell Ring Style

Power Supply Monitor LED Data LED

Red

Yellow

Green

Black

Supervisory zone

To additional LX-Bus Modules

12 or 24 VDC

UL Listed, Polarized Notification Devices

= Supervised Circuit

Open Collector

Annunciator Outputs

Optional LED wiring 50mA at 50 VDC resistive

Relay 1

Relay 2

Relay 4

Relay 3

Form C Contacts

Typical

Normally Closed Common Normally Open

Model 716 Output

Expander Module

7m at 12 VDC

Optional LED wiring 50mA at 50 VDC resistive

Model 717 Graphic

Annunciator

Module

10m at 12 VDC

XR500/XR500N Installation Guide Digital Monitoring Products

32.7 Model 860 Relay Module Connection

N/C

123

Model 860

Relay Module

RED

YEL

GRN

BL K

Card

Interface

Expansion

Connector

N/O

Common

{

Relay 1

{

Relay 2

4-wire

J16

{

Relay 3

Harness

Assembly

Reset

Horn

{

Relay 4

+12 VDC

Relay contact rating:

1 Amp @ 30 VDC, resistive

Auxiliary

+ -

Power

Supply

Panel

XR500/XR500N

Command Processor™

J2 Output Header

within the same room as

All outputs must be located

Tamper

J21

J11

the control panel.

J22

RS-232

J23

J10

Battery

K6 K7

Start

Auxiliary Power Supply must be regulated (12 VDC Nominal),

UL Listed for Fire Protective Signaling Service. Power Supplies

must have battery backup and be power limited.

+B BELL GND SMK GNDRED YEL GRN BLK Z1 Z2 Z3 Z4 Z5 Z6 Z7 Z8 Z9+ Z9– Z10+Z10–AC –B GND GND GNDGND

1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 199202122232425262728

Digital Monitoring Products XR500/XR500N Installation Guide

XR500/XR500N Installation Guide Digital Monitoring Products

OPERATING INSTRUCTIONS MODEL

XR500/XR500N PANELS

NORMAL STANDBY CONDITION

When the system is in the normal standby condition, the keypad shows either the time of day or a blank display.

ALARM CONDITION

When the system is in an alarm condition, the keypad display shows the violated zone name(s) followed by an alarm display.

ALARM SILENCE

To silence the alarm while the bell or siren is sounding, enter your code number and press the COMMAND key. This silences the alarm but does not cancel any alarm reports to the central station.

RESETTING DETECTORS

To reset a smoke or other detector, enter the User Menu by pressing the COMMAND key until MENU? NO YES appears in the display. Press the top row key under YES. The display shows ENTER CODE: -. Enter your code number and press COMMAND. The keypad display now shows ALARM SILENCE? if your code allows. Press the COMMAND key until SENSOR RESET? appears in the display. Press any top row key.

TROUBLE CONDITION

When a device is in a trouble condition, the keypad tones and displays the zone or device name followed by TRBL. Press any top row key to silence.

SYSTEM TESTING

You should test the security system periodically to ensure proper operation. You can do this through a function in the User Menu. After entering the User Menu, press the COMMAND key until SYSTEM TEST? displays. Press the left most top row Select key. The system bell, battery, and communication to the central station receiver system is then tested.

ALARM SERVICE

If service is required for this system, please contact:

Company_____________________________________________

Address ______________________________________________

Telephone ____________________________________________

The operating instructions above should be attached to the front, or framed and located

adjacent to, the panel or a Security Command keypad with an alphanumeric display.

800-641-4282

www.dmp.com

Made in the USA

INTRUSION • FIRE • ACCESS • NETWORKS

2500 North Partnership Boulevard

Springfield, Missouri 65803-8877

Digital Monitoring Products COMMAND PROCESSOR XR500, COMMAND PROCESSOR XR500N Installation Manual
