Page 1

SERIES PANELS

FIND US AT @DMPALARMS ON MOST SOCIAL PLATFORMS.

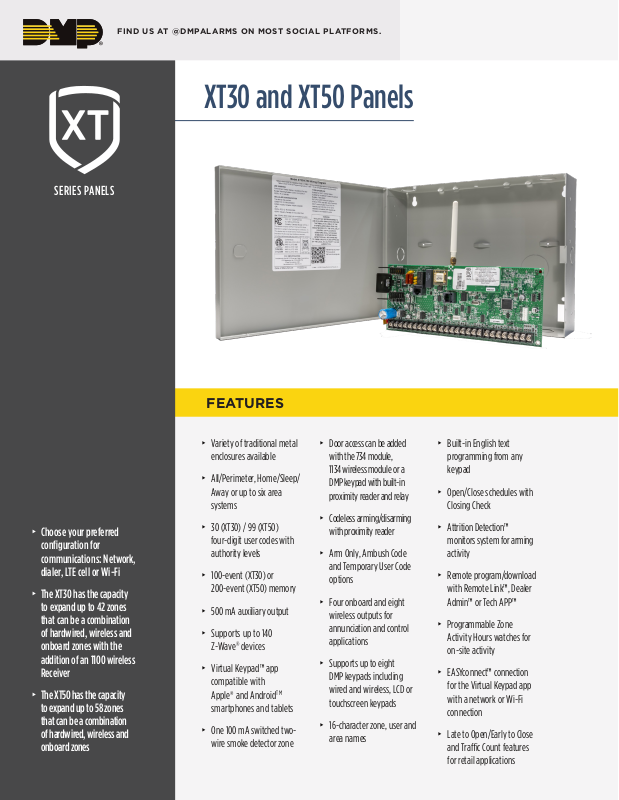

XT30 and XT50 Panels

▸ Choose your preferred

conﬁguration for communications: Network, dialer, LTE cell or Wi-Fi

▸ The XT30 has the capacity

to expand up to 42 zones that can be a combination of hardwired, wireless and onboard zones with the addition of an 1100 wireless Receiver

▸ The XT50 has the capacity

to expand up to 58 zones that can be a combination of hardwired, wireless and onboard zones

FEATURES

▸ Variety of traditional metal

enclosures available

▸ All/Perimeter, Home/Sleep/

Away or up to six area systems

▸ 30 (XT30) / 99 (XT50)

four-digit user codes with authority levels

▸ 100-event (XT30) or

200-event (XT50) memory

▸ 500 mA auxiliary output

▸ Supports up to 140

Z-Wave devices

▸ Virtual Keypad™ app

compatible with Apple® and AndroidTM smartphones and tablets

▸ One 100 mA switched two-

wire smoke detector zone

▸ Door access can be added

with the 734 module, 1134 wireless module or a DMP keypad with built-in proximity reader and relay

▸ Codeless arming/disarming

with proximity reader

▸ Arm Only, Ambush Code

and Temporary User Code options

▸ Four onboard and eight

wireless outputs for annunciation and control applications

▸ Supports up to eight

DMP keypads including wired and wireless, LCD or touchscreen keypads

▸ 16-character zone, user and

area names

▸ Built-in English text

programming from any keypad

▸ Open/Close schedules with

Closing Check

▸ Attrition Detection™

monitors system for arming activity

▸ Remote program/download

with Remote Link™, Dealer Admin™ or Tech APP™

▸ Programmable Zone

Activity Hours watches for on-site activity

▸ EASYconnect™ connection

for the Virtual Keypad app with a network or Wi-Fi connection

▸ Late to Open/Early to Close

and Trac Count features for retail applications

Page 2

FIND US AT @DMPALARMS ON MOST SOCIAL PLATFORMS.

FLEXIBILITY WHEN ORDERING

Factory-conﬁgurable options give you the freedom to order the panels to match your system and customer requirements with dialer, cellular, network and Wi-Fi options.

The XT Series™ also oers the freedom to add on a cellular module or connect a wireless receiver and devices to the panel at a later date.

COMMUNICATION FLEXIBILITY IN PROGRAMMING

The XT Series enables you to program a primary and backup communication path to two dierent monitoring center receivers. This provides one primary path and up to two backup communication paths, using the same proven technology that secures countless banks and other highsecurity applications.

RECEIVER 1 AND 2 OPERATION

Select one or two receivers via network, cellular or dialer for messages regarding alarms, supervisory/trouble, opening/closing and test reports. Send all messages to both receivers, or identify one receiver for alarms and a second one for trouble messages to alert only the proper responder.

ONBOARD WIRELESS

The XT50 control panel oers up to 48 wireless zones with its integrated 1100 Series wireless receiver and an additional 10 onboard hardwired zones for a total of 58 zones. The 900 MHz frequency-hopping, spread spectrum 1100 Series wireless features two-way communication for superior operation, supervision and battery life. Two-way communication minimizes repetitive signaling and helps to quickly identify missing transmitters. Simple keypad access can be used to verify that wireless device zones are in working order.

1100 SERIES WIRELESS ADD-ON

Add any 1100 Series wireless receiver for up to 32 wireless transmitters on the XT30.

SIMPLE ARMING

XT Series panels provide multiple arming conﬁgurations: Area arming with six separate areas; All/Perimeter arming with perimeter and interior areas; or Home/ Sleep/Away arming with perimeter, interior and bedroom areas. Users can arm the perimeter and interior at night while leaving the bedroom area disarmed.

HOME/SLEEP/AWAY

For residential applications, the homeowner can press one button to select each of three separate system arming options. They can select Home to arm the perimeter of the home but allow for movement within the house. Select Sleep to arm the perimeter and only speciﬁed areas inside their home, leaving sensors near bedrooms disarmed. Selecting Away fully arms all elements of the system.

ALL/PERIMETER

In business applications, system users can quickly select All to completely arm the system as they leave the facility for the day. They also have the option to select Perimeter, arming all exterior sensors at doors and windows but disarming all interior sensors so employees can move freely around the facility.

FAST PROGRAMMING

Fast Programming lets your installers power through most programming data inputs and lets them get the job done faster. When the panel programming defaults are acceptable for installation, and only basic programming options are needed, Fast Programming allows the technician to quickly enter information without navigating all of the programming menus.

▸ Receiver IP ▸ Weather Zip Code ▸ System (Area, A/P or H/S/A) ▸ Hours from GMT ▸ Wireless Siren Serial Number ▸ Zone Information

All standard programming options are still available in the programming menu from the keypad, Tech APP, Dealer Admin or Remote Link.

WIRELESS KEYPADS

The 9000 Series and 9800 Series wireless keypads are fully functioning, supervised keypads that provide installation ﬂexibility. The keypads also include a built-in proximity reader for codeless arming and disarming.

BUILT-IN PROGRAMMER

An internal English-text programmer enables technicians to easily program and test the panel from any keypad. A lockout code restricts access only to authorized persons.

PROGRAMMABLE OUTPUTS

Four open collector outputs can be used for a variety of remote control and annunciation applications. Each output is rated for 50 mA maximum. Add the Model 860 Relay Output Module to provide four Form C relay contacts.

REMOTE PROGRAMMING

Remotely program panels using DMP Remote Link software. Upload panel programming, make the necessary programming change and then download the revised programming into the panel.

ATTRITION DETECTION™ PROMPTS YOU TO CALL YOUR CUSTOMER

The exclusive DMP Attrition Detection feature gives you advance warning that a customer may be preparing to cancel their monitoring contract. With this feature activated, you will receive a notiﬁcation if there is no system activity for the number of days you select.

CUSTOM ACTIONS

In addition to controlling lights, locks and thermostats, users can also take advantage of several customizable actions that can be programmed into the panel. Users can select a combined sequence of actions, all based on speciﬁc Favorites, lights and locks to activate or deactivate Z-Wave devices, Favorites or outputs during speciﬁc times and days or speciﬁc zone trips.

1100T WIRELESS TRANSLATOR

The 1100T Wireless Translator allows upgrades of non-DMP systems with one-way, low-frequency, wireless transmitters. It is compatible with transmitters that operate at various MHz such as Interlogix, Honeywell 5800, 2GIG and DSC. With this one device, you can easily take over any of these systems and upgrade them to DMP panels, receivers and software management tools.

The 1100T communicates to a DMP panel via DMP’s 1100 Series receivers’ wireless connection that eliminates wiring. To accommodate the panel’s maximum number of supported sensors, one 1100T can learn in:

▸ 32-48 zones with XT panels ▸ 99 zones with XTL panels ▸ 100 zones with XR150 panels ▸ 128 zones with XR550 panels

Page 3

INTRUSION PANELS

With this one device, you can continue to use the working transmitters and sensors to send events, supervision and low battery messages to the panel. Keeping existing transmitters and sensors in place allows you to save your customers money and reduce their level of interruptions with quicker installations.

The 1100T gives your customers DMP quality with online and app convenience and functionality without increasing installation costs. The 1100T is also compatible with life safety devices and is certiﬁed for commercial and residential smoke detection.

VIRTUAL KEYPAD APP

Virtual Keypad provides users with the ability to access a number of system functions remotely via a cellular or internet connection. As a dealer, the app provides the opportunity to brand it using your company logo.

▸ At a glance, check system status including

programmed areas ▸ Arm or disarm the system in an instant ▸ Tap any programmed outputs to turn them on or o ▸ Adjust lighting/thermostats/locks ▸ Video capability - up to six cameras, remote

viewing ▸ View, add, edit and delete system schedules for

arming/disarming and favorites, outputs and doors ▸ Users can click on the Alarm push notiﬁcation and

open the app to view a list of available camera

views, giving them the ability to verify the alarm

based on the video clips and live thumbnails ▸ Users can watch real-time device activation when

clicking on hotspots embedded in the associated

video stream with Rooms with a View

VIRTUALKEYPAD.COM

Users can access their security systems via VirtualKeypad.com with their tablets or computers using their logins and system user codes.

Z-WAVE® SUPPORT

Add up to 140 Z-Wave devices with the 738Zplus module for mobile control of lights, locks and thermostats. Up to 20 Favorites allow users to program multiple devices to respond to a single command or panel events like arming and disarming. Z-Wave devices can be controlled with the 7800/9800 Graphic Touchscreen Keypad or Virtual Keypad.

WI-FI COMMUNICATION

Add the optional 763 Wi-Fi Interface Module to XT panels for system communication over Wi-Fi.

7800/9800 GRAPHIC KEYPAD

Provides touchscreen control for all keypad functions. It has a slim proﬁle in stylish gloss black or white ﬁnish with a 5-inch, full-color display.

FALSE ALARM FEATURES

Providing a way to reduce false alarms, both Cancel/Verify™ and the False Alarm Question prompt users to validate whether an alarm has occurred after entering their codes. In a Home/ Sleep/Away or All/Perimeter system, the user can either press Verify or Yes to manually conﬁrm a valid burglar alarm, and an alarm is then sent to the monitoring center.

KEYPAD SHORTCUT KEYS

Keypad shortcut keys are provided to simplify operation and allow the user to more quickly arm, check in, monitor, exit or reset the system. One-button arming creates the simplest keypad available. Use the one-button shortcut keys for common functions.

USER CODES

Program up to 30 user codes with the XT30 and 99 codes with the XT50 panels. Assign a Standard or Master Authority level to control each user’s level of access to the system. Additionally, the XT50 provides scheduled and limited users.

CROSS ZONING

This powerful, false-alarm-reduction feature allows multiple zones to be cross-zoned and report alarms only when two or more zones fault within a programmable time of 4 to 250 seconds. If just one zone trips, only a zone fault report is sent to the monitoring center.

EVENT MEMORY

The XT30 logs up to 100 and the XT50 logs up to 200 user and system events that you can view at any time through a keypad User Menu option. The Display Events feature allows users to view stored events such as openings and closings, zone events, user code changes and supervisory events.

ZONE INACTIVITY

With Zone Activity Hours, you can easily monitor a person living alone. If there is no activity at the premises within the programmed number of hours, the monitoring center receives an alert. It’s the perfect companion for customers

looking after aging adults.

ZONE AUDIT

The Zone Audit feature allows programming the panel to send an alert when the sensor fails to trip within the speciﬁed number of days. This feature helps identify potential sensor problems, including sensors deactivated to bypass faults or blocked sensors.

RETAIL APPLICATIONS

Late to Open/Early to Close feature sends a message to the monitoring center if the facility isn’t opened on time or closes before the scheduled time. The Trac Count sends a daily tally of trips for the speciﬁed zone.

FULLY SUPERVISED

You’re kept fully informed of system status. The unit sends full reporting messages including zones, areas and users, with all names and details included. Full supervision ensures that the cellular or network communication path is intact and functional.

TECHNOLOGY

EASYconnect enables the control panel to establish an outbound connection to SecureComTM over Wi-Fi. This allows for an eortless installation of network panels without any customer router programming, providing extremely quick app connection times.

Page 4

COMPATIBILITY REFERENCE SHEET

INTRUSION PANELS

Keypads

7000 Series Thinline Keypads 7000A Series Aqualite Keypads 7300 Series Icon Keypads 7800 Touchscreen Keypads 9000 Wireless Keypads 9800 Wireless Touchscreen Keypads

Expansion Modules

708 Bus Extender 710 Bus Splitter/Repeater 711 Single Zone Expansion 712-8 Eight-zone Expansion 714 Four-zone Class B Expansion 714-8 Eight-zone Class B Expansion 714-16 16-zone Class B Expansion 715 Four-zone Two-wire Smoke Expansion 715-8 Eight-zone Two-wire Smoke Expansion 715-16 16-zone 2-wire Smoke Expansion

Cellular

263EXT Cellular Extension Module 263LTE-V LTE Verizon 263LTE-A LTE AT&T 380-400 Replacement Level 400 SIM Card (AT&T) 381-12 12’ SMA Coax Cable Extension 381-25 25’ SMA Cable Extension 383 External Antenna 388-1 3 dB Fiberglass Antenna 388-2 2 dB Attack Enclosure Antenna 388-3 3 dB MEG Antenna

Intrusion Devices

DMP is compatible with most standard intrusion devices

Door Access

734 Access Control Module OP-08CB REX Motion Detector Proximity Readers and Credentials DMP ProxPatch™ 1134 Access Control Module

Monitoring Center Receivers

SCS-1R Security Control Receiver SCS-105 Single-Line DMP Serial 3 Receiver Compatible with receivers that accept Standard CID, DMP Serial 3 or Network messaging SCS-VR (Virtual Receiver) software—only solution that runs on a server for network IP and cellular communications

Dealer Management

Remote Link Programming Software Tech APP Dealer Admin

DMP Wireless

1100D Receiver 1100DI In-line Receiver 1100DH High-Power Receiver 1100R Repeater 1100T Translator 1101 Universal Transmitter, Internal and External Contacts 1102 Universal Transmitter, External Contact 1103 Universal Transmitter, Internal and External Contact 1106 Universal Transmitter, Internal and External Contact 1107 Micro Window Transmitter 1108 Doorbell Module 1114 Four-zone Expander 1115 Temperature Sensor and Flood Detector 1116 Relay Output 1117 LED Annunciator 1119 Door Sounder 1122 PIR 1126R 360 Ceiling Mount PIR 1127C Wall Mount Curtain PIR 1127W Wall Mount Wide Angle PIR 1128 Glassbreak Detector 1131 Recessed Contact 1134 Access Control Module 1135 Siren, 100 dB 1136 Remote Chime 1137 LED Emergency Light 1139 Bill Trap 1141 Wall Button 1142 Two-Button Hold-up Transmitter 1142BC Two-Button Belt Clip Hold-up Transmitter 1144-1 One-Button Key Fob 1144-2 Two-Button Key Fob 1144-4 Four-Button Key Fob 1144-1P One-Button Key Fob with ProxPatch 1144-2P Two-Button Key Fob with ProxPatch 1144-D Dual-Button Key Fob 1148 Personal Pendant 1154 Four-Zone Input Module 1158 Eight-Zone Input Module 1164 Smoke Detector with Sychronized Sounder 1164NS Smoke Detector with No Sounder 1166 Smoke Ring 1168 Smoke/CO/Low Temp Detector 1183-135F Heat Detector 1183-135R Heat Detector 1184 Carbon Monoxide Detector

Encrypted Wireless Models

1100DE Encrypted Receiver 1100DHE High-Power Encrypted Receiver 1101E Universal Transmitter 1103E Commercial Universal Transmitter 1106E Universal Transmitter 1135E Siren 1142E Two-Button Hold Up Transmitter 1144E Key Fob

Z-Wave

Z-14319 Z-Wave, Switch, Toggle On/O Z-14322 Z-Wave, Dimmer, In Wall Z-39723 Z-Wave LED Light Bulb Z-99100-077 Z-Wave Door Deadbolt, Polished Brass Z-99100-078 Z-Wave Door Deadbolt, Satin Nickel Z-99100-079 Z-Wave Door Deadbolt, Venetian Bronze Z-99100-STAND Demo Deadbolt Desk Stand Z-GD00Z Z-Wave Garage Door Controller Z-5010T Z-Wave Thermostat Z-PD300EMZ5-1 Z-Wave Smart Light Control Module with Dimmer Z-PS15EMZ5-1 Z-Wave Smart Appliance Control Module

Other Wireless

736V V-Plex Interface Module 738A Ademco 32-point Expansion Module 738I ITI 96-point Expansion Module 738Z+ Z-Wave Interface Module 738T Wireless Translator

Accessories

300 Four-wire Harness 307 Clip-on Tamper Switch 307-S Screw-on Tamper Switch 335 Intrusion Siren 370 Lightning Suppressor 399 Programming Harness 300-9800-4 Four-wire Replacement Harness 861 Power Distribution Module

End User Management

System Link™ VirtualKeypad.com Virtual Keypad app

System Speciﬁcations

Primary Power:

16.5 VAC, 40 VA transformer (Model 321)

Secondary Power:

12 VDC Battery

Outputs:

Auxilary 500 mA at 12 VDC Alarm 1.5 Amps at 12 VDC Smoke 100 mA at 12 VDC Annunciator(4) 50 mA each (switched ground)

Enclosures:

Material Cold-rolled steel Model 340 (Gray) 12.5" W × 9.5" H × 2.75" D Model 349 (Gray) 12.25" W × 11.75" H × 3.125" D Model 349A (Gray Attack) 13.25" W × 11.3" H × 3.6" D

Certiﬁcations

California State Fire Marshal (CSFM) ETL: ANSI/SIA CP-01-2010 False Alarm Reduction ANSI/UL 1023 Household Burglar ANSI/UL 985 Household Fire Warning ANSI/UL 1635 Digital Burglar ANSI/UL 1610 Central Station Burglar

FCC Part 15 ID: CCKPC0096 FCC Part 68 Registration ID CCKAL00BXT50 Industry Canada ID: 5131A-PC0096

Refer to the XT Series Installation Guide, Programming Guide and speciﬁc compliance listings for installation and programming requirements necessary to meet a particular approval.

For additional information, go to DMP.com/Compliance.

800-641-4282 | DMP.com 2500 N. Partnership Blvd, Springfield, MO 65803 Designed, engineered & manufactured in Springfield, MO using U.S. & global components
