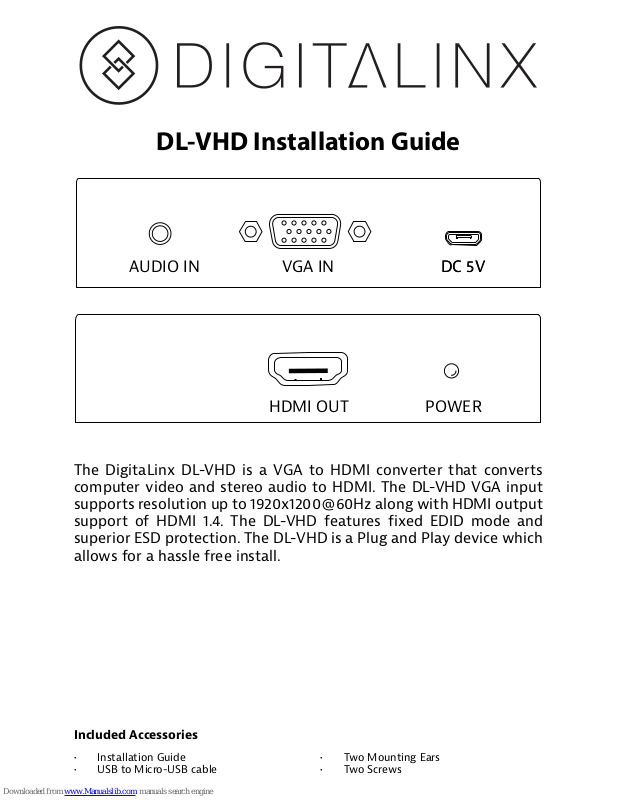

DL-VHD Installation Guide
• Installation Guide
• USB to Micro-USB cable
• Two Mounting Ears
• Two Screws
The DigitaLinx DL-VHD is a VGA to HDMI converter that converts
computer video and stereo audio to HDMI. The DL-VHD VGA input
supports resolution up to 1920x1200@60Hz along with HDMI output
support of HDMI 1.4. The DL-VHD features fixed EDID mode and
superior ESD protection. The DL-VHD is a Plug and Play device which
allows for a hassle free install.
DC 5VDC 5V
VGA IN
AUDIO IN
HDMI OUT POWER
Included Accessories
Page 2

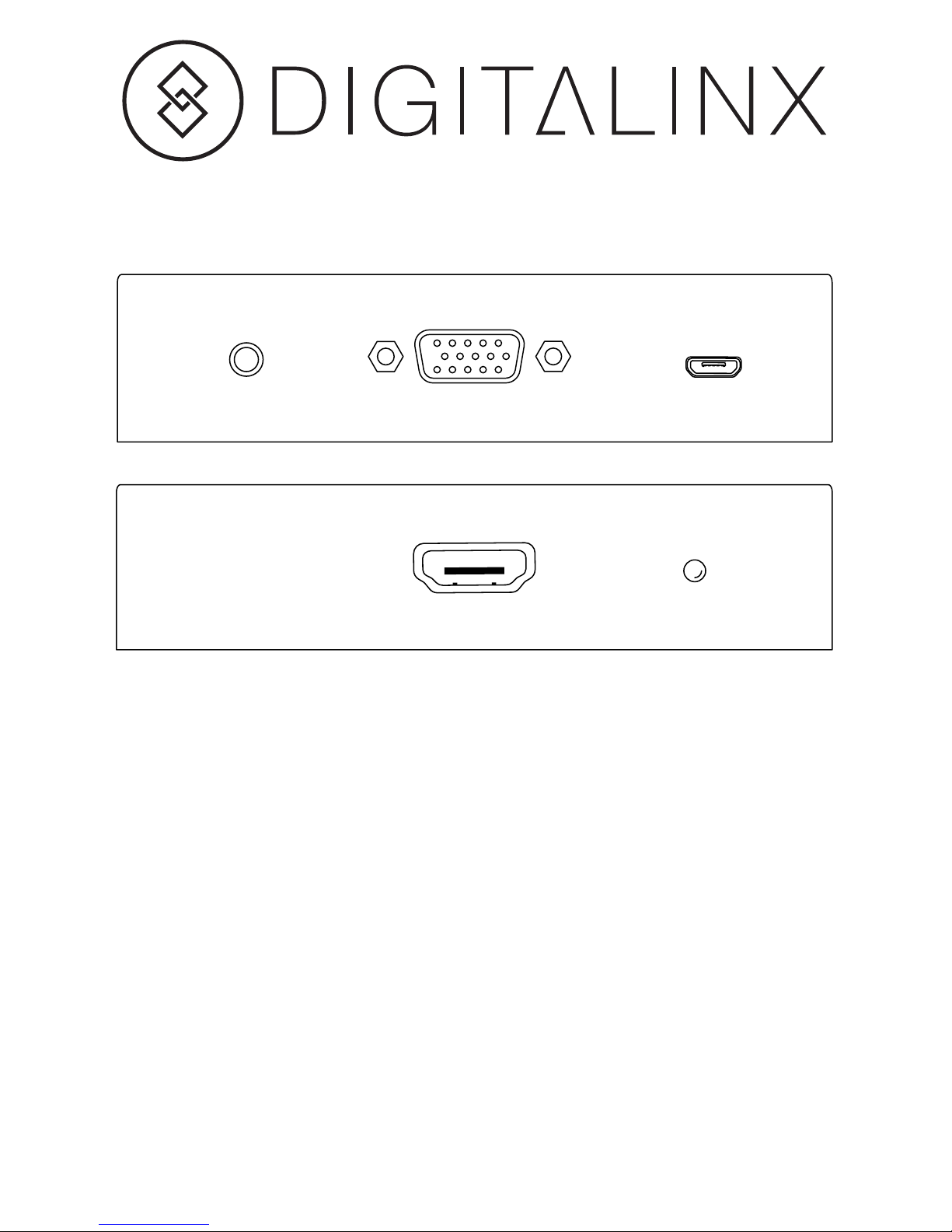

Input and Output Connections
Input Side
Output Side
DC 5VDC 5V
VGA IN
AUDIO IN
HDMI OUT POWER
Page 3

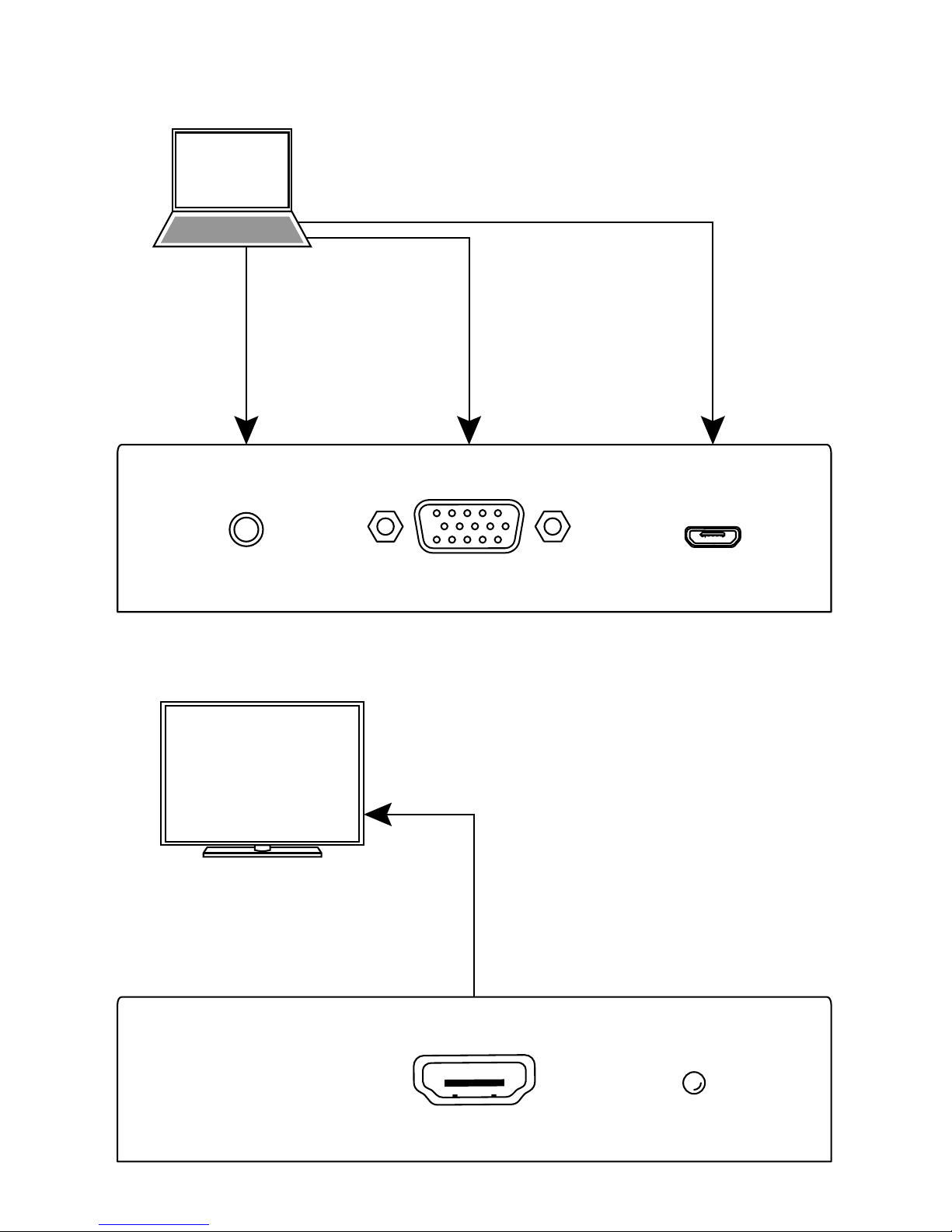

Instructions
• Verify all components included with the DL-VHD are present before installation.
• Connect a laptop to VGA IN and AUDIO IN ports via VGA and audio cables.
• Connect a display device to HDMI OUT port via an HDMI cable.
• Use the included USB to Micro-USB cable to connect the laptop to DC 5V port to
apply power.
• Power on attached audio/video devices.
Important notice:
• Do not attempt to disassemble or alter the extender housing. There are no
user-serviceable parts inside the unit. Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostatic discharge
(ESD), all source and destination equipment must be powered o during installation.
• Do not connect the extender to a telecommunication outlet wired to unrelated
equipment. Doing so may damage the unit or any connected equipment.
• Allow proper ventilation to reduce the risk of thermal failure.
Troubleshooting Tips
Symptom Possible Solutions
• No power • Verify the power supply is connected to an active outlet.
• No signal • Disconnect VGA cable from source. Wait 30 seconds for
operating system to reset to normal operation. Reconnect
VGA cable to source.
• Drop the HDMI signal to the next lower resolution; i.e.,
decrease resolution from 1080p to 720p, etc.
• Test with a second HDMI cable.
• Video without audio • Check the audio level from the source device.
• Verify the audio cable is in working order and is securely
installed on the source device and converter.
Page 4
11675 Ridgeline Dr.
Colorado Springs, CO 80921
Toll-Free: 800-530-8998
Fax: 719-260-0075
www.libav.com
Rev 160425
Input Connections
Video Input One (1) VGA
Audio Input One (1) Stereo Audio (3.5 mm)
Power Input One (1) Micro USB Power Supply
Output Connections
Outputs One (1) HDMI
Output Connector 19-pin Type A female HDMI
HDMI Standard HDMI 1.4
Video Performance
VGA Input Resolution 1920 x 1200@60Hz 1680 x 1050@60Hz, 1920 x 1080@60Hz, 1440 x 900@60Hz,
1600 x 1200@60Hz, 1366 x 768@60Hz, 1400 x 1050@60Hz, 1280 x 1024@60Hz,
1360 x 768@60Hz, 1280 x 768@60Hz,1280 x 800@60Hz, 1024 x 768@60Hz,
1280 x 720@60Hz, 640 x 480@60Hz, 800 x 600@60Hz,
Chassis and Environmental
Enclosure Dimensions (W x H x D) 19mm x 77mm x 64mm (0.74” x 3.03” x 2.51”)
Weight 0.28lb (0.13kg)
Operating Temperature 0°C to + 50°C (+32° to + 122° F)
Storage Humidity 10% to 90%, Non-condensing
Power and Regulatory
Power Supply Output 5VDC / 0.5A
Power Consumption 1.5 watts
Other
Warranty 2 years
Diagnostic Indicator Power
Included Accessories Installation Guide, (1) USB to Micro USB cable, (2) Mounting Ears, (2) Screws
Technical Specifications
