Page 1

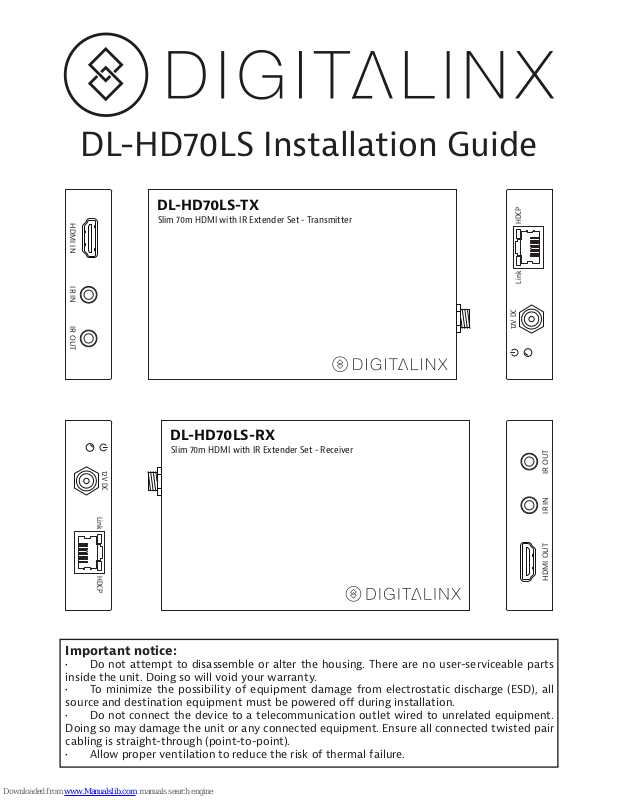

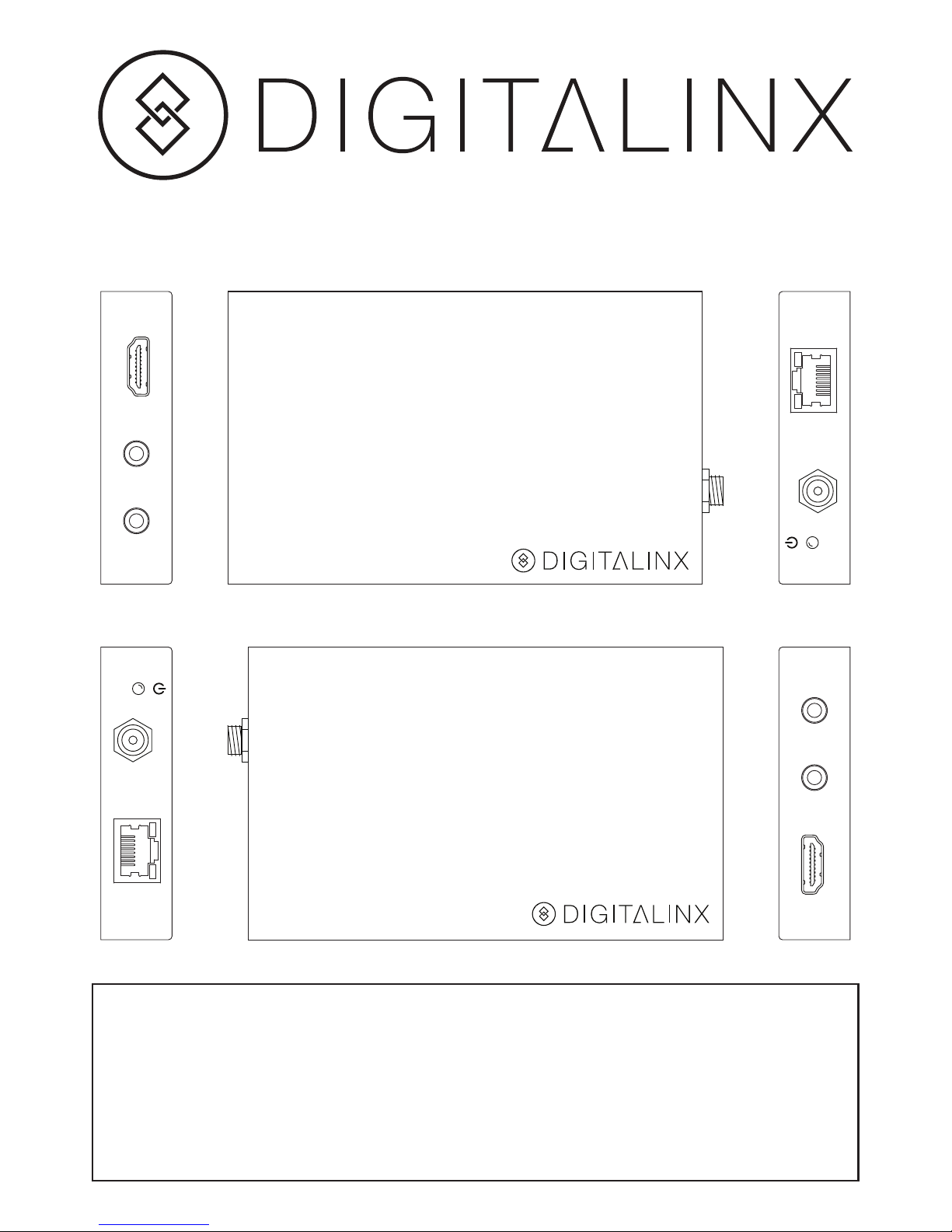

DL-HD70LS Installation Guide
Important notice:
• Do not attempt to disassemble or alter the housing. There are no user-serviceable parts
inside the unit. Doing so will void your warranty.
• To minimize the possibility of equipment damage from electrostatic discharge (ESD), all
source and destination equipment must be powered off during installation.
• Do not connect the device to a telecommunication outlet wired to unrelated equipment.
Doing so may damage the unit or any connected equipment. Ensure all connected twisted pair
cabling is straight-through (point-to-point).
• Allow proper ventilation to reduce the risk of thermal failure.
Link HDCP
12V DC
IR IN IR OUTHDMI IN
DL-HD70LS-TX
Slim 70m HDMI with IR Extender Set - Transmitter
Link HDCP
12V DC
IR IN IR OUTHDMI OUT
DL-HD70LS-RX
Slim 70m HDMI with IR Extender Set - Receiver
Page 2

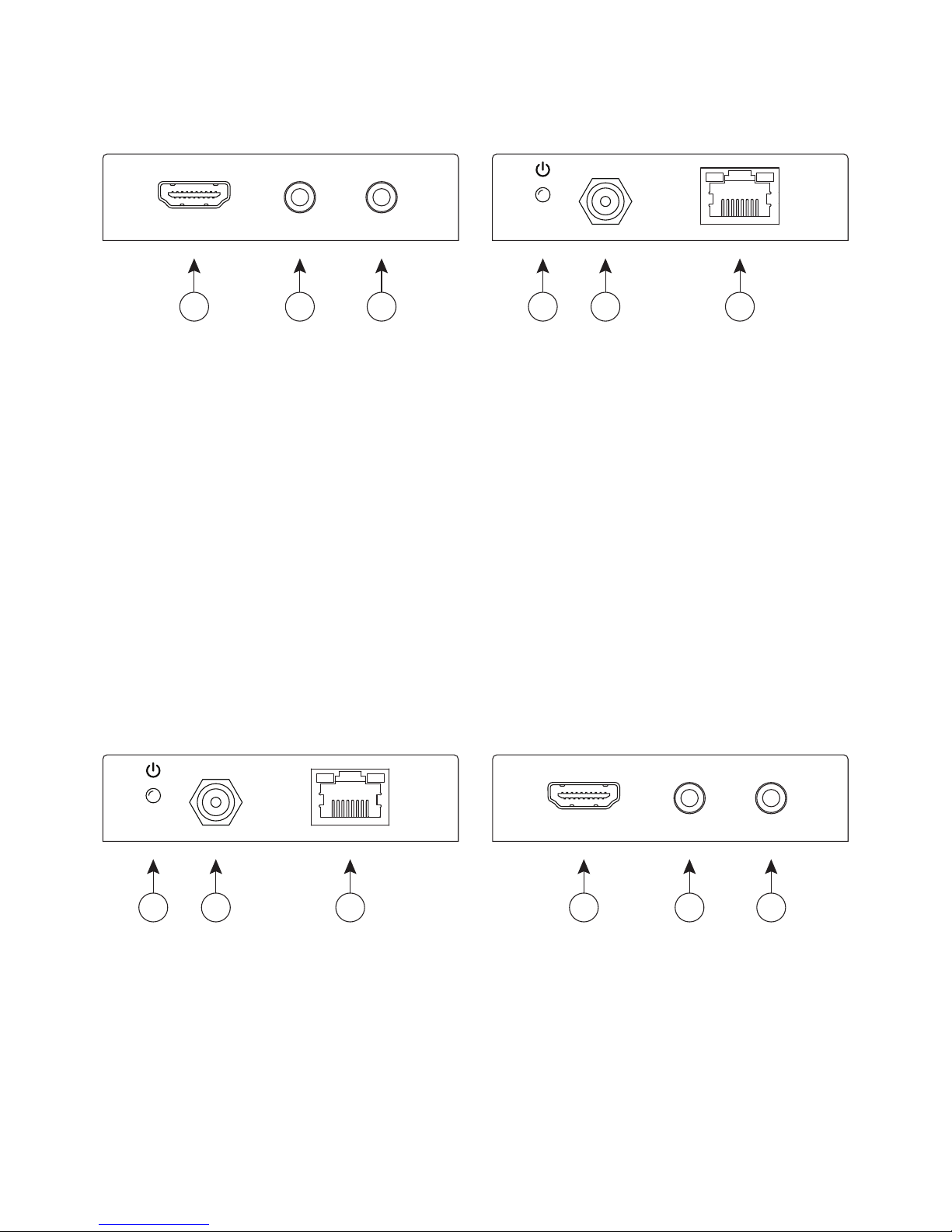

Transmitter Connections
Receiver Connections
A B
D
E F
C
HDMI Input Side Twisted Pair Output Side
Link HDCP
12V DC
IR IN IR OUTHDMI IN
4 5
1
2 3
6
HDMI Output SideTwisted Pair Input Side
Link HDCP
12V DC
IR IN IR OUTHDMI OUT
A. HDMI Input
B. IR Input
C. IR Output
D. Power Indicator
E. 12V DC Input
F. Twisted Pair Output with Link and HDCP Status Indicators
A. Power Indicator
B. 12V DC Input
C. Twisted Pair Input with Link and HDCP Status Indicators
4. HDMI Output
5. IR Input
6. IR Output
Page 3
Instructions
1. Verify all components included with the extender set are present before installation.
2. If the extenders are going to be permanently mounted to a surface, attach the
included mounting brackets with the supplied screws.
3. Turn off power and disconnect the audio/video equipment by following the
manufacturer’s instructions.
4. Connect solid core, shielded Category 6 or greater twisted pair cable with RJ45
connectors between the transmitter and the receiver. TIA/EIA-568B straightthrough wiring connections must be used.
5. Connect an HDMI cable and any desired control accessories between the display
and the receiver.
6. Connect an HDMI cable and any desired control accessories between the source
and the transmitter.
7. Connect the included power supply to the transmitter or the receiver and lock the
power supply to the power connector by twisting the locking collar clockwise.
8. Power on attached audio/video devices.
The DigitaLinx DL-HD70LS extender set transmits HDMI (1080p, 4Kx2K (UHD) & 3D),
including HDCP 2.2, and bidirectional IR up to 70 meters away using a single solid core,
shielded Category 5e twisted pair cable.
Built-in surge protection helps ensure hassle-free and robust installations. The 12 volt
power supply is secured with a screw-on connector to prevent the power from being
accidentally disconnected.
The DL-HD70LS is sold only as a set. The individual transmitter and receiver are not
compatible with other HDBaseT devices due to proprietary PoE circuitry.
TIA/EIA-568B
Orange/White
Orange
Green/White
Blue
Blue/White
Green
Brown/White
Brown
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
1 8

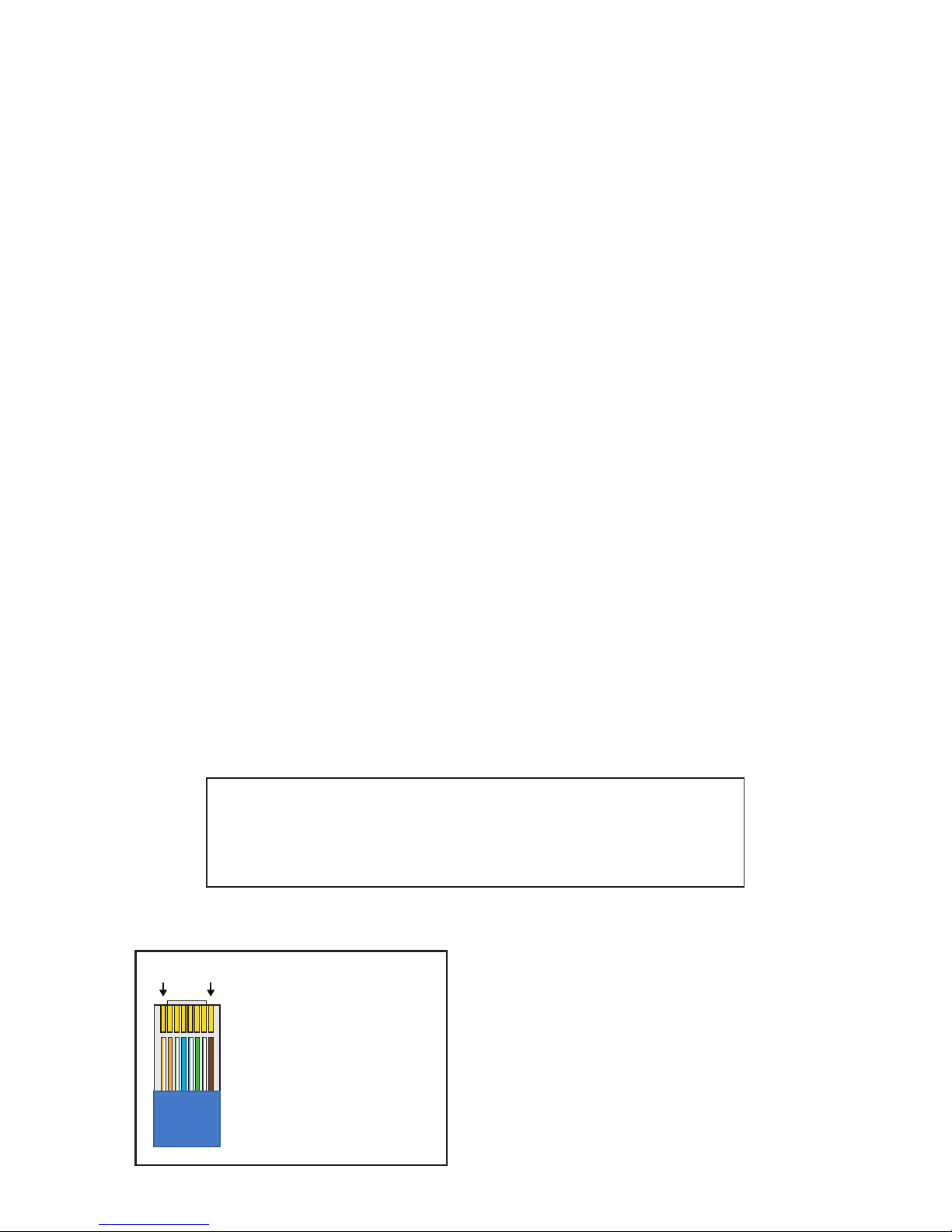

Twisted Pair Wiring
Use TIA/EIA-568B wiring for Category
5e connections between transmit and
receive units.
LED States
Solid Link - Link established between transmitter and receiver
Flashing HDCP - HDMI signal is not encrypted
Solid HDCP - HDMI signal is encrypted
Page 4
rev 161129
Technical Specifications
11675 Ridgeline Dr.
Colorado Springs, CO 80921
Toll-Free: 800-530-8998
Fax: 719-260-0075
www.libav.com
Supported Audio and Video
Maximum Video Compatibility 70 m: Deep Color 36/30/24 Bit at 1080p
40 m: Deep Color 48 Bit at 1080p, 3D, and 4k x 2k (UHD)
Video Compliance HDMI, HDCP, and CEC (Consumer Electronics Control)
Embedded Audio Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master
Audio
IR Carrier Frequency Range 33-55kHz at 5 volts
HDBaseT Signal Characteristics
Maximum Distance 70 m
Cable Requirements Solid core shielded Category 5e, Category 6 or greater with TIA/
EIA-568B crimp pattern
Bandwidth 10.2 Gbps
Chassis and Environmental
Dimensions (H x W x D) 18 mm x 120 mm x 74 mm (0.71 in x 4.72 in x 2.91 in)
Operating Temperature (Environment) 0° to +40° C (+32° to +104° F)
Operating Temperature (Chassis) 31° C (88° F) (S); 38° C (100° F) (R)
Operating Humidity (Environment) 20% to 90%, Non-condensing
Power
Maximum Power Consumption 12 watts
Power Supply Input Voltage 100-240V AC at 50-60 Hz
Power Supply Output Voltage 12V DC
Regulatory CE, RoHS
Other
Standard Warranty 2 Years
Included Items Installation Guide, Power Supply, Adapter Plugs (US, EU, AU,
UK), Mounting Brackets (4 ea), Mounting Screws (4 ea)
IR Transmitter DIGIB-EMT
IR Receiver DIGIB-EYE, IR-AC
Distances and picture quality may be affected by cable grade, cable quality, source and
destination equipment, RF and electrical interference, and cable patches.
