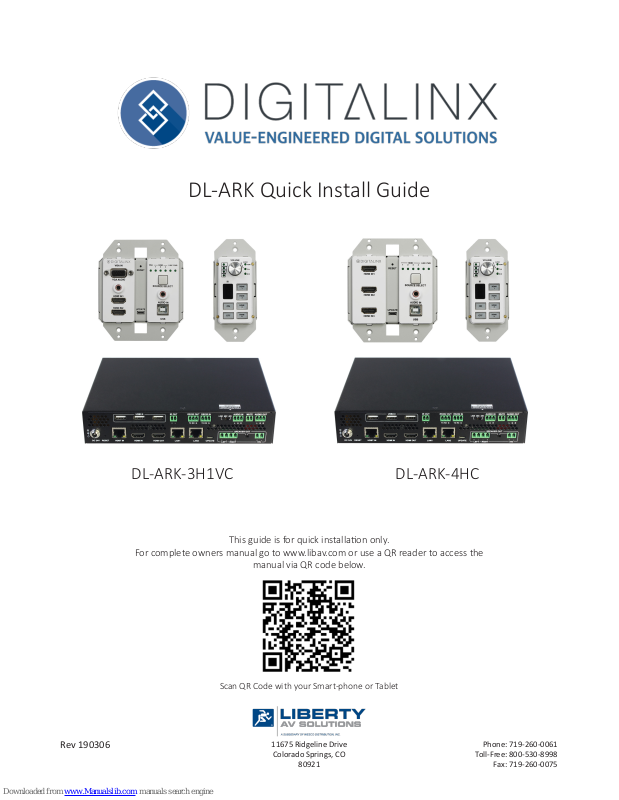

DigitaLinx DL-ARK Series, DL-ARK-3H1VC, DL-ARK-4HC Quick Install Manual

11675 Ridgeline Drive

Colorado Springs, CO

80921

Rev 190306

Phone: [phone]

Toll-Free: 800-530-8998

Fax: [phone]

DL-ARK Quick Install Guide

DL-ARK-4HCDL-ARK-3H1VC

This guide is for quick installaon only.

For complete owners manual go to www.libav.com or use a QR reader to access the

manual via QR code below.

Scan QR Code with your Smart-phone or Tablet

DL-ARK Quick Guide

2

The Digitalinx DL-ARK Advanced Room Kit is a mul-funcon A/V distribuon and push buon control
system designed to provide audio, video and USB 2.0 data extension with complete system control
all in one convenient system. Only two solid core, shielded Category 6 cables are required to connect
the enre system together which consists of one HDBaseT wall plate transmier, one HDBaseT
receiver and one keypad controller. All the power needed for the keypad and wall plate transmier is
provided by the receiver via Category cable / HDBaseT.

There are two systems available in the series; the DL-ARK-3H1VC features 2 HDMI inputs and 1 VGA
with audio input on the wall plate transmier and the DL-ARK-4HC features 3 HDMI inputs on the
wall plate transmier. Both HDBaseT transmiers features a USB B host port for connecon to a
computer or host and a dedicated audio input that is independent of all video inputs. The DL-ARK
HDBaseT receiver for both systems provides an addional HDMI input for a local A/V input, an HDMI
output for a display or projector, a 3 port client USB hub for connecon to interacve white board
or USB mic / camera, a two port LAN switch, mic / line analog audio input, line audio analog output,
40 wa 70 volt power amplier output and an RS232 and IR output for display or projector control
either by keypad controller or web server. The DL-ARK control keypad for both systems features audio
and video input selecon control for all A/V inputs, variable audio control for the mic/line input, line
audio output and amplied audio output from the DL-ARK receiver and can control a connected
display or projectors ON and OFF status via RS232 or IR from the receiver as well. The DL-ARK
systems are UL Listed.

Several DL-ARK systems can be remotely managed by the DL-ARK system management soware
which allows centralized status view and control of a system from anywhere on the LAN.

Product Overview
