Digital Instruments SYNC-SWITCH User Manual

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

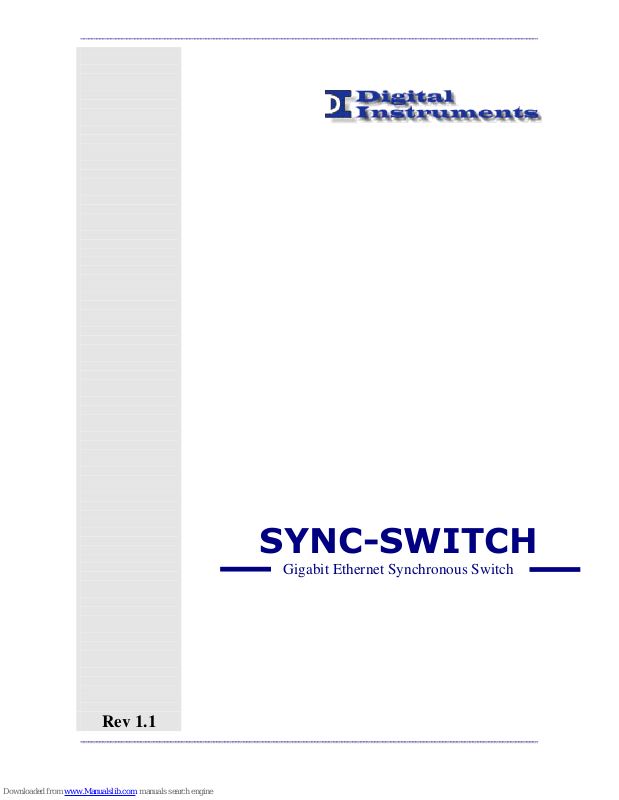

SYNC-SWITCH

Gigabit Ethernet Synchronous Switch

Rev 1.1

SYNC-SWITCH - MANUAL 2

SYNC-SWITCH – Manual – Rev 1.1 - 2 -

Dichiarazione di conformità

Declaration of conformity

La Ditta

The Company

DIGITAL INSTRUMENTS S.r.l.

Via Parco degli Scout, 13

20091 BRESSO (MI) ITALY

Dichiara con la presente che il Prodotto

Herewith declares that the Product

Tipo / Type Gigabit Ethernet Synchronous Switch

Modello / Model SYNC-SWITCH

Serial Number

0180 /

Oggetto di questa dichiarazione è conforme ai seguenti standard o norme della Comunità Europea

Referred to by this declaration is in conformity with the following standards or normative documents of EC

Norme Europee Armonizzate

European Armonized Standards

CEI EN 61000-6-4:2007

Electromagnetic compatibility (EMC) - Part 6-4: Generic standards Emission standard for industrial environments

CEI EN 61000-6-2:2006

Electromagnetic compatibility (EMC) - Part 6-2: Generic standards Immunity for industrial environments

CEI EN 55011:2011

Limits and methods of measurement of radio disturbance characteristics of

industrial, scientific and medical (ISM) radio-frequency equipment

CEI EN 61000-4-2:2011

Electromagnetic compatibility (EMC) - Part 4-2: Testing and measurement techniques - Electrostatic discharge immunity test

CEI EN 61000-4-3:2007+A1:2009+A2:2011

Electromagnetic compatibility (EMC) - Part 4-3: Testing and measurement techniques - Radiated, radio-frequency, electromagnetic field immunity test

CEI EN 61000-4-4:2006+A1:2010

Electromagnetic compatibility (EMC) – Part 4-4:Testing and measurement techniques – Electrical fast transient/burst immunity test

CEI EN 61000-4-5:2007

Electromagnetic compatibility (EMC) - Part 4-5: Testing and measurement techniques - Surge immunity test

CEI EN 61000-4-6:2011

Electromagnetic compatibility (EMC) - Part 4-6: Testing and measurement techniques - Immunity to conducted disturbances, induced by radiofrequency fields

CEI EN 61000-4-8:1997+A1:2001

Electromagnetic compatibility (EMC) - Part 4-8: Testing and measurement techniques - Power frequency magnetic field immunity test

CEI EN 61000-4-11:2010

Electromagnetic compatibility (EMC) - Part 4-11: Testing and measurement techniques - Voltage dips, short interruptions and voltage variations immunity tests

CEI EN 60204-1:2006+A1:2010

Safety of machinery - Electrical equipment of machines - Part 1: General requirements

Bresso, December 2012

DIGITAL INSTRUMENTS S.r.l. Via Parco degli Scout, 13 20091 BRESSO (MI) ITALY

Marco Genova Quality Assurance Manager

SYNC-SWITCH - MANUAL 3

SYNC-SWITCH – Manual – Rev 1.1 - 3 -

Istruzioni di sicurezza

Safety Instructions

Il dispositivo è stato progettato, costruito e collaudato in conformità alle normative richiamate nel Certificato di Conformità ed è stato rilasciato dal costruttore completamente testato secondo gli standard di sicurezza. Per mantenere questa condizione e assicurare la sicurezza d’uso, l’utente deve osservare tutte le istruzioni e segnalazioni di pericolo descritte in questo manuale.

This unit has been designed and tested in accordance with the EC Certificate of Conformity and has left the manufacurer’s plant in a condition fully complying with safety standard. To maintain this condition and to ensure safe operation, the user must observe all the instructions and warnings given in this operating manual.

 Prima di mettere in servizio il dispositivo, leggere attentamente ed integralmente le istruzioni per l’uso.

Osservarle e seguirle in tutti i punti. Provvedere in modo che le istruzioni per l’uso siano sempre accessibili a tutti gli addetti.

Prior to switching on the unit, please read carefully the instructions on the manual. Keep this manual available for all every user of this equipment.

 Il terminale PE sul dispositivo deve essere connesso al conduttore PE prima di eseguire qualsiasi altra

connessione. L’installazione ed il cablaggio devono essere eseguiti da personale tecnico qualificato.

The PE terminal of the unit must first be connected to the PE conductor on site before any other connections are made. Installation and cabling of the unit to be performed only by qualified technical personnel.

 Lo strumento supporta alimentazione AC wide range da 95 Vac a 240 Vac e deve essere connesso

tramite protezione con corrente nominale massima pari a 16A.

This unit may be operate from wide range AC supply networks from 95 Vac to 240 Vac fused with max. 16A.

 Lo strumento supporta alimentazione DC wide range da 20 Vdc a 50 Vdc e deve essere connesso

tramite protezione con corrente nominale massima pari a 5A. Il circuito di protezione contro l’inversione di polarità è implementato a bordo.

This unit may be operate from wide range DC supply networks from 20 Vdc to 50Vdc fused with max. 5A.Circuit against polarity inversion is also implemented.

Le condizioni di sicurezza vanno testate ad ogni sostituzione. Ispezione visiva dei cavi, stato dell’isolamento, corrente di dispersione, stato del connettore PE e test funzionale.

A safety test must be performed after each replacement of part. Visual inspections, PE conductor test, insulation resistance, leakage-current measurement, functional test.

 Non interrompere il conduttore PE in nessun caso. Un interruzione del cavo PE rende l’apparato

elettricamente pericoloso.

It is not permissible to interrupt PE conductor intentionally, neither in the incoming cable nor on the unit itself as this may cause the unit become electrically hazardous.

 Ogni riparazione, manutenzione e sostituzione del dispositivo deve essere eseguita unicamente da

personale autorizzato dalla Digital Instruments.

Any adjustments, replacements of parts, maintenance or repair may be carried out only by authorized Digital Instruments technical personnel.

 Assicurarsi che ogni collegamento con dispositivi informatici sia eseguito secondo IEA950/EN60950

Ensure that the connections with information technology equipment comply with IEC950/EN60950

SYNC-SWITCH - MANUAL 4

SYNC-SWITCH – Manual – Rev 1.1 - 4 -

Simboli di sicurezza

Safety Symbols

Sono presenti sul dispositivo e nella documentazione simboli utilizzati per la segnalazione di segnalazione conformi alle specifiche IEC61010-1 II.

Safety-related symbols used on equipment and documentation comply with IEC 61010-1 II.

• SIMBOLO DIRECT CURRENT IEC 417, N°5031 Vdc may be used on rating labels

• SIMBOLO ALTERNATING CURRENT IEC 417, N°5032 For rating labels, the symbol is typically replaced by V and Hz as in 230V, 50Hz.

• SIMBOLO PROTECTIVE CONDUCTOR TERMINAL IEC 417, N°5019 This symbol is specifically reserved for the

PROTECTIVE CONDUCTOR TERMINAL

and no other. It is

placed at the equipment earthing point and is mandatory for all grounded equipment

• SIMBOLO CAUTION ISO 3864, N°B.3.1 used to direct the user to the instruction manual where it is necessary to follow certain specified instructions where safety is involved.

Changelog

Rev. Note Data

1.0 First review 28/10/2012

1.1 Added PTP master support 31/01/2014

SYNC-SWITCH - MANUAL 5

SYNC-SWITCH – Manual – Rev 1.1 - 5 -

SYNC-SWITCH

Gigabit Ethernet Synchronous Switch

Table of Contents

Summary ....................................................................................................................................................................... 6

Front View..................................................................................................................................................................... 7

Rear View ...................................................................................................................................................................... 7

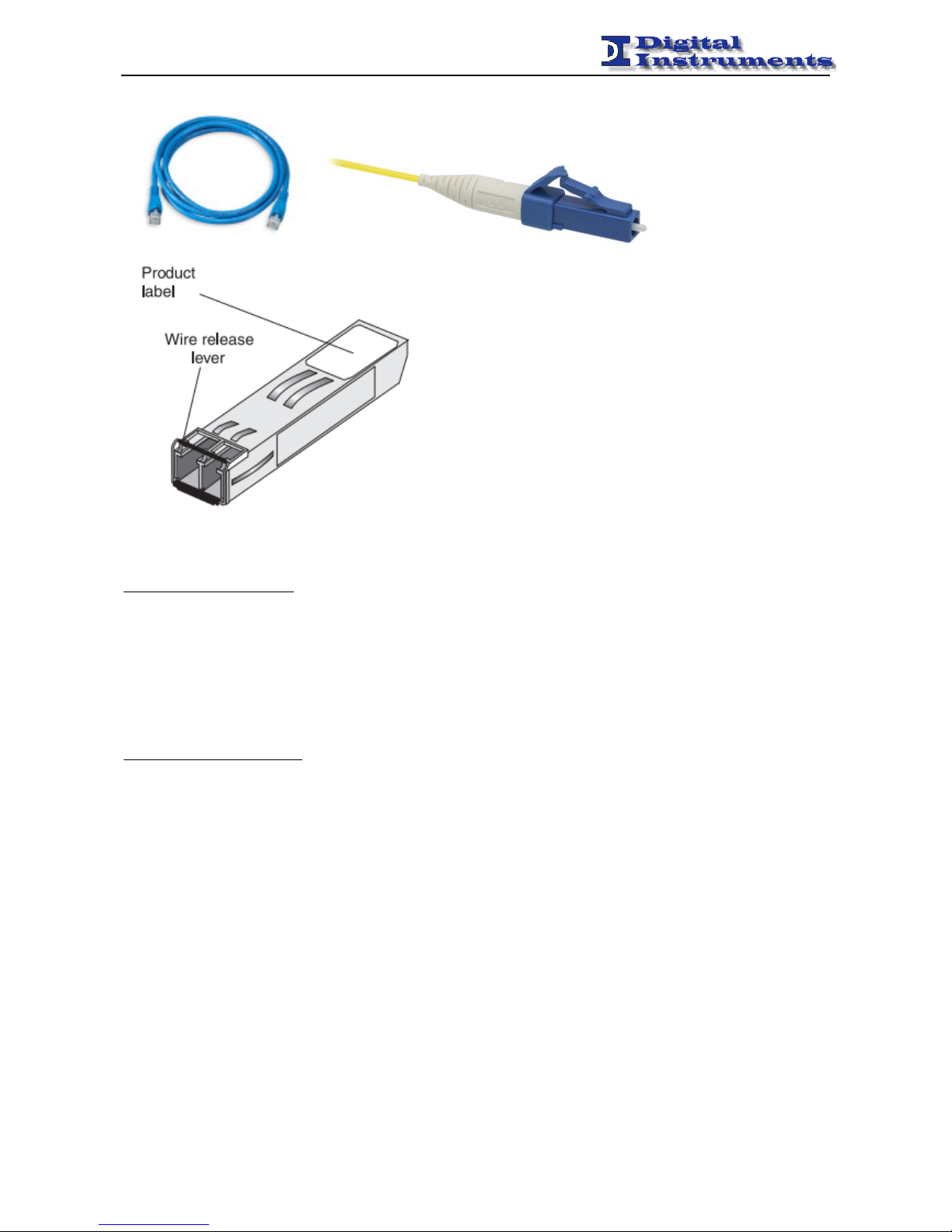

Main Operation............................................................................................................................................................. 8

Configuration .............................................................................................................................................................. 10

System ...................................................................................................................................................................... 10

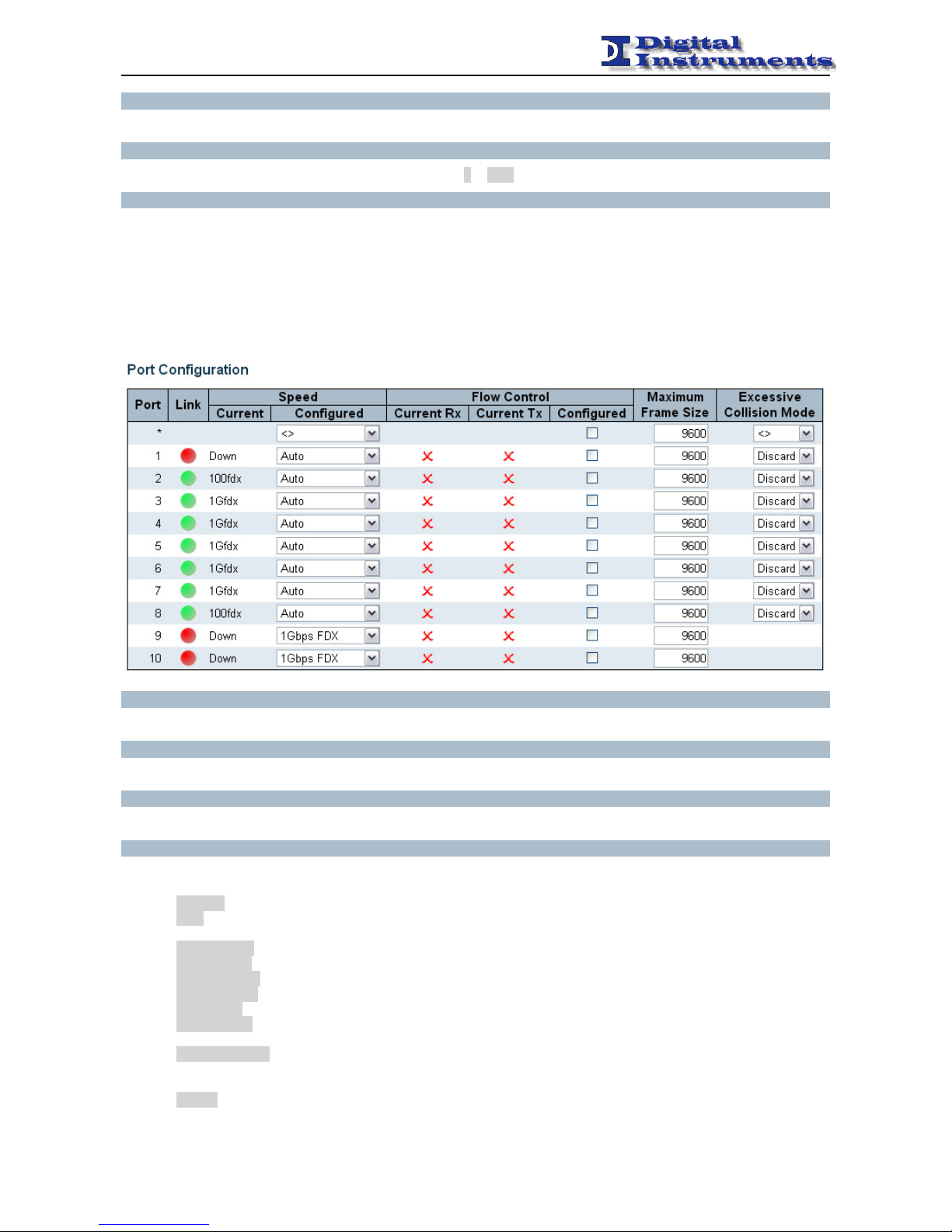

Ports .......................................................................................................................................................................... 11

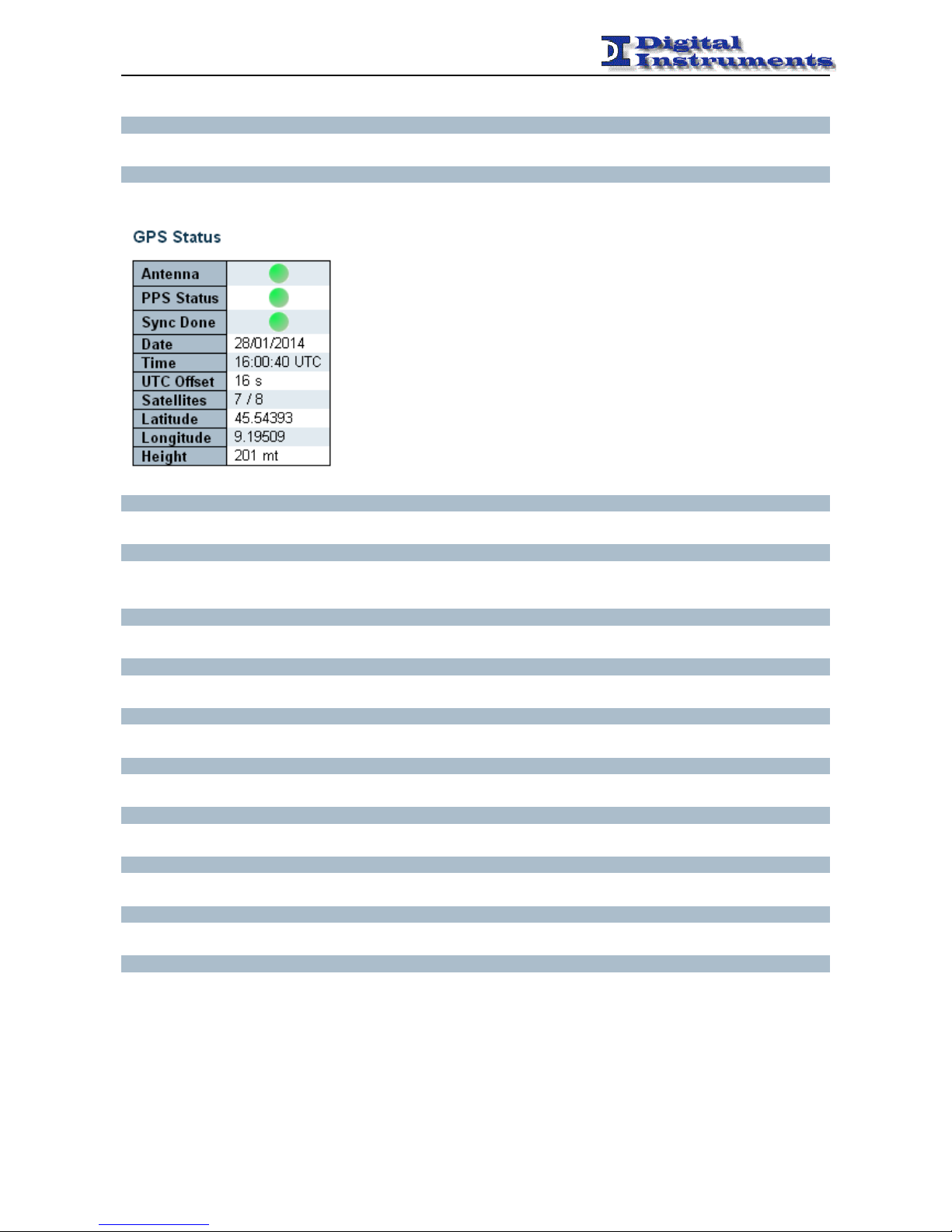

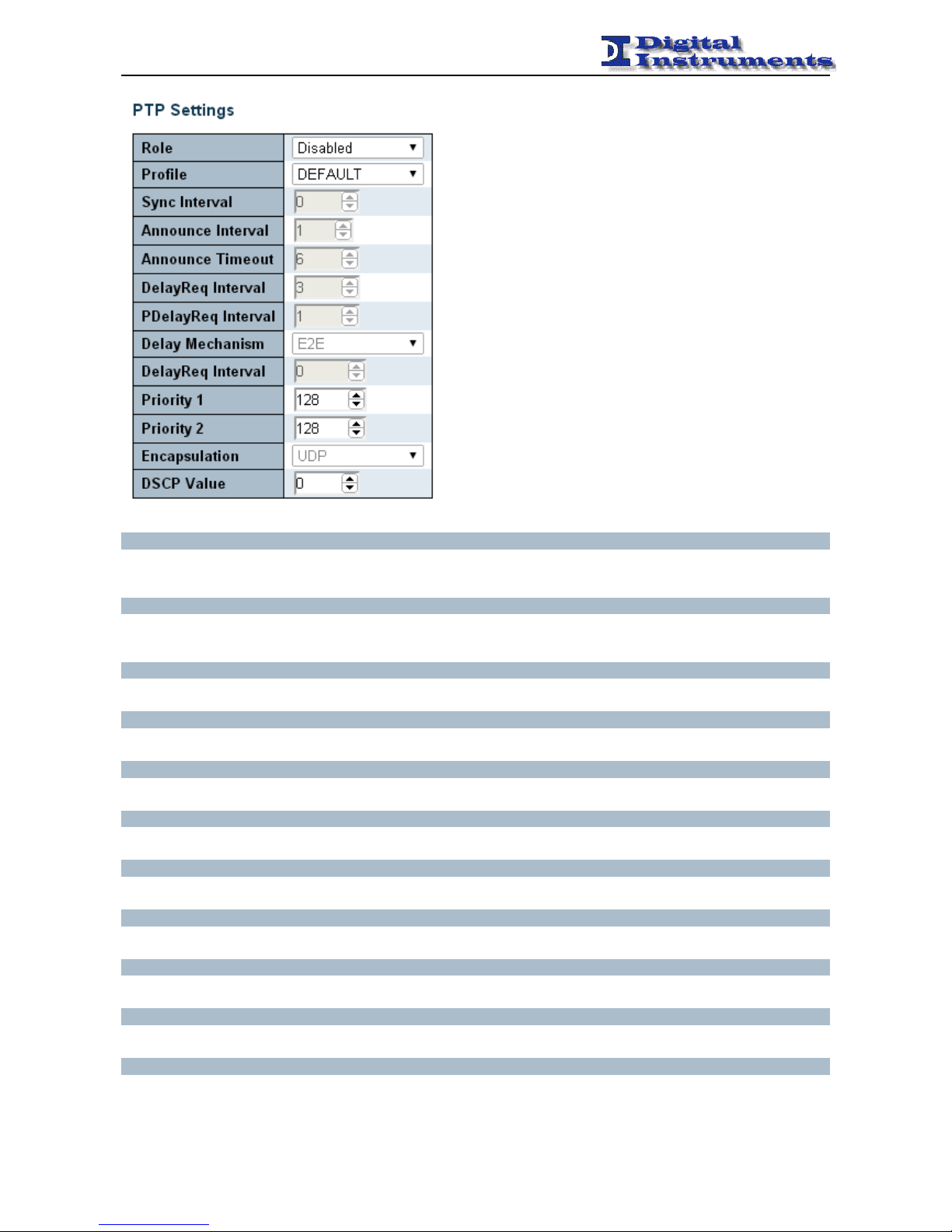

Sync .......................................................................................................................................................................... 12

Firmware Upgrade ..................................................................................................................................................... 18

Serial console............................................................................................................................................................... 18

Assistance .................................................................................................................................................................... 19

Technical Data ............................................................................................................................................................ 20

SYNC-SWITCH - MANUAL 6

SYNC-SWITCH – Manual – Rev 1.1 - 6 -

Summary

This manual provides to the user of the apparatus SYNC-SWITCH all the information necessary for proper operation. The information include the normal installation procedures and any data on the maintenance and programming in order to facilitate interventions in the field.

SYNC-SWITCH is an IEEE 1588-2008 compliant 10-port Gigabit switch capable of acting as a Transparent Clock and, with aid of the Synchronous Ethernet protocol, to achieve synchronization in the nanosecond range.

SYNC-SWITCH is equipped with the latest technology and may be operated via a comfortable web interface. It may be used as an industrial Ethernet switch for rough environments requiring carrier grade switching.

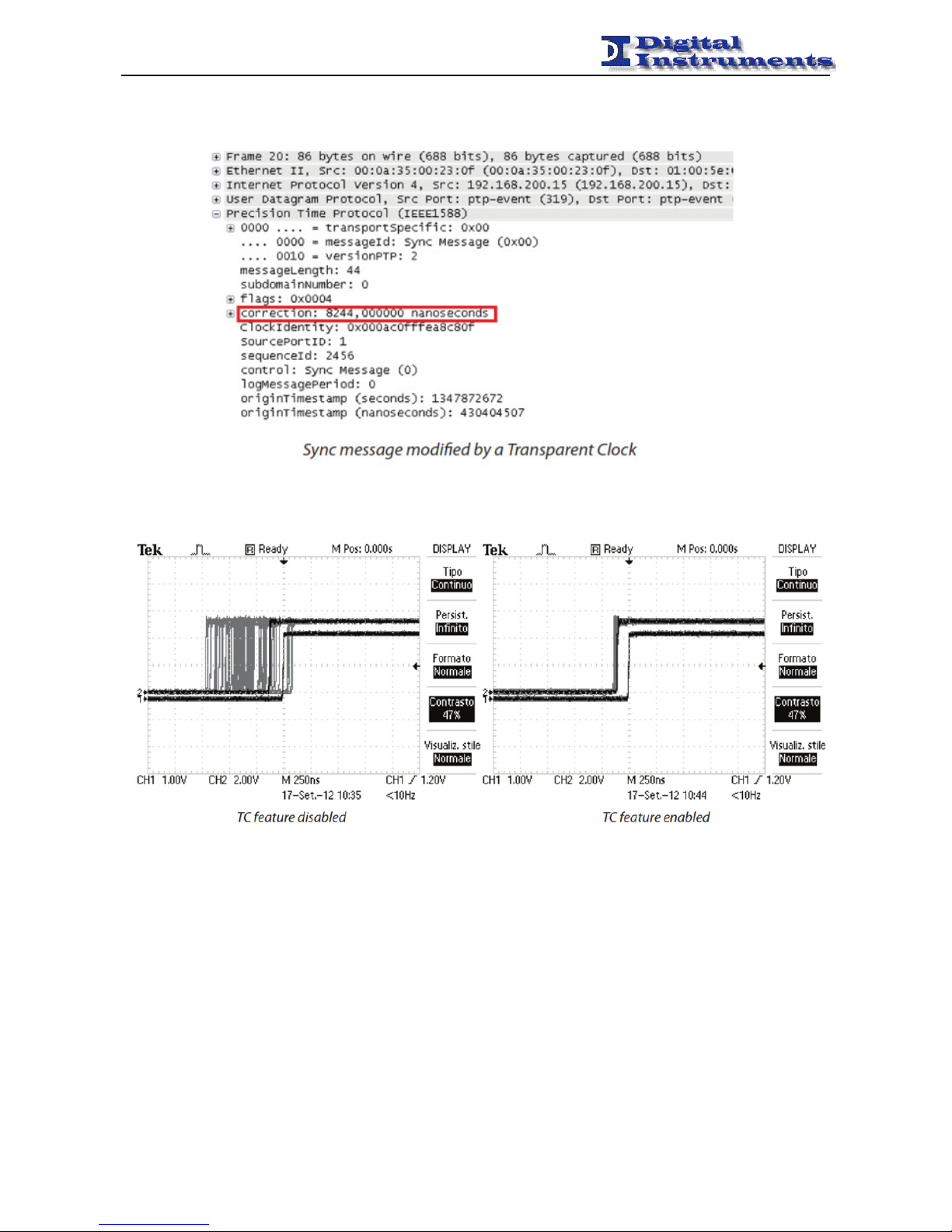

The job of a Transparent Clock (also referred to as TC) switch is very simple to understand.

It just modifies PTP messages as they pass through the device. Timestamps in the messages are corrected for time spent traversing the network equipment. This approach improves distribution accuracy by compensating for delivery variability across the network (called Packet Delay Variation - PDV). The device does not alter any other message other than Sync and Delay_Req packets and is completely transparent both to the PTP Master and to the PTP slaves.

SYNC-SWITCH is in metallic box of size 1U 19’’for rack installation.

Note

This document may contain confidential and or reserved material of property of Digital Instruments S.r.l.

It cannot be reproduced, used or shown to third parties for any other scope than the intended one.

WARNING: Before inserting the power supply please carefully read all instructions for proper

installation.
