Digital ID View IV-DV409IRWDR User Manual

User Manual

Item Number: IV-DV409IRWDR

Thank you for purchasing our products.

Please read this quick start guide carefully before operating.

Safety Precaution

Warning

 To prevent fire or electric shock, please insure all connections are not

exposed to the elements.

 Please make sure the adapter is consistent with product specifications,

otherwise it might cause fire, electric shock or damage.

 Pay attention to polarity of the adapter, it might cause some accidents like

fire.

 Please don’t connect multiple cameras with the same adapter at the

same time, overloading of adapter capacity may cause fire.

 Power supply must be firmly connected; loose wires may to cause a fire.
 If the device gets abnormal smell or smoke, please disconnect power

immediately and contact our customer service center.

 If the camera doesn’t work properly, please do not dismantle /

disassemble it by yourself. Please contact your local distributor or our
authorized dealer, or you may void the warranty.

 Please do not splash water on unsealed connections when cleaning.

Technical Specifications

Item Number: IV-DV409IRWDR
Signal System: NTSC
Sensor CCD: Sony Effio-P
Horizontal resolution : 700TV lines
Lens: 2.8-12mm
Minimum Illumination: 0 LUX (IR ON)
S/N Ratio: More than 48 dB
Distance: 60 feet
LED : 21PCS LED
Video Output: 1Vp-p 75Ω . Y/C Separated
Connector video : BNC
Operation Temperature: -4°F to +122°F
Supplied Power: 24VAC /12VDC(+/-10%);

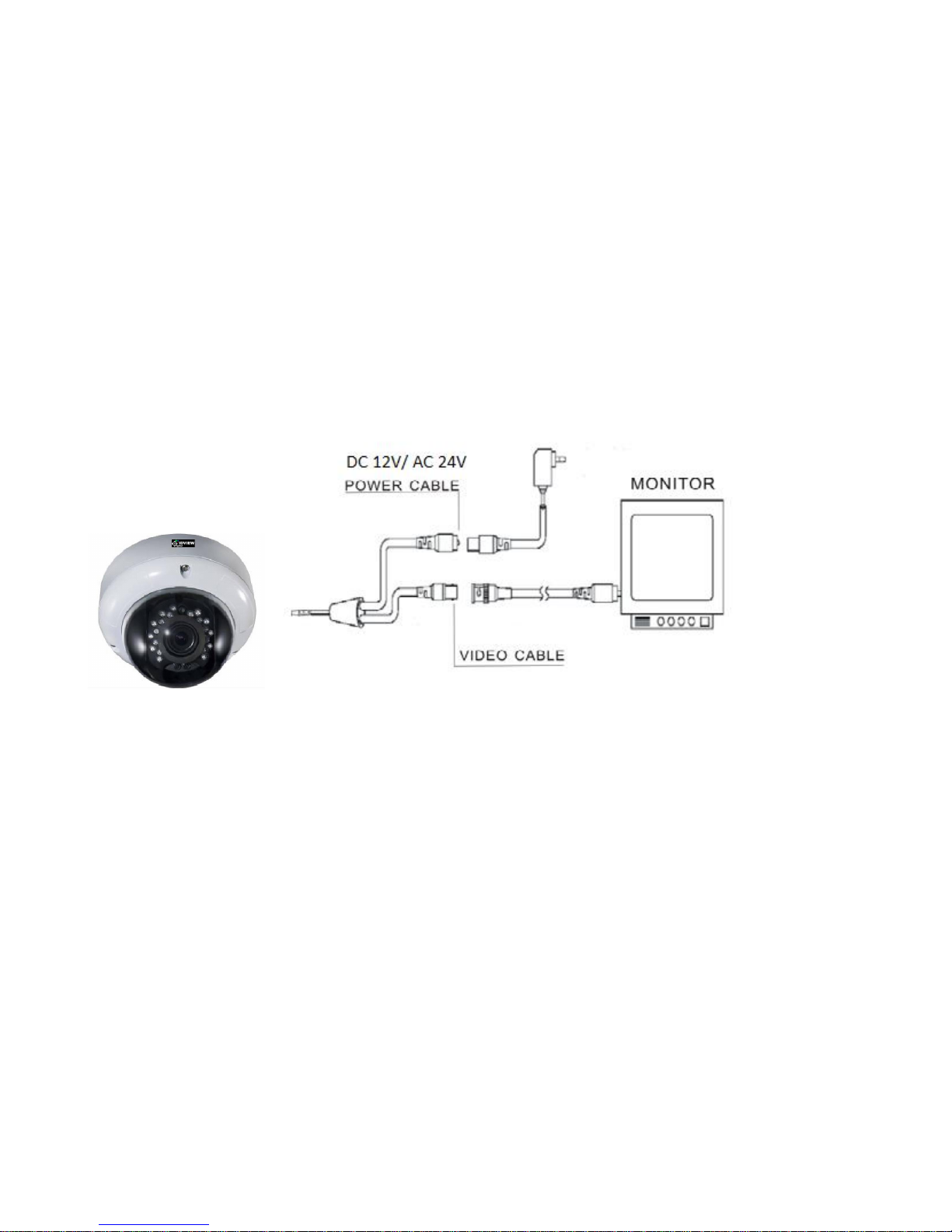

Installation
