DIGITAL FORECAST BRIDGE X TS User Manual
1

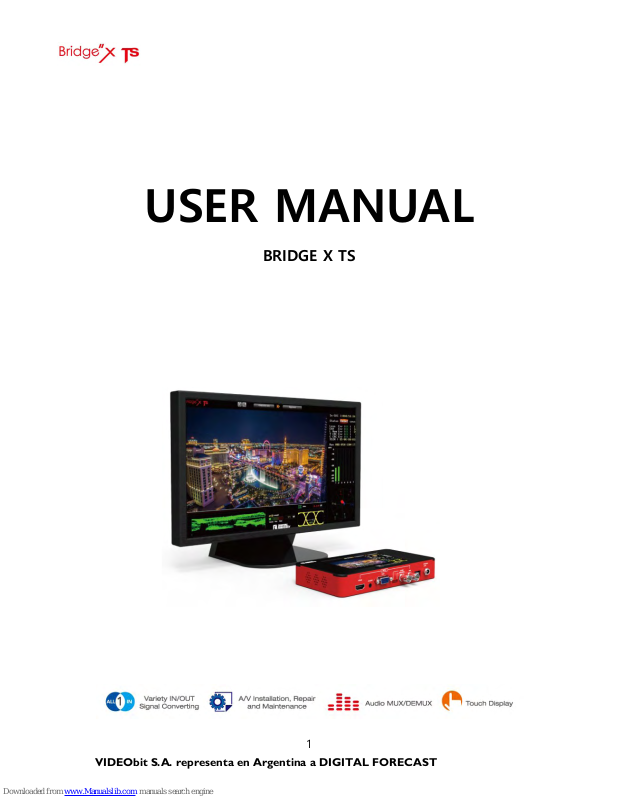

USER MANUAL
BRIDGE X TS
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST
USER MANUAL
2
Summary
Bridge X TS is a device that supports a variety of inputs and outputs. This device can be used in
the installation construction, maintenance service of video or audio signal. You can see the signal
status to the LCD panel. Even if any one of the input signal, the converted signals are all output.
Also this device has the ability to measure the built-in SDI Jitter and Cable length.
Feature
Up/Down/Cross/Scan converter
Multiple standard Video / Audio signal
(CVBS, AES/EBU, SDI, VGA, COMPONENT, Analog audio, HDMI)
Analog audio MUX / DEMUX
User selectable output format
Test Pattern Generator (Stop screen and Moving Box screen)
Menu OSD function
Audio level check (Most 8 channels are monitored)
Touch Screen LCD Built in For Input signal monitoring (5 Inch 800x480)
External Battery (Option)
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST
3
Product Composition(hard case)
1 of hard case
1 of X_TS main body
1 of adaptor
1 of Holder
1 of Battery tap(sony)
1 of VGA to Component jack
1 of analog audio jack
1 of HDMI cable
1 of SDI cable
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST
USER MANUAL
4
Product Composition(hard case)
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST
5
Product Composition(basic)
1 of basic case
1 of X_TS main body
1 of adaptor
1 of VGA to Component jack
1 of analog audio jack
VIDEObit S.A. representa en Argentina a DIGITAL FORECAST
