Digital Flash Memory MP3 On-Hold User Manual
Before using this unit, please read these operating instructions carefully.
Afterwards, keep them handy for future reference.
MP3 On-Hold Audio System
User Manual
Digital On-Hold Audio System
with analog line capability
3
/4
1
/2
/3
8
Ω
16
Ω
PO
W
ER
O
N
O
F
F
9V DC
US
B
AUDIO OUT
IMPEDANC
E
P
H
O
N
E
LIN
E
S
m
e
m
o
ry
c
a
r
d
s
p
e
a
k
e
r
o
n
of
f
1
Supplied Accessories
6' Phone Line Cords
"T" Adapters

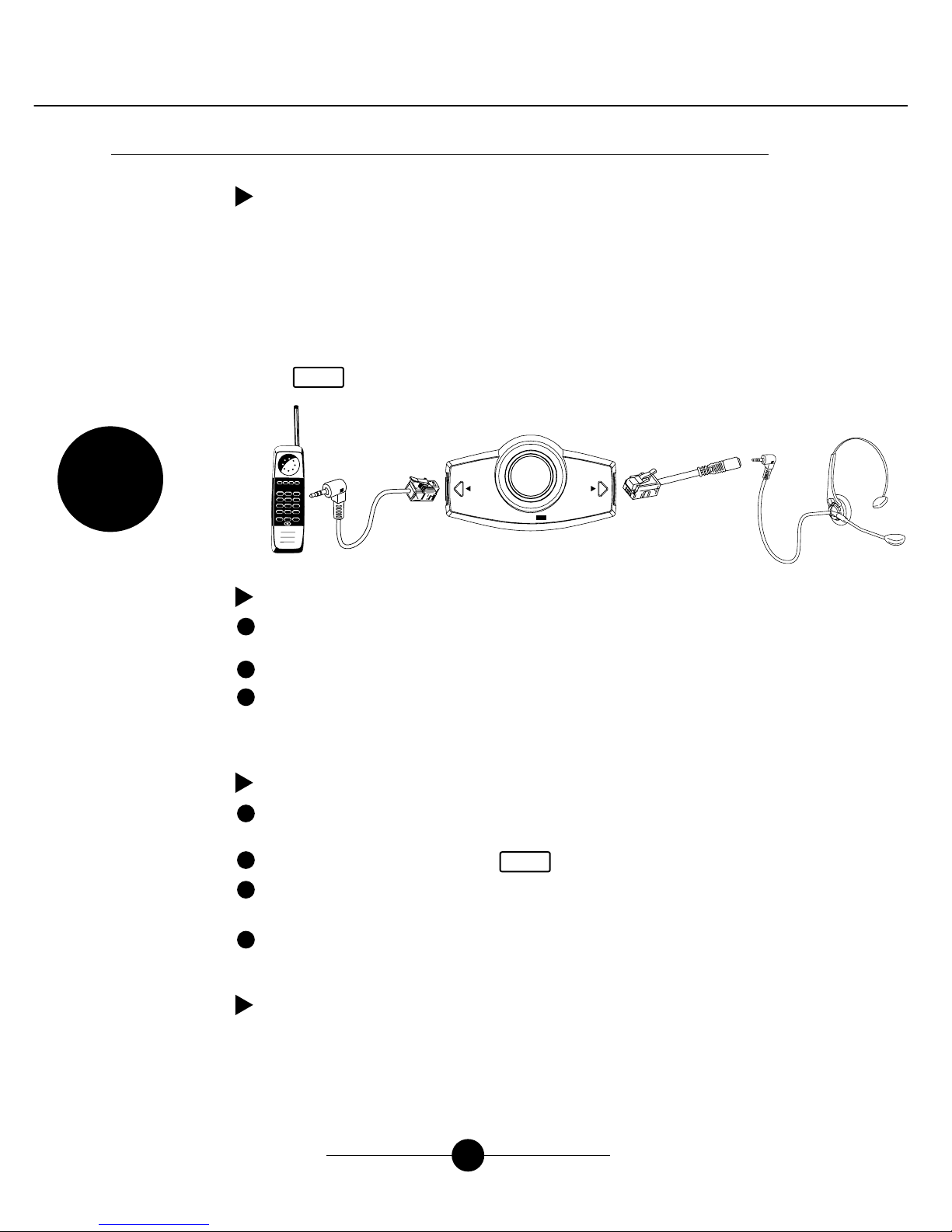

4" handset cords Cordless phone
adapter cable (male)
Cordless phone
adapter cable (female)
Telephone Extension
Hold Music Activators
(TEHMA)
Analog Line Capability - provides on-hold audio capability to ordinary analog and KSU-less phones.

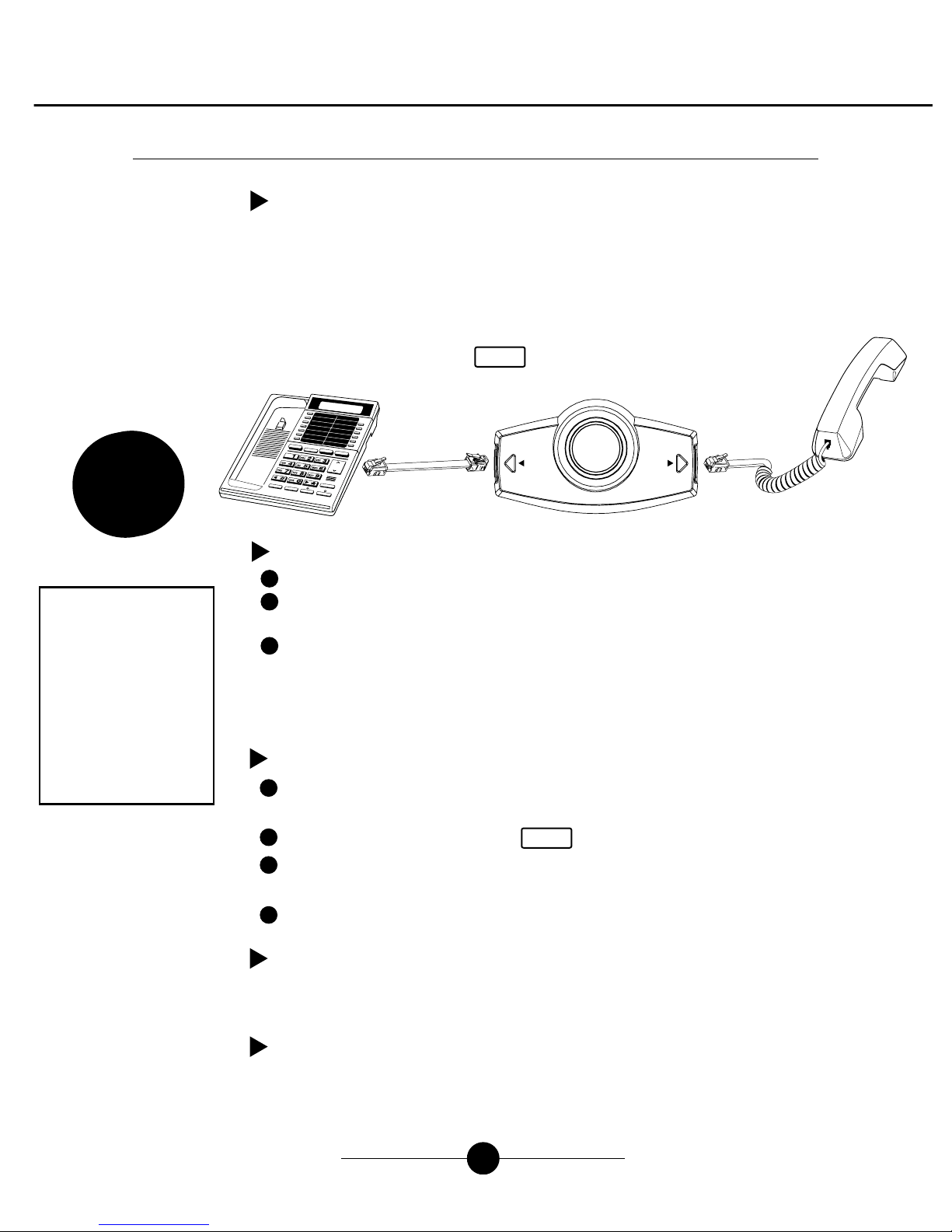

Telephone Extension Hold Music Activators - connects to phone extensions for true "hold button activation"
of the on-hold audio function.
MP3/WMA file playback - Plays ordinary MP3 and WMA files.

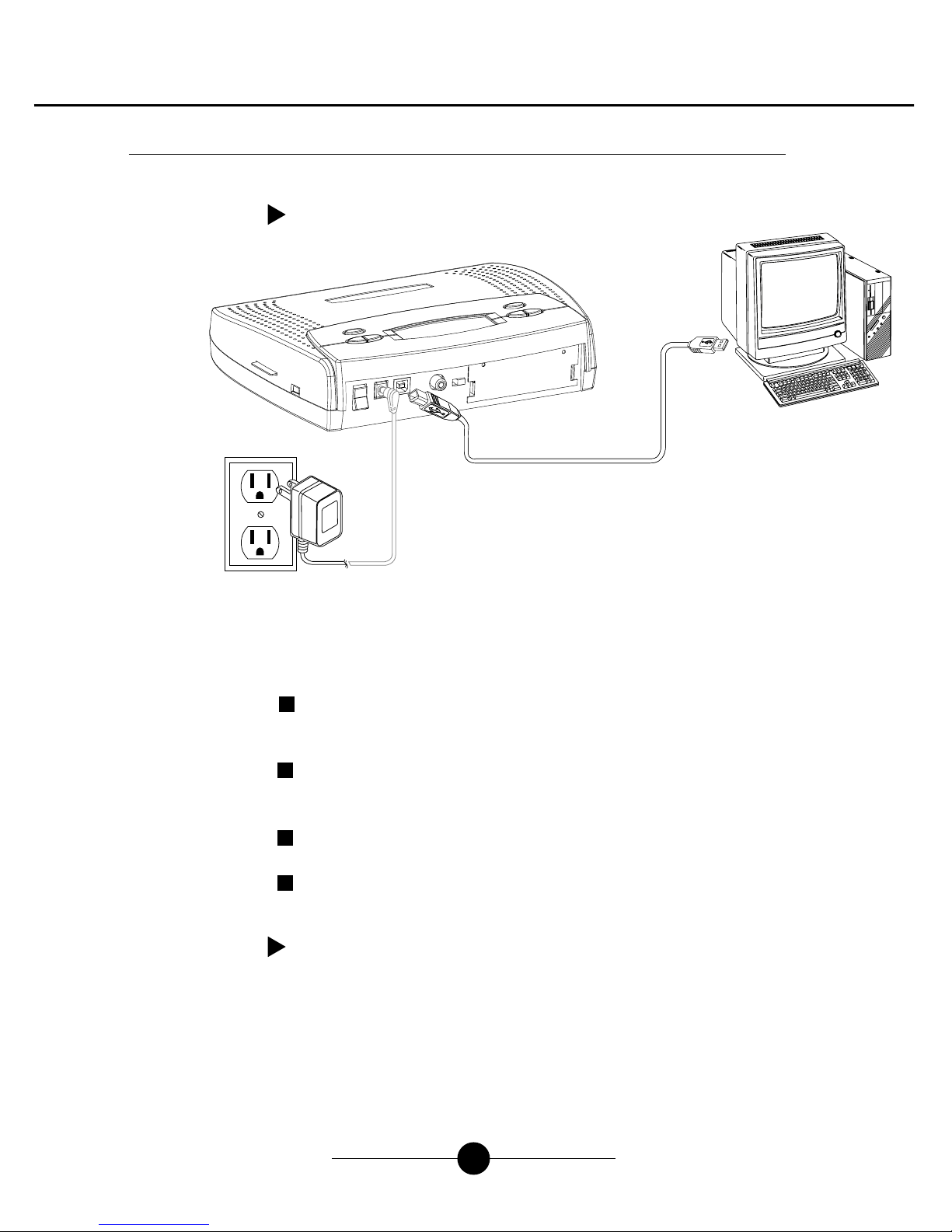

USB connectivity - Update content by connecting the MP3 On-Hold Audio System to a PC and transferring MP3 or
WMA files to its on-board flash memory.
On-Board Memory - unit comes with 16MB of on-board memory
Digital flash memory - on-board memory retains music/message content even during power loss...unit ships with
preloaded audio. Unit automatically starts in playback mode and retains track and volume settings after power loss.

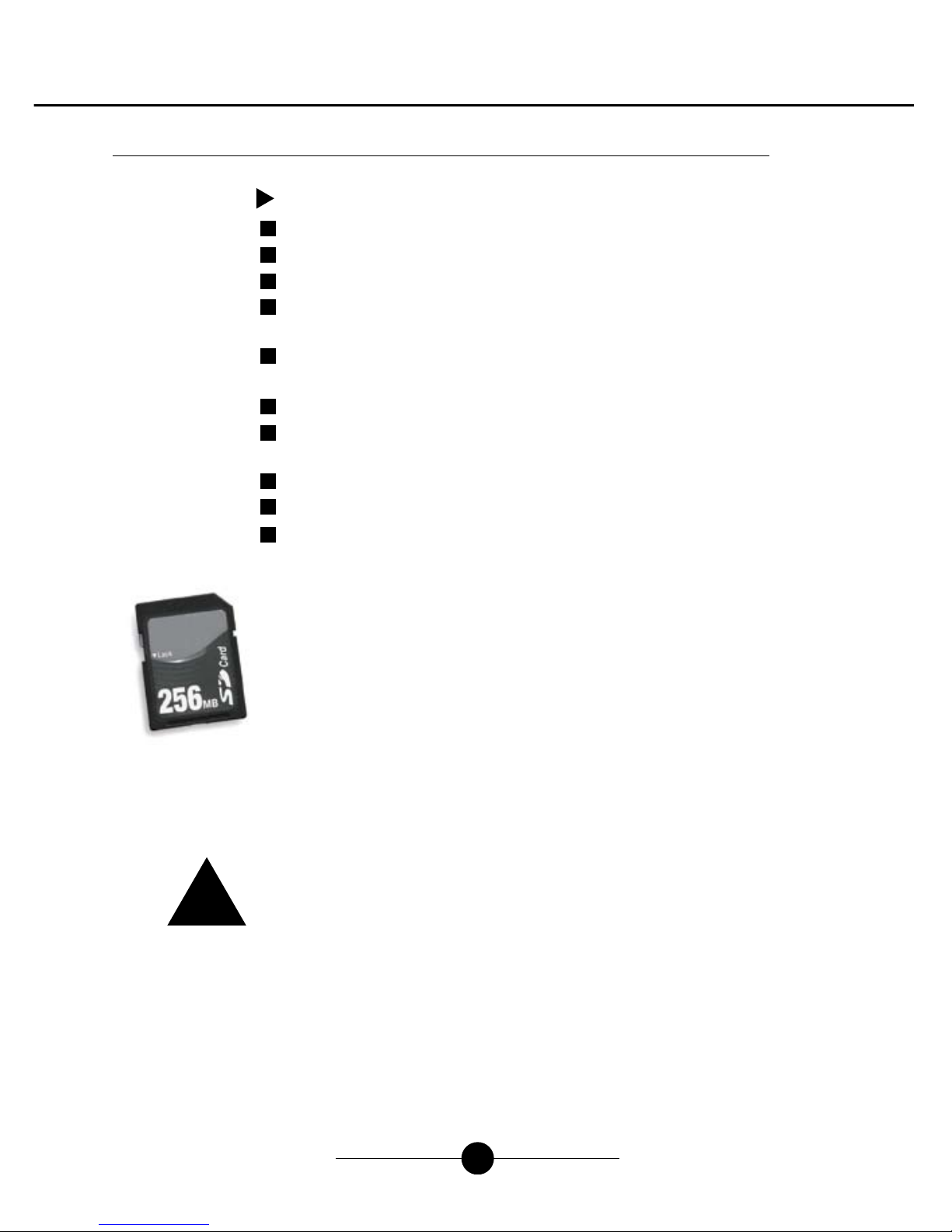

SD memory card slot - upgrade the MP3 On-Hold Audio System's memory to up to 1GB (over 70 hours) by adding
a Secure Digital Card (SD). Update content by transferring files from the PC to the SD card via a USB card reader (not
supplied).
High Quality Playback -
Player supports best CD quality playback up to 44kHz sampling rate at up to 192KBPS bit rate.
3 Repeat Options- unit supports
repeat all, repeat all-shuffle
and
repeat one track
functions.

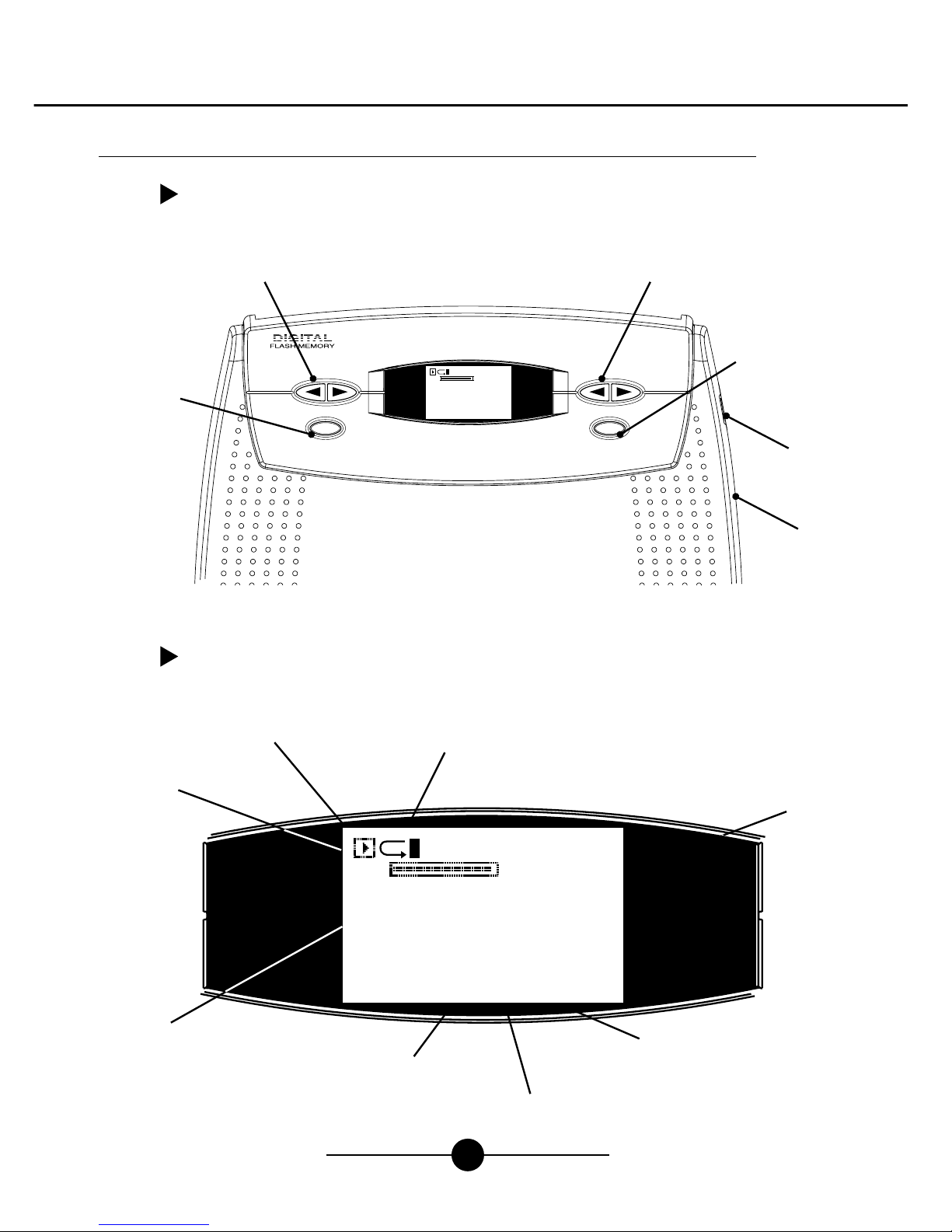

Backlit LCD Control Panel - 6-line backlit LCD panel displays ID3 tags with descriptive names of tracks for easy
identification and selection. Display also shows a variety of important information so user can choose playback
preferences and easily determine unit's operational status.
Built-In Monitor Speaker - allows user to monitor sound with the flip of a switch.
Wall Mountable - unit can play while mounted in a vertical position.
3-Year Warranty
MP3 On-Hold Audio System Features
USB Cable AC Adapter
3./4
1
/2
/3
8
Ω
16
Ω
POWER
O
N
O
F
F
9V DC
USB
AUDIO OUT
IMPEDANC
E
PHONE LINE
S
memory car
d
sp
ea
ke
r
o
n
of
f
2
Player Set-up
Plug the supplied "T adapter" into any modular phone jack which services line 1 and 2.
(This will allow you to share the phone jack with any phone extension which you have plugged in to the wall jack.)
Plug the provided phone cord into the jack marked "Line 1/2/3" on the back of the player.
Plug the other end of the phone cord into the "T" adapter which is servicing line 1 and 2.
REPEAT ABOVE IF LINE 3 and/or 4 ARE PRESENT.
NOTE:
One MP3 On-Hold Audio System will provide on-hold audio capability to all phone extensions
in your office.
IMPORTANT! - Player volume adjustment
Adjust the player's volume control to the half way point before proceeding to the next step.
Excessive volume will cause the on-hold audio to shut off during playback.
1
2
3
Connection to analog phone lines
Combined Line Connection
Lines 1 & 2 are combined in one wall jack and lines 3 & 4 are combined in another wall jack
step
1
Line 1/2
Line 3/4Line 3/4
