The postpaid Reader’s Comments forms at the end of this document request your critical evaluation
to assist in preparing future documentation.

The following are trademarks of Digital Equipment Corporation: PrintServer, VAX, VAX
DOCUMENT, and the DIGITAL logo.

All other trademarks and registered trademarks are the property of their respective holders.

FCC Notice

This equipment has been tested and found to comply with the limits of a Class A digital device,
Pursuant to Part 15 of the FCC Rules. These limits are designed to provide a reasonable protection
against harmful interference when the equipment is operated in a commercial environment. The
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at his own expense.

Any changes or modifications not expressly approved by the manufacturer could void the user’s
authority to operate the equipment.

Canadian Department of Communications compliance statement:

This equipment does not exceed Class A limits per radio noise emissions for digital apparatus
set out in the Radio Interference Regulation of the Canadian Department of Communications.
Operation in a residential area may cause unacceptable interference to radio and TV reception
requiring the owner or operator to take whatever steps are necessary to correct the interference.

Avis de conformité aux normes du ministère de Communications du Canada:

Cet équipement ne dépasse pas les limites de Class A d’émission de bruits radioélectriques pour les
appareils numériques telles que perscrites par le Règlement sur le brouillage radioélectrique établies
par le ministère des Communications du Canada. L’exploitation faite en milieu résidential peut
entraîner le brouillage des réceptions radio et télé, ce qui obligerait le propriétaire ou l’opérateur a
prendre les dispositions nécessaires pour en éliminer les causes.

This document was prepared using VAX DOCUMENT Version 2.1.

S2425

Contents

1 Using the Optional Large Capacity Input Tray

1.1 Supported Paper Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

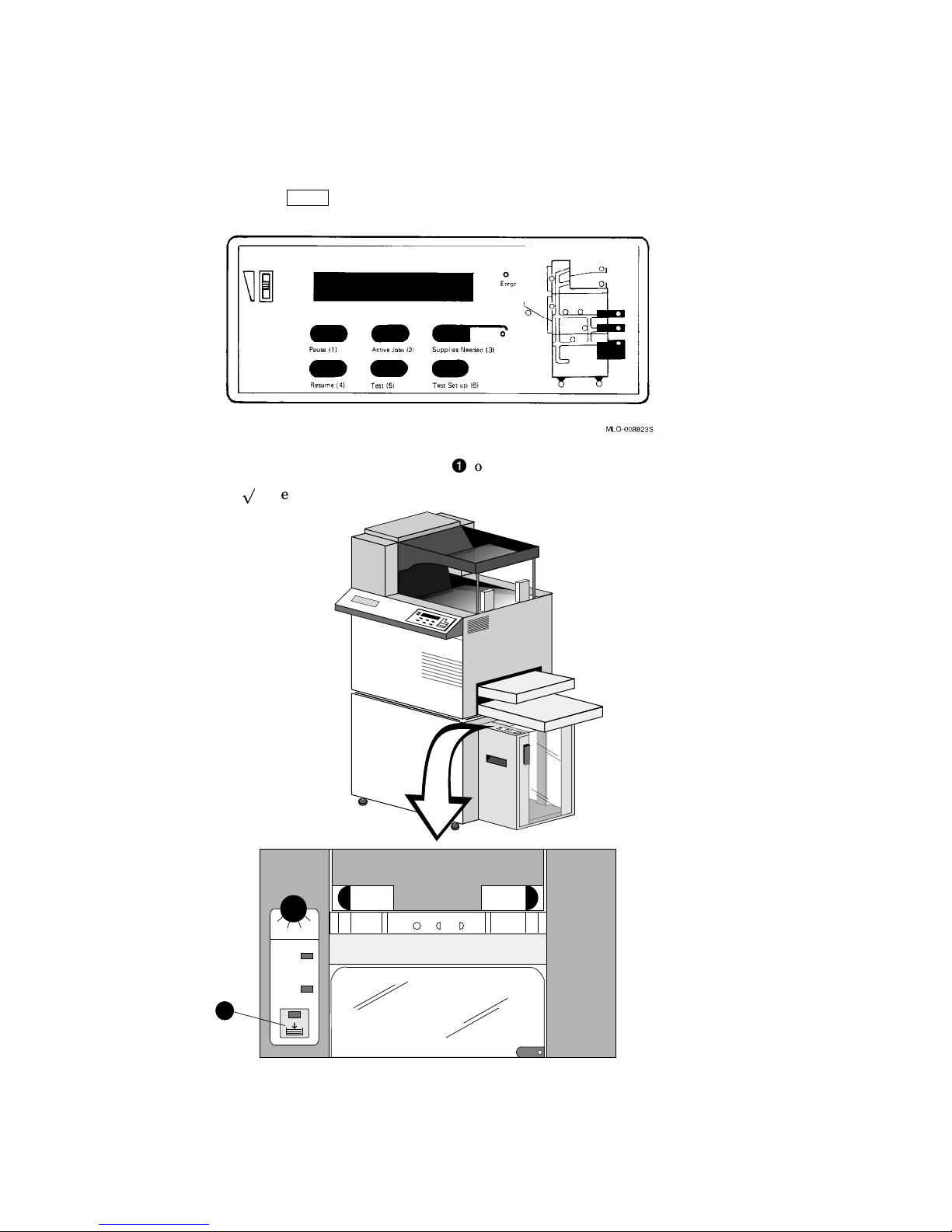

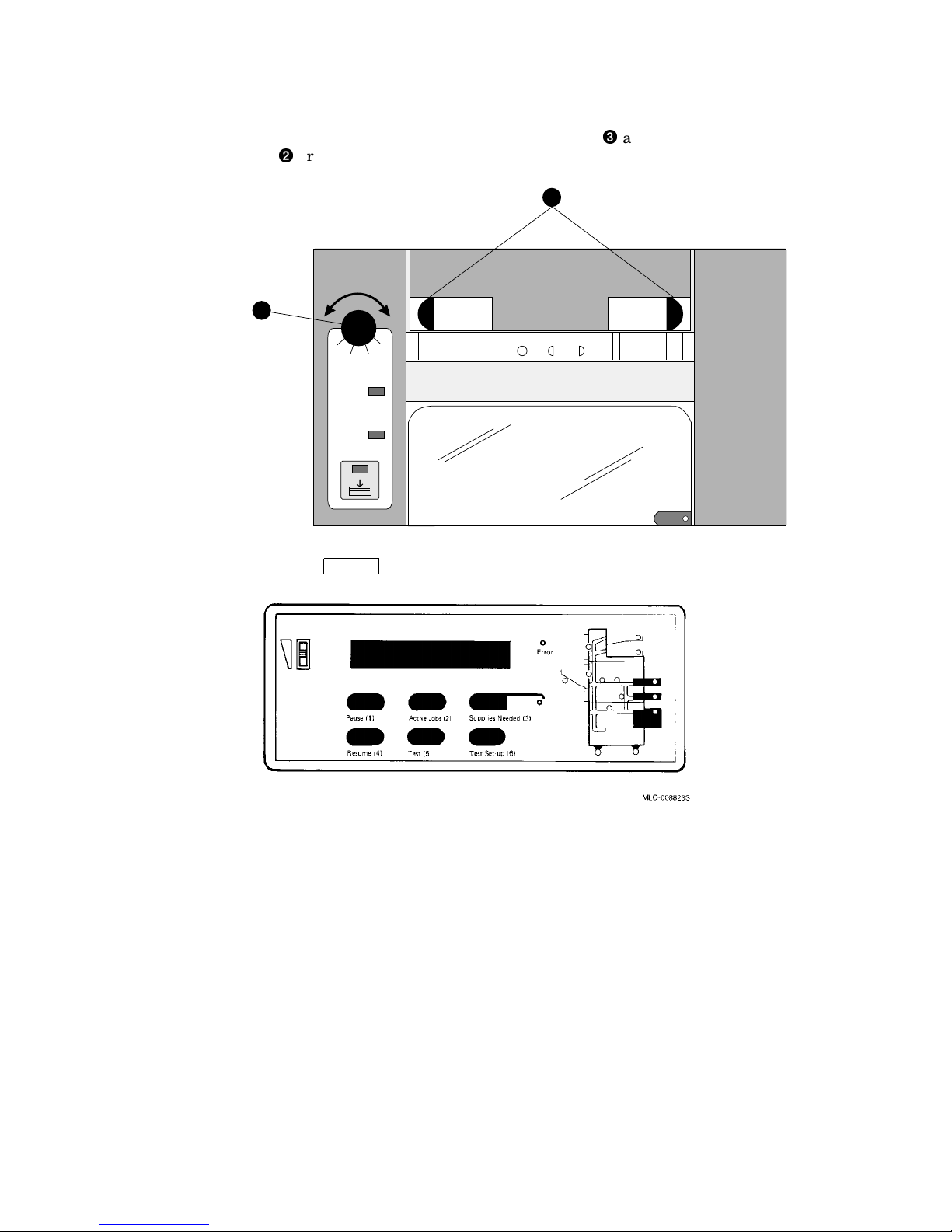

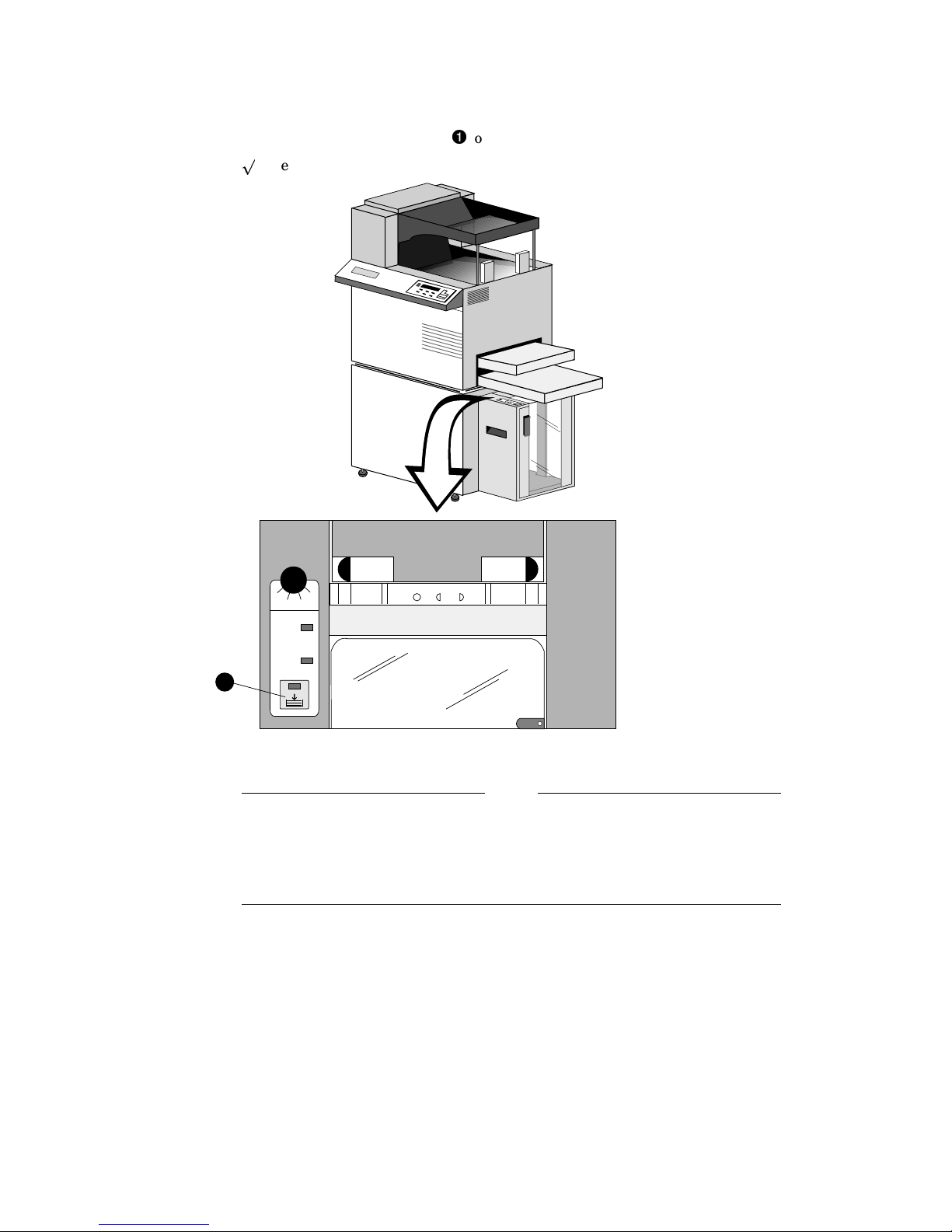

1.2 Adding Paper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

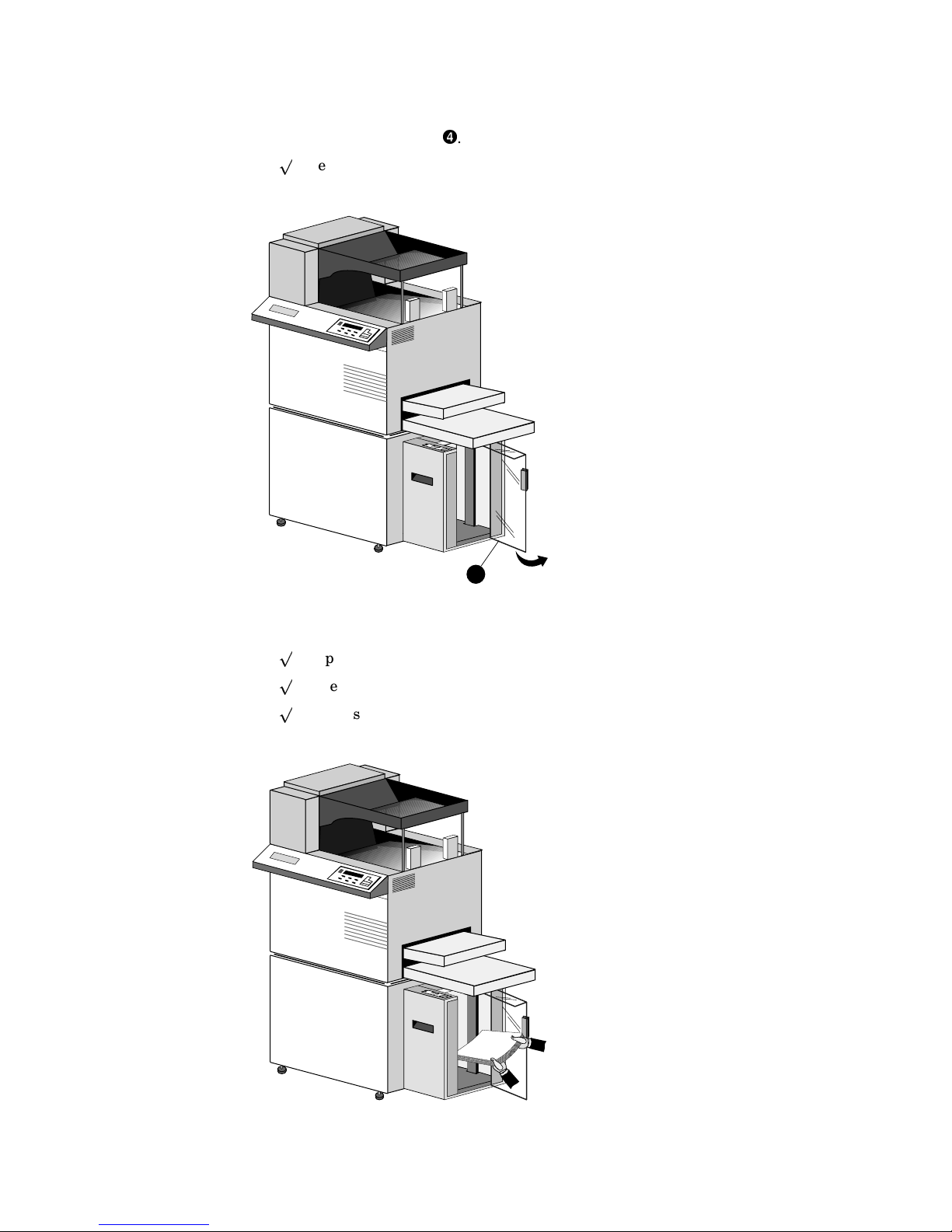

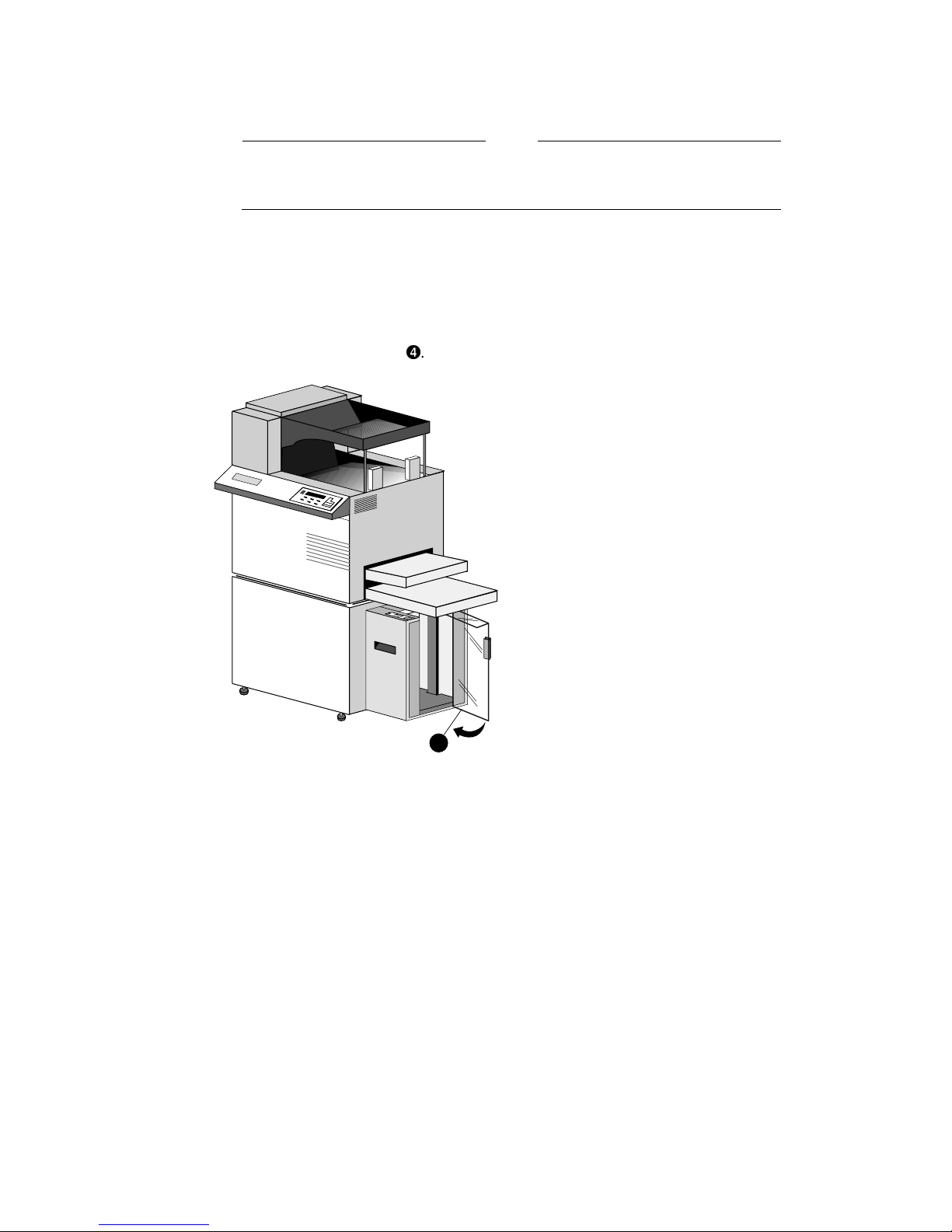

1.3 Clearing Paper Jams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8

1.4 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11

1.5 Service Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12

Figures

1–1 Parts of the OLCIT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

Tables

1–1 Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1–2 OLCIT LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11

1–3 Print Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11

1–4 OLCIT Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–12

iii

1

Using the Optional Large Capacity Input Tray

This book describes the following operator functions for the PrintServer 32
Printer Optional Large Capacity Input Tray (OLCIT).

• Adding paper (capacity 3000 sheets of 20 lb paper)

• Clearing paper jams

• Troubleshooting
Refer to the PrintServer 32 Printer Operator’s Guide for information on using the

PrintServer 32 printer.

Conventions

The following conventions are used in this manual:

Table 1–1 Conventions

Note A note provides important additional information.

Key

A key name is shown enclosed in a box to indicate that you press
that key on the control panel. Key names are always shown in initial
capital letters.

1.1 Supported Paper Sizes

The Optional Large Capacity Input Tray (OLCIT) is designed to accept the
following paper sizes printed in either landscape (long edge feed) or portrait
(short edge feed) mode:

• Letter (LT) (8.5 inch x 11 inch)

• Letter (LTR) (11 inch x 8.5 inch)

• A4 (297 mm x 210 mm)

• A4R (210 mm x 297 mm)
Use recommended paper only, as listed in the PrintServer 32 Printer Operator ’s

Guide.

Using the Optional Large Capacity Input Tray 1–1

Using the Optional Large Capacity Input Tray

1.1 Supported Paper Sizes

Parts of the OLCIT

The following illustration and table describe the parts of the OLCIT.

Figure 1–1 Parts of the OLCIT

2

A4RA4

LT

Paper
Mis-set

Cover
Open

LTR

LT

1

Number Description









Paper Tray Down button
Paper Size selection knob
Paper adjustment levers
Door

3

ADJUST AT 3 PLACES

1 32

A4RA4LTR

A4RA4LTR

4

LT

DSG-000495

1–2 Using the Optional Large Capacity Input Tray
