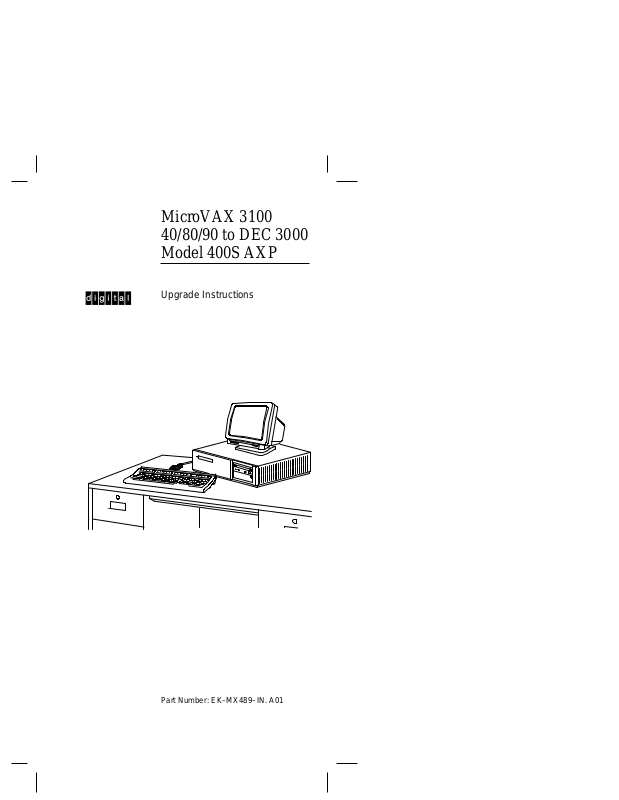

Digital Equipment MicroVAX 3100 40, MicroVAX 3100 80, MicroVAX 3100 90, DEC 3000 Model 400S AXP, VAX 4000 Model 100 Upgrade Instructions

MicroVAX 3100
40/80/90 to DEC 3000
Model 400S AXP

Upgrade Instructions

MLO-010669

Part Number: EK–MX489–IN. A01

Options You Can Upgrade

Can Cannot

Upgrade Upgrade

Drives: RZ23L, 24L RZ22

RZ24, 25, 26 RZ23
RZ55* RZ27
RZ56* RZ35
RZ58* RZ57
RX26 RZ59
TZK10 RX23
RRD42** RX33
TLZ04* TK50Z
TLZ06** DSSI Devices
TZ85*
TZ86***
TZ30****

Expansion
Boxes: SZ03

SZ12
SZ16

Memory: None

Communication
Options: DHW42

DSW41

*External device support only.
**External device (including tabletop) support only.
***Support planned for external device.
****Latest version of TZ30 only.

Check Components Shipped

Your shipment should contain the following
two kits.

If you are missing any of these components,
contact your Digital sales representative.

System Kit:

Ethernet Loopback
Connector

System Unit

SCSI
Terminator

Modem Loopback
Connector

Printer Port
Terminator

Network
Label

Accessory Kit:

Upgrade
Card

TZ30 RFI
Shield

xxxxxxx

xxxxxxxxxxx

xxx

Documentation

Antistatic
Wrist Strap

System Power
Cord

Screwdriver

Rubber
Grommets

Metal Support
Plate

RX26 Brackets

Return

Address Label

MLO-010670

Remove the System Unit Cover

Follow these steps to remove the system unit
cover:

1. Turn off the system by pressing the
on/off switch to the off (O) position.

2. Disconnect the cables, connectors, and
terminators from the system unit.

3. Loosen the two captive screws on the
back of the system unit.

B

1

A

0

0

Captive
Screws

MLO-010737

4. Slide the cover forward and lift it up
from the system unit. Set the cover
aside.
