BS-801BT USER MANUAL

Digital Bathroom Scale

www.digitaldevices.com.au

Using Bluetooth Wireless Technology

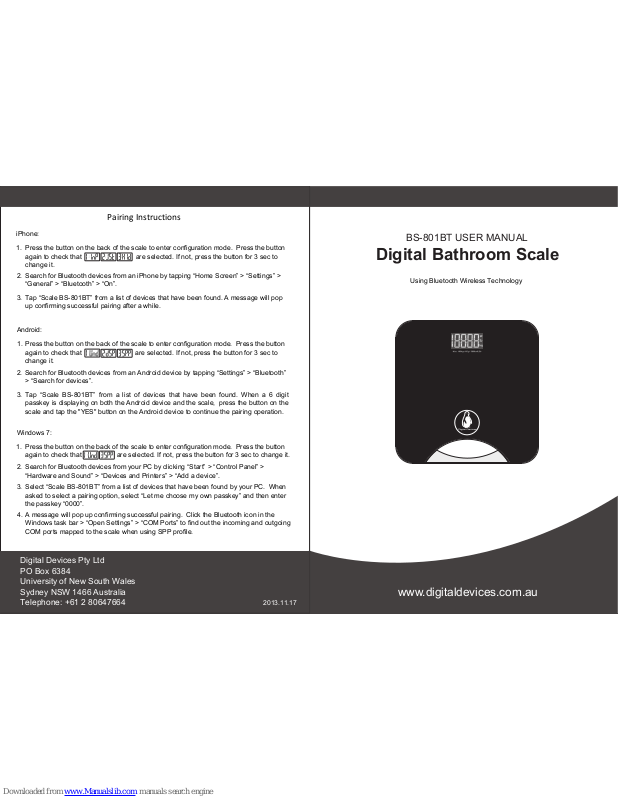

Pairing Instructions

iPhone:

Digital Devices Pty Ltd
PO Box 6384
University of New South Wales
Sydney NSW 1466 Australia
Telephone: [phone]

2013.11.17

Press the button on the back of the scale to enter configuration mode. Press the button
again to check that are selected. If not, press the button for 3 sec to
change it.

1.

2.

3.

Android:

Press the button on the back of the scale to enter configuration mode. Press the button
again to check that are selected. If not, press the button for 3 sec to
change it.

1.

Windows 7:

Press the button on the back of the scale to enter configuration mode. Press the button
again to check that are selected. If not, press the button for 3 sec to change it.

1.

2.

3.

Tap “Scale BS-801BT” from a list of devices that have been found. A message will pop
up confirming successful pairing after a while.

Search for Bluetooth devices from an iPhone by tapping “Home Screen” > “Settings” >
“General” > “Bluetooth” > “On”.

2.

3.

Tap “Scale BS-801BT” from a list of devices that have been found. When a 6 digit
passkey is displaying on both the Android device and the scale, press the button on the
scale and tap the "YES" button on the Android device to continue the pairing operation.

Search for Bluetooth devices from an Android device by tapping “Settings” > “Bluetooth”
> “Search for devices”.

Search for Bluetooth devices from your PC by clicking “Start” > “Control Panel” >
“Hardware and Sound” > “Devices and Printers” > “Add a device”.

Select “Scale BS-801BT” from a list of devices that have been found by your PC. When
asked to select a pairing option, select “Let me choose my own passkey” and then enter
the passkey “0000”.

A message will pop up confirming successful pairing. Click the Bluetooth icon in the
Windows task bar > “Open Settings” > “COM Ports” to find out the incoming and outgoing
COM ports mapped to the scale when using SPP profile.

4.

INSTALLING OR REPLACING BATTERIES

• Open battery compartments on the back.

• Take out old batteries.

• Put new batteries in with +/- terminals in the direction as marked on your scale

• When LCD turns on, check that all segments in display are working.

• When the display changes to “0.0”, press the button to select weight units.

• Close battery compartments and wait for LCD to turn off.

BUTTON AND BATTERY COMPARTMENTS

MEASURING YOUR WEIGHT

FEATURES & SPECIFICATION

• Auto ON and auto OFF

• Weight Units: kg, lb, st:lb

• Capacity: 180 kg, 397 lb, 28 st: 51 lb

• Graduation: 0.1kg, 0.2 lb

• Measurement range: 5 kg ~ 180 kg

• Overload indication: “- - - -”

• Low battery indication “Lo”

• Power supply: 4 AAA batteries

• Dimension: 320mm 320mm

22mm

PRECAUTIONS

• Please read this manual before using your scale

• Use your scale on hard and level floors.

• Do not use your scale on soft, wet, or slippery surfaces.

• Do not step on your scale with wet feet.

• Do not step on the display window, the edges or the handle of your scale.

• Do not spill water or other fluid onto your scale.

• Do not expose your scale to extreme temperature, humidity, or moisture.

ZEROING YOUR SCALE

Zeroing your scale must be performed after moving your scale to a new location, or

after installing or replacing batteries. To zero your scale:

<1> Step on the scale.

<2>

<3>

<1> Step on the scale directly.

<2> The LCD turns on and start displaying your weight.

<3>

<4> Step off the scale and wait for it to turn off.

.

kg/lb/s

t

<5>

The result will be sent to a previously paired Bluetooth-enabled

host device. The scale will display "good" if data has been sent over

successfully, or "FAIL" if not. The scale does not save any results.

BLUETOOTH SPECIFICATION

• Bluetooth version 2.1 + EDR

• Class 2 Bluetooth device

• Support SPP and HID profiles

• Just Works simple pairing mode

• SSP with protection against MITM attack

• Advanced power saving technology extends battery life

x

x

x

When LCD turns on, step off the scale.

Wait for the scale to turn off while displaying "0.0" or "- 01 -".

When stablised, the weight display flashes twice.
