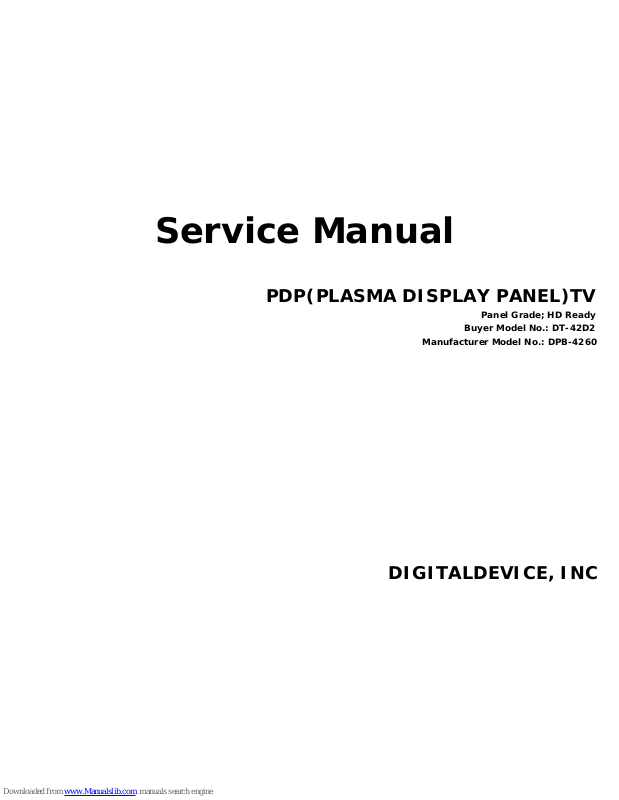

Digital Device DT-42D2, DPB-4260 Service Manual

Service Manual

PDP(PLASMA DISPLAY PANEL)TV

Panel Grade; HD Ready

Buyer Model No.: DT-42D2

Manufacturer Model No.: DPB-4260

DIGITALDEVICE, INC

Contents

1. Specifications

1-1. Descriptions
1-2. Features
1-3. Structure and Principle Operation of PLASMA DISPLAY
1-4. General Specification
1-5. Operation Environmental Conditions
1-6. Storage Environmental Conditions
1-7. Mechanical Test Conditions
1-8. Life Expectancy

2. Block Diagram

2-1. Basic Block Diagram
2-2. Panel Block Diagram
2-3. A/V Board Block Diagram

3. Assembling

3-1. Assembly Diagram
3-2. Part Name

1. Specification

1-1. Descriptions

1-2. Features

1-3. Structure and Principle Operation of PLASMA DISPLAY

1-4. General Specification

1-4-1. Specification
1-4-2. I/O Description

1-5. Operation Environmental Conditions

1-6. Storage Environmental Conditions

1-7. Mechanical Test Conditions

1-8. Life Expectancy

1-1. Description

The PDP42V7####/ PDP42X3#### is a 42-inch 16:9 color plasma display module.
This is the display device which offers vivid colors with adopting AC plasma technology by LG Electronics Inc.

1-2. Features

Smart P-CUBE Technology offers optimized way to make balance between peak power consumption and peak brightness image display with lively picture
quality.

1-3. STRUCTURE AND PRINCIPLE OPERATION OF PLASMA DISPLAY

In a Plasma Display TV, Row and Column electrodes are placed between two glass substrates. A rare gas is then filled between each substrate. When a
high voltage is applied to these electrodes, the gas is activated resulting in the radiation of ultraviolet light, similar to the operation in fluorescent lamps.
These ultraviolet rays then activate phosphor that has been coated on the inside of the glass substrate, and visible light is emitted from the panel.

1-4. General Specification

1-4-1. Specification (LG 42” HD PANEL)

Power Voltage

AC100V~240V, 50/60㎐

Display Mode Input Signal

TV, Video, S-Video, SCART(Video/ S­Video/ RGB), Component, Analog RGB,

HDMI(Digital RGB)

Consumption < 410W (Typical Full White) Video System NTSC, PAL, SECAM
Display Panel Screen Size

920 mm (H) × 518 mm (V)

Input/Output RF RF IN (NTSC F-TYPE, PAL DIN-TYPE)
Number of Pixels 1024 (Horizontal) × 768 (Vertical) Input Analog RGB(P), HDMI(DVI(P)) / RGB(S)
Aspect Ratio 16:9 AV1[SCART-VIDEO(P), RGB(P) / L,R(S)]

Pixel Pitch

900um (H) x 676um (V)

AV2[SCART-VIDEO(P), S-VIDEO(P) /

L,R(S)]
Color Arrangement RGB vertical stripes

Gradations 1024 steps for each RGB

AV3[V, L,R] , S-VIDEO(P)

Component [Y, Pb, Pr(S) / L, R(S)]

Brightness 1000 cd/m2 Output Monitor Out (V, L, R)/ SCART(V, L, R)

Contrast Ratio 5000 :1

Speaker Out (L, R) (Option : Built-in

speaker)
Displayable Colors 1,070,000,000 Colors Weight Without Stand 37 Kg
Viewing Angle Over 160 degrees Dimensions Without Stand 1113 mm(W)×744mm(H) ×61.2 mm (D)

1-4-2. I/O Description

1-4-2-1. Front Panel Control

- Standby power ON/OFF Button.

- Channel UP Button.

- Channel DOWN Button.

- Volume UP Button.

- Volume DOWN Button.

- AV Button.

- Remote Controls Sensor (IR)

- Operation Indicator (LED)

1-4-2-2. Rear Cabinet I/O's

- AC Power Input

- RF(TV) connector for antenna Input

- S-VIDEO Input(ATSC option)

- Composite Video RCA Input(ATSC option)

- Line Level Audio RCA Input(ATSC option)

- SCART1/2 Input/Output(PAL/SECAM option)

- Component Video Input

- Component Line Level Audio Input

- RGB D-sub Connector Input

- RGB Audio Input

- HDMI (DVI) Input

- Software Upgrade port

- Speaker Output : 2CH (4210~70 model option)

- Built-in Speaker S/W (4210~70 model option

1-5. Operation Environmental Conditions

Temperature 0 to 40 °C

Humidity 20 to 80% RH (without condensation)

Atmospheric pressure 800 to 1100 hPa

1-6. Storage Environmental Conditions

Temperature -20 to 60 °C

Humidity 10 to 90% RH (without condensation)

Atmospheric pressure 700 to 1100 hPa

1-7. Mechanical Test Conditions

Vibration (operating)
(Mounted in TV set)

4.9m/s

2

(0.5 G), 10 to 55 Hz(Sweep Time : 2 Min), X / Y / Z directions, 10 minutes each

Vibration (non-operating)
(5EA Packed State)
Drop

4.9m/s

2

(0.5 G), 10 to 55 Hz(Sweep Time : 2 Min), Y directions, 60 minutes each

1-8. Life Expectancy

The anticipated life-time is estimated more than 60,000 hours of continuous operations.

※ Average life time is the time when the brightness level becomes half of its initial value.

2. Block Diagram

2-1. Basic Block Diagram

2-2. Panel Block Diagram

2-3. MAIN/AV Board Block Diagram
