Digital Design EVOLUTION II Installation And Operation Manual

Download

EVOLUTION II

INK JET PRINTERS

INSTALLATION AND OPERATION MANUAL

digital design inc.

67 Sand Park Road

Cedar Grove, NJ 07009

(973) 857-9500

http://www.evolutioninkjet.com/

This manual is for use in operating and maintaining the EVOLUTION 1I Ink Jet Printer. This includes various optional features, which may not be included in your basic model printer. For basic start-up instructions, please refer to PART 1 Installation Procedures.

All rights reserved. No part of this document may be reproduced, stored on a retrieval system, or transmitted in any form, or by any means electronic, mechanical, photocopying, recording or otherwise, without the prior permission of Digital Design Inc. Digital Design Inc. has a policy of continual product improvement. The Company therefore reserves the right to modify the information contained in this manual without prior notice.

ALL PRINT CARTRIDGES SUPPLIED BY DIGITAL DESIGN INC. ARE FACTORY TESTED AND PROFILED TO PRODUCE AN OPTIMUM AND CONSISTANT CODE. USING OTHER THAN AUTHORIZED CARTRIDGES WILL CAUSE UNDESIRABLE RESULTS. EACH FLASH DATA CARD IS PROFILED EXPLICITELY FOR ITS’ INTENDED PRINTER, AND IS SECURITY LOCKED PROHIBITING USE IN OTHER THAN THE ORIGINAL PRINTER FOR WHICH IT WAS PURCHASED. KEEP ALL UPGRADE CARDS IN A SECURE PLACE. EVOLUTION II IS A FULLY FEATURED MODEL WITH VARIABLE FIELD PROGRAMMING AND BARCODE CAPABILITIES.

1 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

PRINT HEAD CABLE PLUG

EVOLUTION CONTROLLER

EV2 STOPPED HD 1<- - SPEED= 120

EVOLU

EVOLUTION CODERS

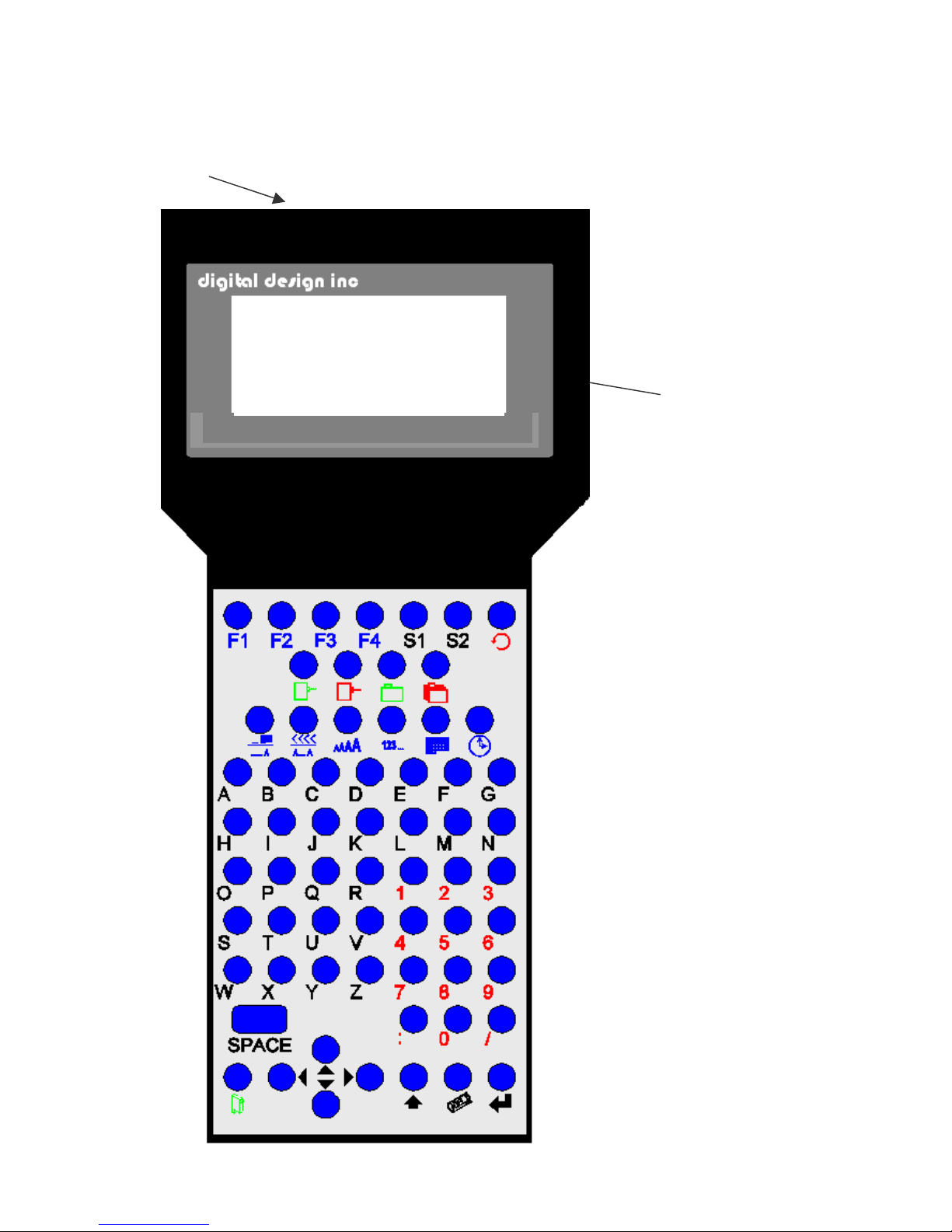

GRAPHIC (WSYWIG) LCD DISPLAY

EVOLUTION CONTROLLER KEYBOARD

NOTE: THE EVOLUTION GRAPHIC CONTROLLER WILL CONTROL THE

EVOLUTION 1 (EV1) EVOLUTION 2 (EV2) EVOLUTION SC (EVSC)

THE UPPER LEFT CORNER OF THE DISPLAY INDICATES THE SPECIFIC PRINTER CONNECTED TO THE HAND HELD CONTROLLER

2 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

INSTALLATION AND OPERATION MANUAL 6 PART 1: INSTALLATION PROCEDURES 6

INSTALLING THE EVOLUTION II PRINTING SYSTEM 6

MOUNTING ON PRODUCTION LINE 6 EVOLUTION II MOUNTING OPTIONS 7

After the mounting bracket is configured loosen the locking collar 7A014S and re-locate it against the horizontal extension bracket and tighten. This allows the user to loosen the horizontal mounting bracket-locking knob and rotate the assembly without losing the height adjustment.

GROUNDING STRAP INSTALLATION 9

INPUT POWER CONNECTION AND MODIFICATION 9 INSTALLING THE PRINT CARTRIDGE 10 CONNECTING THE CONTROLLER TO THE CARRIAGE 11 CONFIGURING THE PRINTER 12 SYSTEM RESET 12 MULTIPLE PRINT HEADS 14 EVOLUTION II QUICK START 15

CHANGING LANGUAGE PROMPTS 15

ENABLING PRINT MODE 15

HEAD SELECT MODE 15

ENTERING A MESSAGE 16

STORING A MESSAGE 17

LOADING A MESSAGE 18 EVOLUTION II QUICK SETUP 19

PART 2: OPERATION PROCEDURES 1

OVERVIEW CONTROLLER and LCD 1

KEYPAD KEY DESCRIPTIONS 2

TURNING ON THE PRINT STATION FOR THE FIRST TIME 3

CHECKING SYSTEM INFORMATION 3

CHECKING LOADED FONTS 3

CHANGING SYSTEM DATE AND DAY OF WEEK CODES 4

CHANGING SYSTEM TIME AND DATE ROLL OVER TIME 5 PROGRAMMING 7

DEFINITIONS 7

PRINT MODE AND STOPPED “COMMAND” MODE 7

F1 MENU 9

1 = CHARACTER SPACING: 9 2 = EXT. ENCODER: 9 3 = DATE OFFSET: 10 4 = BARCODE TYPE: 10

F2 MENU 12

1 - DIRECTION: 12 2 - PRINT INVERSE: 12 3 – PRODUCT DETECT: 12 4 - AUTO REPEAT: 13

F3 MENU 14

1 – PRODUCT COUNT: 14 2 – shift code: 15 3 – DATE FORMAT: 16 4 – TIME FORMAT: 18

F4 MENU 19

1 - LANGUAGE: 19 2 - INK SUPPLY: 19

3 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

3 – SET UNIT I.D.: 20 4 – LOAD CARD: 21

SETTING PRINT DELAY AND LINE SPEED 24

SETTING LINE SPEED 24

SETTING PRINT DELAY 25

SETTING HEAD ALIGNMENT 25 INPUT, EDIT OR DELETE MESSAGES 26

VARIABLE FIELD FORMAT PRINTING 33 MESSAGE STORAGE 36

STORING A MESSAGE 36

RECALLING A STORED MESSAGE 36

PART 3: MAINTENANCE PROCEDURES 1

SHORT PERIODS OF SHUT DOWN 1 LONG PERIODS OF SHUT-DOWN 2 PRINT CARTRIDGE MAINTENANCE 3 PRINT CARRIAGE MAINTENANCE 5 EXPLODED VIEW OF THE C21002 PRINT CARRIAGE 5

PART 4: TROUBLESHOOTING AND REPAIRS 1

FAULTS 1

PART 5: PARTS LIST AND OPTIONS 1 PART 6: COMMUNICATIONS PROTOCOL 1

DESCRIPTION 2

DATA WORD DEFINITION 2

BAUD RATE 2

DEFINITIONS 2

CABLING FOR EVLINK ENVIRONMENT 2

HARDWARE INTERFACE 3

PHYSICAL CONNECTIONS RS485 print carriage 3

PROTOCOL FORMAT: 3

EVOLUTION PRINTABLE CHARACTER SET 3 SOFTWARE PROTOCOL 4 ERROR CODES 4 COMMANDS: 6

PART 7: OPTION JUMPERS AND CABLING 1

OPTION JUMPER DESCRIPTIONS 1

VSEL J7 1

ENSEL J9 1

PRSEL J10 1

JUMPER LOCATION 2 OPTION CABLING DESCRIPTIONS 3

PART 8: SPECIFICATIONS 1

PRINTER SPECIFICATIONS 1

PRINT CHARACTERISTICS 1

CONTROLLER 1

PRINT CARRIAGE 1

ENVIRONMENTAL CONDITIONS 1

GENERAL 1 DEFAULT SETTINGS 2

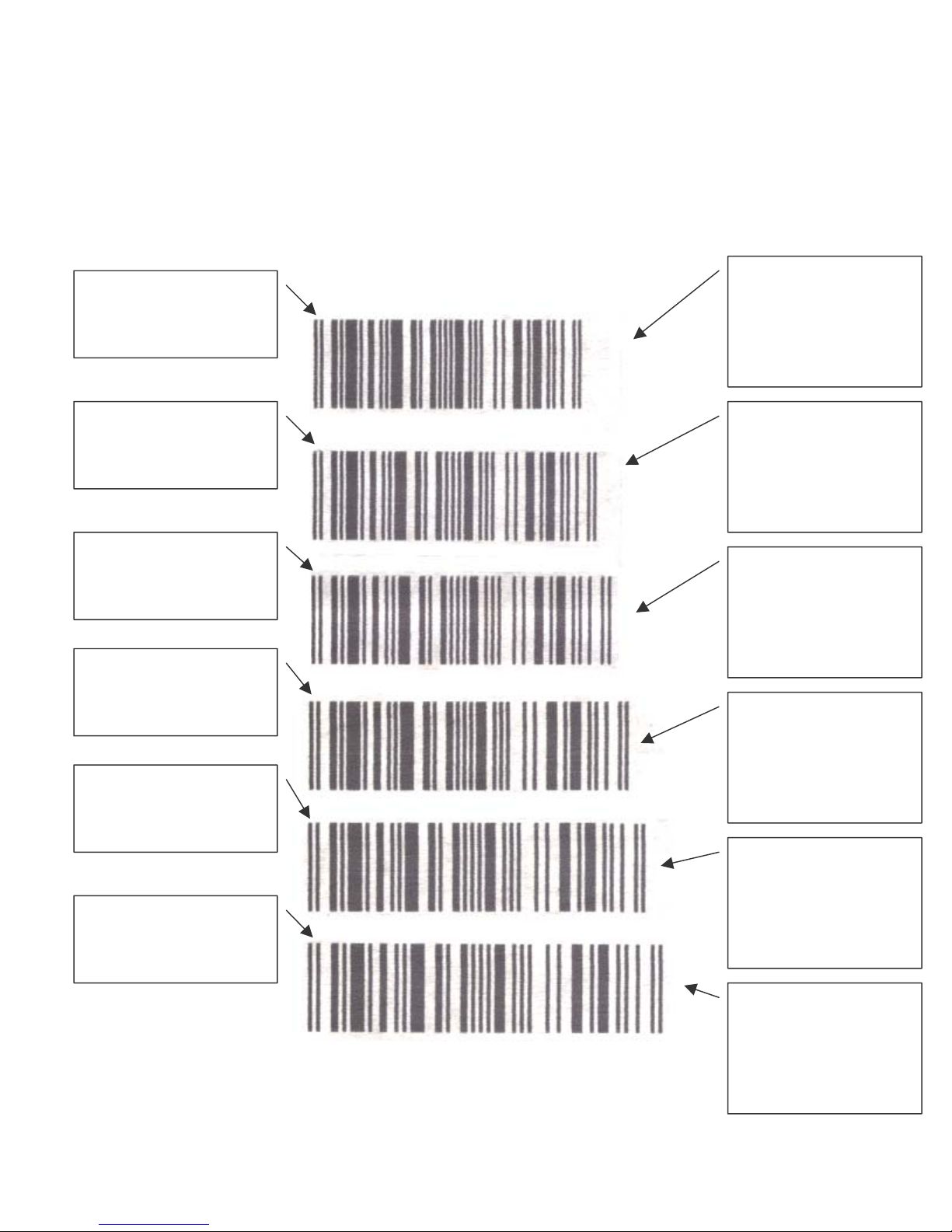

APPENDIX A – PRODUCING RELIABLE BAR CODES 3

BARCODE INTEGRITY - 3 CONTRACT RATIO - 3 BAR SEPARATION - 3 QUIET ZONE - 3

4 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

PROGRAMMING BAR CODES: 4 BARCODE TECHNIQUES: 5 BARCODE TYPES 9 USING CHECK CHARACTER: 13

5 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

INSTALLATION AND OPERATION MANUAL PART 1: INSTALLATION PROCEDURES

INSTALLING THE EVOLUTION II PRINTING SYSTEM

Caution should be taken while installing the EVOLUTION printing system on your equipment. Digital Design Inc. has taken every precaution to ensure a safe and accurate instruction set to guide the installer through the installation process. Follow the operational guidelines in the installation procedures.

VERIFY THAT YOUR EQUIPMENT IS IN PROPER OPERATING CONDITION.

LOCATE A CONVENIENT POSITION ON YOUR EQUIPMENT. EVOLUTION II REQUIRES 4-1/2" OF SPACE ON THE PRODUCTION LINE.

FOLLOW THE INSTALLATION PROCEDURES.

READ CAREFULLY ALL INSTALLATION PROCEDURES BEFORE PROCEEDING.

INSTALL THE PRINTING SYSTEM ON YOUR EQUIPMENT. THERE IS NO EXTRA HARDWARE REQUIRED OTHER THEN THAT SUPPLIED IN THE INSTALLATION KIT.

MOUNTING ON PRODUCTION LINE

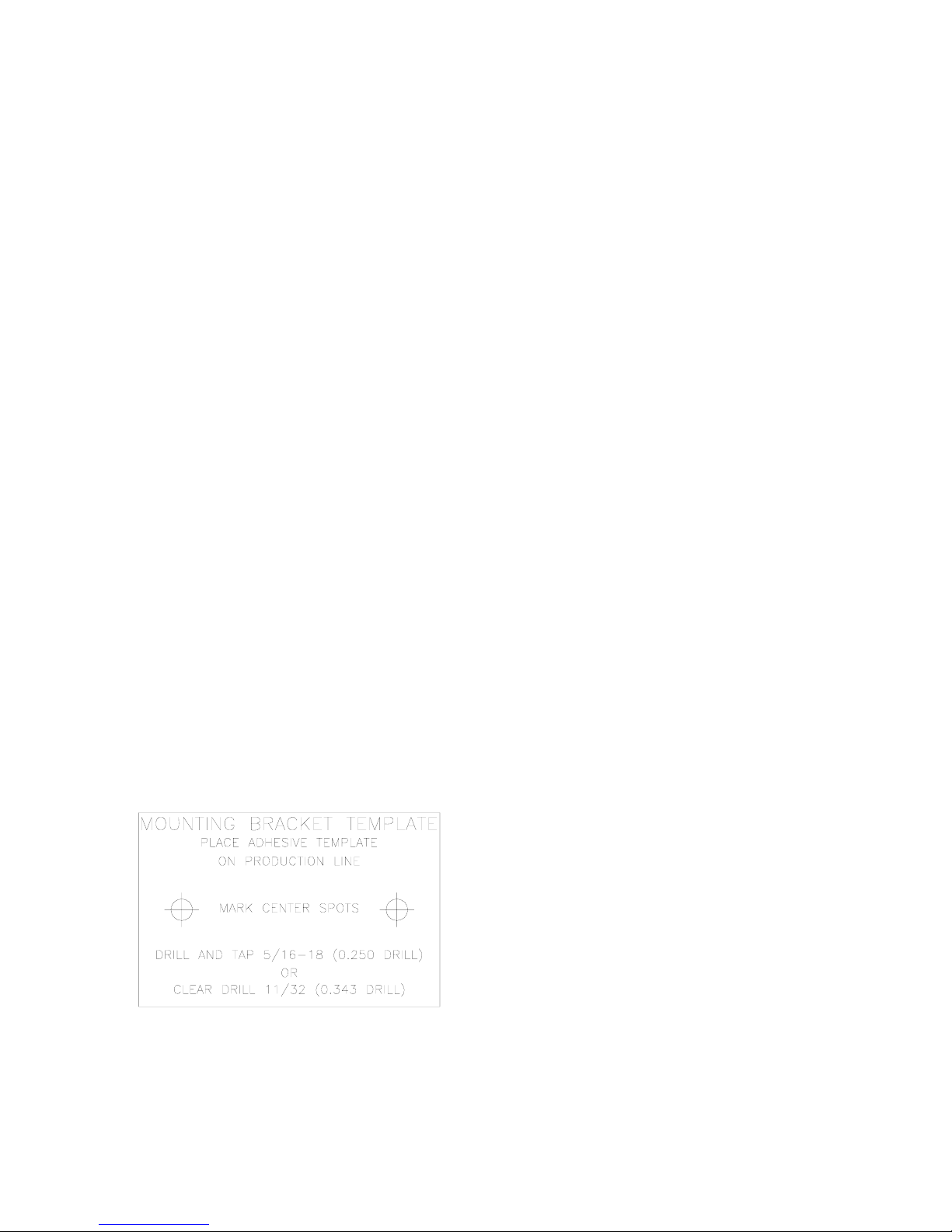

Locate the supplied mounting template and affix in a convenient location on the production line. Spot and drill both mounting holes for a 5/16” bolt. NOTE: the user may also thread the side of the conveyer using a 5/16” tap. Fasten the mounting bracket to the conveyer using the supplied mounting hardware and ensuring that the supplied ground strap is located securely beneath

either of the two mounting bolts, and that conductivity to earth ground is less than 1 ohm. This ensures a proper path for static discharge, should the need arise.

6 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

EVOLUTION II MOUNTING OPTIONS

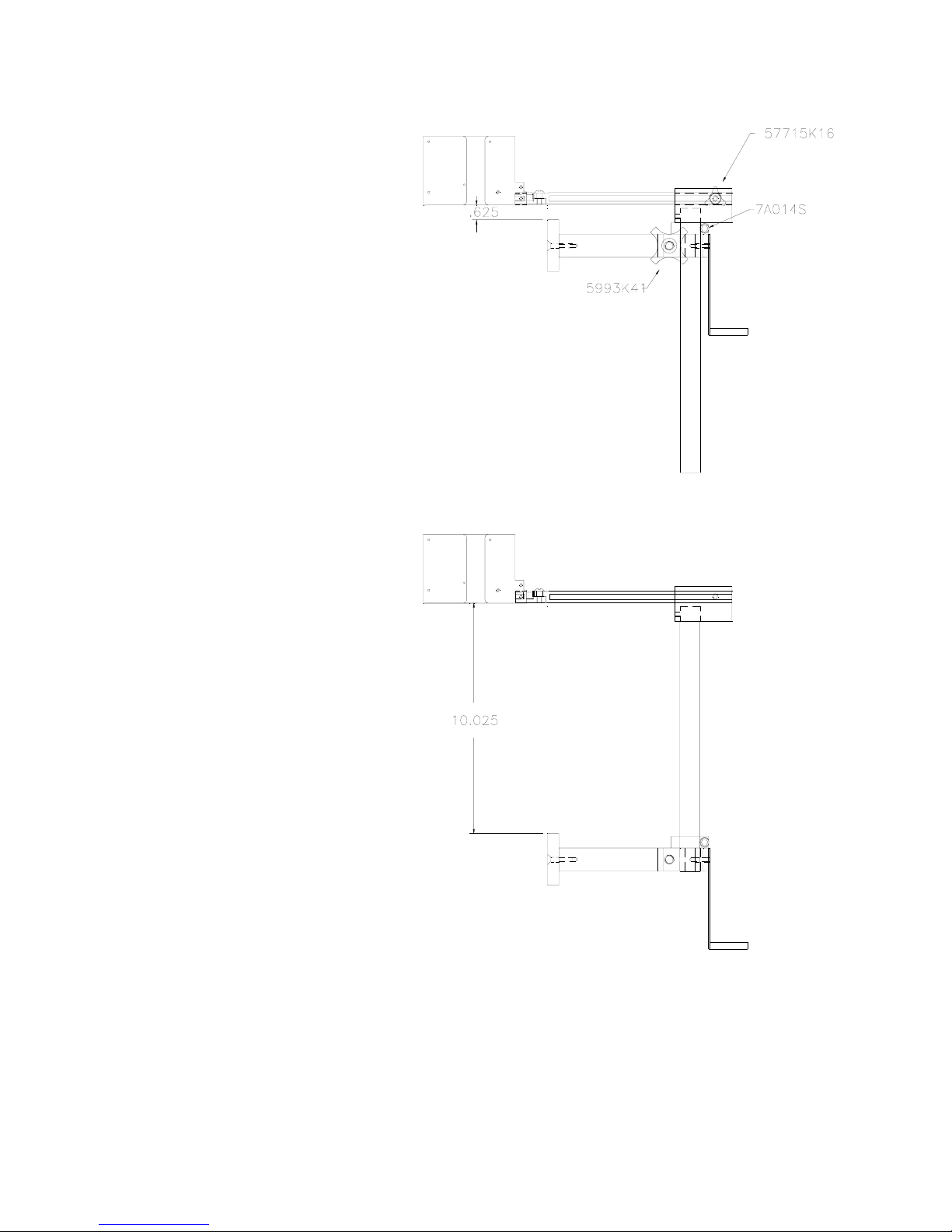

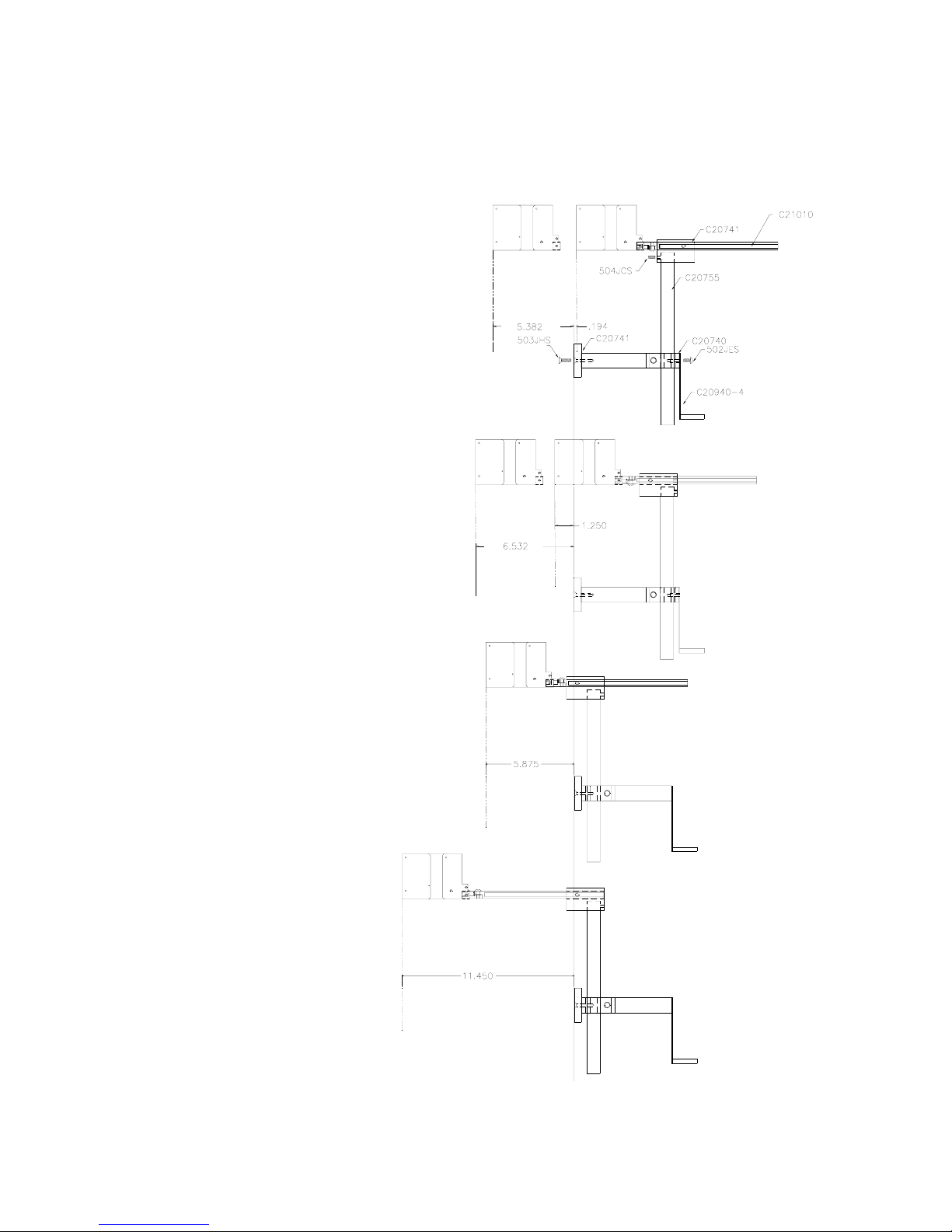

The EVOLUTION II mounting bracket assembly C21010 has a number of possible mounting configurations, which allows adaptability to a variety of production equipment.

The top cross slide bracket C20741 may be rotated 180 deg by loosening the included setscrew 504JCS and rotating the bracket. This allows the print head to be extended by just over 1”. Although this is not a significant amount it might be helpful.

Refer to the first two pictorials to identify the various components of the mounting bracket system C21005.

Rotating the horizontal mounting bracket C20740 may further increase extension into the production line. The mounting centers for both the base block C20741 and controller holder C20940-4 are identical. Remove the two 502JHS flat head screws from the base block and the two 502JES button head screws, rotate the bracket and replace both the base block and controller holder.

The above procedure allows for a print head displacement from .625” before the production line to 11.450” into the production line.

7 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

Vertical height adjustment for the EVOLUTION II print head is accomplished by loosening the included hand knob 5993K41.

Note that the hand knob may be mounted on either side of the horizontal mounting bracket depending on the orientation of the bracket. It should also be noted when rotating the cross slide assembly it is necessary to move the smaller hand knob 57715K16 to the other side of the bracket so it aligns with the flat on the horizontal extension rod.

8 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

GROUNDING STRAP INSTALLATION

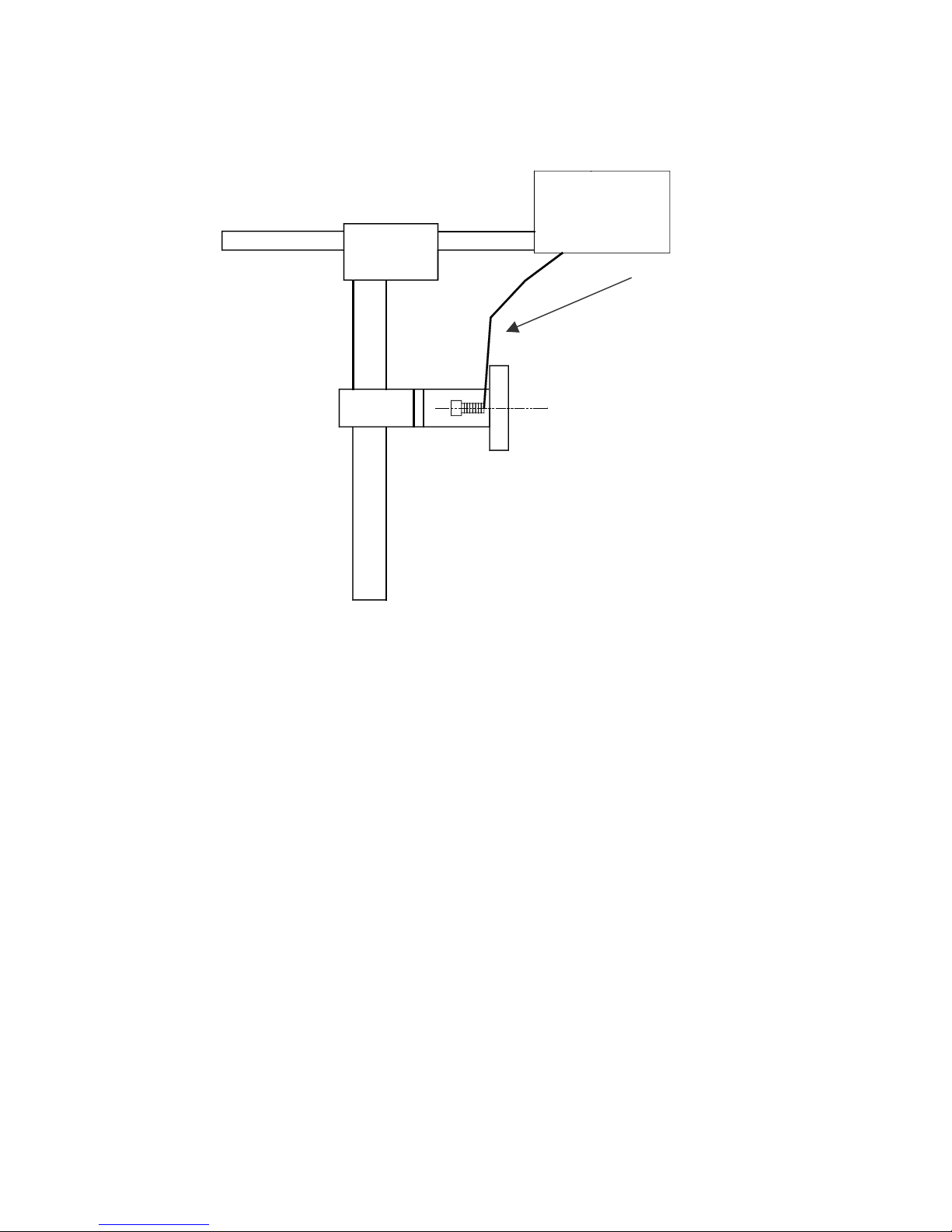

INSTALL STRAP UNDER 5/16” SCREW. ENSURE CONDUCTIVITY TO EARTH GROUND IS LESS THAN 1 OHM

INPUT POWER CONNECTION AND MODIFICATION

Insert the power plug to the available power source. The supplied power supply will is universal and will auto detect 100/240 VAC 50-60hZ.

No other adjustments are necessary.

9 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

INSTALLING THE PRINT CARTRIDGE

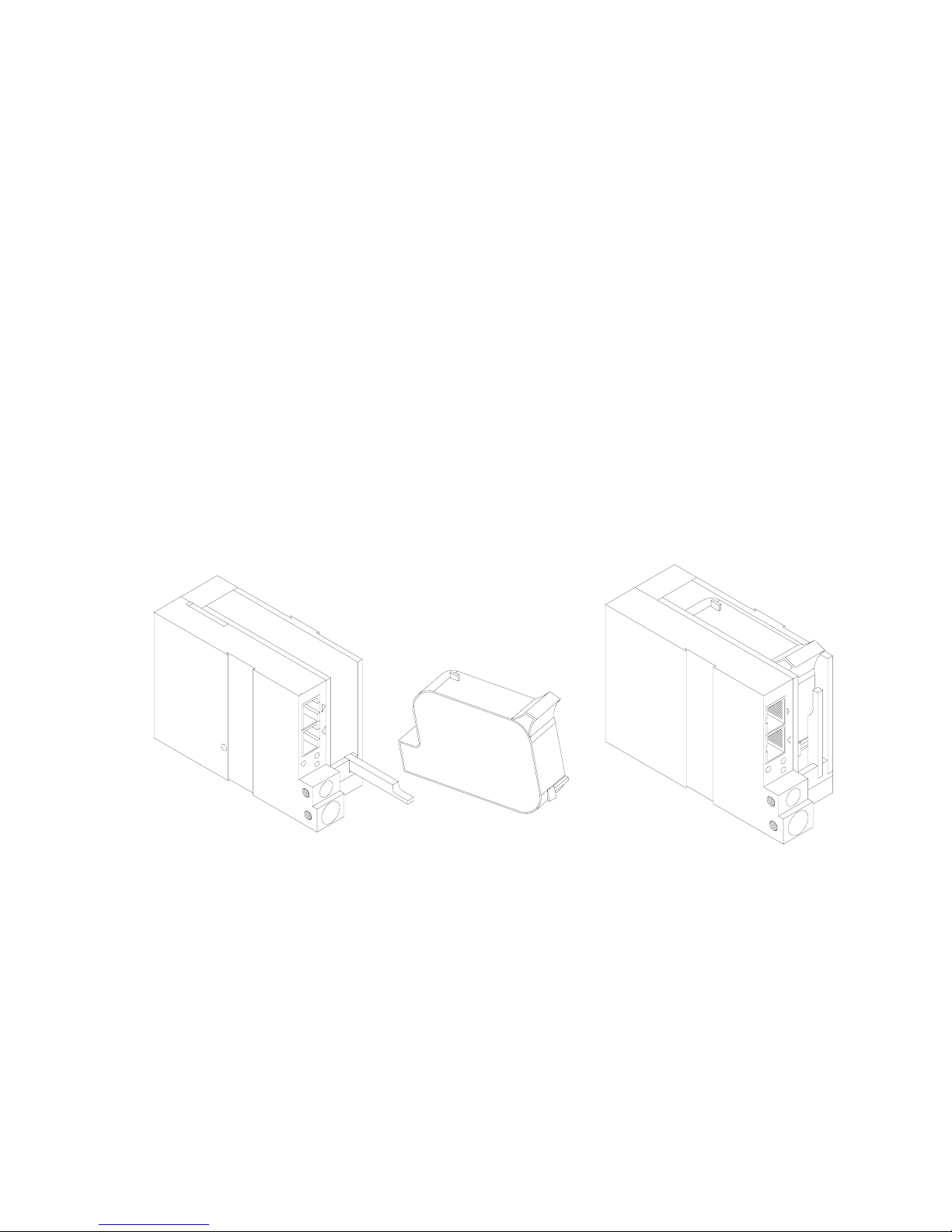

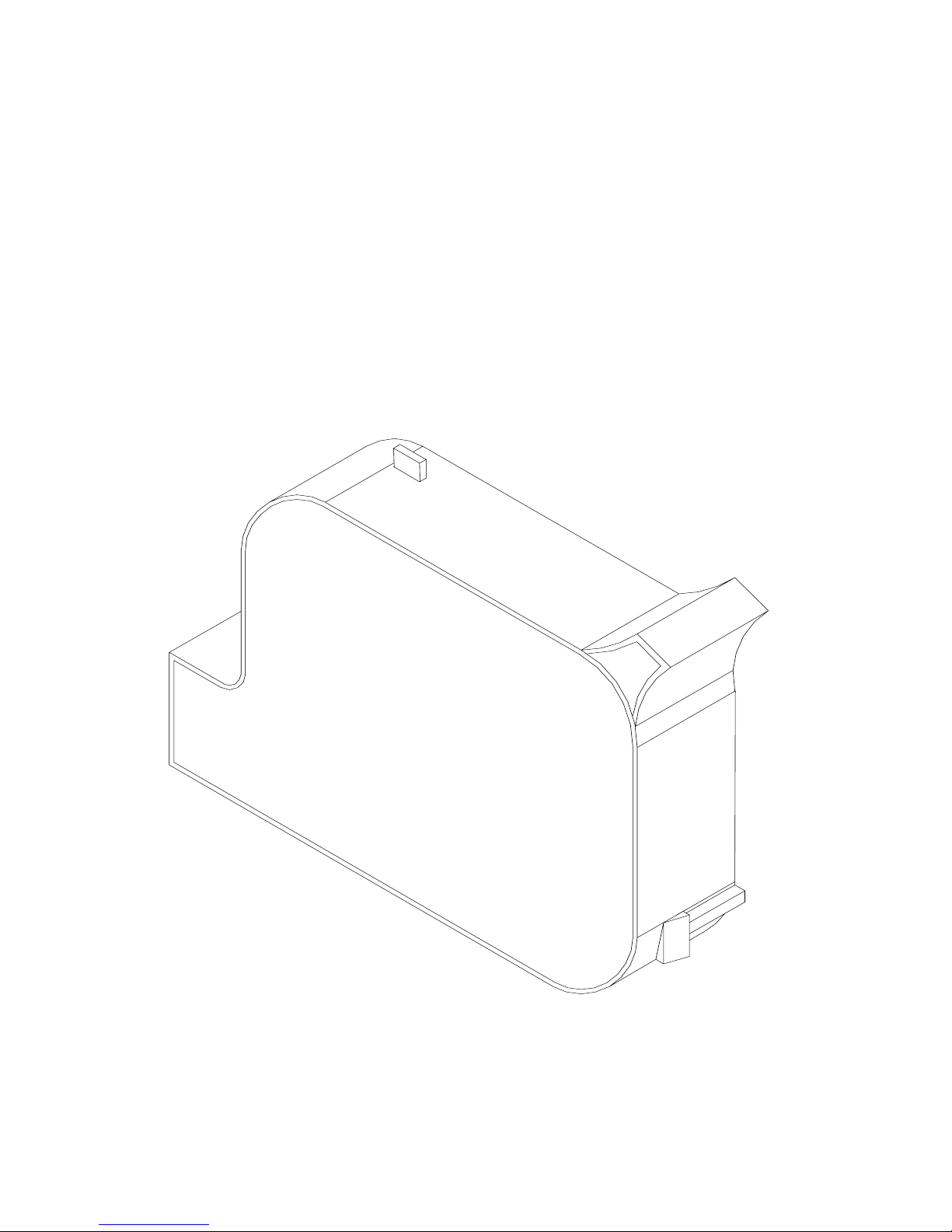

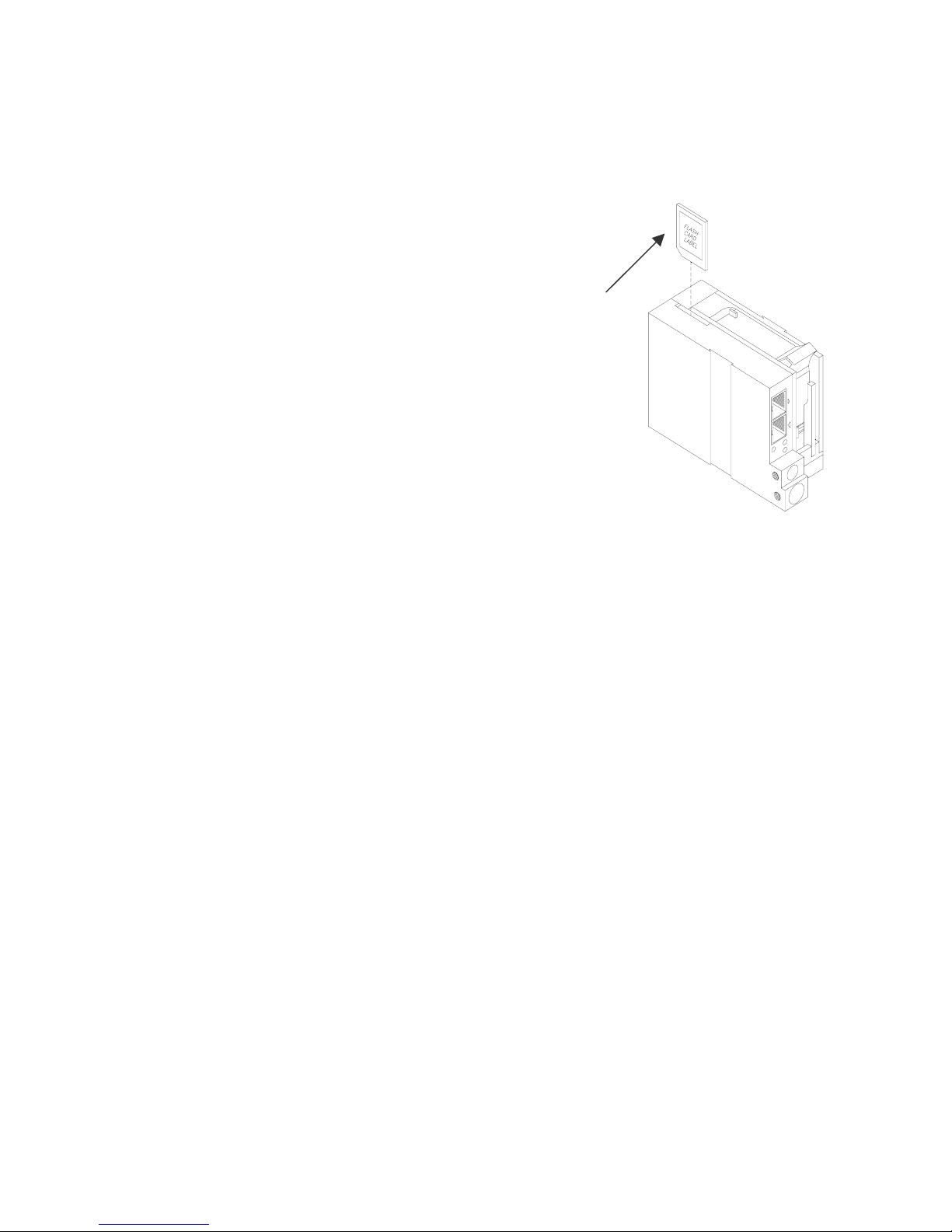

Remove the protective film from the face of the print head and retain the film. This protective film may be re-applied to store partially used cartridges. If it is necessary to remove the print head and store for a long period of time, it is best to re-apply the plastic film, and place the cartridge in a closeable plastic bag. Rotate the Print Head Release mechanism to the rear of the print head so that it is free for insertion of the print cartridge. Push the print cartridge in and down to insert it into the print carriage. Gently lift the locking arm and press forward against the print cartridge. A snap will be felt as the locking mechanism presses the cartridge into the correct position.

NOTE: EACH PRINT CARTRIDGE HAS BEEN PROFILED AT THE FACTORY. THIS PROCEDURE DETERMINES THE OPTIMAL OPERATING CHARACTERISTECS FOR EACH INDIVIDUAL CARTRIDGE. USING ANY OTHER PRINT CARTRIDGE WILL HAVE UNDESIRABLE RESULTS.

NOTE: WHEN A NEW CARTRIDGE IS INSTALLED, BOTH THE RED AND GREEN LIGHT WILL FLASH TWICE INDICATING A CORRECT INSTALLATION. THE USER MUST REMEMBER TO RESET THE INK LEVEL UNDER THE F4 FUNCTION KEY MENU.

10 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

CONNECTING THE CONTROLLER TO THE CARRIAGE

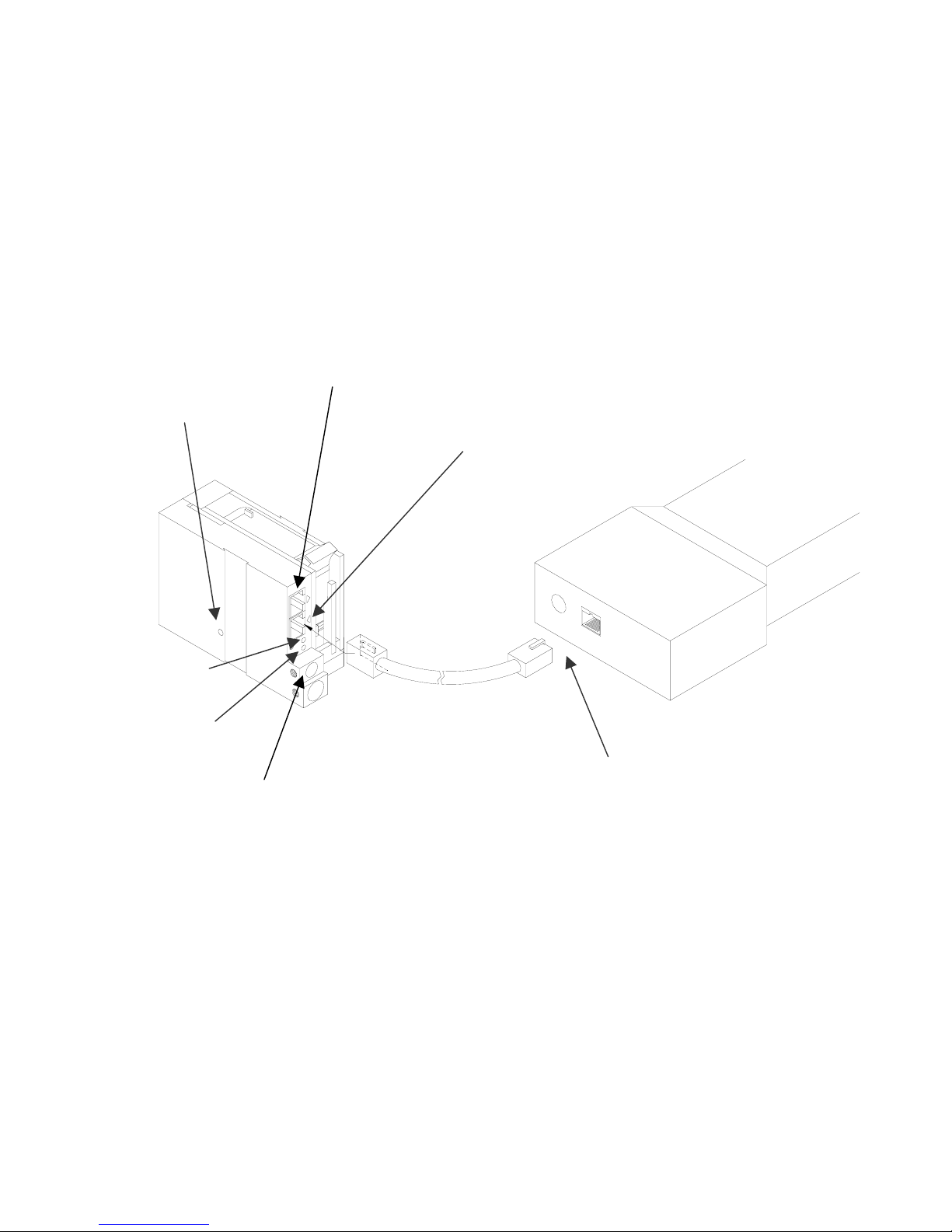

Connect the Controller to the print carriage using the supplied 3 FT (.9 mm) interconnect cable C21008-3 supplied with the Printing System. The cable is a standard RJ50 (10 conductor). Longer cables are available as required. Connect either end of the cable to the Carriage Assembly and securely lock in place. NOTE: THE CONNECTOR MUST BE PLUGGED INTO THE INPUT RJ50

CONNECTOR LOCATED ADJACENT TO THE LED’S AND MARKED WITH AN ARROW POINTING TO THE CONNECTOR. A click will be heard when the

connector is in the appropriate position. Connect the free end to the Controller Assembly and ensure connector is securely seated.

PRINT CARRIAGE RJ50

RESET SWITCH ACCESS HOLE

OUTPUT CONNECTOR

PRINT CARRIAGE RJ50 INPUT CONNECTOR

GREEN CYCLE LED

RED PRINT ENABLE LED

CONTROLLER RJ50

POWER INPUT +12VDC @1.5A

CONNECTOR

CAUTION: NOTE ORIENTATION OF THE CONNECTORS. DO NOT FORCE CONNECTORS INTO POSITION SECURELY LATCH (CLICK) INTO POSITION. CONTROLLER MUST PLUG INTO THE PRINT CARRIAGE RJ50 INPUT CONNECTOR FOR PROPER OPERATION. THE PRINT CARRIAGE RJ50 OUTPUT CONNECTOR IS USED EITHER FOR CONNECTION TO THE NEXT PRINTER ON A NETWORK OR FOR EXTERNAL PRODUCT OR EXTERNAL ENCODER INPUT. THE POWER INPUT CONNECTOR MUST BE SECURELY INSERTED INTO THE PRINT CARRIAGE. UPON PROPER INSERTION BOTH THE RED AND GREEN LED’S WILL FLASH INDICATING PROPER CONNECTION.

11 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

CONFIGURING THE PRINTER

To verify the current operating software press the STOP PRINT

key.

Press the V key

CONTROLLER 7.08 PRINTER 2.08K++++ PRINTER SN XXXXXX EXIT ANY KEY

The first line indicates the version of the controller software The second line numerics indicate printer software version and the letter is the firmware version of the printer. The ‘+’ (s) following indicate options installed: ++++ = Fully Optioned The third line indicates the serial number of the printer

SYSTEM RESET

Soft Reset:

There are two types of resets available in the Evolution II printing system. The first type of reset is a SOFT RESET.

ERASE STORED MESSAGES

ES OR NO Y/N

RESET PRINT HEAD

ES OR NO Y/N

ALL HEADS WILL BE RESET

CONTINUE = X KEY ANY OTHER EXITS

Pressing the R key while applying power to the unit will display the reset command mode CAUTION: A response of Y will delete all stored messages.

The next screen to appear prompts the user to determine if a print head is to be restored to its default value.

CAUTION: ALL PRINT HEADS CONNECTED TO THE CONTROLLER WILL BE RESET TO FACTORY DEFAULT CONDITIONS. THIS INCLUDES RESETING EACH UNIT ADDRESS TO 1. TO PREVENT THIS REMOVE ALL INTERCONNECTED PRINT HEADS EXCEPT FOR THE UNIT TO BE RESET FROM THE DATA LINK.

12 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

Hard Reset:

The second reset is a hard reset. Disconnect the power cable. Insert a standard paper clip into the hole on the female dovetail side of the cabinet, and while holding the paper clip in place (a light click will be felt) re-apply the power connector. This operation will reset the print carriage assembly to the factory default settings and clear any current message.

13 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

MULTIPLE PRINT HEADS

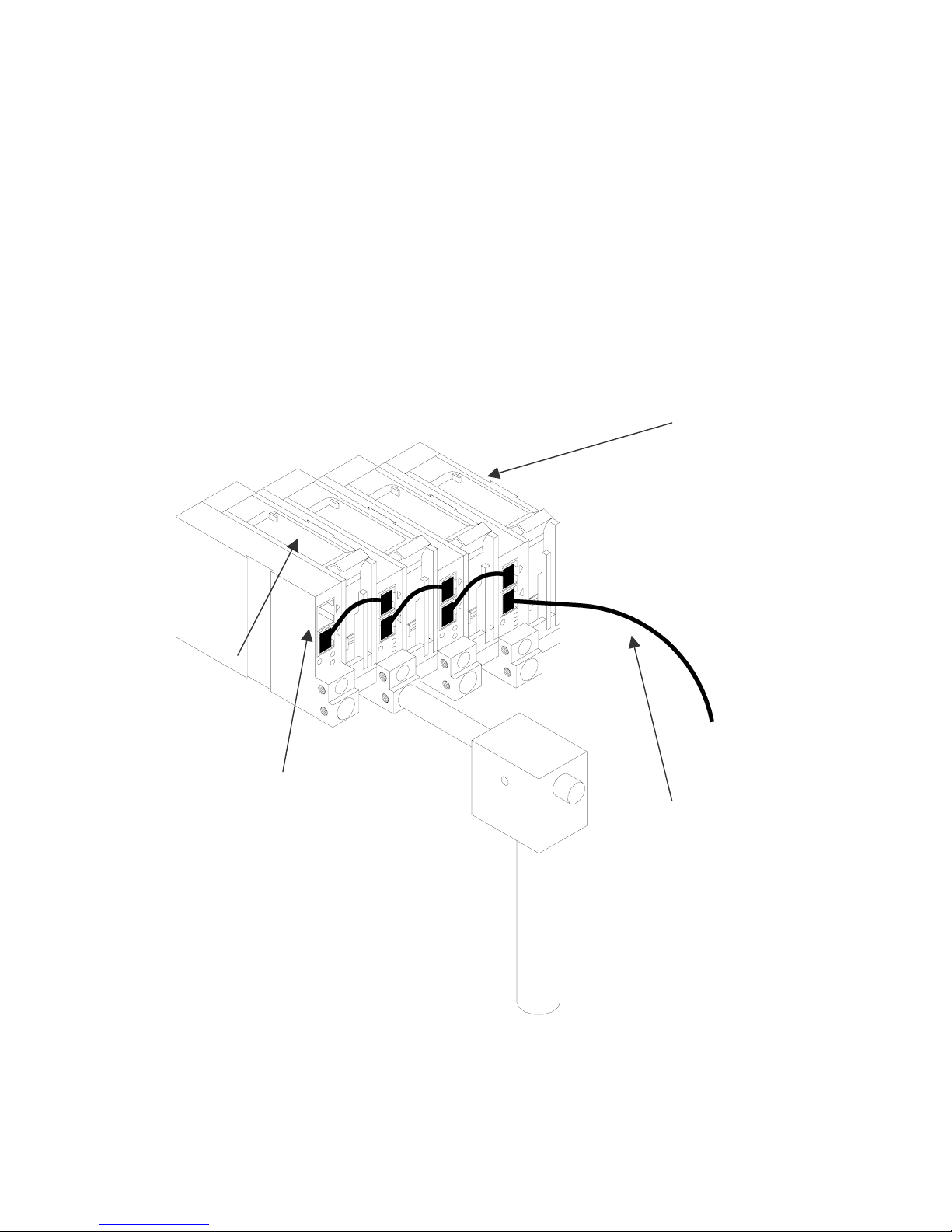

EVOLUTION II printing systems have the ability to reside on a network. The network may contain from 1 to 32 print carriages connected via RJ50 cables. These cables are available in varying lengths depending on the application. Each mounting bracket can support up to 4 print carriages and would typically interconnect with a 6” RJ50 data cable.

NOTE: Please address each unit individually as per page 2-17 prior to daisy chaining the printers. Special care must be taken to connect the output of the first print carriage to the input of the next print carriage.

When connecting multiple print carriages place no more than 2 stations on a side of the mounting bracket as shown.

PRINT CARRIAGE ADDRESS 4

PRINT CARRIAGE LOCKING SET SCREW

PRINT CARRIAGE ADDRESS 1

TO CONTROLLER OR COMPUTER DATA LINK

14 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

EVOLUTION II QUICK START

EV2 STOPPED HD 1- - >SPEED=100

EVOLU

Connect the printer carriage to the appropriate power source. Connect the controller to the carriage assembly. The controller derives power from the carriage.

On startup the LCD will display as pictured.

CHANGING LANGUAGE PROMPTS

< - - SELECT - - >

ENGLISH

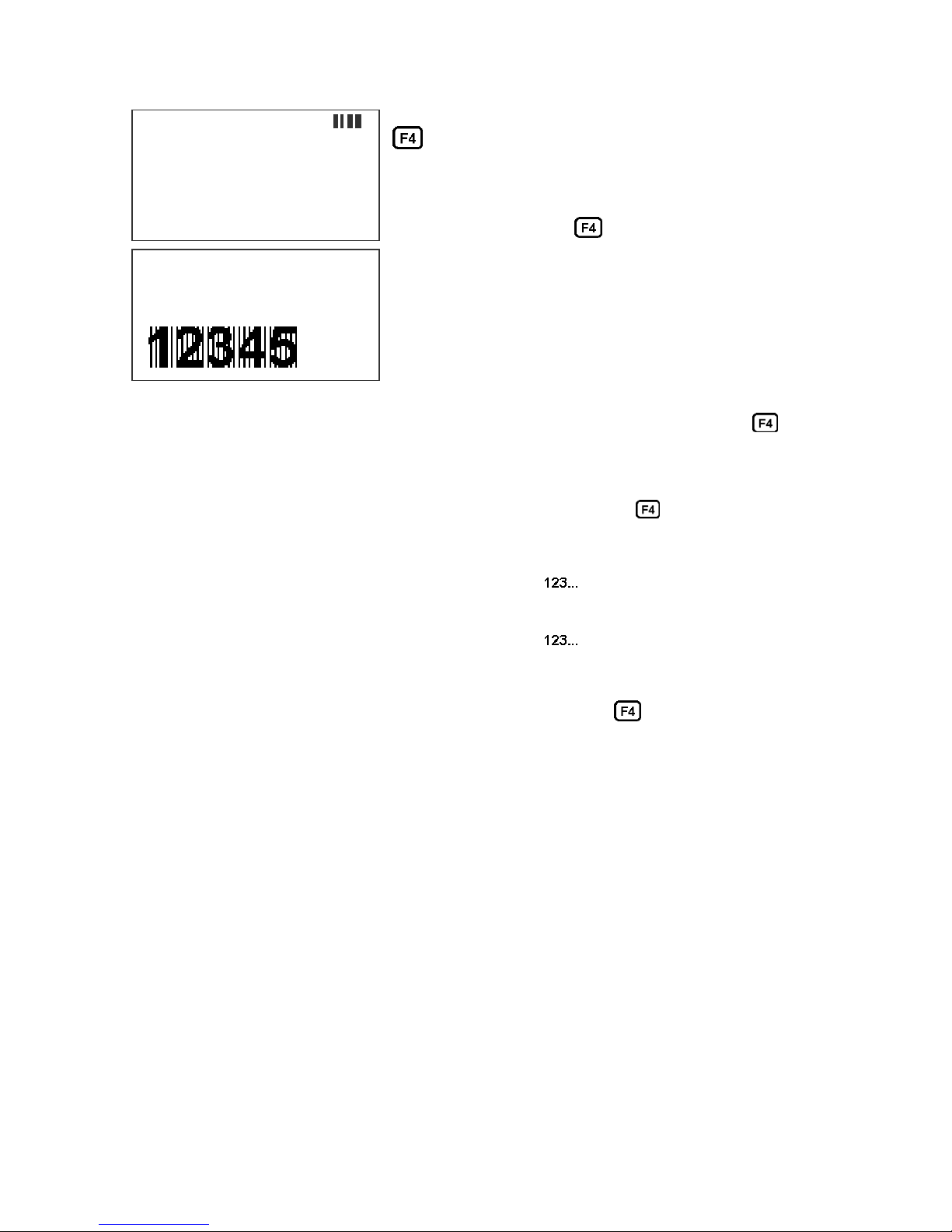

Press the F4 key and select for LANGUAGE. Use the keys to select the desired language and press the

language.

ENABLING PRINT MODE

EV2 PRINTING HD 1- - >SPEED=100

EVOLU

Press the GREEN PRINT key to start printing

HEAD SELECT MODE

EV2 STOPPED HD 1- - >SPEED=100

EVOLU

The hand held controller can program up to 32 print carriages on an RS485 data link. The factory default sets each print carriage to ADDRESS 1. Selection of another print head other than ADDRESS 1, press

to select the

< - - SELECT - - > WHICH HEAD = 1

EVOLU

As an added convenience using the will auto scan to find the next

NO RESPONSE

ANY KEY TO EXIT

15 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

the alternate print carriage number and press the

key. The print carriage whose address was selected will respond with the current message and appropriate parameters.

available head connected to the environment

Accessing an address not associated with any print carriage will result in a no response message.

key. Use the keys to select the

ENTERING A MESSAGE

EV2 STOPPED HD 1- - >SPEED=100

EVOLU

MESSAGE ENTRY

- - - - FONT-1 LINE

EVOLU

Press the GREEN PRINT key The LCD display will change from PRINTING to STOPPED.

Press the GREEN EDIT key

MESSAGE ENTRY

- - - - FONT-1 LINE

MESSAGE ENTRY

- - - - FONT-1 LINE

EXP 12/

MESSAGE ENTRY

- - - - FONT-1 LINE

2/10/04

EV2 PRINTING HD 1- - >SPEED=100

EXP 12/

Press the BLUE F3 key to delete the entire message

Press the BLUE FONT key to select the desired font size and enter the text EXP 12/10/04

Press the ENTER key to end the MESSAGE EDIT mode

Notice as data is entered the display scrolls to the left as new characters are entered.

Press the ENTER key

will end the MESSAGE EDIT mode, re-display the message end enter the STOPPED mode.

Press the GREEN print enable key to enter the print mode

16 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

STORING A MESSAGE

EV2 STOPPED HD 1- - >SPEED=100

EXP 12/

MESSAGE # 1 EV2 PLEASE WAIT

Press the GREEN STOP PRINT KEY

Note: There are a total of 100 messages stored in the hand held controller. This allows the user to move the controller to another print station and enter the same or other saved message. The upper right top line of the display indicates the unit type the message was prepared for.

MESSAGE # 1 EV2 MESSAGE STORED

EXP 12/

EV2 STOPPED HD 1- - >SPEED=100

EXP 12/

Press the RED MESSAGE STORE key The LCD display will display the message storage screen

Use the or to select the desired storage location

Press the RED MESSAGE STORE KEY a second time and the current message appears in the selected location and is stored.

Press the ENTER key to return to the command prompt.

17 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

LOADING A MESSAGE

EV2 STOPPED HD 1- - >SPEED=120

EVOLU

MESSAGE # 1 EV2

EXP 12/

EV2 STOPPED HD 1- - >SPEED=120

EXP 12/

EV2 PRINTING HD 1- - >SPEED=120

EXP 12/

Press the GREEN STOP PRINT KEY

Press the RED MESSAGE STORE key

use the

message and press the ENTER

or keys to select the desired

key

and

Press the GREEN print enable key to enter the print mode

18 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

EVOLUTION II QUICK SETUP

Install a new cartridge. Press the following keys in order:

REMAINING INK 100 % C NEW CARTRIDGE OTHER KEY EXIT

To reset the ink level detector press

Each time a new print cartridge is installed the system automatically profiles the correct operating parameters for the new cartridge. These parameters set the required voltage and on time to produce consistent results without user intervention.

NOTE: USING OTHER THAN AUTHORIZED CARTRIDGES MAY CAUSE UNDESIRABLE RESULTS.

Press the GREEN print enable key to enter the print mode

To set the LINE SPEED, press to put the system in the Printing mode. Set character width by

To set the PRINT DELAY press: to put the system in the Printing mode. Set print delay by

. NOTE: Each increment or decrement changes the delay by the pre-defined amount.

You may continue to experiment with line speed and print delay until the desired code registration on the product is achieved.

19 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

PART 2: OPERATION PROCEDURES

OVERVIEW CONTROLLER AND LCD

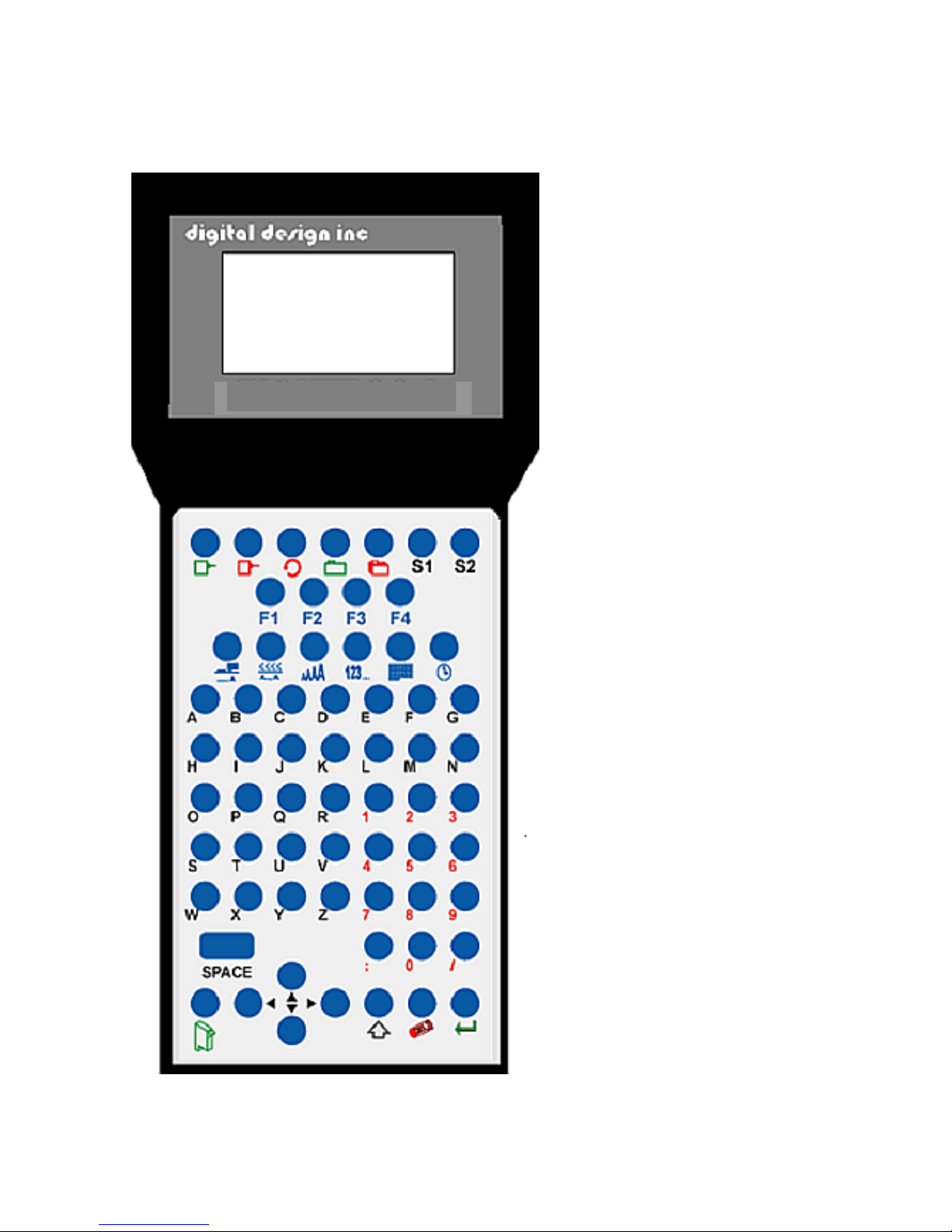

The keypad on the print station, pictured here, contains 64 keys. The LCD will display various messages to assist in

EV2 STOPPED HD 1 - ->SPEED= 100

EVOLU

EVOLUTION CODERS

programming on the upper half of the display. The lower half of the display will show up to two lines of the entered print message. The system operates is 3 basic modes. They are: Print Mode, Command Mode, and Message Entry Mode. In Print Mode the majority of the keys on the keypad are disabled to avoid inadvertent changes. When in Print Mode the Top line of the LCD will display PRINTING.

The Command Mode is used to change the functions of the printer. When in the Command Mode the display will show STOPPED on the top line. The Message Entry Mode is used to create or modify printable codes, when in this mode the top line of the display will show MESSAGE ENTRY. The 4 keys on the top row are the function keys F1 through F4. They each consist of submenus for modifying various printer functions. Their specific menus are detailed later in this section. The next two rows of keys with icon legends directly control specific parameters of the printer as follows.

1 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

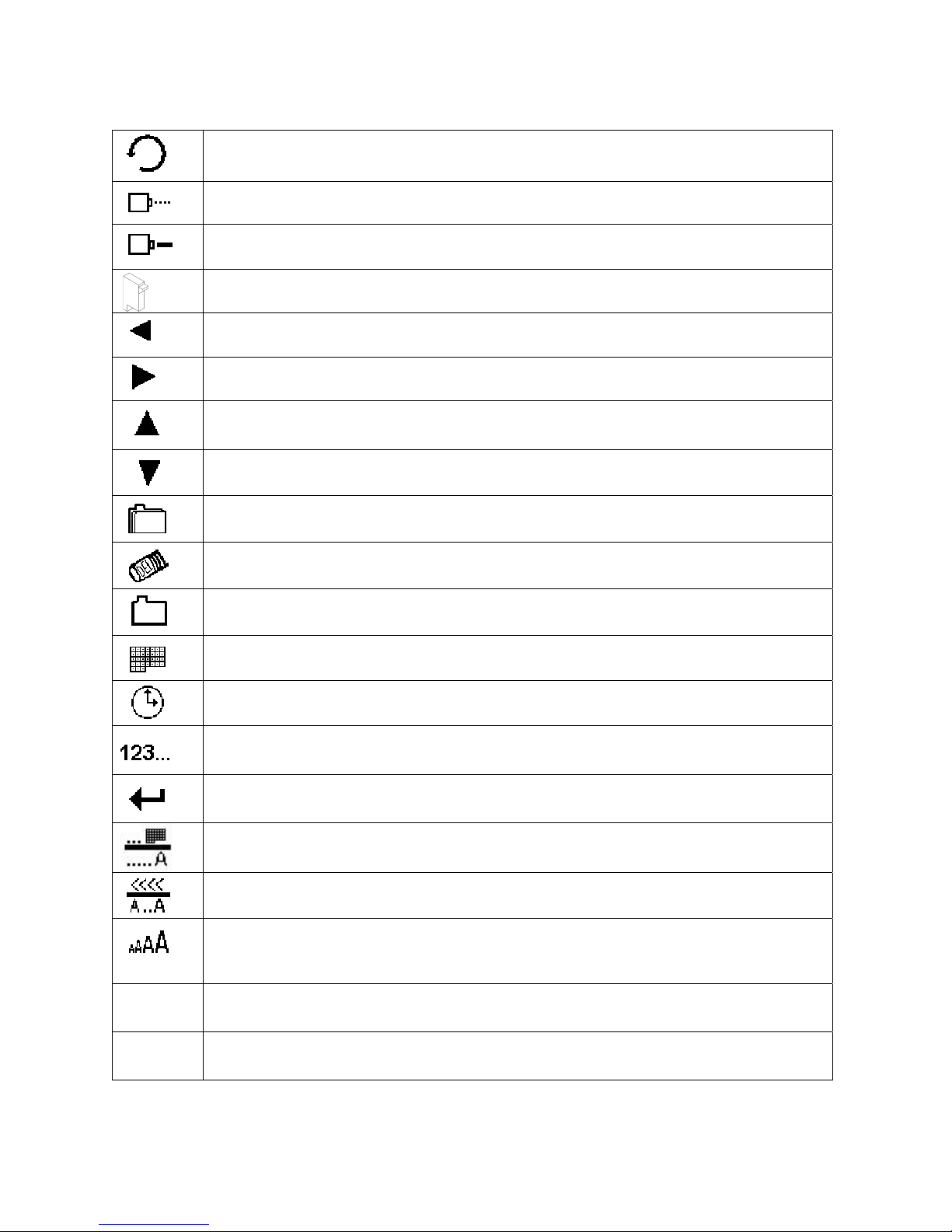

KEYPAD KEY DESCRIPTIONS

This is the manual cycle key. When in the Stopped mode, pressing this key causes the printer to print one code

This is the Print key. Use it to place the unit in the Print mode

This is the Purge key. Use it to purge ink for maintenance purposes. The unit must be in the Command mode to use this key.

This is the Head Select key. Use it to select the address of the head to be

communicated with. In edit mode it enters the DAY of WEEK Use this arrow to decrease values, and use it to move the cursor in the message line while editing the message. Use this arrow to increase values and use it to move the cursor in the message line while editing the message. Use this arrow to move the cursor between the message lines while in Edit mode and building a message.

Use this arrow to move the cursor between the message lines while in Edit mode and building a message.

This key is the Message Storage key. Use it to store and to recall individual codes.

This is the Delete key. Use it to backspace to delete a character when mistyped as well as to exit from certain menus.

This is the Message Entry key. Use this key to enter the Message Entry mode, to input a code or to edit a code.

This is the Date key. Use this key to enter the Date in Message Entry Mode. (OPTION PACK 2). Change Date in STOPPED mode.

This is the Time key. Use this key to enter the Time in Message Entry Mode. (OPTION PACK 2). Change Time in STOPPED mode.

This is the Sequence Number key. Use this key to enter the Sequence Number in Message Entry Mode. (OPTION PACK 2)

This is the Enter or Return key. When pressed, the unit will accept input and exit certain menus.

This key selects the Print Delay in COMMAND mode and Offset Date in EDIT mode (OPTION PACK 3)

This key selects the Line Speed in COMMAND mode and the shift code in the EDIT mode (OPTION PACK 3)

This key selects the Font size in the EDIT mode. In the COMMAND mode pressing this key displays the current fonts loaded in the print head. Pressing this key while in the Message Entry mode accesses special characters

2 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

This key is reserved for special customer Logos

TURNING ON THE PRINT STATION FOR THE FIRST TIME

To turn the print station on insert the power jack into

EV2 STOPPED HD1- - >SPEED=120

EVOLU

the DC power connector.

There is no on/off switch.

The first time the print station is turned on, as received from the factory, the LCD will look like the illustration on the left. Each line gives important information regarding the system:

The Top line indicates the operating mode of the unit: STOPPED when in Command mode, PRINTING when in Print mode, and MESSAGE ENTRY when in message entry.

The 2

line shows the print head currently selected, the direction of travel for the product and the programmed SPEED. The lower half of the display shows the message entered for printing. This may represent one, two, three or four lines of code.

NOTE: THE DISPLAY IS A WYSWIG GRAPHIC TYPE AND MAY ONLY DISPLAY A PORTION OF THE ACTUAL MESSAGE.

CHECKING SYSTEM INFORMATION

CONTROLLER 1.06 PRINTER 2.08K++++ PRINTER SN284955 ANY KEY TO EXIT

Verify system information by pressing the V key on the hand held controller keyboard. The LCD screen will display the software, firmware, serial number and options enabled. The EVOLUTION II printer is fully configured thus a ++++ will be displayed.

CHECKING LOADED FONTS

EVSC ACTIVE FONTS 4 LINE ARIALA332 3 LINE ARIALA1_8 2 LINE ARIALA732 1 LINE ARIALA1_2

ANY KEY TO EXIT

Press the FONT

key in the COMMAND mode to check what fonts are currently loaded in the print head.

3 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

CHANGING SYSTEM DATE AND DAY OF WEEK CODES

PRESENT SETTING ANY CHANGES Y/N 01/04/00

PRESENT SETTING ANY CHANGES Y/N 01/04/00 ENTER MONTH-

PRESENT SETTING ANY CHANGES Y/N 01/04/00 ENTER DAY-

PRESENT SETTING ANY CHANGES Y/N 01/04/00 ENTER YEAR-

< - - SELECT - - > DAY OF WEEK- 1

DAY FORMAT 1= NUMERIC 2= LETTERS

PRESENT SETTING ANY CHANGES Y/N 04/23/05

When the unit is in the STOPPED mode

pressing the DATE key allows the user to change the system date. If there are no changes press the N key to return to the STOPPED mode. Press the Y key to change the date. The system will prompt the user first for the Month (enter 2 digits), then the Day (2 digits) and finally the year (2 digits).

After the date is entered the system requests the actual date day of week. This parameter is usually set to 1 for Sunday, 2 for Monday etc.

The day of the week can be entered into a message as either a number 1-7 or as a letter A-G. The day of the week is entered into a

message by pressing the key while in the MESSAGE ENTRY mode.

After the data is entered the system displays the currently entered date and pressing the N key returns the user to the STOPPED mode, or press Y to the correct the date.

4 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

CHANGING SYSTEM TIME AND DATE ROLL OVER TIME

TIME SETTINGS 1= SET TIME 2= DATE CHANGE TIME

PRESENT SETTING ANY CHANGES Y/N 23:05

PRESENT SETTING ANY CHANGES Y/N 23:05 ENTER HOURS -

PRESENT SETTING ANY CHANGES Y/N 23:05 ENTER MINUTES -

PRESENT SETTING ANY CHANGES Y/N 13:50

TIME SETTINGS 1= SET TIME 2= DATE CHANGE TIME

DATE TIME CHANGE ANY CHANGES Y/N 00:00

When the unit is in the STOPPED mode pressing the TIME

key allows the user to change the system date. If there are no changes press the N key to return to the STOPPED mode.

Select the N key if the time is correct and return to the STOPPED mode.

Press the Y key to change to the correct time. Enter the correct hours (2 digits) followed by the correct minutes (2 digits). The screen displays the corrected time. Press the Y key to make further changes or N key to return to the STOPPED mode.

Notice the time is in 24-hour format.

The Date Change option is enabled by selecting option 2. This feature allows the date to roll over at a specified time other than 12:00AM (midnight). For example if the start of a new shift day occurs at 6:00AM the date will be changed each day at 6:00AM. Selecting Y allows changing of the roll over time. Setting this parameter to 00:00 disables the function.

5 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

DATE TIME CHANGE ANY CHANGES Y/N 00:00 ENTER HOURS -

DATE TIME CHANGE ANY CHANGES Y/N 00:00 ENTER MINUTES -

RESET CLOCK

ENTER HOURS -

RESET CLOCK

ENTER MINUTES -

Similar to entering the time enter first the hours then at the next prompt enter the minutes. Remember the time is entered in military time.

Entering 06:00 sets the date change time at 6:00AM.

Enabling this function requires resetting the current correct time.

Enter both the current time in hours and minutes. This resets the correct time and establishes a new Date Rollover Time.

6 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

PROGRAMMING

DEFINITIONS

There are two parts to programming the EVOLUTION II ink jet printer,

• Setting the operations parameters, (character width, delay, etc.) and

• Building the message.

MODES OF OPERATION

The system operates is 3 basic modes. They are: PRINTING Mode, STOPPED (command) Mode, and MESSAGE ENTRY Mode.

In PRINTING Mode the majority of the keys on the keypad are disabled to avoid inadvertent changes. When in PRINTING Mode the Top line of the LCD will display PRINTING.

The STOPPED Mode is used to change the functions of the printer. When in the Command Mode the display will show STOPPED on the top line.

The MESSAGE ENTRY Mode is used to create or modify printable codes, when in this mode the top line of the display will show MESSAGE ENTRY.

PRINT MODE AND STOPPED “COMMAND” MODE

EV2 PRINTING HD1- - >SPEED=100

EVOLU

EV2 STOPPED HD1- - >SPEED=100

EVOLU

When in the Print mode the screen will look like the screen on the left. When PRINTING is seen on the LCD, the unit will print as product passes in front of the carriage assembly. To enter Print

mode, press .

When in the Command Mode the screen looks like the illustration at left. When STOPPED the printer will not print when product is moved past the carriage assembly. In Command mode, access can be made to the menus under the function keys, F1 through F4 icon control keys plus access to Message Entry

Mode. To enter Command mode, press .

7 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

MENU STRUCTURE

In the Command mode, access is allowed to the menu structure for basic parameters. The menus reside within the function keys, F1 through F4. In order to select one of the parameters, press the number key that corresponds to the desired parameter.

The F1 key, when pressed, brings up the menu as shown below.

1=CHAR. SPACING 2=EXT. ENCODER 3=DATE OFFSET 4=BARCODE TYPE

The F2 key, when pressed, brings up the menu as shown below.

1=DIRECTION 2=PRINT INVERSE 3=PRODUCT DETECT 4=AUTO REPEAT

The F3 key, when pressed, brings up the menu as shown below.

1= PRODOCT COUNT 2= SHIFT CODE 3=DATE FORMAT 4=TIME FORMAT

The F4 key, when pressed, brings up the menu as shown below.

1=LANGUAGE 2=INK SUPPLY 3=SET UNIT I.D. 4=LOAD CARD

8 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

F1 MENU

1=CHAR. SPACING 2=EXT. ENCODER 3=DATE OFFSET 4=BARCODE TYPE

reserved for future system expansion.

Place the unit in the Command mode and press

. The screen shown to the left is produced. Press the correct number to make changes to that parameter. Those selections designated as NOT AVAILABLE will not respond to selection. They are

1 = CHARACTER SPACING:

< - - SELECT - - > # OF SPACES- 1

This parameter controls the amount of space between characters in the code. Spacing can be varied from 1 to 25 columns. Use this control to make printed codes more legible when code is compressed. Press

the

Press once the desired value is displayed.

then press or to change the value.

2 = EXT. ENCODER:

ENCODER 1=INTERNAL 2=EXTERNAL

be set to produce a perfect aspect ratio character (300 dpi vertical and horizontal) or compressed by setting the print head line speed faster than the actual line speed, or expanded by changing the internal speed slower than the actual line speed. In the event there is an acceleration or deceleration to the production line, or there is a requirement to guarantee accurate aspect ratio, such in the case of

barcodes, an external encoder is necessary. Press encoder. While external encoder is selected the LINE SPEED key

the expansion and compression of the printed message. NOTE: WHEN PRODUCING BARCODES IT IS NECESSARY TO PRODUCE A PERFECT ASPECT RATIO CHARACTER. Swath height is 0.500 (1/2”) / 150 vertical dots = 0.0033” between vertical dots Therefore to print a perfect aspect ratio character requires an encoder pulse every 0.0033”. The encoder range adjustment is from 0 to 7 and assuming the mean is a count of 4 then by connecting an encoder that produces a pulse for each 0.000825” the correct character aspect ratio can be achieved. This allows either compression or expansion of the printed text.

Press to select internal time base. This parameter controls the source of the time base used for printing. Each vertical column printed requires a signal necessary to produce a character representative of the line speed of the production line. The printer can

to select external

will adjust

9 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

3 = DATE OFFSET:

DATE OFFSET USE KEYS 0->9 # OF DAYS = 100

4 = BARCODE TYPE:

< - - SELECT - - > CODE 39

< - - SELECT - - > UPC A

< - - SELECT - - > MIN. BAR WIDTH= 5

< - - SELECT - - > ADDED SPACE = 0

< - - SELECT - - > QUIETZONE WIDTH 75

ADD CHECK DIGIT 1 = YES 2 = NO

To enter a date offset (expiration date) change the value equal to the number of days until expiration. Legal entries are 0 to 999 days. The format of the date offset can be different than a normal date and may be set with the F3 #3 option DATE FORMAT.

This parameter determines the barcode type to be entered into a message. As standard the EVOLUTION II contains 8 barcode symbologies, which are: UPC-A, UPC-E, EAN-8, EAN-13, CODE 39, CODE 128B, CODE 128C AND INTERLEAVED 2 OF 5.

Press or to change the barcode type and press once the desired type is displayed.

The default system parameter establishes that the normal size of a narrow bar is equal to 5 vertical columns. This value, which is variable from 3 to 15, is selectable depending on the overall length of the barcode to be printed. This value sets both the light and dark bars nominal width. The added space parameter allows the user to insert extra columns to a normal light bar width to allow for the bleed factors associated with various substrates. Valid entries are from 0 to 3 extra spaces.

The quiet zone is the space before and after a barcode that must be kept blank. Each count is equal to one vertical column. In proper aspect ratio each column is 0.0033” thus a count of 75 would leave 0.247” before and after the barcode.

Check digits may be added to any of the imbedded symbologies by selecting option 1.

10 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

ADD MAN READABLE 1 = YES 2 = NO

This parameter adds a man readable set of characters directly beneath the barcode being printed, and is valid for all barcode types.

ADD GUARD BARS 1 = YES 2 = NO

If man readable characters are enabled the user has the option of enabling or disabling guard bars.

Barcode reliability is directly related to the substrate and linearity of the production line. Care should be taken to ensure that the production environment is conducive to printing barcodes. For example barcodes are susceptible to vibration (bounce) found on roller style conveyers where flat belt types are preferable. Acceleration and deceleration components will add a skew factor to the barcode as will slippage between the product and production line. Refer to Appendix A for further details on “Producing a Reliable Barcode”.

11 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

F2 MENU

Place the unit in the Command mode and press

1=DIRECTION 2=PRINT INVERSE 3=PRODUCT DETECT 4=AUTO REPEAT

produced. Press the correct number to make changes to that parameter

. The screen shown to the left is

1 - DIRECTION:

The arrow shown on the LCD’s third line screen

< - - SELECT - - > LINE DIRECTION

< - - - -

should agree with the direction of product travel. Press or to change the direction of print. Press for the unit to accept the change.

2 - PRINT INVERSE:

CODE ORIENTATION 1 = NORMAL PRINT 2 = UPSIDE DOWN

on the imprint.

This parameter allows the code to print right side up or upside down. Pressing will produce the following screen. Press for normal print or for upside down codes. Save the choice by pressing . Look for the change of direction

3 – PRODUCT DETECT:

PRODUCT DETECT 1 = INTERNAL 2 = EXTERNAL

a portion of the product not directly in front of the print head then an external product detect sensor must be used. This setting also allows the printer to be controlled from other sources, like a PLC. When external product detect is selected the user must also change the jumper option within the print head. Refer to the OPTION SELECT section for proper use.

This menu selection allows the user to select the source of the product detect feature. Press

to use the internal product detect sensor located at the front of the print carriage just below the print cartridge. If it becomes necessary to sense

12 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

4 - AUTO REPEAT:

< - - SELECT - - > REPEAT TIME= 0

time delay adds or subtracts a distance equivalent to the pre-defined setting. Save your choice by pressing . The maximum repeat spacing is 255 counts where each count is equal to 16 character columns or 0.053”. This allows for a total displacement of 13.46”. Setting a print delay that uses the same mathematical equation can increase this number. Thus a total displacement of

26.92” can be realized.

This option enables the unit to continuously print repeated codes at specified time intervals along the entire length of the product. A time of 0 disables the Auto Repeat option. Use or to change the repeat time. Each number in the

13 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

F3 MENU

1= PRODUCT COUNT 2= SHIFT CODE 3=DATE FORMAT 4=TIME FORMAT

1 – PRODUCT COUNT:

PRODUCT COUNT CHANGES Y / N OR C 08:00 - - > 17:00 COUNT = 000000

PRODUCT COUNT START TIME 08:00 - - > 17:00 ENTER HOURS-

PRODUCT COUNT START TIME 08:00 - - > 16:00 ENTER MINUTES-

PRODUCT COUNT STOP TIME 08:00 - - > 16:00 ENTER HOURS-

PRODUCT COUNT STOP TIME 08:00 - - > 16:00 ENTER MINUTES-

PRODUCT COUNT CHANGES Y / N OR C 08:00 - - > 17:00 COUNT = 000000

The product counter is a non-printable entity, and must be read after the end of the set time period. The counter indicates each print cycle sensed by the external photo eye. Depressing the C key may clear the counter.

If there are no changes press the N key.

To change the settings depress the Y key. All times are in Military Time 00:00 to 23:59 hours.

Enter the start time HOURS. At the next screen prompt enter the start time MINUTES

The system then prompts the user for the STOP TIME.

Enter both the stop time HOURS and then the MINUTES.

The newly entered data is re-displayed for verification or correction if necessary Press the Y key to change the data or the N key to finish and return to the STOPPED MODE .

14 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

2 – SHIFT CODE:

1= PRODUCT COUNT 2= SHIFT CODE 3=DATE FORMAT 4=TIME FORMAT

Shift codes may be encoded directly in the printable message. The printer can print 6 individual shift codes. Each shift code contains a unique start time and alpha/numeric code to be printed.

ADJUST SHIFTS < - - SELECT - - > SHIFT 1 07:00 A ANY CHANGES Y/N

ADJUST SHIFTS SHIFT 1 START TIME ENTER HOURS -

Press or to change the desired shift to view or change.

The shift code option allows the user to enter 6 different shift times per day. Use the arrow keys to select a shift and enter a Y to change a shifts start time. All times are in Military Time 00:00 to 23:59 hours.

Enter the correct start time HOURS for the shift selected.

ADJUST SHIFTS SHIFT 1 START TIME ENTER MINUTES -

Enter the correct start time MINUTES for the shift selected..

ADJUST SHIFTS SHIFT 1

PRINT CODE -

Finally, enter the desired code to be printed in the message. Legal characters are the letters A to Z and the numbers 0 to 9.

ADJUST SHIFTS < - - SELECT - - > SHIFT 1 07:00 A ANY CHANGES Y/N

The printer re-displays the data for the selected shift for verification.

NOTE: THIS PROCEDURE MAY BE REPEATED FOR ALL DESIRED SHIFTS

NOTE: TO DISABLE A SHIFT ENTER A SPACE CHARACTER IN THE PRINT CODE FIELD. THE SHIFT TIMES WILL BE DISPLAYED AS --:-- FOR ALL DISABLED SHIFT TIMES.

15 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

3 – DATE FORMAT:

1= PRODUCT COUNT 2= SHIFT CODE 3=DATE FORMAT 4=TIME FORMAT

CHANGE FORMAT 1=CALENDAR DATE 2=OFFSET DATE

MONTH FORMAT 1=NUMERIC 2=LETTERS

DATE FORMAT D=DAY M=MONTH

=YEAR J=JULIAN

dm/dd/dy

DATE FORMAT D=DAY M=MONTH

=YEAR J=JULIAN

DATE FORMAT D=DAY M=MONTH

=YEAR J=JULIAN

jjyy

colon (:), the forward slash (/) or the period (.).

Press F3 to change the date formatting. Each of

the following screens prompts the user to enter

the desired format for printing.

NOTE: THE USER MAY INDIVIDUALLY

CHANGE THE FORMAT OF BOTH THE

CALANDER FORMAT AND THE DATE

OFFSET FORMAT

NOTE: THE FOLOWING PROCEDURE

APPLYS TO BOTH CALANDER AND OFFSET

DATE FORMATS.

Selecting the standard numeric format will

prompt the user to enter the format of the date in

standard number format.

The default as shipped from the factory is

dm/dd/dy, and may be modified as required.

If the offset format was selected the word DATE

is replaced with the word OFFSET.

To change the format press the delete key and

the last line on the display will be erased. The

entire format will be erased and must be re-

entered.

Press either of the designator keys (i.e. M for

month) and the display will display the correct

code for the item selected. As an example enter

the Julian date and year. Press the J key

followed by the Y key. The code entered will

print the Julian date followed by the 2-digit year.

Notice no delimiters were selected, but may

have been entered by selecting the appropriate

key on the keyboard. Legal delimiters are the

16 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

MONTH FORMAT

1=NUMERIC 2=LETTERS

Alpha characters may have bee selected by

pressing option 2.

DATE FORMAT D=DAY M=MONTH

=YEAR

jjyy

Delete the current formatting by pressing the

Delete key.

DATE FORMAT D=DAY M=MONTH

=YEAR

ddmmmyy

Enter the desired Date Format and notice when

the M (month) is selected the display shows

mmm. Select the appropriate key on the

keyboard by entering in the desired code. Press

the Enter key to return to the STOPPED mode.

WEEKLY DATE 1=ENABLE 2=DISABLE

The software performs a special function

allowing the user to set the current date to

change only at a certain day of the week. This

function is typically used in batch processing,

where a batch may be prepared on Sunday and

packaged from Monday through Friday of the

following week. Entering either the current date or offset date in a message will result in the initial date being printer for either function throughout the following week. Selecting option 2 returns the user to the STOPPED mode.

17 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

4 – TIME FORMAT:

1= NOT AVAILABLE 2= NOT AVAILABLE 3=DATE FORMAT 4=TIME FORMAT

TIME FORMAT H=HOURS M=MINUTES hh:mm

TIME FORMAT H=HOURS M=MINUTES hh

Change the Time Format by selecting option 4.

NOTE: Delimiter characters like a : code may be entered to separate fields

The factory default for time formatting is hh:mm and may be changed as required. Press the Delete key and the last line on the display is erased.

Enter the desired format by pressing the H and or M keys, and select delimiters as required. Select H if only hours are required. Press the Enter key to return to the STOPPED mode.

18 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

F4 MENU

1 = LANGUAGE 2 = INK SUPPLY 3 = SET UNIT I.D. 4 = LOAD CARD

Place the unit in the Command mode and press

. The screen shown at left is produced. Press the number that corresponds to the parameter you wish to change.

1 - LANGUAGE:

< - - SELECT - - >

ENGLISH

mode. Whenever language is chosen, all prompts and commands shown on the screen will be in that language.

Press and the screen will change like the one on the left. The default language is English; the other choice is Spanish. Scroll through the

choices using either or . Once the desired language is shown on the screen, press

. This will return the unit to the Command

2 - INK SUPPLY:

The second line of the display shows the

REMAINING INK 100 C NEW CARTRIDGE ANY KEY TO EXIT

When a C is entered the system automatically profiles the operating conditions for the new cartridge.

Each cartridge is tested and profiled at the factory eliminating the burden of personalizing each cartridge by the user. There are a number of tasks associated with print cartridge profiling, as each print cartridge differs from another. The correct drive voltage, pulse width timing and pre-fire pulse warming must be calculated for optimum operation.

percentage of ink remaining in the print cartridge. Each time a new cartridge is installed the user must reset the system ink gauge by pressing the

C key.

NOTE: USING NON-AUTHORIZED CARTRIDGES MAY PRODUCE UNDESIRABLE RESULTS

19 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

3 – SET UNIT I.D.:

< - - SELECT - - > SET HEAD # = 1

when adding multiple print carriages to affix a label indicating the unique ADDRESS number of the individual carriage.

Each print carriage can contain a unique address to distinguish multiple carriages when controlled by a single hand held controller or computer data link using an RS485 data link. The default for each new print carriage module is ADDRESS 1. Addresses can range from 1 to 32. It is advisable

Note: To program a carriage it must be connected directly to the hand held controller, with no other carriages connected.

20 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

4 – LOAD CARD:

LOADING FONTS (MENU SELECT 1)

EXECUTE LOADER 1=LOAD FONTS 2=LOAD LOGOS 3=LOAD OPTIONS

LOAD FONT 1= LOAD DEFAULTS 2= LOAD ALTERNATE

LOAD RESULTS PLEASE WAIT

MEMORY ERROR NO FLASH CARD

ANY KEY TO EXIT

LOAD RESULTS 2 LINE fontname 1 LINE fontname ANY KEY TO EXIT

LOAD RESULTS 2 AF fontname 1 AF fontname ANY KEY TO EXIT

NOTE: when optional fonts are loaded into the system the Data Flash Card is encoded with the serial number of the unit and is valid only for the unit in which the fonts were loaded.

The user can replace the existing FONT, add up to six logos, or load optional software from a Data Flash card, which is plugged into the top of the print carriage. Select 1 to load a different font to replace the current system font.

The screen to the left will appear and after a few seconds a result will be displayed to indicate NOTHING LOADED or the name of the newly loaded font, logos or software upgrades.

To load or replace the current LOGOS in the system press the key. Similar to loading

FONTS the screen at the left will appear indicating the load results.

This screen will be displayed if the data flash card is either not present or cannot be read.

CHECK THAT THE DATA FLASH CARD IS PROPERLY INSTALLED

A successful load will display the current font names loaded into the print head. This screen will be displayed when the default fonts are loaded.

When loading alternate fonts the AF will replace LINE for the alternate font or fonts loaded.

21 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

LOADING LOGOS (MENU SELECT 2)

EXECUTE LOADER 1=LOAD FONTS 2=LOAD LOGOS 3=LOAD OPTIONS

The user can replace the existing FONT, add up to six logos, or load optional software from a Data Flash card, which is plugged into the top of the

print carriage. Select to load logos into the print head.

EXECUTE LOADER PLEASE WAIT

MEMORY ERROR NO FLASH CARD

ANY KEY TO EXIT

This screen will be displayed if the data flash card is either not present or cannot be read.

CHECK THAT THE DATA FLASH CARD IS PROPERLY INSTALLED

LOAD RESULTS 2 LINE 1 2 3 1 LINE 1 2 3 ANY KEY TO EXIT

Displaying the number of logos as indicated in the pictorial indicates successful loading. The display indicates the number of logos loaded for the 1 line or 2 line mode.

LOADING OPTIONS (menu select 3)

EXECUTE LOADER 1=LOAD FONTS 2=LOAD LOGOS 3=LOAD OPTIONS

Optional software may be added via Data Flash Card to the basic unit to add features.

NOTE: when optional software is loaded into the system the Data Flash Card is encoded with the serial number of the unit and is valid only for the unit in which the software was loaded.

CONTROLLER 1.06 PRINTER 2.08K ++++ PRINTER SN284955 ANY KEY TO EXIT

Verify system information by pressing the V key on the hand held controller keyboard. The LCD screen will display the software, firmware, serial number and options enabled. Enabled options are indicated on the second line as a series of + characters where the first + indicates option

pack 1, the second + indicates option pack 1.5 the third is option pack 2 and the last + indicates option pack 3.

22 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

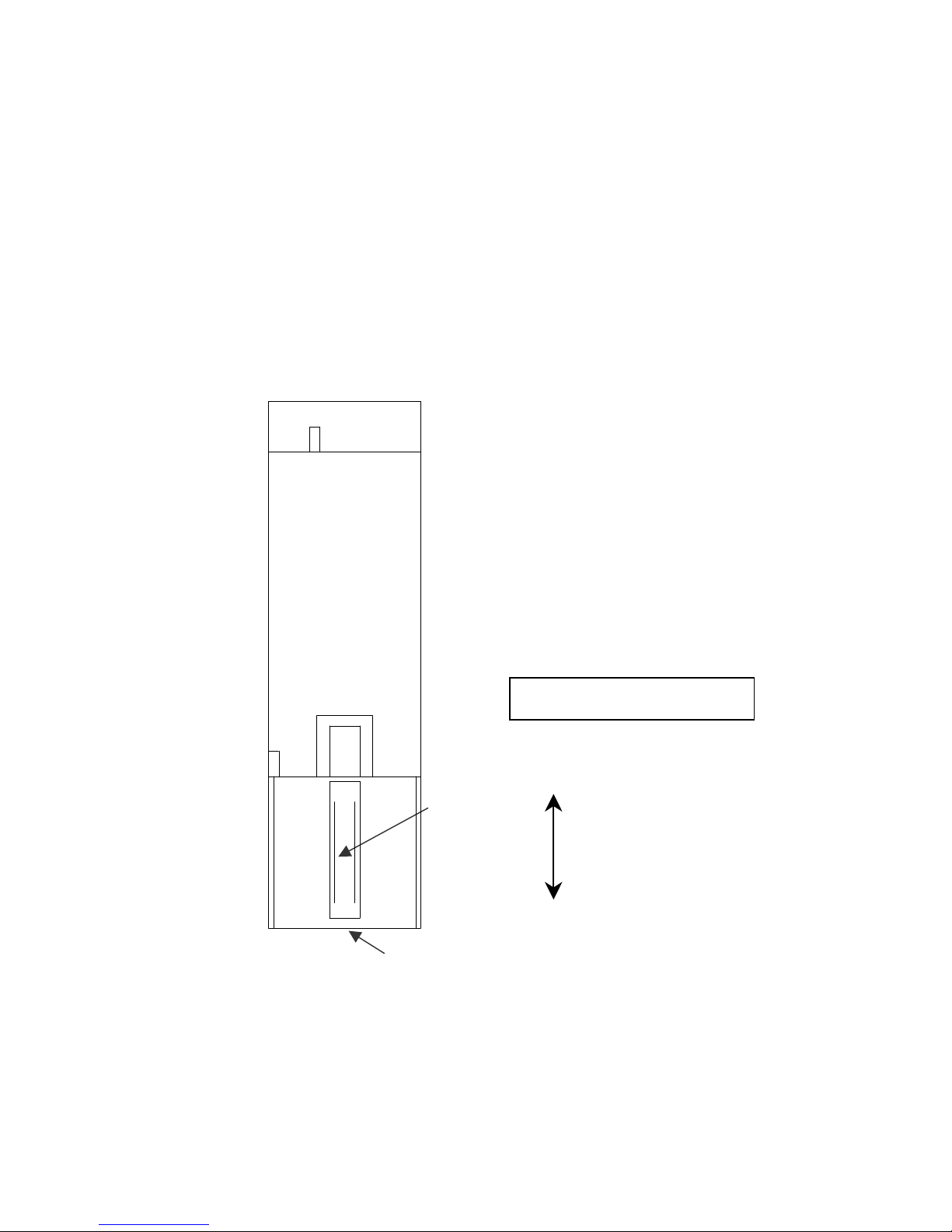

NOTE: THE FIGURE BELOW SHOWS THE CORRECT ORIENTATION FOR INSERTING THE DATA FLASH CARD.

INSERT THE DATA FLASH CARD INTO THE SLOT PROVIDED AT THE TOP OF THE PRINT CARRIAGE AS SHOWN. NOTE THE ORIENTATION OF THE LABEL ON THE CARD. PRESS THE CARD COMPLETELY INTO THE SLOT. THE CARD SHOULD BE REMOVED AFTER USE AND STORED IN A SAFE PLACE. ONCE LOADED (FONTS & OPTIONS) THE CARD IS SECURITY LOCKED WITH THE SERIAL NUMBER OF THE PRINTER CARRIAGE AND WILL NOT OPERATE IN ANOTHER PRINT CARRIAGE.

NOTE: There are four fonts loaded into the EVOLUTION II printer at any one time. Loading a new font will overwrite the existing font or fonts. Print starts at the bottom nozzle of the print head (dot 150 for line 2) and at the middle of the print head (dot 75 line

1). The printer is shipped with a 1/2” font, a 7/32” font, a 1/8” font and a 3/32” font. The 1/2” font may be replaced with other than a 1/2” tall character. Alternate fonts that are loaded replace the existing fonts. Inserting a data flash card containing alternate fonts and cycling the power will temporarily use the alternate fonts on the data flash card until the card is removed and either the power is cycled or the print station is set to the STOPPED mode. This eliminates the need to load the alternate font using the LOAD CARD option.

23 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

SETTING PRINT DELAY AND LINE SPEED

LINE SPEED – This setting adjusts the width of the printer message on the

product. This setting should be adjusted to produce the desired print on the product. Line speed can be increased or decreased to stretch or compress the message to fit the desired print area.

PRINT DELAY – This setting adjusts the location of the printed message on the product.

EV2 STOPPED HD1- - >SPEED=100

EVOLU

EV2 PRINTING HD1- - >SPEED=100

EVOLU

Access to these parameters is possible when the unit is in either the STOPPED or PRINTING mode as shown to the left.

Pressing the delay key allows the user to determine the amount of print delay. Each count at a normal aspect ratio is approximately 0.060”. This will vary according the amount of compression or expansion used.

SETTING LINE SPEED

Normally, the system will be set to use the internal

< - - SELECT - - > LINE SPEED = 100

time base for line speed control. The default value is 100, which creates a normal width character on a line moving at 100 ft per min. The print can be narrowed by increasing the number and widened by

parameter. Once pressed, a new screen appears, as shown to the left. Changes can now be made by using or . The range of values for

character width is 1 to 200. Once the desired number is chosen, press save your entry.

< - - SELECT - - > ENCODER DIV = 4

24 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

decreasing the number. Pressing accesses this

If external encoder is enabled and the unit is in the PRINTING mode the user has the option of adjusting the compression ratio of the printer

message. Changes may be made by using or

. Once the desired number is chosen, press

to save your entry.

SETTING PRINT DELAY

EV2 STOPPED HD1- - >SPEED=100

EVOLU

Print delay is used to position a message on the product at a location other than at the leading edge.

Access this parameter by pressing on the keypad.

NOTE: This parameter may be set when the unit is either in the PRINTING or STOPPED mode

EV2 PRINTING HD1- - >SPEED=100

EVOLU

To change the value use either or . The range of values for this parameter is 1 to 255. Each increment represents 18 columns, approximately

< - - SELECT - - > PRINT DELAY= 100

.053” (1.35mm). Therefore, a delay of 255 would approximate 13.46” (342mm). Once a number is

chosen, press to save the entry.

NOTE: THE DIMENSION INDICATED IS WHILE PRINTING A PERFECT ASPECT RATIO CHARACTER. WHEN PRINTING A COMPRESSED OR EXPANDED CHARACTER THE ACTUAL DIMENSIONAL NUMBER WILL BE DIFFERENT BUT CAN BE ESTIMATED BASED ON THE 18 COLUMNS PER COUNT.

NOTE: Setting the line speed first, then adjusting the print delay may prove to be the best starting point

SETTING HEAD ALIGNMENT

Aligning the vertical print for messages in multiple

< - - SELECT - - > HEAD ALIGN = 0

head alignment. Valid selections are from 0-16.

print heads is fine-tuned with an additional feature found in either the PRINTING or STOPPED mode. Pressing the letter O on the keyboard accesses this feature. A count of 0 disables this feature while using the arrow keys allows the user to fine-tune the print

25 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

INPUT, EDIT OR DELETE MESSAGES

EV2 STOPPED HD1- - >SPEED=120

EVOLU

MESSAGE ENTRY FONT 1 LINE

EVOLU

MESSAGE ENTRY FONT 1 LINE

To input, delete or edit a message, the unit must be in the STOPPED Mode. If the LCD reads PRINTING, press . The screen should be similar to the one shown at the left.

Enter the Message Entry mode by pressing . The top portion of the screen will change as shown on the left.

The user has two options to edit or change a message. If a new message is to be entered press the key to delete the entire existing message.

For example, to produce a single line of 1 LINE. Press the font key until the 1/2 “ font size is shown, and enter EXP followed by the

key. This enters the DATE OFFSET as

.DD.DY

MESSAGE ENTRY FONT 2 LINE BEST BY EXP 12/01/2004

defined in the F1 menu.

To place two lines use the to select 2 LINE size. Press the Press the to select which line the data will be entered on. Enter BEST BY. The pictorial at the left shows two lines of 2 LINE character size. To

key to delete the entire message.

STOPPED HD1- - >SPEED=120 BEST BY EXP 12/01/2004

AN EXPIRATION DATE.

26 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

enter and print only 1 line of 2 LINE select the line and enter data to that line only. Once the message line(s) is complete, save the change by pressing .

NOTE: USE THE DATE OFFSET KEY TO ENTER

MESSAGE ENTRY FONT 1 LINE BEST BY EXP 12/01/2004

MESSAGE ENTRY FONT 1 LINE BEST BY EXP

MESSAGE ENTRY FONT 1 LINE BEST BY EXP 12/31/2004

MESSAGE ENTRY FONT 1 LINE BEST BY EXP 12/01/2014

< - - SELECT - - > !#$&( )*+=¢ŇẾỖ

EV2 STOPPED HD1- - >SPEED=120 BEST BY EXP 12/01/2014

to the Command mode.

The second option is to replace characters by using the key or moving the cursor over a character to

be replaced. When the MESSAGE ENTRY mode is entered the cursor is placed at the end of the line.

Pressing the key will delete the last character on the line. Successive ’s will continue to delete the

last character on a line. At the left the characters 12/01/2004 were deleted..

Enter the correct data, in this case 12/31/2004. .

The alternative approach if just a few characters are to change is to use the or to place the cursor

over the characters to be changed and retype the correct characters. . In this example the 12/31/2004 WAS CHANGED TO 12/31/2014.

Symbols are inserted by pressing . When in Message Entry mode, position the cursor where a

symbol is needed and press . The screen will show a line of symbols as presented on the left.

Position the cursor by pressing special character to be inserted and press .

Continue to build the message or press

or on the

to return

EVOLUTION II messages may contain up to 4 lines of text. Selecting multiple message lines is accomplished by pressing the font key until the appropriate line designation is displayed. NOTE: barcodes may only be used in the 1 or 2 line mode. Smaller barcodes are generally un-useable under 7/32”.

27 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

MESSAGE ENTRY

- - - - FONT- 1 LINE

Enabling variable field programming requires the use of the special function keys.

MESSAGE ENTRY

- - - - FONT- 1 LINE DM/DD/DY

MESSAGE ENTRY

- - - - FONT- 1 LINE

HH:MM

MESSAGE ENTRY #### FONT- 1 LINE

0000

To enter a date that automatically changes use

the key. The current date format as set in the F3 menu is entered into the message.

To enter a time that automatically changes use the

key. The current date format as set in the F3

menu is entered into the message.

Sequence numbers may be added to a message

with the key. Note when the key is

depressed the four ---- are changed to #### indicating a sequence number field. After entering

MESSAGE ENTRY

- - - - FONT- 1 LINE

0000

MESSAGE ENTRY < < < < FONT- 1 LINE

DM.DD.

MESSAGE ENTRY

- - - - FONT- 1 LINE

the correct sequence number press the key to terminate the sequence field. The maximum number of digits allowable is 9 numeric characters.

Date offset codes are entered by using the key. The correct date offset format as defined in the F3 menu is entered into the message with the

key to enter a shift code. Shift codes are defined in the F3 menu and will automatically change at the appropriate shift times. The shift designator S is displayed to indicate the data entry.

28 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

SEQ. NUMBER

1= COUNT UP 2= COUNT DOWN

CLEAR SEQ# FIELD

ES OR NO Y/N

COUNTER LIMIT

ANY CHANGES Y/N ENTER #000000000

COUNTER LIMIT

ANY CHANGES Y/N ENTER #000005000

Sequence number format is programmable in the STOPPED mode. The counter may be set to count either up or down by selecting number 1 or

2. Pressing enter advances the user to the next menu prompt.

Clearing the sequence field resets the counter to their initial settings.

The next prompt allows for changes in the sequence limit field. Selecting Y allows the user to enter the desired maximum (minimum for down count) count. Digits are enter via the keyboard right justified. As an example to set a maximum count of 5000 enter 5000. Pressing the DEL key allows for re-entry while pressing the ENTER key returns the user to the STOPPED mode.

29 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

Moving the cursor back over the various characters contained in the message may be used to validate the message. Note that the field designator will normally appear as - - - - indicating an alpha/numeric code as would be seen by moving the cursor under the M F G or the E X P on the second line. The same designator will be seen when the cursor is placed under any non-changeable field including the space character. Moving the cursor under a variable programmable field will display the correct field designator in place of the - - - - alpha/numeric designator.

MESSAGE ENTRY

- - - - FONT- 3 LINE BATCH 3FT4E MFG DM/DD/DY HH:MM EXP DM.DD.DY S 0009

The various field designators displayed are:

- - - - Alpha/Numeric non-changeable data # # # # Sequence number field < < < < Shift code field OM Offset date month field OD Offset date day field OY Offset date year field DM Current date month field DD Current date day field DY Current date year field TH Current time hour field TM Current time minute field

For example, moving the cursor under the S (shift code) on the second line would display the field designator as < < < <

NOTE: ONLY 15 OBJECTS ARE PERMITTED ON A PARTICULAR LINE. IN THE ABOVE EXAMPLE THE FIRST LINE OF DATA MFG DM/DD/DY HH:MM CONTAINS 10 OBJECT FIELDS. FOR PURPOSES OF CLARITY THE SPACE CHARACTER IS SHOWN AS THE UNDERLINE _ CHARACTER WHERE:

MFG_ = ALPHA/NUMERIC FIELD DM = DATE MONTH FIELD / = ALPHA/NUMERIC FIELD DD = DATE DAY FIELD / = ALPHA/NUMERIC FIELD DY = DATE YEAR FIELD _ = ALPHA/NUMERIC FIELD HH = TIME HOURS FIELD : = ALPHA/NUMERIC FIELD MM = TIME MINUTES FIELD

30 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

The above constitutes 10 object fields. Even though there are 48 characters permitted per line data entry will be inhibited when

the 15

object is entered, although the last field, if it is an alphanumeric object, may contain enough characters to meet the 48-character limit. Barcodes are also an object field and must be considered when entering a message. Thus a barcode with an imbedded sequence number is counted as two objects.

31 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

MESSAGE ENTRY

- - - - FONT- 1 LINE CODE 128C 12345

MESSAGE ENTRY

- - - - FONT- 1 LINE CODE 128C

may contain Alpha and Numeric characters, code dependent. The barcode types are selected from the STOPPED screen and press the key, and select menu option 4. Entering a sequence number within a barcode requires a specific sequence of operations that must be adhered to:

1. ENTER THE BARCODE FIELD BY PRESSING THE key.

2. ENTER ANY CHARACTERS REQUIRED PRIOR TO SEQUENCE NUMBER

Barcode fields may be entered by pressing the

key while in the MESSAGE ENTRY mode. The barcode insignia is indicated following the font style and the code type is displayed on the third line of the display. When the barcode entry is

completed press the key to end the barcode field entry. The software checks that the data entered is valid according to the barcode type selected. If the barcode entered is valid the system re-displays the barcode with a series of lined overlaying the barcode field. Barcode fields may contain a sequence number if the specified code permits such a function. Codes therefore

3. PRESS THE SEQUENCE NUMBER KEY TO BEGIN THE FIELD

4. ENTER THE APPROPRIATE SEQUENCE NUMBER

5. PRESS THE SEQUENCE NUMBER KEY TO END THE FIELD

6. ENTER ANY CHARACTERS REQUIRED FOLLOWING THE SEQUENCE NUMBER

7. EXIT THE BARCODE FIELD BY PRESSING THE key.

The above sequence will allow the user to imbed a sequence number into the barcode type selected.

The system contains 8 barcode types: CODE 39 INTERLEAVED 2of5 CODE 128B and CODE 128C UPC A and UPC E EAN 8 and EAN 13 Each barcode type may contain man readable characters, guard bars, and check characters. All barcode characteristics are programmable and are controlled in the F1 menu option select #4.

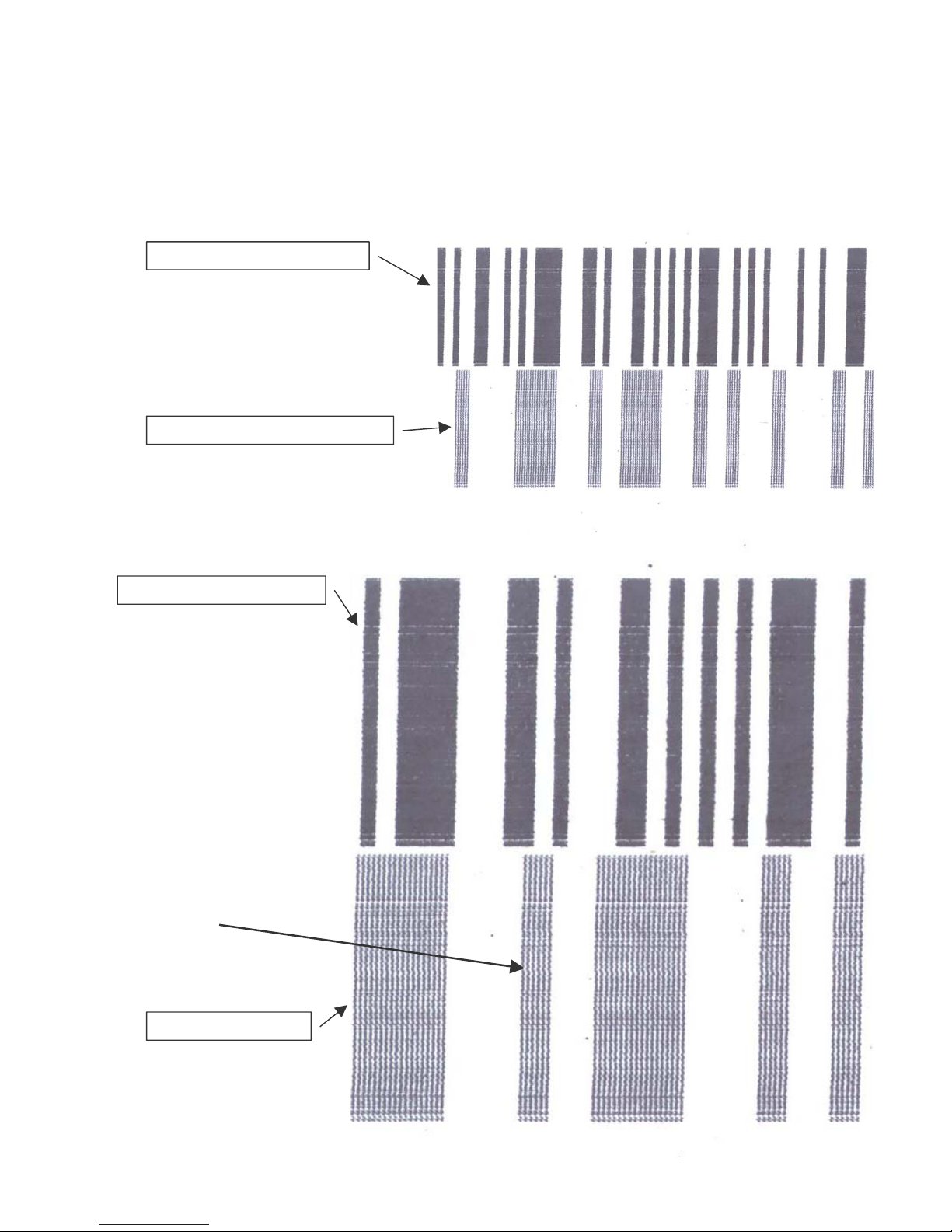

NOTE: REFER TO APPENDIX A – PRODUCING RELIABLE BARCODES

32 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

VARIABLE FIELD FORMAT PRINTING

The EVOLUTION II printer provides the operator the capability of adding variable fields to a message. This includes TIME, DATE, SEQUENCE, DATE OFFSET and SHIFT CODE PRODUCT COUNT and BARCODES. Entering any of these

special fields is accomplished with the To input, delete or edit a message, the unit must be in the STOPPED Mode. If the LCD reads PRINTING, press . The screen should be similar to the one shown at the left.

MESSAGE ENTRY FONT 1 LINE EVOLU

MESSAGE ENTRY FONT 1 LINE

DD/DY

MESSAGE ENTRY FONT 1 LINE HH:MM

MESSAGE ENTRY ####FONT 1 LINE 0000

Enter the Message Entry mode by pressing . The top portion of the screen will change as shown on the left.

The user has two options to edit or change a message. If a new message is to be entered press

the key to delete the entire existing message.

The following applies to either a 1, 2, 3 OR 4 line message.

To enter a DATE CODE depress the key. The currently formatted date code as preset under the F3 menu, is inserted into the message. Note: the current format is displayed as mm for month, dd for day and yy for year

To enter a TIME CODE depress the currently formatted time as preset under the F3 menu, is inserted into the message. Note: the current format is displayed as hh for hours, and mm for minutes

To enter a SEQUENCE NUMBER depress the

key. Enter the correct number of digits required

keys.

key. The

EV2 STOPPED HD1- - >SPEED=120 DD/DM/

33 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

the depress the number field . Note during this operation the #### displayed next to the FONT 1 LINE indicating a sequence number field.

Press the return to the STOPPED MODE.

key to end MESSAGE EDIT and

again to end the sequence

MESSAGE ENTRY FONT 1 LINE EVOLU

MESSAGE ENTRY FONT 1 LINE

Enter the Message Entry mode by pressing . The top portion of the screen will change as shown on the left.

The user has two options to edit or change a message. If a new message is to be entered press

the key to delete the entire existing message.

To enter a DATE OFFSET CODE depress the

MESSAGE ENTRY FONT 1 LINE DD.DY

key. The currently formatted date offset code as preset under the F3 menu, is inserted into the message. The correct number of days to offset are set under the F1 menu.

MESSAGE ENTRY FONT 1 LINE

mm.dd.yys

Endering a SHIFT CODE is accomplished by

pressing the key. Shift codes are set under the F3 key. The correct alpha/numeric character preset is added to the message

STOPPED HD1- - >SPEED=120

mm.dd.yys

Press the key to end MESSAGE EDIT and return to the STOPPED MODE.

NOTE: Variable field data can be entered anywhere within the message and will be automatically updated at the beginning of each new print cycle

MESSAGE ENTRY FONT 1 LINE

mm.mm.yys

Adding a special character or LOGO is accomplished by pressing the S! or S2 keys and selecting the appropriate special symbol or stored logo.

Press the S1 key and position the cursor just prior to

MESSAGE ENTRY FONT 1 LINE

mm.mm.yys#L’

the desired character and press the key. In this case the # character was selected. To add a stored LOGO press the S2 key and scroll through the list of

stored logos and press the key. The logos are displayed by the L character. Each logo will have an

L and 1,2 or 3 imbedded ‘ to indicate the logo selected.

34 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

PASSWORD PROTECTION

The printer contains a password function

PASSWORD XXXXX

ENABLE PASSWORD

ES OR NO Y/N

PASSWORD XXXXX

will not allow message editing without the entry of the password.

designed to limit access to the edit menu and prevent unauthorized changing of message lines. To activate this function, switch the unit

off, then press and hold while switching the unit on. The display changes and requests the default password (which is 12345). Enter the

12345.

The screen to the left appears and prompts the operator or ENABLE PASSWORD A response of N maintains the current password and disables password protection.

If the response Y is selected the screen at the left appears to prompt the user to enter a new password. Enter the new 5 character password any combination of letters and numbers may be used. Once this has been completed, the unit

NOTE: If the new password is misplaced or forgotten, reset the unit.

35 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

MESSAGE STORAGE STORING A MESSAGE

MESSAGE # 1 EV2

MESSAGE # 1 EV2 PLEASE WAIT

MESSAGE # 1 EV2 MESSAGE STORED

EVOLUTION 1

The controller is able to store up to 100 system wide programmed messages and their associated parameters. Follow these steps to store a message. Create the message and press . Press . Using or , scroll to the desired

message location number. Press a second time. This places the message into that numeric location for recall at a later time. Use the same procedure to overwrite an existing stored message as well.

The LCD display will indicate that the message is stored. The display also defines what system type the message has been created for.

Press to exit.

NOTE: Message storage should be used after the product has been coded satisfactorily. When a message is stored all operating parameters of the printed code are saved. Once recalled, codes will be printed the same as they had been before. The controller is capable of storing up to 99 messages, and it should be noted that all stored messages are contained in the hand held controller.

RECALLING A STORED MESSAGE

MESSAGE # 1 EV2

EVOLUTION 1

EV2 STOPPED HD1- - >SPEED=120

EVOLUTION 1

Place the unit in “Stopped” mode and press Use the

messages. Find the desired message and press

. That message is now displayed on the screen

ready for printing.

or to scroll through the stored

36 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

PART 3: MAINTENANCE PROCEDURES

SHORT PERIODS OF SHUT DOWN

When the printer has been shut down overnight, the system might require a purge to clear out dust particles that have settled on the nozzle area during nonuse. This is only necessary if there are missing dots in the printed code on product.

STOPPED HD1- - >SPEED=120

EVOLUTION 1

PURGING HD1- - >SPEED=120

EVOLUTION 1

STOPPED HD1- - >SPEED=120

EVOLUTION 1

PRINTING HD1- - >SPEED=120

EVOLUTION 1

To purge be sure that the unit is in the STOPPED Mode by pressing green key. The screen

changes to STOPPED as shown to left.

Place a piece of lint free wipe (or absorbant paper) in front of the print head and press the red .

Allow the unit to purge for several seconds. There is an automatic shut down after 1,000 printed columns to ensure that the print head will not be damaged. If ink residue has solidified on the nozzle area a small drop of water may be applied to the lint free wipe. When purging is complete the LCD will be returned to the STOPPED mode.

Press the green and the screen changes to PRINTING, as shown at the left. The unit is ready to begin coding.

1 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

LONG PERIODS OF SHUT-DOWN

When the printer is to be shut down for extended periods, or the ink cartridge needs to be changed to insert a different color cartridge, the ink cartridge should be removed. Clean the print head nozzle area with a soft, lint free wipes and insure there is no ink residue remaining on the nozzle area. Re-apply the sealing tape. The print cartridge may be stored in a sealable plastic bag.

CAUTION: USE THE ORIGINAL SEALING TAPE SUPPLIED WITH THE EVOLUTION II INK CARTRIDGE. DO NOT USE ANY OTHER MATERIAL OR ANY ADHESIVE BACKED PRODUCT, AS THIS WILL DAMAGE THE NOZZLE AREA.

2 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

PRINT CARTRIDGE MAINTENANCE

It is necessary to maintain the print cartridge free from accumulated dust and debris. Periodically the cartridge should be removed and cleaned. This is totally dependent on the operating environment and the average printable life of the ink cartridge. In extremely dusty environments, this maintenance procedure may be required regularly.

To clean the cartridge, carefully clean the face of the cartridge with a soft, lint free wipe. Use caution in wiping the NOZZLE area so as not to scratch the face. Always wipe in the ARRAY PLATE vertically as indicated. Clean the CONTACT area in a similar fashion.

NOZZLES

CONTACT AREA

DIRECTION OF WIPING

3 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

NOTE: Ingested air or severe nozzle clogs may be eliminated with the use of the cleaning syringe/tray ordered optionally.

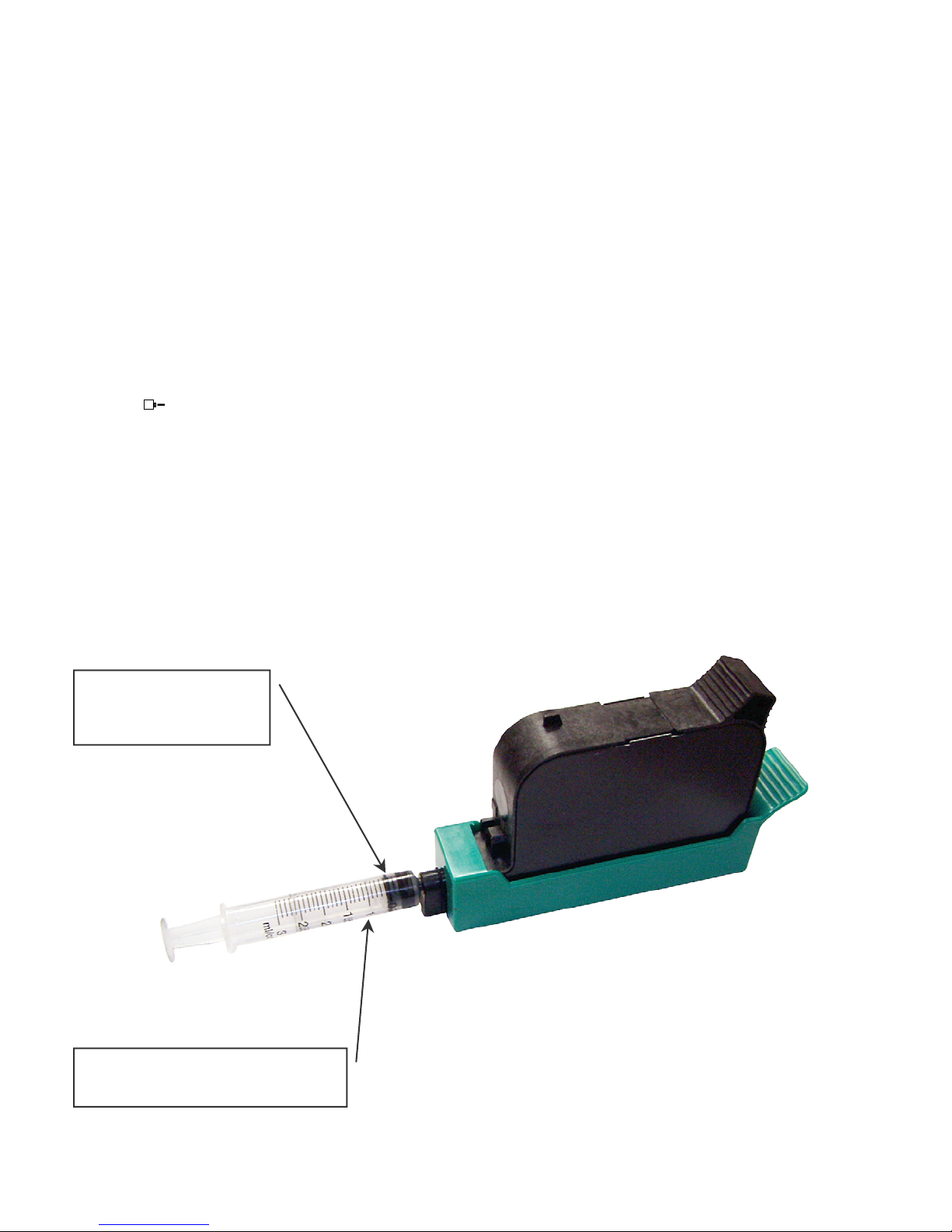

The photo below shows the correct procedure in using the syringe and cleaning tray. Insert the ink cartridge into the tray and securely snap into place. Place the tip of the syringe into the front of the tray. While holding the syringe securely in place gently draw back on the syringe plunger until ink flows into the syringe. Normally, it is not necessary to evacuate more than 0.1 cc of ink at a time as indicated below. Following ink withdrawal remove the syringe carefully. Remove the ink cartridge from the tray. Remove any remaining ink from the nozzle face with a lint free wipe. Place a piece of clean white paper directly in front of the print head and perform a purge function by pressing and releasing the purge key

. The key is activated on the release of the key. Swipe the paper quickly past the print head to expand the purge pattern so the individual droplets may be viewed. Perform a test print and verify that all nozzles are firing correctly.

0.1 cc of ink drawn at any one time

Scale gradation is in 1.0 cc major increments

4 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

PRINT CARRIAGE MAINTENANCE

It is necessary to maintain the print head carriage free from accumulated dust and debris. Periodically the print head carriage should be inspected and cleaned. This is totally dependent on the operating environment. In extremely dusty environments, this maintenance procedure may be required occasionally but on average every week should be sufficient. Remove the print cartridge and carefully inspect the print carriage C21001 for dust and debris. Re-insert the print cartridge and place the unit into the PRINTING mode by

pressing .

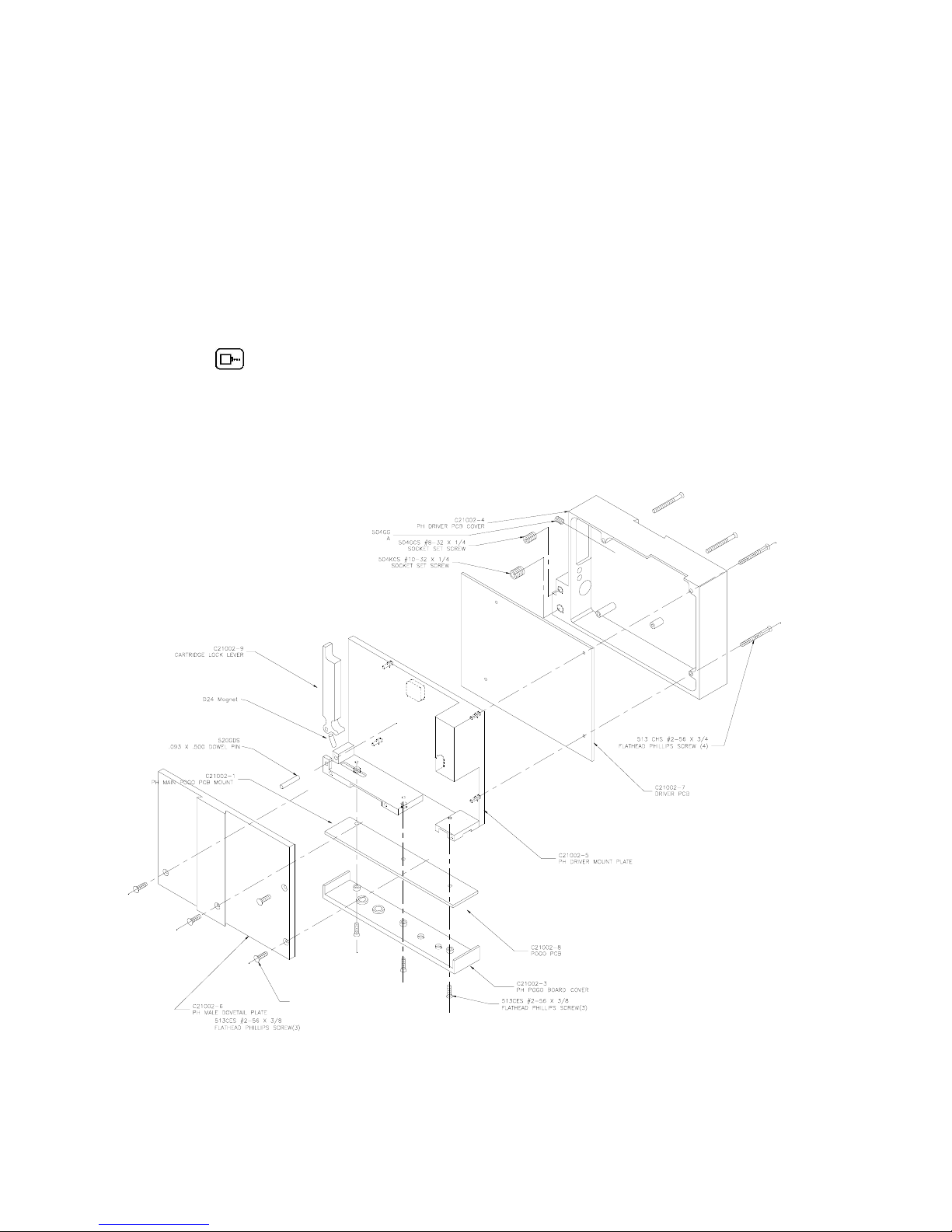

EXPLODED VIEW OF THE C21002 PRINT CARRIAGE

5 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

PART 4: TROUBLESHOOTING AND REPAIRS

FAULTS

This chart was created to assist the user in troubleshooting the unit. Find the problem in the first column; apply the remedy(s) suggested in the third column.

Condition Probable Cause Remedy

LCD remains blank. No power.

Ensure the controller is securely connected to the correct port on the print carriage assembly

Unit does not print, although LCD shows information. Unit in “COMMAND”

No ink. Replace ink cartridge; reset ink

Low ink indicator on with full ink cartridge.

Unit does not purge. Out of ink. Replace with full ink cartridge.

Unit in “PRINTING” mode

Ink cartridge clogged Clean Ink Cartridge Nozzle area

Missing one or more dots from code.

Long down-time. Follow daily start-up procedure if

Unit loses data while printing Static electricity Eliminate source of static.

High levels of radio

Spikes in electrical line. Use AC line filter

No message in unit Input your message (see pages

2-18). Press .

mode.

volume parameter (press and follow the sequence.

Did not reset ink volume parameter.

No ink. Clean or Replace cartridge and

frequency.

Press . Continue key entry following menu prompts.

Reset ink volume parameter (press ).

Press Stop Print.

with lint free wipe

purge system (press

your line experienced a long down time.

ttach ground strap between print head and low impedance earth ground. Move unit to an alternate location or attach ground strap as above.

1 EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006

PART 5: PARTS LIST AND OPTIONS

Part No. Description

C21001-1

SPARE PARTS

EVOLUTION II Controller Cabinet C21001-2 C21001-3

C30238

C21002 C21002-7

C21002-8 C21005

C21000-2

96280-01 Floor stand C21003 Top Coding Mounting Bracket C21006 External Product Detect C21007 External Encoder

C21012 Optional Junction Box EV1-FONT Alternate Font (Specify when ordering)

EV1-LOGO Logo Option (Specify when ordering)

EVOLUTION II Controller LCD Assembly

EVOLUTION II Controller PCB Assembly

EVOLUTION II Controller Keypad

EVOLUTION II Print Head Carriage Assembly

EVOLUTION II Print Head Carriage CPU Assembly

EVOLUTION II Print Head Carriage POGO Assembly

EVOLUTION II Mounting Bracket Assembly

EVOLUTION II Power supply

OPTIONS

C21008-1 C21008-3

C21008-10 C21008-25 C21008-50 C21008-100

CABLES

EVOLUTION RJ50 Cable 6 INCH

EVOLUTION RJ50 Cable 3 Feet

EVOLUTION RJ50 Cable 10 Feet

EVOLUTION RJ50 Cable 25 Feet

EVOLUTION RJ50 Cable 50 Feet

EVOLUTION RJ50 Cable 100 Feet

INKS

4500BK6 6 Pack of Black Ink Cartridges 4500RD6 6 Pack of Red Ink Cartridges 4500GR6 6 Pack of Green Ink Cartridges 4500BL6 6 Pack of Blue Ink Cartridges

EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006 1

4500YW6 6 Pack of Yellow Ink Cartridges 4500CY6 6 Pack of Cyan Ink Cartridges 4500UV6 6 Pack of Ultra Violet Ink Cartridges

4600BK6 6 Pack of Black Ink Cartridges (SEMI-POROUS)

EVOLUTION 1 SYSTEM MANUAL Issue 1.1 20 Dec 2006 2

PART 6: COMMUNICATIONS PROTOCOL

This communication protocol covers all EVOLUTION products. Some commands are not applicable to certain units, and care must be taken in determining what valid commands are for a specific unit. Commands that reference specific units are so noted.

ASCII CHARACTER CHART

0 1 2 3 4 5 6 7 8 9 A B C D E F 0 NUL SOH STX ETX EOT ENQ ACK BEL BS HT LF VT FF CR SO SI 1 DLE DC1 DC2 DC3 DC4 NAK SYN ETB CAN EM SUB ESC FS GS RS US 2 SP ! " # $ % & ' ( ) * + , - . / 3 0 1 2 3 4 5 6 7 8 9 : ; < = > ? 4 @ A B C D E F G H I J K L M N O 5 P Q R S T U V W X Y Z [ \ ] ^ _ 6 ` a b c d e f g h i j k l m n o 7 p q r s t u v w x y z { | } ~ DEL

1 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

DESCRIPTION

This communication protocol is based on Version 1.4, which was released NOV 2005 and is used with all EVOLUTION products. The communications option converses with a host computer via an RS485 data link.

NOTE: EACH REQUEST OR COMMAND SENT TO A PRINT STATION RECEIVES A RESPONSE FROM THAT PRINT STATION. COMMUNICATIONS SOFTWARE MUST WAIT FOR A RESPONSE TO DETERMINE IF THE PRINT STATION WAS READY TO ACCEPT THE COMMAND, AND THE DATA WAS VALID AND PROCESSED. NO RESPONSE COULD INDICATE THE DATA WAS LOST. IF AN ERROR WAS DETECTED IN PROCESSING A NAK WITH AN ERROR CODE IS RETURNED.

DATA WORD DEFINITION

Full Duplex 7 Data Bits 1 Even Parity Bit 1 Start Bit 1 Stop Bit

BAUD RATE

115,200 Bits per second

DEFINITIONS

Q=QUERY TO HEAD R=RESPONSE FROM HEAD D=DATA UPDATE TO HEAD X=ACK FROM HEAD ‘!’=ASCII CHARACTER OR CHARACTERS

0x21 HEX DATA EQUIVELENT ADDRESS= TWO ASCII REPRESENTATIONS OF HEX CHARACTERS

`x`|`y` TWO ASCII CHARACTERS REPRESENTING THE UPPER AND LOWER

NIBBLE OF A HEXADECIMAL BYTE WHERE X IS THE UPPER NIBBLE AND

Y IS THE LOWER NIBBLE FOR EXAMPLE: TO SEND A SPEED OF 165 FEET PER MINUTE SEND – ASCII :

WHICH WOULD BE 0x3A AND 0x35 HEXADECIMAL

TO SEND A DELAY OF 30 SEND – ASCII 3

WHICH WOULD BE 0x33 AND 0x30 HEXADECIMAL

AND ASCII 0

AND ASCII 5

CABLING FOR EVLINK ENVIRONMENT

C20552 RS232C to RS485 converter module C20551 Cable from PC to RS485 converter module C21008-xxxx Cable (define length) from EVOLUTION units to RS485 data link C21009 Termination plug for RS485 data link

2 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

HARDWARE INTERFACE

When connecting multiple print carriages via an RS485 link, input and output connectors are provided on the print station, which allows the cabling to be daisy chained. NOTE: It is important to remember to set each of the print stations to a unique address.

PHYSICAL CONNECTIONS RS485 PRINT CARRIAGE

Pin # 4 = Receive + Pin # 5 = Receive Pin # 6 = Transmit + Pin # 7 = Transmit Pin # 9 = Ground

Note: At the end of the data link a termination plug is installed to balance the RS485 data link-connecting pin 4 to pin 5 and pin 6 to pin 7 with120-ohm.

PROTOCOL FORMAT:

Host request for information; ESC|Command|SOH|EOT (Single End Host to 1 printer)

ESC|STX|Address|Command|SOH|EOT (Multiple printers)

Host sending new information; ESC|Command|Data|EOT (Single End Host to 1 printer)

EVOLUTION PRINTABLE CHARACTER SET

A B C D E F G H I J K L M N O P Q R S T U V W X Y Z 0 1 2 3 4 5 6 7 8 9 Special Symbols: ASCII Character Space (0x20) Space ! (0x21) Hour Glass # (0x23) # $ (0x24) $ & (0x26) & ( (0x28) ( ) (0x29) ) * (0x2a) * + (0x2b) +

- (0x2d) . (0x2e) Period = (0x3d) = : (0x3a) :

Hexadecimal Prints As

3 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

/ (0x2f) / " (0x22) Cents % (0x25) Solid block ; (0x3b) Ň ? (0x3f) Ě @ (0x40) Ó { (0x7b} Logo 1 | (0x7c) Logo 2 } (0x7d} Logo 3

SOFTWARE PROTOCOL

In the following pages, all references to characters or digits pertain to the standard ASCII character set. The bar (|) character is used as a field separator and it is not part of the transferred data. When data is shown in hexadecimal, it will consist of the hex number preceded by a 0x, for example (0x1B). Generally, all packets to and from a print station begin with an ESC (0x1B) and terminate with an EOT (0x04). There are two types of commands: Downloading information to the print station Requesting information from the print station. To distinguish the two types of commands, a SOH (0x01) is placed after the command byte in a request command string. The following illustrates this concept: To download data to print station ESC/GROUP ADDRESS/UNITADDRESS/COMMAND/DATA/EOT

To request data from the Print Station

ESC/GROUP ADDRESS/UNITADDRESS/COMMAND/SOH/EOT

ERROR CODES

Commands to a print station, if completed successfully, return a single byte response of an ASCII ACK (0x06). If the command was not successful, a twobyte response of an ASCII NAK (0x15) is returned, followed by an error code. Below is a list of the returned error codes.

NAK 1 = NOT USED NAK 2 = Illegal Command Byte NAK 3 = NOT USED NAK 4 = NOT USED NAK 5 = Trying to write a read only register

4 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

NAK 6 = Print station buffer full must print before next download to clear

buffer. NAK 7 = NOT USED NAK 8 = NOT USED

5 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

COMMANDS: '!' 0x21 Software Version (read only)

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`!`|SOH|EOT R. ESC|STX|Address|{PRINTER fffffssss}|CR|EOT Where:

PRINTER= ASCII string PRINTER for EVOLUTION I EV2 for EVOLUTION II EVSC for EVOLUTION SC

fffff = Software and Firmware versions

(eg. 2.02H indicates version 2.02 with Firmware version H) ssss = Optional Software loaded Where: (for EV I only) The first y indicates option pack 1 The second y indicates option pack 2 The third y indicates option pack 1.5 The last y is reserved for future expansion Where: (for EV II and EV SC)

Both units are standard with all options thus a ++++ will be returned

'#' 0x23 Printer Configuration (Read only)

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`#`|SOH|EOT R. ESC|STX|Address|`#`|`x`|`y`|EOT Where Byte x Bits 3,2,1,0 Bit 3 = if 1 Cartridge Not Valid Bit 2 = Not Used Bits 1,0 = System Type 11 = Evolution 1 10 = Evolution 2 01 = Evolution 3 00 = Evolution Small Character Where Byte y Bits 3,2,1,0 0000 = no options available 0001 = option1 enabled 0010 = option2 enabled 0100 = option3 enabled

'\' 0x5c Unit Serial Number (Read only 6 digits)

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`\`|SOH|EOT R. ESC|STX|Address|`\`|`serial number`|CR|EOT

6 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

'l' 0x6c Special Field Flags

(EV II, EV SC AND EVI WITH OP1 AND ABOVE)

Q. ESC|STX|Address|`l`|SOH|EOT R. ESC|STX|Address|`l`|`x`|`y'|EOT Where: x defines bits 7,6,5,4 Bit 7 = don’t care Bit 6 = dont care Bit 5 = 1 = No guard bars Bit 4 = 1 = Man read added to barcode Where: y defines bits 3,2,1,0 Bit 3 = 1 = Bar checksum added to barcode Bit 2 = 0 = Calendar will only change on 1st day of week Bit 1 = 1 = Day of the week is alpha Bit 0 = 1 = counting down

D. ESC|STX|Address|`l`|`x`|`y`|EOT X. ESC|STX|Address|`l`|ACK|EOT

'8' 0x38 Control Flags

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`8`|SOH|EOT R. ESC|STX|Address|`8`|`x`|`y`|EOT Where: x defines bits 7,6,5,4

Bit 7 1 = Head busy printing message

Bit 6 1 = Print image inverted

Bit 5 1 = Head busy manual cycle Bit 4 1 = Head busy purging Where: y defines bits 3,2,1,0 Bit 3 1 = External Encoder Bit 2 1 = External Product Detect Bit 1 1 = Direction forward

Bit 0 1 = Enable print mode

D. ESC|STX|Address|`8`|`x`|`y`|EOT X. ESC|STX|Address|`8`|ACK|EOT Where: x defines bits 7,6,5,4

Bit 7 Don't Care Bit 6 1 = Print image inverted Bit 5 Don't Care Bit 4 Don't Care Where: y defines bits 3,2,1,0

Bit 3 1 = External Encoder Bit 2 1 = External Product Detect Bit 1 1 = Direction forward Bit 0 1 = Enable print mode

7 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

‘G’ 0x47 Errors (note: error codes must be reset)

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`G`|SOH||EOT R. ESC|STX|Address|`G`|'x`|`y'|EOT Where: x defines bits 7,6,5,4 Bit 7 = UART Overrun Error Bit 6 = Communication Overrun Error Bit 5 = UART Framing Error Bit 4 = UART Parity Error Where: y defines bits 3,2,1,0 Bit 3 = Font checksum error loading from card to chip Bit 2 = Font 1 checksum error in Ram Bit 1 = Font 0 checksum error in Ram Bit 0 = Real Time Clock Memory error

TO RESET ERROR CODES

D. ESC|STX|Address|`G`|'x`|`y'|EOT same bit positions as above use only as a mask to clear error bits. i.e. x = 0001 and y = 0001 clears real time clock memory error and UART parity error. X. ESC|STX|Address|`G`|ACK|EOT

'R' 0x52 Head Status (read only)

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`R`|SOH|EOT R. ESC|STX|Address|`R`|`x`|`y`|EOT

Where: x defines bits 7,6,5,4 Bit 7 = Not Used Bit 6 = Latched eye active Bit 5 = Unfiltered eye active Bit 4 = Product being printed

Where y defines bits 3,2,1,0 Bit 3 = auto repeat print gap active Bit 2 = Not Used Bit 1 = Input buffer Line 2 full Bit 0 = Input buffer Line 1 full

'B' 0x42 Set Unit Address (Write Only)

(EV I, EV II, EV SC)

D. ESC|STX|Address|`B`|`x`|`y`|EOT X. ESC|STX|Address|`B`|ACK|EOT Where x y = 8 bit unit address i.e. x = 0x31 & y = 0x35 yields unit address 15

8 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

'1' 0x31 Auto Repeat Inter-print delay (Range 0 - 255)

(EV II, EV SC AND EVI with any option pack)

Q. ESC|STX|Address|`1`|SOH|EOT R. ESC|STX|Address|`1`|`x`|`y`|EOT

D. ESC|STX|Address|`1`|`x`|`y`|EOT X. ESC|STX|Address|`1`|ACK|EOT 0 = Auto Repeat Disabled

Each count provides a delay equal to 16 columns for EV I and EV II.

Each count provides a delay equal to 2 columns for EV SC.

'&' 0x26 Line Speed (RANGE 10-200)

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`&`|SOH|EOT R. ESC|STX|Address|`&`|`x`|`y`|EOT

D. ESC|STX|Address|`&`|`x`|`y`|EOT X. ESC|STX|Address|`&`|ACK|EOT

'd' 0x64 Encoder Divider (Range 0-7)

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`d`|SOH|EOT R. ESC|STX|Address|`d`|`x`|`y`|EOT

D. ESC|STX|Address|`d`|`x`|`y`|EOT X. ESC|STX|Address|`d`|ACK|EOT

'’' 0x27 Product Delay (RANGE 1-255)

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`0x27`|SOH|EOT R. ESC|STX|Address|`0x27`|`x`|`y`|EOT

D. ESC|STX|Address|`0x27`|`x`|`y'|EOT X. ESC|STX|Address|`0x27`|ACK|EOT

')' 0x29 Inter-Character spaces (RANGE 1-25)

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`)`|SOH|EOT R. ESC|STX|Address|`)`|`x`|`y`|EOT

D. ESC|STX|Address|`)`|`x`|`y'|EOT X. ESC|STX|Address|`)`|ACK|EOT

9 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

'>' 0x3E Head Align (Range 0 - 16) 'O' on keyboard

(EV II only)

Q. ESC|STX|Address|`>`|SOH|EOT R. ESC|STX|Address|`>`|`x`|`y'|EOT

D. ESC|STX|Address|`>`|`x`|`y`|EOT

X. ESC|STX|Address|`>`|ACK|EOT

'4' 0x34 Sequence Number Rollover Value

(EV II, EV SC AND EV1 with version 2.09 and OP2 or 3)

Q. ESC|STX|Address|`4`|SOH|EOT R. ESC|STX|Address|`4`|{#########}|CR|EOT

where ######### = rollover value in ascii

D. ESC|STX|Address|`4`|{#########}|CR|EOT X. ESC|STX|Address|`4`|ACK|EOT

'[' 0x5b DATE_ROLLOVER (EV II, EV CS AND EV1 with version 2.09 and OP2 or 3)

Q. ESC|STX|Address|`[`|SOH|EOT R. ESC|STX|Address|`[`|`x`|`y`|`x1`|`y1`|EOT

Where:

|`x`|`y`| = Time of Day Hours

|`x1`|`y1`| = Time of Day Minutes

D. ESC|STX|Address|`[`|`x`|`y`|`x1`|`y1`|EOT X. ESC|STX|Address|`[`|ACK|EOT

‘3’ 0X31 Days until Expiration (max 999)

(EV II, EV SC AND EVI WITH OP3)

Q. ESC|STX|Address|`3`|SOH|EOT R. ESC|STX|Address|`3`|`aaaa`|EOT Where: each set of 2 ASCII characters represent the upper and

lower nibble of a packed BCD byte

lower nibble of a packed BCD byte

X. ESC|STX|Address|`3`|ACK|EOT

'r' 0x52 Remaining Ink (0 to 99%)

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`R` |SOH|EOT R. ESC|STX|Address|`R`|`x`|`y`|EOT

10 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

‘0’ 0x30 Shift Code (max 6 shift codes)

(EV II, EV SC AND EVI WITH OP3)

Q. ESC|STX|Address|`0`|SOH||EOT

R. ESC|STX|Address|`0`|`hh mm`|{zz}|……|CR|EOT Where: each set of 2 ASCII characters represent the upper and

lower nibble of a packed BCD byte …… = pattern repeat for each shift code programmed

hh = shift start hours mm = shift start minutes zz = shift code to print

D. ESC|STX|Address|`0`|`hhmm`|{z}|CR|EOT Where: each set of 2 ASCII characters represent the upper and

lower nibble of a packed BCD byte hh = shift start hours mm = shift start minutes zz = shift code to print X. ESC|STX|Address|`0`|ACK|EOT

‘/’ 0x2f Product Counter (6 Digits Max)

(EV II, EV SC AND EVI WITH OP3)

Q. ESC|STX|Address|`/`|SOH|EOT R. ESC|STX|Address|`/`|`HH MM hh mm`|{cccccc}|CR|EOT Where: each set of 2 ASCII characters represent the upper and

lower nibble of a packed BCD byte

HH = Product counter start hours MM = Product counter start minutes hh = Product counter stop hours mm = Product counter stop minutes cccccc = counter (6 Digits Max)

D. ESC|STX|Address|`/`|`ww xx yy zz`|{cccccc}|CR|EOT Where: each set of 2 ASCII characters represent the upper and

lower nibble of a packed BCD byte

HH = Product counter start hours MM = Product counter start minutes hh = Product counter stop hours mm = Product counter stop minutes cccccc = counter X. ESC|STX|Address|`/`|ACK|EOT

11 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

SPECIAL FIELD OBJECTS

Message Objects define special characteristics about the messages contained in line 1 or line 2. These may define for example font size, sequence number, date code, etc. There may be up to 15 Objects (special fields) for each line in a message with the limitation that there can only be 1 sequence number imbedded in a message.

'P' 0x50 Message Objects

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`P`|SOH|aabb|EOT R. ESC|STX|Address|`P`|'aa bb cc dd ee ff gggg hhhh'|EOT

Where: each set of 2 ASCII characters represent the upper and

lower nibble of a byte aa = objects for which line 0 or 1 bb = number of objects transmitted. (Max 15) Each object as defined by bb: (repeat the for each object) cc = Position within message string dd = Number of characters in object ee = Attribute of the object Where: ee= 00 Normal Alpha/Numeric character ee= 01 Time Hours ee= 02 Time Minutes ee= 03 Time Seconds ee= 04 Date Month ee= 05 Date Day ee= 06 Date Year ee= 07 Date Julian ee= 08 Sequence Number (1 per message) ee= 09 Barcode ee= 0A Shift Code ee= 0B Expiration Date Month ee= 0C Alpha Date Code ee= 0D Expiration Date Year ee= 0E Expiration Date Julian ee= 0F Expiration Date Day ee= 10 Day of Week (1-7) ee= 80 Bar Code Attribute (EV II only)

The above constitutes 10 object fields. Even though there are 48 characters permitted per line data entry will be inhibited when

the 15

object is entered, although the last field, if it is an alpha/numeric object, may contain enough characters to meet the 48-character limit.

12 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

Barcodes are also an object field and must be considered when entering a message. Thus a barcode with an imbedded sequence number is counted as two objects.

13 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

'P' 0x50 Message Objects (continued)

ff = font of object Where: for EV I AND EV II ff= 00 for 2 Line Font ff= 01 for 1 Line Font ff= 02 for 3 Line Font (EV II only) ff= 03 for 4 Line Font (EV II only) Where: for EVSC ONLY ff= 00 for S5 Font ff= 01 for S7 Font ff= 02 for B7 Font ff= 03 for S12 Font ff= 04 for B12 Font

gggg = starting column of object in printed image (reserved) hhhh = starting row of object in printed image (reserved) D. ESC|STX|Address|`P`|`aa bb cc dd ee ff gggg hhhh`|EOT X. ESC|STX|Address|`P`|ACK|EOT

NOTE: TO ENTER A LOGO CALLOUT INTO A MESSAGE USE THE ACSII CHARACTERS 0x7B FOR LOGO1 0x7C FOR LOGO 2 AND 0x7D FOR LOGO 3

'$' 0x24 Line 1 Message

(EV I max 24 characters – 48 characters OP1.5, 2 or 3) (EV II max 48 characters) (EV SC max 96 characters)

Q. ESC|STX|Address|`$`|SOH|EOT R. ESC|STX|Address|`$`|{message}|CR|EOT

D. ESC|STX|Address|`$`|{message}|CR|EOT X. ESC|STX|Address|`$`|ACK|EOT

'%' 0x25 Line 2 Message

(EV I max 24 characters – 48 characters OP1.5, 2 or 3) (EV II max 48 characters) (EV SC max 96 characters)

Q. ESC|STX|Address|`%`|SOH|EOT R. ESC|STX|Address|`%`|{message}|CR|EOT

D. ESC|STX|Address|`%`|{message}|CR|EOT X. ESC|STX|Address|`%`|ACK|EOT

14 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

'w' 0x77 Line 3 Message (max 24 characters)

(EV II only max 48 characters)

Q. ESC|STX|Address|`$`|SOH|EOT R. ESC|STX|Address|`$`|{message}|CR|EOT

D. ESC|STX|Address|`$`|{message}|CR|EOT X. ESC|STX|Address|`$`|ACK|EOT

'z' 0x7a Line 4 Message (max 24 characters)

(EV II only max 48 characters)

Q. ESC|STX|Address|`$`|SOH|EOT

R. ESC|STX|Address|`$`|{message}|CR|EOT

D. ESC|STX|Address|`$`|{message}|CR|EOT X. ESC|STX|Address|`$`|ACK|EOT

':' 0x3A Logo1 Name (read only - max 9 characters)

(EV I, EV II)

Q. ESC|STX|Address|`:`|SOH|`x`|`y`|EOT R. ESC|STX|Address|`:`|{logo name}|CR|EOT Where: x = don’t care y = Bit 0 = 0 = Logo Name in Font 0 1 = Logo Name in Font 1 Bit 1 = 0 = Get Name from on board data flash chip 1 = Get Name fro Data Flash card

';' 0x3B Logo2 Name (read only - max 9 characters)

(EV I, EV II)

Q. ESC|STX|Address|`;`|SOH|`x`|`y`|EOT R. ESC|STX|Address|`;`|{logo name}|CR|EOT Where: x = don’t care y = Bit 0 = 0 = Logo Name in Font 0 1 = Logo Name in Font 1 Bit 1 = 0 = Get Name from on board data flash chip 1 = Get Name fro Data Flash card

'<' 0x3C Logo3 Name (read only - max 9 characters)

(EV I, EV II)

Q. ESC|STX|Address|`<`|SOH|`x`|`y`|EOT R. ESC|STX|Address|`<`|{logo name}|CR|EOT Where: x = don’t care y = Bit 0 = 0 = Logo Name in Font 0 1 = Logo Name in Font 1 Bit 1 = 0 = Get Name from on board data flash chip 1 = Get Name fro Data Flash card

15 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

'Q' 0x51 Starting Sequence Number (max. length 9 digits)

(EV II, EV SC AND EV1 with version 2.09 and after)

Q. ESC|STX|Address|`Q`|SOH|EOT R. ESC|STX|Address|`Q`|{zzzzzzzzz}|CR|EOT

Where:

zzzzzzzzz = ASCII string which is the starting sequence

number to print.

D. ESC|STX|Address|`Q`|{zzzzzzzzz}|CR|EOT X. ESC|STX|Address|`Q`|ACK|EOT

'2' 0x32 Date and Time Setting / Reading

(EV I, EV II, EV SC)

Q. ESC|STX|Address|`2`|SOH|EOT R. ESC|STX|Address|`2`|`aa bb cc dd ee ff gg'|EOT

Where: each set of 2 ASCII characters represent the upper and

lower nibble of a packed BCD byte aa= Time of Day Seconds (not used) bb= Time of Day Minutes cc= Time of Day Hours dd= Day of Week ee= Date Day ff = Date Month gg= Date Year

D. ESC|STX|Address|`2`|`aa bb cc dd ee ff gg'|CR|EOT X. ESC|STX|Address|`2`|ACK|EOT

'u' 0x75 Store message in non-volatile memory (Write only)

(EV I, EV II, and EV SC)

D. ESC|STX|Address|`u`| EOT X. ESC|STX|Address|`u`|ACK|EOT

16 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

NOTE: THE FOLLOWING CODES ARE SPECIFIC TO EVOLUTION II ONLY

' " ' 0x22 Minimum Bar Width (Range 3-15 Data matrix 2-15)

Default 5

Q. ESC|STX|Address|`"`|SOH|EOT R. ESC|STX|Address|`"`|`x`|`y`|EOT

D. ESC|STX|Address|`"`|`x`|`y`|EOT X. ESC|STX|Address|`"`|ACK|EOT

' .' 0x2e Bleed Compensation (Range 0 - 3) Default 0

Q. ESC|STX|Address|`.`|SOH|EOT R. ESC|STX|Address|`.`|`x`|`y`|EOT

D. ESC|STX|Address|`.`|`x`|`y`|EOT X. ESC|STX|Address|`.`|ACK|EOT

' * ' 0x28 Quiet Zone (Range 0 - 150) Default 75

Q. ESC|STX|Address|`*`|SOH|EOT R. ESC|STX|Address|`*`|`x`|`y`|EOT

D. ESC|STX|Address|`*`|`x`|`y`|EOT X. ESC|STX|Address|`*`|ACK|EOT

'n' 0x6e Type of Barcode (read only)

Q. ESC|STX|Address|`n`|SOH|EOT R. ESC|STX|Address|`n`|`x`|`y`|EOT where x = number of available barcodes y = type of barcode 0= CODE39 1= TWO OF FIVE 2= CODE 128B 3= CODE 128C 4= UPCA 5= UPCE 6= EAN8 7= EAN13 8= DATAMATRIX

17 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

'?' 0x3F Barcode Name(read only)

Q. ESC|STX|Address|`?`|SOH|`x`|`y`|`x1`|`y1`|EOT Where:

`x``y` = Barcode type as in 'n' command `x1`|`y1` = don't care R. ESC|STX|Address|`?`|{BARCODENAME}|CR|EOT where BARCODENAME = Ascii name of type of barcode

'=' 0x3d Barcode Verify

D. ESC|STX|Address|`=`|`x`|`y`|{BARCODESTRING}|CR|EOT

x = don't care y = type of barcode ( same as 'n' command) BARCODESTRING = Barcode Ascii data X. ESC|STX|Address|`=`|`xy`|EOT where if barcode verifies ESC|STX|Address|`=`|ACK|EOT if barcode doesn't verify ESC|STX|Address|`=`|NAK|{9}|EOT

18 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

Example written in C to query a print station to determine the line speed.

// Query Print Station Address 7 for Line Speed putchar(0x1b); // Send out ESC putchar(0x02); // Send out STX putchar(0x30); // Send out upper nibble of address 07 putchar(0x37); // Send out lower nibble of address 07 putchar(0x26); // Send out a '&' command putchar(0x01); // Send out SOH putchar(0x04); // Send out EOT

// Get results from print station { unsigned char dummy,speed;

dummy = getchar(); // Get ESC dummy = getchar(); // Get STX dummy = getchar() << 4; // Get upper nibble of address dummy |= getchar() & 0x0f; // Get lower nibble of address if(dummy == our_address) { dummy = getchar(); // Get command speed = getchar() << 4; // Get upper nibble of speed speed |= getchar() & 0x0f; // Get lower nibble of speed dummy = getchar(); // Get EOT } else { // error handler (not our address) } }

19 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

Example written in C to send a line speed to a print station

// Send Print Head Address 2 Line Speed of 100 feet per minute. putchar(0x1b); // Send out ESC putchar(0x02); // Send out STX putchar(0x30); // Send out upper nibble of address putchar(0x32); // Send out lower nibble of address putchar(0x26); // Send out '&' command putchar(0x36); // Send out upper nibble for Line Speed 100 putchar(0x34); // Send out lower nibble for Line Speed 100 putchar(0x04); // Send out EOT

// Get results from print station { unsigned char dummy;

dummy = getchar(); // Get ESC dummy = getchar(); // Get STX dummy = getchar() << 4; // Get upper nibble of address dummy |= getchar() & 0x0f; // Get lower nibble of address if(dummy == our_address) { dummy = getchar(); // Get command dummy = getchar(); // Get ACK for print station if(!dummy == ACK) { // error handler (didn't get acknowledgement from printer) } else { dummy = getchar(); // Get EOT } } else { // error handler (not our address) } }

20 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

Example written in VB to send a new message to a print station.

Public Sub DoMessage() DATA$ = "800": GETINFODATA: Rem DISABLE PRINT MODE DATA$ = "&32": GETINFODATA: Rem SET LINE SPEED TO 50 DATA$ = "P01010010000100000000" & Chr$(&HD): GETINFODATA: Rem SET OBJECTs DATA$ = "%ABCDEFGHIJ" & Chr$(&HD): GETINFODATA: Rem SEND MESSAGE End Sub

Public Sub GETINFODATA() : : Rem SENDS A COMMAND AND GETS A RESPONSE RESPONSE$ = "": COMM.InBufferCount = 0 COMM.Output = ESC & STX & "01" & DATA$ & EOT Timer.Enabled = True: TIMERFLAG = False GETINFO: Do DoEvents If TIMERFLAG = True Then GoTo TCOMMERROR Loop Until COMM.InBufferCount >= 1 RESPONSE$ = RESPONSE$ & COMM.Input If InStr(RESPONSE$, Chr$(&H15)) > 0 Then GoTo GETDATAERROR: Rem A NAK WAS RECEIVED If InStr(RESPONSE$, Chr$(&H4)) = 0 Then GoTo GETINFO Rem AN EOT WAS RECEIVED RESPONSE$ = Mid$(RESPONSE$, 6, Len(RESPONSE$)) Rem DELETE ADDRESS HEADER Timer.Enabled = False Rem WE NOW HAVE A VALID RESPONSE Exit Sub GETDATAERROR: Timer.Enabled = False: TIMERFLAG = False GoTo PROCESSERROR Exit Sub TCOMMERROR: Timer.Enabled = False: TIMERFLAG = False PROCESSERROR: If RESPONSE$ = "" Then RESPONSE$ = "0" Else RESPONSE$ = Right$(RESPONSE$, 1): Rem GET THE ERROR CODE Select Case (RESPONSE$) Case 0 MSG$ = "NO RESPONSE FROM UNIT" Case 1 MSG$ = "TRANSMISSION ERROR" Case 2 MSG$ = "ILLEGAL COMMAND" Case 3 MSG$ = "TRYING TO PRINT WHILE IN COMMAND MODE" Case 4 MSG$ = "TRYING TO READ A WRITE ONLY REGISTER" Case 5 MSG$ = "TRYING TO WRITE A READ ONLY REGISTER" Case 6 MSG$ = "UNIT INPUT BUFFER FULL" Case 7 MSG$ = "UNIT IN EDIT MODE" Case 8 MSG$ = "PRINT STATION BUSY TRY AGAIN" End Select

21 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

MsgBox MSG$ COMM.InBufferCount = 0: Rem FLUSH THE INPUT BUFFER End Sub

THE ABOVE VB ROUTINES DEMONSTRATE THE ENTIRE SEQUENCE OF: PREPARING DATA TO SEND TO THE HEAD SENDING THE DATA TO THE HEAD WAIT FOR A RESPONSE DETERMINE IF THE DATA WAS ACCEPTED OR REJECTED

22 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

PART 7: OPTION JUMPERS AND CABLING

OPTION JUMPER DESCRIPTIONS

Factory default for all jumper settings is in the ON position. To remove a jumper in the OFF position place the jumper on a single pin for future use

VSEL J7

This jumper when in the ON position supplies a +12vdc source on the RJ50 input connector. The hand held controller uses this source for power. Removing this jumper prevents the +12vdc source from exiting on pin 2 and possibly damaging other external control devices.

ENSEL J9

When this jumper is in the ON position the external encoder signal connected to the RJ50 output connector is passed through the print carriage to the RJ50 input connector. This allows the same encoder signal to drive several print carriages. If this is not desired remove the jumper

PRSEL J10

When this jumper is in the ON position the external product detect signal connected to the RJ50 output connector is passed through the print carriage to the RJ50 input connector. This allows the same product detect signal to drive several print carriages. If this is not desired remove the jumper

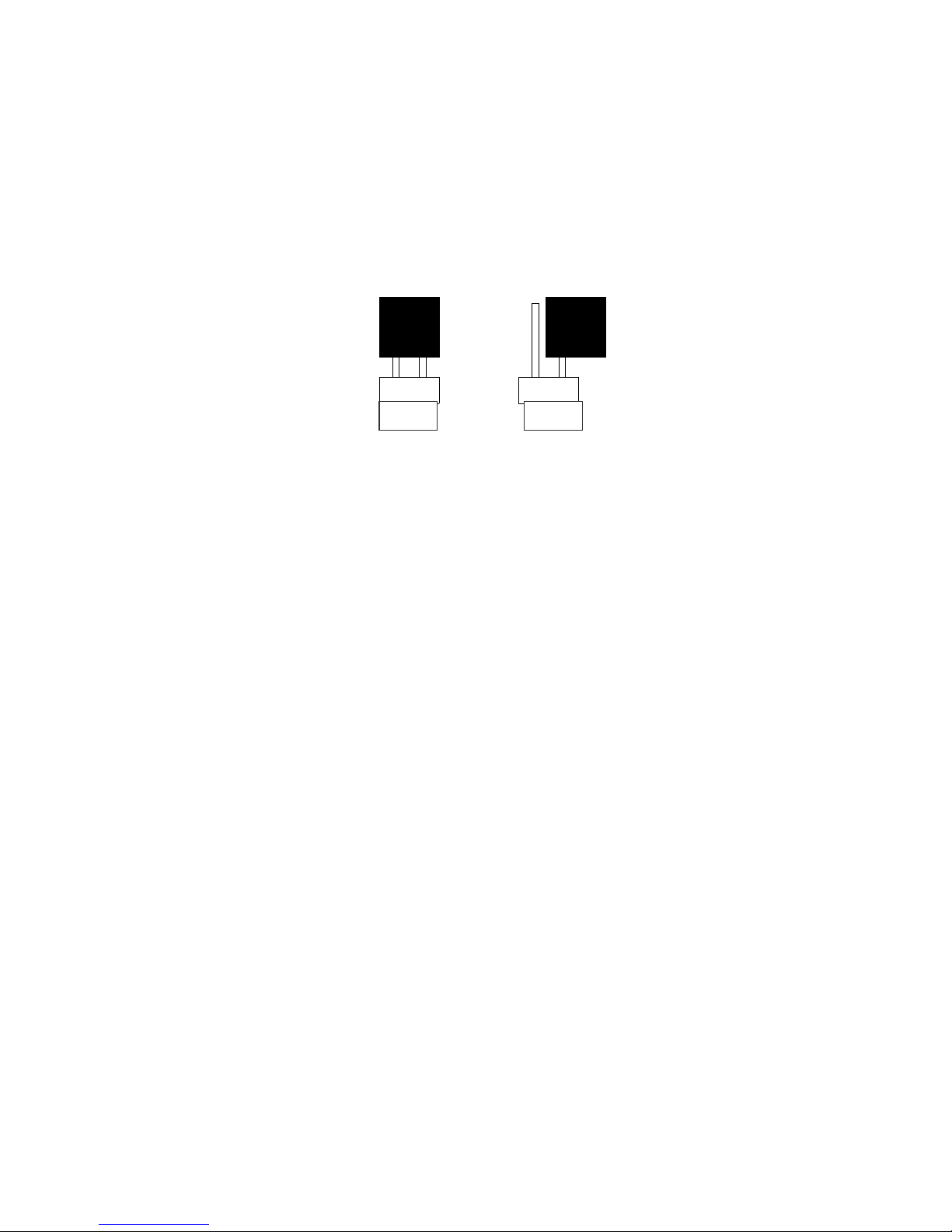

ON OFF

1 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

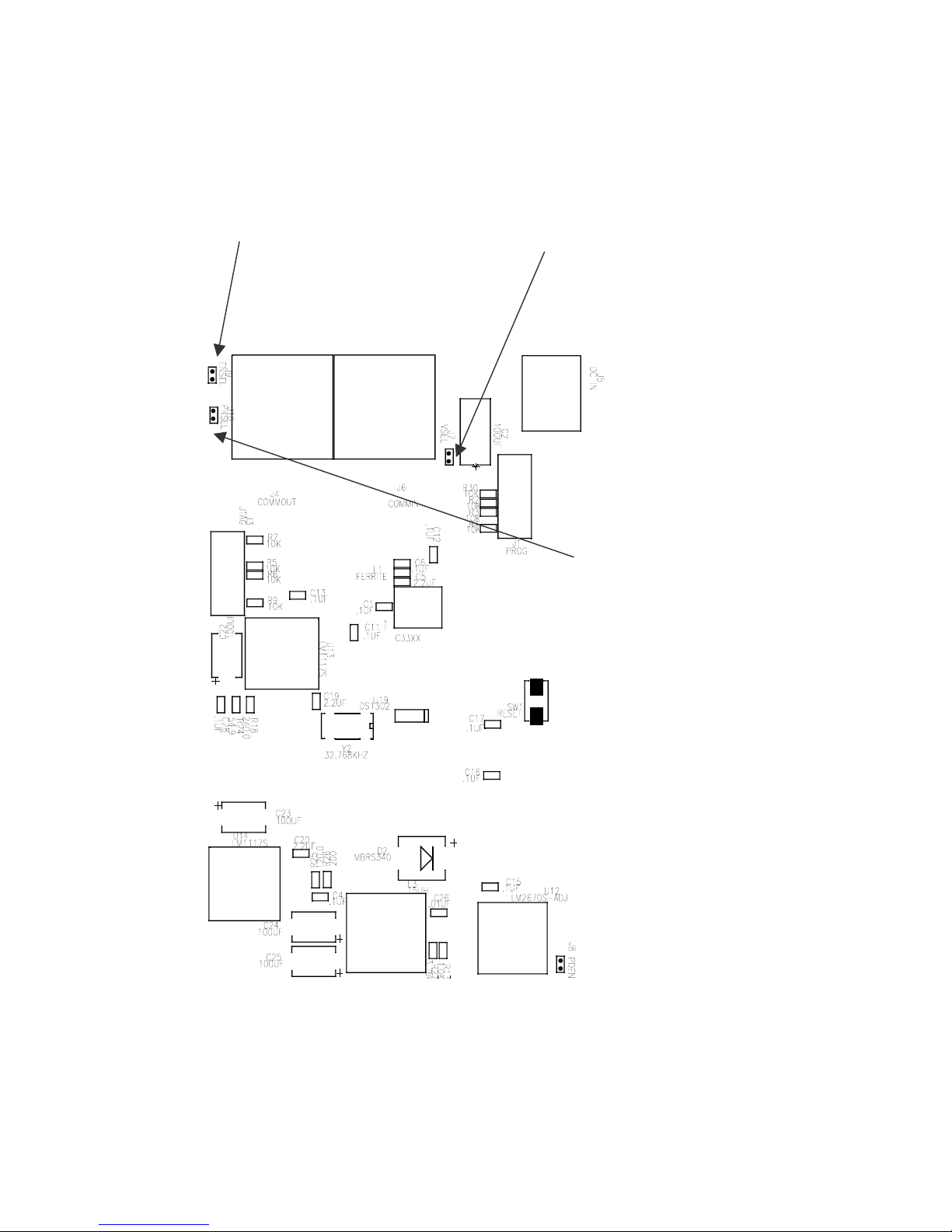

JUMPER LOCATION

EXTERNAL ENCODER ENSEL J9 ON= PASS THRU OFF= FLOAT OUTPUT

VOLTAGE SELECT VSEL J7 ON= +12 OUTPUT OFF= FLOAT OUTPUT

EXTERNAL PRODUCT DETECT PRSEL J10 ON=PASS THRU OFF=FLOAT OUTPUT

2 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

OPTION CABLING DESCRIPTIONS

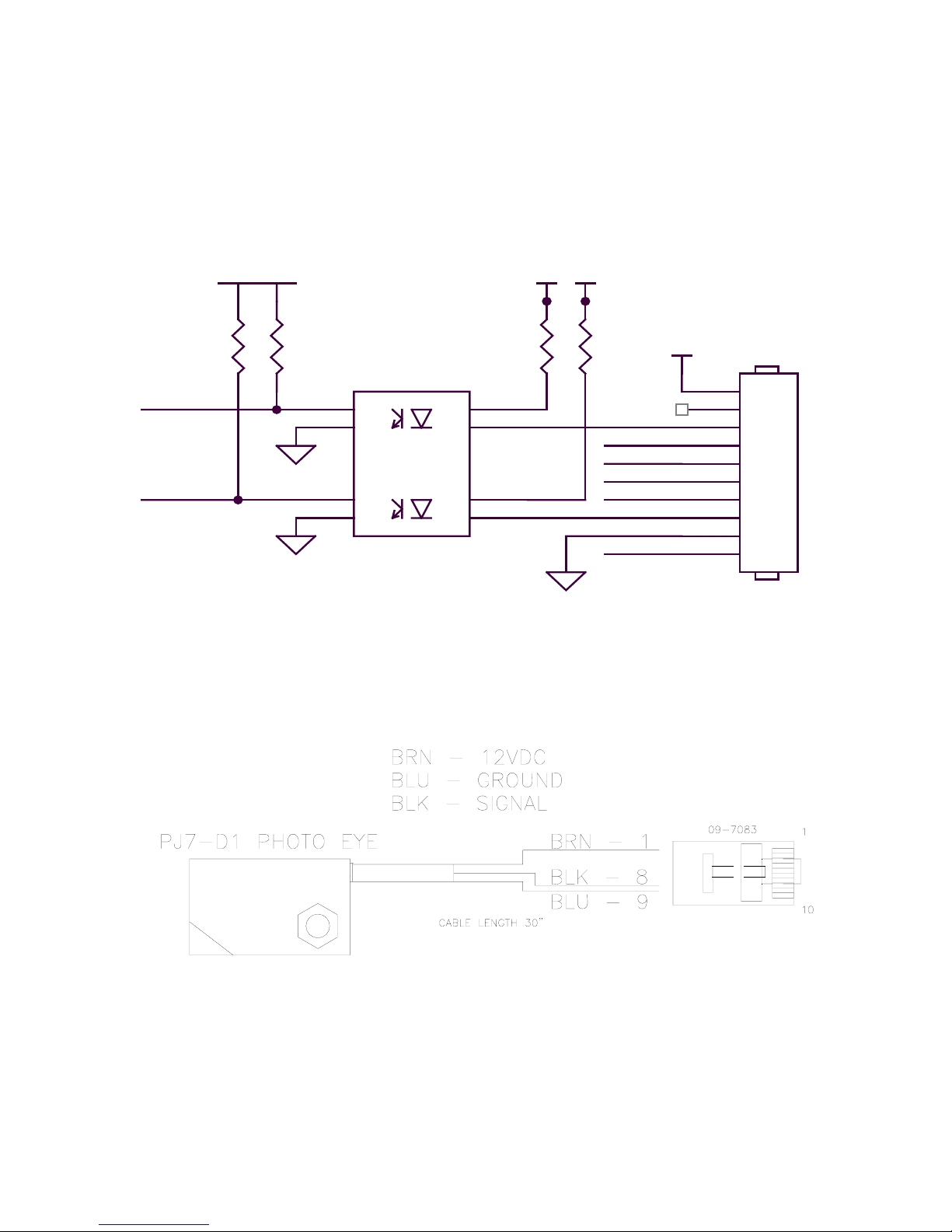

Evolution printers can accept inputs from external sources to control product detection and timing circuits to track product speed (Encoders). These device inputs are internally connected to pull-up resistors and drive optically isolated devices and may be driven by open collector or switch contacts.

ENC

PDET

R? 1K

V3.3

R? 1K

8 7

6 5

PCT218

C1 E1

C2 E2

A1 K1

A2 K2

R? 1K

1 2

3 4

V+

V+V3.3

R? 1K

ENCIN RDATA+

RDATATDATA+ TDATAXPDETIN

SP1

V+

COMMOUT

1 2 3 4 5 6 7 8 9

Each input requires the capability of sinking 12ma to ground as depicted in the above circuit. Connection to the optional control port requires an RJ50 connector. Below is an example of the external product detect eye supplied by DIGITAL DESIGN INC part number C21006.

3 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

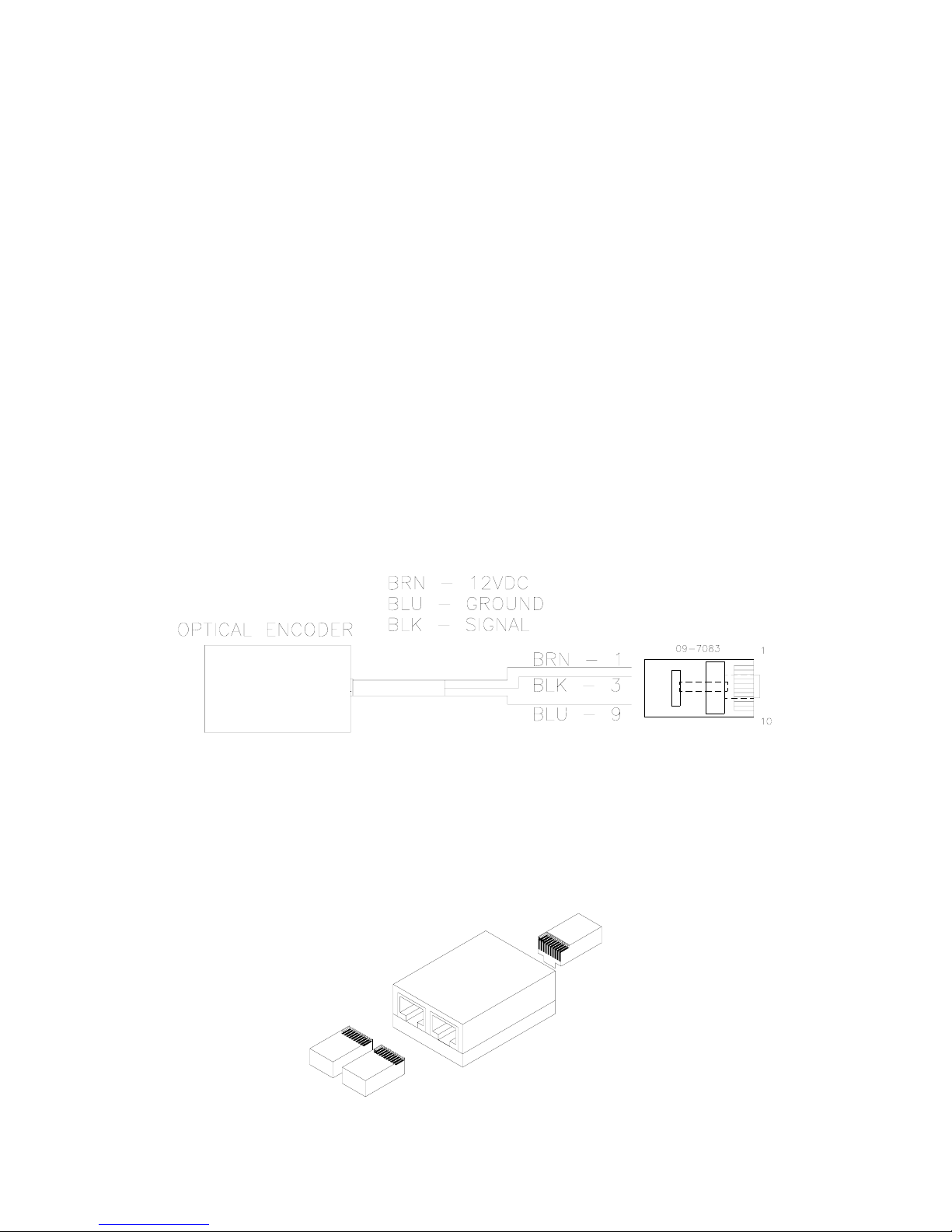

For those applications requiring accurate line speed detection an external encoder is needed. The external encoder will provide accurate signals eliminating problems in those applications where moving product has an acceleration or deceleration component in its motion, and is often mandatory when trying to produce a reliable printed barcode. Selecting the external encoder should take into consideration a supply source that will yield the correct aspect ration of printed height to width. A vertical printed column contains 150 dots and spans 1/2”. This equates to 0.00333 between each vertical dot placement, thusly each horizontal dot placement should be the same to maintain a perfect 300DPI ratio. Selecting the external encoder, the line speed calculation is replaced by a scalable encoder setting ranging from 0-7 allowing a printed message to be compressed or expanded. Ideally, the external encoder should be provided to use this feature to its maximum advantage. If the external encoder were selected to provide a resolution of 0.00333 then the external encoder set to 0 would produce the correct aspect ratio and the message can only be expanded in multiples of 0.00333 thousands of an inch. This may provide all that is required. Selecting an external encoder source that provided 0.00111 thousands of an inch would be a better choice.

The above pictorial is an example of the connections for an external encoder. If it becomes necessary to supply both external product detect, and external encoder, both signals can be wired into the same connector, or DIGITAL DESIGN INC can supply an optional adaptor to allow connection of both cables (part number C21012)

4 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

PART 8: SPECIFICATIONS

PRINTER SPECIFICATIONS

PRINT CHARACTERISTICS

Character Set: Full alphanumeric and 20 special symbols Standard Font: Arial style Logos: up to 3 resident Line Speeds: From 10 to 200 fpm Encoder Ratio: 0 to 7 Print Delay: From 1 to 255 (approx .060 in to 15.0 in) Character Heights: 1/2” single line of print 7/32” two lines of print Length: 24 characters (1/2”) 48 characters (7/32”) Message Storage 50 Messages Print Head to Product Distance: Up to 1/4" (6.35 mm)

CONTROLLER

Standard Finish: Hi Impact ABS Black Dimensions: 8.75"H x 4.25"W x 2.7"D (222 mm x 108 mm x 69 mm) Weight: 1 lbs. (4.5 kg) Control Panel: Touch Switches and 4x16 Line LCD

PRINT CARRIAGE

Standard Finish: Aluminum Black Anodized Dimensions: 3.0"H x 1.8"W x 4.0"D (76 mm x 46 mm x 102 mm) Weight: 1 lbs. (4.5 kg)

ENVIRONMENTAL CONDITIONS

Temperature Range: 40°F - 104°F (5°C - 40°C) Humidity: up to 90% relative, non-condensing Electrical Supply: 100-250 VAC; 50-60 Hz; 0.25Amp

GENERAL

Product Detector: IR LED convergent Communications link RS485 (115KBAUD 7-BITS EVEN PARITY 1 STOP

BIT)

1 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

DEFAULT SETTINGS

FUNCTION DEFAULT SETTING RANGE DIRECTION

FONTS ARIEL STYLE USER DEFINED INTER-CHARACTER SPACING LANGUAGE ENGLISH ENGLISH / SPANISH LINE SPEED 100 10 - 200 LOGOS 0 1 - 3 PRINT INVERSE NORMAL NORMAL / INVERSE PRODUCT DETECT INTERNAL INTERNAL / EXTERNAL EXTERNAL ENCODER INTERNAL INTERNAL / EXTERNAL PRINT DELAY 1 1 - 255 ENCODER RATIO 4 0 - 7 MESSAGE STORAGE 1 1 - 50 PASSWORD

AUTO REPEAT 0 0 - 255 DATE dd/dm/dy USER DEFINED

< < >

10 1 - 25

12345 5 CHARACTERS USER

DEFINED

TIME hh:mm USER DEFINED SHIFT CODE TIMES AND CODES

USER DEFINED

SET TO ZERO

DATE OFFSET OFFSET DAYS SET

USER DEFINED

TO ZERO

PRODUCT COUNTER

TIMES AND CODES SET TO ZERO

USER DEFINED

BARCODE TYPE 8 SELECTABLE MIN BAR WIDTH 5 3 - 15 ADDED SPACE 0 0 - 3 QUIET ZONE 75 0 - 150 CHECK DIGIT NO MAN READABLE NO

2 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

APPENDIX A – PRODUCING RELIABLE BAR CODES

Printing reliable barcodes requires that several key issues be observed.

1. Barcode integrity

2. Contrast ratio

3. Bar separation

4. Quiet zone

BARCODE INTEGRITY -

Barcode integrity is the validity of the data contained in the barcode. This includes valid characters and the correct ratio of dark to light bars.

CONTRACT RATIO -

The contrast ratio is the optical density of the print against the background substrate. For example a black ink barcode against a white coated cardboard versus a black ink barcode on a brown cardboard.

BAR SEPARATION -

Bar separation is the ratio of a dark bar to a light bar. This is one of the most critical parameters to be observed. Assuming that the aspect ratio of the printed barcode is correct, bleed factors can greatly diminish the readability of a barcode. Bleed factors vary greatly depending on substrates. For example printing on virgin versus recycled corrugated cases.

EVOLUTION II printers have the capability to adjust various parameters of the printed barcode to circumvent the inherent problems in producing a reliable printed barcode. These include:

Dark Bar width White bar width

Even though the ratio of a dark bar to a light bar should not be changed it might be necessary to alter the printed barcode by adjusting the light bar size relative to a dark bar size allowing for bleed factors found on different substrates

QUIET ZONE -

These are areas at the beginning and end of a barcode symbol that allow

optical equipment to differentiate the barcode from other printed material.

The inks developed for the EVOLUTION printers will produce, at 300 dpi and 200ft/min, a class “A” barcode on brown corrugated, but care must be exercised in programming the various parameters that control how the printed image is produced. As with any fine resolution image the distance from the print head to the product is of utmost importance. Trial and error is often required to produce the desired results.

3 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

PROGRAMMING BAR CODES:

BARCODE TYPE: This is the type of barcode to be used and only one type is valid per message.

Valid types are:

CODE 39 CODE128B CODE 128C INTERLEAVED 2of5 EAN13 EAN 8 UPC-A UPC-E DATA MATRIX (optional)

MINIMUM BAR WIDTH: This parameter controls the number of columns in a narrow bar. The legal limits are 3 to 15 printed columns for 1-D linear codes and 2 to 15 for 2-D codes.

ADDED SPACE: This controls the amount of added columns for 1-D codes only and is intended to overcome the nature of the bleed factor of the ink on different substrates. The legal values are 0, 1, 2 or 3 additional printed columns.

QUIET ZONE: These are areas at the beginning and end of a barcode symbol that allow optical equipment to differentiate the barcode from other printed material. The user may program a value from 0 to 150 printable columns where, with a correct aspect ratio, each column is 0.0033”.

ADD CHECK CHARACTER: If selected the software will calculate the check character automatically.

ADD MAN READABLE TEXT: If selected the software will add man readable characters to the barcode.

GUARD BARS: If selected indicates that guard bars will be higher than other bars to allow for man readable characters located at the bottom of the code. Man readable characters must be enabled for guard bars to take effect.

4 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

BARCODE TECHNIQUES:

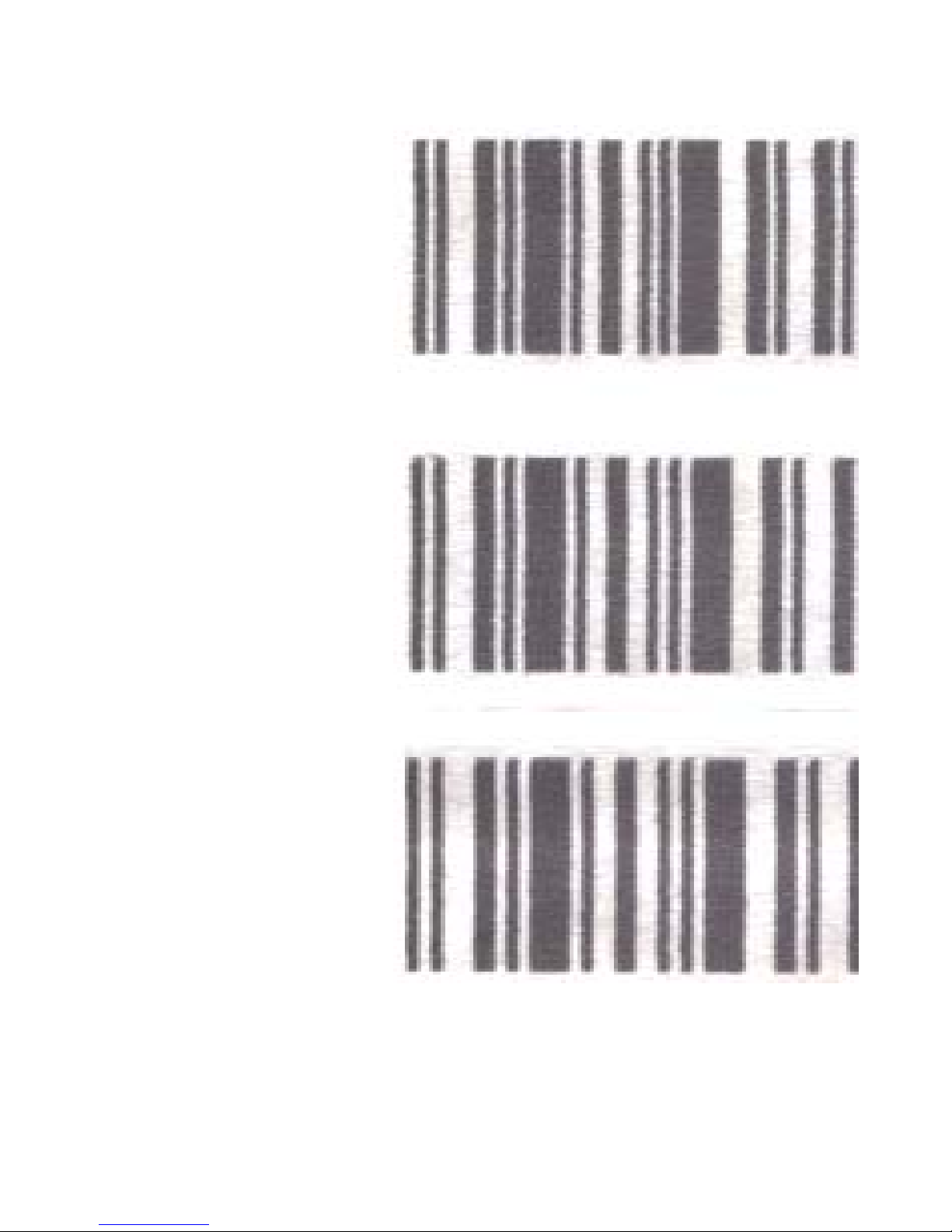

The following are actual scanned images of a UPC-A barcode (without manreadable or guard bars for clarity). These tests were produced on white coated corrugated. These are pictured here to help the user understand some of the important parameters in producing a reliable barcode. The faint background noise is a result of the scanning process and is not indicative of a typical printed sample.

Notice the diminished size ratio of the narrow light bar versus the narrow dark bar

The narrow light bar is still slightly less than the dark bar

Adding 2 spaces makes the narrow light bar equal to the narrow dark bar

Notice the diminished size ratio of the narrow light bar versus the narrow dark bar

The narrow light bar is still slightly less than the dark bar

Adding 2 spaces makes the narrow light bar equal to the narrow dark bar

Barcode reader/verifier test equipment QUICK CHECK 800 All barcodes were readable and acceptable, some better than others Decodability is the percentage as compared to the verifiers standard Average bar is the size difference of a light bar to a dark bar Code class is the overall acceptance of the code A B C D F

5 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

Barcode with: Bar width = 5 Added space = 0 Decodability = 39% Average bar = 16X Code class = C

Barcode with: Bar width = 5 Added space = 1 Decodability = 50% Average bar = .11X Code class = B

Barcode with: Bar width = 5 Added space = 2 Decodability = 62% Average bar = .03X Code class = A

Barcode with: Bar width = 6 Added space = 0 Decodability = 47% Average bar = .17 X Code class = C

Barcode with: Bar width = 6 Added space = 1 Decodability = 51% Average bar = .10 X Code class = B

Barcode with: Bar width = 6 Added space = 2 Decodability = 64% Average bar = .00 X Code class = A

The picture at the right is an exploded view of the previous scanned image. Again notice the ink bleed and how it affects the ratio of the dark to the light bar widths. Using the ADD SPACE parameter gives the user the ability to minimize this effect. Trial and error is necessary to find the correct settings to be used. The substrate material is the governing factor in deciding what the correct settings are.

The second concept that the pictures show is the overall consistency in bar width across the image. All scanners have the capability of accepting a certain amount of bar growth but must be kept to a minimum. Bar growth will be seen in non-linear production lines. Normally with a consistent running production line, there is no need for an external encoder. Where there is an acceleration or deceleration component in the production line, it is absolutely necessary to use an encoder. Even with an encoder a code can deviate from the proper aspect ratio. This deviation is caused by slippage of the product against the production line. Bar growth will also lead to a less dense dark bar due to the fact the printed vertical columns will print further apart then previous dark bars. This may also be seen when not using an encoder and the line speed of the printer is set slower than the actual line speed of the production line.

6 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

The image below is a scanned image of two sample prints. The upper section of code is produced at 60ft/min matching the line speed, while with the second sample, the line speed was increased to 100 ft/min. It should be immediately apparent at the difference in the optical density between both prints. This variation will be more apparent on brown corrugated than on a white substrate.

NORMAL OPTICAL DENSITY

Displacing adjacent vertical columns farther than the correct aspect ratio caused this lack of optical density.

DIMINISHED OPTICAL DENSITY

NORMAL ASPECT RATIO

The pictorial at the right is an expanded section of the above code and clearly defines the correct versus incorrect aspect ratio and should be avoided.

It should also be noted that the MINIMUM BAR WIDTH parameter was set to 6.

BAD ASPECT RATIO

7 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

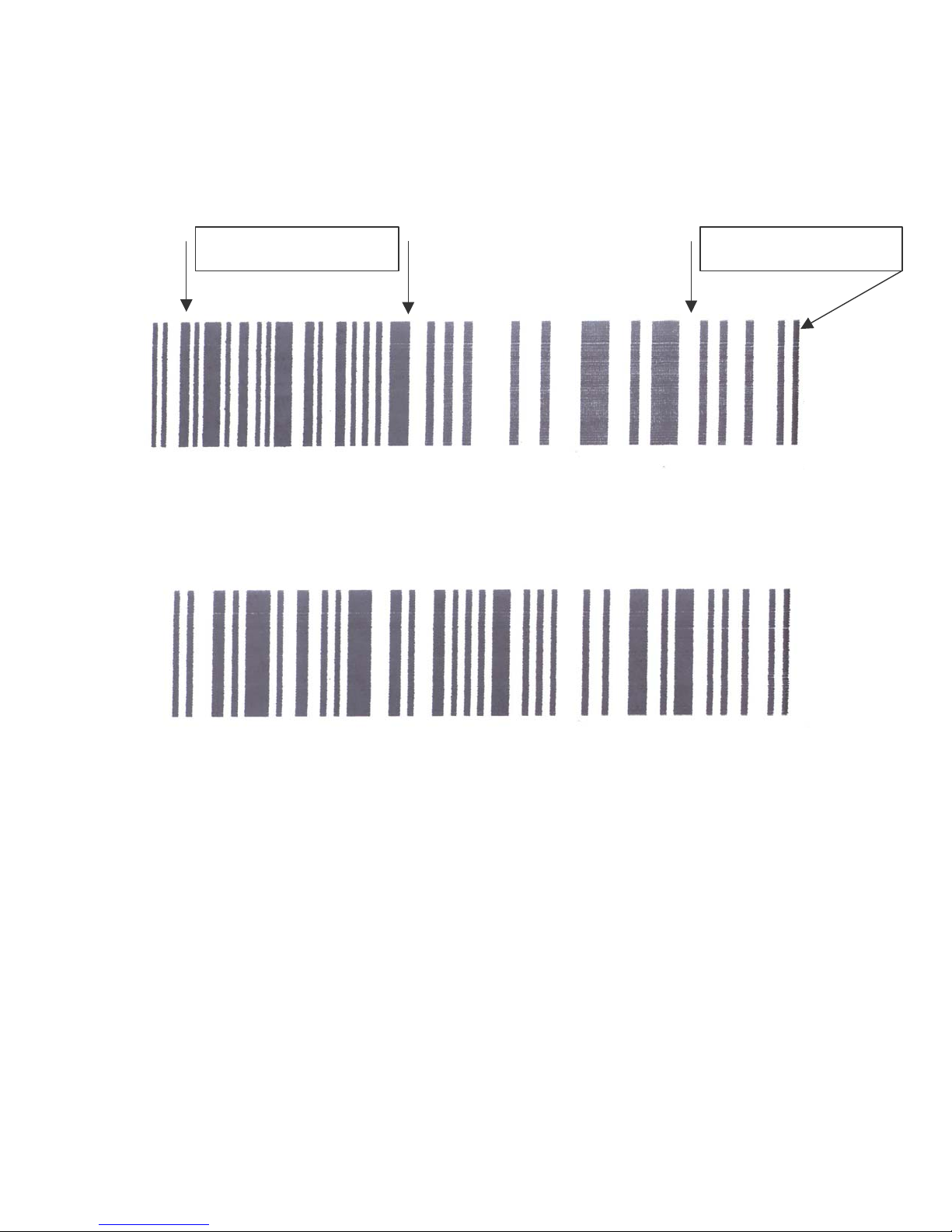

Below is a scanned image of a typical application where there was an acceleration and deceleration component in the line movement. Notice how the bars grew from left to right then began to compress towards the normal at the right. Also apparent is the change in the optical density of the pattern. This was a totally unreadable code.

BAR WIDTHS BEGIN TO STRETCH

BAR WIDTHS BEGIN TO COMPRESS

Finally, the image as it should look. This code was produced on white corrugated at 100ft/min and produced a verifiable class “A” with a decodability of 70%. The average bar growth from the reference standard was 0.03%.

8 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

BARCODE TYPES

The following is a short description of the supported barcode types: Each barcode type contains either 2 or 4 widths. This defines how many sizes or a light or dark bar exists in the code.

CODE39: Code 39 is an alphanumeric bar code that can encode (2 widths)

Numbers Upper case alphabet Special symbols _ . * $ / % + If the Check Character flag is set the software will calculate the optional check character (modulus 43).

CODE128: Code 128 is a 128-character ASCII code (4 widths)

If the Check Character flag is set the software will calculate the optional check character (modulus 103).

EAN-13: EAN-13 encodes 13 characters (4 widths) Numbers only It includes a 2 or 3 digit country code 9 or 10 data digits (depending on the length of the country code)

Checksum digit If the Check Character flag is set the software will calculate the optional check character (modulus 10).

EAN-8: EAN-8 is a shortened version of the EAN-13 code (4 widths) Numbers only It includes a 2 or 3 digit country code

4 or 5 data digits (depending on the length of the country code) Checksum digit. If the Check Character flag is set the software will calculate the optional check character (modulus 10).

INTERLEAVED 2of5: Interleaved 2 of 5 is a numeric only bar code (2 widths) Numbers only

If the Check Character flag is set the software will calculate the optional check character (modulus 10). This code requires an even number of digits. If an odd number of digits are entered the software automatically inserts a leading 0. If a code contains an even number of digits and a check digit then the software adds a leading 0.

9 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

UPC-A: UPC-A encodes 12 characters (4 widths) Numbers only

It includes a 1-digit system code (normally 0)

10 digits are the data characters

Checksum digit If the Check Character flag is set the software will calculate the optional check character (modulus 10).

10 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

UPC-E: The UPC-E code is a compressed barcode (4 widths)

Numbers only (must include 0’s) Compression works by squeezing extra zeroes out of the barcode and then automatically re-inserting them at the scanner. Only barcodes containing zeroes are candidates for the UPC-E symbol.

DATAMATRIX: Is a 2-D full 256-character ASCII code

The code is made up of square modules (elements) arranged within a perimeter-clocking pattern. The symbol consists of data regions, which contain square modules set out in a regular array.

Most of the symbols are square ranging from 10x10 to144x144 elements.

The correct array is automatic, dependent on the data entered.

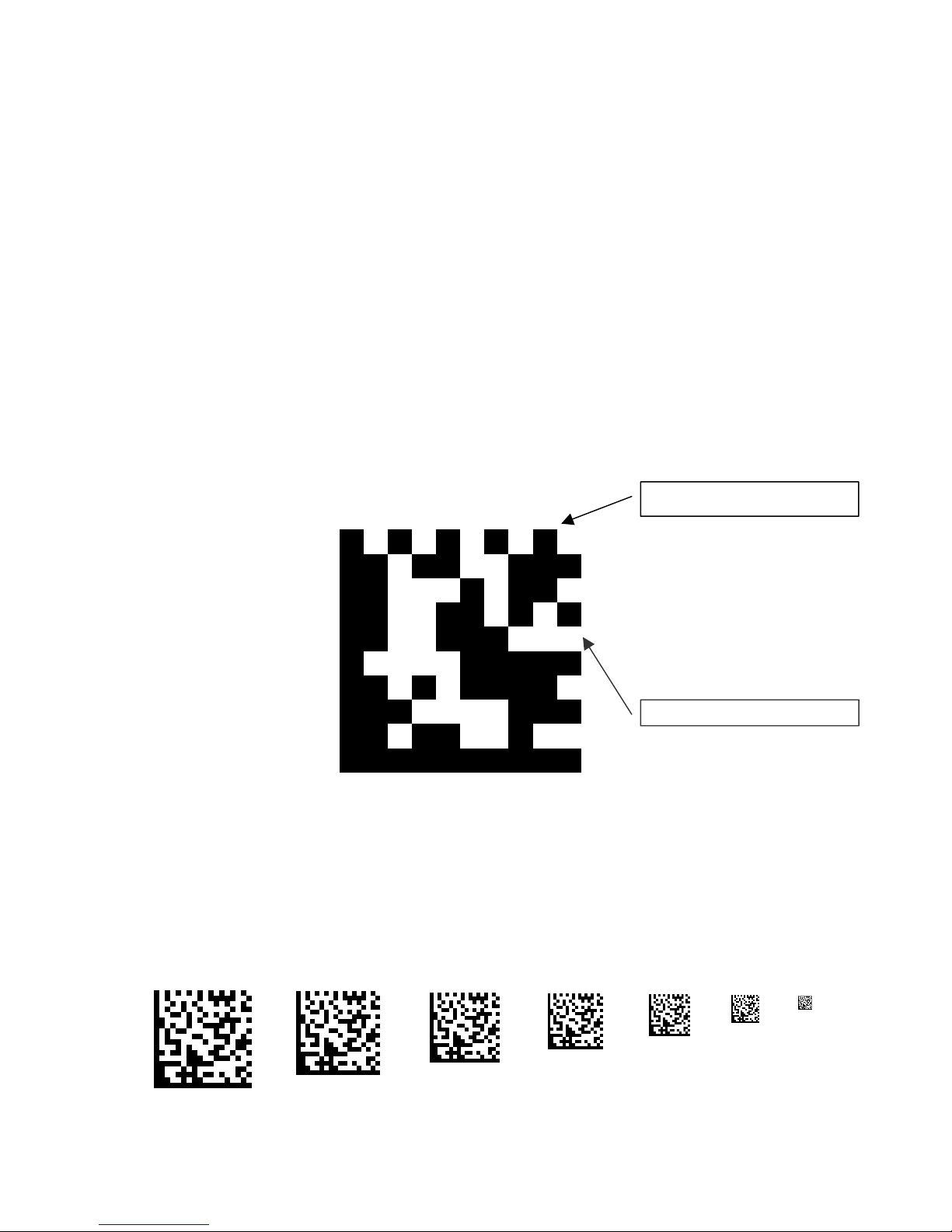

The following are ideal data matrix codes. The pictorial below is a 10x10 array encoding the numbers 1, 2, 3, 4 and 5 scaled for reference purposes.

CLOCKING PATTERNS

Data matrix codes are more tolerable to stretch and skew by the nature of their imbedded clocking patterns defining both columns and rows.

Below is an 18x18 array encoding DIGITAL DESIGN INC. The pattern is repeated 7 times with various resolutions ranging from a 7x7 element to a 1x1 element. Even though it is conceivable to produce a 1x1 element, the nature of ink bleed makes it unrealistic. The EVOLUTION II with the optional DATAMATRIX symbologies installed limits the element size to a 2x2 array.

11 EVOLUTION 1 SYSTEM MANUAL Issue Issue 1.1 20 Dec 2006

Digital Design EVOLUTION II Installation And Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
