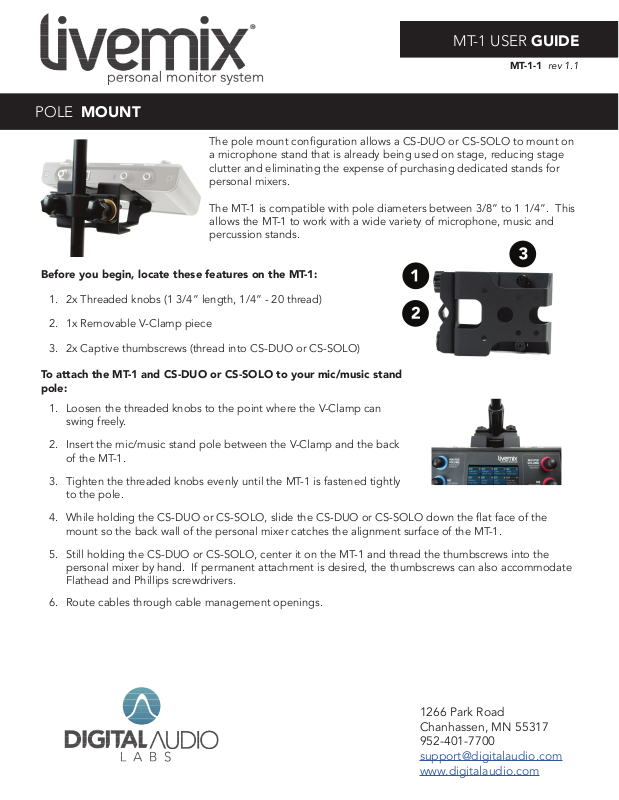

Digital Audio Labs Livemix MT-1 User Manual

POLE MOUNT

The pole mount conguration allows a CS-DUO or CS-SOLO to mount on
a microphone stand that is already being used on stage, reducing stage
clutter and eliminating the expense of purchasing dedicated stands for
personal mixers.

The MT-1 is compatible with pole diameters between 3/8” to 1 1/4”. This
allows the MT-1 to work with a wide variety of microphone, music and
percussion stands.

Before you begin, locate these features on the MT-1:

1. 2x Threaded knobs (1 3/4” length, 1/4” - 20 thread)

2. 1x Removable V-Clamp piece

MT-1 USER GUIDE

MT-1-1 rev 1.1

3. 2x Captive thumbscrews (thread into CS-DUO or CS-SOLO)

To attach the MT-1 and CS-DUO or CS-SOLO to your mic/music stand
pole:

1. Loosen the threaded knobs to the point where the V-Clamp can
swing freely.

2. Insert the mic/music stand pole between the V-Clamp and the back
of the MT-1.

3. Tighten the threaded knobs evenly until the MT-1 is fastened tightly
to the pole.

4. While holding the CS-DUO or CS-SOLO, slide the CS-DUO or CS-SOLO down the at face of the
mount so the back wall of the personal mixer catches the alignment surface of the MT-1.

5. Still holding the CS-DUO or CS-SOLO, center it on the MT-1 and thread the thumbscrews into the
personal mixer by hand. If permanent attachment is desired, the thumbscrews can also accommodate
Flathead and Phillips screwdrivers.

6. Route cables through cable management openings.

1266 Park Road
Chanhassen, MN 55317
952-401-7700

[e-mail]
www.digitalaudio.com

THREAD MOUNT

The mic stand thread mount conguration allows a CS­DUO or CS-SOLO to mount on a dedicated microphone
stand. This mounting method is perfect for musicians that
don’t require other stands for microphones or music.

Four captive thread holes on the bottom side of the
CS-DUO or CS-SOLO allow the personal mixer to mount
in two different positions on the MT-1.

Before you begin, locate these parts of the MT-1:

1. Large circle opening on the bottom side of the

mount

2. 1x 5/8” - 27 nut (secured to MT-1 with V-Clamp
screw.

3. 2x Captive thumbscrews (thread into personal
mixer)

To attach the MT-1 and CS-DUO or CS-SOLO to
your mic stand:

1. Align the large circle opening on the bottom side of the
MT-1 with the top of the microphone stand.

2. Secure the MT-1 by threading the 5/8” - 27 nut until it is
nger tight.

3. To rmly lock the MT-1 in place, hold the microphone
stand pole with one hand while turning the MT-1 with the
other hand.

4. Locate the two captive thread holes on the bottom side
of the personal mixer that are closest to the front panel.
These are the recommended mounting connections on
the CS-DUO or CS-SOLO for this conguration.

5. While holding the CS-DUO or CS-SOLO, align the MT-1
captive thumbscrews with the personal mixer captive
thread holes mentioned in step 4.

6. Still holding the personal mixer, thread the thumbscrews
into the mixer by hand. If permanent attachment is desired, the thumbscrews can also
accommodate Flathead and Phillips screwdrivers.

7. Route cables through cable management openings.
