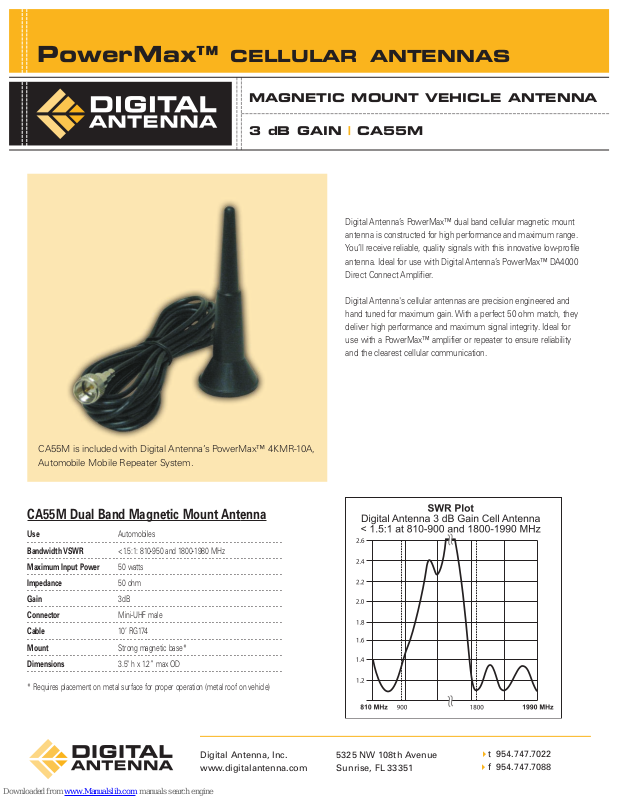

PowerMax™ CELLULAR ANTENNAS
MAGNETIC MOUNT VEHICLE ANTENNA
3 dB GAIN | CA55M
Digital Antenna’s PowerMax™ dual band cellular magnetic mount
antenna is constructed for high performance and maximum range.
You’ll receive reliable, quality signals with this innovative low-profile
antenna. Ideal for use with Digital Antenna’s PowerMax™ DA4000
Direct Connect Amplifier.
Digital Antenna's cellular antennas are precision engineered and
hand tuned for maximum gain. With a perfect 50 ohm match, they
deliver high performance and maximum signal integrity. Ideal for
use with a PowerMax™ amplifier or repeater to ensure reliability
and the clearest cellular communication.
CA55M is included with Digital Antenna’s PowerMax™ 4KMR-10A,
Automobile Mobile Repeater System.
CA55M Dual Band Magnetic Mount Antenna
Use Automobiles
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Bandwidth VSWR <1.5:1: 810-950 and 1800-1980 MHz
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Maximum Input Power 50 watts
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Impedance 50 ohm
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Gain 3dB
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Connector Mini-UHF male
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Cable 10’ RG174
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Mount Strong magnetic base*
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Dimensions 3.5" h x 1.2” max OD
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
* Requires placement on metal surface for proper operation (metal roof on vehicle)
Digital Antenna, Inc.
www.digitalantenna.com
5325 NW 108th A
Sunrise, FL 33351
venue
▲
t 954.747.7022
▲
f 954.747.7088
