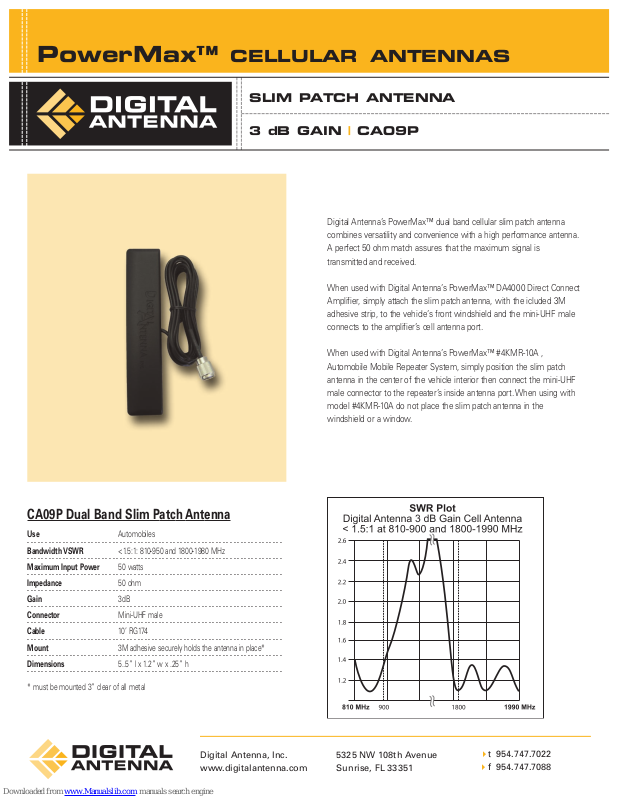

PowerMax™ CELLULAR ANTENNAS
SLIM PATCH ANTENNA
3 dB GAIN | CA09P
Digital Antenna’s PowerMax™ dual band cellular slim patch antenna
combines versatility and convenience with a high performance antenna.
A perfect 50 ohm match assures that the maximum signal is
transmitted and received.
When used with Digital Antenna’s PowerMax™ DA4000 Direct Connect
Amplifier, simply attach the slim patch antenna, with the icluded 3M
adhesive strip, to the vehicle’s front windshield and the mini-UHF male
connects to the amplifier’s cell antenna port.
When used with Digital Antenna’s PowerMax™ #4KMR-10A ,
Automobile Mobile Repeater System, simply position the slim patch
antenna in the center of the vehicle interior then connect the mini-UHF
male connector to the repeater’s inside antenna port. When using with
model #4KMR-10A do not place the slim patch antenna in the
windshield or a window.

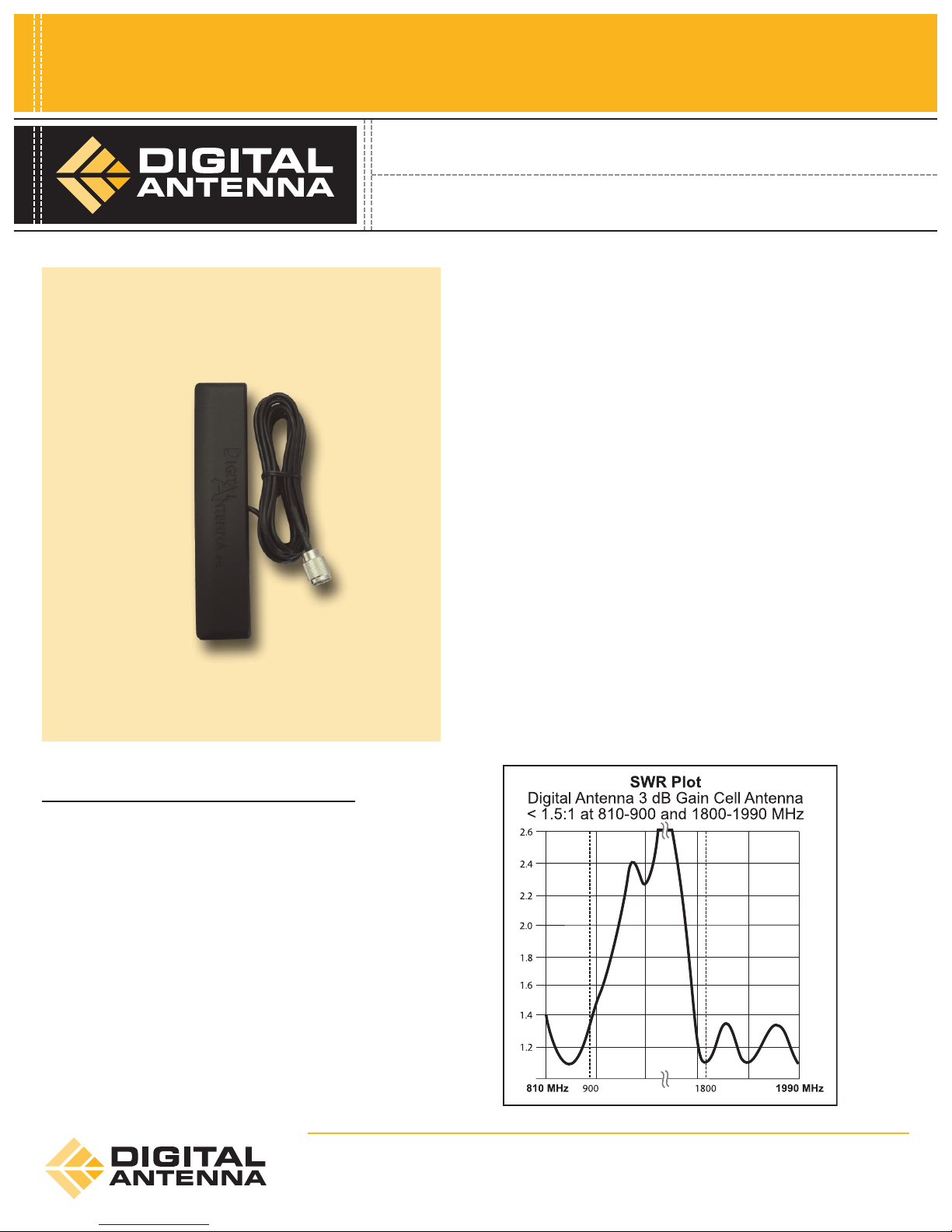

CA09P Dual Band Slim Patch Antenna
Use Automobiles
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Bandwidth VSWR <1.5:1: 810-950 and 1800-1980 MHz
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Maximum Input Power 50 watts
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Impedance 50 ohm
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Gain 3dB
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Connector Mini-UHF male
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Cable 10’ RG174
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Mount 3M adhesive securely holds the antenna in place*
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Dimensions 5..5” l x 1.2” w x .25” h
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
* must be mounted 3” clear of all metal
Digital Antenna, Inc.
www.digitalantenna.com
5325 NW 108th A
Sunrise, FL 33351
venue
▲
t 954.747.7022
▲
f 954.747.7088
