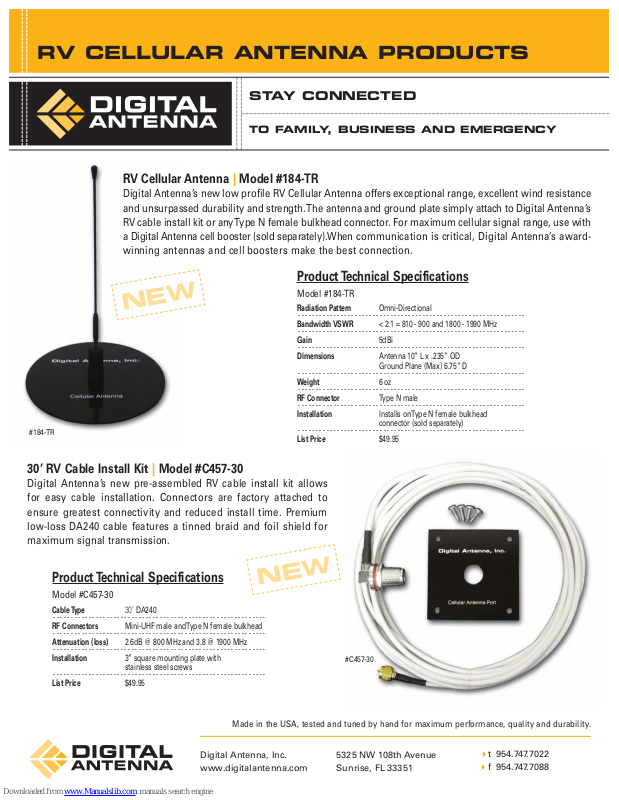

RV CELLULAR ANTENNA PRODUCTS
STAY CONNECTED
TO FAMILY, BUSINESS AND EMERGENCY
RV Cellular Antenna | Model #184-TR
Digital Antenna’s new low profile RV Cellular Antenna offers exceptional range, excellent wind resistance
and unsurpassed durability and strength.The antenna and ground plate simply attach to Digital Antenna’s
RV cable install kit or anyType N female bulkhead connector. For maximum cellular signal range, use with
a Digital Antenna cell booster (sold separately).When communication is critical, Digital Antenna’s awardwinning antennas and cell boosters make the best connection.
Product Technical Specifications
Model #184-TR
NEW
#184-TR
Radiation Pattern Omni-Directional
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Bandwidth VSWR < 2:1 = 810 - 900 and 1800 - 1990 MHz
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Gain 5dBi
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Dimensions Antenna 10” L x .235” OD
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Weight 6 oz
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
RF Connector Type N male
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Installation Installs on Type N female bulkhead
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
List Price $49.95
Ground Plane (Max) 6.75” D
connector (sold separately)
30’ RV Cable Install Kit | Model #C457-30
Digital Antenna’s new pre-assembled RV cable install kit allows
for easy cable installation. Connectors are factory attached to
ensure greatest connectivity and reduced install time. Premium
low-loss DA240 cable features a tinned braid and foil shield for
maximum signal transmission.
Product Technical Specifications
Model #C457-30
CableType 30’ DA240
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
RF Connectors Mini-UHF male andType N female bulkhead
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Attenuation (loss) 2.6dB @ 800 MHz and 3.8 @ 1900 MHz
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
Installation 3” square mounting plate with
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
List Price $49.95
stainless steel screws
Digital Antenna, Inc.
www.digitalantenna.com
NEW
Made in the USA, tested and tuned by hand for maximum performance, quality and durability.
#C457-30
5325 NW 108th Avenue
Sunrise, FL 33351
▲
t 954.747.7022
▲
f 954.747.7088
