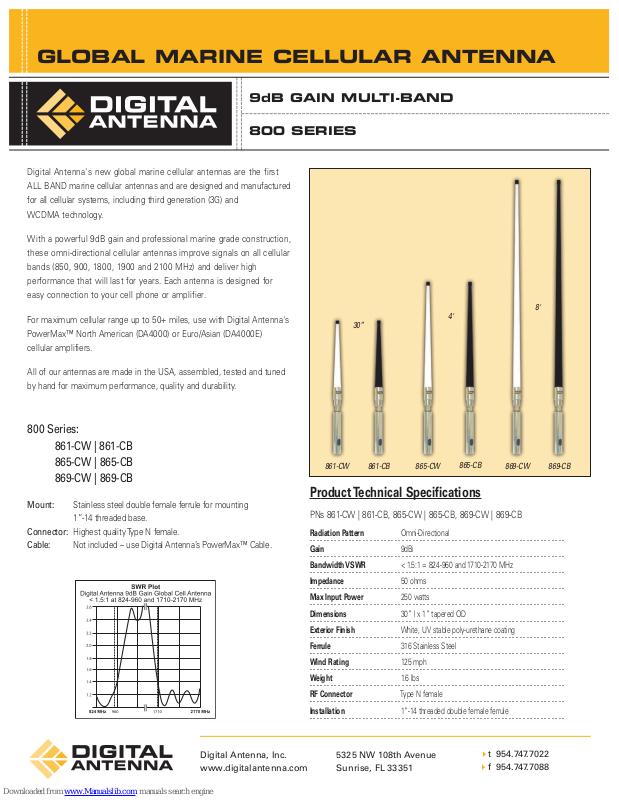

Digital Antenna GLOBAL MARINE CELLULAR ANTENNA 9dB GAIN MULTI-BAND 800 SERIES, 861-CW, 861-CB, 865-CW, 865-CB Specification Sheet
...Page 1
GLOBAL MARINE CELLULAR ANTENNA
9dB GAIN MULTI-BAND
800 SERIES
Digital Antenna's new global marine cellular antennas are the first
ALL BAND marine cellular antennas and are designed and manufactured
for all cellular systems, including third generation (3G) and
WCDMA technology.
With a powerful 9dB gain and professional marine grade construction,
these omni-directional cellular antennas improve signals on all cellular
bands (850, 900, 1800, 1900 and 2100 MHz) and deliver high
performance that will last for years. Each antenna is designed for
easy connection to your cell phone or amplifier.
For maximum cellular range up to 50+ miles, use with Digital Antenna's
PowerMax™ North American (DA4000) or Euro/Asian (DA4000E)
cellular amplifiers.
30”
4'
8'
All of our antennas are made in the USA, assembled, tested and tuned
by hand for maximum performance, quality and durability.
800 Series:
861-CW | 861-CB
865-CW | 865-CB
869-CW | 869-CB
Mount: Stainless steel double female ferrule for mounting
1”-14 threaded base.
Connector: Highest quality Type N female.
Cable: Not included – use Digital Antenna’s PowerMax™ Cable.
861-CW 861-CB
865-CW
865-CB
869-CW 869-CB
Product Technical Specifications
PNs 861-CW | 861-CB, 865-CW | 865-CB, 869-CW | 869-CB
Radiation Pattern Omni-Directional
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Gain 9dBi
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Bandwidth VSWR < 1
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Impedance 50 ohms
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Max Input Power 250 watts
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Dimensions 30” l x 1” tapered OD
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Exterior Finish White, UV stable poly-urethane coating
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Ferrule 316 Stainless Steel
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Wind Rating 125 mph
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Weight 1.6 lbs
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - RF Connector Type N f
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Installation 1”-14 threaded double f
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
.5:1 = 824-960 and 1710-2170 MHz
emale
emale ferrule
Digital Antenna, Inc.
www.digitalantenna.com
5325 NW 108th Avenue
Sunrise, FL 33351
▲
t 954.747.7022
▲
f 954.747.7088
