Digisol DG-WM2015DIO User Manual

DG -WM2015DIO

DIGISOL 2.4GHz GE OUTDOOR ACCESS POINT WITH POE

User Manual

V1.0
2016-01-14

As our products undergo continuous development the specifications are subject to change without prior notice.

DG-WM2015DIO User Manual

2

Table of contents

CHAPTER 1 INTRODUCTION.................................................................................................................................................. 5

1.1 PACKAGE CONTENTS .......................................................................................................................................................... 5

1.2 HARDWARE INSTALLATION ................................................................................................................................................ 6

1.2.1 WARNING ....................................................................................................................... 6

1.2.2 SYSTEM REQUIREMENTS .............................................................................................. 6

1.2.3 Hardware Configuration .................................................................................................... 7

1.2.4 LED Indicators................................................................ ................................................ 10

1.2.5 Button Definition ................................................................................................ ............. 11

CHAPTER 2 GETTING STARTED ......................................................................................................................................... 14

2.1 HARDWARE INSTALLATION .............................................................................................................................................. 14

2.1.1 Mount the Unit................................................................................................................ 14

2.1.2 Connecting Power .......................................................................................................... 15

2.1.3 Connecting to the Network or a Host................................................................................ 16

2.1 USE WEC BUTTON TO SETUP WIRELESS PROFILES ..................................................................................................... 22

2.2.1 One Master and several isolated Slaves .............................................................................. 22

CHAPTER 3 MAKING CONFIGURATIONS ................................................................................................................ 25

3.1 BASIC NETWORK ............................................................................................................................................................... 27

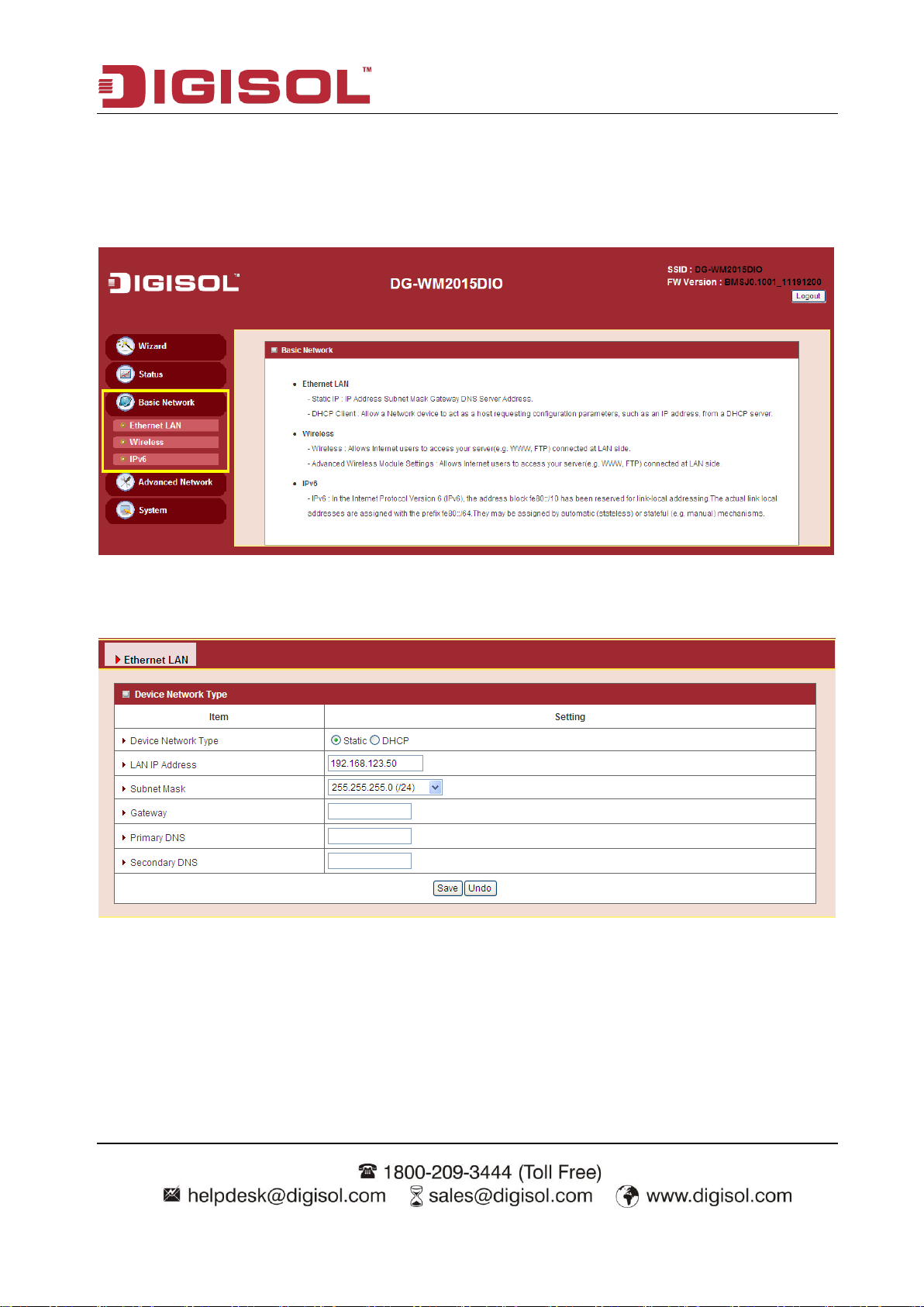

3.1.1 Ethernet LAN ................................................................................................................. 27

3.1.1 Wireless......................................................................................................................... 28

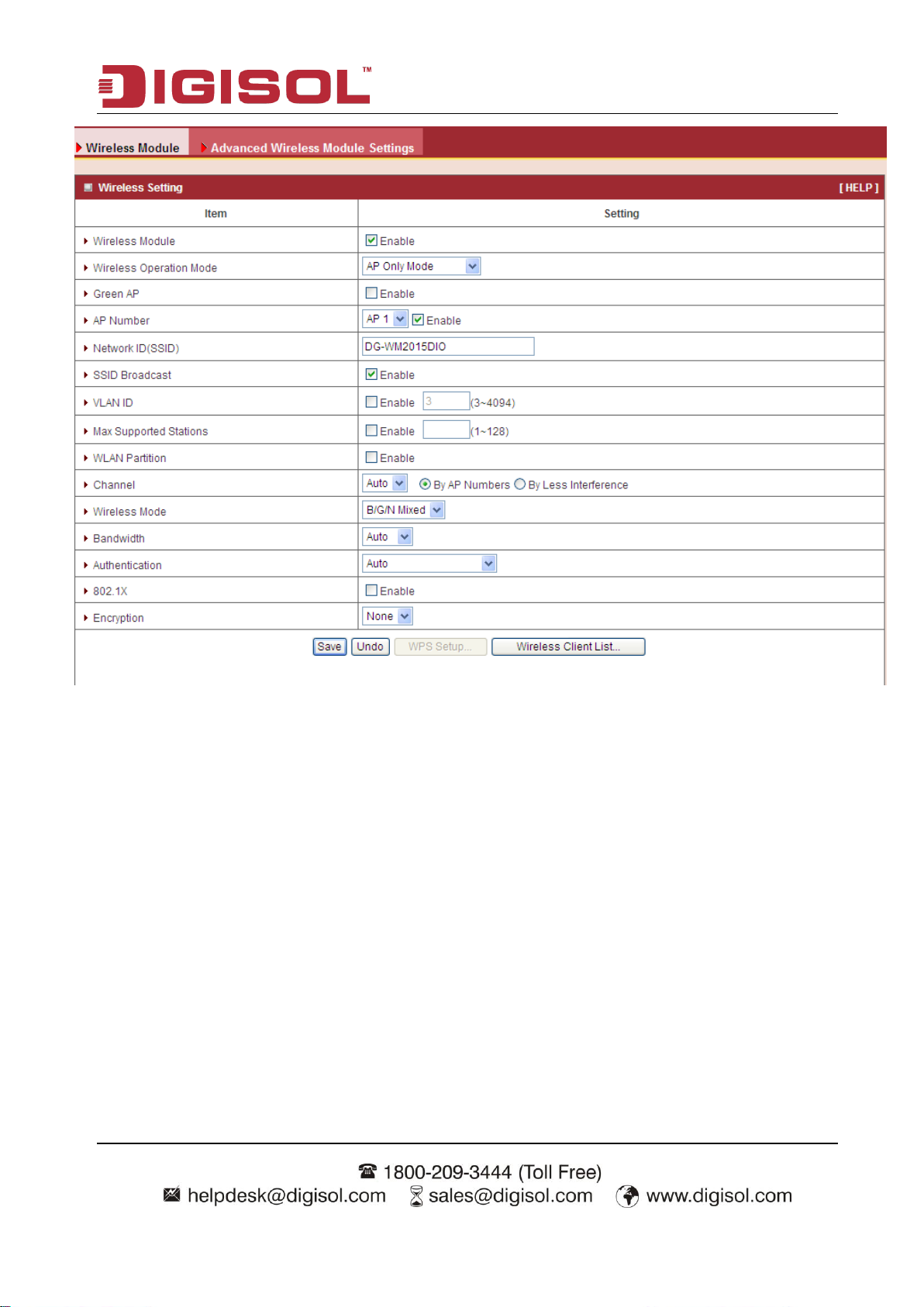

1.1.2.1 Wireless Setup ............................................................................................................................................. 29

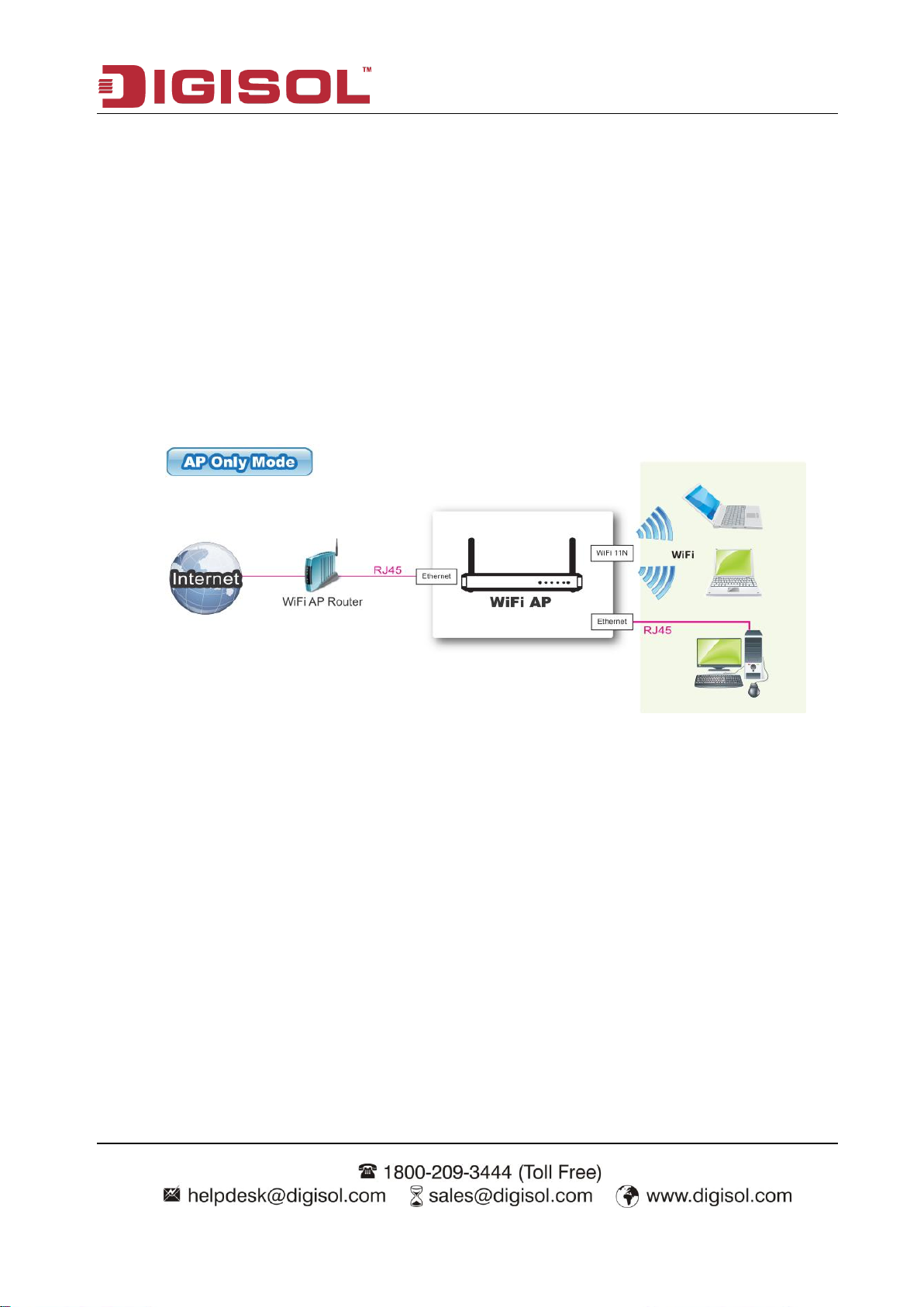

1.1.2.1.1 AP Only Mode ...........................................................................................................................................29

1.1.2.1.2 WDS Hybrid Mode ....................................................................................................................................33

1.1.2.1.3 WDS Only Mode .......................................................................................................................................36

1.1.2.1.4 Universal Repeater Mode...........................................................................................................................39

1.1.2.1.5 Client Mode................................................................................................................................................41

1.1.2.2 Advanced Wireless Setup .......................................................................................................................... 42

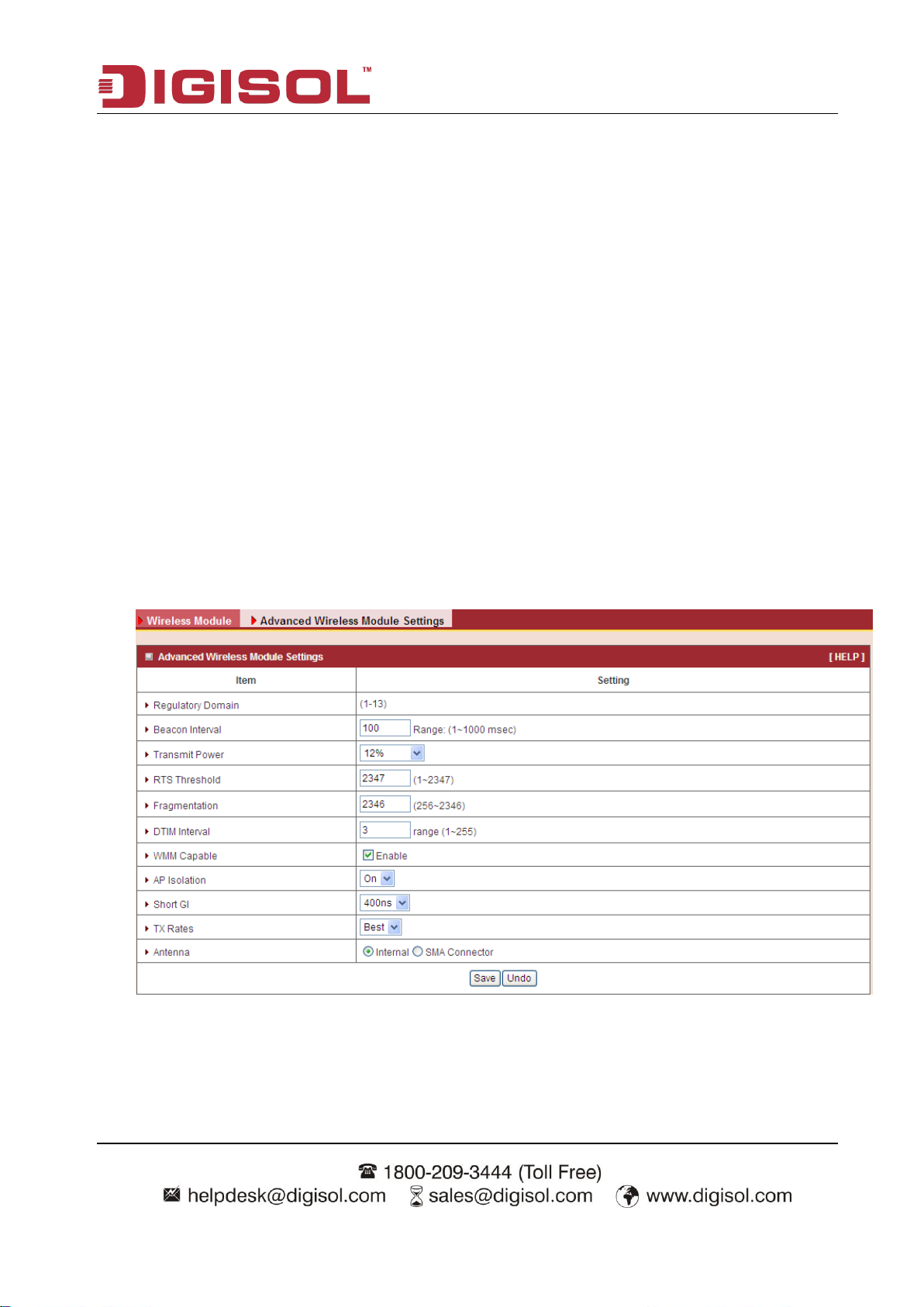

1.1.2.2.1 Advanced Wireless Module Setting ...........................................................................................................42

3.1.2 IPv6............................................................................................................................... 43

3.2 ADVANCED NETWORK ...................................................................................................................................................... 45

3.2.1 Firewall .......................................................................................................................... 45

3.2.1.1 MAC Address Control ................................................................................................................................. 45

DG-WM2015DIO User Manual

3

3.2.2 Management .................................................................................................................. 46

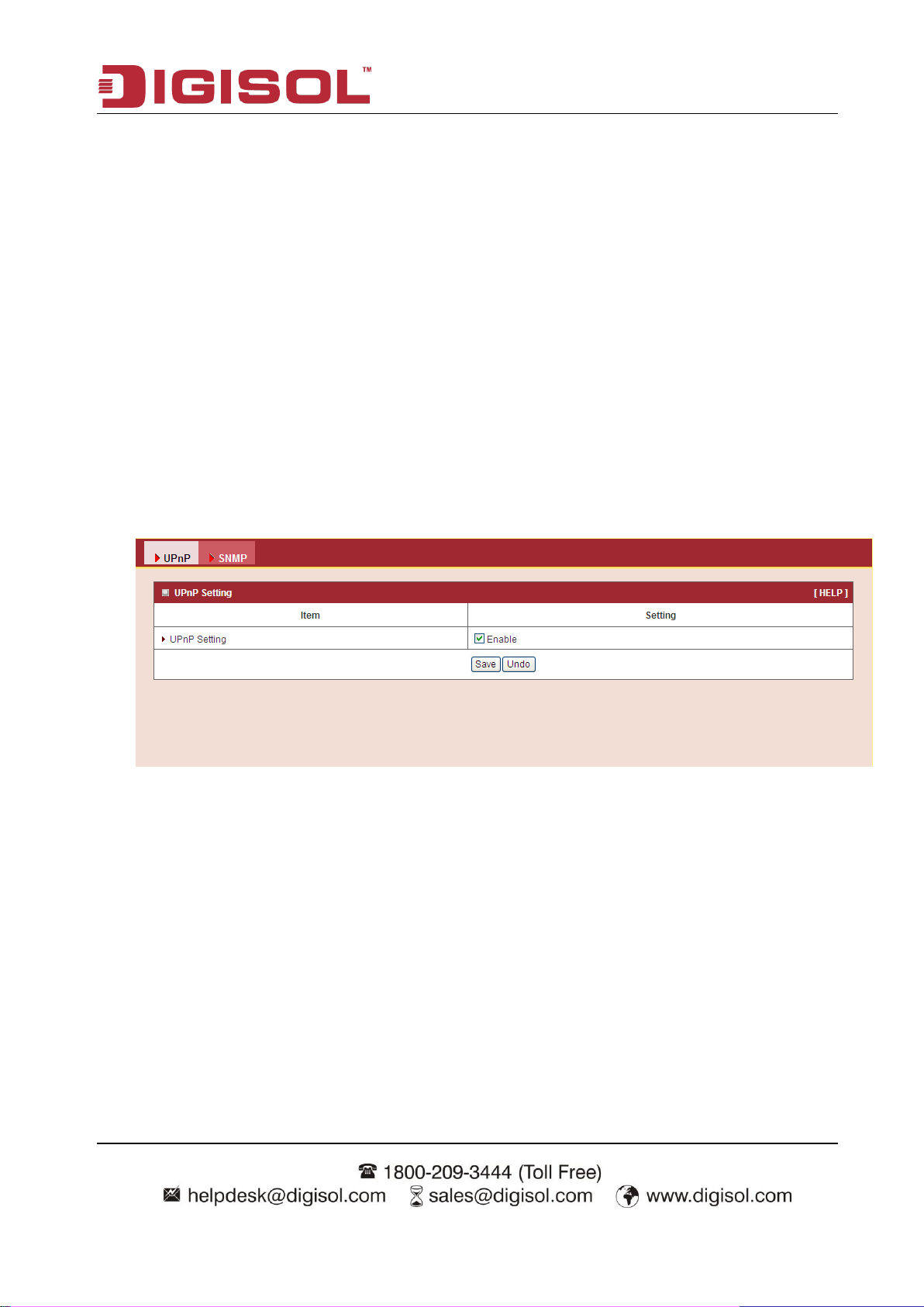

3.2.2.1 UPNP ............................................................................................................................................................. 46

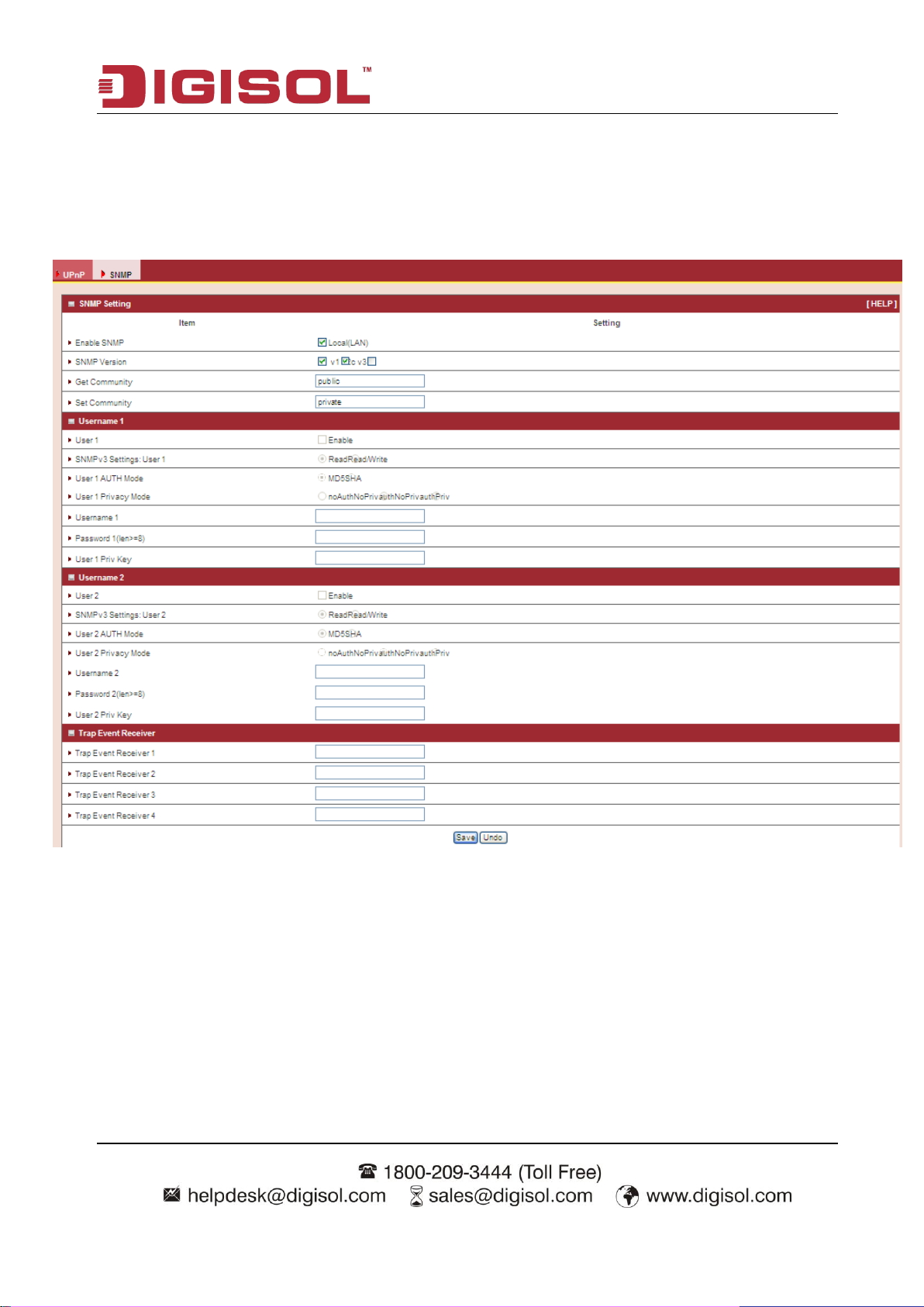

3.2.2.2 SNMP ............................................................................................................................................................ 47

3.3 SYSTEM............................................................................................................................................................................... 49

3.3.1 System Information................................ ................................................................ ......... 49

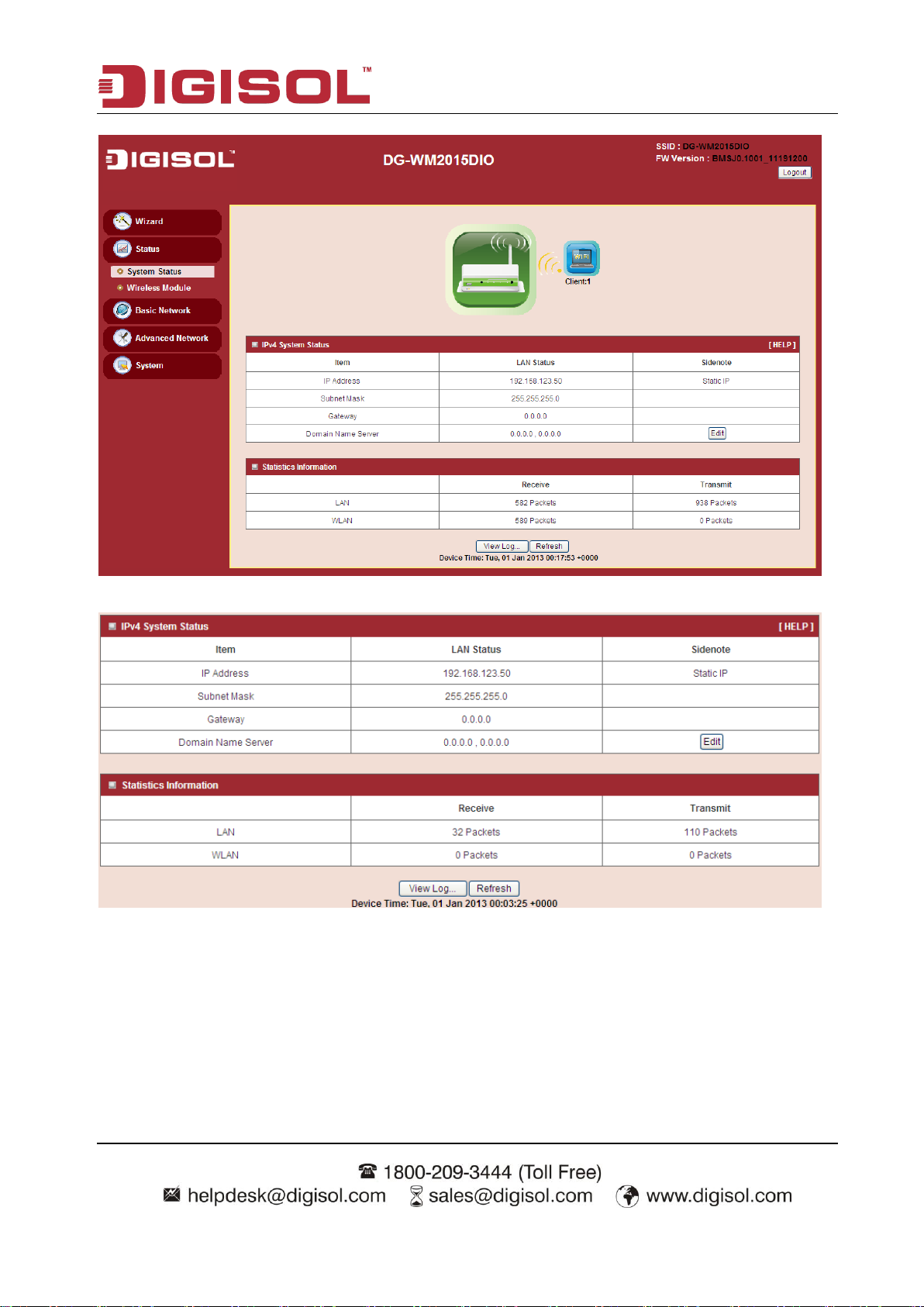

3.3.2 System Status ................................................................................................................ 50

3.3.2.1 Web Log ........................................................................................................................................................ 50

3.3.2.2 Syslog ............................................................................................................................................................ 50

3.3.2.3 Email Alert..................................................................................................................................................... 51

3.3.3 System Tools ................................................................................................................. 52

3.3.3.1 Change Password ....................................................................................................................................... 52

3.3.3.2 FW Upgrade ................................................................................................................................................. 52

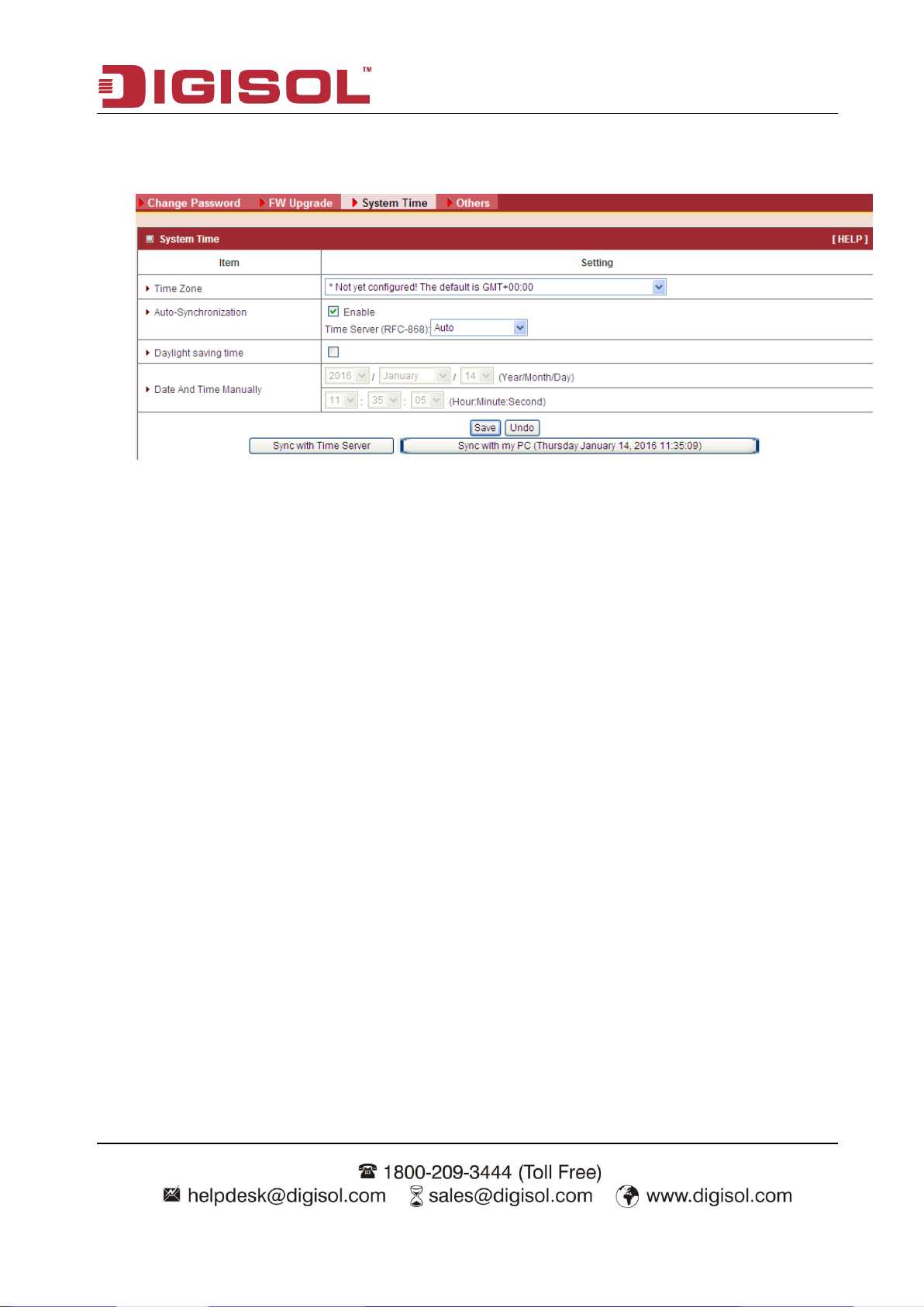

3.3.3.3 System Time................................................................................................................................................. 53

3.3.3.4 Others ............................................................................................................................................................ 54

3.3.4 MMI ................................ ................................................................ ............................... 55

3.3.4.1 Web UI........................................................................................................................................................... 55

4 TROUBLESHOOTING ............................................................................................................................................................ 56

APPENDIX A. LICENSING INFORMATION ..................................................................................................................... 60

DG-WM2015DIO User Manual

4

Copyright

Copyright 2016 by Smartlink Network Systems Ltd. All rights reserved. No part of this
publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language or computer language, in any form or by any means, electronic, mechanical,
magnetic, optical, chemical, manual or otherwise, without the prior written permission of this
company.
This company makes no representations or warranties, either expressed or implied, with respect to
the contents hereof and specifically disclaims any warranties, merchantability or fitness for any
particular purpose. Any software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not this company, its distributor,
or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or
consequential damages resulting from any defect in the software. Further, this company reserves
the right to revise this publication and to make changes from time to time in the contents thereof
without obligation to notify any person of such revision or changes.

Trademarks

DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks are the

property of the respective manufacturers.

Safety

This equipment is designed with the utmost care for the safety of those who install and use it.
However, special attention must be paid to the dangers of electric shock and static electricity when
working with electrical equipment. All guidelines of this and of the computer manufacturer must
therefore be allowed at all times to ensure the safe use of the equipment.

DG-WM2015DIO User Manual

5

Chapter 1 Introduction

Congratulations on your purchase of this outstanding product: DG-WM2015DIO Outdoor Wi-Fi
Access Point is designed to extend the existing wired network. It has the ability to operate in
different modes and can be used in a wide variety of wireless applications like AP, WDS
Point-to-Point or Point-to-Multipoint. Client and Universal Repeater Mode not only have an easier
setup method, but also provide better performance and compatibility to create a virtually larger
wireless network infrastructure by linking up other access points.
In order to be working well in different outdoor environment, DG-WM2015DIO equips an IP55
compliant plastic housing, and also has an anti-UV coating on it. Together with its designed wall
and pole mounting kit, there are no difficulties with the installation. Built in a 802.3af/at standard
compliant POE (Power over Ethernet) PD, it‟s easy to power this device by a Ethernet cable and a
standard PoE power supply unit. In most situations, the internal Wi-Fi directional antennas should
be powerful enough for data transmission. However, two additional SMA connectors are reserved
for omni external antenna.

1.1 Package Contents

Before you start using this access point, please check if there’s anything missing in the package,
and contact your dealer of purchase to claim for missing items:

 DG-WM2015DIO Outdoor Wi-Fi Access Point
 1 User Manual CD (includes user manual & QIG)
 Pole Mounting kit (2 Nos.)

DG-WM2015DIO User Manual

6

 Do not use the product in high humidity or high

temperatures.

 Do not use the same power source for the Product as

other equipment. Only use the power adapter that comes
with the package. Using a different voltage rating power
adapter may damage the device.

 Do not open or repair the case yourself. If the Product is

too hot, turn off the power immediately and have it
repaired at a qualified service center.

 Place the Product on a stable surface and avoid using this

product and all accessories outdoors.

Attention

1.2 Hardware Installation

1.2.1 WARNING

1.2.2 SYSTEM REQUIREMENTS

The following system requirements are recommended:

 Notebook or desktop PC with network adapter (wired/WLAN)
 Windows, Macintosh or Linux based operating system.
 Web browser (IE 6.0 or higher, Chrome 2.0 or higher, Firefox 3.0 or higher, Safari 3.0 or

higher)

DG-WM2015DIO User Manual

7

Auto MDI/MDIX RJ45 Port, POE
Input

Reset /WEC
Button

LED
Indicators

SMA connector for

2.4G omni antenna

SMA connector
for 2.4G omni
antenna

1.2.3 Hardware Configuration

 Front View (Remove bottom cover)

DG-WM2015DIO User Manual

8

Device Label

Wall
Mounting Kit

Screw brass
for optional
Pole mounting
kit

Wall
Mounting Kit

Reset Button

The RESET button provides user with a quick and easy way to reset the default setting. Press the RESET
button continuously for 6 seconds, and then release it. The device will restore to factory default settings.

 Back View

DG-WM2015DIO User Manual

9

Screw for fixing
bottom cover

Outlet for
Ethernet

Outlet for RF cable
antenna is used

Outlet for RF cable
antenna is used

 Bottom View

※ Rubber Pad

All the outlets at bottom cover will be blocked by rubber pads during shipment.

DG-WM2015DIO User Manual

10

LED

Description

Status

Red in flash: The device is in recovery mode or abnormal.
Flash per Second: System Normal.

OFF: The device is powered off.

Wi-Fi

Master Mode: Red
Slave Mode: Green
Green or Red LED in Slow flash: Wireless Connection doesn't establish.
Green or Red LED in Solid: Wireless Connection established successfully.

LAN

OFF: No Ethernet connection.
Solid Green: Ethernet connection is linked.
Flash Green: Data packet is transferred over the Ethernet link.

Signal
Indicator

Amber LED (Green + Red ):
The device shows Signal quality 5 times every 8 seconds.
The cycle of Signal Detection is about 8 seconds.
Excellent Quality
Amber in flash: Rx 100~ 76 % 3 LEDs: LAN LED (1) + Wi-Fi LED (2) + Status LED (3)
Good Quality
Amber in flash: Rx 75~ 51 % 2 LEDs: LAN LED (1) + Wi-Fi LED (2)
Medium Quality
Amber in flash : Rx 50~ 26 % 1 LED) :LAN LED
Poor Quality
Rx under 25 % NO Amber Flash

1.2.4 LED Indicators

DG-WM2015DIO User Manual

11

Function

Button

Description

Easy Configuration
(Master to Slave)

WEC/Reset
(Press 3 sec)

There are two alternative AP modes defined for the device to
operate with WEC (Wireless Easy Connection) feature. One
is Master Mode (by default), and the other is Slave Mode.
Please manually configure the Wireless Setting for the
Master AP through web UI first, and also prepare a Slave AP
that has already been set to Slave Mode.
Press the WEC/Reset button of the Master AP for 1~3
seconds, release it to trigger the WEC process. Then, Wi-Fi
Green LED flashes fast.
Press the WEC/Reset button of the Slave AP for 1~3 seconds,
release it to trigger the WEC process. Then, Wi-Fi Amber
LED flashes fast.

Note: The Slave AP must be an un-configured one, if it
has already been paired and configured before, please
reset its Slave configuration first.

After a few seconds (normally about 30~60 seconds). The
Master and Slave APs can be paired automatically, and
auto-duplicates the VAP1 wireless setting of the Master AP
as that of the Slave AP.
(If there is something wrong during paring the two devices,
the process will be finished in 2 minutes.)
Once the easy configuration process completes, the Status
LED will be recovered to its original behavior (prior to
triggering it). And the Wi-Fi LED will be Solid when Slave
AP is connected to the network.

Easy Configuration

WEC/Reset

Besides the above “Master to Slave” configuration, the

1.2.5 Button Definition

There is one multi-function push button “WEC/Reset” in this device. According to different button
pressed duration, the device will take specific reaction. For ease of interacting with the device, you can also
check the Status and Wi-Fi LED to determine when to release the button. The Reset/WEC button’s
behavior is defined below:

DG-WM2015DIO User Manual

12

(Slave to Slave)

(Press 3 sec)

easy configuration process also supports “Slave to Slave”
configuration.
Press the WEC/Reset button of the first Slave AP (say Slave1
that has been paired and configured) for 1~3 seconds, release
it to trigger the WEC process. Then, the Wi-Fi LED flashes
fast.
Press the WEC/Reset button of the second Slave AP (say
Slave2 that is an un-configured Slave AP) for 1~3 seconds,
release it to trigger the WEC process. Then, the Wi-Fi LED
flashes fast.
After a few seconds (normally about 30~60 seconds). The
Slave1 and Slave2 APs can be paired automatically, and
auto-duplicates the wireless setting of the Slave1 as that of
the Slave2.
(If there is something wrong during paring the two devices,
the process will be finished in 2 minutes.)
Once the easy configuration process completes, the Status
LED will be recovered to its original behavior (prior to you
triggered it).

AP Mode Toggling

WEC/Reset
(Press 8 sec)

There are two alternative AP modes defined for the device to
operate with WEC (Wireless Easy Connection) feature. One
is Master Mode (by default), and the other is Slave Mode.
To change the AP mode from one to the other, you have to:
Press the WEC/Reset button for 6~10 seconds, and then
release it.
The Wi-Fi LED becomes OFF in 3 ~ 5 seconds.
After about 20 ~ 25 seconds, the Wi-Fi LED will be lit ON
again to indicate that the AP Mode is changed.
It takes about 36 seconds to change (toggle) the AP Mode
completely.
Wi-Fi Red LED : Device is in Master Mode
Wi-Fi Green LED: Device is in Slave Mode

Reset Slave AP
Configuration

WEC/Reset
(Press 13 sec)

Press the WEC/Reset button for about 11~15 seconds and
release it.
The Slave AP will be marked as an un-configured device, so

DG-WM2015DIO User Manual

13

that it can be paired with another Master or configured Slave
AP later.
For Master AP, there is no effect on this button behavior.

Reset to Default

WEC/Reset
(Press 20 sec)

Press the Reset/WEC button for about 20 seconds till the
Status LED becomes solid Green to indicate that the reset to
default function is triggered. Release the button.
Then, the device will reboot automatically and apply the
factory default settings as well.
It takes about 2 minutes to finish the reset to factory default
operation.

DG-WM2015DIO User Manual

14

Wall Mount Bracket

Metal Ring for Pole Mounting

Chapter 2 Getting Started

Before you can install this product to designated location and make it operate properly, you have
to configure the device setting to fit in your network environment.

2.1 Hardware Installation

2.1.1 Mount the Unit

The unit can be mounted on wall or pole. It is designed with wall-mount bracket for attaching to
the wall, or fixing on a pole by metal rings.

DG-WM2015DIO User Manual

15

Step 1:

Unscrew bottom
cover and remove it.

Step 2:

Insert RJ45 Ethernet
cable firmly and settle
cable in the fillister.

Step 3:

Put back bottom cover
and fasten the screw.

2.1.2 Connecting Power

The unit can be powered by 802.3af or 802.3at compliant POE power supply, or compatible
passive POE power supply. Using other passive POE power supply is dangerous and may cause
damage to the device. Please follow instructions below to connect power to this device.

DG-WM2015DIO User Manual

16

Step 4:

Connect the other end of
Ethernet cable to POE port of
POE power supply

Step 5:

Connect the power cord of POE
power supply to wall socket

2.1.3 Connecting to the Network or a Host

DG-WM2015DIO provides one Gigabit PoE LAN port to connect to the PoE power supply via a
RJ45 cable as described in Section 2.1.2. The PoE LAN port can auto detect the transmission
speed on the network and configure itself automatically. The device is powered from the PoE
power supply via RJ45 cable and PoE LAN port. Besides, use another RJ45 cable to connect the
Data/IN port of PoE power supply to your computer‟s network port. In this way, you can use two
RJ45 Ethernet cables to provide power source for the device and connect it to the host PC‟s
Ethernet port for configuring or troubleshooting the device.

Software Preparation:

Most computers are connecting to a local network with dynamic IP (DHCP) setting. To access the
web UI of the device, you have to change your computer‟s TCP/IPv4 settings into a static IP
setting for the Ethernet Interface.
The device‟s default IP address is 192.168.123.50, and your computer must be assigned with a

192.168.123.x IP address to get access to the device.

DG-WM2015DIO User Manual

17

Set the TCP/IPv4 address of your computer to 192.168.123.25, and subnet mask to

255.255.255.0.

After applying this setting, you can now access the web UI for configuring the device.

Easy Setup via Web UI
You can browse web UI to configure the device. Firstly you need to launch the Setup Wizard
browser first and then the Setup Wizard will guide you step-by-step to finish the basic setup
process.

Activate the setup wizard:

Type in the IP Address (http://192.168.123.50)

DG-WM2015DIO User Manual

18

Type the default password “admin” in the system authentication fields, and then click „login‟
button.

Note the SSID and firmware version mentioned on the top of the web page.

Select“Wizard” for basic settings in a simple way.

Press “Next” to start the Setup Wizard.

DG-WM2015DIO User Manual

19

Configure with the Setup Wizard

Step 1

You can change the password of
administrator here.

Step 2

LAN IP Address.
You have to change the IP address of
This device according to your network
configuration.

DG-WM2015DIO User Manual

20

Step 3-1

Wireless settings.
You can specify the Wireless setting for
VAP1.

Step 3-2

Wireless settings.
Specify VAP1‟s wireless authentication
and encryption.

Step 4

Check the information again.

Step 5

System is applying the setting.
