Digisol DG-WM2003SIE User Manual

DG-WM2003SIE

User Manual

V1.0

2017-11-08

As our products undergo continuous development the specifications are subject to change without prior notice.

DG-WM2003SIE User Manual

COPYRIGHT

Copyright 2017 by Digisol Systems Ltd. All rights reserved.

Company has an ongoing policy of upgrading its products and it may be possible that information
in this document is not up-to-date.

Please check with your local distributors for latest information. No part of this document can be
copied or reproduced in any form without written consent from the company.

Trademark

DIGISOLTMis a trademark of Digisol Systems Ltd. All other trademarks are the property of the
respective manufacturers.

DG-WM2003SIE User Manual

INDEX

1. Hardware and Operation Mode Instruction……………........…………………….......………………………………4

1.1. LED indicator:………………………………………….......………………………………………………………..…….4

1.2. AP Router Interface:…………………………………………….......………………………………………………..…4

1.3. Power Supply:…………………………………………………………….......……………………………………………4

1.3.1. PoE Adapter Power Supply:…………………………………….......…………………...………………...4

1.3.2. PoE Switch Power Supply…………………………...................................………........………....5

1.4. AP Router installation:…..............................................................................................….....5

2. Connect Wireless AP Router with PC:……………………………………………..…..………………………………………7

3. Login………………………………………………………………………........………………………………………………………….8

4. WEB GUI interface Setting:……………………..........…………………………………………………………………………10

4.1. Status……………………………………………….….....………………………………………………………………..…10

4.2. Wizard Configuration:…………………………….…………………….......…………….………………………….12

4.2.1. Gateway Mode:…………………………….…………………………….....………………………………...13

4.2.2. WiFi Repeater mode……………………….…………………………………….....……………………….16

4.2.3. WISP Operation mode:…………………….……………………………….....…….……………………..18

4.2.4. AP Operation mode:……………………………………………………………....…………………………20

4.3. Advanced Setting:…………………………………………………….…………...…………………………………….22

4.3.1. Device Status:……………………………………………………………………...…………………………...22

4.3.2. Wireless Setting…………………………………………………………....……….....……………………..23

4.3.3. Virtual AP……………………………………………………………………………......……………………….24

4.3.4. Access Control……………………………………………………………..……....……….………………...25

4.3.5. Advanced Settings……………………………………………………………………………………………..26

4.3.6. Network setting…………………………………………………………………………………………………26

4.3.7. Management…………………………………………………………………………….……………………...27

5. Share Internet and Obtain IP address automatically…………………………….….……..………………………..29

Trouble Shooting………………………………………………………………………………….……………………………………...30

DG-WM2003SIE User Manual

4

1. Hardware and Operation Mode Instruction

Package Contents

Before using this access point, please check if there is anything missing in the package, and
contact your dealer of purchase to claim for missing items:



DG-WM2003SIE Ceiling Mount AP Router



DC 12V Power Adapter



Patch Cord



User Manual CD



Mounting Screws

1.1. LED Indicator

Green:- Power Indicator
Blue:- WiFi Indicator

1.2. AP Interface

RST

Reset Button, it make AP Router revert to default settings after pressing it for 15
seconds.

WAN

WAN Port, connect with ADSL modem or Internet mainly. It will be LAN port under
Wireless AP Router and WiFi Repeater operation mode

LAN

LAN Port to end users

LED

LED Indicator for WAN port and LAN port

DC

DC power connector

DG-WM2003SIE User Manual

5

1.3. Power Supply

1.3.1 PoE Adapter Power Supply:

The connection diagram shown as P1, internet cable connect to PoE adapter’s LAN Port, Ceiling AP
Router’s WAN port connect to PoE adapter’s PoE Port, then PC will access into ceiling AP Router
through cable or wireless.
The wireless AP Router support 48V IEEE802.3af PoE, so PoE adapter should be 48V IEEE802.3af
PoE standard.

P1

1.3.2. PoE Switch Power Supply

The connection diagram shown as P2, Internet cable from PoE Switch to Ceiling AP Router’s WAN
Port, then PC access into ceiling AP Router via wired/wireless.
Pls note the wireless AP Router support 48V IEEE802.3af PoE, the PoE switch should comply with
48V IEEE802.3af PoE standard.

P2

1.4. AP Router Installation

For the Ceiling Wireless AP Router, will be installed under ceiling based on following steps:

DG-WM2003SIE User Manual

6

DG-WM2003SIE User Manual

7

2. Connect Wireless AP Router with PC

You can connect the PC with wireless AP Router by Wireless SSID and LAN cable:
The diagram of wireless connection showed as follow:
Pls note: the default SSID is DG-WM2003SIE, SSID’s password is blank

P3. Connect the PC to AP Router using WiFi as shown above

P4. Connect the PC to AP Router using LAN cable as shown above

DG-WM2003SIE User Manual

8

3. Login

1. Connect the Ceiling AP Router with computer by wired or wireless

2. The default IP address of this wireless AP Router is 192.168.1.200. Configure the PC’s local

connection. IP address as 192.168.1.X (X is number from 2 to 254), subnet mask is 255.255.255.0.

P5

P6

DG-WM2003SIE User Manual

9

3. Input 192.168.1.200 into browser, login page will appear, the default login password: admin.

P7: Login Page

4. After login the following page appear which shows Device Status. This page will show the device

default operation mode, Channel, Connection status, CPU usage, Wireless settings, LAN Setting,
Wireless AP’s Location, Hardware/Firmware version.

P8: Device Status

DG-WM2003SIE User Manual

10

4. WEB GUI interface Setting

4.1. Status

After login, the Device Status and home page will be showed

P9: Device Status

This page, show the device default operation mode, channel, end user QTY, connection status, CPU
usage status, Wireless, LAN and AP location info.

Then in Wireless Setting, GUI configuration page shown as below:
User can configure the SSID, Password, Band width, Channel then Apply to finish.

DG-WM2003SIE User Manual

11

P10: Wireless Setting

As shown below user can set LAN Setting to configure the DHCP or Static IP address.

P11: LAN Setting

DG-WM2003SIE User Manual

12

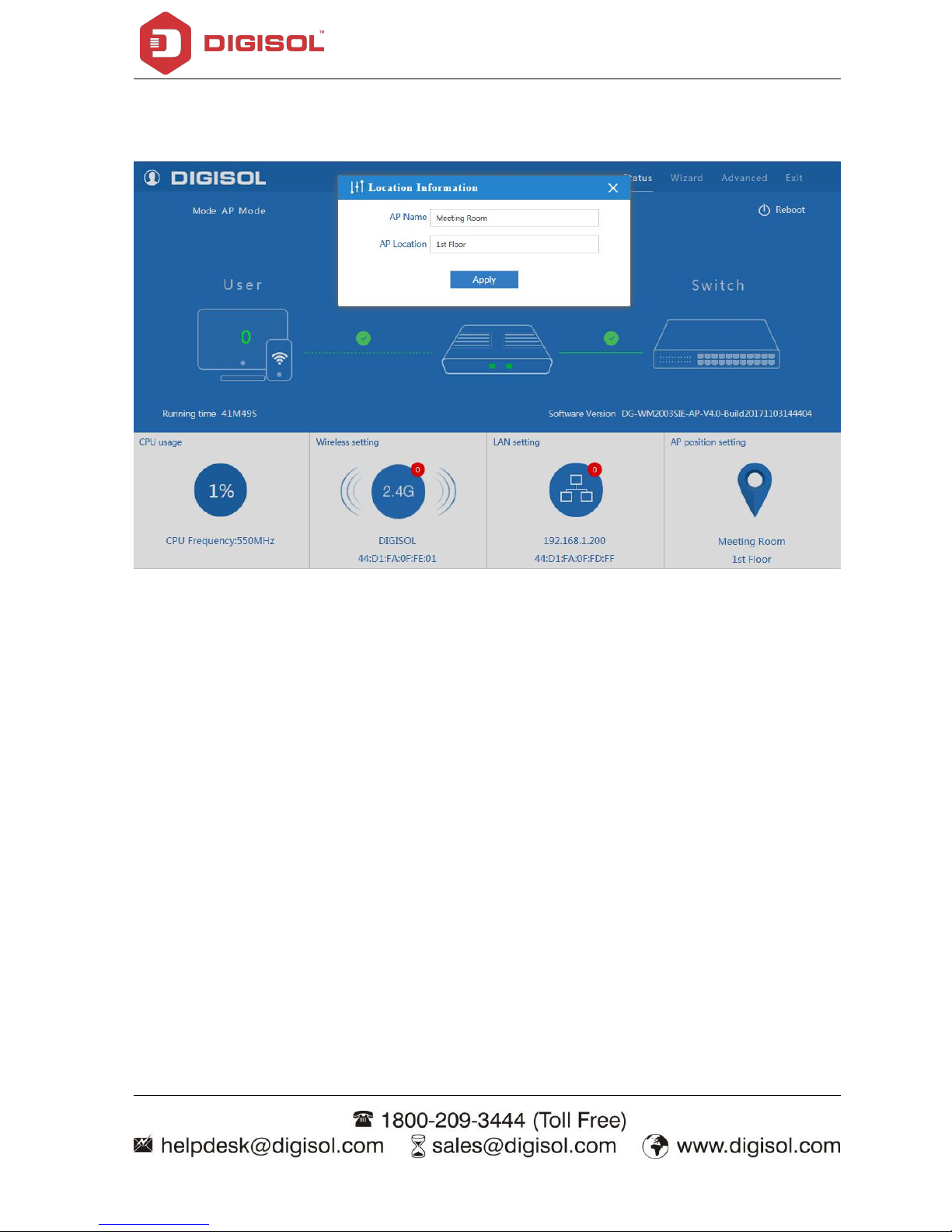

AP location setting: can mark where the AP set up, and AP name.

P12: AP Location Setting

4.2. Wizard Configuration

Wizard: It instruct users to configure wireless AP Router’s operation mode based on needs, there
are four operation mode including Gateway, Repeater, WISP, Wireless AP. Please confirm the
operation mode first before starting the configuration.

Clicking Wizard in Status page will pop up following page to configure the operation mode and
there are explanation for each operation mode for better application.

DG-WM2003SIE User Manual

13

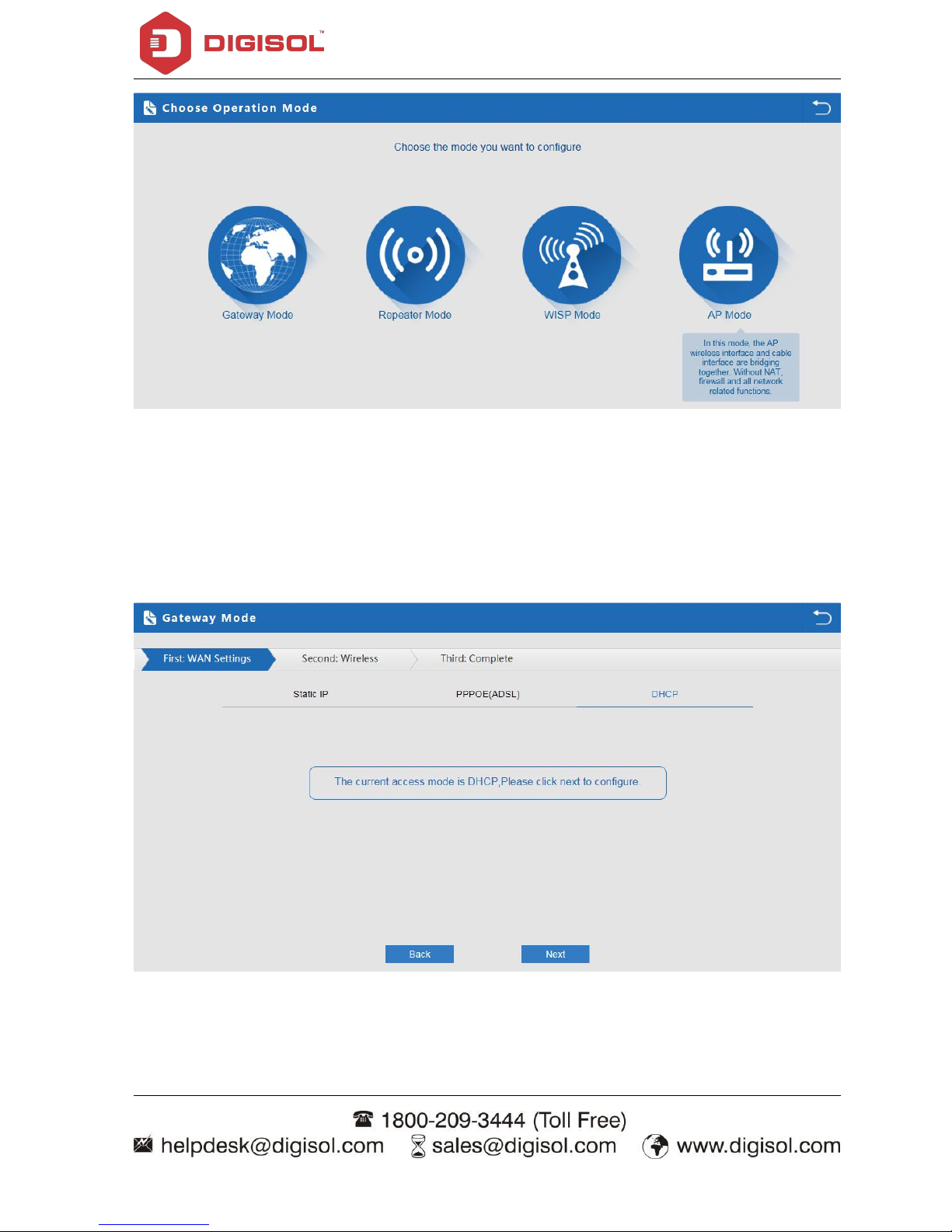

P13: Wizard Configuration

4.2.1 Gateway Mode

Before Clicking the Gateway mode, confirm your internet will be Static IP, PPPoE, or DHCP.
Then clicking on the Gateway mode will pop up the below image. Please choose the right WAN
setting mode, then click next to continue. Then configure the wireless parameters and click next.

P14: WAN setting in Gateway mode

DG-WM2003SIE User Manual

14

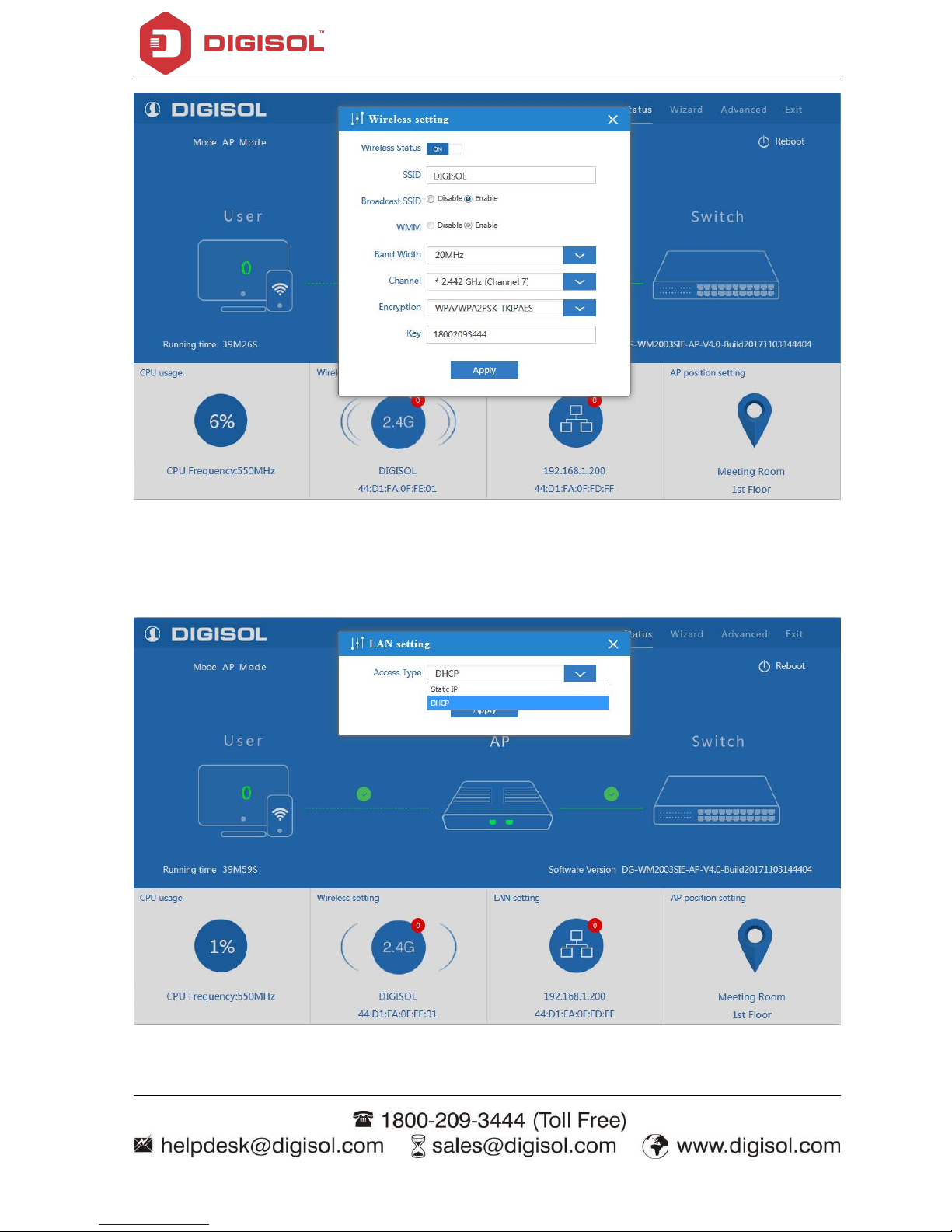

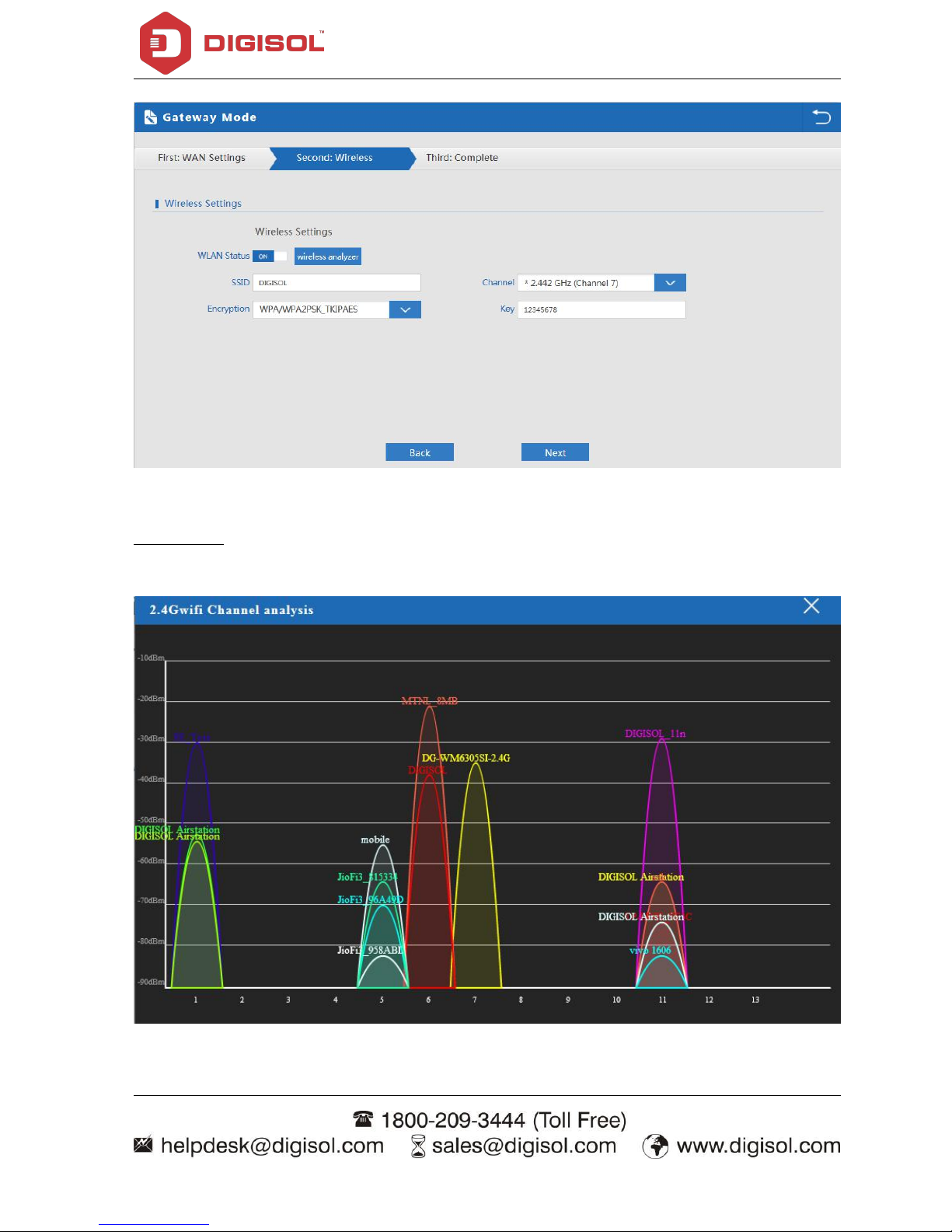

P15: Wireless setting in Gateway mode

Please note: to make the device work in some clear channel, user can click wireless analyzer at first.
Check Less AP in the channel, and then select your channel accordingly, then Wireless performance
will be more stable. Picture shown as below:

P16: Wireless Analyzer

DG-WM2003SIE User Manual

15

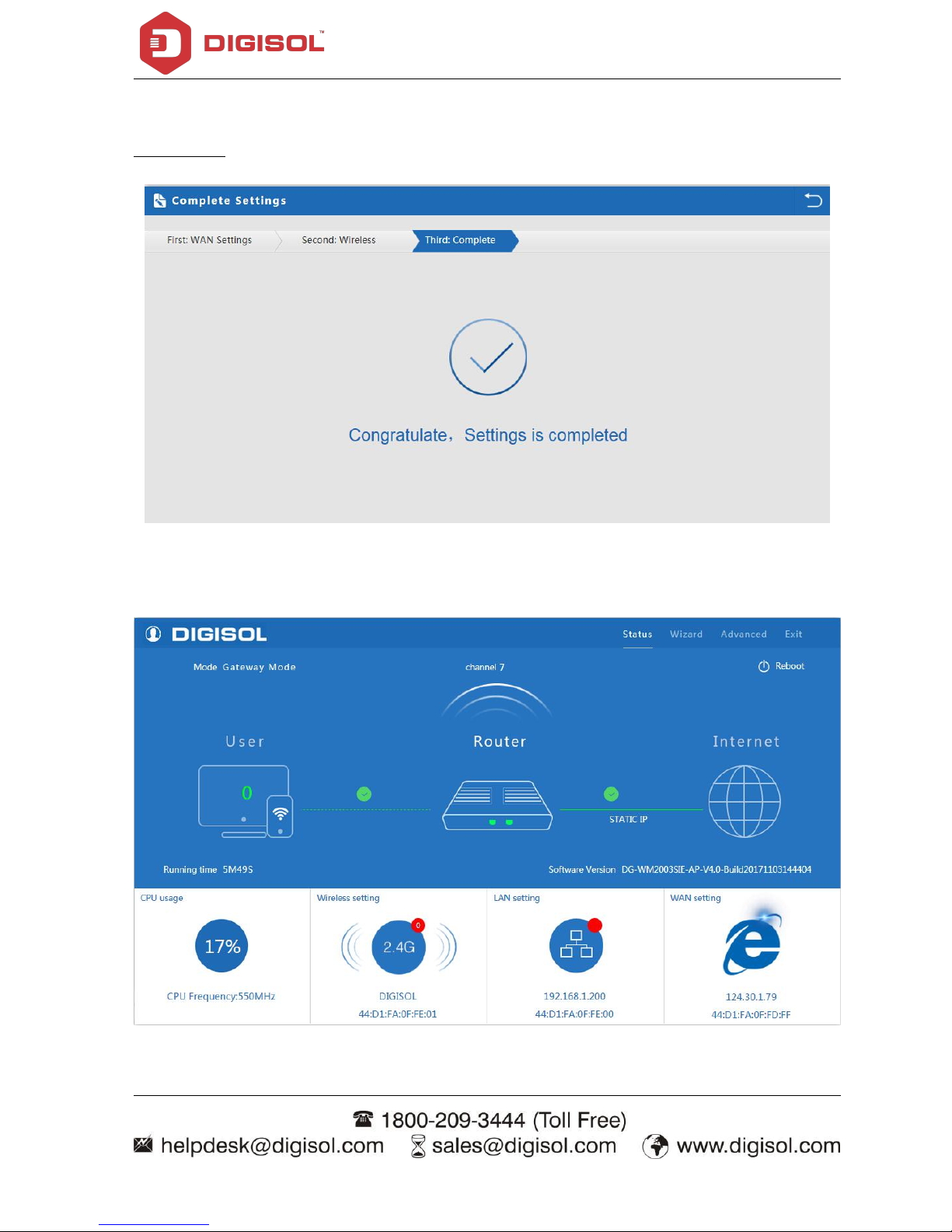

Clicking next will complete the Gateway mode setting and show following picture:

Please Note: The equipment will restart automatically for the changes to take effect.

P17: Settings complete in Gateway mode

When return to Status page, will show Wireless router’s SSID, Internet connection, LAN connection
status shown as below.

P18: Status in Gateway mode

DG-WM2003SIE User Manual

16

4.2.2. WiFi Repeater mode

1. Login the Web management page, click “Wizard” then “WiFi Repeater”

2. Scan AP and select the AP’s SSID want to bridge then input the AP’s key, click next to complete.

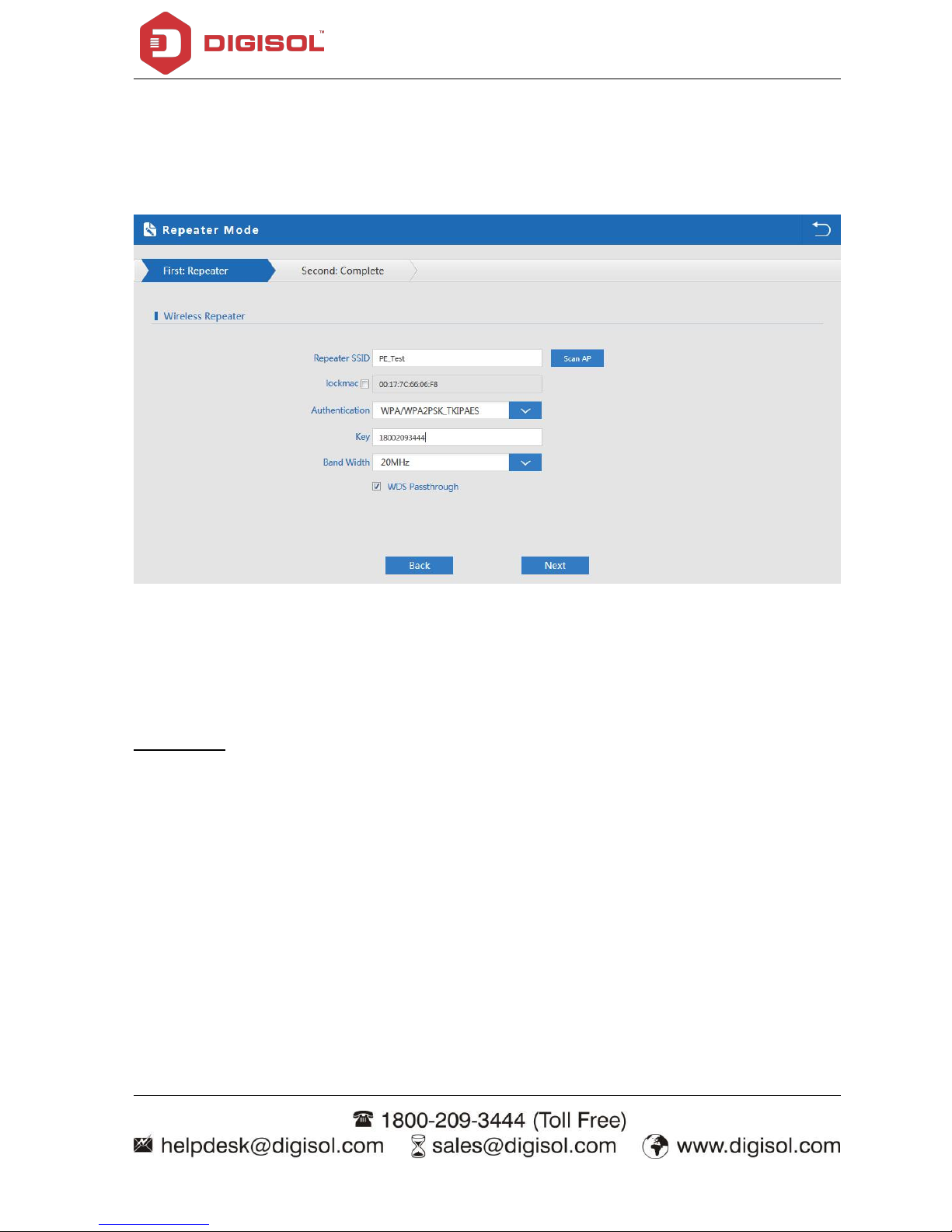

P19: Repeater mode

Click Return button, will back to Status, show Repeater mode data, will show fail or success, and
user can configure this data in this page if required.

Please Note: The equipment will restart automatically for the changes to take effect.

DG-WM2003SIE User Manual

17

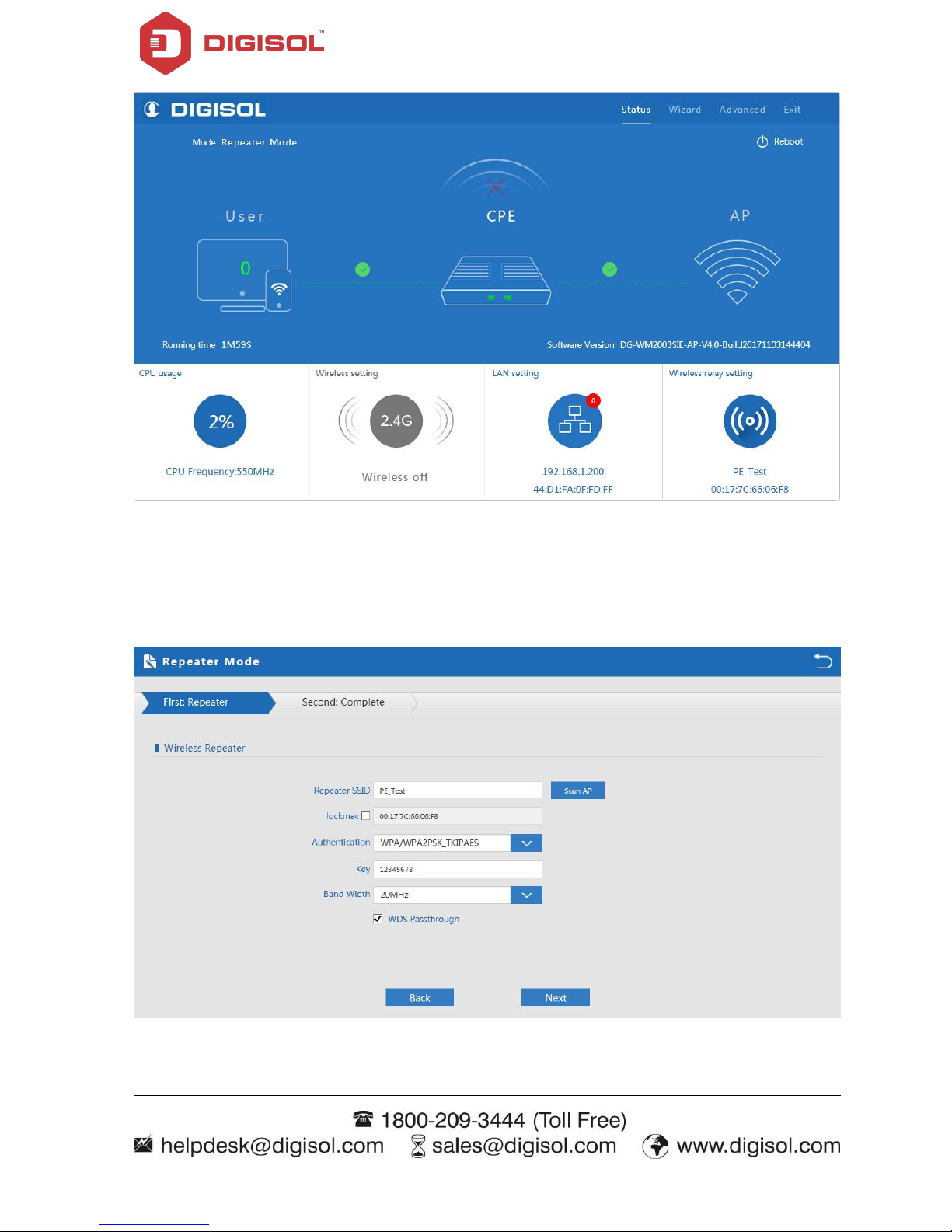

P20: Status in Repeater mode

In wifi repeater operation mode, the default is SSID disable. If you want to enable SSID, then click
Wireless Setting.
Pls note, when click wireless relay setting, following page will pop up, you can make changes from
here easily.

P21: Wireless Relay settings

DG-WM2003SIE User Manual

18

4.2.3. WISP Operation mode

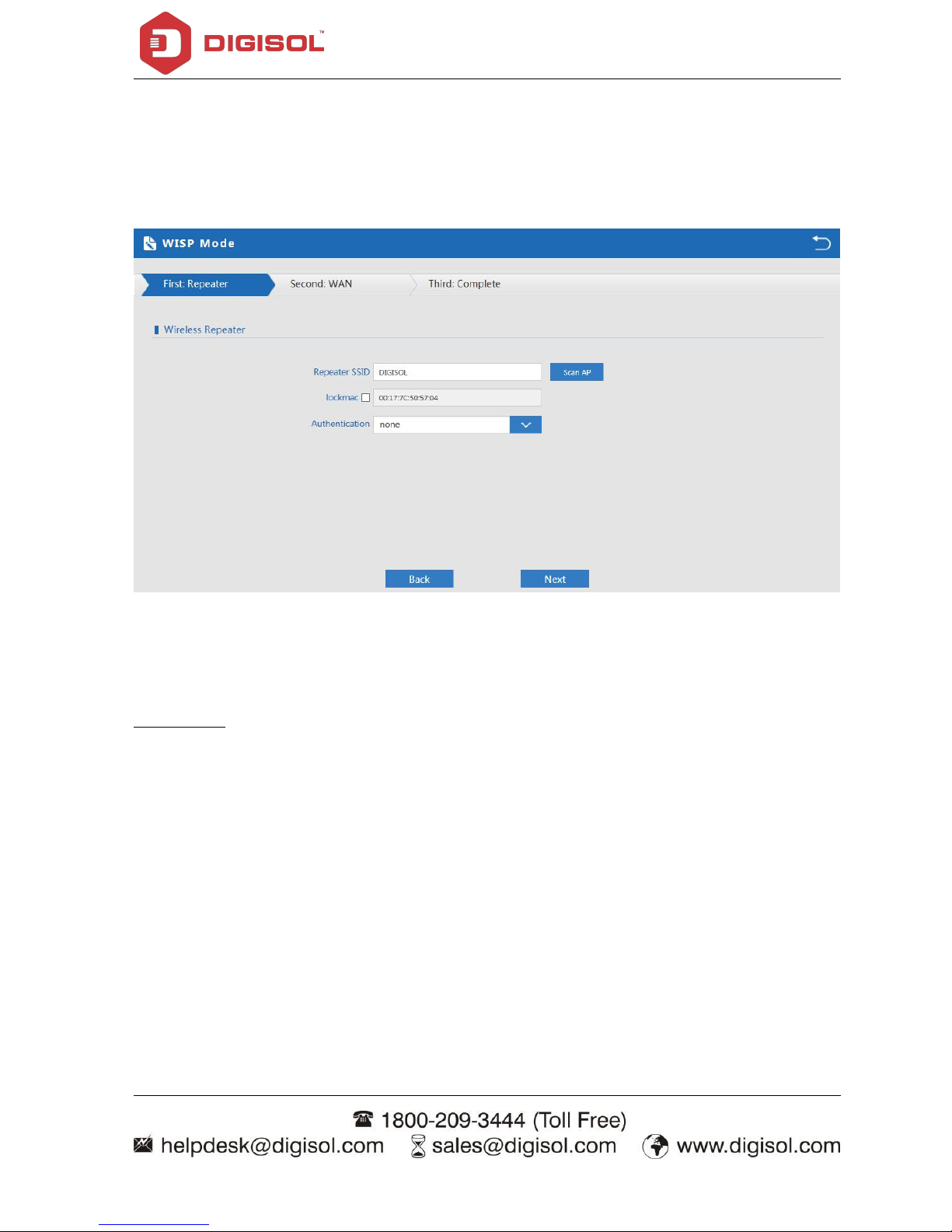

Click WISP operation mode in Wizard, then will pop up the configure page, please set the WISP
operation mode based on the steps shown in picture:

P22: WISP mode

Select the appropriate wireless AP and configure the correct WAN setting in WISP operation mode,
then next to complete.

Please Note: The equipment will restart automatically for the changes to take effect.

DG-WM2003SIE User Manual

19

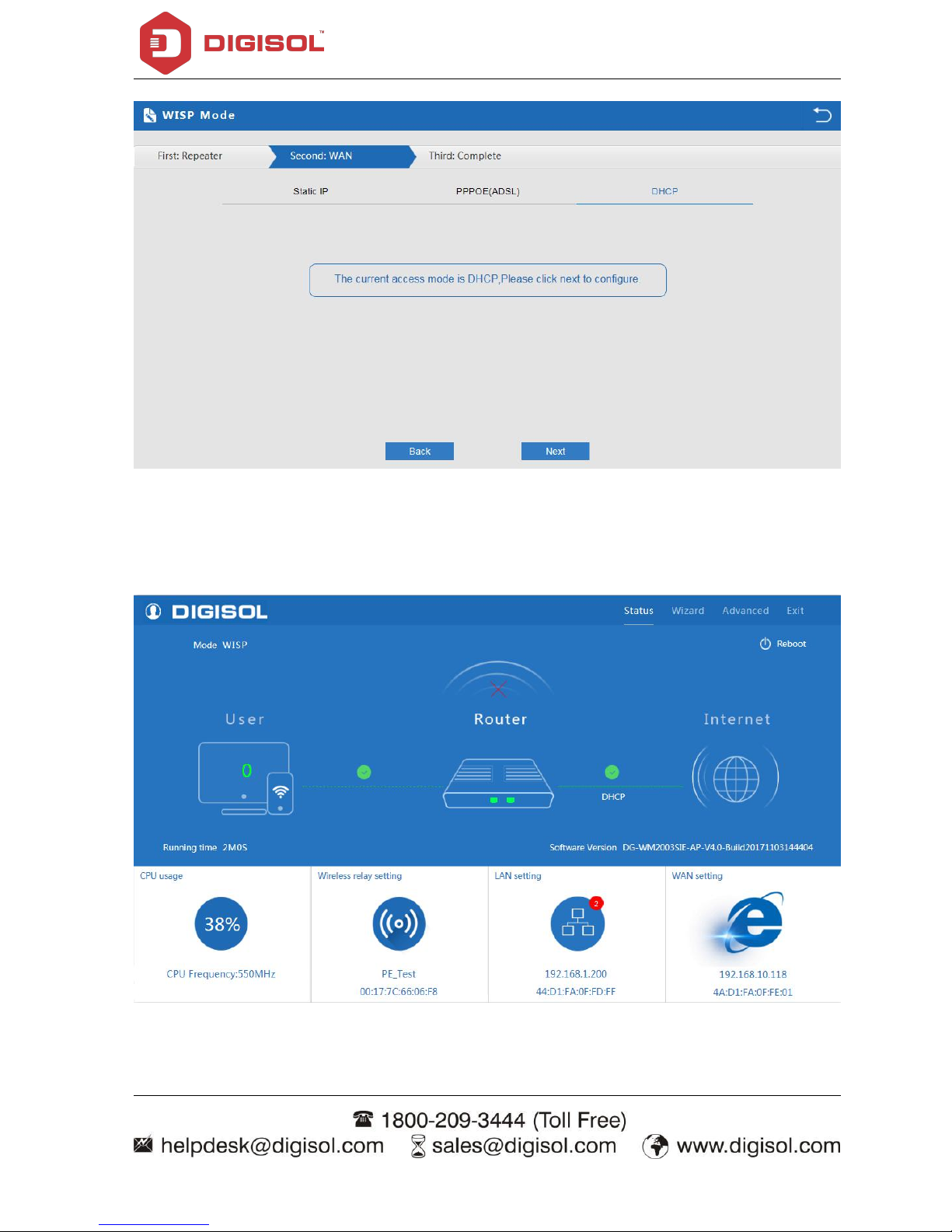

P23: WAN setting in WISP mode

Then complete and back to status, will show the connection fail or success, then can configure the
data based on request:

P24: Status in WISP mode

DG-WM2003SIE User Manual

20

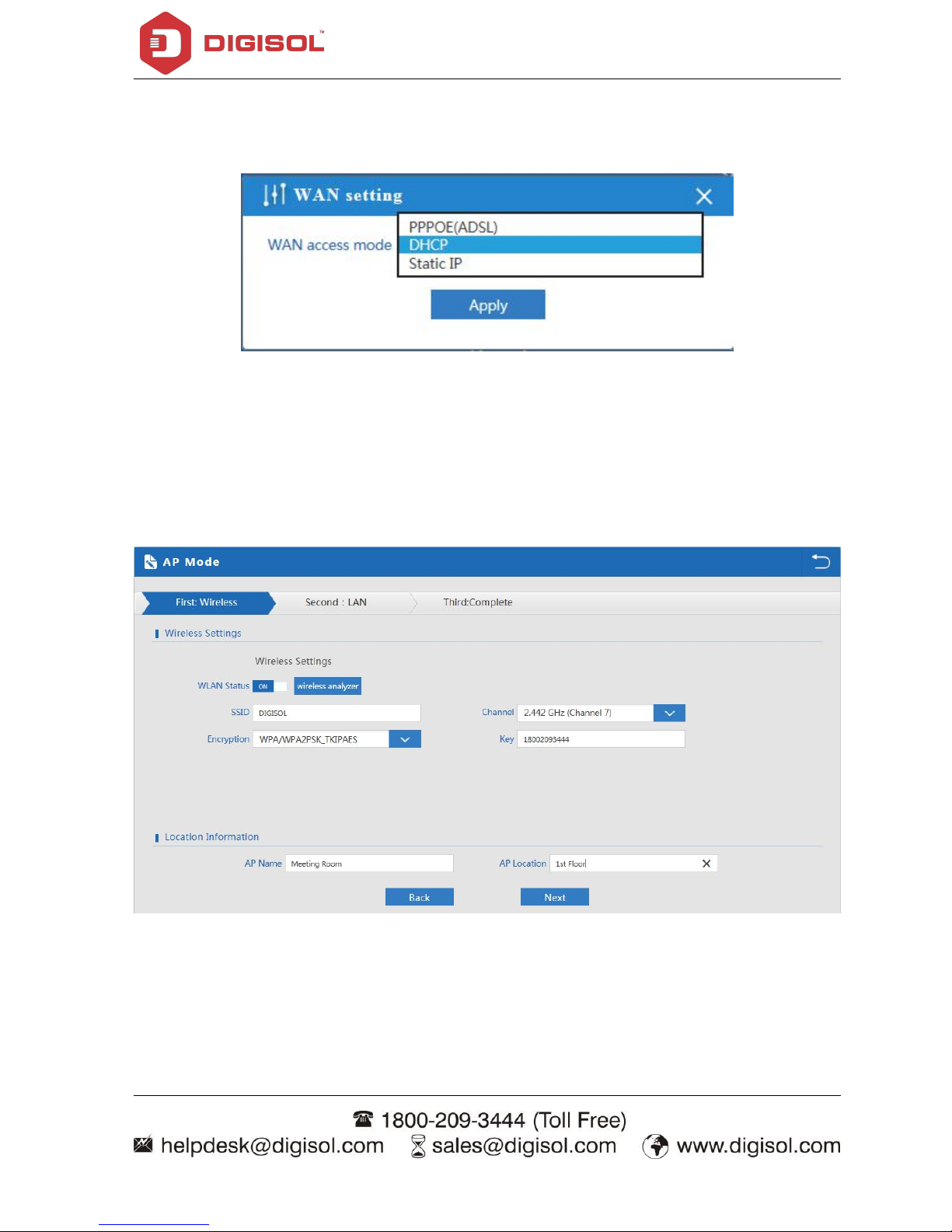

Remark: When click WAN Setting, will pop up following picture to ask you choose PPPoE, DHCP or
Static IP

P25: WAN setting in WISP mode

4.2.4. AP Operation mode

Set the wireless data, AP Location info as required, then click next to continue and enter into LAN
setting.
After LAN setting, complete the AP mode configuration and back to Status:

P26: Wireless setting in AP mode

DG-WM2003SIE User Manual

21

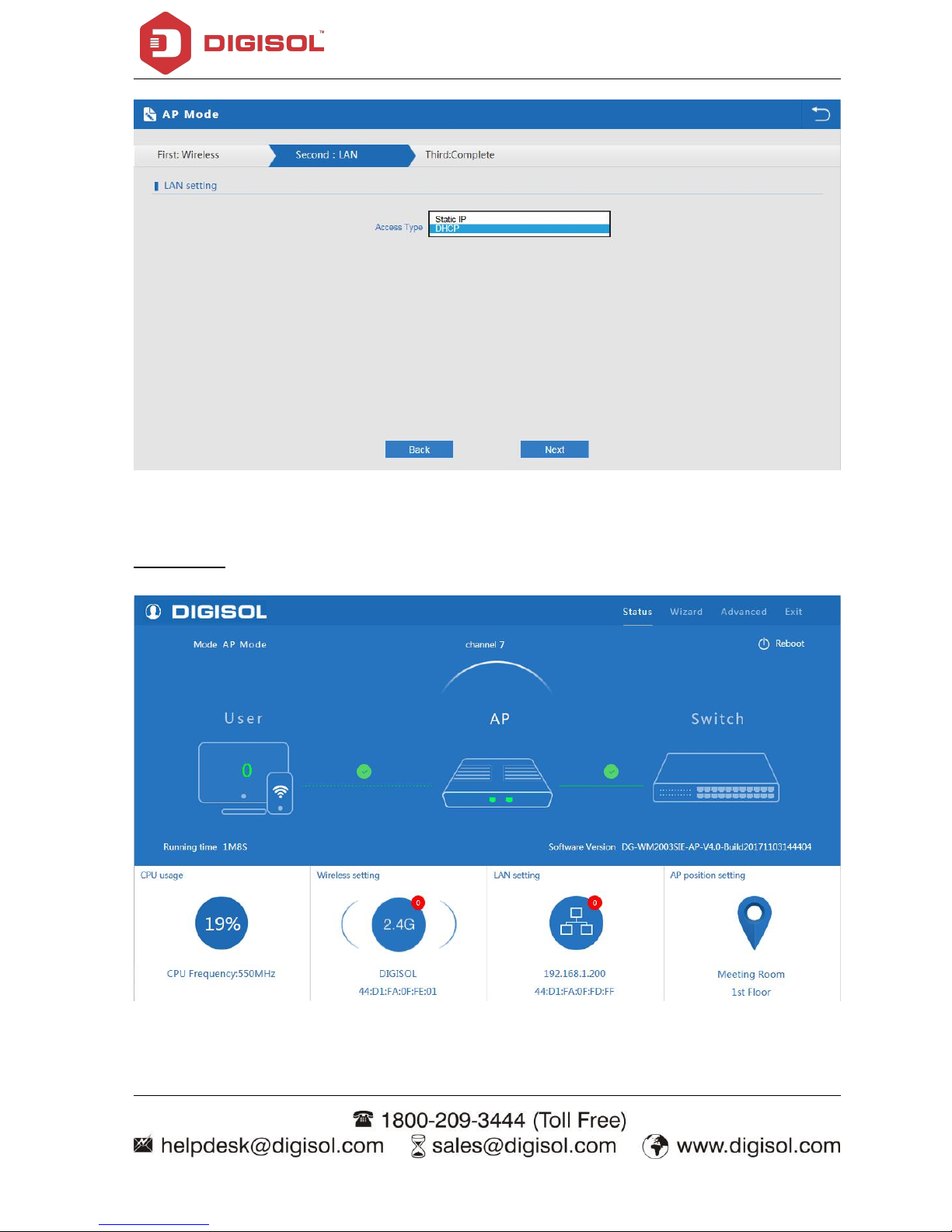

P27: LAN setting in AP mode

Please Note: The equipment will restart automatically for the changes to take effect.

P28: Status in AP mode

DG-WM2003SIE User Manual

22

4.3. Advanced Setting

In advanced setting you can get wireless AP Router’s device status, Wireless setting, Network
setting and AP management configuration.
Let’s click Advanced Setting in status page, will show Return home, Setup Wizard which we showed
before.
Let’s see more in Device Status, Wireless, Network and Management in following pages:

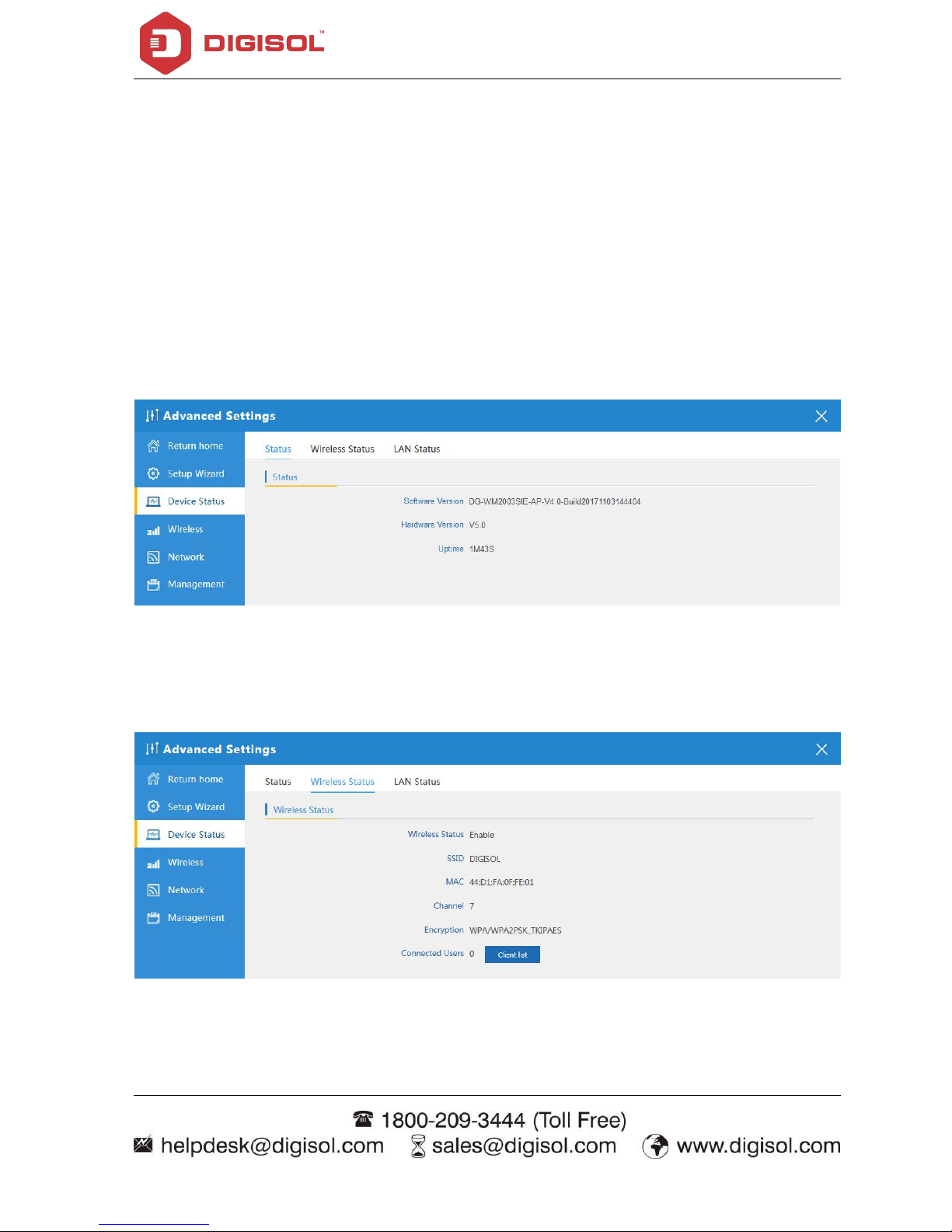

4.3.1. Device Status

To show the device status, Wireless Status and LAN status.
In status, mainly to check the AP Router’s firmware version, hardware version, uptime info.

P29: Device Status

Wireless status show wireless AP’s SSID, MAC address for WiFi, Channel, Encryption, Client List info.

P30: Wireless Status

DG-WM2003SIE User Manual

23

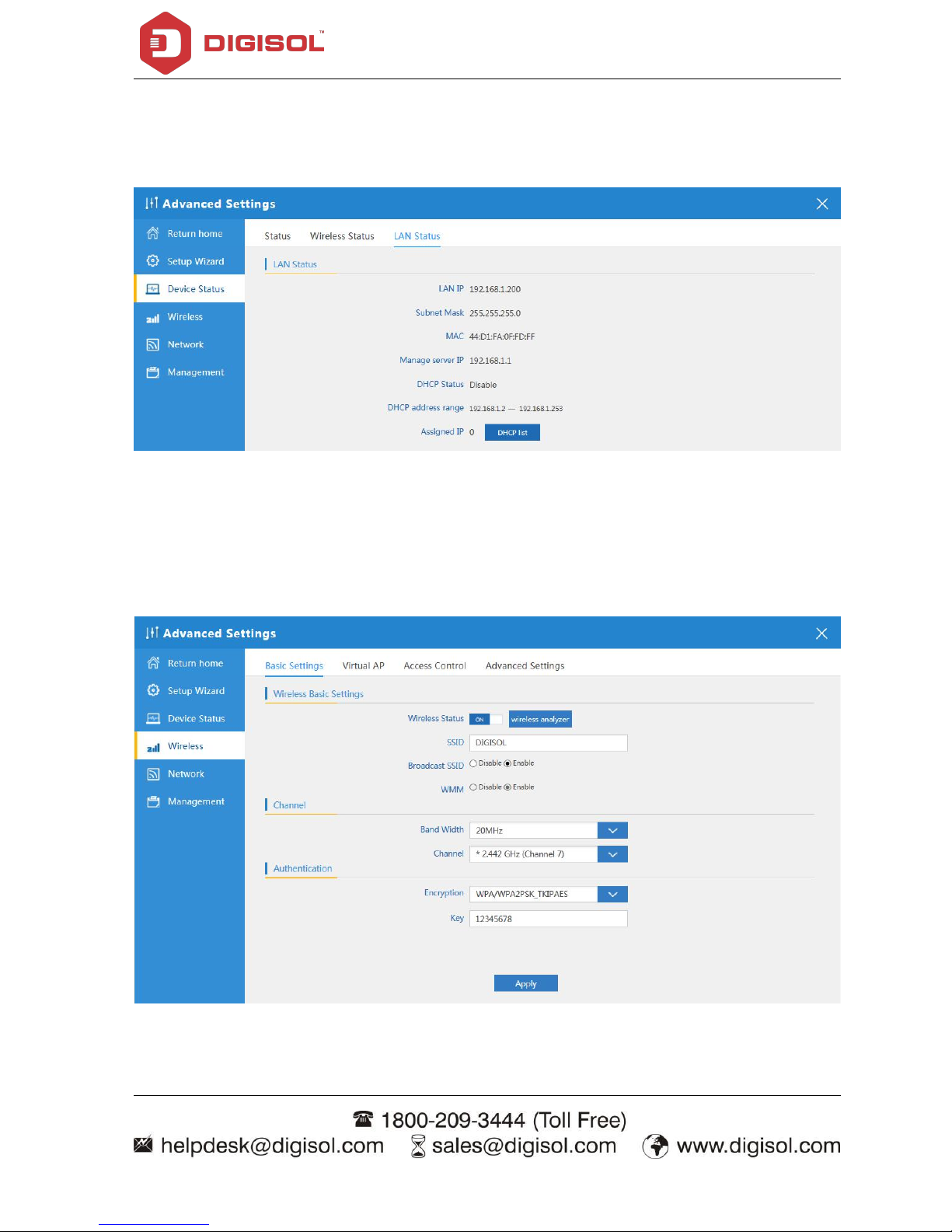

In LAN Status, we can check device IP address, Subnet Mask, LAN MAC address and other info
showed in following picture.

P31: LAN status

4.3.2. Wireless Setting

Wireless setting, mainly to configure the wireless SSID, password, encryption, channel, Multi SSID,
tag VLAN & RF power adjust from Basic Setting, Virtual AP, Access control and Advanced Setting:

P32: Basic setting in Wireless

DG-WM2003SIE User Manual

24

Wireless Status: On mean SSID on, Off mean SSID off.

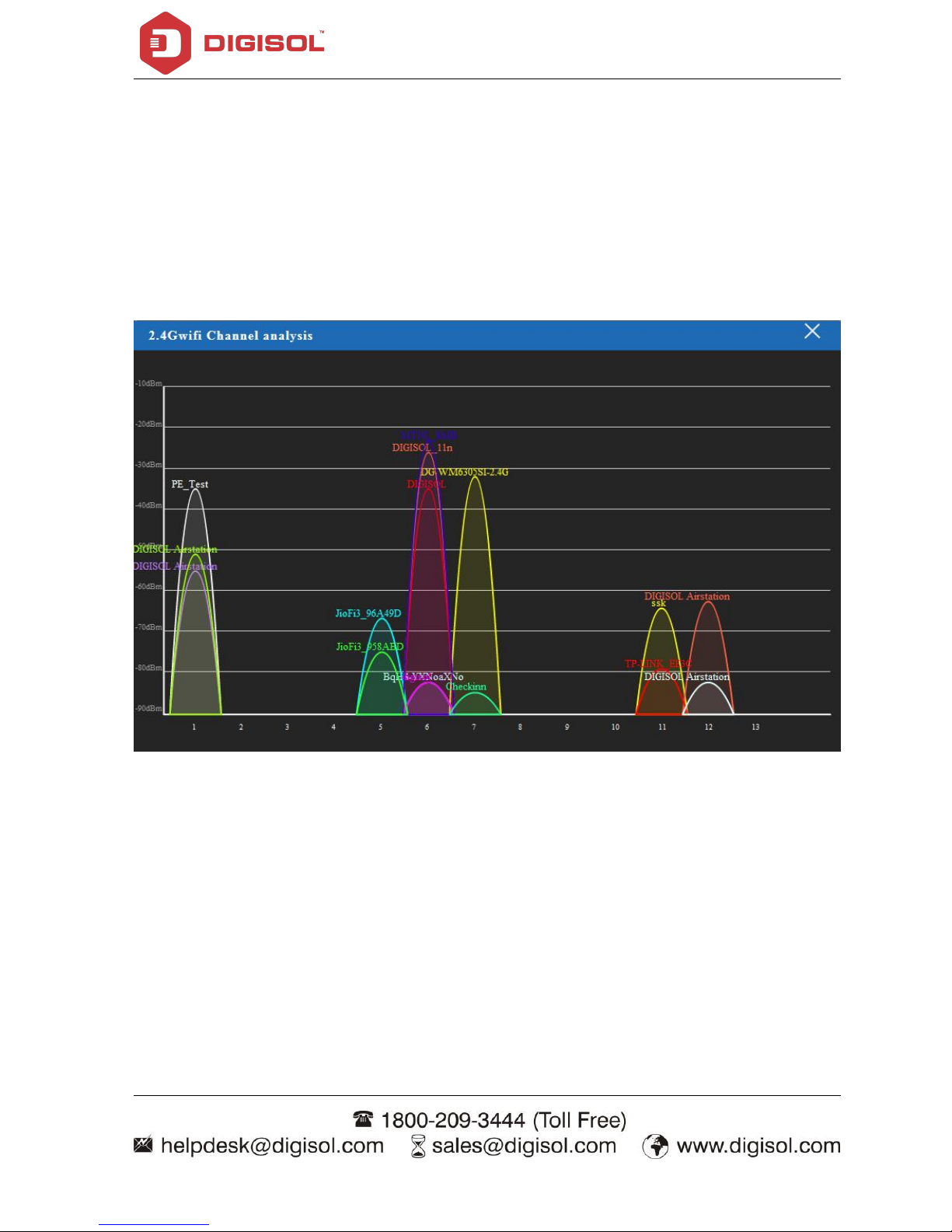

2G Wireless Analyzer: Mainly to analyze the AP’s signal strength and channel, to make user more

easy to choose the channel with less wireless AP and to avoid the Wireless Interference.

Band Width: 20MHz and 40MHz; 20MHz mean bandwidth is 144Mbps, but stronger penetration
ability. 40MHz mean bandwidth is 300Mbps, but some weaker in penetration ability and less
stability when wifi interference is strong.

P33: Wireless Analyzer

4.3.3. Virtual AP

There are 3 virtual AP in 2.4G wireless, for use of multi SSID, then users can configure it as shown in
following picture.

DG-WM2003SIE User Manual

25

P34: Virtual AP

4.3.4. Access Control

Allow or deny the users access into this device based on MAC address.

P35: MAC Access Control

DG-WM2003SIE User Manual

26

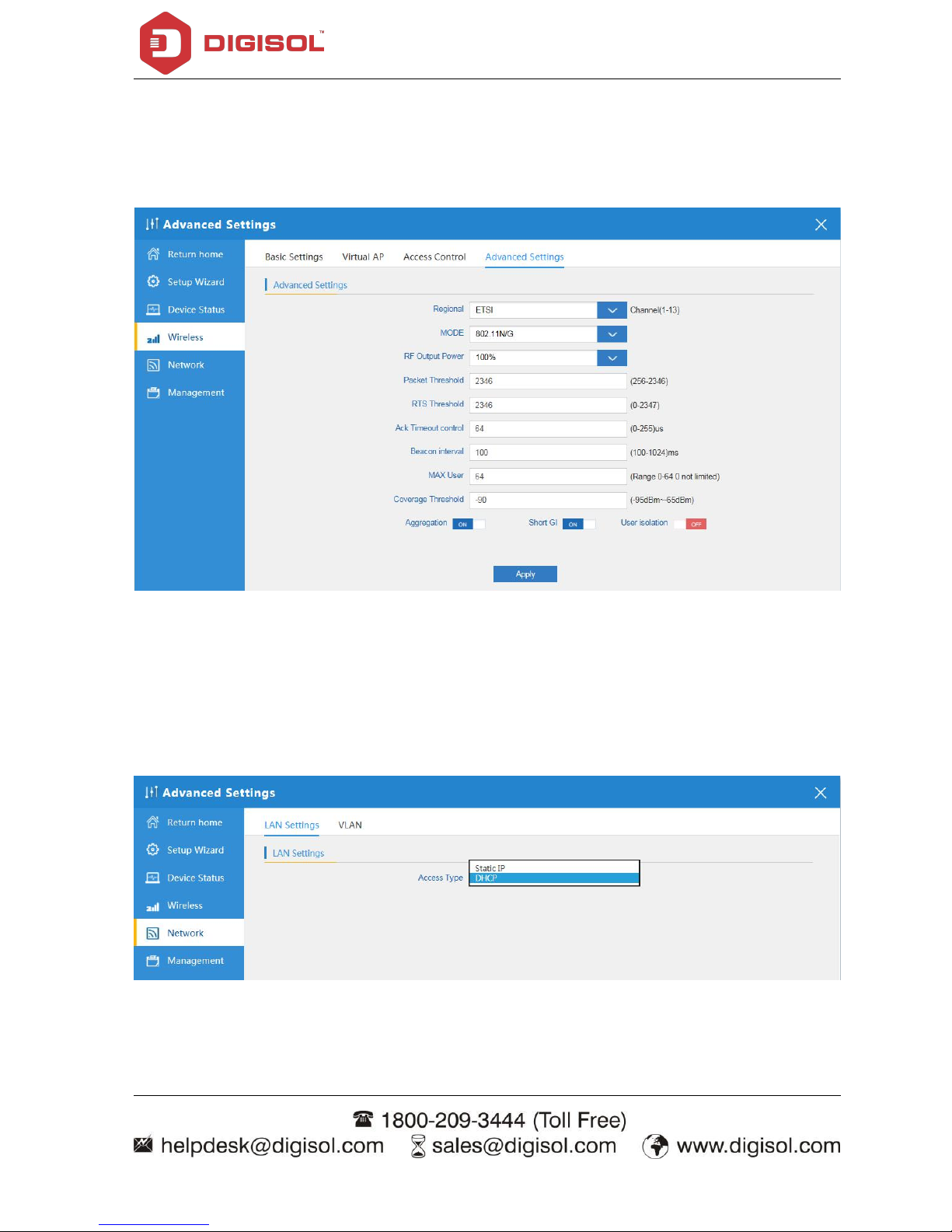

4.3.5. Advanced Settings

This page, will show the regional info, mode, RF Power, Max user access,etc.

P36: Advanced Setting

4.3.6. Network Setting

In network, you can configure LAN setting and tag VLAN as follow:
In LAN Settings, mainly including Static IP and DHCP.

P37: LAN Setting

DG-WM2003SIE User Manual

27

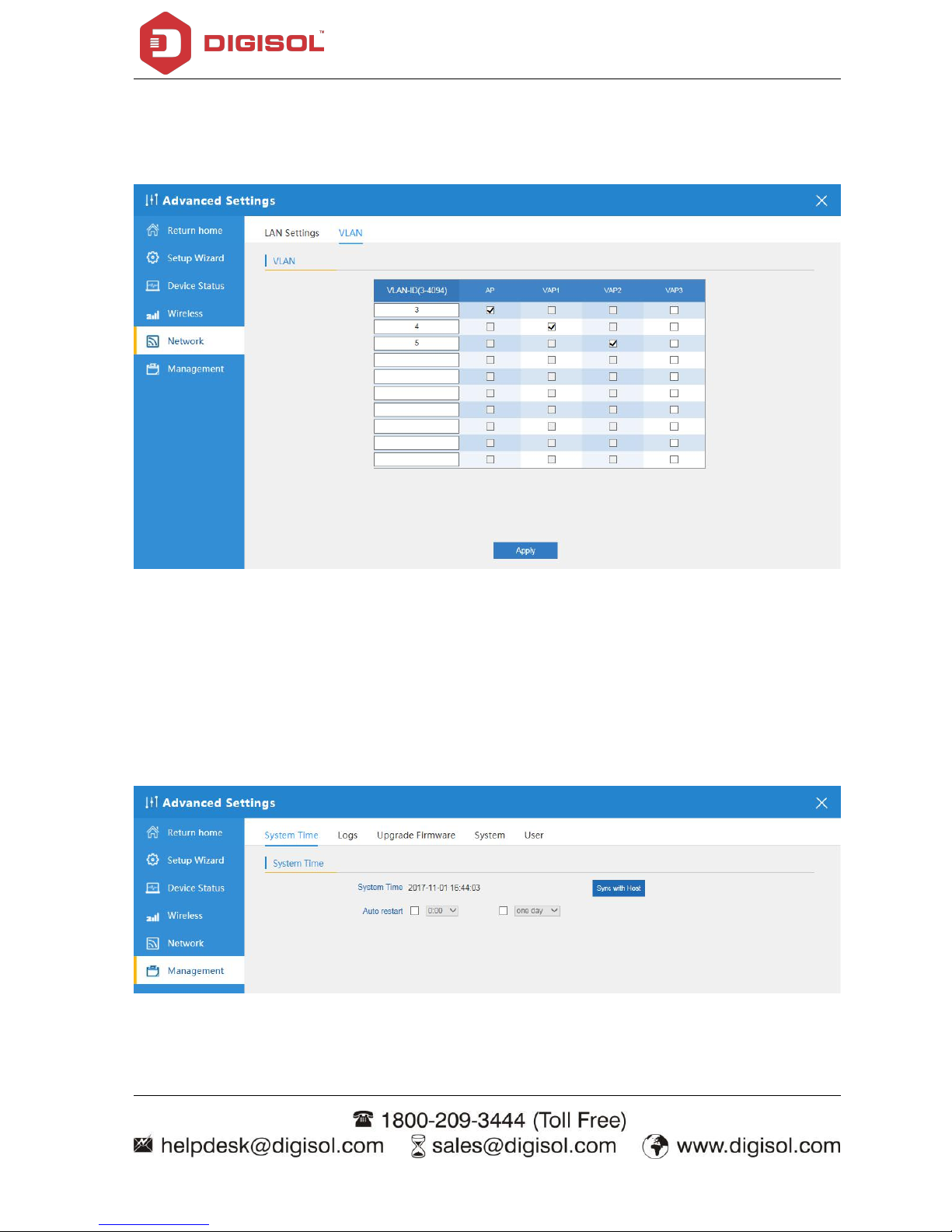

In VLAN part, you need an VLAN switch and make sure the multi SSID is enable, then input the
VLAN ID to different SSID.

P38: Tag VLAN setting

4.3.7. Management

It show’s the System time, Logs, Upgrade firmware, System, User info.

System Time:- Can confgure the device timing

P39: System Time

DG-WM2003SIE User Manual

28

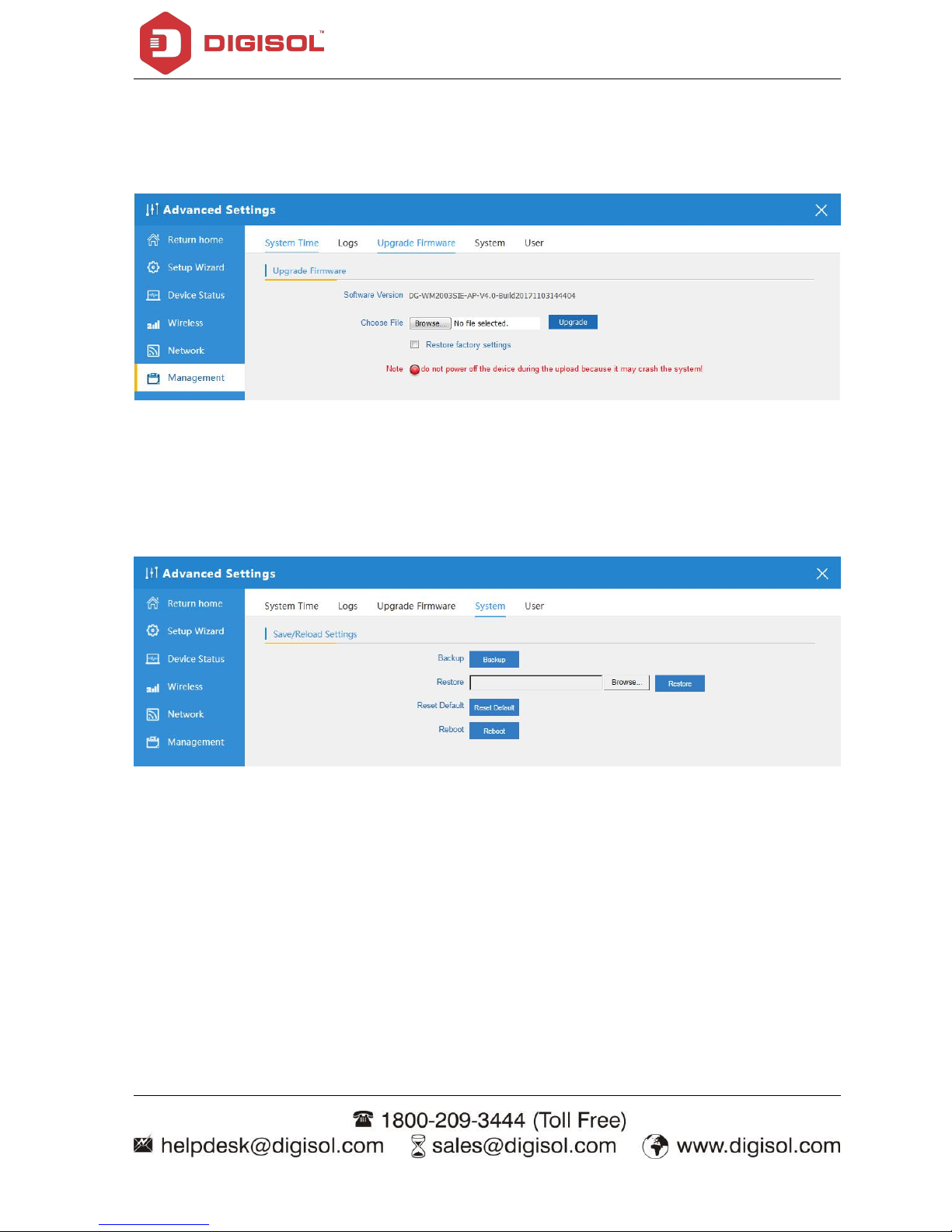

Upgrade Fimrware:- Browse the fimrware file and click on upgrade. Wait till the upgrade is
successfull. The device will reboot automatically and successfull firmware upgrade.

P40: Firmware Upgrade

System:- You can save the config or restore the previously saved config or reset the device to its
default config.

P41: System

DG-WM2003SIE User Manual

29

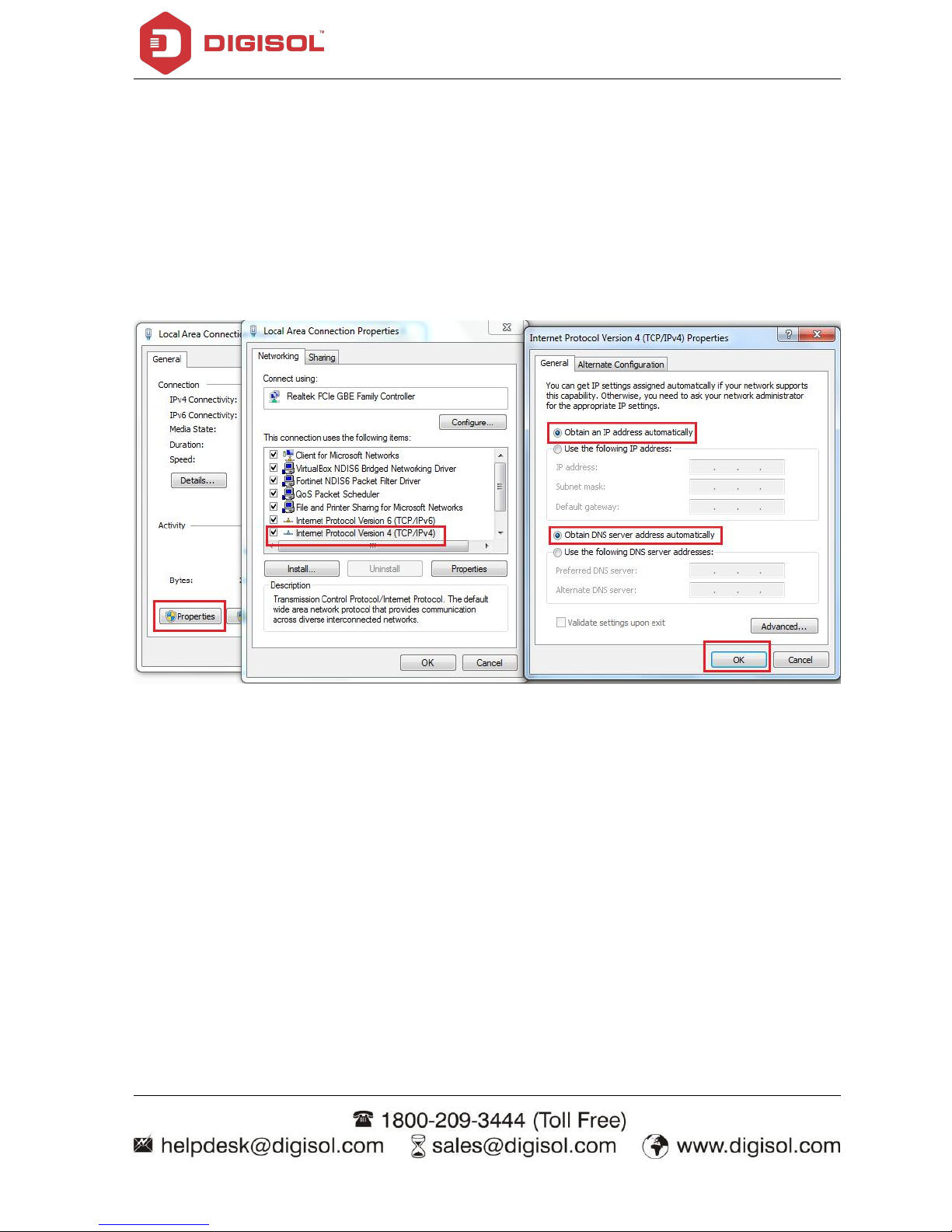

5. Share Internet and Obtain IP address

automatically

Set computer’s TPC/IP as Obtain an IP address automatically, Obtain DNS server address
automatically as following picture showed.
The computer will obtain the IP address from router or base station to get Internet.

P42

DG-WM2003SIE User Manual

30

Troubleshooting

The Failure phenomenon and solution.

If the problems are not listed, please contact the local service or call the Toll Free service. We are
willing to offer the service.

Failure phenomenon

Solution

SYS Indicator off

Pls make sure the PoE module connection is right. POE
Port connect with AP, LAN port connect with computer

Can’t land to Wireless AP Router
through Web page

Pls check the IP address of computer and Wireless AP
Router to see whether they are in same networking
segment, The method is click “start”-“Run” input“cmd”，
ping 192.168.1.200 to test the device connectivity.
Reset Wireless AP Router and load it again;
Pls make sure the IP address 192.168.1.200 is not
occupied by other device in AP Router’s network;
Check computer and cable problem, recommend to use
10/100M UTP unshielded cable;
Clean up Arp binding from “Start”-“Run” input“cmd” arp
–d
Clean the IE Brower’s temporary files and Cache file。

Wireless AP Router can’t connect
with AP
(the status display unconnected）

Try to scan the avaliable wireless networking again；
Make sure the AP’s wireless standard is correct；(2.4Ghz
signal should connect 2.4Ghz, 5.8Ghz signal should
connect 5.8Ghz signal; )
The Security and passwords are matched between
Wireless AP Router and AP.
The signal strength of AP is too weak to connect, should
be more than -75dBm；

Can’t scan the wireless AP

Scan it several times more；
If using 5Ghz to scan, please make sure there are 5G
signal existed.
Reset the device, scan it again after device restarts；

The connection of Wireless AP
Router and AP is success, but the
computer can’t share internet

Pls Check the computer’s IP address and DNS setting. If it
is dynamic, set the network card as automatically obtain.
If it is static IP, pls contact with ISP for correct IP address
and DNS address.

DG-WM2003SIE User Manual

31

How to Reset Wireless AP Router

Press the “Reset” button more than 15 seconds after
power on. The device will restore factory default after it
restarts.

This product comes with three Years warranty. For further details about warranty policy and

product registration, please visit support section of www.digisol.com

DG-WM2003SIE User Manual

32

DG-WM2003SIE User Manual

33
