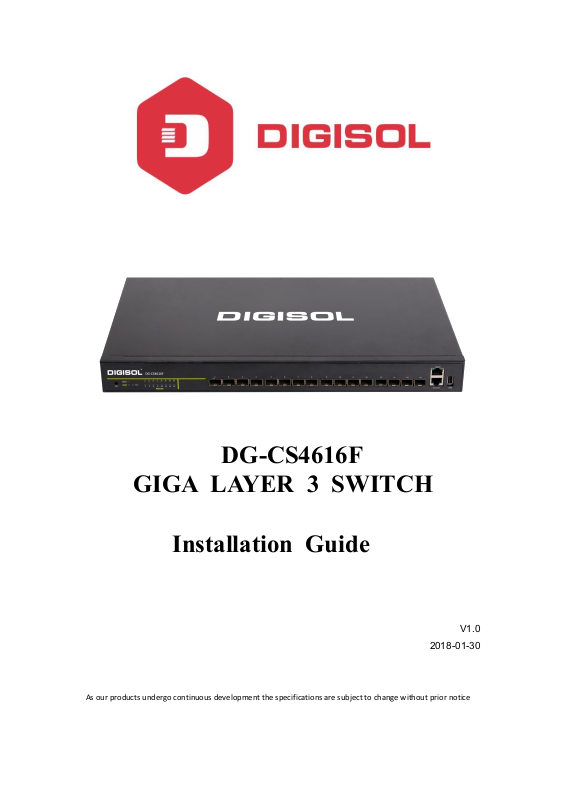

Digisol DG-CS4616F Installation Manual
DG-CS4616F
GIGA LAYER 3 SWITCH
Installation Guide
V1.0
2018-01-30
As our products undergo continuous development the specifications are subject to change without prior notice
Content
DG-CS4616F Installation Guide
Chapter 1 Introduction
.....................................................................
1.1 Product Brief.................................................................................................1
1.1.1 Introduction........................................................................................................... 1
1.2 Physical Specifications............................................................................. 1
1.3 Description of Hardware............................................................................2
1.3.1 Front Panel............................................................................................................ 2
1.3.2 Back Panel.............................................................................................................2
1.3.3 Status LEDs...........................................................................................................2
1.3.4 Front Panel Port Description............................................................................3
Chapter 2 Hardware Installation
....................................................
2.1 Installation Notice....................................................................................... 1
2.1.1 Environmental Requirements.......................................................................... 1
2.1.2 Installation Notice................................................................................................4
2.1.3 Security Warnings............................................................................................... 5
2.2 Installation Preparation............................................................................. 6
1
1
2.2.1 Verify the Package Contents............................................................................ 6
2.2.2 Required Tools and Utilities............................................................................. 6
2.3 Installation Guide........................................................................................ 6
2.3.1 Installing the Switch............................................................................................6
2.3.2 Connecting Console........................................................................................... 7
2.3.3 SFP/SFP+ Transceiver Installation................................................................. 8
2.3.4 Copper Cable/Fiber Cable Connection..........................................................8
2.3.5 Power Supply Connection.................................................................................9
2.3.6 Ground Cable Connection.............................................................................. 10
2
DG-CS4616F Installation Guide
Chapter 1 Introduction
1.1 Product Brief
Management Port
AC/DC Power Input
Power Consumption
Operating Temperature
Storage Temperature
Relative Humidity
Dimension
DG-CS4616F switch
Fig 1- 1 DG-CS4616F switch
1.1.1 Introduction
DG-CS4616F switch is uplink layer 3 10Gb switch. DG-CS4616F has 16 SFP+ port.
DG-CS4616F switch can serve ideally as distribution layer switch for the 10Gb input
device of campus networks, enterprise networks and IP metropolitan networks.
DG-CS4616F is also used in the Internet bar as the full 10Gb convergence device.
1.2 Physical Specifications
1 RJ-45 serial console port
1 RJ-45 management Ethernet interface
1 USB interface which supports USB2.0
AC: 90 ~ 264VAC, 47 ~ 63Hz
DC: -48VDC, 2.5A
12W to 24W
-5°C ~ 45°C
-40°C ~ 70°C
5% ~ 95%, no condensate
440mm×44mm×240mm (W * H * D)
Chapter 1-1
DG-CS4616F Installation Guide
Weight
Mean time between failure
1.3 Description of Hardware
1.3.1 Front Panel
1.3.2 Back Panel
About 3.14kg
Minimal MTBF: 50,000 hours
DG-CS4616F has 16 10Gb SFP+ ports, 1 Console port, 1 management Ethernet
interface, 1 system reset button, 1 USB interface and 19 LEDs.
The front panel of DG-CS4616F is shown below:
Fig 1- 2 Front Panel of DG-CS4616F
The back panel of DG-CS4616F is shown below, there is a fan, 1 220V AC power
socket, 1 -48V DC power socket and 1 ground screw hole.
Fig 1- 3 Back Panel of DG-CS4616F
1.3.3 Status LEDs
DG-CS4616F switch include port indications, system status indication and fan
indication. Their status meanings are shown below.
1.3.3.1 Port indication Description
Chapter 1-2
DG-CS4616F Installation Guide
Panel Symbol
Status
Description
Port 1-16(Link/Act)
On (Green)
ports are in successful link state
Flash(Green)
ports are in successful link state and
receive/send data
Off
ports are not in link
1.3.3.2 System Status Indication Description
Panel Symbol
Status
Description
PWR
On (Green)
The internal power is operating normally
Off
Power is off or error
SYS
On (Green)
System is abnormal
Flash (Green)
System is in normal
Off
Power is off or system is abnormal
FAN
On (Red)
Fan is abnormal
Off
Fan is normal
1.3.4 Front Panel Port Description
Fig 1- 4 DG-CS4616F LED LED diagram
Table 1-1 DG-CS4616F port indications description
Fig 1- 5 DG-CS4616F diagram
Table 1- 2 system indication description
Each port description is shown below:
Chapter 1-3
DG-CS4616F Installation Guide
Interface mode
Spec
RJ-45 port
10/100/1000Mbps auto negotiation
MDI/MDI-X cable mode auto negotiation
5 kinds of UTP: 100 m
SFP
SFP-SX-L transceiver
1000Base-SX SFP (850nm, MMF, 550m)
SFP-LX-L transceiver
1000Base-LX SFP interface card module (1310nm,
SMF, 10km or MMF, 550m)
SFP-LX-20-L transceiver
1310nm light waves, 9/125um single mode fiber: 20km
SFP-LX-40 transceiver
9/125um single mode fiber: 40km
SFP-LH-70-L transceiver
9/125um single mode fiber: 70km
SFP-LH-120-L transceiver
9/125um single mode fiber: 120km
SFP+
SFPX-SR:
62.5/125um multimode fiber: 32m
50.0/125um,500MHz/km multimode fiber: 85m
50.0/125um,2000MHz/km multimode fiber: 300m
SFPX-LR:
9/125um single mode fiber: 10km
SFPX-ER:
9/125um single mode fiber: 40km
DAC-SFPX
DAC-SFPX-3M
DAC-SFPX-5M
AOC-SFPX
AOC-SFPX-5M
AOC-SFPX-10M
Table 1- 3 DG-CS4616F switch port description
Chapter 1-4
