Page 1

10G Top-of-Rack Switches

DG-CS4554F

User Manual

V1.0

2015-10-20

As our products undergo continuous development the specifications are subject to change without prior notice.

Page 2

Web Management Guide

DG-CS4554F

54-Port 10G Data Center Switch with 48 10GBASE SFP+ Ports, 6 40GBASE QSFP Ports, 2 Power Supply Units, and 5 Fan Trays (5 Fans – F2B and B2F Airflow)

Page 3

How to Use This Guide

– 3 –

Who Should Read This

Guide?

This guide includes detailed information on the switch software, including how to operate and use the management functions of the switch. To deploy this switch effectively and ensure trouble-free operation, you should first read the relevant sections in this guide so that you are familiar with all of its software features.

This guide is for network administrators who are responsible for operating and maintaining network equipment. The guide assumes a basic working knowledge of LANs (Local Area Networks), the Internet Protocol (IP), and Simple Network Management Protocol (SNMP).

How This Guide is

Documentation

Organized

This guide describes the switch’s web browser interface. For more detailed information on the switch’s key features refer to the Administrator’s Guide.

The guide includes these sections:

◆

Section I “Getting Started” — Includes an introduction to switch management, and the basic settings required to access the management interface.

◆

Section II “Web Configuration” — Includes all management options available through the web browser interface.

◆

Section III “Appendices” — Includes information on troubleshooting switch management access.

This guide focuses on switch software configuration through the web browser.

For information on how to manage the switch through the command line interface, see the following guide:

CLI Reference Guide

Note: For a description of how to initialize the switch for management access via

the CLI, web interface or SNMP, refer to “Initial Switch Configuration” in the CLI Reference Guide.

Page 4

How to Use This Guide

– 4 –

For information on how to install the switch, see the following guide:

Installation Guide

For all safety information and regulatory statements, see the following documents:

Quick Start Guide Safety and Regulatory Information

Conventions The following conventions are used throughout this guide to show information:

Note: Emphasizes important information or calls your attention to related features

or instructions.

Caution: Alerts you to a potential hazard that could cause loss of data, or damage

the system or equipment.

Revision History This section summarizes the changes in each revision of this guide.

Warning: Alerts you to a potential hazard that could cause personal injury.

Nov 2015 Revision

This is the first version of this guide.

Page 5

– 5 –

Contents

How to Use This Guide

Contents

Figures

Tables

Section I

Getting Started 25

Introduction

Key Features

Description of Software Features

Equal-cost Multipath Load Balancing

System Defaults

Section II

Web Configuration

Using the Web Interface

Connecting to the Web Interface

Navigating the Web Browser Interface

Home Page 40

Configuration Options

Panel Display 41

Main Menu

Basic Management Tasks

Displaying System Information

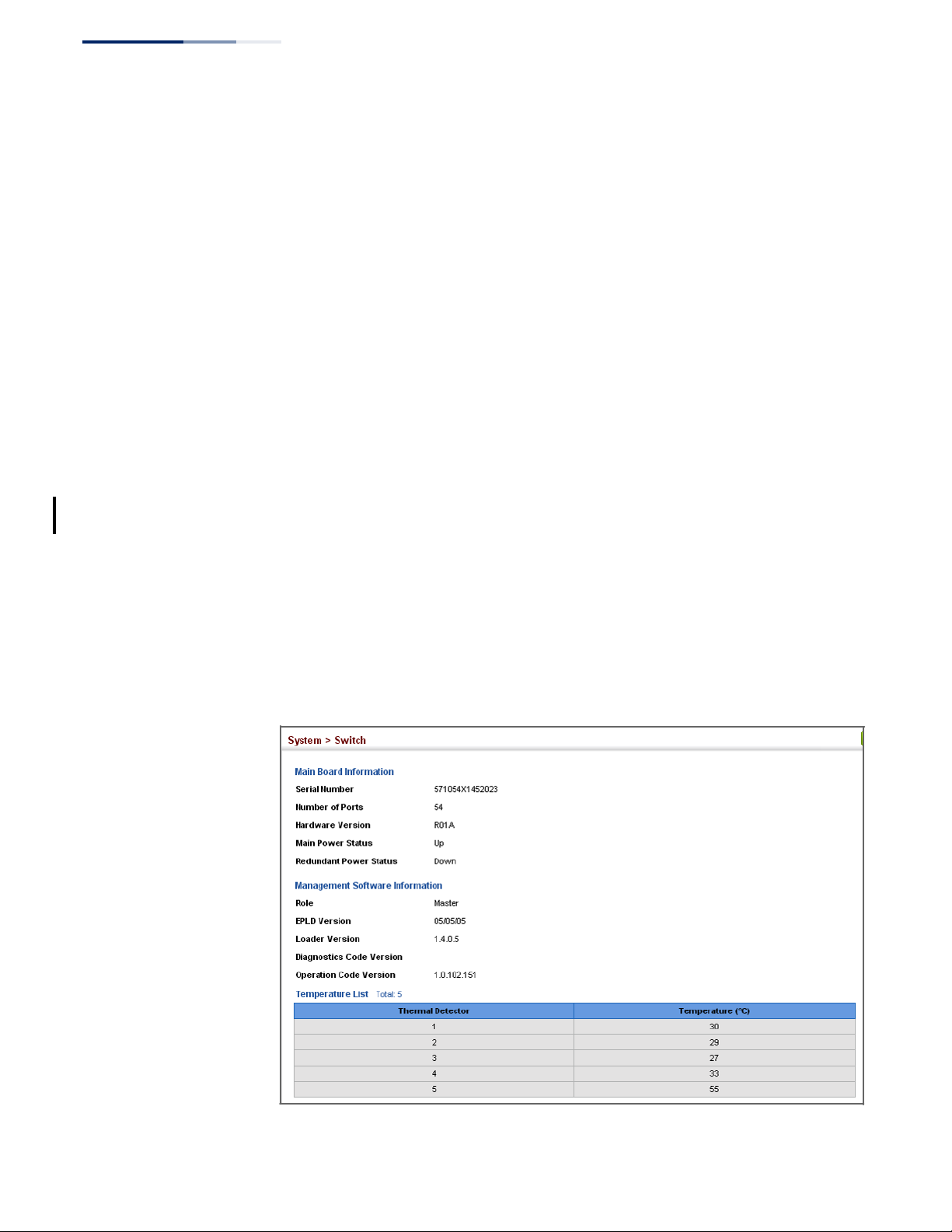

Displaying Hardware/Software Versions

Configuring Support for Jumbo Frames

Displaying Bridge Extension Capabilities

Page 6

– 6 –

Contents

Managing System Files 60

Copying Files via FTP/TFTP or HTTP 60

Saving the Running Configuration to a Local File 62

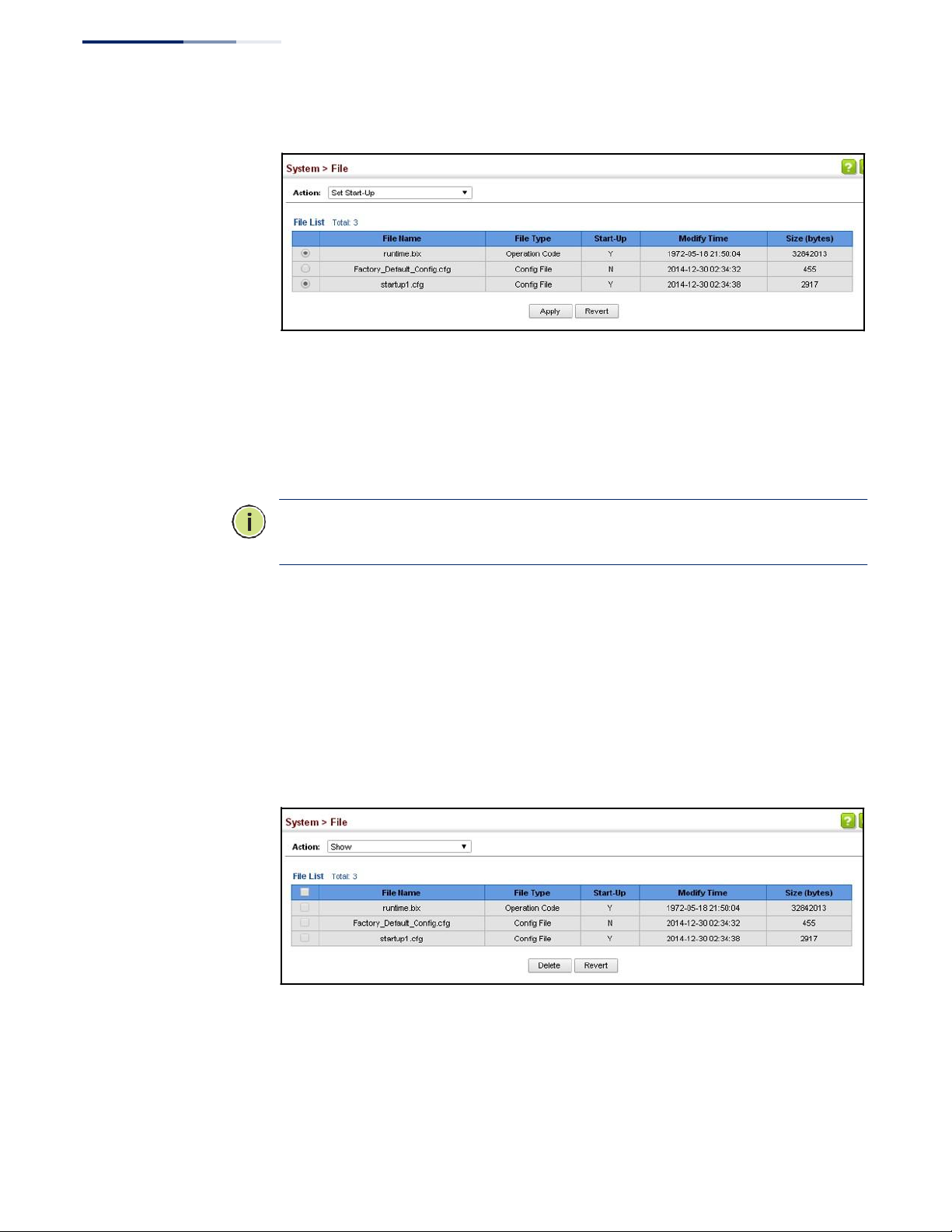

Setting The Start-Up File 63

Showing System Files 64

Automatic Operation Code Upgrade 65

Setting the System Clock 69

Setting the Time Manually 69

Setting the SNTP Polling Interval 70

Configuring NTP 71

Configuring Time Servers 72

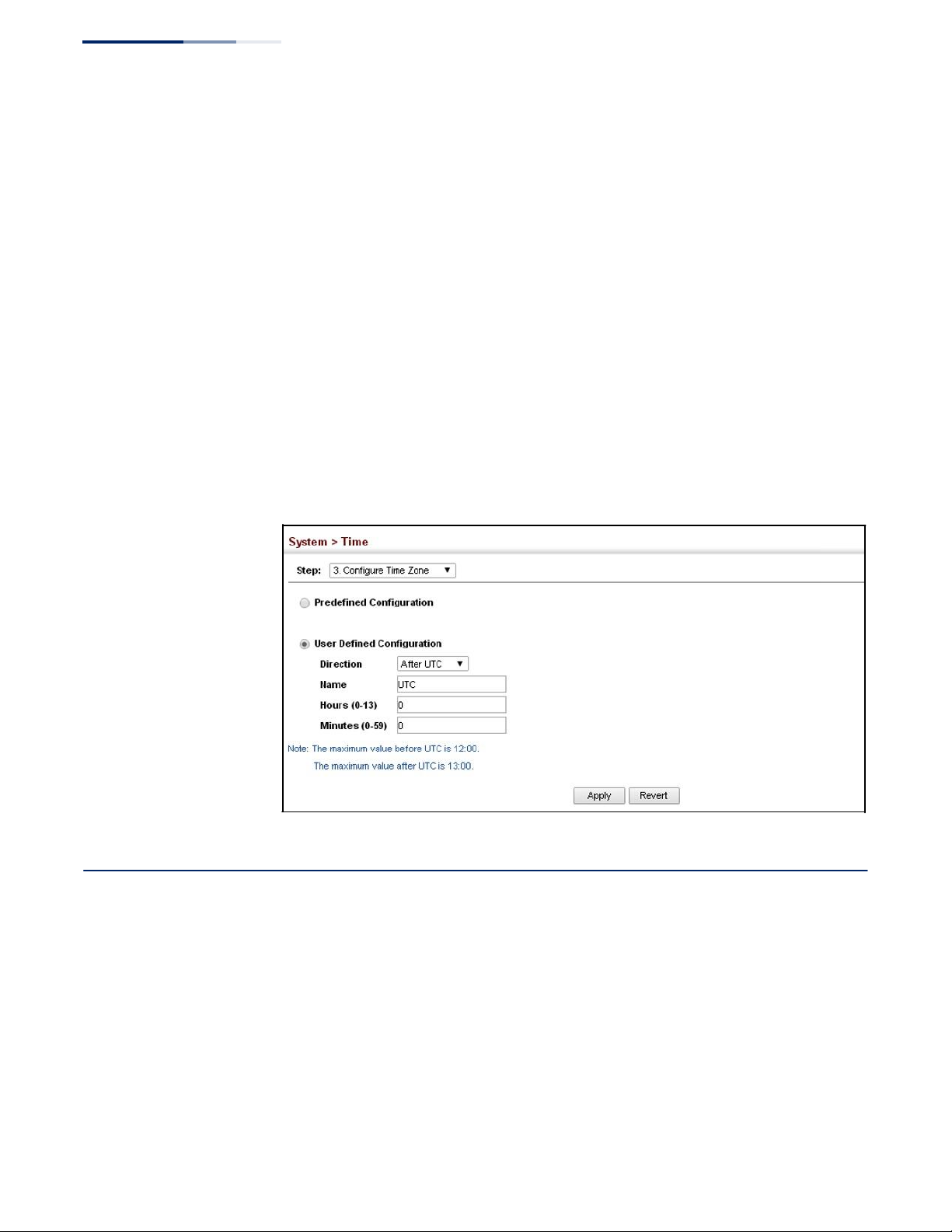

Setting the Time Zone 75

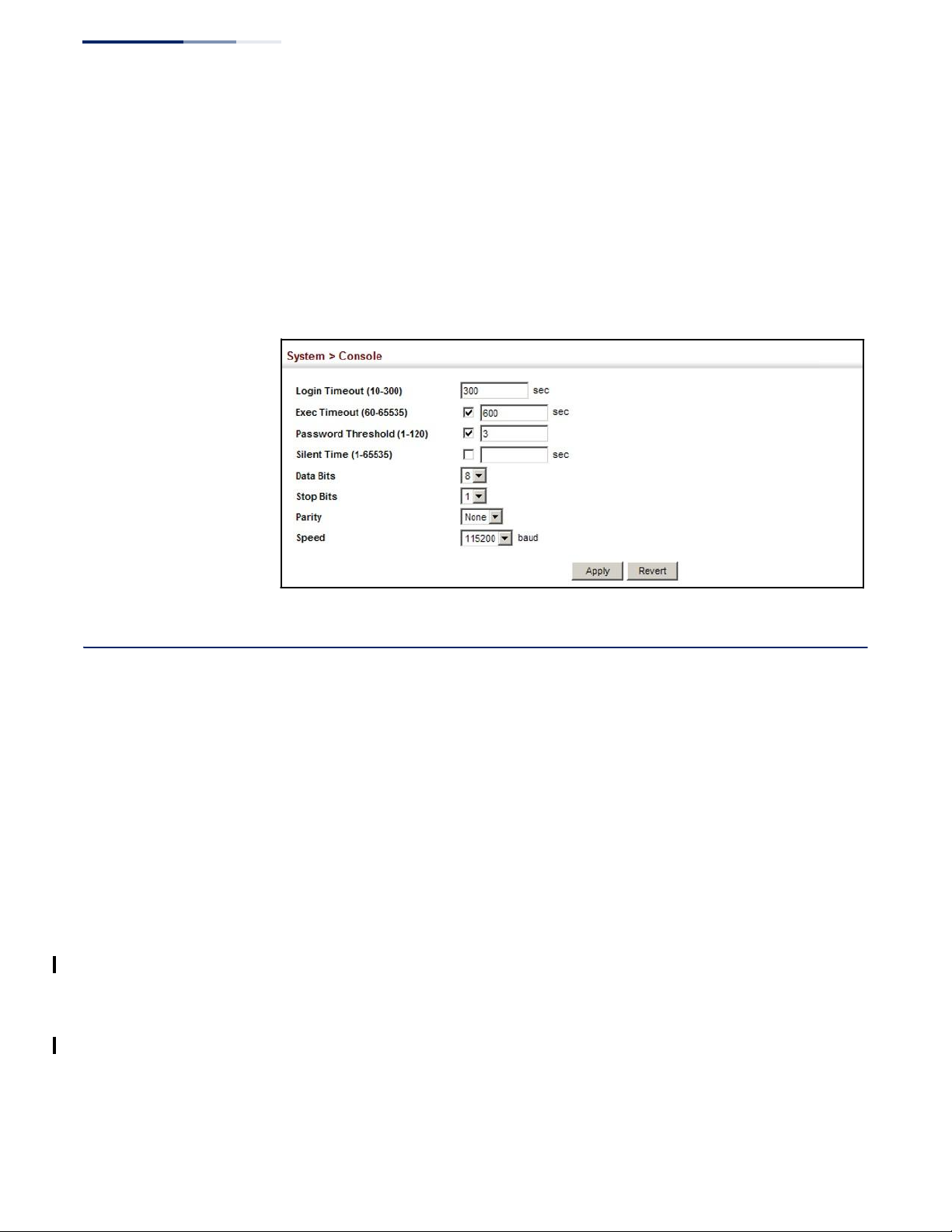

Configuring The Console Port 76

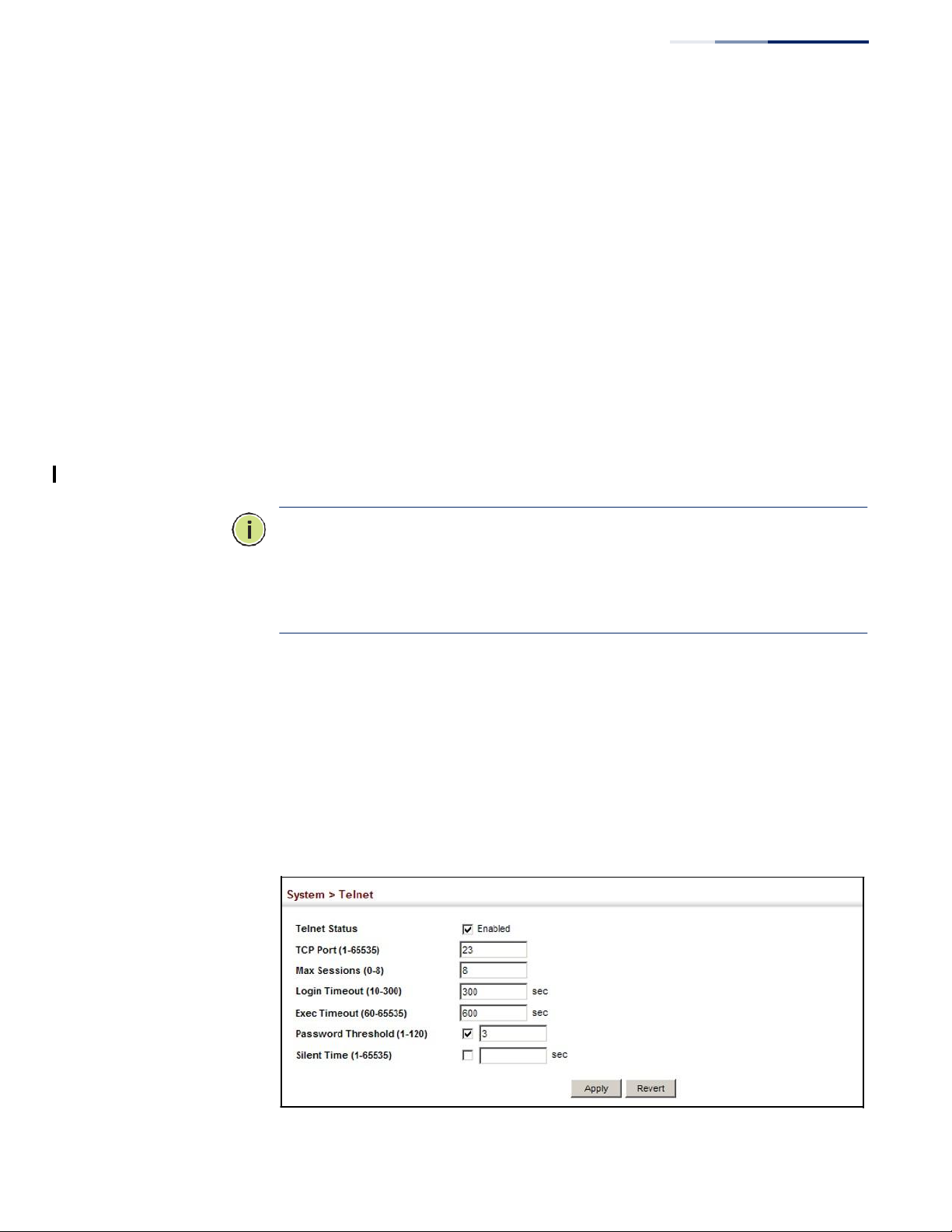

Configuring Telnet Settings 78

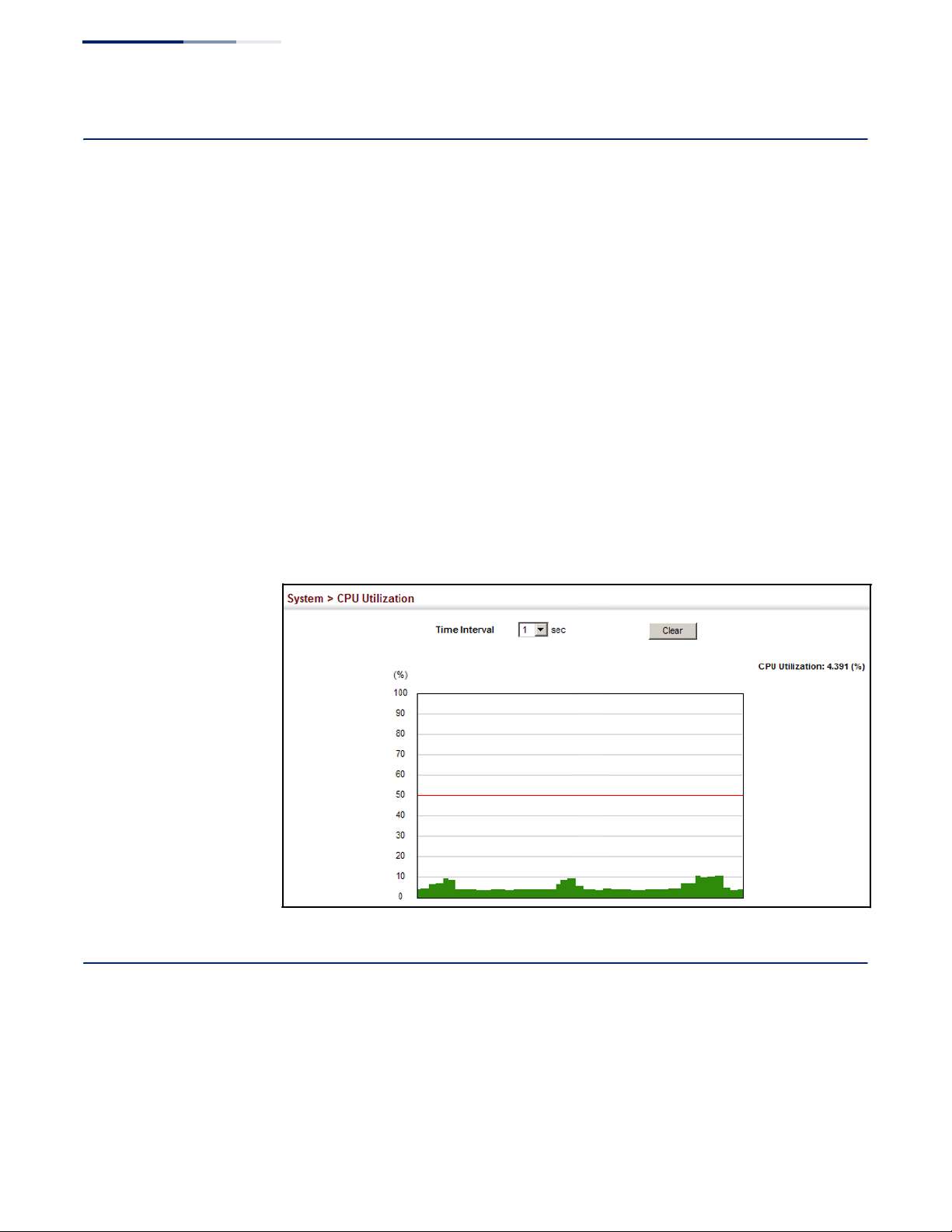

Displaying CPU Utilization 80

Displaying Memory Utilization 80

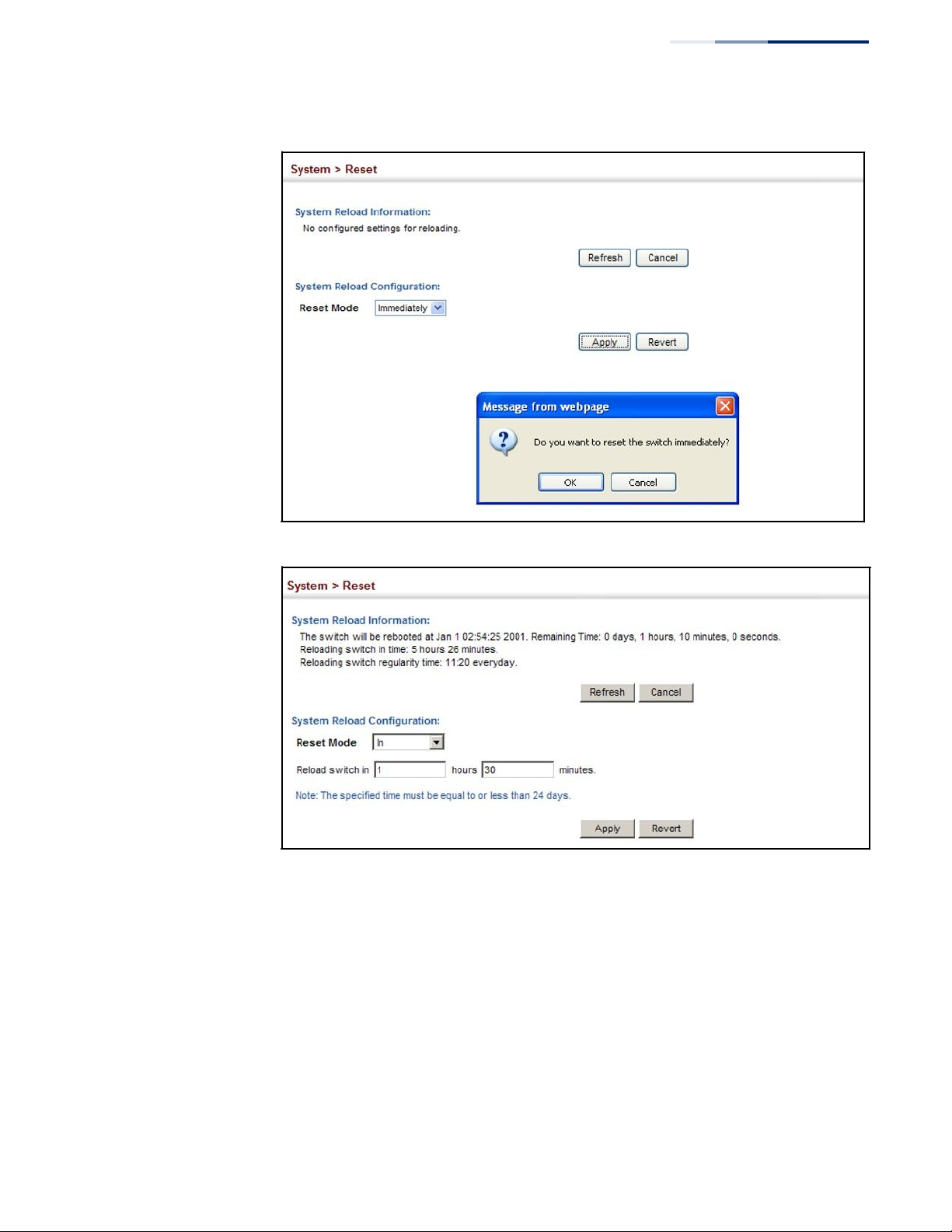

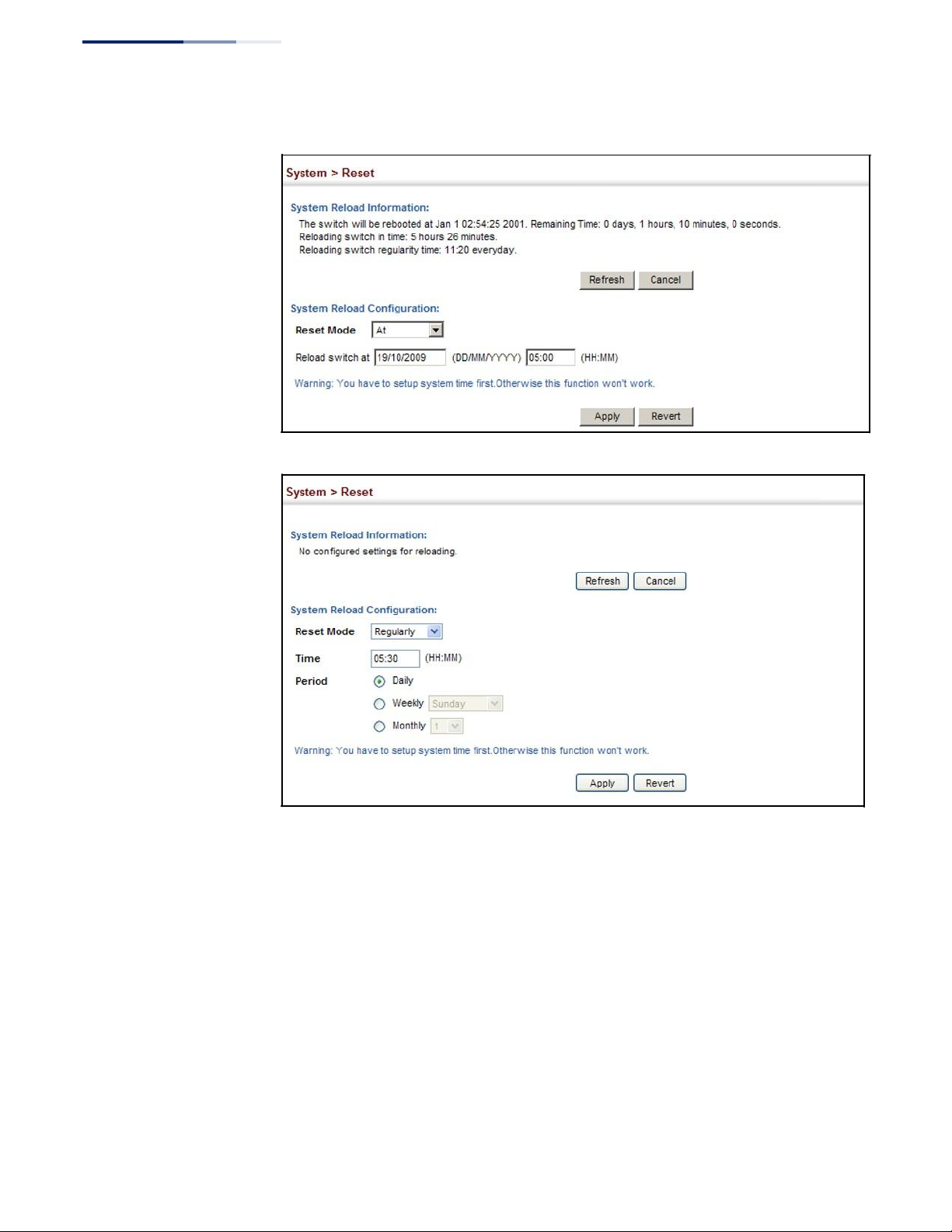

Resetting the System 81

4 Interface Configuration 85

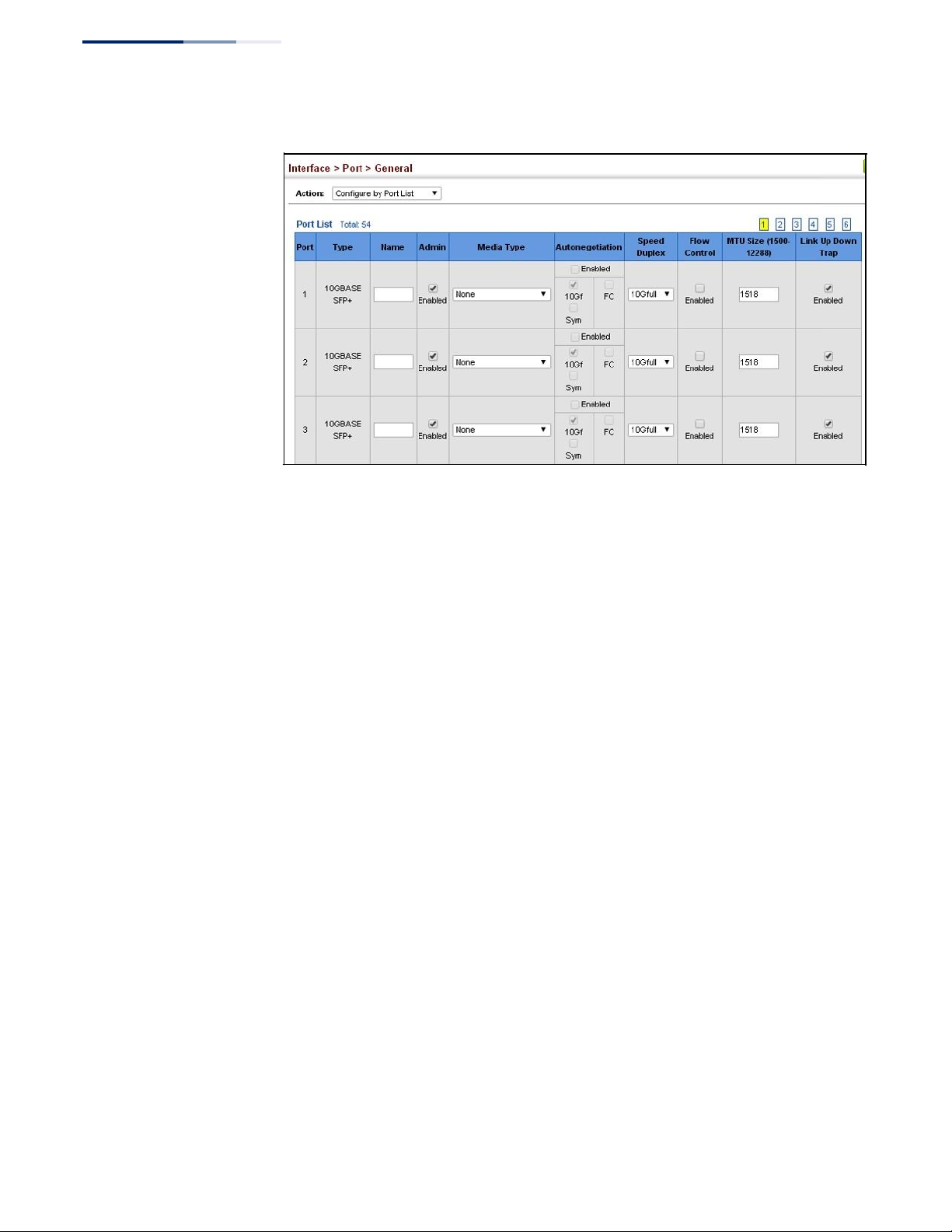

Port Configuration 85

Configuring by Port List 85

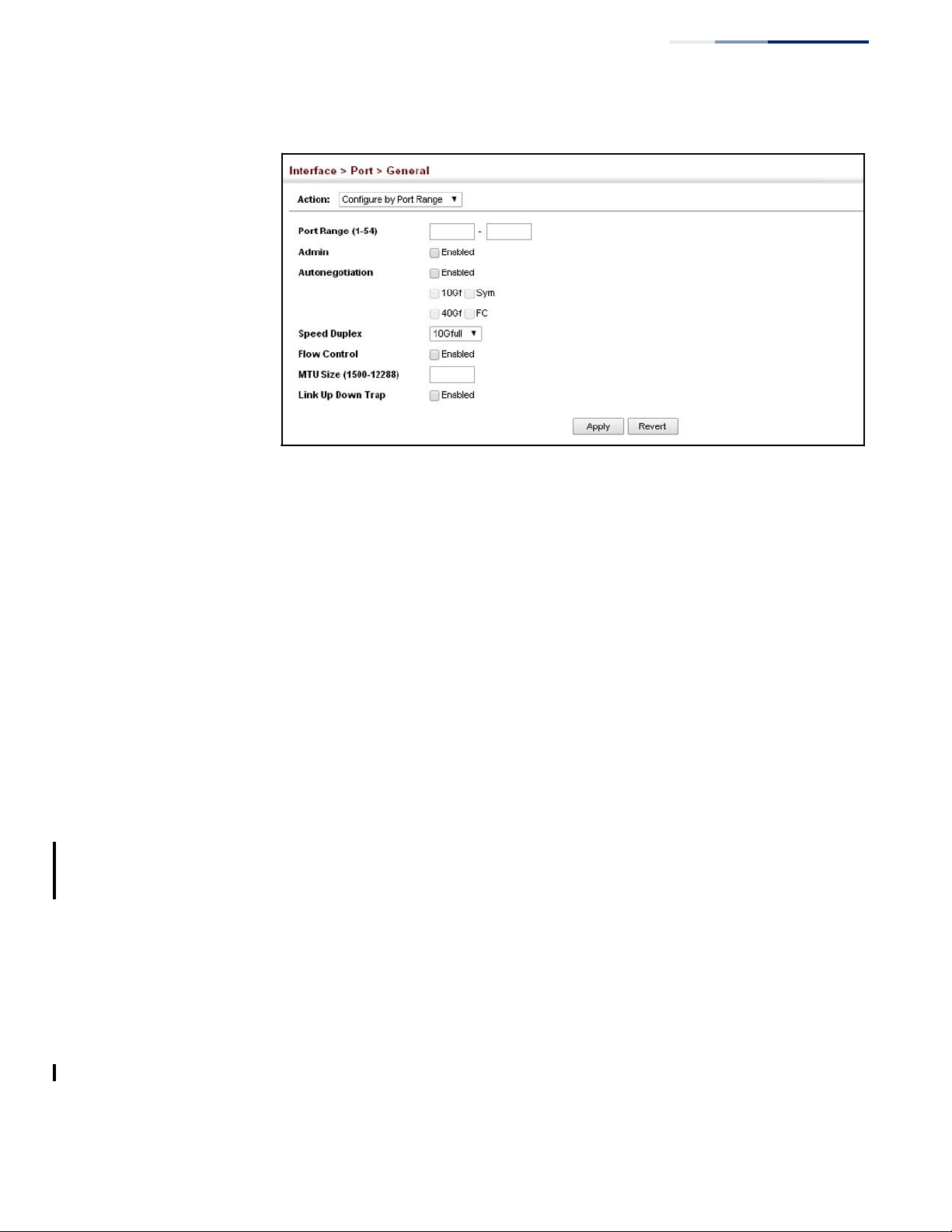

Configuring by Port Range 88

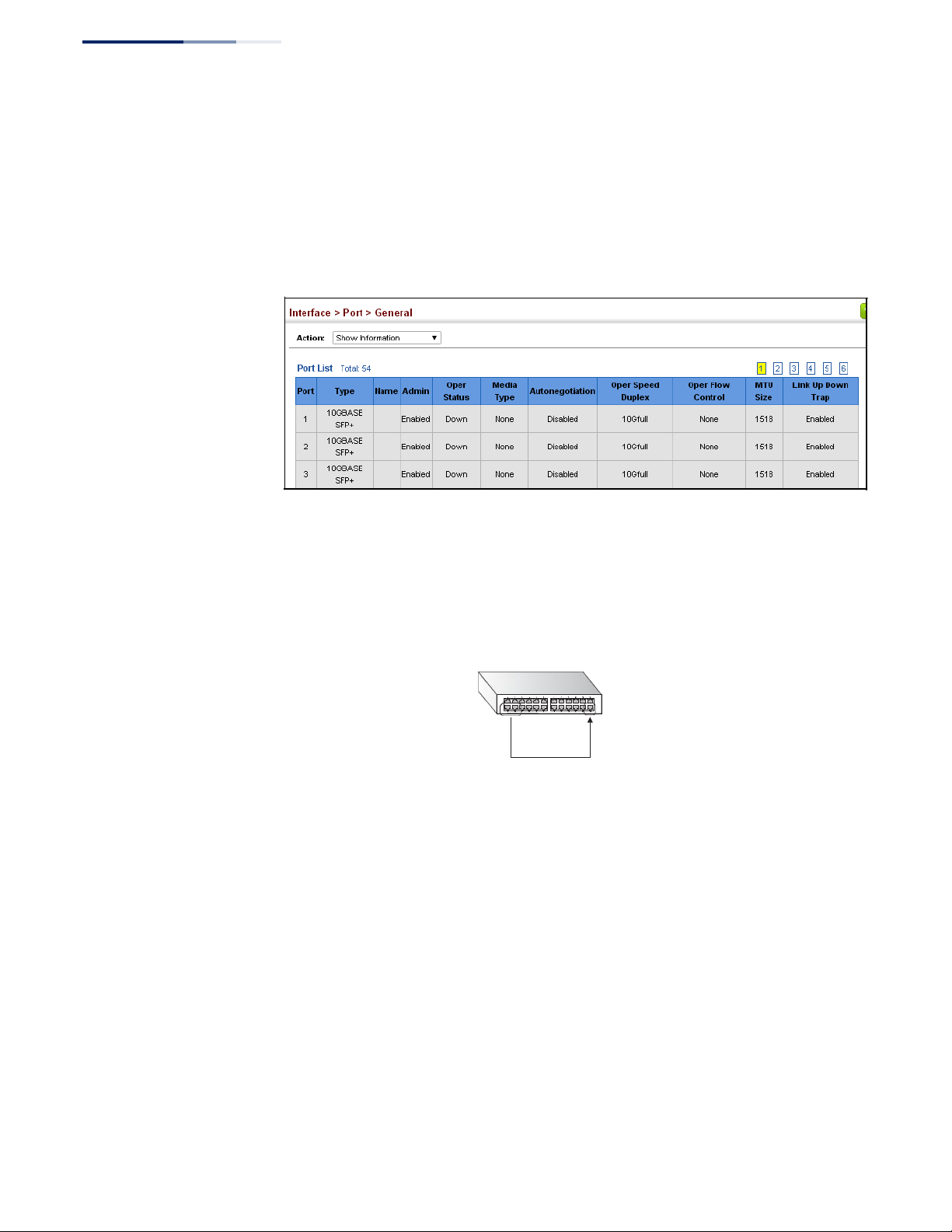

Displaying Connection Status 89

Configuring Local Port Mirroring 90

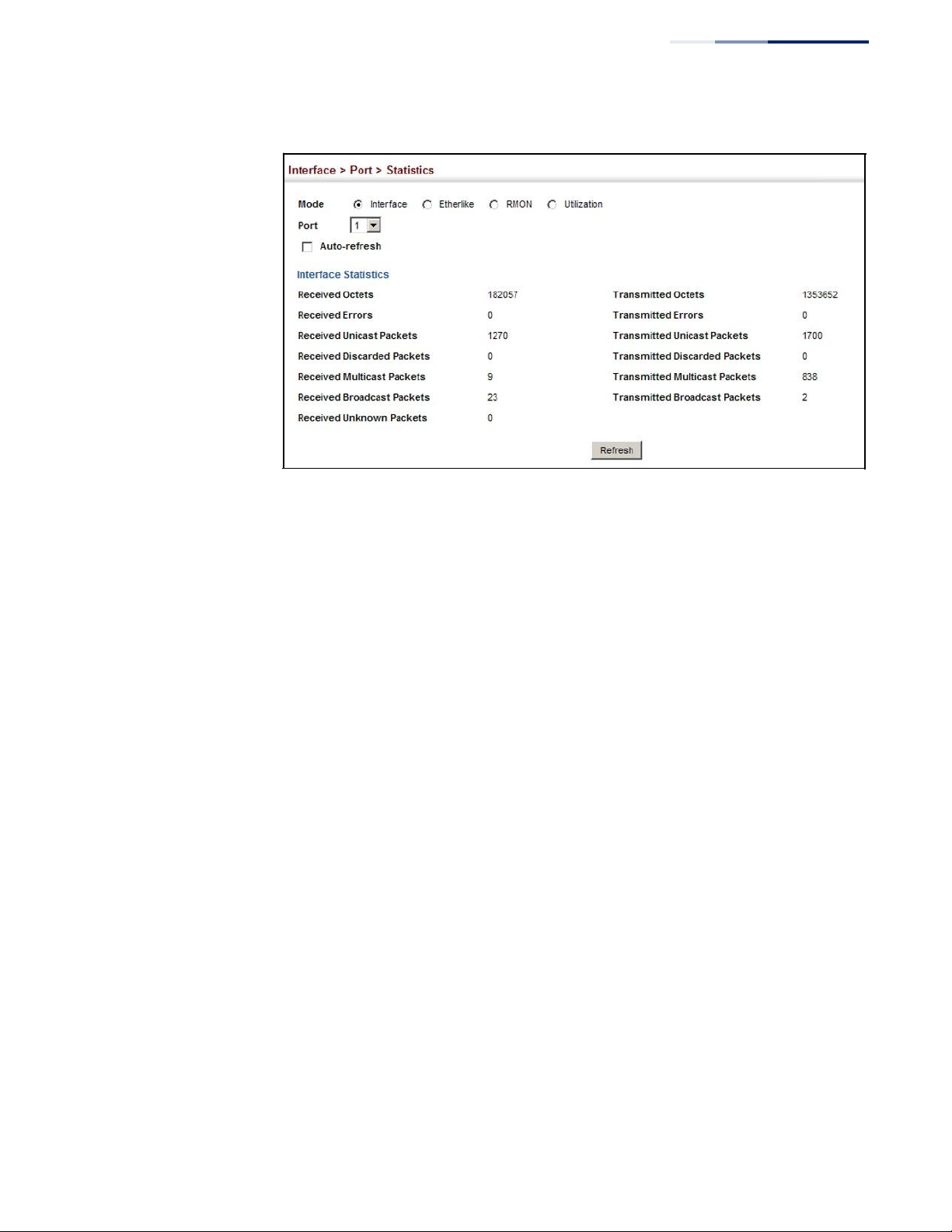

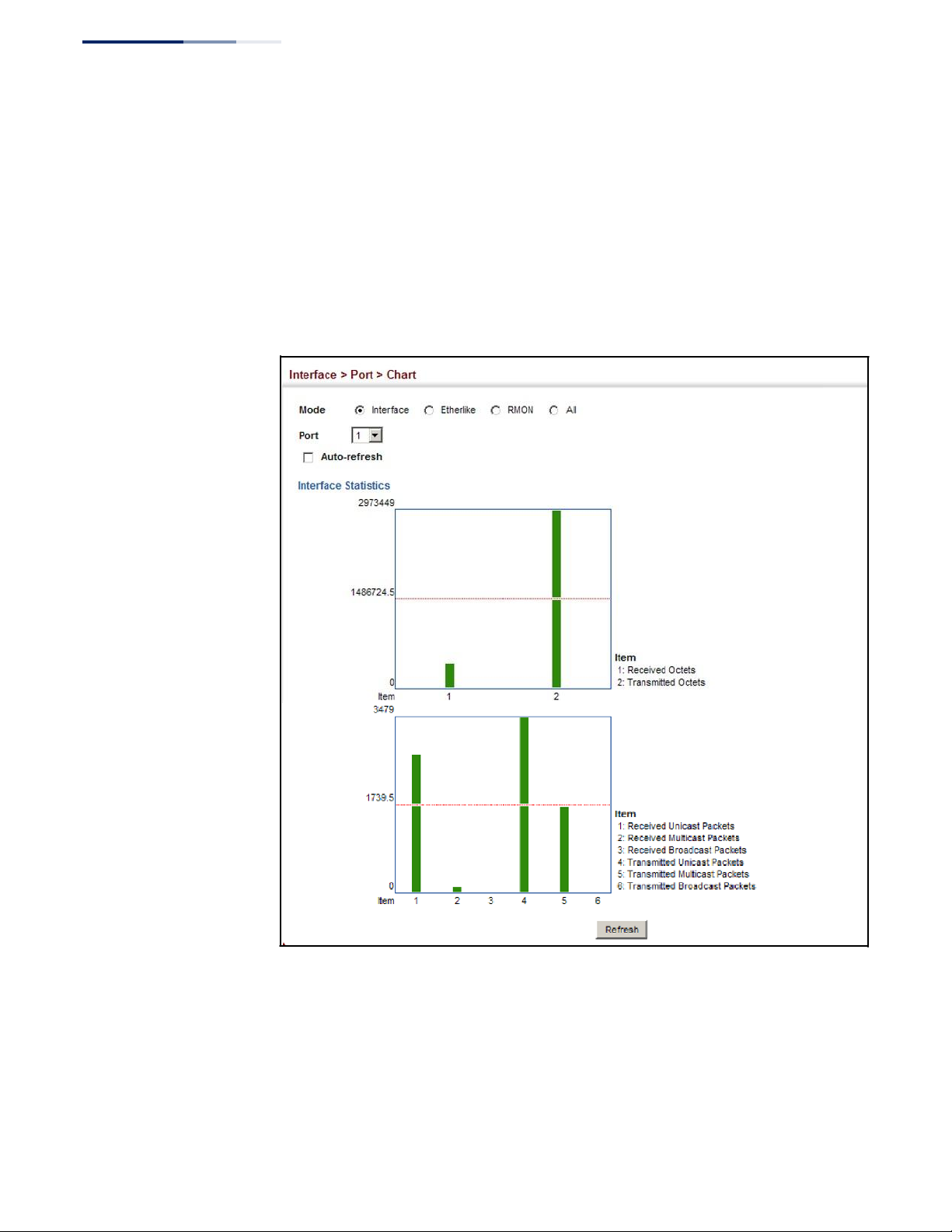

Showing Port or Trunk Statistics 92

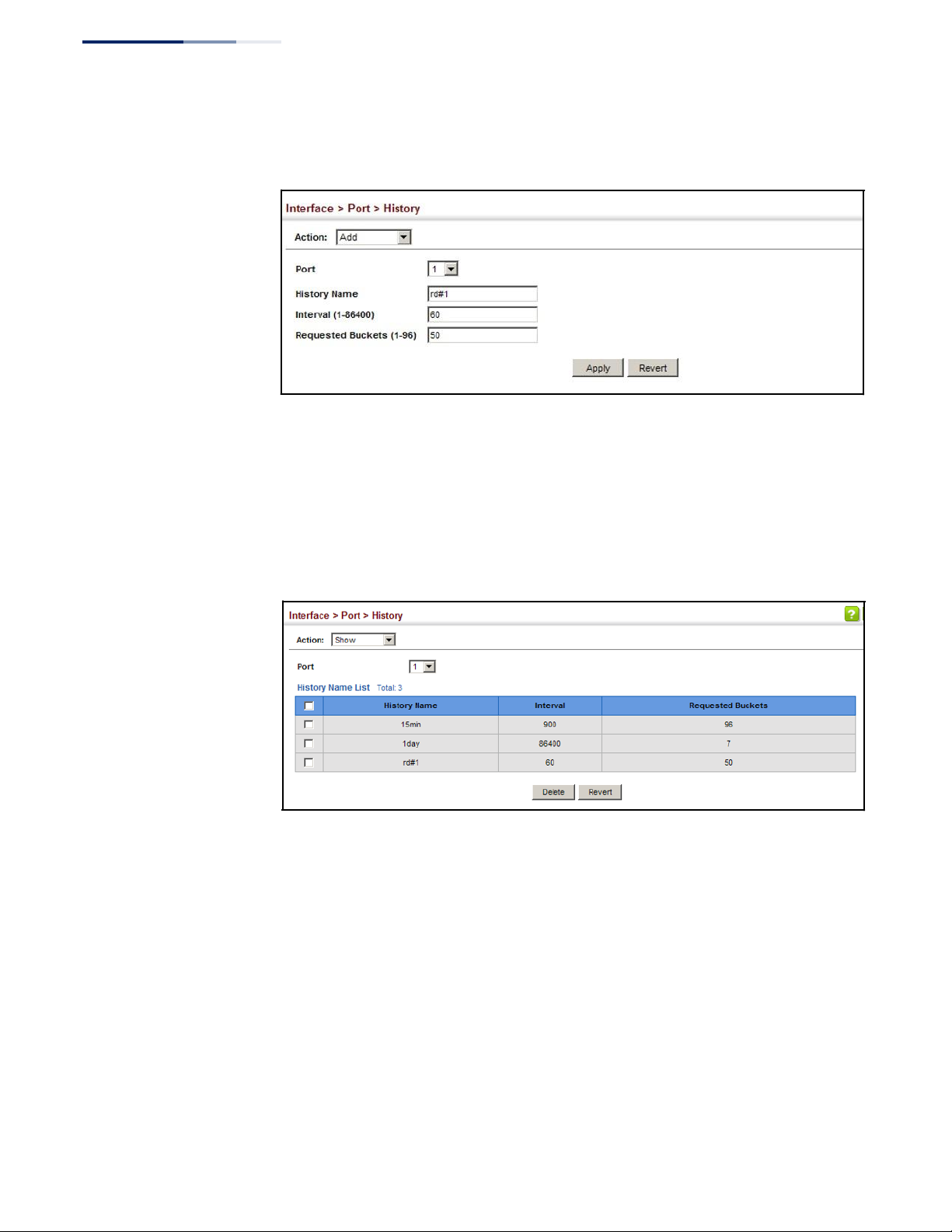

Displaying Statistical History 96

Displaying Transceiver Data 100

Configuring Transceiver Thresholds 101

Trunk Configuration 103

Configuring a Static Trunk 104

Configuring a Dynamic Trunk 107

Displaying LACP Port Counters 113

Displaying LACP Settings and Status for the Local Side 114

Displaying LACP Settings and Status for the Remote Side 116

Configuring Load Balancing 117

Page 7

– 7 –

Contents

Traffic Segmentation 119

Enabling Traffic Segmentation 119

Configuring Uplink and Downlink Ports 120

5 VLAN Configuration 123

IEEE 802.1Q VLANs 123

Configuring VLAN Groups 125

Adding Static Members to VLANs 128

6 Address Table Settings 133

Configuring MAC Address Learning 133

Setting Static Addresses 135

Changing the Aging Time 136

Displaying the Dynamic Address Table 137

Clearing the Dynamic Address Table 138

Issuing MAC Address Traps 139

7 Spanning Tree Algorithm 141

Overview 141

Configuring Global Settings for STA 143

Displaying Global Settings for STA 148

Configuring Interface Settings for STA 149

Displaying Interface Settings for STA 152

Configuring Multiple Spanning Trees 155

Configuring Interface Settings for MSTP 159

8 Congestion Control 163

Storm Control 163

9 Class of Service 165

Layer 2 Queue Settings 165

Setting the Default Priority for Interfaces 165

Selecting the Queue Mode 166

Mapping CoS Values to Egress Queues 169

Layer 3/4 Priority Settings 172

Setting Priority Processing to IP Precedence/DSCP or CoS 172

Mapping Ingress DSCP Values to Internal DSCP Values 173

Page 8

– 8 –

Contents

Mapping CoS Priorities to Internal DSCP Values 176

Mapping Internal DSCP Values to Egress CoS Values 178

Mapping IP Precedence Values to Internal DSCP Values 180

Mapping IP Port Priority to Internal DSCP Values 182

10 Quality of Service 185

Overview 185

Configuring a Class Map 186

Creating QoS Policies 190

Attaching a Policy Map to a Port 199

11 Security Measures 201

AAA Authorization and Accounting 201

Configuring Local/Remote Logon Authentication

Configuring Remote Logon Authentication Servers 203

Configuring User Accounts 209

Configuring HTTPS 211

Configuring Global Settings for HTTPS 211

Replacing the Default Secure-site Certificate 212

Configuring the Secure Shell 214

Configuring the SSH Server 217

202

Generating the Host Key Pair 218

Importing User Public Keys 220

Access Control Lists 222

Setting A Time Range 223

Showing TCAM Utilization 226

Setting the ACL Name and Type 227

Configuring a Standard IPv4 ACL 229

Configuring an Extended IPv4 ACL 230

Configuring a Standard IPv6 ACL 232

Configuring an Extended IPv6 ACL 234

Configuring a MAC ACL 235

Binding a Port to an Access Control List 237

Filtering IP Addresses for Management Access 238

Page 9

– 9 –

Contents

13 Multicast Filtering

309

Overview

309

12 Basic Administration Protocols 241

Configuring Event Logging 241

System Log Configuration 241

Remote Log Configuration 244

Link Layer Discovery Protocol 245

Setting LLDP Timing Attributes 245

Configuring LLDP Interface Attributes 247

Configuring LLDP Interface Civic-Address 251

Displaying LLDP Local Device Information 253

Displaying LLDP Remote Device Information 256

Displaying Device Statistics 264

Simple Network Management Protocol 266

Configuring Global Settings for SNMP 268

Setting the Local Engine ID 269

Specifying a Remote Engine ID 270

Setting SNMPv3 Views 271

Configuring SNMPv3 Groups 274

Setting Community Access Strings 278

Configuring Local SNMPv3 Users 279

Configuring Remote SNMPv3 Users 281

Specifying Trap Managers 284

Creating SNMP Notification Logs 288

Showing SNMP Statistics 290

Remote Monitoring 292

Configuring RMON Alarms 292

Configuring RMON Events 295

Configuring RMON History Samples 297

Configuring RMON Statistical Samples 300

UDLD Configuration 302

Configuring UDLD Protocol Intervals 303

Configuring UDLD Interface Settings 304

Displaying UDLD Neighbor Information 306

Page 10

Contents

– 10 –

IGMP Protocol 310

Layer 2 IGMP (Snooping and Query for IPv4) 311

Configuring IGMP Snooping and Query Parameters 313

Specifying Static Interfaces for an IPv4 Multicast Router 316

Assigning Interfaces to IPv4 Multicast Services 319

Setting IGMP Snooping Status per Interface 320

Filtering IGMP Query Packets 326

Displaying Multicast Groups Discovered by IGMP Snooping 327

Displaying IGMP Snooping Statistics 328

Filtering and Throttling IGMP Groups 332

Enabling IGMP Filtering and Throttling 332

Configuring IGMP Filter Profiles 333

Configuring IGMP Filtering and Throttling for Interfaces 335

14 IP Configuration 339

Setting the Switch’s IP Address (IP Version 4) 339

Setting the Switch’s IP Address (IP Version 6) 343

Configuring the IPv6 Default Gateway 343

Configuring IPv6 Interface Settings 344

Configuring an IPv6 Address 348

Showing IPv6 Addresses 351

Showing the IPv6 Neighbor Cache 352

Showing IPv6 Statistics 353

Showing the MTU for Responding Destinations 360

15 IP Services 361

Dynamic Host Configuration Protocol 361

Specifying A DHCP Client Identifier 361

Configuring DHCP Relay Service 363

16 General IP Routing 365

Overview 365

Initial Configuration 365

IP Routing and Switching 366

Routing Path Management 367

Routing Protocols 368

Page 11

Contents

– 11 –

Configuring IP Routing Interfaces 368

Configuring Local and Remote Interfaces 368

Using the Ping Function 369

Using the Trace Route Function 370

Address Resolution Protocol 372

ARP Timeout Configuration 372

Configuring Static ARP Addresses 373

Displaying Dynamic or Local ARP Entries 375

Displaying ARP Statistics 375

Configuring Static Routes 376

Displaying the Routing Table 378

Equal-cost Multipath Routing 379

17 Configuring Router Redundancy 383

Configuring VRRP Groups 384

Displaying VRRP Global Statistics 390

Displaying VRRP Group Statistics 391

18 Unicast Routing 393

Overview 393

Configuring the Open Shortest Path First Protocol (Version 2) 393

Defining Network Areas Based on Addresses 395

Configuring General Protocol Settings 398

Displaying Administrative Settings and Statistics 401

Adding an NSSA or Stub 403

Configuring NSSA Settings 404

Configuring Stub Settings 407

Displaying Information on NSSA and Stub Areas 409

Configuring Area Ranges (Route Summarization for ABRs) 410

Redistributing External Routes 412

Configuring Summary Addresses (for External AS Routes) 414

Configuring OSPF Interfaces 416

Configuring Virtual Links 421

Displaying Link State Database Information 424

Displaying Information on Neighboring Routers 426

Configuring Passive Interfaces 427

Page 12

Contents

– 12 –

Section III

Appendices 431

Software Specifications

433

Software Features

433

Management Features

434

Standards

435

Management Information Bases

436

Troubleshooting 439

Problems Accessing the Management Interface

439

Using System Logs 440

License Information

441

The GNU General Public License

441

Glossary

445

Index

453

Page 13

– 13 –

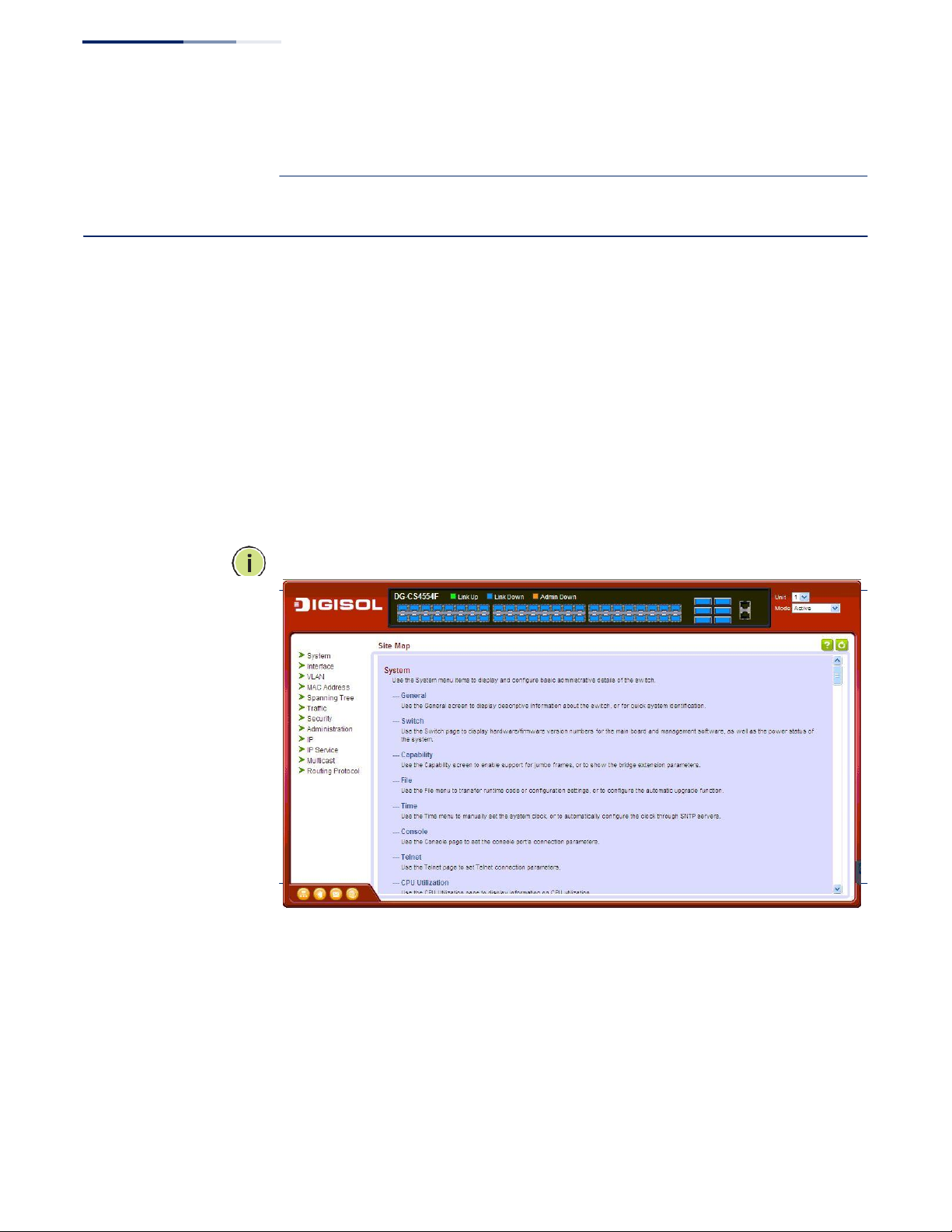

Figure 1:

Home Page

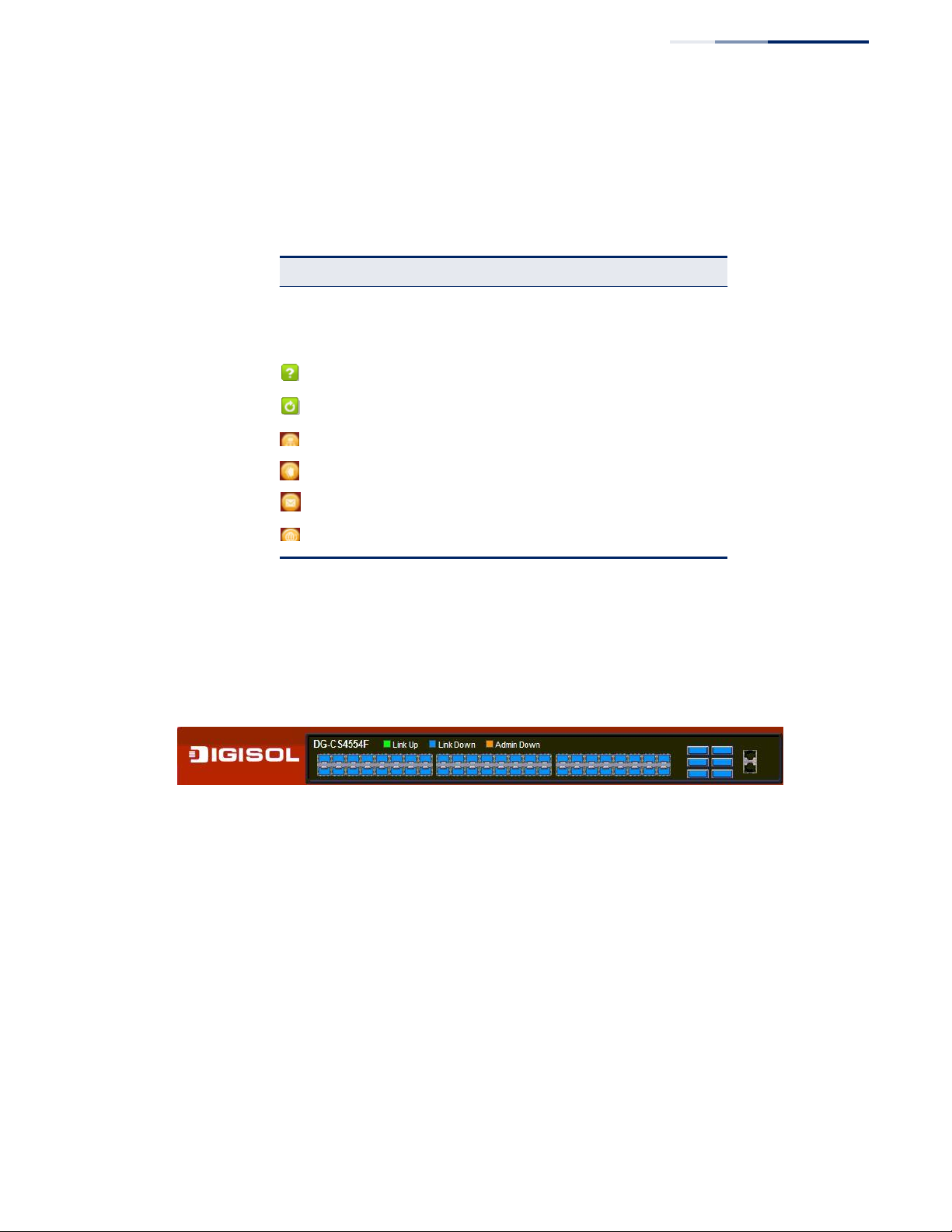

Figure 2:

Front Panel Indicators

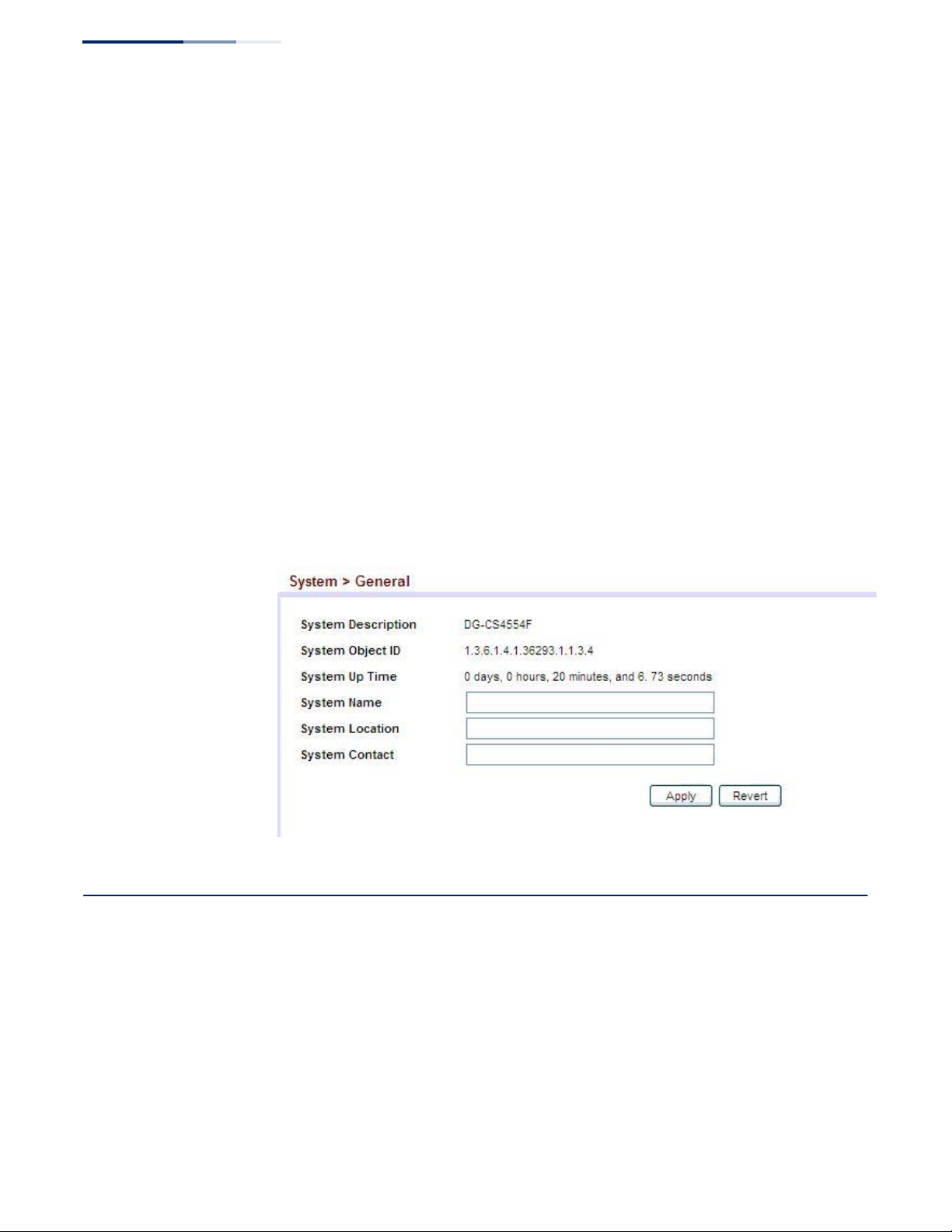

Figure 3:

System Information

Figure 4:

General Switch Information

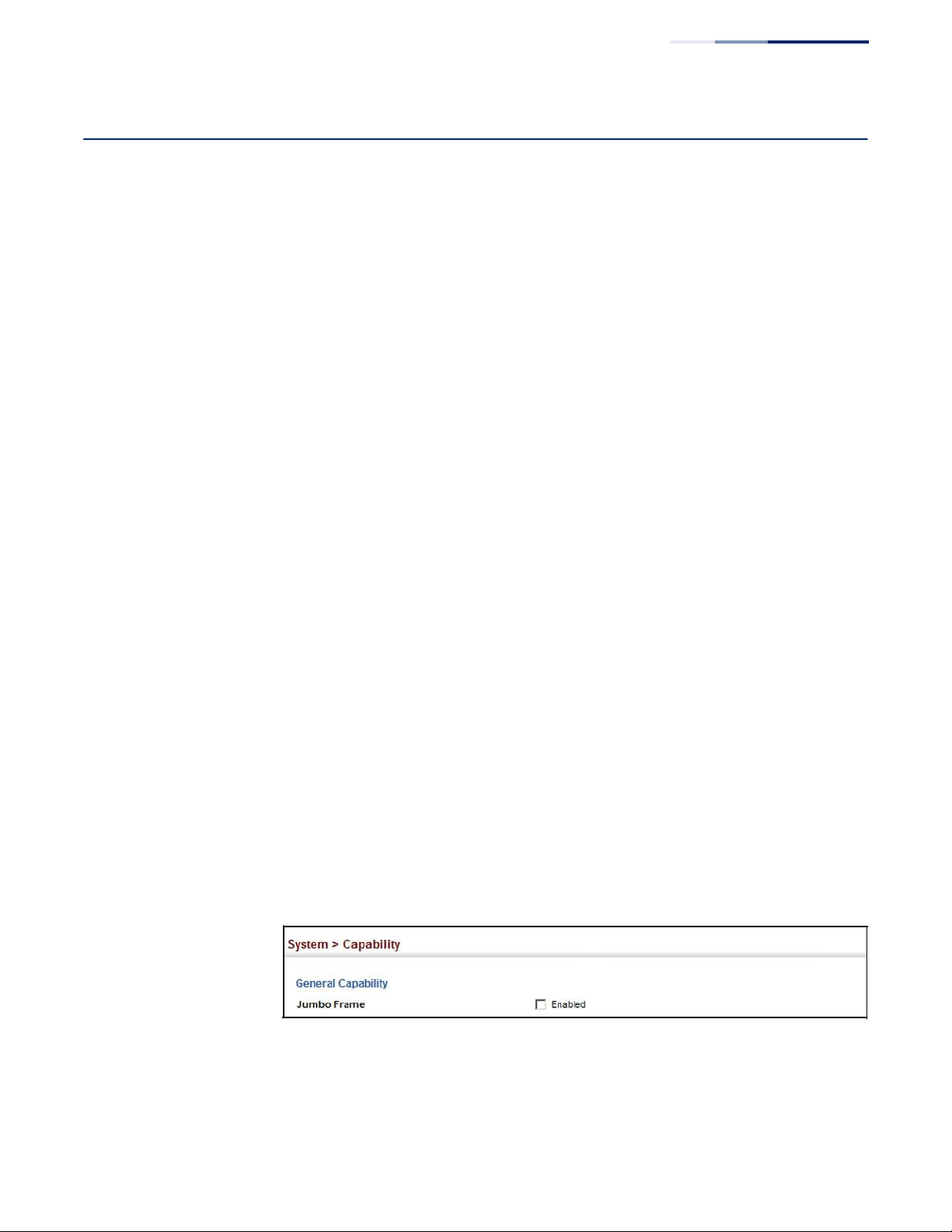

Figure 5:

Configuring Support for Jumbo Frames

Figure 6:

Displaying Bridge Extension Configuration

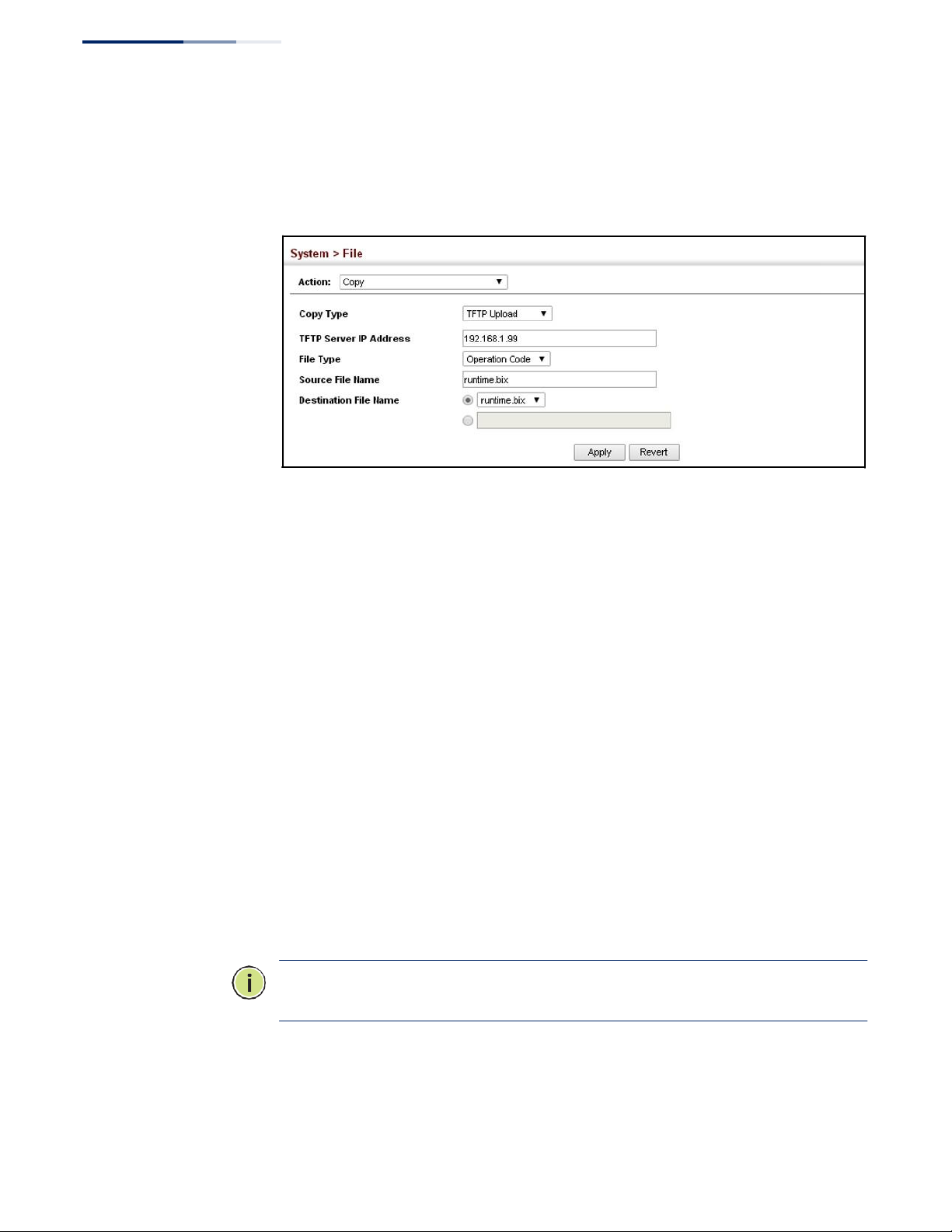

Figure 7:

Copy Firmware

Figure 8:

Saving the Running Configuration

Figure 9:

Setting Start-Up Files

Figure 10:

Displaying System Files

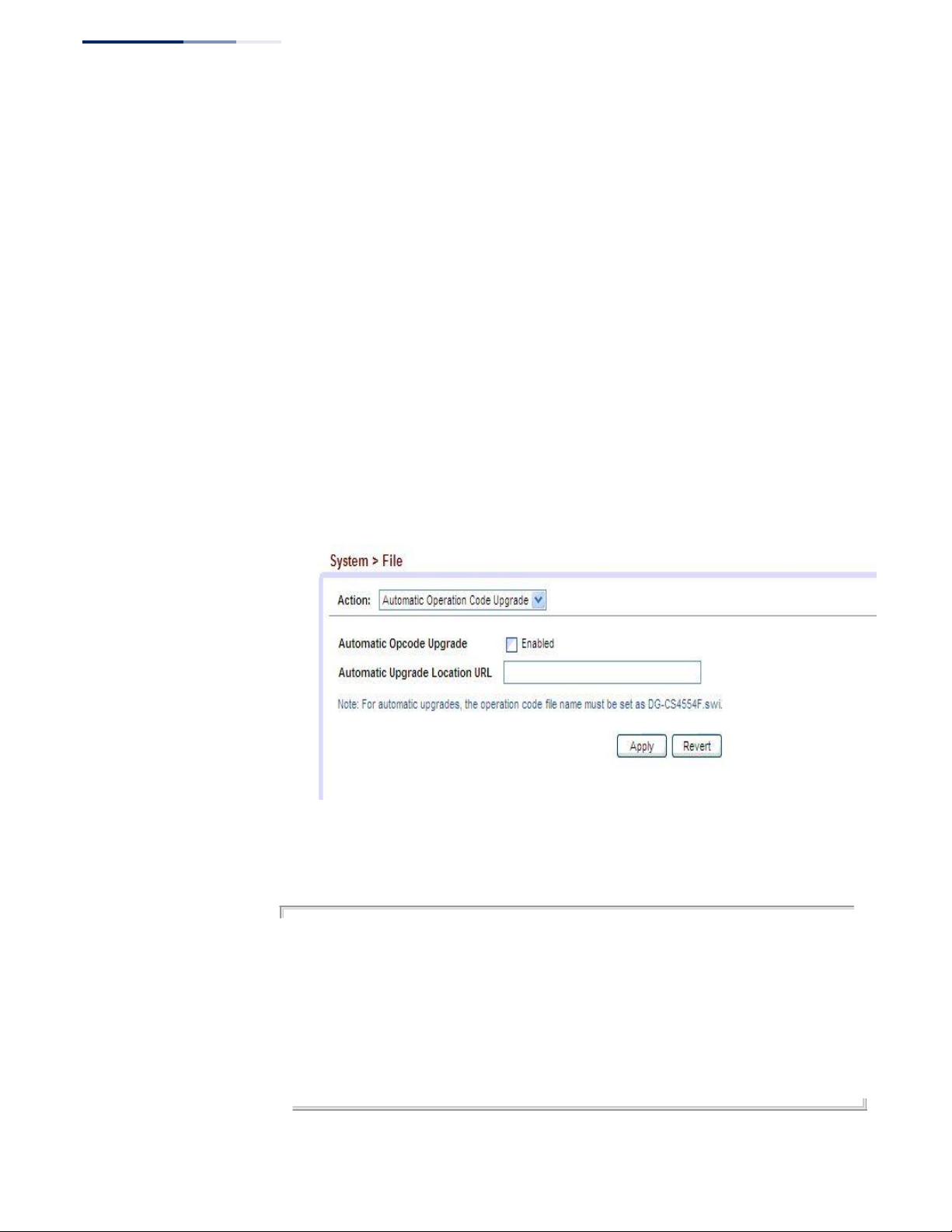

Figure 11:

Configuring Automatic Code Upgrade

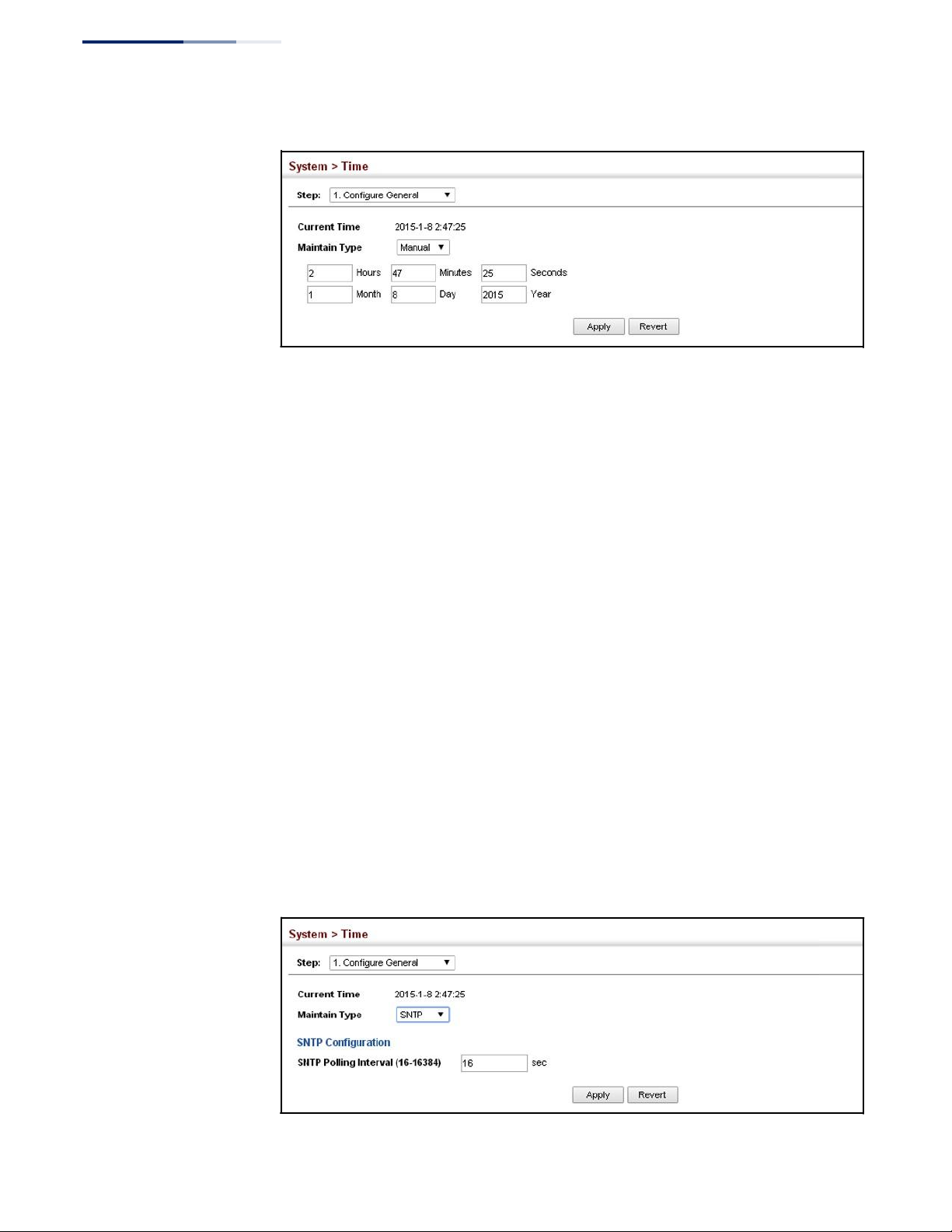

Figure 12:

Manually Setting the System Clock

Figure 13:

Setting the Polling Interval for SNTP

Figure 14:

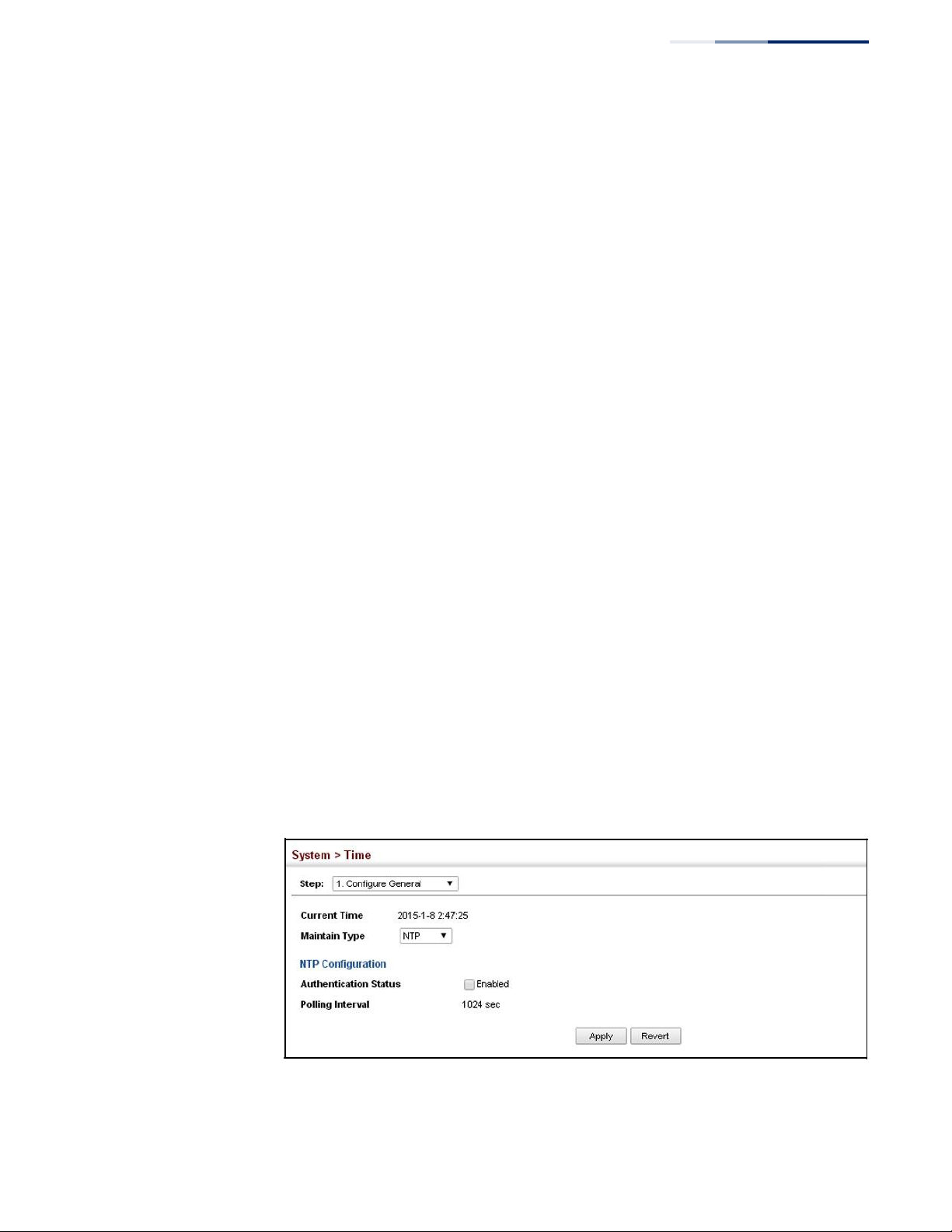

Configuring NTP 71

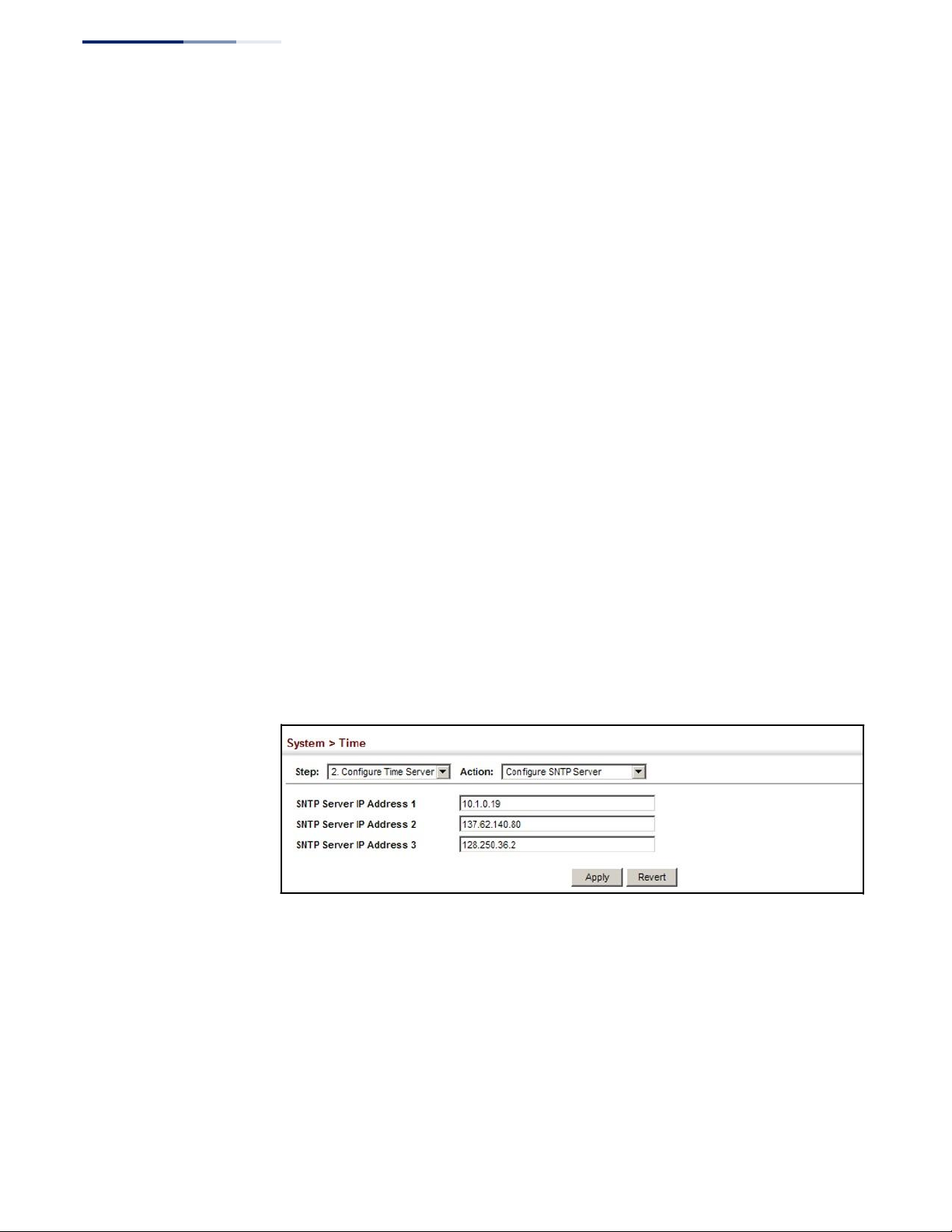

Figure 15:

Specifying SNTP Time Servers

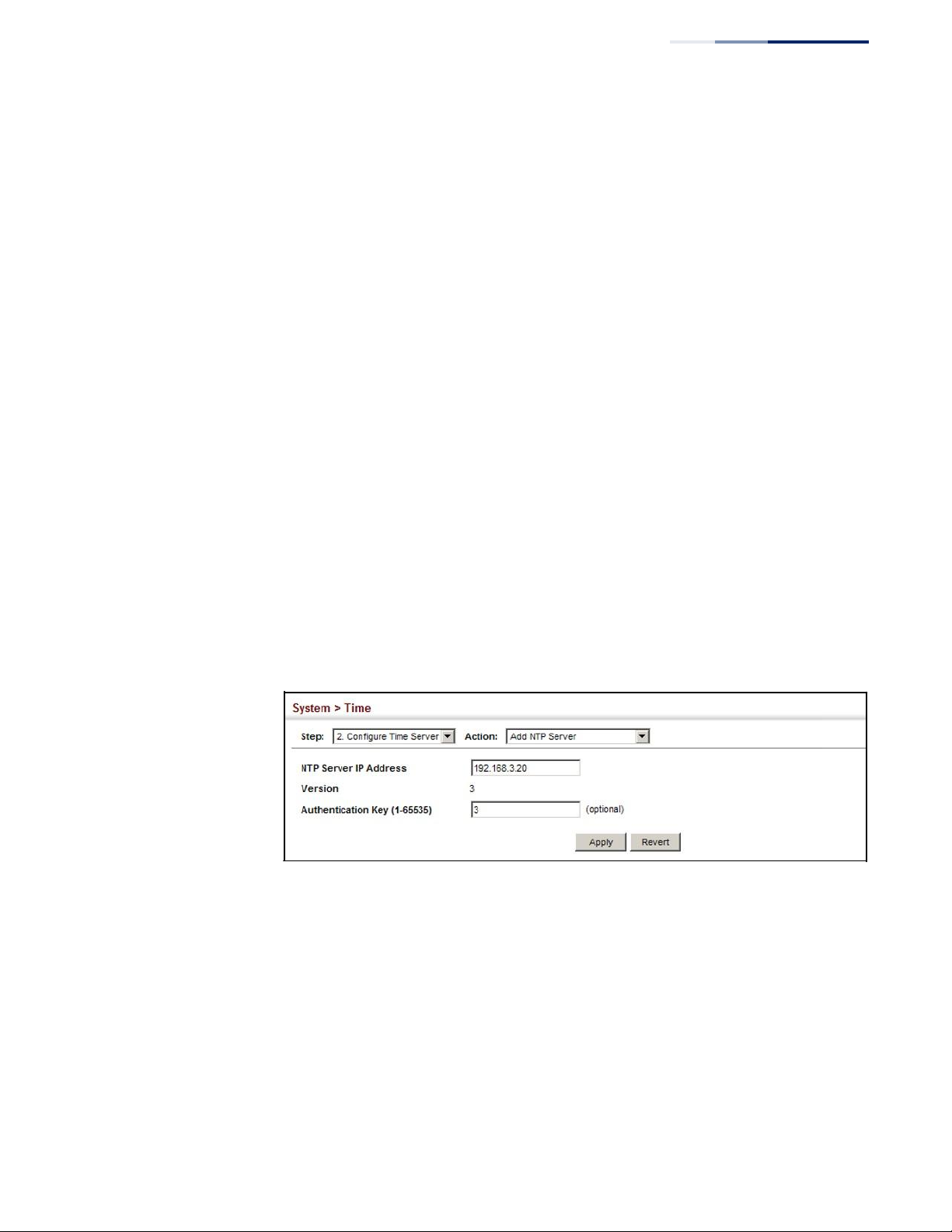

Figure 16:

Adding an NTP Time Server

Figure 17:

Showing the NTP Time Server List

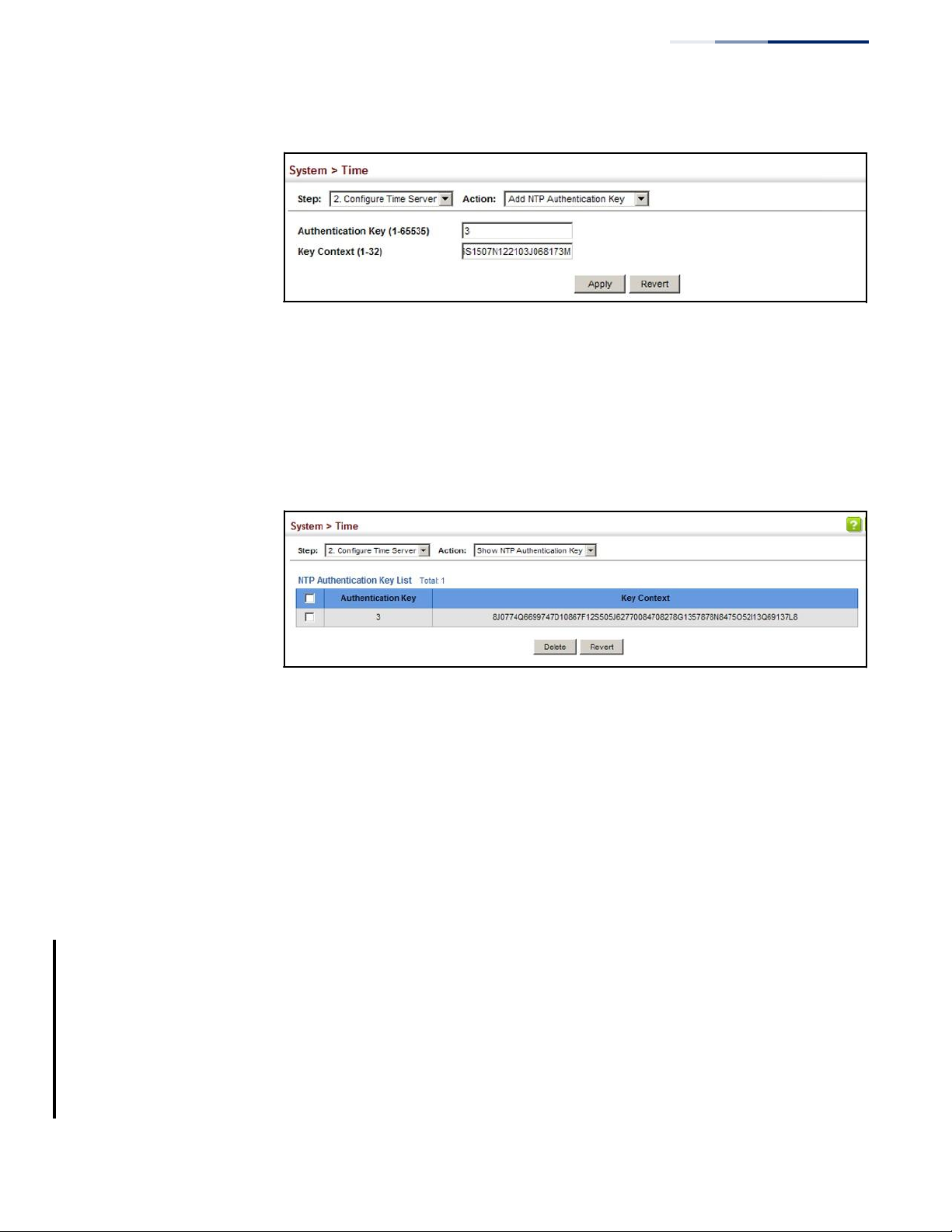

Figure 18:

Adding an NTP Authentication Key

Figure 19:

Showing the NTP Authentication Key List

Figure 20:

Setting the Time Zone 76

Figure 21:

Console Port Settings

Figure 22:

Telnet Connection Settings

Figure 23:

Displaying CPU Utilization

Figure 24:

Displaying Memory Utilization

Figure 25:

Restarting the Switch (Immediately)

Figure 26:

Restarting the Switch (In)

Figure 27:

Restarting the Switch (At)

Figure 28:

Restarting the Switch (Regularly)

Figure 29:

Configuring Connections by Port List

Figures

Page 14

Figures

– 14 –

Figure 30:

Configuring Connections by Port Range

Figure 31:

Displaying Port Information

Figure 32:

Configuring Local Port Mirroring

Figure 33:

Configuring Local Port Mirroring

Figure 34:

Displaying Local Port Mirror Sessions

Figure 35:

Showing Port Statistics (Table)

Figure 36:

Showing Port Statistics (Chart)

Figure 37:

Configuring a History Sample

Figure 38:

Showing Entries for History Sampling

Figure 39:

Showing Status of Statistical History Sample

Figure 40:

Showing Current Statistics for a History Sample

Figure 41:

Showing Ingress Statistics for a History Sample

100

Figure 42:

Displaying Transceiver Data

101

Figure 43:

Configuring Transceiver Thresholds

103

Figure 44:

Configuring Static Trunks

104

Figure 45:

Creating Static Trunks

105

Figure 46:

Adding Static Trunks Members

106

Figure 47:

Configuring Connection Parameters for a Static Trunk

106

Figure 48:

Showing Information for Static Trunks

107

Figure 49:

Configuring Dynamic Trunks

107

Figure 50:

Configuring the LACP Aggregator Admin Key

110

Figure 51:

Enabling LACP on a Port

111

Figure 52:

Configuring LACP Parameters on a Port

111

Figure 53:

Showing Members of a Dynamic Trunk

112

Figure 54:

Configuring Connection Settings for Dynamic Trunks

112

Figure 55:

Displaying Connection Parameters for Dynamic Trunks

113

Figure 56:

Displaying LACP Port Counters

114

Figure 57:

Displaying LACP Port Internal Information

115

Figure 58:

Displaying LACP Port Remote Information

117

Figure 59:

Configuring Load Balancing

118

Figure 60:

Enabling Traffic Segmentation

120

Figure 61:

Configuring Members for Traffic Segmentation

121

Figure 62:

Showing Traffic Segmentation Members

122

Figure 63:

VLAN Compliant and VLAN Non-compliant Devices

124

Figure 64:

Creating Static VLANs

126

Page 15

Figures

– 15 –

Figure 65:

Modifying Settings for Static VLANs

127

Figure 66:

Showing Static VLANs

127

Figure 67:

Configuring Static Members by VLAN Index

130

Figure 68:

Configuring Static VLAN Members by Interface

131

Figure 69:

Configuring Static VLAN Members by Interface Range

131

Figure 70:

Configuring MAC Address Learning

134

Figure 71:

Configuring Static MAC Addresses

136

Figure 72:

Displaying Static MAC Addresses

136

Figure 73:

Setting the Address Aging Time

137

Figure 74:

Displaying the Dynamic MAC Address Table

138

Figure 75:

Clearing Entries in the Dynamic MAC Address Table

139

Figure 76:

Issuing MAC Address Traps (Global Configuration)

140

Figure 77:

Issuing MAC Address Traps (Interface Configuration)

140

Figure 78:

STP Root Ports and Designated Ports

142

Figure 79:

MSTP Region, Internal Spanning Tree, Multiple Spanning Tree

142

Figure 80:

Common Internal Spanning Tree, Common Spanning Tree, Internal Spanning Tree

143

Figure 81:

Configuring Global Settings for STA (STP)

147

Figure 82:

Configuring Global Settings for STA (RSTP)

147

Figure 83:

Configuring Global Settings for STA (MSTP)

148

Figure 84:

Displaying Global Settings for STA

149

Figure 85:

Configuring Interface Settings for STA

152

Figure 86:

STA Port Roles

154

Figure 87:

Displaying Interface Settings for STA

155

Figure 88:

Creating an MST Instance

156

Figure 89:

Displaying MST Instances

157

Figure 90:

Modifying the Priority for an MST Instance

157

Figure 91:

Displaying Global Settings for an MST Instance

158

Figure 92:

Adding a VLAN to an MST Instance

158

Figure 93:

Displaying Members of an MST Instance

159

Figure 94:

Configuring MSTP Interface Settings

160

Figure 95:

Displaying MSTP Interface Settings

161

Figure 96:

Configuring Storm Control

164

Figure 97:

Setting the Default Port Priority

166

Figure 98:

Setting the Queue Mode (Strict)

168

Page 16

Figures

– 16 –

Figure 99:

Setting the Queue Mode (WRR)

168

Figure 100:

Setting the Queue Mode (Strict and WRR)

169

Figure 101:

Mapping CoS Values to Egress Queues

171

Figure 102:

Showing CoS Values to Egress Queue Mapping

171

Figure 103:

Setting the Trust Mode

173

Figure 104:

Configuring DSCP to DSCP Internal Mapping

175

Figure 105:

Showing DSCP to DSCP Internal Mapping

175

Figure 106:

Configuring CoS to DSCP Internal Mapping

177

Figure 107:

Showing CoS to DSCP Internal Mapping

178

Figure 108:

Configuring DSCP to CoS Egress Mapping

179

Figure 109:

Showing DSCP to CoS Egress Mapping

180

Figure 110:

Configuring IP Precedence to DSCP Internal Mapping

182

Figure 111:

Showing the IP Precedence to DSCP Internal Map

182

Figure 112:

Configuring IP Port Number to DSCP Internal Mapping

183

Figure 113:

Showing IP Port Number to DSCP Internal Mapping

184

Figure 114:

Configuring a Class Map

187

Figure 115:

Showing Class Maps

188

Figure 116:

Adding Rules to a Class Map

189

Figure 117:

Showing the Rules for a Class Map

189

Figure 118:

Configuring a Policy Map

197

Figure 119:

Showing Policy Maps

197

Figure 120:

Adding Rules to a Policy Map

198

Figure 121:

Showing the Rules for a Policy Map

199

Figure 122:

Attaching a Policy Map to a Port

200

Figure 123:

Configuring the Authentication Sequence

203

Figure 124:

Authentication Server Operation

204

Figure 125:

Configuring Remote Authentication Server (RADIUS)

207

Figure 126:

Configuring Remote Authentication Server (TACACS+)

207

Figure 127:

Configuring AAA Server Groups

208

Figure 128:

Showing AAA Server Groups

208

Figure 129:

Configuring User Accounts

210

Figure 130:

Showing User Accounts

210

Figure 131:

Configuring HTTPS

212

Figure 132:

Downloading the Secure-Site Certificate

214

Figure 133:

Configuring the SSH Server

218

Page 17

Figures

– 17 –

Figure 134:

Generating the SSH Host Key Pair

219

Figure 135:

Showing the SSH Host Key Pair

220

Figure 136:

Copying the SSH User’s Public Key

221

Figure 137:

Showing the SSH User’s Public Key

222

Figure 138:

Setting the Name of a Time Range

224

Figure 139:

Showing a List of Time Ranges

225

Figure 140:

Add a Rule to a Time Range

225

Figure 141:

Showing the Rules Configured for a Time Range

226

Figure 142:

Showing TCAM Utilization

227

Figure 143:

Creating an ACL

228

Figure 144:

Showing a List of ACLs

228

Figure 145:

Configuring a Standard IPv4 ACL

230

Figure 146:

Configuring an Extended IPv4 ACL

232

Figure 147:

Configuring a Standard IPv6 ACL

233

Figure 148:

Configuring an Extended IPv6 ACL

235

Figure 149:

Configuring a MAC ACL

237

Figure 150:

Binding a Port to an ACL

238

Figure 151:

Creating an IP Address Filter for Management Access

240

Figure 152:

Showing IP Addresses Authorized for Management Access

240

Figure 153:

Configuring Settings for System Memory Logs

243

Figure 154:

Showing Error Messages Logged to System Memory

243

Figure 155:

Configuring Settings for Remote Logging of Error Messages

245

Figure 156:

Configuring LLDP Timing Attributes

247

Figure 157:

Configuring LLDP Interface Attributes

251

Figure 158:

Configuring the Civic Address for an LLDP Interface

252

Figure 159:

Displaying Local Device Information for LLDP (General)

255

Figure 160:

Displaying Local Device Information for LLDP (Port)

256

Figure 161:

Displaying Remote Device Information for LLDP (Port)

262

Figure 162:

Displaying Remote Device Information for LLDP (Port Details)

263

Figure 163:

Displaying Remote Device Information for LLDP (End Node)

264

Figure 164:

Displaying LLDP Device Statistics (General)

265

Figure 165:

Displaying LLDP Device Statistics (Port)

266

Figure 166:

Configuring Global Settings for SNMP

269

Figure 167:

Configuring the Local Engine ID for SNMP

270

Figure 168:

Configuring a Remote Engine ID for SNMP

271

Page 18

Figures

– 18 –

Figure 169:

Showing Remote Engine IDs for SNMP

271

Figure 170:

Creating an SNMP View

272

Figure 171:

Showing SNMP Views

273

Figure 172:

Adding an OID Subtree to an SNMP View

273

Figure 173:

Showing the OID Subtree Configured for SNMP Views

274

Figure 174:

Creating an SNMP Group

277

Figure 175:

Showing SNMP Groups

277

Figure 176:

Setting Community Access Strings

278

Figure 177:

Showing Community Access Strings

279

Figure 178:

Configuring Local SNMPv3 Users

280

Figure 179:

Showing Local SNMPv3 Users

281

Figure 180:

Configuring Remote SNMPv3 Users

283

Figure 181:

Showing Remote SNMPv3 Users

283

Figure 182:

Configuring Trap Managers (SNMPv1)

287

Figure 183:

Configuring Trap Managers (SNMPv2c)

287

Figure 184:

Configuring Trap Managers (SNMPv3)

287

Figure 185:

Showing Trap Managers

288

Figure 186:

Creating SNMP Notification Logs

289

Figure 187:

Showing SNMP Notification Logs

290

Figure 188:

Showing SNMP Statistics

291

Figure 189:

Configuring an RMON Alarm

294

Figure 190:

Showing Configured RMON Alarms

295

Figure 191:

Configuring an RMON Event

296

Figure 192:

Showing Configured RMON Events

297

Figure 193:

Configuring an RMON History Sample

299

Figure 194:

Showing Configured RMON History Samples

299

Figure 195:

Showing Collected RMON History Samples

300

Figure 196:

Configuring an RMON Statistical Sample

301

Figure 197:

Showing Configured RMON Statistical Samples

301

Figure 198:

Showing Collected RMON Statistical Samples

302

Figure 199:

Configuring UDLD Protocol Intervals

304

Figure 200:

Configuring UDLD Interface Settings

306

Figure 201:

Displaying UDLD Neighbor Information

307

Figure 202:

Multicast Filtering Concept

309

Figure 203:

IGMP Protocol

311

Page 19

Figures

– 19 –

Figure 204:

Configuring General Settings for IGMP Snooping

316

Figure 205:

Configuring a Static Interface for an IPv4 Multicast Router

318

Figure 206:

Showing Static Interfaces Attached an IPv4 Multicast Router

318

Figure 207:

Showing Current Interfaces Attached an IPv4 Multicast Router

319

Figure 208:

Assigning an Interface to an IPv4 Multicast Service

320

Figure 209:

Showing Static Interfaces Assigned to an IPv4 Multicast Service

320

Figure 210:

Configuring IGMP Snooping on a VLAN

325

Figure 211:

Showing Interface Settings for IGMP Snooping

326

Figure 212:

Dropping IGMP Query Packets

327

Figure 213:

Showing Multicast Groups Learned by IGMP Snooping

328

Figure 214:

Displaying IGMP Snooping Statistics – Query

330

Figure 215:

Displaying IGMP Snooping Statistics – VLAN

331

Figure 216:

Displaying IGMP Snooping Statistics – Port

331

Figure 217:

Enabling IGMP Filtering and Throttling

333

Figure 218:

Creating an IGMP Filtering Profile

334

Figure 219:

Showing the IGMP Filtering Profiles Created

334

Figure 220:

Adding Multicast Groups to an IGMP Filtering Profile

335

Figure 221:

Showing the Groups Assigned to an IGMP Filtering Profile

335

Figure 222:

Configuring IGMP Filtering and Throttling Interface Settings

337

Figure 223:

Configuring a Static IPv4 Address

341

Figure 224:

Configuring a Dynamic IPv4 Address

342

Figure 225:

Showing the IPv4 Address Configured for an Interface

343

Figure 226:

Configuring the IPv6 Default Gateway

344

Figure 227:

Configuring General Settings for an IPv6 Interface

348

Figure 228:

Configuring an IPv6 Address

350

Figure 229:

Showing Configured IPv6 Addresses

352

Figure 230:

Showing IPv6 Neighbors

353

Figure 231:

Showing IPv6 Statistics (IPv6)

358

Figure 232:

Showing IPv6 Statistics (ICMPv6)

359

Figure 233:

Showing IPv6 Statistics (UDP)

359

Figure 234:

Showing Reported MTU Values

360

Figure 235:

Specifying A DHCP Client Identifier

363

Figure 236:

Layer 3 DHCP Relay Service

363

Figure 237:

Configuring DHCP Relay Service

364

Figure 238:

Virtual Interfaces and Layer 3 Routing

366

Page 20

Figures

– 20 –

Figure 239:

Pinging a Network Device

370

Figure 240:

Tracing the Route to a Network Device

371

Figure 241:

Configuring ARP Timeout

373

Figure 242:

Configuring Static ARP Entries

374

Figure 243:

Displaying Static ARP Entries

375

Figure 244:

Displaying ARP Entries

375

Figure 245:

Displaying ARP Statistics

376

Figure 246:

Configuring Static Routes

377

Figure 247:

Displaying Static Routes

378

Figure 248:

Displaying the Routing Table

379

Figure 249:

Setting the Maximum ECMP Number

381

Figure 250:

Master Virtual Router with Backup Routers

383

Figure 251:

Several Virtual Master Routers Using Backup Routers

384

Figure 252:

Several Virtual Master Routers Configured for Mutual Backup and Load Sharing

384

Figure 253:

Configuring the VRRP Group ID

388

Figure 254:

Showing Configured VRRP Groups

388

Figure 255:

Setting the Virtual Router Address for a VRRP Group

389

Figure 256:

Showing the Virtual Addresses Assigned to VRRP Groups

389

Figure 257:

Configuring Detailed Settings for a VRRP Group

390

Figure 258:

Showing Counters for Errors Found in VRRP Packets

391

Figure 259:

Showing Counters for Errors Found in a VRRP Group

392

Figure 260:

Configuring OSPF

394

Figure 261:

OSPF Areas

396

Figure 262:

Defining OSPF Network Areas Based on Addresses

397

Figure 263:

Showing OSPF Network Areas

398

Figure 264:

Showing OSPF Process Identifiers

398

Figure 265:

AS Boundary Router

400

Figure 266:

Configure General Settings for OSPF

401

Figure 267:

Showing General Settings for OSPF

402

Figure 268:

Adding an NSSA or Stub

403

Figure 269:

Showing NSSAs or Stubs

404

Figure 270:

OSPF NSSA

404

Figure 271:

Configuring Protocol Settings for an NSSA

407

Figure 272:

OSPF Stub Area

407

Figure 273:

Configuring Protocol Settings for a Stub

409

Page 21

Figures

– 21 –

Figure 274:

Displaying Information on NSSA and Stub Areas

410

Figure 275:

Route Summarization for ABRs

410

Figure 276:

Configuring Route Summaries for an Area Range

411

Figure 277:

Showing Configured Route Summaries

412

Figure 278:

Redistributing External Routes

412

Figure 279:

Importing External Routes

413

Figure 280:

Showing Imported External Route Types

414

Figure 281:

Summarizing External Routes

415

Figure 282:

Showing Summary Addresses for External Routes

415

Figure 283:

Configuring Settings for All Interfaces Assigned to a VLAN

419

Figure 284:

Configuring Settings for a Specific Area Assigned to a VLAN

420

Figure 285:

Showing OSPF Interfaces

420

Figure 286:

Showing MD5 Authentication Keys

421

Figure 287:

OSPF Virtual Link

421

Figure 288:

Adding a Virtual Link

422

Figure 289:

Showing Virtual Links

423

Figure 290:

Configuring Detailed Settings for a Virtual Link

423

Figure 291:

Showing MD5 Authentication Keys

424

Figure 292:

Displaying Information in the Link State Database

426

Figure 293:

Displaying Neighbor Routers Stored in the Link State Database

427

Figure 294:

Configuring an OSPF Passive Interface

428

Figure 295:

Showing OSPF Passive Interfaces

429

Page 22

Figures

– 22 –

Page 23

– 23 –

Table 1:

Key Features

Table 2:

System Defaults

Table 3:

Web Page Configuration Buttons

Table 4:

Switch Main Menu

Table 5:

Port Statistics

Table 6:

LACP Port Counters

113

Table 7:

LACP Internal Configuration Information

114

Table 8:

LACP Remote Device Configuration Information

116

Table 9:

Traffic Segmentation Forwarding

120

Table 10:

Recommended STA Path Cost Range

150

Table 11:

Default STA Path Costs

150

Table 12:

IEEE 802.1p Egress Queue Priority Mapping

169

Table 13:

CoS Priority Levels

170

Table 14:

Mapping Internal Per-hop Behavior to Hardware Queues

170

Table 15:

Default Mapping of DSCP Values to Internal PHB/Drop Values

174

Table 16:

Default Mapping of CoS/CFI to Internal PHB/Drop Precedence

176

Table 17:

Mapping Internal PHB/Drop Precedence to CoS/CFI Values

179

Table 18:

Mapping IP Precedence

180

Table 19:

Default Mapping of IP Precedence to Internal PHB/Drop Values

181

Table 20:

HTTPS System Support

211

Table 21:

Logging Levels

242

Table 22:

LLDP MED Location CA Types

251

Table 23:

Chassis ID Subtype

253

Table 24:

System Capabilities

253

Table 25:

Port ID Subtype

254

Table 26:

Remote Port Auto-Negotiation Advertised Capability

258

Table 27:

SNMPv3 Security Models and Levels

267

Table 28:

Supported Notification Messages

275

Table 29:

Show IPv6 Neighbors - display description

352

Tables

Page 24

Tables

– 24 –

Table 30:

Show IPv6 Statistics - display description

354

Table 31:

Show MTU - display description

360

Table 32:

Options 60, 66 and 67 Statements

361

Table 33:

Options 55 and 124 Statements

362

Table 34:

Address Resolution Protocol

372

Table 35:

ARP Statistics

375

Table 36:

VRRP Group Statistics

391

Table 37:

OSPF System Information

401

Table 38:

Troubleshooting Chart

439

Page 25

– 25 –

Section I

Getting Started

This section provides an overview of the switch, and introduces some basic concepts about network switches. It also describes the basic settings required to access the management interface.

This section includes these chapters:

◆

"Introduction" on page 27

Page 26

Section I

Getting Started

– 26 –

Page 27

– 27 –

Feature Description

Key Features

Introduction

This switch provides a broad range of features for Layer 2 switching and Layer 3 routing. It includes a management agent that allows you to configure the features listed in this manual. The default configuration can be used for most of the features provided by this switch. However, there are many options that you should configure to maximize the switch’s performance for your particular network environment.

Table 1: Key Features

Configuration Backup and Restore

Authentication Console, Telnet, web – user name/password, RADIUS, TACACS+

General Security Measures IP Address Filtering

Access Control Lists Supports up to 256 ACLs, up to 96 rules per ACL

DHCP

DHCPv6 Client

DNS

Port Configuration Speed, duplex mode and flow control

Port Trunking Supports up to 8 trunks – static or dynamic trunking (LACP)

Port Mirroring 28 sessions, one or more source ports to one analysis port

Congestion Control Rate Limiting

Using management station or FTP/TFTP server

SNMP v1/2c - Community strings SNMP version 3 – MD5 or SHA password Telnet – SSH Web – HTTPS

Local and Remote User Accounts RADIUS Server Authentication Secure Shell

Client, Relay

Client service

Throttling for broadcast, multicast, unknown unicast storms

Page 28

Chapter 1

Introduction

Description of Software Features

– 28 –

Feature Description

Table 1: Key Features (Continued)

Address Table 32K MAC addresses in forwarding table, 1K static MAC addresses;

8K entries in ARP cache, 256 static ARP entries; 512 static IP routes, 512 IP interfaces; 12K IPv4 entries in host table; 8K IPv4 entries in routing table; 6K IPv6 entries in host table; 4K IPv6 entries in routing table 1K L2 IPv4 multicast groups; 1K L3 IPv4 multicast groups (shared with IPv6); 1K L3 IPv6 multicast groups (shared with IPv4)

IP Version 4 and 6 Supports IPv4 and IPv6 addressing, and management

IEEE 802.1D Bridge Supports dynamic data switching and addresses learning

Store-and-Forward Switching

Spanning Tree Algorithm Supports standard STP, Rapid Spanning Tree Protocol (RSTP), and

Virtual LANs Up to 4094 using IEEE 802.1Q, and port-based VLANs

Traffic Prioritization Default port priority, traffic class map, queue scheduling, IP Precedence,

Qualify of Service Supports Differentiated Services (DiffServ)

Link Layer Discovery Protocol

Router Redundancy Router backup is provided with the Virtual Router Redundancy Protocol

IP Routing

ARP Static and dynamic address configuration, proxy ARP

Multicast Filtering Supports IGMP snooping and query for Layer 2

Multicast Routing Static multicast routing

Supported to ensure wire-speed switching while eliminating bad frames

Multiple Spanning Trees (MSTP)

or Differentiated Services Code Point (DSCP), and TCP/UDP Port

Used to discover basic information about neighboring devices

(VRRP)

Open Shortest Path First (OSPFv2/v3*), Border Gateway Protocol (BGPv4)*, policy-based routing for BGP*, static routes, Equal-Cost Multipath Routing (ECMP)

Description of Software Features

* These features are only available through the Command Line Interface

The switch provides a wide range of advanced performance enhancing features. Flow control eliminates the loss of packets due to bottlenecks caused by port saturation. Broadcast storm suppression prevents broadcast traffic storms from engulfing the network. Untagged (port-based), tagged, and protocol-based VLANs, plus support for automatic GVRP VLAN registration provide traffic security and efficient use of network bandwidth. CoS priority queueing ensures the minimum delay for moving real-time multimedia data across the network. While multicast filtering and routing provides support for real-time network applications.

Page 29

Chapter 1

Introduction

Description of Software Features

– 29 –

Some of the management features are briefly described below.

Configuration

Backup and Restore

You can save the current configuration settings to a file on the management station (using the web interface) or an FTP/TFTP server (using the web or console interface), and later download this file to restore the switch configuration settings.

Authentication This switch authenticates management access via the console port, Telnet, or a web

browser. User names and passwords can be configured locally or can be verified via a remote authentication server (i.e., RADIUS or TACACS+).

Other authentication options include HTTPS for secure management access via the web, SSH for secure management access over a Telnet-equivalent connection, SNMP Version 3, IP address filtering for SNMP/Telnet/web management access. MAC address filtering and IP source guard also provide authenticated port access. Access Control Lists

ACLs provide packet filtering for IP frames (based on address, protocol, TCP/UDP port number or TCP control code) or any frames (based on MAC address or Ethernet type). ACLs can by used to improve performance by blocking unnecessary network traffic or to implement security controls by restricting access to specific network resources or protocols.

DHCP DHCP Relay Option 82 controls the processing of Option 82 information in DHCP

request packets relayed by this device.

Port Configuration You can manually configure the speed, duplex mode, and flow control used on

specific ports, or use auto-negotiation to detect the connection settings used by the attached device. Use full-duplex mode on ports whenever possible to double the throughput of switch connections. Flow control should also be enabled to control network traffic during periods of congestion and prevent the loss of packets when port buffer thresholds are exceeded. The switch supports flow control based on the IEEE 802.3x standard (now incorporated in IEEE 802.3-2002).

Port Mirroring The switch can unobtrusively mirror traffic from any port to a monitor port. You can

then attach a protocol analyzer or RMON probe to this port to perform traffic analysis and verify connection integrity.

Port Trunking Ports can be combined into an aggregate connection. Trunks can be manually set

up or dynamically configured using Link Aggregation Control Protocol (LACP – IEEE

802.3-2005). The additional ports dramatically increase the throughput across any connection, and provide redundancy by taking over the load if a port in the trunk should fail. The switch supports up to 8 trunks.

Page 30

Chapter 1

Introduction

Description of Software Features

– 30 –

Storm Control Broadcast, multicast and unknown unicast storm suppression prevents traffic from

overwhelming the network.When enabled on a port, the level of traffic passing through the port is restricted. If traffic rises above a pre-defined threshold, it will be throttled until the level falls back beneath the threshold.

Static MAC

Addresses

A static address can be assigned to a specific interface on this switch. Static addresses are bound to the assigned interface and will not be moved. When a static address is seen on another interface, the address will be ignored and will not be written to the address table. Static addresses can be used to provide network security by restricting access for a known host to a specific port.

IP Address Filtering Access to insecure ports can be controlled using DHCP Snooping which filters

ingress traffic based on static IP addresses and addresses stored in the DHCP Snooping table. Traffic can also be restricted to specific source IP addresses or source IP/MAC address pairs based on static entries or entries stored in the DHCP Snooping table.

IEEE 802.1D Bridge The switch supports IEEE 802.1D transparent bridging. The address table facilitates

data switching by learning addresses, and then filtering or forwarding traffic based on this information. The address table supports up to 32K addresses.

Store-and-Forward

Switching

The switch copies each frame into its memory before forwarding them to another port. This ensures that all frames are a standard Ethernet size and have been verified for accuracy with the cyclic redundancy check (CRC). This prevents bad frames from entering the network and wasting bandwidth.

Spanning Tree

Algorithm

To avoid dropping frames on congested ports, the switch provides 3 Mbits for frame buffering. This buffer can queue packets awaiting transmission on congested networks.

The switch supports these spanning tree protocols:

◆

Spanning Tree Protocol (STP, IEEE 802.1D) – This protocol provides loop detection. When there are multiple physical paths between segments, this protocol will choose a single path and disable all others to ensure that only one route exists between any two stations on the network. This prevents the creation of network loops. However, if the chosen path should fail for any reason, an alternate path will be activated to maintain the connection.

◆

Rapid Spanning Tree Protocol (RSTP, IEEE 802.1w) – This protocol reduces the convergence time for network topology changes to about 3 to 5 seconds, compared to 30 seconds or more for the older IEEE 802.1D STP standard. It is intended as a complete replacement for STP, but can still interoperate with switches running the older standard by automatically reconfiguring ports to

Page 31

Chapter 1

Introduction

Description of Software Features

– 31 –

STP-compliant mode if they detect STP protocol messages from attached devices.

◆

Multiple Spanning Tree Protocol (MSTP, IEEE 802.1s) – This protocol is a direct extension of RSTP. It can provide an independent spanning tree for different VLANs. It simplifies network management, provides for even faster convergence than RSTP by limiting the size of each region, and prevents VLAN members from being segmented from the rest of the group (as sometimes occurs with IEEE 802.1D STP).

Virtual LANs The switch supports up to 4094 VLANs. A Virtual LAN is a collection of network

nodes that share the same collision domain regardless of their physical location or connection point in the network. The switch supports tagged VLANs based on the IEEE 802.1Q standard. Members of VLAN groups can be manually assigned to a specific set of VLANs. This allows the switch to restrict traffic to the VLAN groups to which a user has been assigned. By segmenting your network into VLANs, you can:

◆

Eliminate broadcast storms which severely degrade performance in a flat network.

◆

Simplify network management for node changes/moves by remotely configuring VLAN membership for any port, rather than having to manually change the network connection.

◆

Provide data security by restricting all traffic to the originating VLAN, except where a connection is explicitly defined via the switch's routing service.

Traffic Prioritization This switch prioritizes each packet based on the required level of service, using

eight priority queues with strict priority, Weighted Round Robin (WRR), or a combination of strict and weighted queuing. It uses IEEE 802.1p and 802.1Q tags to prioritize incoming traffic based on input from the end-station application. These functions can be used to provide independent priorities for delay-sensitive data and best-effort data.

Quality of Service Differentiated Services (DiffServ) provides policy-based management mechanisms

This switch also supports several common methods of prioritizing layer 3/4 traffic to meet application requirements. Traffic can be prioritized based on the priority bits in the IP frame’s Type of Service (ToS) octet using DSCP, or IP Precedence or TCP/UDP port numbers. When these services are enabled, the priorities are mapped to a Class of Service value by the switch, and the traffic then sent to the corresponding output queue.

used for prioritizing network resources to meet the requirements of specific traffic types on a per-hop basis. Each packet is classified upon entry into the network based on access lists, IP Precedence or DSCP values, or VLAN lists. Using access lists allows you select traffic based on Layer 2, Layer 3, or Layer 4 information contained

Page 32

Chapter 1

Introduction

Description of Software Features

– 32 –

in each packet. Based on network policies, different kinds of traffic can be marked for different kinds of forwarding.

IP Routing The switch provides Layer 3 IP routing. To maintain a high rate of throughput, the

switch forwards all traffic passing within the same segment, and routes only traffic that passes between different subnetworks. The wire-speed routing provided by this switch lets you easily link network segments or VLANs together without having to deal with the bottlenecks or configuration hassles normally associated with conventional routers.

Routing for unicast traffic is supported with static routing, Open Shortest Path First (OSPF) protocol, and Border Gateway Protocol (BGP).

Static Routing – Traffic is automatically routed between any IP interfaces configured on the switch. Routing to statically configured hosts or subnet addresses is provided based on next-hop entries specified in the static routing table.

OSPF – This approach uses a link state routing protocol to generate a shortest-path tree, then builds up its routing table based on this tree. OSPF produces a more stable network because the participating routers act on network changes predictably and simultaneously, converging on the best route more quickly than RIP.

BGP – This protocol uses a path vector approach to connect autonomous systems (AS) on the Internet. BGP maintains a table of IP network prefixes which designate network reachability among autonomous systems based the path of ASs to the destination, and next hop information. It makes routing decisions based on path, network policies and/or rule sets. For this reason, it is more appropriately termed a reachability protocol rather than a routing protocol.

Policy-based Routing for BGP – The next-hop behavior for ingress IP traffic can be determined based on matching criteria.

Equal-cost Multipath

Load Balancing

Router Redundancy Virtual Router Redundancy Protocol (VRRP) uses a virtual IP address to support a

When multiple paths to the same destination and with the same path cost are found in the routing table, the Equal-cost Multipath (ECMP) algorithm first checks if the cost is lower than that of any other routing entries. If the cost is the lowest in the table, the switch will use up to eight paths having the lowest path cost to balance traffic forwarded to the destination. ECMP uses either equal-cost unicast multipaths manually configured in the static routing table, or equal-cost multipaths dynamically detected by the Open Shortest Path Algorithm (OSPF). In other words, it uses either static or unicast routing entries, not both.

primary router and multiple backup routers. The backups can be configured to take over the workload if the master fails or to load share the traffic. The primary goal of

Page 33

Chapter 1

Introduction

Description of Software Features

– 33 –

this protocol is to allow a host device which has been configured with a fixed gateway to maintain network connectivity in case the primary gateway goes down.

Address Resolution

Protocol

The switch uses ARP and Proxy ARP to convert between IP addresses and MAC (hardware) addresses. This switch supports conventional ARP, which locates the MAC address corresponding to a given IP address. This allows the switch to use IP addresses for routing decisions and the corresponding MAC addresses to forward packets from one hop to the next. Either static or dynamic entries can be configured in the ARP cache.

Proxy ARP allows hosts that do not support routing to determine the MAC address of a device on another network or subnet. When a host sends an ARP request for a remote network, the switch checks to see if it has the best route. If it does, it sends its own MAC address to the host. The host then sends traffic for the remote destination via the switch, which uses its own routing table to reach the destination on the other network.

Multicast Filtering Specific multicast traffic can be assigned to its own VLAN to ensure that it does not

interfere with normal network traffic and to guarantee real-time delivery by setting the required priority level for the designated VLAN. The switch uses IGMP Snooping and Query for IPv4.

Link Layer

Discovery Protocol

LLDP is used to discover basic information about neighboring devices within the local broadcast domain. LLDP is a Layer 2 protocol that advertises information about the sending device and collects information gathered from neighboring network nodes it discovers.

Advertised information is represented in Type Length Value (TLV) format according to the IEEE 802.1ab standard, and can include details such as device identification, capabilities and configuration settings. Media Endpoint Discovery (LLDP-MED) is an extension of LLDP intended for managing endpoint devices such as Voice over IP phones and network switches. The LLDP-MED TLVs advertise information such as network policy, power, inventory, and device location details. The LLDP and LLDPMED information can be used by SNMP applications to simplify troubleshooting, enhance network management, and maintain an accurate network topology.

Page 34

– 34 –

Chapter 1

Introduction

System Defaults

Function Parameter Default

System Defaults

The switch’s system defaults are provided in the configuration file “Factory_Default_Config.cfg.” To reset the switch defaults, this file should be set as

the startup configuration file.

The following table lists some of the basic system defaults.

Table 2: System Defaults

Console Port Connection Baud Rate 115200 bps

Data bits 8

Stop bits 1

Parity none

Local Console Timeout

Authentication and Security Measures

Web Management HTTP Server Enabled

Privileged Exec Level Username “admin”

Normal Exec Level Username “guest”

Enable Privileged Exec from Normal Exec Level

RADIUS Authentication Disabled

TACACS+ Authentication Disabled

MAC Authentication Disabled

HTTPS Enabled

SSH Disabled

IP Filtering Disabled

0 (disabled)

Password “admin”

Password “guest”

Password “super”

SNMP SNMP Agent Enabled

HTTP Port Number 80

HTTP Secure Server Enabled

HTTP Secure Server Port 443

Community Strings

Traps Authentication traps: enabled

SNMP V3 View: defaultview

“public” (read only) “private” (read/write)

Link-up-down events: enabled

Group: public (read only); private (read/write)

Page 35

– 35 –

Chapter 1

Introduction

System Defaults

Function

Parameter

Default

Port Configuration

Admin Status

Enabled

Auto-negotiation

Enabled

Flow Control

Disabled

Port Trunking

Static Trunks

None

LACP (all ports)

Disabled

Congestion Control

Storm Control

Broadcast: Enabled

(500 packets/sec)

Multicast: Disabled

Unknown Unicast: Disabled

Address Table

Aging Time

300 seconds

Spanning Tree Algorithm

Status

Enabled, RSTP

(Defaults: RSTP standard)

Edge Ports

Disabled

LLDP Status

Enabled

Virtual LANs

Default VLAN

1 PVID

1 Acceptable Frame Type

All

Ingress Filtering

Disabled

Switchport Mode (Egress Mode)

Hybrid

Traffic Prioritization

Ingress Port Priority

0 Queue Mode

WRR

Queue Weight

Queue: 0 1 2 3 4 5 6 7

Weight: 1 2 4 6 8 10 12 14

Class of Service

Enabled

IP Precedence Priority

Disabled

IP DSCP Priority

Disabled

IP Port Priority

Disabled

IP Settings

Management. VLAN

VLAN 1

IP Address

DHCP assigned

Subnet Mask

255.255.255.0

Default Gateway

0.0.0.0

DHCP

Client: Enabled

DNS Client/Proxy service: Disabled ARP Enabled

Cache Timeout: 20 minutes

Proxy: Disabled

Table 2: System Defaults (Continued)

Page 36

– 36 –

Chapter 1

Introduction

System Defaults

Function Parameter

Default

Unicast Routing

OSPF Disabled

OSPFv3

Disabled

BGPv4

Disabled

Multicast Routing

Static

Disabled

Router Redundancy

VRRP

Disabled

Multicast Filtering

IGMP Snooping (Layer 2)

Snooping: Enabled Querier: Disabled

System Log

Status

Enabled

Messages Logged to RAM

Levels 0-7 (all)

Messages Logged to Flash

Levels 0-3

SNTP Clock Synchronization

Disabled

Table 2: System Defaults (Continued)

Page 37

– 37 –

Section II

Web Configuration

This section describes the basic switch features, along with a detailed description of how to configure each feature via a web browser.

This section includes these chapters:

◆

"Using the Web Interface" on page 39

◆

"Basic Management Tasks" on page 55

◆

"Interface Configuration" on page 85

◆

"VLAN Configuration" on page 123

◆

"Address Table Settings" on page 133

◆

"Spanning Tree Algorithm" on page 141

◆

"Congestion Control" on page 163

◆

"Class of Service" on page 165

◆

"Quality of Service" on page 185

◆

"Security Measures" on page 201

◆

"Basic Administration Protocols" on page 241

◆

"Multicast Filtering" on page 309

◆

"IP Configuration" on page 339

◆

"IP Services" on page 361

◆

"General IP Routing" on page 365

◆

"Configuring Router Redundancy" on page 383

◆

"Unicast Routing" on page 393

Page 38

– 38 –

Section II

Web Configuration

Page 39

– 39 –

Using the Web Interface

This switch provides an embedded HTTP web agent. Using a web browser you can configure the switch and view statistics to monitor network activity. The web agent can be accessed by any computer on the network using a standard web browser (Internet Explorer 8, or Mozilla Firefox 37, Google Chrome 42, or later versions).

Note: You can also use the Command Line Interface (CLI) to manage the switch

over a serial connection to the console port or via Telnet. For more information on using the CLI, refer to the CLI Reference Guide.

Connecting to the Web Interface

Prior to accessing the switch from a web browser, be sure you have first performed the following tasks:

Configure the switch with a valid IP address, subnet mask, and default gateway using an out-of-band serial connection or DHCP protocol. (See the CLI Reference Guide.)

Set user names and passwords using an out-of-band serial connection. Access to the web agent is controlled by the same user names and passwords as the onboard configuration program. (See the CLI Reference Guide.)

After you enter a user name and password, you will have access to the system configuration program.

Note: You are allowed three attempts to enter the correct password; on the third

failed attempt the current connection is terminated.

Note: If you log into the web interface as guest (Normal Exec level), you can view

the configuration settings or change the guest password. If you log in as “admin”

(Privileged Exec level), you can change the settings on any page.

Note:

If the path between your management station and this switch does not pass through any device that uses the Spanning Tree Algorithm, then you can set the switch port attached to your management station to fast forwarding (i.e., enable Admin Edge Port) to improve the switch’s response time to management commands issued through the web interface. See “Configuring Interface Settings

for STA” on page 149.

Page 40

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

– 40 –

Note:

Connection to the web interface is not supported for HTTPS using an IPv6 link local address.

Navigating the Web Browser Interface

To access the web-browser interface you must first enter a user name and password. The administrator has Read/Write access to all configuration parameters and statistics. The default user name and password for the administrator is “admin.”

Home Page When your web browser connects with the switch’s web agent, the home page is

displayed as shown below. The home page displays the Main Menu on the left side of the screen and System Information on the right side. The Main Menu links are used to navigate to other menus, and display configuration parameters and statistics.

Figure 1: Home Page

Note: This manual covers the DG-CS4554F 10G Ethernet switch.

Page 41

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

– 41 –

Button Action

Configuration Options Configurable parameters have a dialog box or a drop-down list. Once a

configuration change has been made on a page, be sure to click on the Apply button to confirm the new setting. The following table summarizes the web page configuration buttons.

Table 3: Web Page Configuration Buttons

Apply Sets specified values to the system.

Revert Cancels specified values and restores current

Displays help for the selected page.

values prior to pressing “Apply.”

Refreshes the current page.

Displays the site map.

Logs out of the management interface.

Sends mail to the vendor.

Links to the vendor’s web site.

Panel Display The web agent displays an image of the switch’s ports. The Mode can be set to

display different information for the ports, including Active (i.e., up or down), Duplex (i.e., half or full duplex), or Flow Control (i.e., with or without flow control).

Page 42

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

– 42 –

Manual

Manually sets the current time

SNTP Configures SNTP polling interval

NTP

Configures NTP authentication parameters

Configure Time Server

Configures a list of NTP or SNTP servers

Configure SNTP Server

Sets the IP address for SNTP time servers

Add NTP Server

Adds NTP time server and index of authentication key

Show NTP Server

Shows list of configured NTP time servers

Add NTP Authentication Key

Adds key index and corresponding MD5 key

Show NTP Authentication Key

Shows list of configured authentication keys

Configure Time Zone

Sets the local time zone for the system clock

Console Sets console port connection parameters

Telnet

Sets Telnet connection parameters

CPU Utilization

Displays information on CPU utilization

Memory Status

Shows memory utilization parameters

Reset

Restarts the switch immediately, at a specified time, after a specified

delay, or at a periodic interval

Menu Description Page

Main Menu Using the onboard web agent, you can define system parameters, manage and

control the switch, and all its ports, or monitor network conditions. The following table briefly describes the selections available from this program.

Table 4: Switch Main Menu

System

General Provides basic system description, including contact information 55

Switch Shows the number of ports, hardware version, power status, and

Capability Enables support for jumbo frames;

File 60

Copy Allows the transfer and copying files 60

Set Startup Sets the startup file 63

Show Shows the files stored in flash memory; allows deletion of files 64

Automatic Operation Code Upgrade Automatically upgrades operation code if a newer version is 65

Time 69

Configure General

firmware version numbers

shows the bridge extension parameters

found on the server

58, 59

Page 43

– 43 –

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

Interface 85

Port 85

General

Configure by Port List Configures connection settings per port 85

Configure by Port Range Configures connection settings for a range of ports 88

Show Information Displays port connection status 89

Mirror 90

Add Sets the source and target ports for mirroring 90

Show Shows the configured mirror sessions 90

Statistics Shows Interface, Etherlike, and RMON port statistics 92

Chart Shows Interface, Etherlike, and RMON port statistics 92

History Shows statistical history for the specified interfaces

Transceiver Configures thresholds for alarm and warning messages for optical

transceivers which support DDM

Trunk

Static 104

Configure Trunk 104

Add Creates a trunk, along with the first port member 104

Show Shows the configured trunk identifiers 104

Add Member Specifies ports to group into static trunks 104

101

Show Member Shows the port members for the selected trunk 104

Configure General 104

Configure Configures trunk connection settings 104

Show Information Displays trunk connection settings 104

Dynamic 107

Configure Aggregator Configures administration key and timeout for specific LACP groups 107

Configure Aggregation Port 104

Configure 104

General Allows ports to dynamically join trunks 107

Actor Configures parameters for link aggregation group members on the

Partner Configures parameters for link aggregation group members on the

Show Information 113

Counters Displays statistics for LACP protocol messages 113

local side

remote side

107

Page 44

– 44 –

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

Internal Displays configuration settings and operational state for the local side

Neighbors Displays configuration settings and operational state for the remote

Configure Trunk 107

Configure Configures connection settings 107

Show Displays port connection status 107

Show Member Shows the active members in a trunk 107

Statistics Shows Interface, Etherlike, and RMON port statistics 92

Chart Shows Interface, Etherlike, and RMON port statistics 92

Load Balance Sets the load-distribution method among ports in aggregated links

History Shows statistical history for the specified interfaces

Traffic Segmentation 119

Configure Global Enables traffic segmentation globally 119

Configure Session Configures the uplink and down-link ports for a segmented group of

Add Assign the downlink and uplink ports to use in a segmented group 120

Show Shows the assigned ports and direction (uplink/downlink) 120

of a link aggregation

side of a link aggregation

ports

114

116

120

VLAN Virtual LAN 123

Static

Add Creates VLAN groups 125

Show Displays configured VLAN groups 125

Modify Configures group name and administrative status 125

Edit Member by VLAN Specifies VLAN attributes per VLAN 128

Edit Member by Interface Specifies VLAN attributes per interface 128

Edit Member by Interface Range Specifies VLAN attributes per interface range 128

MAC Address 133

Learning Status Enables MAC address learning on selected interfaces 133

Static 135

Add Configures static entries in the address table 135

Show Displays static entries in the address table 135

Dynamic

Configure Aging Sets timeout for dynamically learned entries 136

Show Dynamic MAC Displays dynamic entries in the address table 137

Clear Dynamic MAC Removes any learned entries from the forwarding database and clears

the transmit and receive counts for any static or system configured entries

138

Page 45

– 45 –

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

Configure Global

Issues a trap when a dynamic MAC address is added or removed

139

Configure Interface

Enables MAC authentication traps on the current interface

139

Spanning Tree

141

STA Spanning Tree Algorithm

Configure Global

Configure

Configures global bridge settings for STP, RSTP and MSTP

143

Show Information

Displays STA values used for the bridge

148

Configure Interface

Configure

Configures interface settings for STA

149

Show Inform at on

Displays interface settings for STA

152

MSTP

Multiple Spanning Tree Algorithm

155

Configure Global

155

Add Configures initial VLAN and priority for an MST instance

155

Show Configures global settings for an MST instance

155

Modify

Configures the priority or an MST instance

155

Add Member

Adds VLAN members for an MST instance

155

Show Member

Adds or deletes VLAN members for an MST instance

155

Show Information

Displays MSTP values used for the bridge

Configure Interface

159

Configure

Configures interface settings for an MST instance

159

Show Information

Displays interface settings for an MST instance

159

Traffic

Storm Control

Sets the broadcast storm threshold for each interface

163

Priority

Default Priority

Sets the default priority for each port or trunk

165

Queue Sets queue mode for the switch; sets the service weight for each queue

166

that will use a weighted or hybrid mode

Trust Mode

Selects DSCP or CoS priority processing

172

DSCP to DSCP

173

Add Maps DSCP values in incoming packets to per-hop behavior and drop

173

precedence values for internal priority processing

Show Shows the DSCP to DSCP mapping list

173

MAC Notification

Page 46

– 46 –

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

CoS to DSCP

176

Configure

Maps CoS/CFI values in incoming packets to per-hop behavior and drop

176

precedence values for priority processing

Show Shows the CoS to DSCP mapping list

176

DSCP to CoS

178

Add Maps internal per-hop behavior and drop precedence value pairs to CoS

178

values used in tagged egress packets on a Layer 2 interface

Show Shows the DSCP to CoS mapping list

178

IP Precedence to DSCP

180

Add Maps IP precedence values in incoming packets to per-hop behavior

180

and drop precedence values for priority processing

Show Shows the IP Precedence to DSCP mapping list

180

IP Port to DSCP

182

Add Sets TCP/UDP port priority, defining the socket number and associated

182

per-hop behavior and drop precedence

Show Shows the IP Port to DSCP mapping list

182

PHB to Queue

169

Configure

Maps internal per-hop behavior values to hardware queues

169

Show Shows the PHB to Queue mapping list

169

DiffServ

185

Configure Class

186

Add Creates a class map for a type of traffic

186

Show Shows configured class maps

186

Modify

Modifies the name of a class map

186

Add Rule

Configures the criteria used to classify ingress traffic

186

Show Rule

Shows the traffic classification rules for a class map

186

Configure Policy

190

Add Creates a policy map to apply to multiple interfaces

190

Show Shows configured policy maps

190

Modify

Modifies the name of a policy map

190

Add Rule

Sets the boundary parameters used for monitoring inbound traffic, and

190

the action to take for conforming and non-conforming traffic

Show Rule

Shows the rules used to enforce bandwidth policing for a policy map

190

Configure Interface

Applies a policy map to an ingress port

199

Security

201

AAA Authentication, Authorization and Accounting

201

System Authentication

Configures authentication sequence – local, RADIUS, and TACACS

202

Page 47

– 47 –

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

Server

Configures RADIUS and TACACS server message exchange settings

203

User Accounts

209

Add Configures user names, passwords, and access levels

209

Show Shows authorized users

209

Modify

Modifies user attributes

209

HTTPS Secure HTTP

211

Configure Global

Enables HTTPs, and specifies the UDP port to use

211

Copy Certificate

Replaces the default secure-site certificate

212

SSH

Secure Shell

214

Configure Global

Configures SSH server settings

217

Configure Host Key

218

Generate

Generates the host key pair (public and private)

218

Show Displays RSA and DSA host keys; deletes host keys

218

Configure User Key

220

Copy Imports user public keys from TFTP server

220

Show Displays RSA and DSA user keys; deletes user keys

220

ACL

Access Control Lists

222

Configure Time Range

Configures the time to apply an ACL

223

Add Specifies the name of a time range

223

Show Shows the name of configured time ranges

223

Add Rule

223

Absolute

Sets exact time or time range

223

Periodic

Sets a recurrent time

223

Show Rule Shows the time specified by a rule

223

Configure ACL

227

Show TCAM

Shows utilization parameters for TCAM

226

Add Adds an ACL based on IP or MAC address filtering

227

Show Shows the name and type of configured ACLs

227

Add Rule Configures packet filtering based on IP or MAC addresses and other

227

packet attributes

Show Rule Shows the rules specified for an ACL

227

Configure Interface

Binds a port to the specified ACL and time range

237

IP Filter

238

Add Sets IP addresses of clients allowed management access via the web,

238

SNMP, and Telnet

Page 48

– 48 –

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

Show

Shows the addresses to be allowed management access

238

Administration

241

Log

241

System

241

Configure Global

Stores error messages in local memory

241

Show System Logs

Shows logged error messages

241

Remote

Configures the logging of messages to a remote logging process

244

LLDP

245

Configure Global

Configures global LLDP timing parameters

245

Configure Interface

Sets the message transmission mode; enables SNMP notification; and

247

sets the LLDP attributes to advertise

Show Local Device Information

253

General

Displays general information about the local device

253

Port/Trunk

Displays information about each interface

253

Show Remote Device Information

256

Port/Trunk

Displays information about a remote device connected to a port on this

256

switch

Port/Trunk Details

Displays detailed information about a remote device connected to this

256

switch

Show Device Statistics

264

General

Displays statistics for all connected remote devices

264

Port/Trunk

Displays statistics for remote devices on a selected port or trunk

264

SNMP

Simple Network Management Protocol

266

Configure Global

Enables SNMP agent status, and sets related trap functions

268

Configure Engine

269

Set Engine ID

Sets the SNMP v3 engine ID on this switch

269

Add Remote Engine

Sets the SNMP v3 engine ID for a remote device

270

Show Remote Engine

Shows configured engine ID for remote devices

270

Configure View

271

Add View

Adds an SNMP v3 view of the OID MIB

271

Show View

Shows configured SNMP v3 views

271

Add OID Subtree

Specifies a part of the subtree for the selected view

271

Show OID Subtree

Shows the subtrees assigned to each view

271

Configure Group

274

Add

Adds a group with access policies for assigned users

274

Show

Shows configured groups and access policies

274

Page 49

– 49 –

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

Add Community

Configures community strings and access mode

278

Show Community

Shows community strings and access mode

278

Add SNMPv3 Local User

Configures SNMPv3 users on this switch

279

Show SNMPv3 Local User

Shows SNMPv3 users configured on this switch

279

Change SNMPv3 Local User Group

Assign a local user to a new group

279

Add SNMPv3 Remote User

Configures SNMPv3 users from a remote device

281

Show SNMPv3 Remote User

Shows SNMPv3 users set from a remote device

279

Configure Trap

284

Add

Configures trap managers to receive messages on key events that occur

284

this switch

Show

Shows configured trap managers

284

Configure Notify Filter

288

Add

Creates an SNMP notification log

288

Show

Shows the configured notification logs

288

Show Statistics

Shows the status of SNMP communications

290

RMON

Remote Monitoring

292

Alarm

Shows all configured alarms

292

Event

Shows all configured events

295

Alarm

Sets threshold bounds for a monitored variable

292

Event

Creates a response event for an alarm

295

History

Periodically samples statistics on a physical interface

297

Statistics

Enables collection of statistics on a physical interface

300

Show

History

Shows sampling parameters for each entry in the history group

297

Statistics

Shows sampling parameters for each entry in the statistics group

300

Show Details

History

Shows sampled data for each entry in the history group

297

Statistics

Shows sampled data for each entry in the history group

300

Configure User

Configure Global

Add

Show

Configure Interface

Add

Page 50

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

– 50 –

UDLD UniDirectional Link Detection

302

Configure Global

Configures the message probe interval, detection interval, and recovery

303

interval

Configure Interface

Enables UDLD and aggressive mode which reduces the shut-down

304

delay after loss of bidirectional connectivity is detected

Show Information

Displays UDLD neighbor information, including neighbor state,

306

expiration time, and protocol intervals

General

Routing Interface

Add Address

Configures an IP interface for a VLAN

339 Show Address

Shows the IP interfaces assigned to a VLAN

339 Ping Sends ICMP echo request packets to another node on the network

369

Trace Route

Shows the route packets take to the specified

370

destination

ARP Address Resolution Protocol

372 Configure Static Address

373 Add Statically maps a physical address to an IP address

373 Show Shows the MAC to IP address static table

373 Show Information

375 Dynamic Address

Shows dynamically learned entries in the IP routing table

375 Other Address

Shows internal addresses used by the switch

375

Statistics

Shows statistics on ARP requests sent and received

375

Routing

Static Routes

376

Add Configures static routing entries

376

Show Shows static routing entries

376

Routing Table

378

Show Information

Shows all routing entries, including local, static and dynamic routes

378

Configure ECMP Number

Sets the maximum number of equal-cost paths to the same destination

379

that can be installed in the routing table

VRRP

Virtual Router Redundancy Protocol

383

Configure Group ID

384

Add Adds a VRRP group identifier to a VLAN

384

Show Shows the VRRP group identifier list

384

Add IP Address

Sets a virtual interface address for a VRRP group

384

Page 51

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

– 51 –

Show IP Address

Shows the virtual interface address assigned to a VRRP group

384

Configure Detail

Configure detailed settings, such as advertisement interval,

384

preemption, priority, and authentication

Show Statistics

Global Statistics

Displays global statistics for VRRP protocol packet

390

errors

Group Statistics

Displays statistics for VRRP protocol events and errors on the specified

391

VRRP group and interface

IPv6 Configuration

343

Configure Global

Sets an IPv6 default gateway for traffic with no known next hop

343

Configure Interface

Configures IPv6 interface address using auto-configuration or link-local

344

address, and sets related protocol settings

Add IPv6 Address

Adds an global unicast, EUI-64, or link-local IPv6 address to an interface

348

Show IPv6 Address

Show the IPv6 addresses assigned to an interface

351

Show IPv6 Neighbor Cache

Displays information in the IPv6 neighbor discovery cache

352

Show Statistics

353

IPv6

Shows statistics about IPv6 traffic

353

ICMPv6

Shows statistics about ICMPv6 messages

353

UDP

Shows statistics about UDP messages

353

Show MTU Shows the maximum transmission unit (MTU) cache for destinations 360

that have returned an ICMP packet-too-big message along with an

acceptable MTU to this switch

IP Service

361

DHCP Dynamic Host Configuration Protocol

Client

Specifies the DHCP client identifier for an interface

361

Relay

Specifies DHCP relay servers

363

Multicast

309

IGMP Snooping

311

General

Enables multicast filtering; configures parameters for IPv4 multicast

313

snooping

Multicast Router

316

Add Static Multicast Router

Assigns ports that are attached to a neighboring multicast router

316

Show Static Multicast Router

Displays ports statically configured as attached to a neighboring

316

multicast router

Show Current Multicast Router

Displays ports attached to a neighboring multicast router, either

316

through static or dynamic configuration

IGMP Member 319

Add Static Member Statically assigns multicast addresses to the selected VLAN 319

Page 52

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

– 52 –

Show Static Member

Shows multicast addresses statically configured on the selected VLAN

319

Show Current Member

Shows multicast addresses associated with the selected VLAN, either

319

through static or dynamic configuration

Interface

320

Configure VLAN

Configures IGMP snooping per VLAN interface

320

Show VLAN Information

Shows IGMP snooping settings per VLAN interface

320

Forwarding Entry

Displays the current multicast groups learned through IGMP Snooping

327

Filter

332

Configure General

Enables IGMP filtering for the switch

332

Configure Profile

333

Add

Adds IGMP filter profile; and sets access mode

333

Show

Shows configured IGMP filter profiles

333

Add Multicast Group Range

Assigns multicast groups to selected profile

333

Show Multicast Group Range

Shows multicast groups assigned to a profile

333

Configure Interface

Assigns IGMP filter profiles to port interfaces and sets throttling action

335

Statistics

328

Show Query Statistics

Shows statistics for query-related messages

328

Show VLAN Statistics

Shows statistics for protocol messages and number of active groups

328

Show Port Statistics

Shows statistics for protocol messages and number of active groups

328

Show Trunk Statistics

Shows statistics for protocol messages and number of active groups

328

Routing Protocol

393

OSPF Open Shortest Path First (Version 2)

393

Network Area

395

Add

Defines OSPF area address, area ID, and process ID

395

Show

Shows configured areas

395

Show Process

Show configured processes

395

System

398

Configure

Configures the Router ID, global settings, and default information

398

Show

Shows LSA statistics, administrative status, ABR/ASBR, area count, and

401

version number

Area

Configure Area

403

Add Area

Adds NSSA or stub

403

Show Area

Shows configured NSSA or stub

403

Page 53

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Table 4: Switch Main Menu (Continued)

Description

Page

– 53 –

Configure NSSA Area

Configures settings for importing routes into or exporting routes out of not-so-stubby areas

404

Configure Stub Area

Configures default cost, and settings for importing routes into a stub

407

Show Information Shows statistics for each area, including SPF startups, ABR/ASBR count, 409

LSA count, and LSA checksum

Area Range

410

Add Configures route summaries to advertise at an area boundary

410

Show

Shows route summaries advertised at an area boundary

410

Modify

Modifies route summaries advertised at an area boundary

410

Redistribute

412

Add Redistributes routes from one routing domain to another

412

Show

Shows route types redistributed to another domain

412

Modify

Modifies configuration settings for redistributed routes

412

Summary Address

414

Add Aggregates routes learned from other protocols for advertising

414

into other autonomous systems

Show

Shows configured summary addresses

414

Interface

416

Show

Shows area ID and designated router settings for each interface

416

Configure by VLAN

Configures OSPF protocol settings and authentication for specified

416

VLAN

Configure by Address

Configures OSPF protocol settings and authentication for specified

416

interface address

Show MD5 Key

Shows MD5 key ID used for each area

416

Virtual Link

421

Add Configures a virtual link through a transit area to the backbone

421

Show

Shows virtual links, neighbor address, and state

421

Configure Detailed Settings

Configures detailed protocol and authentication settings

421

Show MD5 Key

Shows the MD5 key ID used for each neighbor

421

Information

424

LSDB

Shows information about different OSPF Link State

424

Advertisements (LSAs)

Neighbor

Shows information about each OSPF neighbor

426

Passive Interface

Suppresses OSPF routing traffic on the specified interface

427

Add Adds passive interface

427

Show

Shows passive interfaces

427

Page 54

– 54 –

Chapter 2

Using the Web Interface

Navigating the Web Browser Interface

Page 55

– 55 –

Basic Management Tasks

This chapter describes the following topics:

◆

Displaying System Information – Provides basic system description, including

contact information.

◆

Displaying Hardware/Software Versions – Shows the hardware version, power

status, and firmware versions

◆

Configuring Support for Jumbo Frames – Enables support for jumbo frames.

◆

Displaying Bridge Extension Capabilities – Shows the bridge extension

parameters.

◆

Managing System Files – Describes how to upgrade operating software or

configuration files, and set the system start-up files.

◆

Setting the System Clock – Sets the current time manually or through specified

NTP or SNTP servers.

◆

Configuring The Console Port – Sets console port connection parameters.

◆

Configuring Telnet Settings – Sets Telnet connection parameters.

◆

Displaying CPU Utilization – Displays information on CPU utilization.

◆

Displaying Memory Utilization – Shows memory utilization parameters.

◆

Resetting the System – Restarts the switch immediately, at a specified time,

after a specified delay, or at a periodic interval.

Displaying System Information

Use the System > General page to identify the system by displaying information such as the device name, location and contact information.

Parameters

These parameters are displayed:

◆

System Description – Brief description of device type.

Page 56

Chapter 3

Basic Management Tasks

Displaying Hardware/Software Versions

– 56 –

◆

System Object ID – MIB II object ID for switch’s network management subsystem.

◆

System Up Time

◆

System Name

◆

System Location – Specifies the system location.

◆

System Contact – Administrator responsible for the system.

– Length of time the management agent has been up.

– Name assigned to the switch system.

Web Interface

To configure general system information:

Click System, General.

Specify the system name, location, and contact information for the system administrator.

Click Apply.

Figure 3: System Information

Displaying Hardware/Software Versions

Use the System > Switch page to display hardware/firmware version numbers for the main board and management software, as well as the power status of the system.

Parameters

The following parameters are displayed:

Main Board Information

◆

Serial Number – The serial number of the switch.

Page 57

Chapter 3

Basic Management Tasks

Displaying Hardware/Software Versions

– 57 –

◆

Number of Ports

– Number of built-in ports.

Page 58

Chapter 3

Basic Management Tasks

Displaying Hardware/Software Versions

– 58 –

◆

Hardware Version – Hardware version of the main board.

◆

Main Power Status

◆

Redundant Power Status

– Displays the status of the internal power supply.

– Displays the status of the redundant power supply.

Management Software Information

◆

Role – Shows that this switch is operating as Master or Slave.

◆

EPLD Version

◆

Loader Version – Version number of loader code.

◆

Diagnostics Code Version

code.

◆

Operation Code Version

◆

Thermal Detector – The DG-CS4554F has five detectors

◆

Temperature – Temperature at specified thermal detection point.

– Version number of EEPROM Programmable Logic Device.

– Version of Power-On Self-Test (POST) and boot

– Version number of runtime code.

Web Interface

To view hardware and software version information.

Click System, then Switch.

Figure 4: General Switch Information

(Diagnostics Code Version should be replaced with Linux Kernel Version)

Page 59

– 59 –

Chapter 3

Basic Management Tasks

Displaying Bridge Extension Capabilities

Configuring Support for Jumbo Frames

Use the System > Capability page to configure support for layer 2 jumbo frames. The switch provides more efficient throughput for large sequential data transfers by supporting jumbo frames of up to 9216 bytes for Gigabit, 10 Gigabit, and 40 Gigabit Ethernet ports or trunks. Compared to standard Ethernet frames that run only up to 1.5 KB, using jumbo frames significantly reduces the per-packet overhead required to process protocol encapsulation fields.

Usage Guidelines

◆

To use jumbo frames, both the source and destination end nodes (such as a computer or server) must support this feature. Also, when the connection is operating at full duplex, all switches in the network between the two end nodes must be able to accept the extended frame size. And for half-duplex connections, all devices in the collision domain would need to support jumbo frames.

◆

This command globally enables support for jumbo frames on all Gigabit and 10 Gigabit ports and trunks. To set the MTU for a specific interface, enable jumbo frames on this page, and then specify the required size of the MTU on the port or trunk interface configuration page (see “Port Configuration” on page 85 or

“Trunk Configuration” on page 103).

Parameters

The following parameters are displayed:

◆

Jumbo Frame

Web Interface

To configure support for jumbo frames:

Click System, then Capability.

Enable or disable support for jumbo frames.

Click Apply.

Figure 5: Configuring Support for Jumbo Frames

– Configures support for jumbo frames. (Default: Disabled)

Page 60

– 60 –

Chapter 3

Basic Management Tasks

Configuring Support for Jumbo Frames

Displaying Bridge Extension Capabilities

Use the System > Capability page to display settings based on the Bridge MIB. The Bridge MIB includes extensions for managed devices that support Multicast Filtering, Traffic Classes, and Virtual LANs. You can access these extensions to display default settings for the key variables.

Parameters

The following parameters are displayed:

◆

Extended Multicast Filtering Services – This switch does not support the filtering of individual multicast addresses based on GMRP (GARP Multicast Registration Protocol).

◆

Traffic Classes – This switch provides mapping of user priorities to multiple traffic classes. (Refer to “Class of Service” on page 165.)

◆

Static Entry Individual Port – This switch allows static filtering for unicast and multicast addresses. (Refer to “Setting Static Addresses” on page 135.)

◆

VLAN Version Number – Based on IEEE 802.1Q, “1” indicates Bridges that support only single spanning tree (SST) operation, and “2” indicates Bridges that support multiple spanning tree (MST) operation.

◆

VLAN Learning – This switch uses Independent VLAN Learning (IVL), where each port maintains its own filtering database.

◆

Local VLAN Capable

outside of the scope of 802.1Q defined VLANs.

◆

Configurable PVID Tagging – This switch allows you to override the default Port VLAN ID (PVID used in frame tags) and egress status (VLAN-Tagged or Untagged) on each port. (Refer to “VLAN Configuration” on page 123.)

◆

Max Supported VLAN Numbers

on this switch.

◆

Max Supported VLAN ID

supported on this switch.

◆

GMRP – GARP Multicast Registration Protocol (GMRP) allows network devices to register end stations with multicast groups. This switch does not support GMRP; it uses the Internet Group Management Protocol (IGMP) to provide automatic multicast filtering.

– This switch does not support multiple local bridges

– The maximum number of VLANs supported

– The maximum configurable VLAN identifier

Page 61

Chapter 3

Basic Management Tasks

Managing System Files

– 61 –

Web Interface

To view Bridge Extension information:

Click System, then Capability.

Figure 6: Displaying Bridge Extension Configuration

Managing System Files

Copying Files via FTP/

TFTP or HTTP

This section describes how to upgrade the switch operating software or configuration files, and set the system start-up files.

Use the System > File (Copy) page to upload/download firmware or configuration settings using FTP, TFTP or HTTP. By backing up a file to an FTP/TFTP server or management station, that file can later be downloaded to the switch to restore operation. Specify the method of file transfer, along with the file type and file names as required.

You can also set the switch to use new firmware or configuration settings without overwriting the current version. Just download the file using a different name from the current version, and then set the new file as the startup file.

Parameters

The following parameters are displayed:

◆

Copy Type – The firmware copy operation includes these options:

■

FTP Upload – Copies a file from an FTP server to the switch.

Page 62

Chapter 3

Basic Management Tasks

Managing System Files

– 60 –

■

FTP Download – Copies a file from the switch to an FTP server.

■

HTTP Upload – Copies a file from a management station to the switch.

■

HTTP Download – Copies a file from the switch to a management station

■

TFTP Upload – Copies a file from a TFTP server to the switch.

■

TFTP Download – Copies a file from the switch to a TFTP server.

◆

FTP/TFTP Server IP Address – The IP address of an FTP/TFTP server.

◆

User Name – The user name for FTP server access.

◆

Password – The password for FTP server access.

◆

File Type – Specify Operation Code to copy firmware.

◆

File Name – The file name should not contain slashes (\ or /), and the maximum length for file names is 32 characters for files on the switch or 128 characters for files on the server. (Valid characters: A-Z, a-z, 0-9, “.”, “-”, “_”)

Note: Up to two copies of the system software (i.e., the runtime firmware) can be

stored in the file directory on the switch.

Note:

The maximum number of user-defined configuration files is limited only by available flash memory space.

Note: The file “Factory_Default_Config.cfg” can be copied to a file server or

management station, but cannot be used as the destination file name on the switch.

Web Interface

To copy firmware files:

Click System, then File.

Select Copy from the Action list.

Select FTP Upload, HTTP Upload, or TFTP Upload as the file transfer method.

If FTP or TFTP Upload is used, enter the IP address of the file server.

If FTP Upload is used, enter the user name and password for your account on the FTP server.

Set the file type to Operation Code.

Enter the name of the file to upload.

Page 63

Page 64

Chapter 3

Basic Management Tasks

Managing System Files

– 62 –

Select a file on the switch to overwrite or specify a new file name.

Then click Apply.

Figure 7: Copy Firmware

Saving the Running

Configuration to a

Local File

If you replaced a file currently used for startup and want to start using the new file, reboot the system via the System > Reset menu.

Use the System > File (Copy) page to save the current configuration settings to a local file on the switch. The configuration settings are not automatically saved by the system for subsequent use when the switch is rebooted. You must save these settings to the current startup file, or to another file which can be subsequently set as the startup file.

Parameters

The following parameters are displayed:

◆

Copy Type – The copy operation includes this option:

■

Running-Config – Copies the current configuration settings to a local file on the switch.

◆

Destination File Name – Copy to the currently designated startup file, or to a new file. The file name should not contain slashes (\ or /), and the maximum length for file names is 32 characters for files on the switch. (Valid characters: A-Z, a-z, 0-9, “.”, “-”, “_”)

Note:

The maximum number of user-defined configuration files is limited only by available flash memory space.

Page 65

Chapter 3

Basic Management Tasks

Managing System Files

– 63 –

Web Interface

To save the running configuration file:

Click System, then File.

Select Copy from the Action list.

Select Running-Config from the Copy Type list.

Select the current startup file on the switch to overwrite or specify a new file name.

Then click Apply.

Figure 8: Saving the Running Configuration

Setting The

Start-Up File

If you replaced a file currently used for startup and want to start using the new file, reboot the system via the System > Reset menu.

Use the System > File (Set Start-Up) page to specify the firmware or configuration file to use for system initialization.

Web Interface

To set a file to use for system initialization:

Click System, then File.

Select Set Start-Up from the Action list.

Mark the operation code or configuration file to be used at startup

Then click Apply.

Page 66

Chapter 3

Basic Management Tasks

Managing System Files

– 64 –

Figure 9: Setting Start-Up Files

To start using the new firmware or configuration settings, reboot the system via the System > Reset menu.

Showing System Files Use the System > File (Show) page to show the files in the system directory, or to

delete a file.

Note: Files designated for start-up, and the Factory_Default_Config.cfg file, cannot

be deleted.

Web Interface

To show the system files:

Click System, then File.

Select Show from the Action list.

To delete a file, mark it in the File List and click Delete.

Figure 10: Displaying System Files

Page 67

Chapter 3

Basic Management Tasks

Managing System Files

– 65 –

Automatic Operation

Code Upgrade

Use the System > File (Automatic Operation Code Upgrade) page to automatically download an operation code file when a file newer than the currently installed one is discovered on the file server. After the file is transferred from the server and successfully written to the file system, it is automatically set as the startup file, and the switch is rebooted.

Usage Guidelines

◆

If this feature is enabled, the switch searches the defined URL once during the bootup sequence.

◆

FTP (port 21) and TFTP (port 69) are both supported. Note that the TCP/UDP port bindings cannot be modified to support servers listening on non-standard ports.

◆

The host portion of the upgrade file location URL must be a valid IPv4 IP address. DNS host names are not recognized. Valid IP addresses consist of four numbers, 0 to 255, separated by periods.

◆

The path to the directory must also be defined. If the file is stored in the root directory for the FTP/TFTP service, then use the “/” to indicate this (e.g., ftp://

192.168.0.1/).

◆

The file name must not be included in the upgrade file location URL. The file name of the code stored on the remote server must be aos5700-54x.bix (using lower case letters exactly as indicated here). Enter the file name for other switches described in this manual exactly as shown on the web interface.

◆

The FTP connection is made with PASV mode enabled. PASV mode is needed to traverse some fire walls, even if FTP traffic is not blocked. PASV mode cannot be disabled.

◆

The switch-based search function is case-insensitive in that it will accept a file name in upper or lower case (i.e., the switch will accept AOS5700-54X.BIX from the server even though AOS5700-54X.bix was requested). However, keep in mind that the file systems of many operating systems such as Unix and most Unix-like systems (FreeBSD, NetBSD, OpenBSD, and most Linux distributions, etc.) are case-sensitive, meaning that two files in the same directory, aos5700-54x.bix and AOS5700-54X.BIX are considered to be unique files. Thus, if the upgrade file is stored as AOS5700-54X.BIX (or even Aos5700-54x.bix) on a case-sensitive server, then the switch (requesting AOS5700-54X.bix) will not be upgraded because the server does not recognize the requested file name and the stored file name as being equal. A notable exception in the list of casesensitive Unix-like operating systems is Mac OS X, which by default is caseinsensitive. Please check the documentation for your server’s operating system if you are unsure of its file system’s behavior.

◆

Note that the switch itself does not distinguish between upper and lower-case file names, and only checks to see if the file stored on the server is more recent than the current runtime image.

Page 68

Chapter 3

Basic Management Tasks

Managing System Files

– 66 –

◆

If two operation code image files are already stored on the switch’s file system, then the non-startup image is deleted before the upgrade image is transferred.

◆

The automatic upgrade process will take place in the background without impeding normal operations (data switching, etc.) of the switch.

◆

During the automatic search and transfer process, the administrator cannot transfer or update another operation code image, configuration file, public key, or HTTPS certificate (i.e., no other concurrent file management operations are possible).

◆

The upgrade operation code image is set as the startup image after it has been successfully written to the file system.

◆

The switch will send an SNMP trap and make a log entry upon all upgrade successes and failures.

◆

The switch will immediately restart after the upgrade file is successfully written to the file system and set as the startup image.

Parameters

The following parameters are displayed:

◆

Automatic Opcode Upgrade – Enables the switch to search for an upgraded operation code file during the switch bootup process. (Default: Disabled)

◆

Automatic Upgrade Location URL – Defines where the switch should search for the operation code upgrade file. The last character of this URL must be a forward slash (“/”). The ECS4660-28F.bix filename must not be included since it is automatically appended by the switch. (Options: ftp, tftp)

The following syntax must be observed:

tftp://host[/filedir]/

■

tftp:// – Defines TFTP protocol for the server connection.

■

host – Defines the IP address of the TFTP server. Valid IP addresses consist of four numbers, 0 to 255, separated by periods. DNS host names are not recognized.

■

filedir – Defines the directory, relative to the TFTP server root, where the upgrade file can be found. Nested directory structures are accepted. The directory name must be separated from the host, and in nested directory structures, from the parent directory, with a prepended forward slash “/”.

■

/ – The forward slash must be the last character of the URL.

ftp://[username[:password@]]host[/filedir]/

■

ftp:// – Defines FTP protocol for the server connection.

Page 69

Chapter 3

Basic Management Tasks

Managing System Files

– 67 –

■

username – Defines the user name for the FTP connection. If the user name is omitted, then “anonymous” is the assumed user name for the

connection.

■

password – Defines the password for the FTP connection. To differentiate the password from the user name and host portions of the URL, a colon (:) must precede the password, and an “at” symbol (@), must follow the

password. If the password is omitted, then “” (an empty string) is the

assumed password for the connection.

■

host – Defines the IP address of the FTP server. Valid IP addresses consist of four numbers, 0 to 255, separated by periods. DNS host names are not recognized.

■

filedir – Defines the directory, relative to the FTP server root, where the upgrade file can be found. Nested directory structures are accepted. The directory name must be separated from the host, and in nested directory structures, from the parent directory, with a prepended forward slash “/”.

■

/ – The forward slash must be the last character of the URL.

Examples

The following examples demonstrate the URL syntax for a TFTP server at IP address 192.168.0.1 with the operation code image stored in various locations:

■

tftp://192.168.0.1/

The image file is in the TFTP root directory.

■

tftp://192.168.0.1/switch-opcode/

The image file is in the “switch-opcode” directory, relative to the TFTP root.

■

tftp://192.168.0.1/switches/opcode/

The image file is in the “opcode” directory, which is within the “switches” parent directory, relative to the TFTP root.

The following examples demonstrate the URL syntax for an FTP server at IP address 192.168.0.1 with various user name, password and file location options presented:

■

ftp://192.168.0.1/

The user name and password are empty, so “anonymous” will be the user

name and the password will be blank. The image file is in the FTP root directory.

■

ftp://switches:upgrade@192.168.0.1/

The user name is “switches” and the password is “upgrade”. The image file is in the FTP root.

Page 70

Chapter 3

Basic Management Tasks

Managing System Files

– 68 –

■

ftp://switches:upgrade@192.168.0.1/switches/opcode/

The user name is “switches” and the password is “upgrade”. The image file is in the “opcode” directory, which is within the “switches” parent directory, relative to the FTP root.

Web Interface

To configure automatic code upgrade:

Click System, then File.

Select Automatic Operation Code Upgrade from the Action list.

Mark the check box to enable Automatic Opcode Upgrade.

Enter the URL of the FTP or TFTP server, and the path and directory containing the operation code.

Click Apply.

Figure 11: Configuring Automatic Code Upgrade

If a new image is found at the specified location, the following type of messages will be displayed during bootup.

. .

Automatic Upgrade is looking for a new image New image detected: current version 1.1.1.0; new version 1.1.1.2 Image upgrade in progress The switch will restart after upgrade succeeds Downloading new image Flash programming started Flash programming completed The switch will now restart .

. .

Page 71

– 69 –

Chapter 3

Basic Management Tasks

Setting the System Clock

Simple Network Time Protocol (SNTP) allows the switch to set its internal clock based on periodic updates from a time server (SNTP or NTP). Maintaining an accurate time on the switch enables the system log to record meaningful dates and times for event entries. You can also manually set the clock. If the clock is not set manually or via SNTP, the switch will only record the time from the factory default set at the last bootup.

When the SNTP client is enabled, the switch periodically sends a request for a time update to a configured time server. You can configure up to three time server IP addresses. The switch will attempt to poll each server in the configured sequence.

Setting the Time

Manually

Use the System > Time (Configure General - Manual) page to set the system time on the switch manually without using SNTP.

Parameters

The following parameters are displayed:

◆

Web Interface

To manually set the system clock:

Current Time – Shows the current time set on the switch.

Hours – Sets the hour. (Range: 0-23)

Minutes – Sets the minute value. (Range: 0-59)

Seconds – Sets the second value. (Range: 0-59)

Month – Sets the month. (Range: 1-12)

Day – Sets the day of the month. (Range: 1-31)

Year – Sets the year. (Range: 1970-2037)

Click System, then Time.

Select Configure General from the Step list.

Select Manual from the Maintain Type list.

Enter the time and date in the appropriate fields.

Click Apply

Page 72

Chapter 3

Basic Management Tasks

Setting the System Clock

– 70 –

Figure 12: Manually Setting the System Clock

Setting the SNTP

Polling Interval

Use the System > Time (Configure General - SNTP) page to set the polling interval at which the switch will query the specified time servers.

Parameters

The following parameters are displayed:

◆

Current Time – Shows the current time set on the switch.

◆

SNTP Polling Interval – Sets the interval between sending requests for a time update from a time server. (Range: 16-16384 seconds; Default: 16 seconds)

Web Interface

To set the polling interval for SNTP:

Click System, then Time.

Select Configure General from the Step list.

Select SNTP from the Maintain Type list.

Modify the polling interval if required.

Click Apply

Figure 13: Setting the Polling Interval for SNTP

Page 73

Chapter 3

Basic Management Tasks

Setting the System Clock

– 71 –

Configuring NTP Use the System > Time (Configure General - NTP) page to configure NTP

authentication and show the polling interval at which the switch will query the specified time servers.

Parameters

The following parameters are displayed:

◆

Current Time – Shows the current time set on the switch.

◆

Authentication Status – Enables authentication for time requests and updates between the switch and NTP servers. (Default: Disabled)

You can enable NTP authentication to ensure that reliable updates are received from only authorized NTP servers. The authentication keys and their associated key number must be centrally managed and manually distributed to NTP servers and clients. The key numbers and key values must match on both the server and client.

◆

Polling Interval – Shows the interval between sending requests for a time update from NTP servers. (Fixed: 1024 seconds)

Web Interface

To set the clock maintenance type to NTP:

Click System, then Time.

Select Configure General from the Step list.

Select NTP from the Maintain Type list.

Enable authentication if required.

Click Apply

Figure 14: Configuring NTP

Page 74

Chapter 3

Basic Management Tasks

Setting the System Clock

– 72 –

Configuring Time

Servers

Use the System > Time (Configure Time Server) pages to specify the IP address for NTP/SNTP time servers, or to set the authentication key for NTP time servers.

Specifying SNTP Time Servers

Use the System > Time (Configure Time Server – Configure SNTP Server) page to specify the IP address for up to three SNTP time servers.

Parameters

The following parameters are displayed:

◆

SNTP Server IP Address – Sets the IPv4 or IPv6 address for up to three time servers. The switch attempts to update the time from the first server, if this fails it attempts an update from the next server in the sequence.

Web Interface

To set the SNTP time servers:

Click System, then Time.

Select Configure Time Server from the Step list.

Select Configure SNTP Server from the Action list.

Enter the IP address of up to three time servers.

Click Apply.

Figure 15: Specifying SNTP Time Servers

Specifying NTP Time Servers

Use the System > Time (Configure Time Server – Add NTP Server) page to add the IP address for up to 50 NTP time servers.

Parameters

The following parameters are displayed:

◆

NTP Server IP Address – Adds the IPv4 or IPv6 address for up to 50 time servers. The switch will poll the specified time servers for updates when the clock maintenance type is set to NTP on the System > Time (Configure General)

Page 75

Chapter 3

Basic Management Tasks

Setting the System Clock

– 73 –

page. It issues time synchronization requests at a fixed interval of 1024 seconds. The switch will poll all the time servers configured, the responses received are filtered and compared to determine the most reliable and accurate time update for the switch.

◆

Version

◆

Authentication Key – Specifies the number of the key in the NTP

– Specifies the NTP version supported by the server. (Fixed: Version 3)

Authentication Key List to use for authentication with the configured server. NTP authentication is optional. If enabled on the System > Time (Configure General) page, you must also configure at least one key on the System > Time (Add NTP Authentication Key) page. (Range: 1-65535)

Web Interface

To add an NTP time server to the server list:

Click System, then Time.

Select Configure Time Server from the Step list.

Select Add NTP Server from the Action list.

Enter the IP address of an NTP time server, and specify the index of the authentication key if authentication is required.

Click Apply.

Figure 16: Adding an NTP Time Server

To show the list of configured NTP time servers:

Click System, then Time.

Select Configure Time Server from the Step list.

Select Show NTP Server from the Action list.

Page 76

Chapter 3

Basic Management Tasks

Setting the System Clock

– 74 –

Figure 17: Showing the NTP Time Server List

Specifying NTP Authentication Keys

Use the System > Time (Configure Time Server – Add NTP Authentication Key) page to add an entry to the authentication key list.

Parameters

The following parameters are displayed:

◆

Authentication Key – Specifies the number of the key in the NTP Authentication Key List to use for authentication with a configured server. NTP authentication is optional. When enabled on the System > Time (Configure General) page, you must also configure at least one key on this page. Up to 255 keys can be configured on the switch. (Range: 1-65535)

◆

Key Context – An MD5 authentication key string. The key string can be up to 32 case-sensitive printable ASCII characters (no spaces).

NTP authentication key numbers and values must match on both the server and client.

Web Interface

To add an entry to NTP authentication key list:

Click System, then Time.

Select Configure Time Server from the Step list.

Select Add NTP Authentication Key from the Action list.

Enter the index number and MD5 authentication key string.

Click Apply.

Page 77

Chapter 3

Basic Management Tasks

Setting the System Clock

– 75 –

Figure 18: Adding an NTP Authentication Key

To show the list of configured NTP authentication keys:

Click System, then Time.

Select Configure Time Server from the Step list.

Select Show NTP Authentication Key from the Action list.

Figure 19: Showing the NTP Authentication Key List

Setting the Time Zone

Use the System > Time (Configure Time Server) page to set the time zone. SNTP

uses Coordinated Universal Time (or UTC, formerly Greenwich Mean Time, or GMT) based on the time at the Earth’s prime meridian, zero degrees longitude, which passes through Greenwich, England. To display a time corresponding to your local time, you must indicate the number of hours and minutes your time zone is west (before) or east (after) of UTC. You can choose one of the 80 predefined time zone definitions, or your can manually configure the parameters for your local time zone.

Parameters

The following parameters are displayed:

◆

Predefined Configuration – A drop-down box provides access to the 80 predefined time zone configurations. Each choice indicates it’s offset from UTC and lists at least one major city or location covered by the time zone.

◆

User-defined Configuration – Allows the user to define all parameters of the local time zone.

■

Direction – Configures the time zone to be before (east of ) or after (west of) UTC.

Page 78

– 76 –

Chapter 3

Basic Management Tasks

Configuring The Console Port

■

Name – Assigns a name to the time zone. (Range: 1-30 characters)

■

Hours (0-13) – The number of hours before or after UTC. The maximum value before UTC is 12. The maximum value after UTC is 13.

■

Minutes (0-59) – The number of minutes before/after UTC.

Web Interface

To set your local time zone:

Click System, then Time.

Select Configure Time Zone from the Step list.

Set the offset for your time zone relative to the UTC in hours and minutes.

Click Apply.

Figure 20: Setting the Time Zone

Configuring The Console Port

Use the System > Console menu to configure connection parameters for the switch’s console port. You can access the onboard configuration program by attaching a VT100 compatible device to the switch’s serial console port. Management access through the console port is controlled by various parameters, including a password (only configurable through the CLI), time outs, and basic communication settings. Note that these parameters can be configured via the web or CLI interface.

Page 79

– 77 –

Chapter 3

Basic Management Tasks

Configuring The Console Port

Parameters

The following parameters are displayed:

◆

Login Timeout – Sets the interval that the system waits for a user to log into the CLI. If a login attempt is not detected within the timeout interval, the connection is terminated for the session. (Range: 10-300 seconds; Default: 300 seconds)

◆

Exec Timeout – Sets the interval that the system waits until user input is detected. If user input is not detected within the timeout interval, the current session is terminated. (Range: 60-65535 seconds; Default: 600 seconds)

◆

Password Threshold – Sets the password intrusion threshold, which limits the number of failed logon attempts. When the logon attempt threshold is reached, the system interface becomes silent for a specified amount of time (set by the Silent Time parameter) before allowing the next logon attempt. (Range: 1-120; Default: 3 attempts)

◆

Silent Time – Sets the amount of time the management console is inaccessible after the number of unsuccessful logon attempts has been exceeded. (Range: 1-65535 seconds; Default: Disabled)

◆

Data Bits – Sets the number of data bits per character that are interpreted and generated by the console port. If parity is being generated, specify 7 data bits per character. If no parity is required, specify 8 data bits per character. (Default: 8 bits)

◆

Stop Bits – Sets the number of the stop bits transmitted per byte. (Range: 1-2; Default: 1 stop bit)

◆

Parity – Defines the generation of a parity bit. Communication protocols provided by some terminals can require a specific parity bit setting. Specify Even, Odd, or None. (Default: None)

◆

Speed – Sets the terminal line’s baud rate for transmit (to terminal) and receive (from terminal). Set the speed to match the baud rate of the device connected to the serial port. (Range: 9600, 19200, 38400, 57600, or 115200 baud; Default: 115200 baud)

Note:

The password for the console connection can only be configured through

the CLI (see “password” in the CLI Reference Guide).

Note: Password checking can be enabled or disabled for logging in to the console

connection (see “login” in the CLI Reference Guide). You can select authentication by a single global password as configured for the password command, or by passwords set up for specific user-name accounts. The default is for local passwords configured on the switch.

Page 80

– 78 –

Chapter 3

Basic Management Tasks

Configuring Telnet Settings

Web Interface

To configure parameters for the console port:

Click System, then Console.

Specify the connection parameters as required.

Click Apply

Figure 21: Console Port Settings

Configuring Telnet Settings

Use the System > Telnet menu to configure parameters for accessing the CLI over a Telnet connection. You can access the onboard configuration program over the network using Telnet (i.e., a virtual terminal). Management access via Telnet can be enabled/disabled and other parameters set, including the TCP port number, time outs, and a password. Note that the password is only configurable through the CLI.) These parameters can be configured via the web or CLI interface.

Parameters

The following parameters are displayed:

◆

Telnet Status – Enables or disables Telnet access to the switch. (Default: Enabled)

◆

TCP Port – Sets the TCP port number for Telnet on the switch. (Range: 1-65535; Default: 23)

◆

Max Sessions – Sets the maximum number of Telnet sessions that can simultaneously connect to this system. (Range: 0-8; Default: 8)

A maximum of eight sessions can be concurrently opened for Telnet and Secure Shell (i.e., both Telnet and SSH share a maximum number or eight sessions).

Page 81

– 79 –

Chapter 3

Basic Management Tasks

Configuring Telnet Settings

◆

Silent Time – Sets the amount of time the management interface is inaccessible after the number of unsuccessful logon attempts has been exceeded. (Range: 1-65535 seconds; Default: Disabled)

Note:

Password checking can be enabled or disabled for login to the console connection (see the “login” command in the CLI Reference Guide). You can select authentication by a single global password as configured for the password command, or by passwords set up for specific user-name accounts. The default is for local passwords configured on the switch.

Web Interface

To configure parameters for the console port:

Click System, then Telnet.

Specify the connection parameters as required.

Click Apply

Figure 22: Telnet Connection Settings

Page 82

Chapter 3

Basic Management Tasks

Displaying CPU Utilization

– 80 –

Displaying CPU Utilization

Use the System > CPU Utilization page to display information on CPU utilization.

Parameters

The following parameters are displayed:

◆

Web Interface

To display CPU utilization:

Figure 23: Displaying CPU Utilization

Time Interval – The interval at which to update the displayed utilization rate.

(Options: 1, 5, 10, 30, 60 seconds; Default: 1 second)

CPU Utilization

Click System, then CPU Utilization.

Change the update interval if required. Note that the interval is changed as soon as a new setting is selected.

– CPU utilization over specified interval.

Displaying Memory Utilization

Use the System > Memory Status page to display memory utilization parameters.

Parameters

The following parameters are displayed:

◆

Free Size – The amount of memory currently free for use.

Page 83

Chapter 3

Basic Management Tasks

Resetting the System

– 81 –

◆

Used Size – The amount of memory allocated to active processes.

◆

Total – The total amount of system memory.

Web Interface

To display memory utilization:

1. Click System, then Memory Status.

Figure 24: Displaying Memory Utilization

Resetting the System

Use the System > Reset menu to restart the switch immediately, at a specified time, after a specified delay, or at a periodic interval.

Command Usage

◆

This command resets the entire system.

◆

When the system is restarted, it will always run the Power-On Self-Test. It will also retain all configuration information stored in non-volatile memory by the “copy running-config startup-config” command in the CLI Reference Guide.

Parameters

The following parameters are displayed:

System Reload Configuration

◆

Reset Mode – Restarts the switch immediately or at the specified time(s).

■

Immediately – Restarts the system immediately.

■

In – Specifies an interval after which to reload the switch. (The specified time must be equal to or less than 24 days.)

■

hours – The number of hours, combined with the minutes, before the switch resets. (Range: 0-576)

minutes – The number of minutes, combined with the hours, before the switch resets. (Range: 0-59)

Page 84

Chapter 3

Basic Management Tasks

Resetting the System

– 82 –

■

At – Specifies a time at which to reload the switch.

■

DD - The day of the month at which to reload. (Range: 01-31)

■

MM - The month at which to reload. (Range: 01-12)

■

YYYY - The year at which to reload. (Range: 1970-2037)

■

HH - The hour at which to reload. (Range: 00-23)

■

MM - The minute at which to reload. (Range: 00-59)

■

Regularly – Specifies a periodic interval at which to reload the switch.

Time

■

HH - The hour at which to reload. (Range: 00-23)

■

MM - The minute at which to reload. (Range: 00-59)

Period

■

Daily - Every day.

■

Weekly - Day of the week at which to reload. (Range: Sunday ... Saturday)

■

Monthly - Day of the month at which to reload. (Range: 1-31)

Web Interface

To restart the switch:

Click System, then Reset.

Select the required reset mode.

For any option other than to reset immediately, fill in the required parameters

Click Apply.

When prompted, confirm that you want reset the switch.

Page 85

Chapter 3

Basic Management Tasks

Resetting the System

– 83 –

Figure 25: Restarting the Switch (Immediately)

Figure 26: Restarting the Switch (In)

Page 86

Chapter 3

Basic Management Tasks

Resetting the System

– 84 –

Figure 27: Restarting the Switch (At)

Figure 28: Restarting the Switch (Regularly)

Page 87

– 85 –

Port Configuration

Interface Configuration

This chapter describes the following topics:

◆

Port Configuration – Configures connection settings, including auto-

negotiation, or manual setting of speed, duplex mode, and flow control.

◆

Local Port Mirroring – Sets the source and target ports for mirroring on the local

switch.

◆

Displaying Statistics – Shows Interface, Etherlike, and RMON port statistics in

table or chart form.

◆

Displaying Statistical History – Displays statistical history for the specified

interfaces.

◆

Displaying Transceiver Data – Displays identifying information, and operational

parameters for optical transceivers which support DDM.

◆

Configuring Transceiver Thresholds – Configures thresholds for alarm and

warning messages for optical transceivers which support DDM.

◆

Trunk Configuration – Configures static or dynamic trunks.

◆

Traffic Segmentation – Configures the uplinks and down links to a segmented

group of ports.

This section describes how to configure port connections, mirror traffic from one port to another, and run cable diagnostics.

Configuring by Port

Use the Interface > Port > General (Configure by Port List) page to enable/disable an interface, set auto-negotiation and the interface capabilities to advertise, or

List

manually fix the speed, duplex mode, and flow control.

Command Usage

◆

10GBASE-SFP+ connections are fixed at 10G - full duplex, and 40GBASE-QSFP+ connections at 40G - full duplex. Auto-negotiation must be disabled before you can configure or force an RJ-45 interface to use the Flow Control option.

Page 88

– 86 –

Chapter 4

Interface Configuration

Port Configuration

◆

When using auto-negotiation1, the optimal settings will be negotiated between the link partners based on their advertised capabilities. To set flow control and symmetric pause frames under auto-negotiation, the required operation modes must be specified in the capabilities list for an interface.

◆

The Speed/Duplex mode is fixed at 100full for 100BASE-FX transceivers, 1000full for Gigabit transceivers, and 10Gfull for 10 Gigabit transceivers. When auto-negotiation is enabled1, the only attributes which can be advertised include flow control and symmetric pause frames.

Using Jumbo Frames

◆

Use the jumbo frame attribute on the System > Capability page to enable or disable jumbo frames for all 10 Gigabit and 40 Gigabit Ethernet ports. Then specify the required MTU size for a specific interface on the port configuration page.

◆

The comparison of packet size against the configured port MTU considers only the incoming packet size, and is not affected by the fact that an ingress port is a tagged port or a QinQ ingress port. In other words, any additional size (for example, a tagged field of 4 bytes added by the chip) will not be considered when comparing the egress packet’s size against the configured MTU.

◆

When pinging the switch from an external device, information added for the Ethernet header can increase the packet size by at least 42 bytes for an untagged packet, and 46 bytes for a tagged packet. If the adjusted frame size exceeds the configured port MTU, the switch will not respond to the ping message.

◆

For other traffic types, calculation of overall frame size is basically the same, including the additional header fields SA(6) + DA(6) + Type(2) + VLAN-Tag(4) (for tagged packets, for untaqged packets, the 4-byte field will not be added by switch), and the payload. This should all be less than the configured port MTU, including the CRC at the end of the frame.

◆

For QinQ, the overall frame size is still calculated as described above, and does not add the length of the second tag to the frame.

Parameters

These parameters are displayed:

◆

Port – Port identifier. (Range: 1-32/54)

◆

Type – Indicates the port type. (1000BASE SFP, 10GBASE SFP+, 40GBASE QSFP)

◆

Name – Allows you to label an interface. (Range: 1-64 characters)

◆

Admin – Allows you to manually disable an interface. You can disable an interface due to abnormal behavior (e.g., excessive collisions), and then re-

1. Support for auto-negotiation depends on transceiver type, such as 1G SFP.

Page 89

– 87 –

Chapter 4

Interface Configuration

Port Configuration

enable it after the problem has been resolved. You may also disable an interface for security reasons. (Default: Enabled)

◆

Media Type – Configures the forced transceiver mode for SFP+ ports.

■

None - Forced transceiver mode is not used for SFP+ ports. (This is the default setting for RJ-45 ports and SFP+ ports.)

■

SFP-Forced 1000SFP

■

SFP-Forced 10GSFP

◆

Autonegotiation (Port Capabilities) – Not supported on this switch. Forced

- Always uses the SFP+ port at 1000 Mbps, full duplex.

- Always uses the SFP+ port at 10 Gbps, full duplex.

mode is used for all ports.

Default: Autonegotiation disabled; Forced mode capabilities for 1000BASE-SX/LX (SFP+) – 1000full 10GBASE-CR/SR/LR/LRM (SFP+) – 10Gfull 40GBASE-T-CR4 (QSFP+) – 40Gfull

◆

Speed/Duplex

◆

Flow Control – Allows automatic or manual selection of flow control.

◆

MTU Size – The maximum transfer unit (MTU) allowed for layer 2 packets

– Shows the port speed and duplex mode.

crossing a 1G/10G/40G Ethernet port or trunk. (Range: 1500-12288 bytes; Default: 1518 bytes)

◆

Link Up/Down Trap – Issues link-up or link-down notifications. (Default: Enabled)

Web Interface

To configure port connection parameters:

Click Interface, Port, General.

Select Configure by Port List from the Action List.

Modify the required interface settings.

Click Apply.

Page 90

– 88 –

Chapter 4

Interface Configuration

Port Configuration

Configuring by Port

Range

Figure 29: Configuring Connections by Port List

Use the Interface > Port > General (Configure by Port Range) page to enable/ disable an interface, set auto-negotiation and the interface capabilities to advertise, or manually fix the speed, duplex mode, and flow control.

For more information on command usage and a description of the parameters, refer to “Configuring by Port List” on page 85.

Web Interface

To configure port connection parameters:

Click Interface, Port, General.

Select Configure by Port Range from the Action List.

Enter to range of ports to which your configuration changes apply.

Modify the required interface settings.

Click Apply.

Page 91

– 89 –

Chapter 4

Interface Configuration

Port Configuration

Displaying

Connection Status

Figure 30: Configuring Connections by Port Range

Use the Interface > Port > General (Show Information) page to display the current connection status, including link state, speed/duplex mode, flow control, and autonegotiation.

Parameters

These parameters are displayed:

◆

Port – Port identifier.

◆

Type – Indicates the port type. (1000BASE SFP, 10GBASE SFP+, 40GBASE QSFP)

◆

Name – Interface label.

◆

Admin – Shows if the port is enabled or disabled.

◆

Oper Status – Indicates if the link is Up or Down.

◆

Media Type – Shows the forced transceiver mode.

◆

Autonegotiation – Shows that auto-negotiation is disabled.

◆

Oper Speed Duplex

◆

Oper Flow Control

◆

MTU Size – The maximum transfer unit (MTU) allowed for layer 2 packets

– Shows the current speed and duplex mode.

– Shows the flow control type used.

crossing a Gigabit or 10 Gigabit Ethernet port or trunk.

◆

Link Up/Down Trap – Shows if link-up or link-down notifications are enabled.

Page 92

Chapter 4

Interface Configuration

Port Configuration

– 90 –

Web Interface

To display port connection parameters:

Click Interface, Port, General.

Select Show Information from the Action List.

Figure 31: Displaying Port Information

Configuring Local Port

Mirroring

Use the Interface > Port > Mirror page to mirror traffic from any source port to a target port for real-time analysis. You can then attach a logic analyzer or RMON probe to the target port and study the traffic crossing the source port in a completely unobtrusive manner.

Figure 32: Configuring Local Port Mirroring

Source port(s)

Command Usage

◆

Traffic can be mirrored from one or more source ports to a destination port on

Single target port

the same switch (local port mirroring as described in this section).

◆

Monitor port speed should match or exceed source port speed, otherwise traffic may be dropped from the monitor port.

◆

When mirroring port traffic, the target port must be included in the same VLAN as the source port when using MSTP (see “Spanning Tree Algorithm” on

page 141).

◆

Note that Spanning Tree BPDU packets are not mirrored to the target port.

Parameters

These parameters are displayed:

◆

Source Port – The port whose traffic will be monitored.

Page 93

Chapter 4

Interface Configuration

Port Configuration

– 91 –

◆

Target Port – The port that will mirror the traffic on the source port.

◆

Type – Allows you to select which traffic to mirror to the target port, Rx (receive), Tx (transmit), or Both. (Default: Both)

Web Interface

To configure a local mirror session:

Click Interface, Port, Mirror.

Select Add from the Action List.

Specify the source port.

Specify the monitor port.

Specify the traffic type to be mirrored.

Click Apply.

Figure 33: Configuring Local Port Mirroring

To display the configured mirror sessions:

Click Interface, Port, Mirror.

Select Show from the Action List.

Figure 34: Displaying Local Port Mirror Sessions

Page 94

Chapter 4

Interface Configuration

Port Configuration

– 92 –

Parameter Description

Showing Port or Trunk

Statistics

Use the Interface > Port/Trunk > Statistics or Chart page to display standard statistics on network traffic from the Interfaces Group and Ethernet-like MIBs, as well as a detailed breakdown of traffic based on the RMON MIB. Interfaces and Ethernet-like statistics display errors on the traffic passing through each port. This information can be used to identify potential problems with the switch (such as a faulty port or unusually heavy traffic). RMON statistics provide access to a broad range of statistics, including a total count of different frame types and sizes passing through each port. All values displayed have been accumulated since the last system reboot, and are shown as counts per second. Statistics are refreshed every 60 seconds by default.

Note:

RMON groups 2, 3 and 9 can only be accessed using SNMP management

software.

Parameters

These parameters are displayed:

Table 5: Port Statistics

Interface Statistics

Received Octets The total number of octets received on the interface, including framing

Transmitted Octets The total number of octets transmitted out of the interface, including

Received Errors The number of inbound packets that contained errors preventing them

Transmitted Errors The number of outbound packets that could not be transmitted

Received Unicast Packets The number of subnetwork-unicast packets delivered to a higher-layer

Transmitted Unicast Packets

Received Discarded Packets The number of inbound packets which were chosen to be discarded

Transmitted Discarded Packets

Received Multicast Packets The number of packets, delivered by this sub-layer to a higher (sub-

Transmitted Multicast Packets

characters.

framing characters.

from being deliverable to a higher-layer protocol.

because of errors.

protocol.

The total number of packets that higher-level protocols requested be transmitted to a subnetwork-unicast address, including those that were discarded or not sent.

even though no errors had been detected to prevent their being deliverable to a higher-layer protocol. One possible reason for discarding such a packet could be to free up buffer space.

The number of outbound packets which were chosen to be discarded even though no errors had been detected to prevent their being transmitted. One possible reason for discarding such a packet could be to free up buffer space.

)layer, which were addressed to a multicast address at this sub-layer.

The total number of packets that higher-level protocols requested be transmitted, and which were addressed to a multicast address at this sub-layer, including those that were discarded or not sent.

Received Broadcast Packets The number of packets, delivered by this sub-layer to a higher (sub-

)layer, which were addressed to a broadcast address at this sub-layer.

Page 95

Chapter 4

Interface Configuration

Port Configuration

– 93 –

Parameter Description

Table 5: Port Statistics (Continued)

Transmitted Broadcast Packets

The total number of packets that higher-level protocols requested be transmitted, and which were addressed to a broadcast address at this sub-layer, including those that were discarded or not sent.

Received Unknown Packets The number of packets received via the interface which were discarded

because of an unknown or unsupported protocol.

Etherlike Statistics

Single Collision Frames The number of successfully transmitted frames for which transmission

is inhibited by exactly one collision.

Multiple Collision Frames A count of successfully transmitted frames for which transmission is

inhibited by more than one collision.

Late Collisions The number of times that a collision is detected later than 512 bit-times

into the transmission of a packet.

Excessive Collisions A count of frames for which transmission on a particular interface fails

due to excessive collisions. This counter does not increment when the interface is operating in full-duplex mode.

Deferred Transmissions A count of frames for which the first transmission attempt on a

particular interface is delayed because the medium was busy.

Frames Too Long A count of frames received on a particular interface that exceed the

maximum permitted frame size.

Alignment Errors The number of alignment errors (missynchronized data packets).

FCS Errors A count of frames received on a particular interface that are an integral

number of octets in length but do not pass the FCS check. This count does not include frames received with frame-too-long or frame-tooshort error.

SQE Test Errors A count of times that the SQE TEST ERROR message is generated by the

PLS sublayer for a particular interface.

Carrier Sense Errors The number of times that the carrier sense condition was lost or never

asserted when attempting to transmit a frame.

Internal MAC Receive Errors A count of frames for which reception on a particular interface fails due

to an internal MAC sublayer receive error.

Internal MAC Transmit Errors

A count of frames for which transmission on a particular interface fails due to an internal MAC sublayer transmit error.

RMON Statistics

Drop Events The total number of events in which packets were dropped due to lack

of resources.

Jabbers The total number of frames received that were longer than 1518 octets

(excluding framing bits, but including FCS octets), and had either an FCS or alignment error.

Fragments The total number of frames received that were less than 64 octets in

length (excluding framing bits, but including FCS octets) and had either an FCS or alignment error.

Collisions The best estimate of the total number of collisions on this Ethernet

segment.

Received Octets Total number of octets of data received on the network. This statistic

can be used as a reasonable indication of Ethernet utilization.

Received Packets The total number of packets (bad, broadcast and multicast) received.

Page 96

Chapter 4

Interface Configuration

Port Configuration

– 94 –

Parameter Description

Table 5: Port Statistics (Continued)

Broadcast Packets The total number of good packets received that were directed to the

broadcast address. Note that this does not include multicast packets.

Multicast Packets The total number of good packets received that were directed to this

multicast address.

Undersize Packets The total number of packets received that were less than 64 octets long

(excluding framing bits, but including FCS octets) and were otherwise well formed.

Oversize Packets The total number of packets received that were longer than 1518 octets

(excluding framing bits, but including FCS octets) and were otherwise well formed.

64 Bytes Packets The total number of packets (including bad packets) received and

65-127 Byte Packets 128-255 Byte Packets 256-511 Byte Packets 512-1023 Byte Packets 1024-1518 Byte Packets 1519-1536 Byte Packets

Utilization Statistics

Input Octets in kbits per second

Input Packets per second Number of packets entering this interface per second.

Input Utilization The input utilization rate for this interface.

Output Octets in kbits per second

Output Packets per second Number of packets leaving this interface per second.

Output Utilization The output utilization rate for this interface.

transmitted that were 64 octets in length (excluding framing bits but including FCS octets).

The total number of packets (including bad packets) received and transmitted where the number of octets fall within the specified range (excluding framing bits but including FCS octets).

Number of octets entering this interface in kbits/second.

Number of octets leaving this interface in kbits/second.

Web Interface

To show a list of port statistics:

Click Interface, Port, Statistics.

Select the statistics mode to display (Interface, Etherlike, RMON or Utilization).

Select a port from the drop-down list.

Use the Refresh button at the bottom of the page if you need to update the screen.

Page 97

Chapter 4

Interface Configuration

Port Configuration

– 95 –

Figure 35: Showing Port Statistics (Table)

Page 98

Chapter 4

Interface Configuration

Port Configuration

– 96 –

To show a chart of port statistics:

Click Interface, Port, Chart.

Select the statistics mode to display (Interface, Etherlike, RMON or All).

If Interface, Etherlike, RMON statistics mode is chosen, select a port from the drop-down list. If All (ports) statistics mode is chosen, select the statistics type to display.

Figure 36: Showing Port Statistics (Chart)

Displaying Statistical

History

Use the Interface > Port > History or Interface > Trunk > History page to display statistical history for the specified interfaces.

Command Usage

For a description of the statistics displayed on these pages, see “Showing Port or

Trunk Statistics” on page 92.

Page 99

Chapter 4

Interface Configuration

Port Configuration

– 97 –

Parameters

These parameters are displayed:

Add

◆

Port – Port number. (Range: 1-32/54)

◆

History Name – Name of sample interval. (Range: 1-32 characters)

◆

Interval - The interval for sampling statistics. (Range: 1-86400 minutes)

◆

Requested Buckets - The number of samples to take. (Range: 1-96)

Show

◆

Port – Port number. (Range: 1-32/54)

◆

History Name – Name of sample interval. (Default settings: 15min, 1day)

◆

Interval - The interval for sampling statistics.

◆

Requested Buckets

- The number of samples to take.

Show Details

◆

Mode

■

Status – Shows the sample parameters.

■

Current Entry – Shows current statistics for the specified port and named sample.

■

Input Previous Entries – Shows statistical history for ingress traffic.

■

Output Previous Entries – Shows statistical history for egress traffic.

◆

Port – Port number. (Range: 1-32/54)

◆

Name – Name of sample interval.

Web Interface

To configure a periodic sample of statistics:

Click Interface, Port, Statistics, or Interface, Trunk, Statistics.

Select Add from the Action menu.

Select an interface from the Port or Trunk list.

Enter the sample name, the interval, and the number of buckets requested.

Page 100

Chapter 4

Interface Configuration

Port Configuration

– 98 –

Click Apply.

Figure 37: Configuring a History Sample

To show the configured entries for a history sample:

Click Interface, Port, Statistics, or Interface, Trunk, Statistics.

Select Show from the Action menu.

Select an interface from the Port or Trunk list.

Figure 38: Showing Entries for History Sampling

To show the configured parameters for a sampling entry:

Click Interface, Port, Statistics, or Interface, Trunk, Statistics.

Select Show Details from the Action menu.

Select Status from the options for Mode.

Select an interface from the Port or Trunk list.

Select an sampling entry from the Name list.
