DIGISOL DG-BR4313NG User Manual

DG-BR4313NG
300Mbps Wireless Green 3G Broadband Router
User Manual
As our products undergo continuous development the specifications are subject to change without prior notice
2012-11-12
DG-BR4313NG User Manual
2
COPYRIGHT
Copyright © 2012 by this company. All rights reserved. No part of this publication
may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated
into any language or computer language, in any form or by any means, electronic,
mechanical, magnetic, optical, chemical, manual or otherwise, without the prior
written permission of this company
This company makes no representations or warranties, either expressed or implied,
with respect to the contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Any software described in this
manual is sold or licensed "as is". Should the programs prove defective following
their purchase, the buyer (and not this company, its distributor, or its dealer) assumes
the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software. Further, this company reserves the
right to revise this publication and to make changes from time to time in the contents
thereof without obligation to notify any person of such revision or changes.
Trademarks:
DIGISOL™ is a trademark of Smartlink Network Systems Ltd. All other trademarks
are the property of the respective manufacturers.
Safety
This equipment is designed with the utmost care for the safety of those who install
and use it. However, special attention must be paid to the dangers of electric shock
and static electricity when working with electrical equipment. All guidelines of this
and of the computer manufacturer must therefore be allowed at all times to ensure the
safe use of the equipment.
DG-BR4313NG User Manual
3
Federal Communication Commission
Interference Statement
FCC Part 15
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limitations are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into a different outlet from that to which the receiver is
connected.
• Consult your local distributors or an experienced radio/TV technician for help.
• Shielded interface cables must be used in order to comply with emission limits
Changes or modifications to the equipment, which are not approved by the party
responsible for compliance could affect the user's authority to operate the equipment.
DG-BR4313NG User Manual
4
FCC Caution
This equipment must be installed and operated in accordance with provided
instructions and a minimum 20 cm spacing must be provided between computer
mounted antenna and person’s body (excluding extremities of hands, wrist and feet)
during wireless modes of operation.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for
compliance could void the authority to operate equipment.
Federal Communication Commission (FCC) Radiation Exposure
Statement
This equipment complies with FCC radiation exposure set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency
exposure limits, human proximity to the antenna shall not be less than 20cm (8
inches) during normal operation.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
The equipment version marketed in US is restricted to usage of the channels 1-11
only.
DG-BR4313NG User Manual
5
R&TTE Compliance Statement
This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF
THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on Radio
Equipment and Telecommunication Terminal Equipment and the mutual recognition
of their conformity (R&TTE).
The R&TTE Directive repeals and replaces in the directive 98/13/EEC
(Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As
of April 8, 2000.
Safety
This equipment is designed with the utmost care for the safety of those who install
and use it. However, special attention must be paid to the dangers of electric shock
and static electricity when working with electrical equipment. All guidelines of this
and of the computer manufacture must therefore be allowed at all times to ensure the
safe use of the equipment.
EU Countries Intended for Use
The ETSI version of this device is intended for home and office use in Austria,
Belgium, Denmark, Finland, France, Germany, Greece, Ireland, Italy, Luxembourg,
the Netherlands, Portugal, Spain, Sweden, and the United Kingdom.
The ETSI version of this device is also authorized for use in EFTA member states:
Iceland, Liechtenstein, Norway, and Switzerland.
EU Countries Not intended for use: None.
DG-BR4313NG User Manual
6
INDEX
1. PRODUCT INFORMATION ............................................................................................................. 9
1-1 INTRODUCTION AND SAFETY INFORMATION .............................................................................................. 9
1-2 SAFETY INFORMATION ........................................................................................................................ 10
1-3 SYSTEM REQUIREMENTS ..................................................................................................................... 11
1-4 PACKAGE CONTENTS .......................................................................................................................... 11
1-5 GET FAMILIAR WITH YOUR NEW WIRELESS 3G BROADBAND ROUTER............................................................ 12
2. SYSTEM AND NETWORK SETUP .................................................................................................. 14
2-1 HARDWARE AND SOFTWARE INSTALLATION ............................................................................................ 14
2-2 CONNECTING TO WIRELESS BROADBAND ROUTER BY WEB BROWSER ............................................................ 24
2-2-1 Windows 95/98 IP address setup: ........................................................................................ 25
2-2-2 Windows 2000 IP address setup: ......................................................................................... 27
2-2-3 Windows XP IP address setup: ............................................................................................. 29
2-2-4 Windows Vista IP address setup .......................................................................................... 31

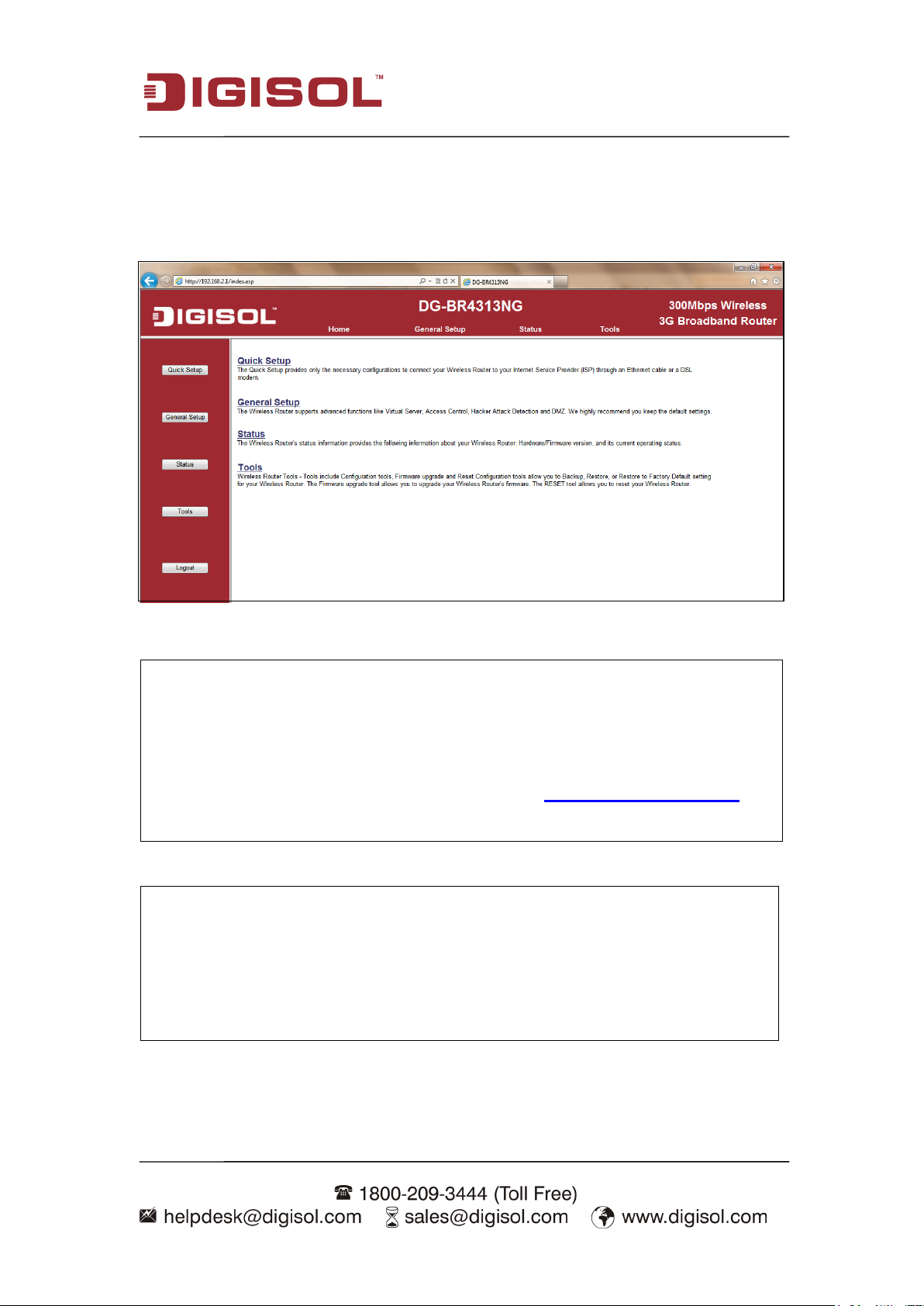

2-2-5 Connecting the router’s management interface by web browser ....................................... 33
2-3 USING QUICK SETUP ......................................................................................................................... 35
2-3-1 Setup procedure for ‘3G/3.5G’: ............................................................................................ 39
2-3-2 Setup procedure for ‘Cable Modem’: ................................................................................... 40
2-3-3 Setup procedure for ‘Fixed-IP xDSL: ..................................................................................... 41
2-3-4 Setup procedure for ‘PPPoE xDSL: ........................................................................................ 42
2-3-5 Setup procedure for ‘PPTP xDSL’: ......................................................................................... 44

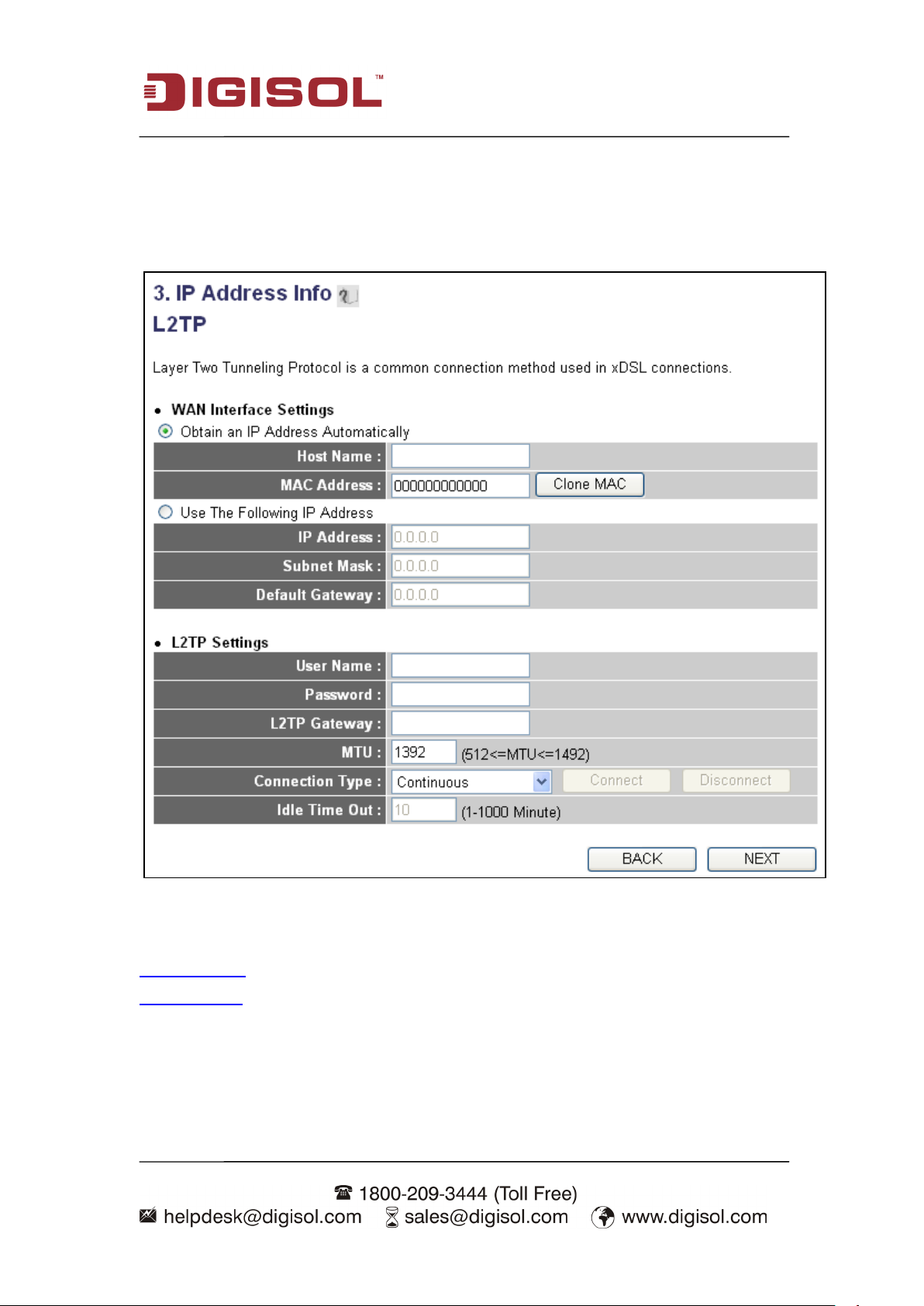

2-3-6 Setup procedure for ‘L2TP xDSL’: ......................................................................................... 46

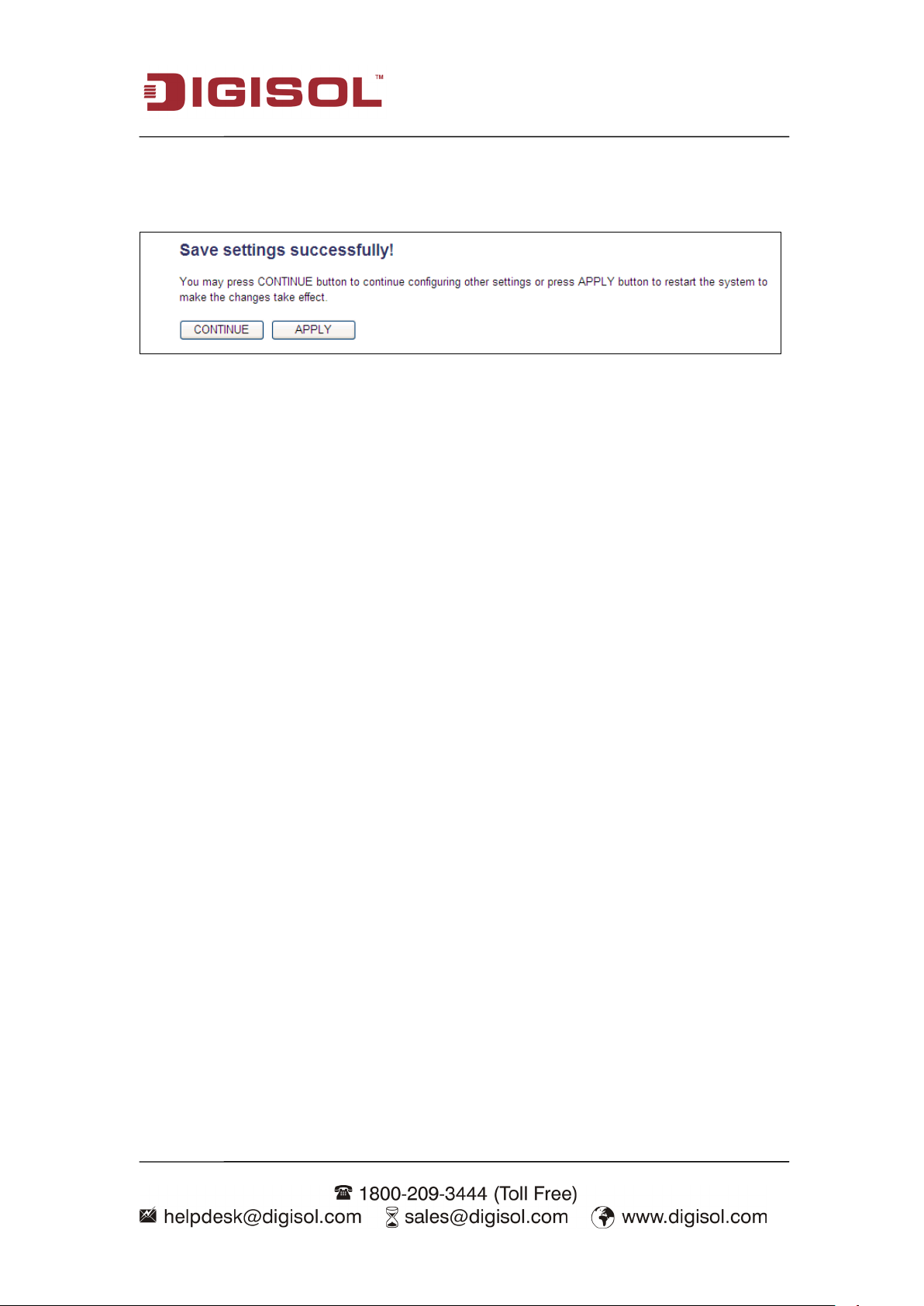

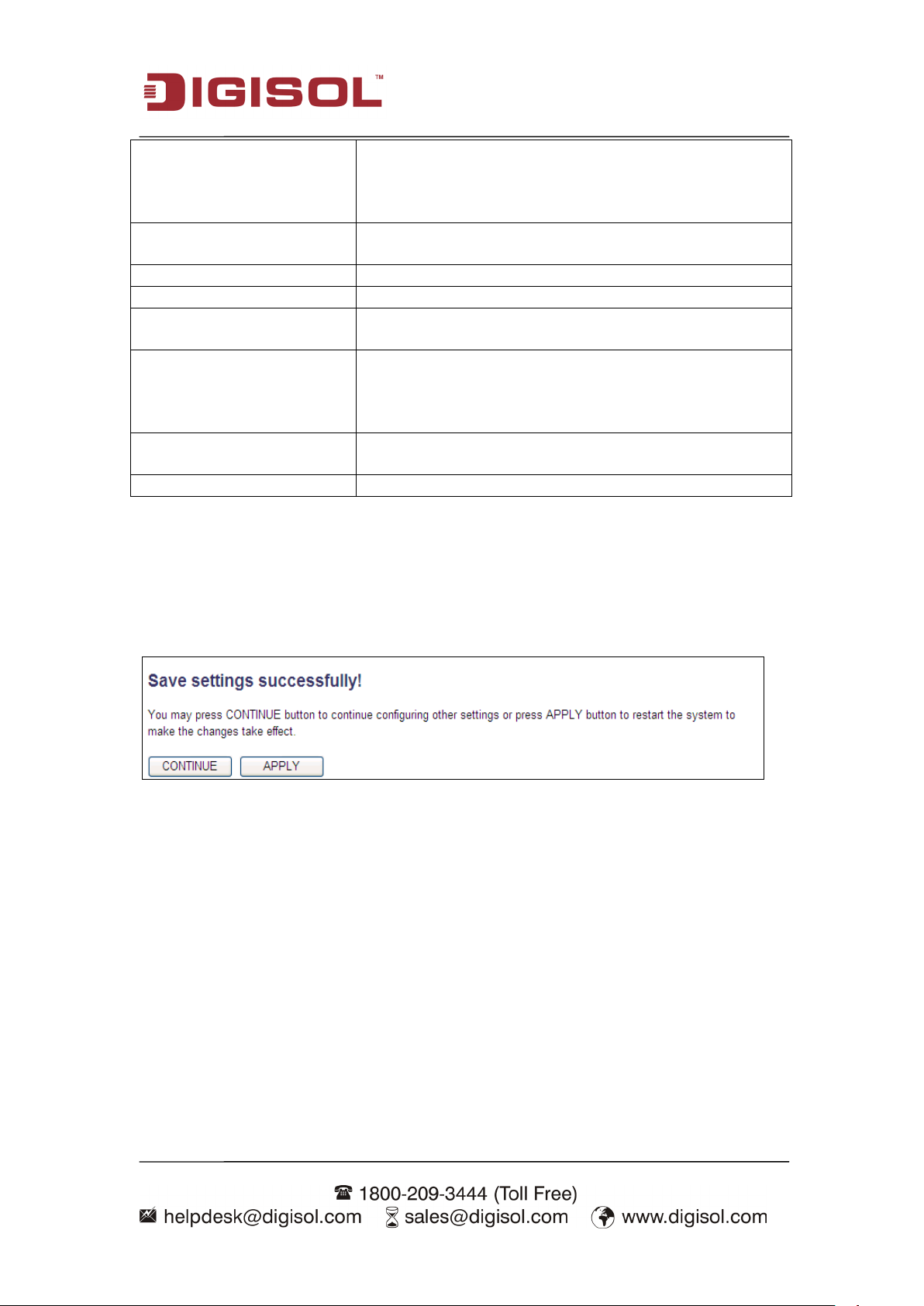

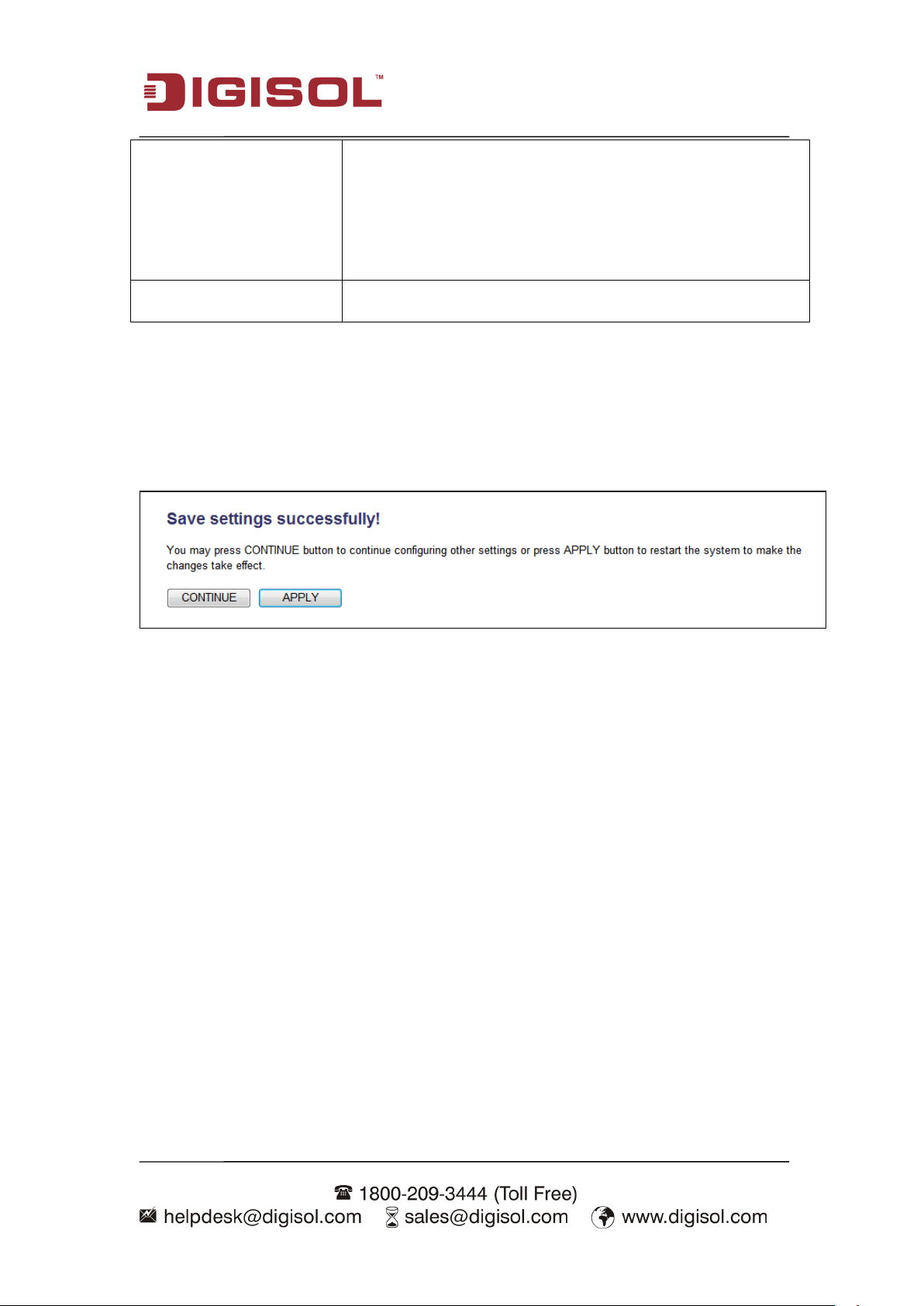

2-3-7 Procedure for Saving the Settings ........................................................................................ 48
2-4 GENERAL SETUP ............................................................................................................................... 49
2-4-1 Time zone and time auto-synchronization ........................................................................... 50
2-4-2 Change management password .......................................................................................... 51
2-4-3 Remote Management .......................................................................................................... 53
2-5 SETUP INTERNET CONNECTION (WAN SETUP) ....................................................................................... 55
2-5-1 Setup procedure for ‘3G/3.5G’ ............................................................................................. 56
2-5-2 Setup procedure for ‘Dynamic IP’ ........................................................................................ 57
2-5-3 Setup procedure for ‘Static IP’: ............................................................................................ 59

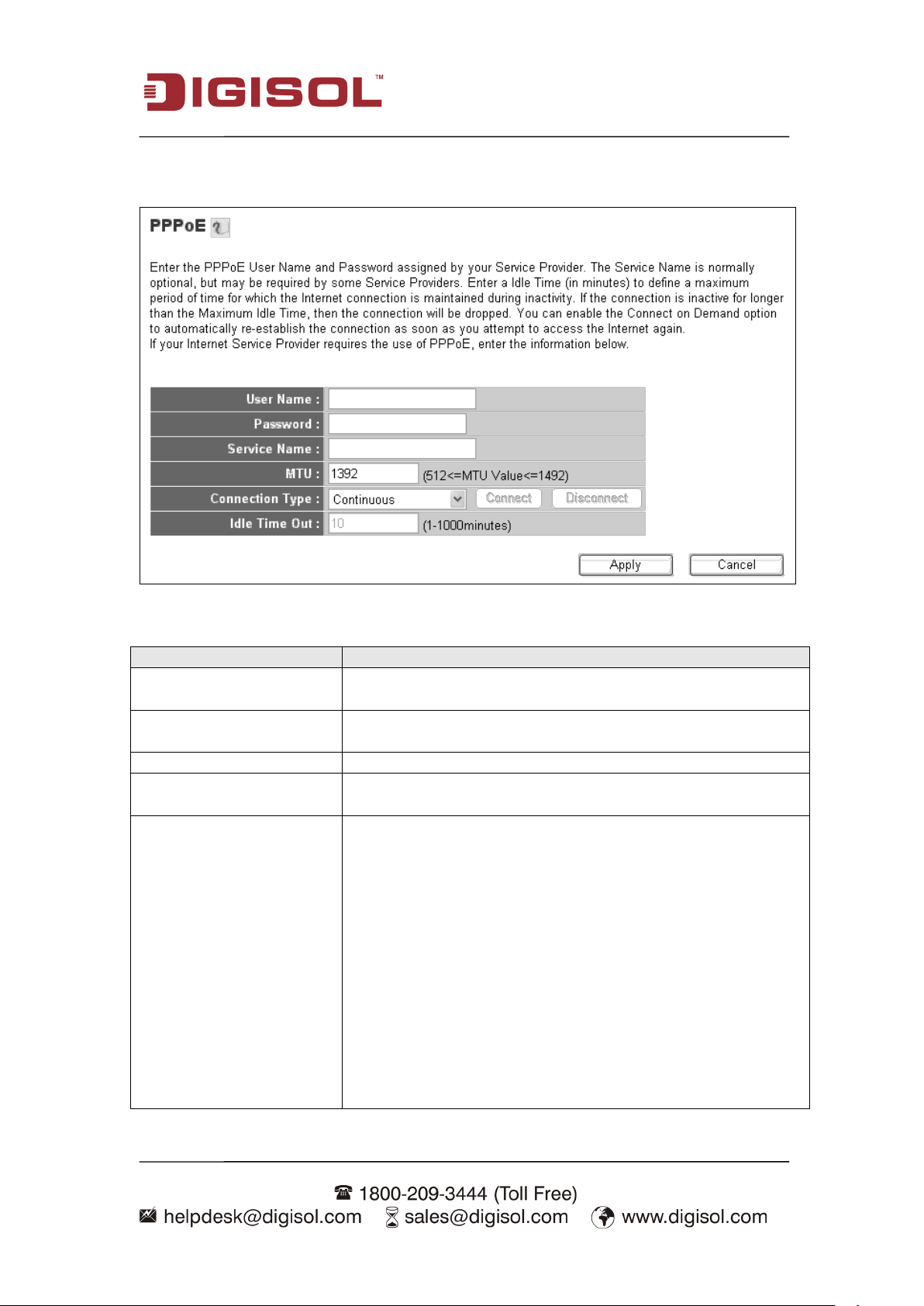

2-5-4 Setup procedure for ‘PPPoE’: ............................................................................................... 60
DG-BR4313NG User Manual
7
2-5-5 Setup procedure for ‘PPTP’: ................................................................................................. 62
2-5-6 Setup procedure for ‘L2TP’: .................................................................................................. 64

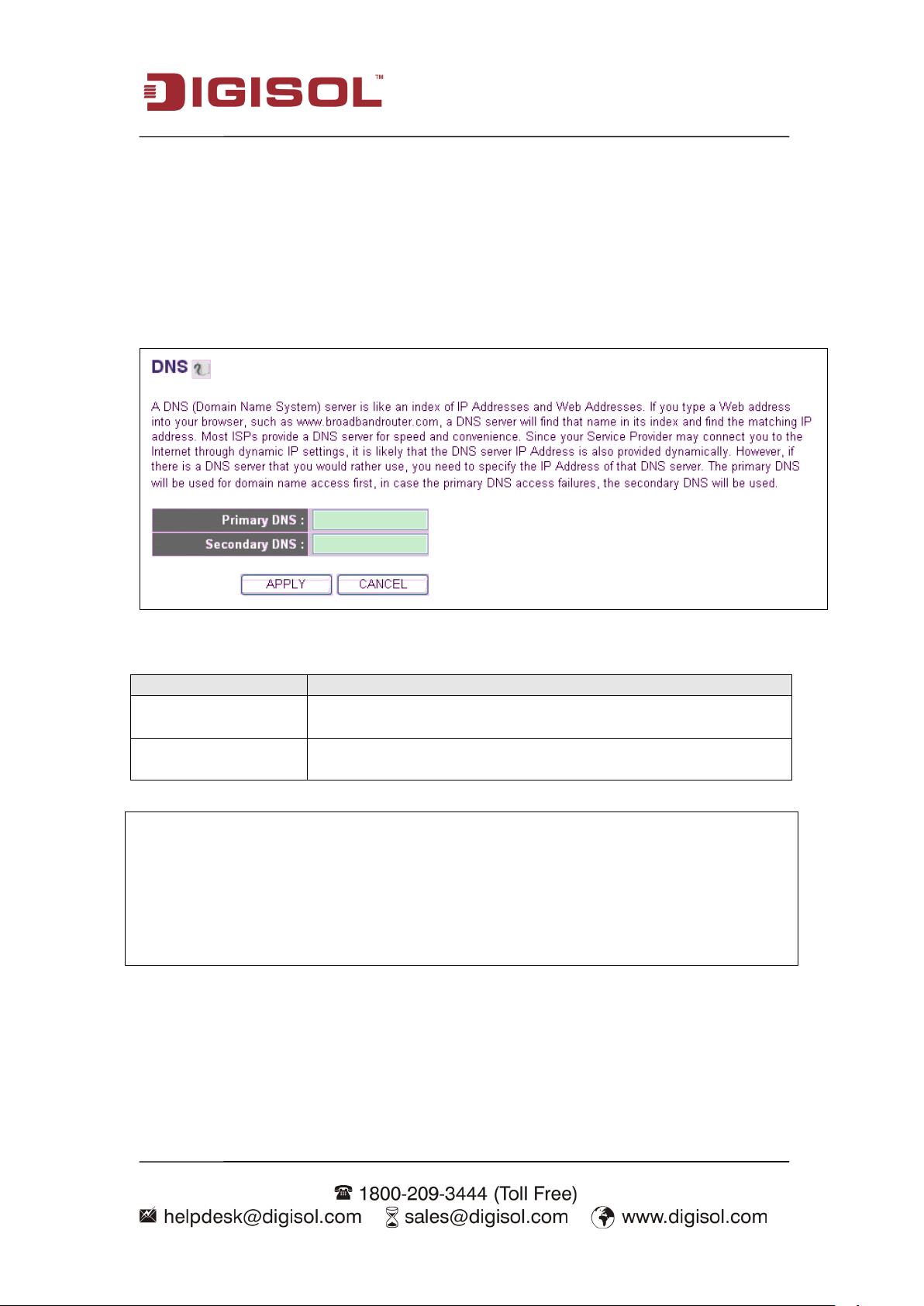

2-5-7 Setup procedure for ‘DNS’: ................................................................................................... 66
2-5-8 Setup procedure for ‘DDNS’: ................................................................................................ 68
2-6 WIRED LAN CONFIGURATIONS ............................................................................................................ 70
2-6-1 LAN IP section: ..................................................................................................................... 71
2-6-2 DHCP Server: ........................................................................................................................ 72
2-6-3 Static DHCP Lease Table: ...................................................................................................... 73
2-7 WIRELESS LAN CONFIGURATIONS ........................................................................................................ 75

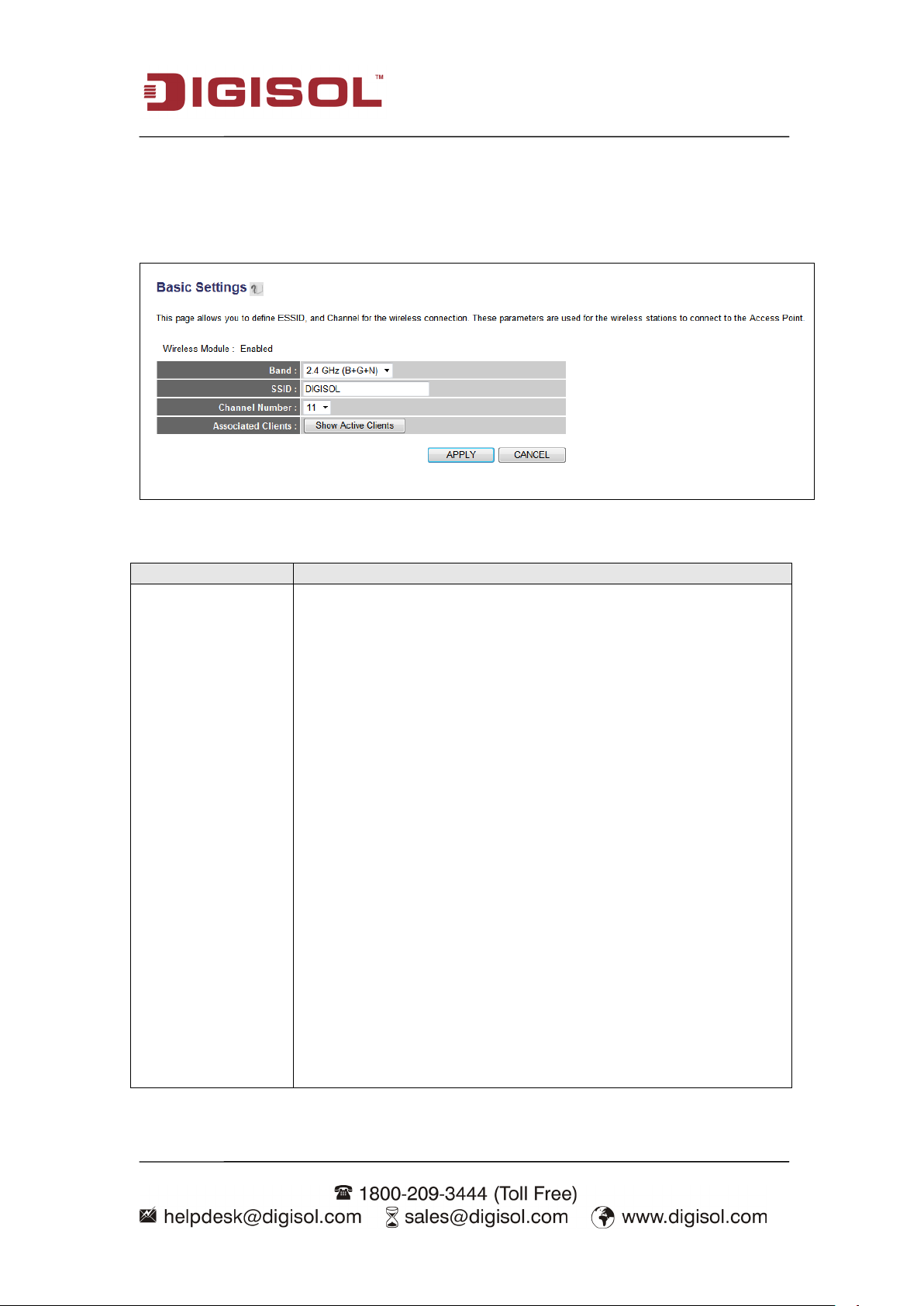

2-7-1 Basic Wireless Settings ........................................................................................................ 76
2-7-2 Advanced Wireless Settings ................................................................................................. 78
2-7-3 Wireless Security.................................................................................................................. 80
2-7-3-1 Disable wireless security .............................................................................................................. 80
2-7-3-2 WEP - Wired Equivalent Privacy .................................................................................................. 81
2-7-3-3 Wi-Fi Protected Access (WPA) ..................................................................................................... 84

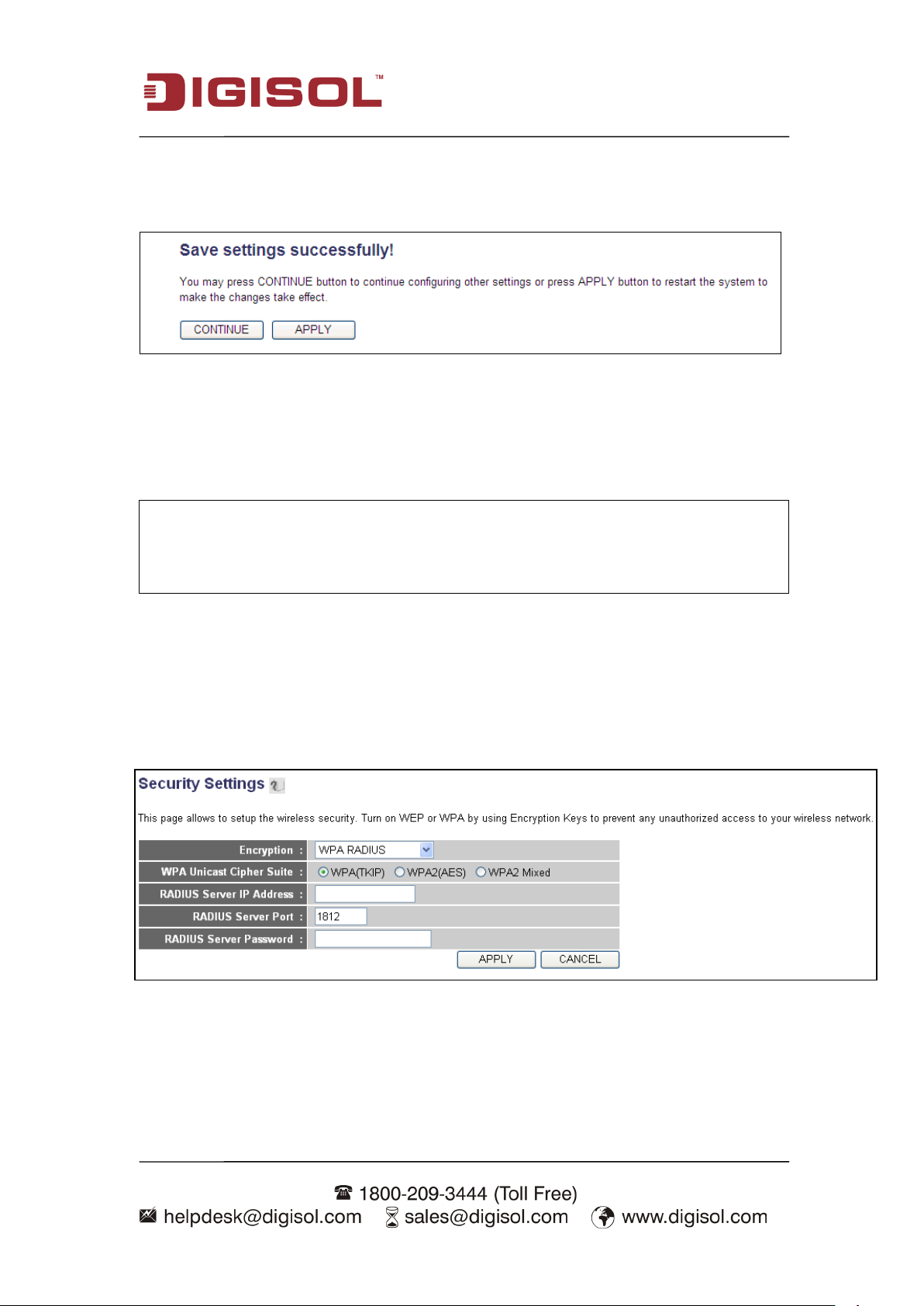

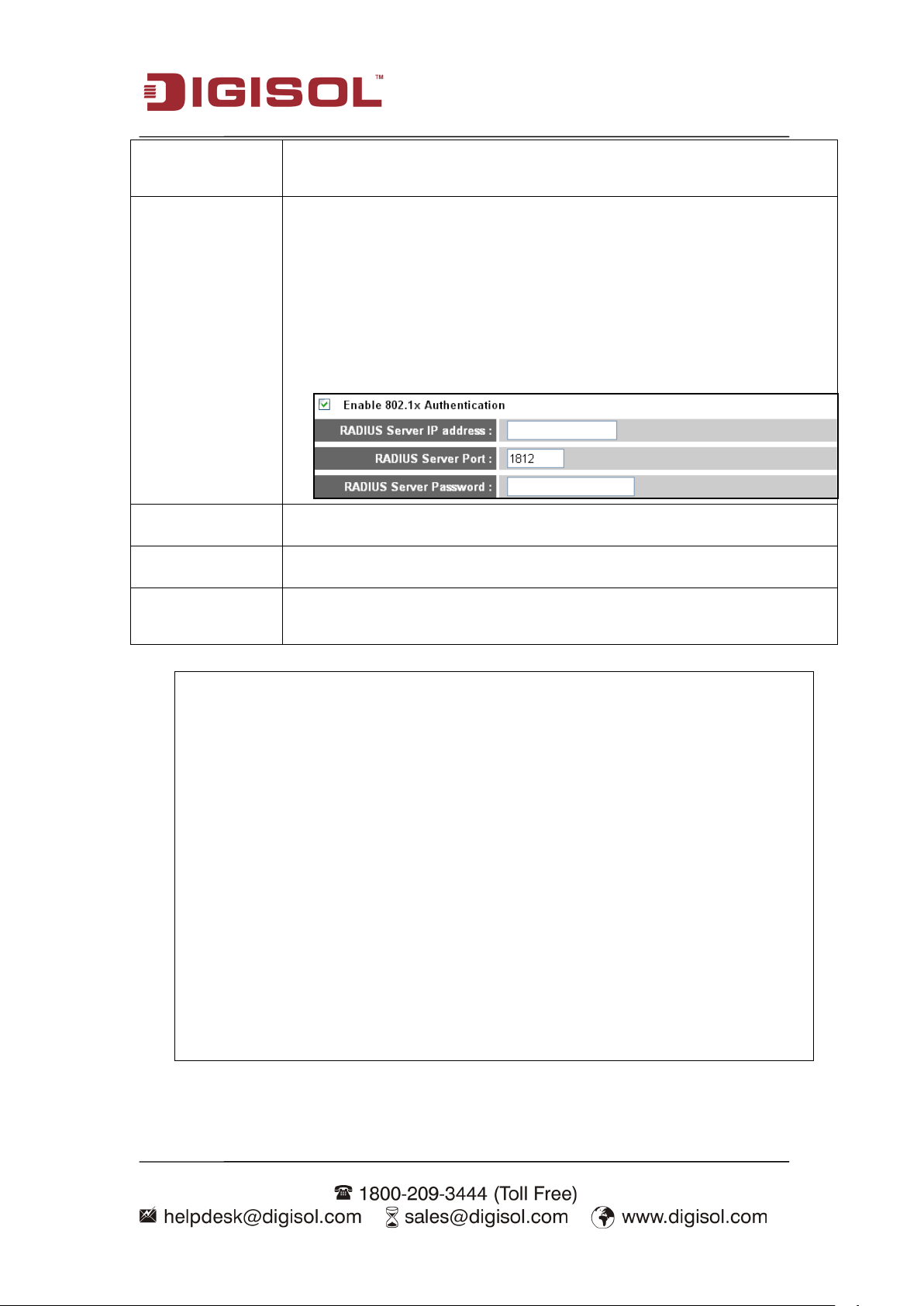

2-7-3-4 WPA RADIUS ................................................................................................................................ 85

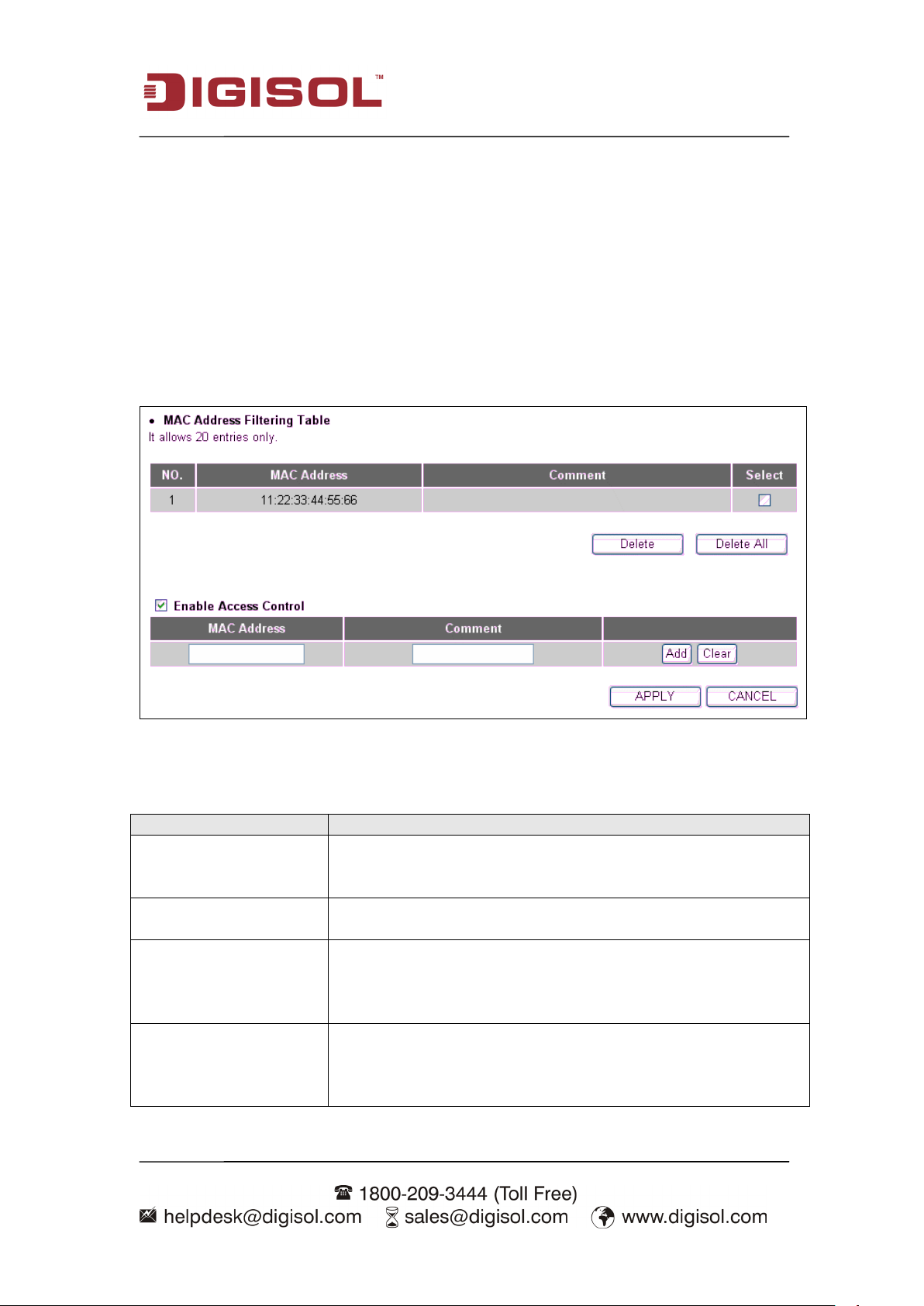

2-7-4 Wireless Access Control ....................................................................................................... 87
2-7-5 Wi-Fi Protected Setup (WPS) ............................................................................................... 89
2-7-6 Security Tips for Wireless Network ...................................................................................... 91
3. ADVANCED FUNCTIONS ............................................................................................................. 92
3-1 QUALITY OF SERVICE (QOS) ................................................................................................................ 92
3-1-1 Basic QoS Settings................................................................................................................ 92
3-1-2 Add a new QoS rule .............................................................................................................. 94
3-2 NETWORK ADDRESS TRANSLATION (N AT ) ............................................................................................. 97
3-2-1 Basic NAT Settings (Enable or disable NAT function) ........................................................... 97
3-2-2 Port Forwarding ................................................................................................................... 98

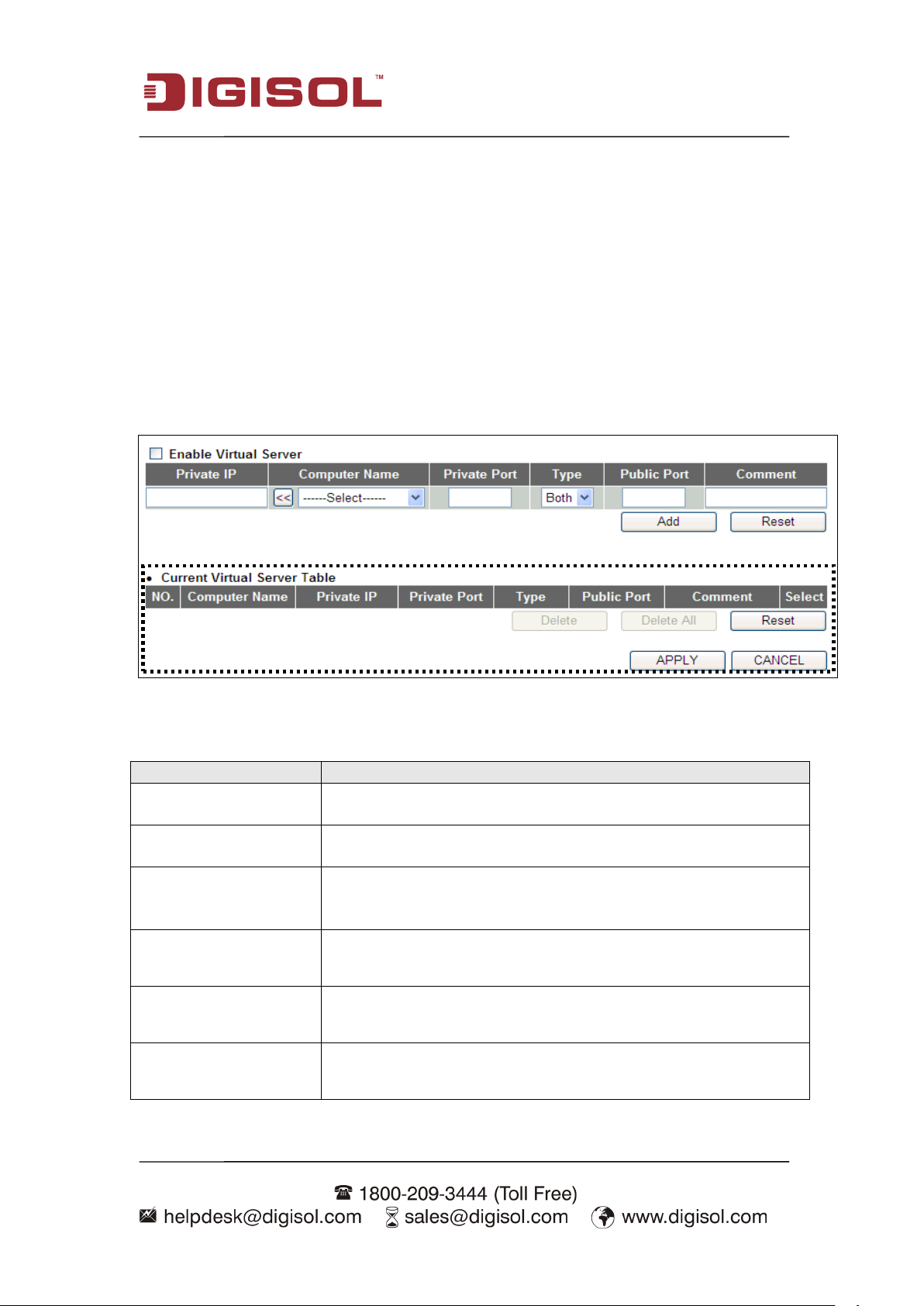

3-2-3 Virtual Server ..................................................................................................................... 100
3-2-4 Port Mapping for Special Applications ............................................................................... 102
3-2-5 UPnP Setting ...................................................................................................................... 104
3-2-6 ALG Settings ....................................................................................................................... 105
63B63B
3-2-7 Static Routing ..................................................................................................................... 106
3-3 FIREWALL ...................................................................................................................................... 108
3-3-1 Access Control .................................................................................................................... 109
3-3-1-1 Add PC ....................................................................................................................................... 112
DG-BR4313NG User Manual
8
3-3-2 URL Blocking ...................................................................................................................... 114
3-3-3 DoS Attack Prevention ....................................................................................................... 116
3-3-3-1 DoS - Advanced Settings ............................................................................................................ 118
3-3-4 Demilitarized Zone (DMZ) .................................................................................................. 120
3-4 FAILOVER ...................................................................................................................................... 122
3-4 SYSTEM STATU S .............................................................................................................................. 125
3-4-1 System information and firmware version ......................................................................... 125
3-4-2 Internet Connection Status ................................................................................................ 126
3-4-3 Device Status...................................................................................................................... 127
3-4-4 System Log ......................................................................................................................... 128
3-4-5 Security Log........................................................................................................................ 129
3-4-6 Active DHCP client list ........................................................................................................ 130
3-4-7 Statistics ............................................................................................................................. 130
3-4-8 Modem Info ....................................................................................................................... 131
3-5 TOOLS .......................................................................................................................................... 132
3-5-1 Configuration Backup and Restore..................................................................................... 132
3-5-2 Firmware Upgrade ............................................................................................................. 133
3-5-3 Reboot................................................................................................................................ 134
4 APPENDIX ................................................................................................................................. 135
4-1 HARDWARE SPECIFICATION ............................................................................................................... 135
4-2 TROUBLESHOOTING ......................................................................................................................... 136
4-3 GLOSSARY ..................................................................................................................................... 139
DG-BR4313NG User Manual
9

1. Product Information

1-1 Introduction and Safety Information

Thank you for purchasing DG-BR4313NG 300Mbps 802.11n Wireless Green 3G
Broadband Router! DG-BR4313NG is an energy-efficient router which helps to save more
power by using an embedded power amplifier. DG-BR4313NG is a power efficient router
which saves host power by off-loading CPU when WLAN is idle. The Smart Tx Power
Control mechanism in DG-BR4313NG transmits optimum power depending upon the
distance of wireless clients from the router. DG-BR4313NG is the best choice for Small
office / Home office users, all computers and network devices can share a single xDSL /
cable modem internet connection at high speed. Easy install procedures allow computer
users to setup a network environment in very short time - within minutes, even inexperienced
users.
When the number of your computers and network-enabled devices grow, you can also
expand the number of network slots by simply connecting a hub or switch, to extend the
scope of your network.
All computers and IEEE 802.11b/g/n wireless-enabled network devices (including PDA,
cellular phone, game console, and more) can connect to this wireless router without
additional cabling. With a compatible wireless card installed in your PC, you can transfer
files up to 300Mbps (transfer data rate).
Other features of this router include:
High Internet Access throughput.
Wireless speed up to 300Mbps.
Allows multiple users to share a single Internet line.
Shares a single Cable or xDSL internet connection.
Share 3G USB Cellular modem.
• Access private LAN servers from the internet.
Four wired LAN ports (10/100M) and one WAN port (10/100M).
Works with IEEE 802.11b/g/n wireless LAN devices.
Supports DHCP (Server/Client) for easy IP-address setup.
DG-BR4313NG User Manual
10
Advanced network and security features like: Special Applications, QoS, DMZ,
Virtual Servers, Access Control, Firewall.
Allows you to monitor the router’s status like: DHCP Client Log, System Log,
Security Log and Device/Connection Status.
Easy to use Web-based GUI for network configuration and management purposes.
Remote management function allows configuration and upgrades from a remote
computer (over the Internet).
Provides Auto MDI / MDI-X function for all wired Ethernet ports.
Supports Green WLAN for smart Tx power saving, Implicit Rx power saving
and CPU offload.

1-2 Safety Information

In order to keep the safety of users and your properties, please follow the safety instructions
as mentioned below:
1. This router is designed for indoor use only; DO NOT place this router outdoor.
2. DO NOT place this router close to a hot or humid area, like kitchen or bathroom.
Also, do not leave this router in the car during summer.
3. DO NOT pull any connected cable with force; disconnect it from the router first.
4. If you want to place this Router at a height or mount on the wall, please make sure
it is firmly secured. Falling from a height would damage the router and its
accessories and warranty will be void.
5. Accessories of this router, like antenna and power supply, are dangerous to small
children. KEEP THIS ROUTER OUT OF REACH OF CHILDREN.
6. The Router will get heated up when used for long time (This is normal and is not a
malfunction). DO NOT put this Access Point on paper, cloth, or other flammable
materials.
DG-BR4313NG User Manual
11
7. There’s no user-serviceable part inside the router. If you find that the router is not
working properly, please contact your dealer of purchase and ask for help. DO
NOT disassemble the router, warranty will be void.
8. If the router falls into water when it’s powered, DO NOT use your hands to pick it
up. Switch the electrical power off before you do anything, or contact an
experienced electrical technician for help.
9. If you smell something strange, or even see some smoke coming out from the
router or power supply, remove the power supply or switch the electrical power off
immediately, and call the dealer of purchase for help.

1-3 System Requirements

Notebook or desktop computer with network adapter (wired/wireless)
Internet connection, provided by xDSL or cable modem with a RJ-45 Ethernet port.
Web browser (Microsoft Internet Explorer 6.0 or above, Netscape Navigator 4.7 or
above, Opera / Safari / Firefox / Google Chrome web browser).
An available AC power socket (100 – 240V, 50/60Hz)

1-4 Package Contents

Before you start using this router, please check if there’s anything missing in the package,
and contact your dealer of purchase to claim for missing items:
DG-BR4313NG Wireless Broadband Router
Switching power adapter (5V DC, 2A)
USB cable (1 No.)
Quick Installation Guide
Installation Guide CD (includes User Manual, QIG & Utility)
Patch chord (1 No.)
DG-BR4313NG User Manual
12
LED Name
LED Color
Light Status
Description
P (Power)
Green
On
Router is switched on and correctly powered.
On
Wireless WPS function is enabled.
Off
Wireless network is switched off.
Flashing
Wireless LAN activity (transferring or receiving data).
WAN On
WAN port is connected.
Off
WAN port is not connected.
Flashing
WAN activity (transferring or receiving data).
On
LAN port is connected.
Off
LAN port is not connected.
Flashing
LAN activity (transferring or receiving data).

1-5 Get Familiar with your new wireless 3G broadband router

Front Panel
WLAN Amber
Green
LAN (1~4) Green
13
Back Panel
Interfaces
Description
Antennas
These antennas are 3dBi dipole antennas.
Radio ON/OFF
Switch the button to activate or deactivate the wireless functions.
Reset / WPS
Reset the router to factory default settings (clear all settings) or start WPS function. Press this button and hold for 10 seconds to
than 5 seconds to start WPS function.
LAN (1 – 4)
Local Area Network (LAN) ports 1 to 4.
WAN
Wide Area Network (WAN / Internet) port.
Power
Power connector, connects to A/C power adapter.
USB Port
Connect 3G USB data card.
3dBi Antenna
DG-BR4313NG User Manual
Radio ON/OFF LAN port WAN Port 3G USB Port
Reset/WPS Power Connector
restore all settings to factory defaults, and press this button for less
DG-BR4313NG User Manual
14

2. System and Network Setup

2-1 Hardware and Software Installation

Hardware Installation:-
Please follow the below mentioned instructions to build the network connection between
your new WIRELESS router and your computers, network devices:
1. Connect your xDSL / cable modem to the WAN port of the router by an Ethernet cable.
2. Connect all your computers, network devices (switch / hub) to the LAN port of the
router.
DG-BR4313NG User Manual
15
3. Connect the power adapter (5V DC / 2A) to the wall socket, and then connect it to the
‘Power’ socket of the router.
4. Please check all LEDs on the front panel. Power LED ‘P’ should be steadily ON, WAN
and LAN LEDs should be ON. Check if the computer / network device connected to the
respective port of the router is powered ON and correctly connected. If power LED ‘P’
is not ON, or any LED you expected is not ON, please recheck the cabling, or jump to
‘4-2 Troubleshooting’ for possible reasons and solution.
16
Software Installation:-
Insert the Setup CD into your CD-ROM drive of notebook/desktop computer.
Explore the CD and execute the “RWizard.exe” file. Below given screen will
DG-BR4313NG User Manual
appear. Click 'Next' to Continue.
DG-BR4313NG User Manual
17
Connect one end of a network cable to the WAN port of the router and the other end to
the DSL/Cable modem. Click ‘Next’ to continue.
Connect one end of the provided network cable to one of the LAN ports (1~4) of the
router and the other end to your computer. Click ‘Next’ to continue with the installation.
DG-BR4313NG User Manual
18
Power on the Router. It will take approximately 55 seconds for the router to boot up
completely. Ensure that all the LED’s on the router are ON. If not, try the above steps
again else click ‘Next’ to continue.
Enter the Router’s password to log in to the Router. The default password is “1234”. It is
recommended to change the router’s password to protect it from being accessed by other
users. If you do not wish to change the current password, you can leave “New
Password” and “Confirm New Password” fields blank. Click ‘Log in’ to continue.
DG-BR4313NG User Manual
19
If you are not sure which Internet Connection Type you use, please contact
Verify the Internet Connection Type the wizard has detected. If it is not correct, please
configure it manually. Click ‘Next’ to continue.
Note:
your Internet Service Provider for this information.
Note: All the software utility installation steps mentioned above are the common
steps to be followed for all the modes.
Below mentioned are the configuration steps for each of the modes.
DG-BR4313NG User Manual
20
Enter the settings for your Internet Connection Type .
3G/3.5G
Select the Country and ISP from drop down list. Enter the APN, Username, Password and AT Dial
Script, then click ‘Next’ to continue.
Dynamic IP (Cable Modem users)
Click on ‘Clone’ to clone the MAC address of your PC with the WAN port of the router, then click
Next’ to continue.
DG-BR4313NG User Manual
21
Note: Once the parameters for each mode, as explained above are
PPPoE (DSL users)
Enter the user name and password provided by your ISP then click ‘Next’.
Static IP
Enter the IP Address, Subnet Mask, Default Gateway and DNS address by your ISP, then
click ‘Next’.
configured, following are the wireless configuration steps mentioned below.
DG-BR4313NG User Manual
22
Please wait while the Wizard tries to connect to the Internet. If you see the window
“Internet Connection Succeed”, your router has been successfully connected to the
Internet. Please click ‘Next’ to configure the wireless settings.
Configure a name for your wireless network. Click ‘Next’ to continue.
DG-BR4313NG User Manual
23
Configure the security key for your wireless network. Check ‘Enable WPA Pre-Shared
Key’. Enter 8 to 63 characters into WPA-Pre-Shared Key. Click ‘Next’ to continue.
Verify the settings you just configured for the Router. Click ‘Finish’ to restart the
Router. This will take about 60 seconds.
Congratulations! Your router configuration is now finished.
DG-BR4313NG User Manual
24

2-2 Connecting to wireless broadband router by web browser

After the network connection is setup, next step is to setup the router with proper network
parameters, so it can work properly in your network environment.
Please use the web browser to configure the router. A computer with wired Ethernet
connection to the router is required for this first-time configuration.
Before you start to configure the router (default IP 192.168.2.1), please configure the IP
address of the computer in the same network class as that of the router.
If the operating system of your computer is….
Windows 95/98 - please go to Windows 2000 - please go to Windows XP - please go to Windows Vista - please go to
section 2-2-1 section 2-2-2 section 2-2-3 section 2-2-4
DG-BR4313NG User Manual
25

2-2-1 Windows 95/98 IP address setup:

1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then
click control panel. Double-click ‘Network’ icon, and Network window will appear.
Select ‘TCP/IP’, then click ‘Properties’.
DG-BR4313NG User Manual
26
2. Select ‘Specify an IP address’, then input the following settings in respective field:
IP address: 192.168.2.2
Subnet Mask: 255.255.255.0
Gateway: 192.168.2.1
Click ‘OK’ when finish.
DG-BR4313NG User Manual
27

2-2-2 Windows 2000 IP address setup:

1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then
click control panel. Double-click ‘Network and Dial-up Connections’ icon, Right click
on ‘Local Area Connection’ and select ‘Properties’, Local Area Connection Properties
window will appear. Select ‘Internet Protocol (TCP/IP)’, then click ‘Properties’
DG-BR4313NG User Manual
28
2. Select ‘Use the following IP address’, then input the following settings in the
respective field:
IP address: 192.168.2.2
Subnet Mask: 255.255.255.0
Default gateway: 192.168.2.1
Click ‘OK’ when finish.
DG-BR4313NG User Manual
29

2-2-3 Windows XP IP address setup:

1. Click ‘Start’ button (it should be located at the lower-left corner of your computer),
then click control panel. Click ‘Network Connections’, Right click on ‘Local Area
Connection’ and select Properties, Local Area Connection Properties window will
appear. Select ‘Internet Protocol (TCP/IP)’, and then click ‘Properties’.
DG-BR4313NG User Manual
30
2. Select ‘Use the following IP address’, then input the following settings in the
respective field:
IP address: 192.168.2.2
Subnet Mask: 255.255.255.0
Default gateway: 192.168.2.1
Click ‘OK’ when finish.
DG-BR4313NG User Manual
31

2-2-4 Windows Vista IP address setup

1. Click ‘Start’ button (it should be located at lower-left corner of your computer), then
click control panel. Click on ‘View Network Status and Tasks’ and then click on
‘Manage Network Connections’. Right-click ‘Local Area Connection’, then select
‘Properties’. Local Area Connection Properties window will appear, select ‘Internet
Protocol Version 4 (TCP / IPv4), and then click ‘Properties’
DG-BR4313NG User Manual
32
2. Select ‘Use the following IP address’, then input the following settings in the respective
field:
IP address: 192.168.2.2
Subnet Mask: 255.255.255.0
Default gateway: 192.168.2.1
Click ‘OK’ when finish.
DG-BR4313NG User Manual
33

2-2-5 Connecting the router’s management interface by web browser

After you assign an IP address to the computer, open the web browser, and type the IP
address of the router in the address bar as ‘http://192.168.2.1’.
The following message should be shown:
DG-BR4313NG User Manual
34
you didn’t input username and password correctly. Please retype
General Setup, Status and Tools. You can find the shortcut which
Please input user name and password in the field respectively, default user name is ‘admin’,
and default password is ‘1234’, then press ‘OK’ button, and you can see the web
management interface of this router:
NOTE: If you can’t see the web management interface, and you’re
being prompted to input user name and password again, it means
user name and password again. If you’re certain about the user name
and password you typed please go to ‘4-2 Troubleshooting’ to
perform a factory reset, to set the password back to default value.
TIP: This page shows the four major setting categories: Quick Setup,
leads to these setting categories at the top of every page, and you
can jump to another category directly by clicking the link, and don’t
have to go back to the first page.
DG-BR4313NG User Manual
35
HERE!

2-3 Using Quick Setup

This router provides a ‘Quick Setup’ procedure, which will help you to complete all required
settings you need to access the Internet in very short time. Please follow the instructions
mentioned below to complete the ‘Quick Setup’:
Please go to Quick Setup menu by clicking ‘Quick Setup’ button.
And the following message will be displayed:
DG-BR4313NG User Manual
36
Parameter
Description
Time Zone you can choose a time zone of the location you live.
Time Server Address
Input the IP address of time server here.
Daylight Savings
If the country you live in uses daylight saving, please check ‘Enable Function’ box, and choose the duration of daylight saving.
Here is the description of every setup item
Click the button, drop-down menu will be shown, and
NOTE: There are several time servers available on internet, few are
listed below:
129.6.15.28 (time-a.nist.gov)
132.163.4.101 (time-a.timefreq.bldrdoc.gov)
131.107.1.10 (time-nw.nist.gov)
If you find that the time on the router is incorrect, try another time server.
DG-BR4313NG User Manual
37
After you finish with all the settings, please click ‘Next’ button. Below given ‘WAN Type’ screen will appear.
Please choose the broadband (Internet connection) type you’re using in this page. There are
six types of Internet connection, they are:
3G/3.5G - Please go to section 2-3-1
Cable Modem - Please go to section 2-3-2
Fixed-IP xDSL - Please go to section 2-3-3
PPPoE xDSL - Please go to section 2-3-4
PPTP xDSL - Please go to section 2-3-5
L2TP xDSL - Please go to section 2-3-6
DG-BR4313NG User Manual
38
Protocol) to assign IP address to your router. In this case, you can
If you’re not sure, please contact your Internet service provider. A wrong Internet
connection type will cause connection problem, and you will not be able to connect to the
internet.
If you want to go back to previous step, please press ‘Back’ button at the bottom of this
page.
NOTE: Some service providers use ‘DHCP’ (Dynamic Host Configuration
choose ‘Cable Modem’ as Internet connection type.
DG-BR4313NG User Manual
39
Parameter
Description

2-3-1 Setup procedure for ‘3G/3.5G’:

Click on ‘3G/3.5G’ on the ‘WAN Type’ screen. Below given screen will be displayed.
Here is the description of every setup item:
Country Select the country from dropdown list.
ISP Select the Service Provider from dropdown list.
PIN Code Enter the pin code if required.
APN Enter the APN for 3G connection.
Username Enter Username for 3G connection.
Password Enter the password for 3G connection.
Verify Password Enter the password to verify.
Service Select the service type whether 3G or CDMA.
AT Dial Script Enter the dial script.
DG-BR4313NG User Manual
40
Parameter
Description
Host Name
Please input the host name of your computer. This is optional, and is only required if your service provider asks you to do so.
MAC address
Please input MAC address of your computer here, if your
’ button to fill the MAC
address field, with the MAC address of your computer.

2-3-2 Setup procedure for ‘Cable Modem’:

Click on ‘Cable Modem’ on the ‘WAN Type’ screen. Below given screen will be displayed.
Here is the description of every setup item:
service provider only permits computer with certain MAC address to access internet. If you’re using the computer which is used to connect to Internet via cable modem, you can simply press ‘Clone Mac
After you finish with all settings, please click ‘OK’ button; if you want to go back to
previous menu, click ‘Back’.
DG-BR4313NG User Manual
41
Parameter
Description
IP address
Please input the IP address assigned by your service provider.
Subnet Mask
Please input subnet mask assigned by your service provider
DNS address
Please input the IP address of DNS server provided by your service provider.
Default Gateway
Please input the default gateway assigned by your service provider.
contact your service provider for further information.

2-3-3 Setup procedure for ‘Fixed-IP xDSL:

Click on ‘Fixed-IP xDSL’ on the ‘WAN Type’ Screen. Below given screen will be displayed.
Here is the description of every setup item:
NOTE: You must use the addresses provided by your Internet service
provider, wrong setting value will cause connection problem.
NOTE: You can choose this Internet connection method if your
service provider assigns a fixed IP address (also known as static
address) to you, and not using DHCP or PPPoE protocol. Please
When you finish with all the settings, press ‘OK’; if you want to go back to previous menu,
click ‘Back’.
DG-BR4313NG User Manual
42
Parameter
Description
User Name
Please input the user name assigned by your Internet service provider here.
Password
Please input the password assigned by your Internet service provider here.
Service Name
Please give a name to this Internet service, this is optional.
MTU
Please input the MTU value of your network connection here. If you don’t know, you can use default value.
Connection Type
Please select the connection type of Internet connection you wish to use (detailed explanation listed below).
Idle Time Out
Please input idle time out, (detailed explanation listed below).

2-3-4 Setup procedure for ‘PPPoE xDSL:

Click on ‘PPPoE’ on the ‘WAN Type’ Screen. Below given screen will be displayed.
Here is the description of every setup item:
When you finish with all settings, please click ‘OK’; if you want to go back to previous
menu, click ‘Back’.
DG-BR4313NG User Manual
43
MTU – If you don’t know the MTU Value, please use default value or ask
your service provider for a proper value.
Connection Type - There are 3 options:
‘Continuous’ - Keep internet connection alive, do not disconnect.
‘Connect on Demand’ - Only connects to Internet when there’s a
connect attempt.
‘Manual’ - Only connects to Internet when ‘Connect’ button on this
page is pressed, and disconnects when ‘Disconnect’
button is pressed.
Idle Time Out: Specify the time to shutdown internet connection after
no internet activity is detected by specified minutes.
This option is only available when connection type is
‘Connect on Demand’.
DG-BR4313NG User Manual
44

2-3-5 Setup procedure for ‘PPTP xDSL’:

Click on ‘PPTP’ on the ‘WAN Type’ Screen. Below given screen will be displayed.
PPTP xDSL requires two kinds of settings: WAN interface setting (setup IP address) and
PPTP setting (PPTP user name and password).
DG-BR4313NG User Manual
45
Parameter
Description
User Name
Please input user ID (user name) assigned by your Internet service provider here.
Password
Please input the password assigned by your Internet service provider here.
PPTP Gateway
Please input the IP address assigned by your Internet service provider here
Connection ID
Please input the connection ID here, this is optional and you can leave it blank.
MTU
Please input the MTU value of your network connection here. If you don’t know, you can use default value.
BEZEQ-ISRAEL
Setting item ‘BEZEQ-ISRAEL’ is only required to Enable if you’re using the service provided by BEZEQ network in Israel.
Connection type
Please select the connection type of Internet connection you
procedure for ‘PPPoE xDSL’ for detailed descriptions.
Idle Time Out
Please input the idle time out of Internet connection you
procedure for ‘PPPoE xDSL’ for detailed descriptions.
Here we start from WAN interface setting:
Here you select the type of how to obtain the IP address from your service provider. You can
choose ‘Obtain an IP address automatically’ (i.e. DHCP, please refer to ‘Cable Modem’
Section 2-3-2), or ‘Use the following IP address’ (i.e. static IP address, please refer to
Section 2-3-3).
WAN interface settings must be correctly set, or the Internet connection will fail, even
though settings of PPTP settings are correct. Please contact your Internet service provider if
you don’t know what you should fill in these fields.
Now please go to PPTP settings section:
wish to use. Refer to Note given in Section 2-3-4 Setup
wish to use. Refer to Note given in Section 2-3-4 Setup
When you finish with all settings, please click ‘OK; if you want to go back to previous
menu, click ‘Back’.
DG-BR4313NG User Manual
46

2-3-6 Setup procedure for ‘L2TP xDSL’:

L2TP is another popular connection method for xDSL and other Internet connection types,
like PPTP, two kinds of settings are required, we’ll start from ‘WAN Interface Settings’:
Please select the type of how you obtain IP address from your service provider here. You can
choose ‘Obtain an IP address automatically’ (i.e. DHCP, please refer to ‘Cable Modem’
Section 2-3-2), or ‘Use the following IP address’ (i.e. Static IP address, please refer to
Section 2-3-3).
WAN interface settings must be correctly set, or the Internet connection will fail, even
though L2TP settings are correct. Please contact your Internet service provider if you don’t
know what you should fill in these fields.
DG-BR4313NG User Manual
47
Parameter
Description
User Name
Please input user ID (user name) assigned by your Internet service provider here.
Password
Please input the password assigned by your Internet service provider here.
L2TP Gateway
Please input the IP address of L2TP gateway assigned by your Internet service provider here.
MTU
Please input the MTU value of your network connection here. If you don’t know, you can use default value.
Connection type
Please select the connection type of Internet connection you wish to
Setup procedure for
‘PPPoE xDSL’ for detailed descriptions.
Idle Time Out
Please input the idle time out of Internet connection you wish to use.
Setup procedure for ‘PPPoE
xDSL’ for detailed descriptions.
Now please go to L2TP settings section:
Here is the description of every setup item:
use. Refer to Note given in Section 2-3-4
Refer to Note given in Section 2-3-4
When you finish with all settings, please click ‘OK; if you want to go back to previous
menu, click ‘Back’.
DG-BR4313NG User Manual
48

2-3-7 Procedure for Saving the Settings

After completion of all the settings you need to save it.
Click ‘OK’ and the following message will be displayed on your web browser:
Click ‘Apply’ button to restart the router, and you’ll see this message:
Wait for about 55 seconds, then click ‘OK’ button. You’ll be back to router management
interface again, and the router is ready with new settings.
DG-BR4313NG User Manual
49
HERE!

2-4 General Setup

In this chapter, you’ll know how to change the time zone, password and remote management
settings. Please start your web browser and log onto router web management interface, then
click ‘General Setup’ button on the left, or click ‘General Setup’ link at the upper-right
corner of web management interface.
DG-BR4313NG User Manual
50

2-4-1 Time zone and time auto-synchronization

Please follow the instructions mentioned below to set time zone and time auto-
synchronization parameters.
Please click ‘System’ menu on the left of web management interface, then click ‘Time
Zone’, and the following screen will be displayed on your web browser. For setting of the
Time Zone, Time Server Address and Daylight Savings parameters in this screen, please
refer section ‘2-3 Using Quick Setup’
When you finish, click ‘Apply’. You’ll see the following message displayed on web
browser:
Press ‘Continue’ to save the settings made and go back to web management interface; press
‘Apply’ to save the settings made and restart the router so the settings will take effect after it
reboots.
DG-BR4313NG User Manual
51
Parameter
Description
Current Password
Please input current password here.
New Password
Please input new password here.
Confirm Password
Please input new password here again.

2-4-2 Change management password

Default password of this router is 1234, and it’s displayed on the login prompt when
accessed from web browser. There’s a security risk if you don’t change the default
password, since everyone can see it. This is very important when you have wireless function
enabled.
To change password, please follow the instructions mentioned below:
Please click ‘System’ menu on the left of web management interface, then click ‘Password
Settings’, and the following screen will be displayed on your web browser
Here is the description of every setup item:
When you finish, click ‘Apply’. If you want to keep original password unchanged, click
‘Cancel’.
DG-BR4313NG User Manual
52
If the password you typed in ‘New Password’ and ‘Confirm Password’ fields do not match,
you’ll see the following message.
Please retype the new password again and click ‘Apply’.
If the current and new passwords are correctly entered, after you click ‘Apply’, you’ll be
prompted to input your new password:
Please input user name as ‘admin’ and new password to enter web management interface
again, and you should be able to login with new password.
DG-BR4313NG User Manual
53
Parameter
Description
Host Address
Input the IP address of the remote host you wish to initiate a management access.
Port
You can define the port number through which this router should expect an
80), you should try to use other port number. You can use the default port
and 65535)
Enabled
Select this field to start the configuration.

2-4-3 Remote Management

This router does not allow management access from Internet, to prevent possible security
risks (especially when you define a weak password or did not change default password).
However, you can still manage this router from a specific IP address by enabling the
‘Remote Management’ function.
To do so, please follow the instructions mentioned below:
Please click ‘System’ menu on the left of web management interface, then click ‘Remote
Management’, and the following screen will be displayed on your web browser:
Here is the description of every setup item:
incoming request. If you’re providing a web service (default port number is
setting ‘8080’ or something like ‘32245’ or ‘1429’. (Any integer between 1
DG-BR4313NG User Manual
54
When you finish, click ‘Apply’. You’ll see the following message displayed on web browser
Press ‘Continue’ to save the settings made and go back to web management interface; press
‘Apply’ to save the settings made and restart the router, so the settings will take effect after
it reboots.
NOTE: When you want to manage this router from another computer
on internet, you have to input the IP address and port number of this
router in the address bar of the web browser manually. If your Internet
service provider assigns you with a static IP address, it will not be a
problem; but if the IP address your service provider assigns to you
will vary every time you establish an internet connection, this will be a
problem.
Please either ask your service provider to give you a static IP address,
or use dynamic IP to host name mapping services like DDNS. Please
refer to chapter 2-5-8 ‘DDNS client’ for details.
NOTE: The default port number that the web browser will use is ‘80’. If
the ‘Port’ setting in this page is not ‘80’, you have to assign the port
number in the address bar of web browser manually. For example, if
the IP address of this router is 1.2.3.4, and the port number you set is
8888, you have to input following address in the address bar of web
browser:
http://1.2.3.4:8888
DG-BR4313NG User Manual
55

2-5 Setup Internet Connection (WAN Setup)

Internet connections setup can be done by using ‘Quick Setup’ menu described in chapter
2-3. However, you can setup WAN connections by using WAN configuration menu. You can
also set advanced functions like DDNS (Dynamic DNS) here.
To start configuration, please follow the instructions mentioned below.
Click ‘General Setup’ menu on the left of web management interface, then click ‘WAN’
menu, and the following message will be displayed on your web browser:
Please select an Internet connection method depending on the type of connection you’re
using. You can either click the connection method on the left or right of the web
management interface. If you select the connection method on the right, please click ‘More
Configuration’ tab after a method is selected.
DG-BR4313NG User Manual
56
Parameter
Description
Following are the types of Internet connection:
3G/3.5G - Please go to section 2-5-1
Dynamic IP - Please go to section 2-5-2
Static IP - Please go to section 2-5-3
PPPoE - Please go to section 2-5-4
PPTP - Please go to section 2-5-5
L2TP - Please go to section 2-5-6
DNS - Please go to section 2-5-7
DDNS - Please go to section 2-5-8

2-5-1 Setup procedure for ‘3G/3.5G’

Here is the description of every setup item.
Country Select the country from dropdown list.
ISP Select the Service Provider from dropdown list.
PIN Code Enter the pin code if required.
APN Enter the APN for 3G connection.
Username Enter Username for 3G connection.
DG-BR4313NG User Manual
57
Parameter
Description
Host Name
Please input host name of your computer. This is optional, and is only required if your service provider asks you to do so.
MAC Address
Please input MAC address of your computer, if your service provider
If you’re using the computer which used to connect to Internet via cable modem, you can simply press ‘Clone Mac address’ button to fill the MAC address field with the MAC address of your computer.
Password Enter the password for 3G connection.
Verify Password Enter the password to verify.
Service Select the service type whether 3G or CDMA.
AT Dial Script Enter the dial script.

2-5-2 Setup procedure for ‘Dynamic IP’

Here is the description of every setup item:
only permits computer with certain MAC address to access internet.
After you finish with all settings, please click ‘Apply’; if you want to remove any value you
entered, please click ‘Cancel’.
DG-BR4313NG User Manual
58
After you click ‘Apply’, the following message will be displayed on your web browser:
Please click ‘Continue’ to go back to previous setup menu; to continue on router setup, or
click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 55
seconds while router is rebooting).
DG-BR4313NG User Manual
59
Parameter
Description
IP Address
Please input the IP address assigned by your service provider.
Subnet Mask
Please input the subnet mask assigned by your service provider
Default Gateway
Please input the IP address of the gateway provided by your service provider.

2-5-3 Setup procedure for ‘Static IP’:

Here is the description of every setup item:
After you finish with all the settings, please click ‘Apply’ button and the following message
will be displayed on your web browser:
If you want to reset all settings in this page back to previously-saved value, please click
‘Cancel’ button.
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
DG-BR4313NG User Manual
60
Parameter
Description
User Name
Please input user name assigned by your Internet service provider here.
Password
Please input the password assigned by your Internet service provider here.
Service Name
Please give a name to this Internet service, this is optional.
MTU
Please input the MTU value of your network connection here. If you don’t know, you can use default value.
Connection Type
Please select the connection type of Internet connection you
The connection will be kept always On. If
Only connect when you want to
is set to stop the
connection when the network traffic is not sending or

2-5-4 Setup procedure for ‘PPPoE’:

Here is the description of every setup item:
wish to use.
Continuous
the connection is interrupted, the router will re-connect
automatically.
Connect On-Demand
surf the Internet. “Idle Time Out”
receiving after an idle time.
DG-BR4313NG User Manual
61
nd “Disconnect” button, click
the ISP. If you
want to stop the connection, please click “Disconnect” Idle Time Out
If you have selected the connection type to “Connect-On­Demand”, please input the idle time out.
Manual – After you have selected this option, you will see
the “Connect” button a
“Connect” and the router will connect to
button.
After you finish with all settings, please click ‘Apply’ button and the following message will
be displayed on your web browser.
If you want to reset all settings in this page back to previously-saved value, please click
‘Cancel’ button.
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
DG-BR4313NG User Manual
62

2-5-5 Setup procedure for ‘PPTP’:

PPTP requires two kinds of settings: WAN interface setting (setup IP address) and PPTP
setting (PPTP user name and password).
Here we start from WAN interface setting:
Here you select the type of how to obtain the IP address from your service provider. You can
choose ‘Obtain an IP address automatically’ (i.e. DHCP, please refer to ‘Cable Modem’
Section 2-3-2), or ‘Use the following IP address’ (i.e. static IP address, please refer to
Section 2-3-3).
DG-BR4313NG User Manual
63
Parameter
Description
User Name
Please input user ID (user name) assigned by your Internet service provider here.
Password
Please input the password assigned by your Internet service provider here.
PPTP Gateway
Please input the IP address assigned by your Internet service provider here
Connection ID
Please input the connection ID here, this is optional and you can leave it blank.
MTU
Please input the MTU value of your network connection here. If you don’t know, you can use default value.
BEZEQ-ISRAEL
Setting item ‘BEZEQ-ISRAEL’ is only required to be enabled if you’re using the service provided by BEZEQ network in Israel.
Connection type
Please select the type of the Internet connection you wish to use. Refer
for detailed descriptions.
Idle Time Out
Please input the idle time out of Internet connection you wish to use.
Setup procedure for ‘PPPoE
xD SL’ for detailed descriptions.
WAN interface settings must be correctly set, or the Internet connection will fail, even
though the PPTP settings are correct. Please contact your Internet service provider if you
don’t know what you should fill in these fields.
Now please go to PPTP settings section:
to Note given in Section 2-3-4 Setup procedure for ‘PPPoE xDSL’
Refer to Note given in Section 2-3-4
When you finish with all settings, please click ‘Apply’ button and the following message
will be displayed on your web browser:
If you want to reset all settings in this page back to previously-saved value, please click
‘Cancel’ button.
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
DG-BR4313NG User Manual
64

2-5-6 Setup procedure for ‘L2TP’:

L2TP is another popular connection method for xDSL and other Internet connection types,
Like PPTP, two kinds of settings are required, we’ll start from ‘WAN Interface Settings’:
Please select the type of how you obtain IP address from your service provider here. You can
choose ‘Obtain an IP address automatically’ (i.e. DHCP, please refer to ‘Cable Modem’
Section 2-3-2), or ‘Use the following IP address’ (i.e. Static IP address, please refer to
Section 2-3-3).
DG-BR4313NG User Manual
65
Parameter
Description
User Name
Please input user ID (user name) assigned by your Internet service provider here.
Password
Please input the password assigned by your Internet service provider here.
L2TP Gateway
Please input the IP address of L2TP gateway assigned by your Internet service provider here.
MTU
Please input the MTU value of your network connection here. If you don’t know, you can use default value.
Connection type
Please select the connection type of Internet connection
for detailed
descriptions.
Idle Time Out
Please input the idle time out of Internet connection you
procedure for ‘PPPoE xDSL’ for detailed descriptions.
WAN interface settings must be correctly set, or the Internet connection will fail, even
though L2TP settings are correct. Please contact your Internet service provider if you don’t
know what you should fill in these fields.
Now please go to L2TP settings section:
Here is the description of every setup item:
you wish to use. Refer to Note given in Section 2-3-4
Setup procedure for ‘PPPoE xDSL’
wish to use. Refer to Note given in Section 2-3-4 Setup
When you finish with all settings, please click ‘OK’ button and the following message will
be displayed on your web browser:
If you want to reset all settings in this page back to previously-saved value, please click
‘Cancel’ button.
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
DG-BR4313NG User Manual
66
Parameter
Description
Primary DNS
Please input the IP address of DNS server provided by your service provider.
Secondary DNS
Please input the IP address of another DNS server provided by your service provider, this is optional.

2-5-7 Setup procedure for ‘DNS’:

If you select ‘Dynamic IP’ or ‘PPPoE’ as Internet connection method, at least one DNS
server’s IP address should be assigned automatically. However, if you have preferred DNS
server, or your service provider didn’t assign the IP address of DNS server because of any
reason, you can input the IP address of DNS server here.
Here is the description of every setup item:
NOTE: Only IP address can be entered here; DO NOT use the hostname
of DNS server! (i.e. only numeric characters and dots are accepted)
10.20.30.40……………………………………………………………… Correct
dns.serviceprovider.com…………………………………………... Incorrect
DG-BR4313NG User Manual
67
After you finish with all settings, please click ‘Apply’ button and the following message will
be displayed on your web browser:
If you want to reset all settings in this page back to previously-saved value, please click
‘Cancel’ button.
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
DG-BR4313NG User Manual
68
Parameter
Description
Dynamic DNS
If you want to enable DDNS function, please select ‘Enabled’; otherwise please select ‘Disabled’.
Provider
Select your DDNS service provider here.
Domain Name
Input the domain name you’ve obtained from DDNS service provider.
Account
Input username used for DDNS registration.
Password / Key
Input DDNS service password or key.

2-5-8 Setup procedure for ‘DDNS’:

DDNS (Dynamic DNS) is an IP-to-Hostname mapping service for those Internet users who
don’t have a static (fixed) IP address. It will be a problem when such users want to provide
services to other users on Internet, because their IP address will vary every time when
connected to Internet. Thus other users will not be able to know the IP address they’re using
at a certain time.
This router supports DDNS service of several service providers, for example:
DynDNS (http://www.dyndns.org)
TZO (http://www.tzo.com)
Please go to one of DDNS service provider’s webpage listed above, and get a free DDNS
account by the instructions given on their webpage.
Here is the description of every setup item:
DG-BR4313NG User Manual
69
After you finish with all settings, please click ‘Apply’ button and the following message will
be displayed on your web browser:
If you want to reset all settings in this page back to previously-saved value, please click
‘Cancel’ button
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
DG-BR4313NG User Manual
70
to 253 clients (this also meets router’s capability of working with up to 253

2-6 Wired LAN Configurations

Before all computers using wired Ethernet connection (i.e. those computers connected to this
router’s LAN port 1 to 4 by Ethernet cable) can communicate with each other and access internet,
they must have a valid IP address. There are two ways to assign IP addresses to computers: static IP
address (set the IP address for every computer manually), and dynamic IP address (IP address of
computers will be assigned by router automatically). It’s recommended for most of computers to use
dynamic IP address, it will save a lot of time on setting IP addresses for every computer, especially
when there are a lot of computers in your network; for servers and network devices which will
provide services to other computer and users that come from Internet, static IP address should be
used, so that other computes can locate the server.
Suggestions on IP address numbering plan:
If you have no idea on how to define an IP address plan for your network, here are
some suggestions.
1. A valid IP address has 4 fields: a.b.c.d, for most of home and company users, it’s
suggested to use 192.168.c.d, where c is an integer between 0 and 254, and d is
an integer between 1 and 254. This router is capable to work with up to 253
clients, so you can set ‘d’ field of IP address of router as 1 or 254 (or any number
between 1 and 254), and pick a number between 0 and 254 for field ‘c’.
2. In most cases, you should use ‘255.255.255.0’ as subnet mask, which allows up
clients).
3. For all servers and network devices which will provide services to other people
(like Internet service, print service, and file service), they should use static IP
address. Give each of them a unique number between 1 and 253, and maintain a
list, so everyone can locate those servers easily.
4. For computers which are not dedicated to provide specific service to others, they
should use dynamic IP address.
If you don’t really understand the descriptions listed above, don’t worry! We will
provide recommended setup values below.
DG-BR4313NG User Manual
71
Parameter
Description
IP address
Please input the IP address of this router.
Subnet Mask
Please input the subnet mask for this network.
802.1d Spanning Tree
If you wish to activate 802.1d spanning tree function, select ‘Enabled’ for setup item ‘802.1d Spanning Tree’, or set it to ‘Disabled’
DHCP Server
If you want to activate DHCP server function of this router, select ‘Enabled’, or set it to ‘Disabled’.
Please follow the instructions mentioned below to set wired LAN parameters:
Click ‘General Setup’ menu on the left of the web management interface, then
click ‘LAN’ menu. There are three setup groups here: ‘LAN IP’, ‘DHCP Server’, and ‘Static
DHCP Lease Table’. Here are setup instructions for each of them:

2-6-1 LAN IP section:

Here is the description of every setup item:
Recommended Value if you don’t know what to fill:
IP Address: 192.168.2.1
Subnet Mask: 255.255.255.0
802.1d Spanning Tree: Disabled
DHCP Server: Enabled
DG-BR4313NG User Manual
72
Parameter
Description
Lease Time
Please choose a lease time (the duration that every computer
) of every IP address assigned
by this router from the dropdown menu.
Start IP
Please input the start IP address of the IP range.
End IP
Please input the end IP address of the IP range.
Domain Name
If you wish, you can also optionally input the domain name for your network. This is optional.
Domain Name: (leave it blank)

2-6-2 DHCP Server:

These settings are only available when ‘DHCP Server’ in ‘LAN IP’ section is ‘Enabled’, and
here are descriptions of every setup item
can keep a specific IP address
Recommended Value if you don’t know what to fill:
Lease Time: Two Weeks (or ‘Forever’, if you have less than 20 computers)
Start IP: 192.168.2.100
End IP: 192.168.2.200
NOTE:
1. The number of the last field (mentioned ‘d’ field) of ‘End IP’ must be
greater than ‘Start IP’, and cannot be the same as router’s IP address.
2. The former three fields of IP address of ‘Start IP’, ‘End IP’, and ‘IP
Address of ‘LAN IP’ section (mentioned ‘a’, ‘b’, and ‘c’ field) should be
the same.
3. These settings will affect wireless clients too.
DG-BR4313NG User Manual
73
Parameter
Description
Enable Static DHCP Leases
Check this box to enable this function, otherwise uncheck it to disable this function.
MAC Address
Input the MAC address of the computer or network
and from a to f, like ‘001122aabbcc’)
IP address
Input the IP address you want to assign to this computer or network device.
‘Add’
After you enter MAC address and IP address pair, click this button to add the pair to static DHCP leases table.

2-6-3 Static DHCP Lease Table:

This function allows you to assign a static IP address to a specific computer forever, so
you don’t have to set the IP address for a computer, and still enjoy the benefit of using
DHCP server. Maximum 16 static IP addresses can be assigned here.
(If you set ‘Lease Time’ to ‘forever’ in ‘DHCP Server’ section, you can also assign an IP
address to a specific computer permanently, however, you will not be able to assign a
specific IP address to a computer, since IP addresses will be assigned in randomn order
by DHCP Server).
Here is the description of every setup item:
device (total 12 characters, with character from 0 to 9,
If you want to remove all characters you just entered, click ‘Clear’.
DG-BR4313NG User Manual
74
After you clicked ‘Add’, the MAC address and IP address mapping will be added to
‘Static DHCP Leases Table’ section as shown below.
If you want to delete a specific item, please check the ‘Select’ box of a MAC address and
IP address mapping, then click ‘Delete’ button; if you want to delete all mappings, click
‘Delete All’.
After you finish all LAN settings, please click ‘Apply’ button on this page. After you click
‘Apply’, the following message will be displayed on your web browser:
Please click ‘Continue’ to go back to previous setup menu; to continue on router setup, or
click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 55
seconds while router is rebooting).
DG-BR4313NG User Manual
75

2-7 Wireless LAN Configurations

If your computer, PDA, game console, or other network devices are equipped with
wireless network interface, you can use the wireless function of this router to let them
connect to Internet and share resources with other computers with wired-LAN
connection. You can also use the built-in security functions to protect your network from
being intruded by malicious intruders.
Please follow the instructions mentioned below to set wireless parameters:
Ensure that Radio ON/OFF switch at the rear side of the router is in ON position.
Next, click ‘General Setup’ menu on the left of web management interface, then
click ‘Wireless’ menu on the left of web management interface, and the following message
will be displayed on your web browser.
Note: If the Radio ON/OFF switch is in OFF position then the ‘Wireless
Module’ will appear as ‘Disable’ in the above screen.
DG-BR4313NG User Manual
76
Parameter
Description
Band
to connect to this router (maximum transfer rate
to connect to this router (maximum transfer rate
This band, only allows 802.11b and 802.11g
to connect to this router (maximum
to connect to this router (maximum transfer rate

2-7-1 Basic Wireless Settings

Please click ‘Basic Settings’, and the following message will be displayed on your web
browser:
Here is the description of every setup item:
Please select the radio band from one of the following options:
2.4 GHz (B) - This band, only allows 802.11b wireless network
clients
11Mbps).
2.4 GHz (N) - This band, only allows 802.11n wireless network
clients
300Mbps).
2.4 GHz (B+G) -
wireless network clients
transfer rate 11Mbps for 802.11b clients, and maximum 54Mbps
for 802.11g clients).
2.4 GHz (G) - This band, only allows 802.11g wireless network
clients
54Mbps).
DG-BR4313NG User Manual
77
This band, allows 802.11b, 802.11g, and
to connect to this router
(maximum transfer rate 11Mbps for 802.11b clients, maximum
SSID
This is the name of wireless router. You can type any
um 32 characters. SSID
Channel Number
Please select a channel from the dropdown list of ‘Channel
countries, 1 to 11 for USA. You can choose any channel number
wireless clients can locate the
channel you’re using automatically without any problem.
However, it’s still useful to remember the channel number you
use, some wireless client supports manual channel number
when there is
Associated Clients
Click ‘Show Active Clients’ button, then an “Active Wireless
Client Table” will pop up. You can see the status of all active
communication between wireless client and the wireless router.
wireless client, it’s recommended to choose ‘2.4 GHz (B+G+N) to
2.4 GHz (B+G+N) -
802.11n wireless network clients
54Mbps for 802.11g clients and maximum 300Mbps for 802.11n
clients).
alphanumerical characters here, maxim
is used to identify your own wireless router from others when
there are other wireless routers in the same area. Default SSID is
‘DIGISOL’, it’s recommended to change the default SSID value
to the one which is meaningful to you, like myhome,
office_room1, etc.
Number’, available channel numbers are 1 to 13 for European
you want to use, and almost all
select, and this would help in certain scenario
some radio communication problem.
wireless stations that are connecting to the access point.
TIPS: You can try to change channel number to another one if you
think the data transfer rate is too slow. There could be some other
wireless routers using the same channel, which will disturb the radio
NOTE: If you don’t have special reason to limit the type of allowed
maximize wireless client compatibility.
DG-BR4313NG User Manual
78
Parameter
Description
Fragment Threshold
Set the Fragment threshold of wireless radio. Do not modify
2346.
RTS Threshold
Set the RTS threshold of wireless radio. Do not modify default value if you don’t know what it is, default value is
2347.
Beacon Interval
Set the beacon interval of wireless radio. Do not modify
’t know what it is, default value is
100.

2-7-2 Advanced Wireless Settings

This router provides some advanced control of wireless parameters, if you want to configure
these settings, please click ‘Advanced Settings’ menu on the left of web management
interface, under the ‘Wireless’ tab and the following message will be displayed on your web
browser:
Here is the description of every setup item
default value if you don’t know what it is, default value is
default value if you don
DG-BR4313NG User Manual
79
DTIM Period
Set the DTIM period of wireless radio. Do not modify default value if you don’t know what it is, default value is 3.
Data Rate
Set the wireless data transfer rate to a certain value. Since
eless devices will negotiate with each other and pick a proper data transfer rate automatically, it’s not necessary to change this value unless you know what will happen after modification.
Channel Width
Set channel width of wireless radio. Do not modify default value if you don’t know what it is, default setting is ‘Auto 20/40 MHz’.
Preamble Type
Set the type of preamble, do not modify default value if you don’t know what it is, default setting is ‘Short Preamble’.
Broadcast ESSID
Decide if the wireless router will broadcast its own ESSID or not. You can hide the ESSID of your wireless router (set the option to ‘Disable’), so only people those who know the ESSID of your wireless router can get connected.
CTS Protect
Enabling this setting will reduce the chance of radio signal
points. It’s recommended to set this option to ‘Auto’ or ‘Always’. However, if you set to ‘None’, your wireless router should be able to work fine, too.
WMM
It is short for Wi-Fi Multimedia, it will enhance the data transfer performance of multimedia contents when they’re
to ‘Enable’. Default is “Enable”.
most of wir
collisions between 802.11b and 802.11g/n wireless access
being transferred over wireless network. If you don’t know
what it is / not sure if you need it, it’s safe to set this option
After you finish these wireless settings, please click ‘Apply’ button and the following
message will be displayed on your web browser:
Please click ‘Continue’ to go back to previous setup menu; to continue on router setup, or
click ‘Apply’ to reboot the router so the settings will take effect (Please wait for about 55
seconds while router is rebooting).
DG-BR4313NG User Manual
80

2-7-3 Wireless Security

It’s very important to set wireless security settings properly. If you don’t, hackers and
malicious users can reach your network and valuable data without your consent and this will
cause serious security problem.
To set wireless security settings, Please click ‘Security Settings’ menu on the left of web
management interface, under the ‘Wireless’ tab and then follow the instructions mentioned
below to set wireless security settings:
Please select an encryption method from ‘Encryption’ dropdown menu. In this there are four
options:
Disable - Please go to section 2-7-3-1
WEP - Please go to section 2-7-3-2
Wi-Fi Protected Access (WPA) - Please go to section 2-7-3-3
WPA RADIUS - Please go to section 2-7-3-4
2-7-3-1 Disable wireless security
When you select this mode, data encryption is disabled, and every wireless device in
proximity will be able to connect to your wireless router if no other security measure is
enabled (like MAC address access control - see section 2-7-4, or disable ESSID broadcast).
Only use this option when you really want to allow everyone to use your wireless router,
and you don’t care if there’s someone reading the data you transfer over network without
your consent.
DG-BR4313NG User Manual
81
Parameter
Description
Key Length
bit’, but will reduce some data transfer
Key Format
bit’ as key length, and ‘Hex’ as key format,
you’ll see the message at the right of ‘Key Format’ is ‘Hex (10
Default Tx Key
Encryption Key 1
Input WEP key characters here, the number of characters must be the
same as the number displayed at ‘Key Format’ field. You can use any
Z) if you select ‘ASCII’
you can use
F. You must enter at least one encryption key
2-7-3-2 WEP - Wired Equivalent Privacy
When you select this mode, the wireless router will use WEP encryption, and the following
setup menu will be shown on your web browser:
Here is the description of every setup item
There are two types of WEP key length: 64-bit and 128-bit. Using
‘128-bit’ is safer than’ 64-
performance.
There are two types of key formats: ASCII and Hex. When you select
a key format, the number of characters of key will be displayed. For
example, if you select ‘64-
characters), which means the length of WEP key is 10 characters.
When ‘WEP’ Encryption is enabled then ‘Key 1’ will appear in this
field.
alphanumerical characters (0-9, a-z and A-
key format, and if you select ‘Hex’ as key format,
characters 0-9, a-f and A-
82
Enable 802.1x
Authentication
tocol. Every user must use a
valid account to login to this wireless router before accessing the
wireless LAN. The authentication is processed by a RADIUS server.
This mode only authenticates user by IEEE 802.1x, but it does not
RADIUS Server IP address
RADIUS Server Port
RADIUS Server
To improve security level, do not use those words which can be
too easy to remember. (‘pilot’ and ‘phone’
only have to input the WEP key on wireless client once, and it’s
DG-BR4313NG User Manual
here, and if you have entered multiple WEP keys, they should not be
the same.
IEEE 802.1x is an authentication pro
encrypt the data during communication. If there are RADIUS servers
in your environment, please enable this function. Check this box and
another sub-menu will appear:
Please input the IP address of radius server here.
Please input the port number of radius server here.
Please input the Password of the radius server here.
Password
TIPS: Some examples of WEP key
ASCII (5 characters): pilot, phone, 23561, 2Hyux
ASCII (13 characters): digitalFAMILY, 82Jh26xHy3mln
Hex (10 characters): 287d2aa732, 1152dabc85
Hex (26 characters): 9284bcda8427c9e036f7abcd84
found in a dictionary or
listed above are bad examples; just intended to show you how a WEP
key looks like). Wireless clients will remember the WEP key, so you
worth using complicated WEP key to improve security level.
DG-BR4313NG User Manual
83
After you finish WEP setting, please click ‘Apply’ button and the following message will be
displayed on your web browser:
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
DG-BR4313NG User Manual
84
Parameter
Description
WPA Unicast Cipher Suite
and WPA2 Mixed. You can
Pre-shared Key Format
or more alphanumerical characters, up to 63), or Hex (64 Pre-shared Key
2-7-3-3 Wi-Fi Protected Access (WPA)
When you select this mode, the wireless router will use WPA encryption, and the following
setup menu will be shown on your web browser:
Here is the description of every setup item:
Please select a type of WPA cipher suite. Available options
are: WPA (TKIP), WPA2 (AES)
select one of them, but you have to make sure your wireless
client supports the cipher you selected.
Select the type of pre-shared key, you can select Passphrase (8
characters of 0-9, and a-f).
Please input the WPA Pre-shared key here.
DG-BR4313NG User Manual
85
year 2003) only support WEP or WPA (TKIP) cipher. A driver upgrade
After you finish WPA Pre-shared key setting, please click ‘Apply’ button and the following
message will be displayed on your web browser:
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
NOTE: Some wireless clients (especially those manufactured before
would be needed for those clients to use WPA and WPA2 encryption.
2-7-3-4 WPA RADIUS
If you have a RADIUS server, this router can work with it and provide safer wireless
authentication.
DG-BR4313NG User Manual
86
Parameter
Description
WPA Unicast Cipher Suite
Please select a type of WPA cipher suite. Available
and WPA2 Mixed. You can select one of them, but you have to make sure your wireless client supports the cipher you selected.
RADIUS Server IP address
Please input the IP address of your Radius authentication server here.
RADIUS Server Port
Please input the port number of your Radius authentication server here. Default setting is 1812.
RADIUS Server Password
Please input the password of your Radius authentication server here.
Here is the description of every setup item:
options are: WPA (TKIP), WPA2 (AES)
After you finish with all settings, please click ‘Apply’ button and the following message will
be displayed on your web browser:
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
DG-BR4313NG User Manual
87
Parameter
Description
Delete
If you want to delete a specific MAC address entry, check the
‘Delete’ button. (You can select more than one MAC address).
Delete All
If you want to delete all MAC addresses listed here, please click ‘Delete All’ button.
Enable Access Control
To enforce MAC address filtering, you have to check ‘Enable Wireless Access Control’. When this item is unchecked, wireless router will not enforce MAC address filtering of wireless clients.
MAC Address
Input the MAC address of your wireless devices here, dash (-)
bb:cc:dd:ee:ff’, just input ‘aabbccddeeff’.

2-7-4 Wireless Access Control

This function will help you to prevent unauthorized users from connecting to your wireless
router; only those wireless devices who have the MAC address you assigned here can gain
access to your wireless router. You can use this function with other security measures
described in previous section, to create a safer wireless environment. Up to 20 MAC
addresses can be assigned by using this function. Please click ‘Access Control’ menu on the
left of web management interface, under the ‘Wireless’ tab and the following message will
be displayed on your web browser:
All allowed MAC addresses will be displayed in ‘MAC Address Filtering Table’.
Here is the description of every setup item:
‘select’ box of the MAC address you want to delete, then click
or colon (:) are not required. (i.e. If the MAC address label of your wireless device indicates ‘aa-bb-cc-dd-ee-ff’ or ‘aa:
DG-BR4313NG User Manual
88
Comment
You can input any text here as the comment of this MAC address, like ‘ROOM 2A Computer’ or anything. This is
ptional and you can leave it blank, however, it’s
MAC address as a memory aid.
Add
Click ‘Add’ button to add the MAC address and associated comment to the MAC address filtering table.
Clear
Click ‘Clear’ to remove the value you inputted in MAC address and comment field.
o recommended to use this field to write a comment for every
After you finish with all settings, please click ‘Apply’ button and the following message will
be displayed on your web browser:
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
If you want to reset all settings in this page back to previously-saved value, please click
‘Cancel’ button.
DG-BR4313NG User Manual
89

2-7-5 Wi-Fi Protected Setup (WPS)

Wi-Fi Protected Setup (WPS) is the simplest way to build secure connection between
wireless network clients and this wireless router. You don’t have to select encryption mode
and input a long encryption passphrase every time when you need to setup a wireless client,
you only have to press a button on wireless client and this wireless router, and the WPS will
do the rest for you.
This wireless router supports two types of WPS: Push-Button Configuration (PBC) and PIN
code. If you want to use PBC, you have to push a specific button on the wireless client to
start WPS mode, and switch this wireless router to WPS mode too. You can push
Reset/WPS button of this wireless router, or click ‘Start PBC’ button in the web
configuration interface to do this; if you want to use PIN code, you have to know the PIN
code of wireless client and switch it to WPS mode, then provide the PIN code of the
wireless client you wish to connect to this wireless router. The detailed instructions are listed
follow:
Please click ‘WPS’ menu on the left of web management interface, under the ‘Wireless’ tab,
and the following message will be displayed on your web browser:
DG-BR4313NG User Manual
90
Parameter
Description
Enable WPS
Check this box to enable WPS function, uncheck it to
WPS Information
WPS related system information will be displayed here:
WPS Status: If the wireless security (encryption)
ireless router is properly set, you’ll see
‘Configured’ message here. If wireless security function
PinCode Self: This is the WPS PIN code of this wireless
router. This code is useful when you need to build
SSID: The SSID of this wireless router will be displayed
Authentication Mode: The wireless security
authentication mode of this wireless router will be
the wireless router before WPS is activated, the router
will auto set the security to WPA (AES) and generate a
Passphrase Key: The wireless security key of the router
Device Configure
Config Mode: There are ‘Registrar’ and ‘Enrollee’
modes for the WPS connection. When ‘Registrar’ is
enabled, the wireless clients will follow the router’s
wireless settings for WPS connection. When ‘Enrollee’
ter will follow the wireless
Here is the description of every setup item:
disable WPS.
function of this w
has not been set, you’ll see ‘unConfigured’.
wireless connection by WPS with other WPS-enabled
wireless devices.
here.
displayed here. If you don’t enable security function of
set of passphrase key for WPS connection.
will be displayed here.
mode is enabled, the rou
settings of wireless client for WPS connection.
DG-BR4313NG User Manual
91
Configure by Push Button: Click ‘Start PBC’ to start
Button style WPS setup procedure. This wireless
router will wait for WPS requests from wireless clients
e ‘WLAN’ LED on the wireless router
of the wireless client you wish to connect, and click
tton. The ‘WLAN’ LED on the wireless
router will be steady on when this wireless router is
Push-
for 2 minutes. Th
will be steady on for 2 minutes when this wireless router
is waiting for incoming WPS request.
Configure by client Pin Code: Please input the PIN code
‘Start PIN’ bu
waiting for incoming WPS request

2-7-6 Security Tips for Wireless Network

Here are some quick tips to help you improve the security level of your wireless network:
1. Never use simple words (like school, apple and computer) as WEP encryption or WPA
passphrase.
2. A complicated (the combination of number, alphabet, even symbol and long enough)
WEP key and WPA passphrase is much safer than simple and short ones. Remember that
the wireless client is capable to keep the key or passphrase for you, so you only have to
input the complicated key or passphrase once. It’s not too tedious and will greatly
improve security level.
3. You can hide the ESSID of this router by setting ‘Broadcast ESSID’ option to ‘Disable’.
Your wireless router will not be found by other people in proximity if they’re just using
the AP scanning function of their wireless client, and this can reduce the chance of being
intruded.
4. Use ‘Access Control’ function described in section 2-7-4, so those MAC address which
are not in your list will not be able to connect to your network.
DG-BR4313NG User Manual
92

3. Advanced Functions

3-1 Quality of Service (QoS)

Quality of service provides an efficient way for computers on the network to share the
internet bandwidth with a promised quality of internet service. Without QoS, all computers
and devices on the network will compete with each other to get internet bandwidth, and
some applications which require guaranteed bandwidth (like video streaming and network
telephone) will be affected, therefore an unpleasing result will occur, like the interruption of
video / audio transfer.
With this function, you can limit the maximum bandwidth or give a guaranteed bandwidth
for a specific computer, to avoid said unpleasing result from happening.

3-1-1 Basic QoS Settings

Please follow the instructions mentioned below to set QoS parameters:
Please click ‘General Setup’ menu on the left of web management interface, then
click ‘QoS’ menu on the left of web management interface, and the following message will
be displayed on your web browser:
DG-BR4313NG User Manual
93
Parameter
Description
Enable QoS
Check this box to enable QoS function, unselect this box if you don’t want to enforce QoS bandwidth limitations.
Total Download Bandwidth
You can set the limit of total download bandwidth in
kbits. To disable download bandwidth limitation, input
Total Upload Bandwidth
Current QoS Table
All existing QoS rules will be displayed here.
Add
Click ‘add’ button to add a new QoS rule, see section 3-
1-2 ‘Add a new QoS rule’ below.
Edit
If you want to modify the content of a specific rule, please check the ‘select’ box of the rule you want to edit, then click ‘Edit’ button. Only one rule should be
n’t select a rule before clicking ‘Edit’ button, you’ll be prompted to add a new rule.
Delete
You can delete selected rules by clicking this button. You can select one or more rules to delete by checking
at a time. If the QoS table is empty, this button will be grayed out and can not be clicked.
Delete All
By clicking this button, you can delete all rules currently in the QoS table. If the QoS table is empty, this button will be grayed out and can not be clicked.
Move Up
You can increase the priority of the QoS rule you selected, by clicking this button.
Move Down
You can lower the priority of the QoS rule you selected, by clicking this button.
Here is the description of every setup item:
‘0’ here.
You can set the limit of total upload bandwidth in kbits.
To disable upload bandwidth limitation, input ‘0’ here.
selected at a time. If you did
the ‘select’ box of the rule(s) you want to delete
DG-BR4313NG User Manual
94
After you finish with all settings, please click ‘Apply’ button and the following message will
be displayed on your web browser:
If you want to reset all settings in this page back to previously-saved value, please click
‘Cancel’ button.
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).

3-1-2 Add a new QoS rule

After you click ‘Add’ button in QoS menu, the following message will appear:
Here is the description of every setup item:
DG-BR4313NG User Manual
95
Parameter
Description
Rule Name
Bandwidth
rule. You have to
the type of QoS: ‘guarantee’ (guaranteed usable bandwidth
Local IP Address
this rule. Please input the starting IP address in the left field,
and input the end IP address in the right field to define a
Local Port Range
Remote IP Address:
Specify the remote (destination) IP address that will be
affected by this rule. Please input the starting IP address in
define a range of IP addresses, or just input the IP address in
Remote Port Range
Please input the range of remote (destination) port number
apply this rule on a single port, just input the port number,
Traffic Type
available options
POP3 and FTP. You can select a
traffic type for this rule, if you want to make this
Please give a name to this QoS rule (upto 15 alphanumerical
characters)
Set the bandwidth limitation of this QoS
select the data direction of this rule (Upload or Download),
and the speed of bandwidth limitation in Kbps, then select
for this rule) or ‘max’ (set the maximum bandwidth for the
application allowed by this rule).
Specify the local (source) IP address that will be affected by
range of IP addresses, or just input the IP address in the left
field to define a single IP address.
Please input the range of local (source) port number that will
be affected by this rule. If you want to apply this rule on port
80 to 90, please input ’80-90’; if you want to apply this rule
on a single port, just input the port number, like ‘80’.
the left field, and input the end IP address in the right field to
the left field to define a single IP address.
that will be affected by this rule. If you want to apply this
rule on port 80 to 90, please input ’80-90’; if you want to
like ‘80’. If the remote (destination) IP address and /or port
number is universal, just leave it blank.
Please select the traffic type of this rule,
are None, SMTP, HTTP,
specific
rule as an IP address based rule (Apply the limitation on all
DG-BR4313NG User Manual
96
Protocol
Please select the protocol type of this rule, available options
are TCP and UDP. If you don’t know what protocol your
application uses, please try ‘TCP’ first, and switch to ‘UDP’
traffics from / to the specified IP address / port number),
select ‘None’.
if this rule doesn’t seem to work.
After you finish with all settings, please click ‘Save’ button , you’ll be brought back to
previous menu, and the rule you just set will appear in current QoS table; if you did
anything wrong, you’ll get an error message when you click ‘Save’ button, please correct
your input by the instructions given by the error message.
If you want to erase all values you just entered. Click ‘Reset’
DG-BR4313NG User Manual
97

3-2 Network Address Translation (NAT)

Network addresses translations means sharing a single IP address to multiple computers in a
network. Without NAT, all computers must be assigned with a valid Internet IP address to
get connected to Internet, but Internet service providers only provide very few IP addresses
to every user. Therefore it’s necessary to use NAT technology to share a single Internet IP
address to multiple computers on local network, so everyone can get connected to Internet.
Please follow the instructions mentioned below to set NAT parameters:

3-2-1 Basic NAT Settings (Enable or disable NAT function)

Please click ‘General Setup’ menu on the left of web management interface, then
click ‘NAT’ menu on the left of web management interface, and the following message will
be displayed on your web browser
To enable NAT function, please select ‘Enable’ for ‘NAT Module’; to disable the module,
please select ‘Disable’.
After you make the selection, please click ‘Apply’ button and the following message will be
displayed on your web browser:
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
DG-BR4313NG User Manual
98
Parameter
Description
Enable Port Forwarding
Check this box to enable port mapping, and uncheck it to disable port mapping.
Private IP
Input the IP address of the computer on local network which provides internet service.
Computer Name
Pull down the menu and all the computers connected to the router will be listed here. You can easily select the
computer.
Type
Select the type of connection, TCP or UDP. If you’re not sure, please select ‘Both’.

3-2-2 Port Forwarding

This function allows you to redirect a single port or consecutive ports of Internet IP address
to the same port of the IP address on a local network. The port number(s) of Internet IP
address and private IP address (the IP address on local network) must be the same. If the
port number of Internet IP address and private IP address is different, please use ‘Virtual
Server’ function, described in next section.
Please click ‘Port Forwarding’ menu on the left of web management interface, under the
‘NAT’ tab and the following message will be displayed on your web browser
Here is the description of every setup item:
computer name without checking the IP address of the
DG-BR4313NG User Manual
99
Port Range
Input the starting port number in the upper field, and
only want to redirect a single port number, just fill the port number in the upper field.
Comment
Please input any text to describe this mapping, up to 16 alphanumerical characters.
Add
Add the mapping to port forwarding table.
Reset
Remove all inputted values.
Current Port Forwarding Table
All existing port forwarding mappings will be displayed here.
Delete
Please select a port forwarding mapping by clicking the
this button will be grayed out.
Delete All
Deletes all mappings existing in the current port forwarding table.
Reset
Unselect all mappings.
input the ending port number in the bottom field. If you
‘Select’ box of the mapping, then click ‘Delete’ button to remove the mapping. If there’s no existing mapping,
After you finish with all settings, please click ‘Apply’ button and the following message will
be displayed on your web browser:
If you want to reset all settings in this page back to previously-saved value, please
click ‘Cancel’ button.
Please click ‘Continue’ to go back to previous setup menu; to continue on other setup
procedures, or click ‘Apply’ to reboot the router so the settings will take effect (Please wait
for about 55 seconds while router is rebooting).
DG-BR4313NG User Manual
100
Parameter
Description
Enable Virtual Server
Check this box to enable virtual server, and uncheck this box to disable virtual server.
Private IP
Input the IP address of the computer which provides Internet service.
Computer Name
Pull down the menu and all the computers connected to the
d here. You can easily select the computer
name without checking the IP address of the computer.
Private Port
that provides Internet
Type
Public Port
Please select the port number of Internet IP address which will
be redirected to the port number of local IP address defined

3-2-3 Virtual Server

This function allows you to redirect a port on Internet IP address (on WAN port) to a
specified port of an IP address on local network, so you can setup an Internet service on the
computer on local network, without exposing it on Internet directly. You can also build
many sets of port redirection, to provide many different Internet services on different local
computers via a single Internet IP address.
Please click ‘Virtual Server’ menu on the left of web management interface, under the
‘NAT’ tab and the following message will be displayed on your web browser.
Here is the description of every setup item:
router will be liste
Input the port number of the IP address
service.
Select the type of connection, TCP or UDP. If you’re not sure,
please select ‘Both’.
