1. Product Overview
Thank you for choosing DIGISOL DG-BA4305 4G Broadband Modem Adapter! With this 4G
broadband adapter you can get connected to Internet using the high speed 4G network. When this
adapter is connected to a system then the utility/driver installation wizard is initiated
automatically without the need of a CD-ROM for installation. Through the utility users can
make/receive a voice call and also track data usage for their connection.
This adapter also has a Micro SD slot for Mass Storage. User can send or receive a SMS and
maintain a phone book with the help of the software which is installed with this adapter.
Key Features:
Supports 4G(B1/B3/B5/B7/B38/B40/B41), HSPA / UMTS (2100MHz), GSM / GPRS /
EDGE (850/900/1800/1900MHz)
Supports HSDPA (21 Mbps), HSUPA (5.76 Mbps), UMTS (384 Kbps), EDGE (237
Kbps), GPRS (85.6 Kbps).
Supports SMS, phone book, Volume Statistics via Software.
Exports and Imports contacts in CSV or VCard format.
USB 3.0 High speed interface.
Micro SD slot for Mass Storage, maximum capacity up to 64GB.
No-CDROM required, auto installs the software.
Plug-and-Play installation.
USSD support.
1-1 System Requirements
The following system requirements are recommended:
Notebook or desktop PC with a free USB port
Windows 2003, Windows XP, Win Vista, Win 7, Win 8, Win 10
MAC OSX 10.5,10.6 &10.7
Linux Ubuntu 9.10,10.04,10.10,11.04 and 12.04
At least 100MB free disk space & 256MB RAM
1-2 Package Contents
The following items should be present in your package:
DG-BA4305 4G Broadband Adapter
Quick Installation Guide
4
Page 5
DG-BA4305 User Manual
1-3 Get familiar with your new 4G USB adapter

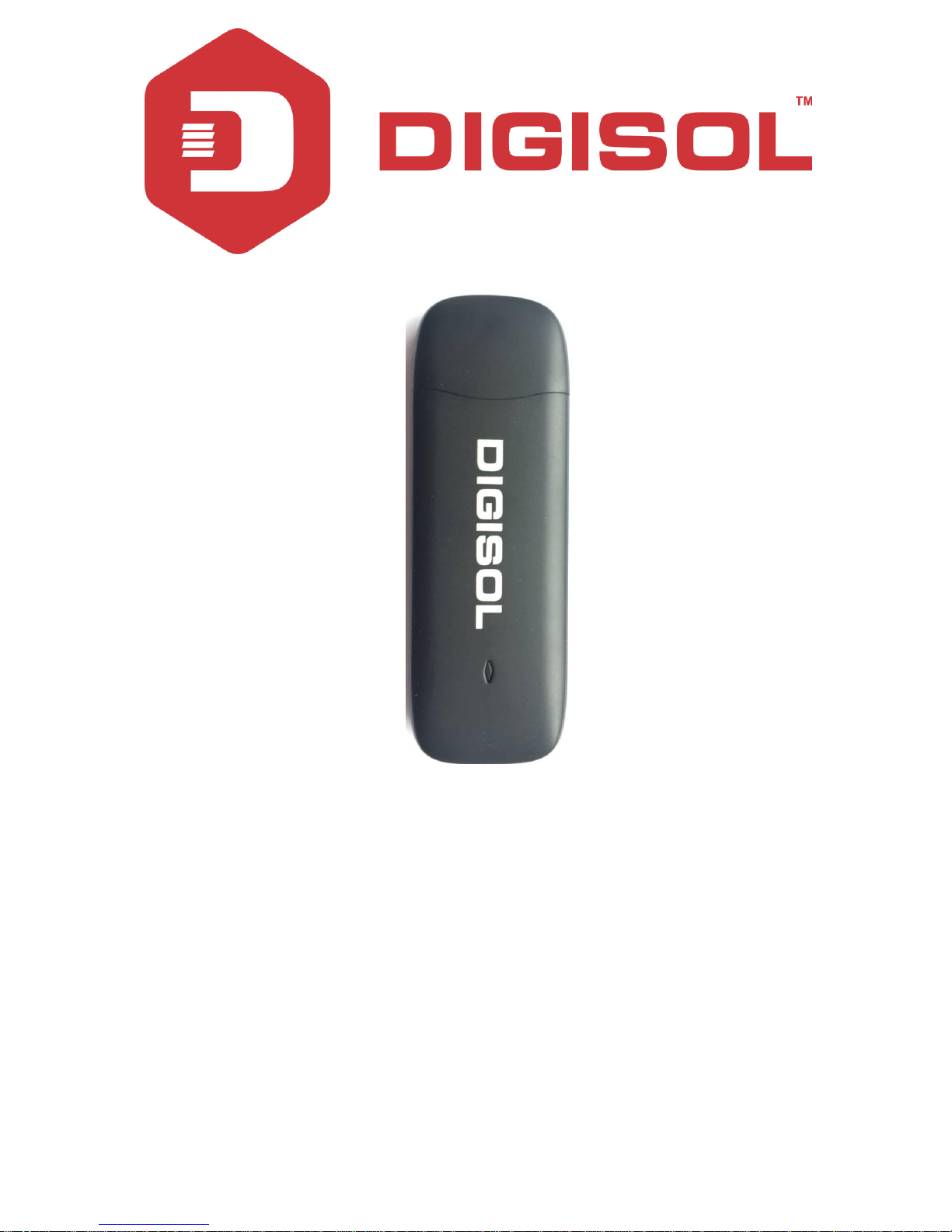

Below shown is the front and rear view of the 4G USB adapter:
The above figure shows the appearance of the 4G USB adapter. It is provided only for reference
and the actual product image may vary.
5
Page 6
DG-BA4305 User Manual
2. Installation
The following section explains the hardware and software installation procedure.
2-1 Hardware Installation

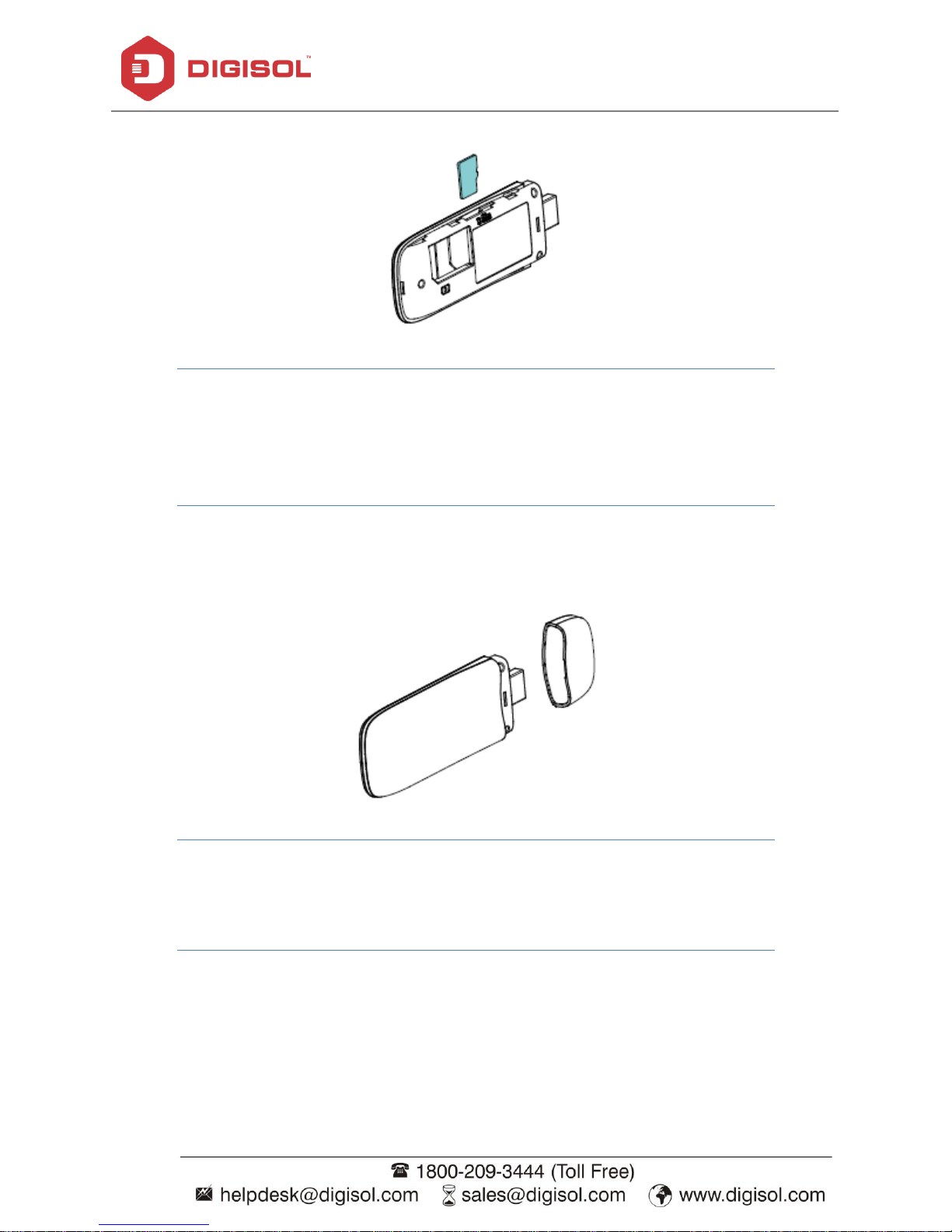

Following are the steps for inserting the SIM and a Micro SD card in the 4G USB adapter.

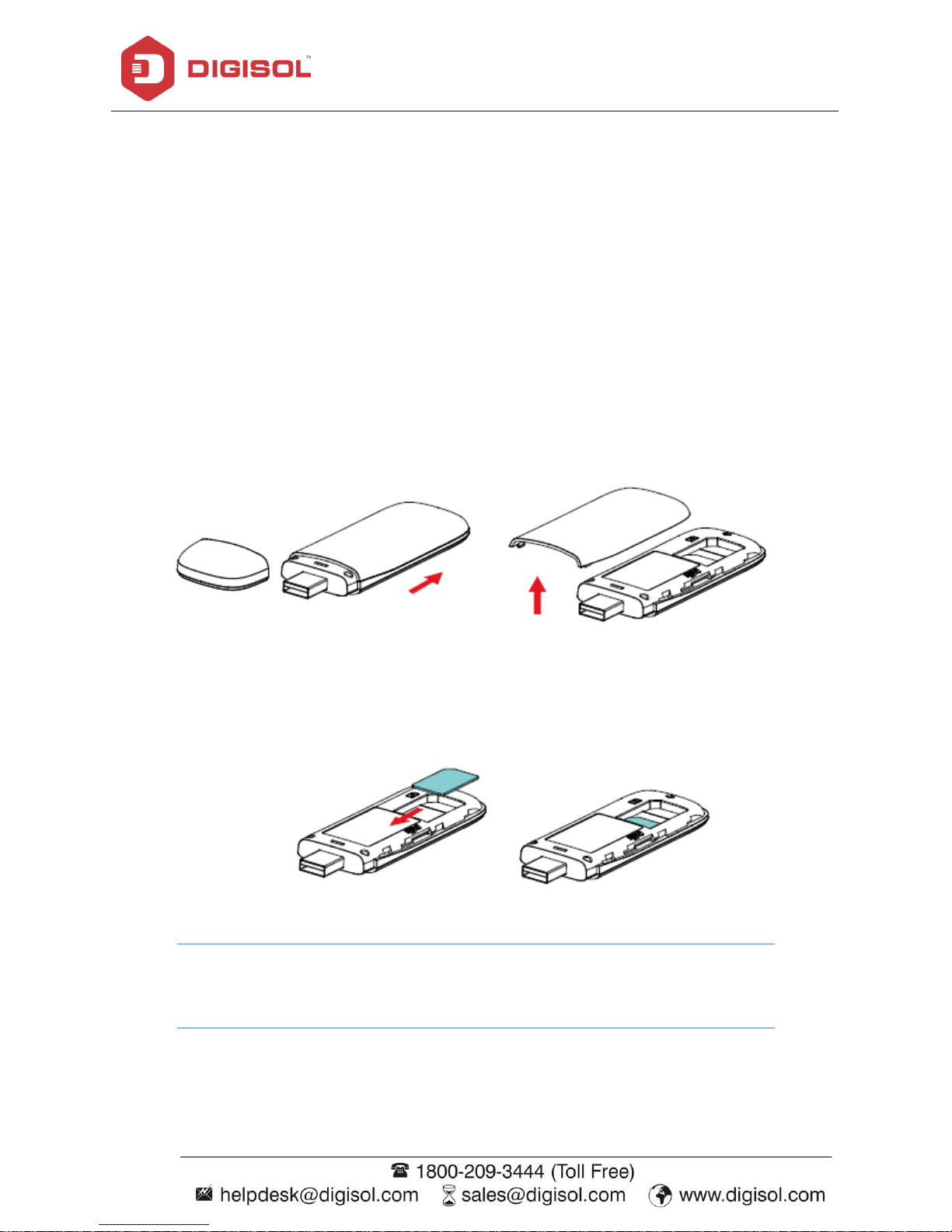

1. Slide the back cover to remove it from the 4G USB adapter.
2. Insert the SIM card into its corresponding slot, as shown in the following figure.
Ensure that the beveled edge of the SIM card is properly aligned with that of
the SIM card slot.
6
Page 7
DG-BA4305 User Manual
3. Insert the Micro SD card into its corresponding slot, as shown in the following figure.
Ensure that the Micro SD card is inserted according to the direction as
labeled on the Micro SD card slot.
NOTE: The Micro SD card is an optional accessory. It is not included in the
package.
4. Replace the back cover and slide it into place
Note: Do not remove the Micro SD or SIM card when the card is in use.
Otherwise, the card as well as your 4G USB adapter may get damaged and
the data stored on the card may get corrupted.
7
Page 8
DG-BA4305 User Manual
2-2 Software Installation on Windows OS
The software installation procedure depends on the operating system (OS) installed on your PC.
This section takes Windows OS as an example.

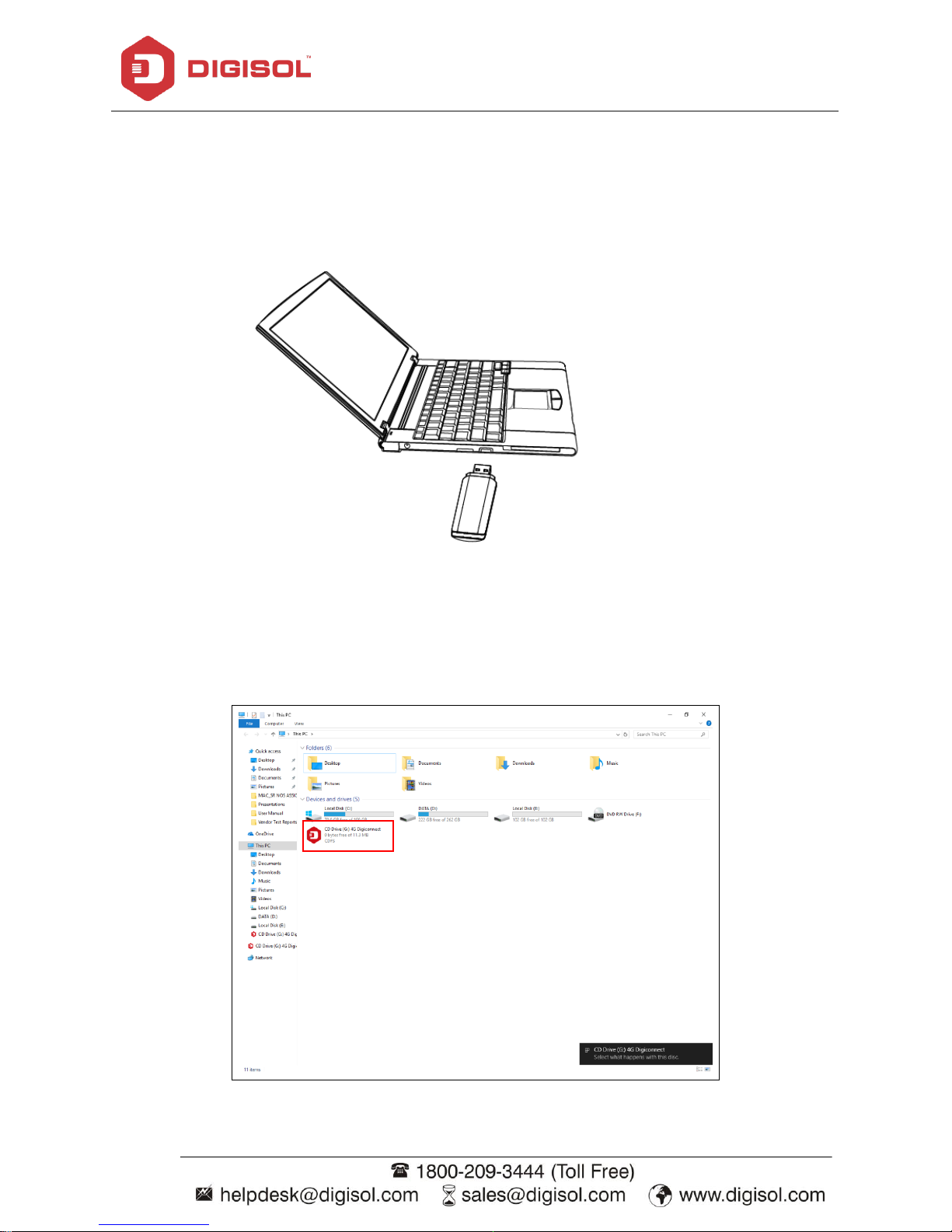

1. Plug the 4G USB adapter into the USB port of your PC.
2. The OS automatically detects and recognizes the new hardware and starts the installation
wizard. Click „Next‟ button to continue with the installation.
NOTE: If installation does not start automatically, then go to “My Computer” and
click on the icon CD ROM “4G Digiconnect”.
8
Page 9
DG-BA4305 User Manual
3. The OS automatically detects and recognizes the new hardware and starts the installation
wizard. Click „Next‟ button to continue with the installation.

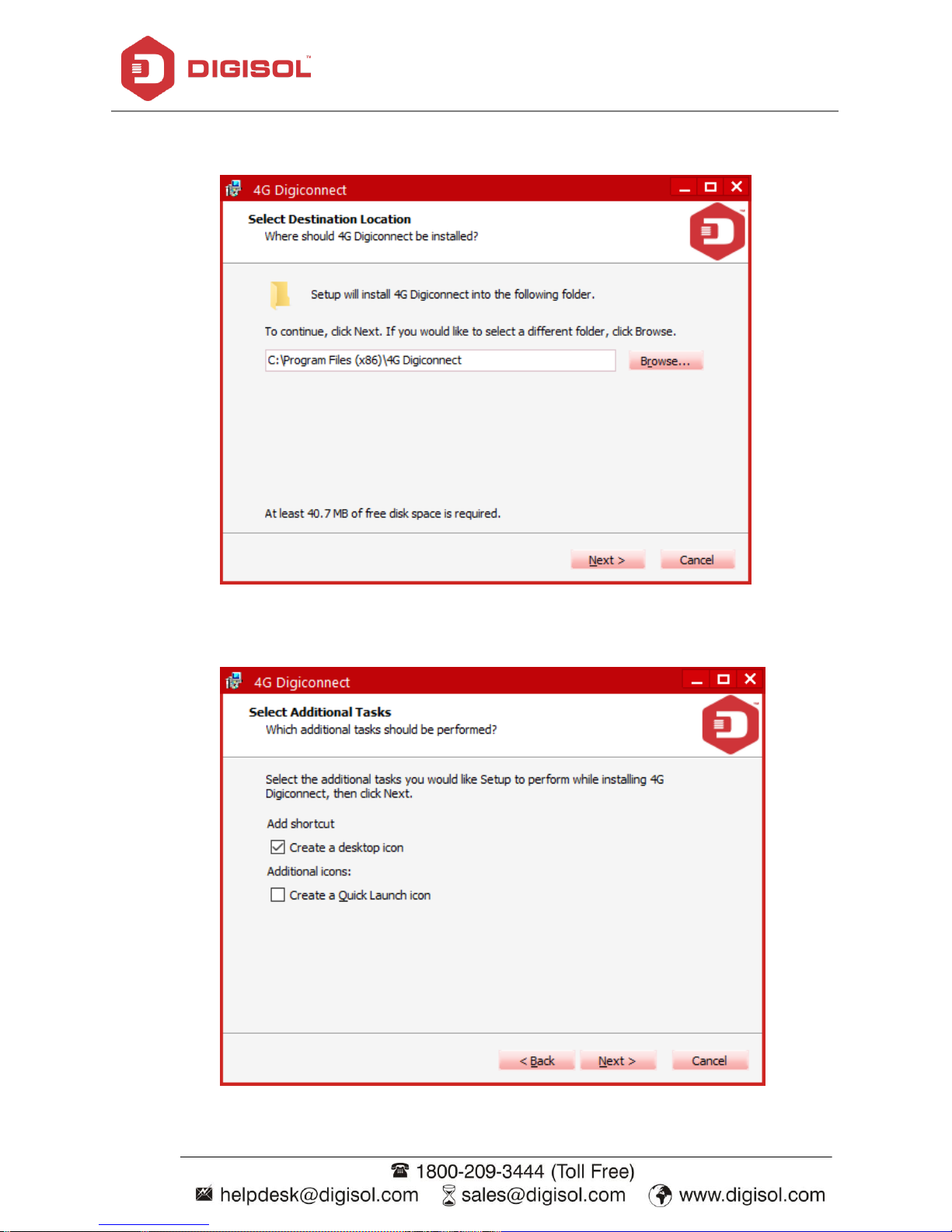

4. If you wish to create the icon on the desktop then select the check box else un-select it.
Also, you can create quick launch icon. Click the „Next‟ button to continue with the
installation.
9
Page 10
DG-BA4305 User Manual

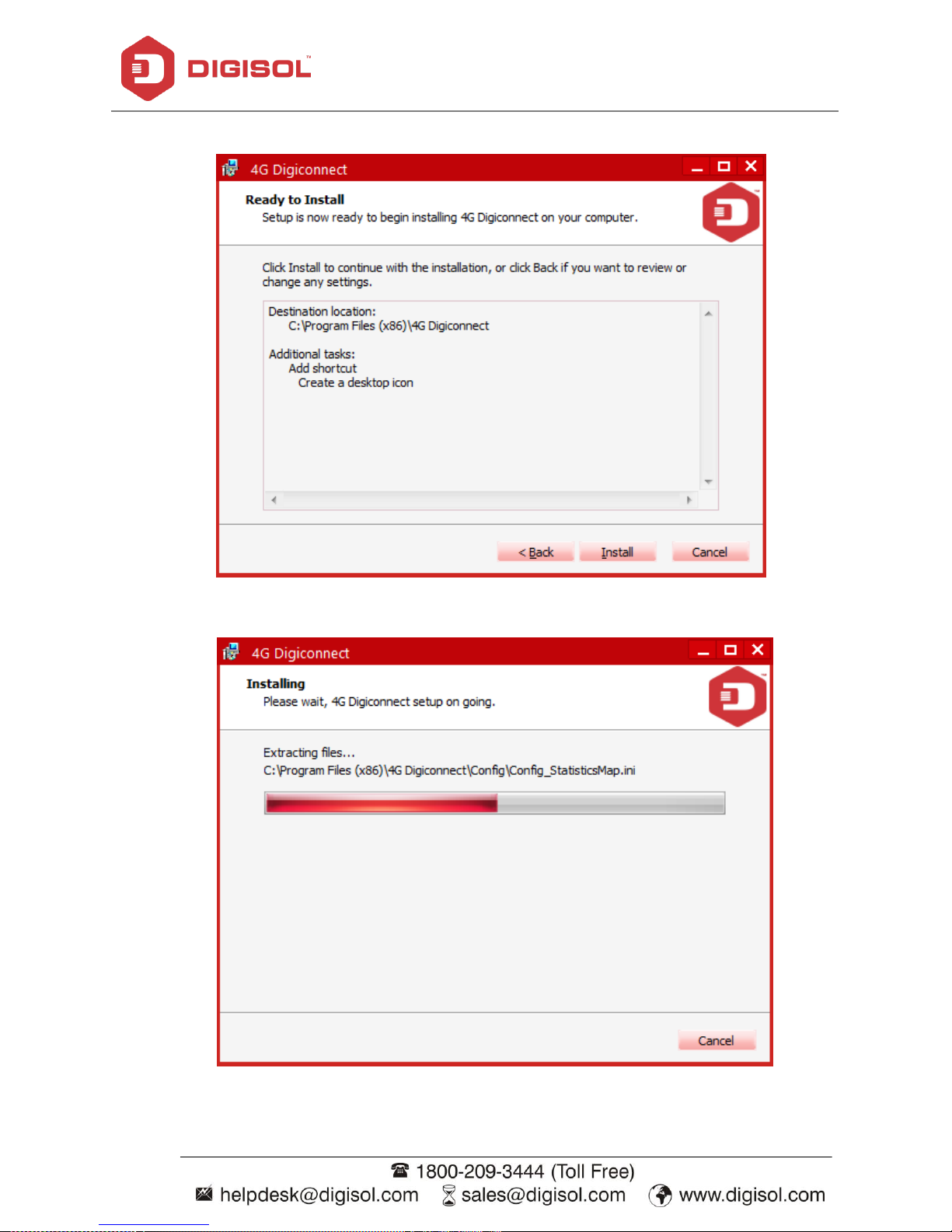

5. Click the „Install‟ button to install the application.
6. Below screen will appear. You can see that the utility is getting installed.
10
Page 11
DG-BA4305 User Manual

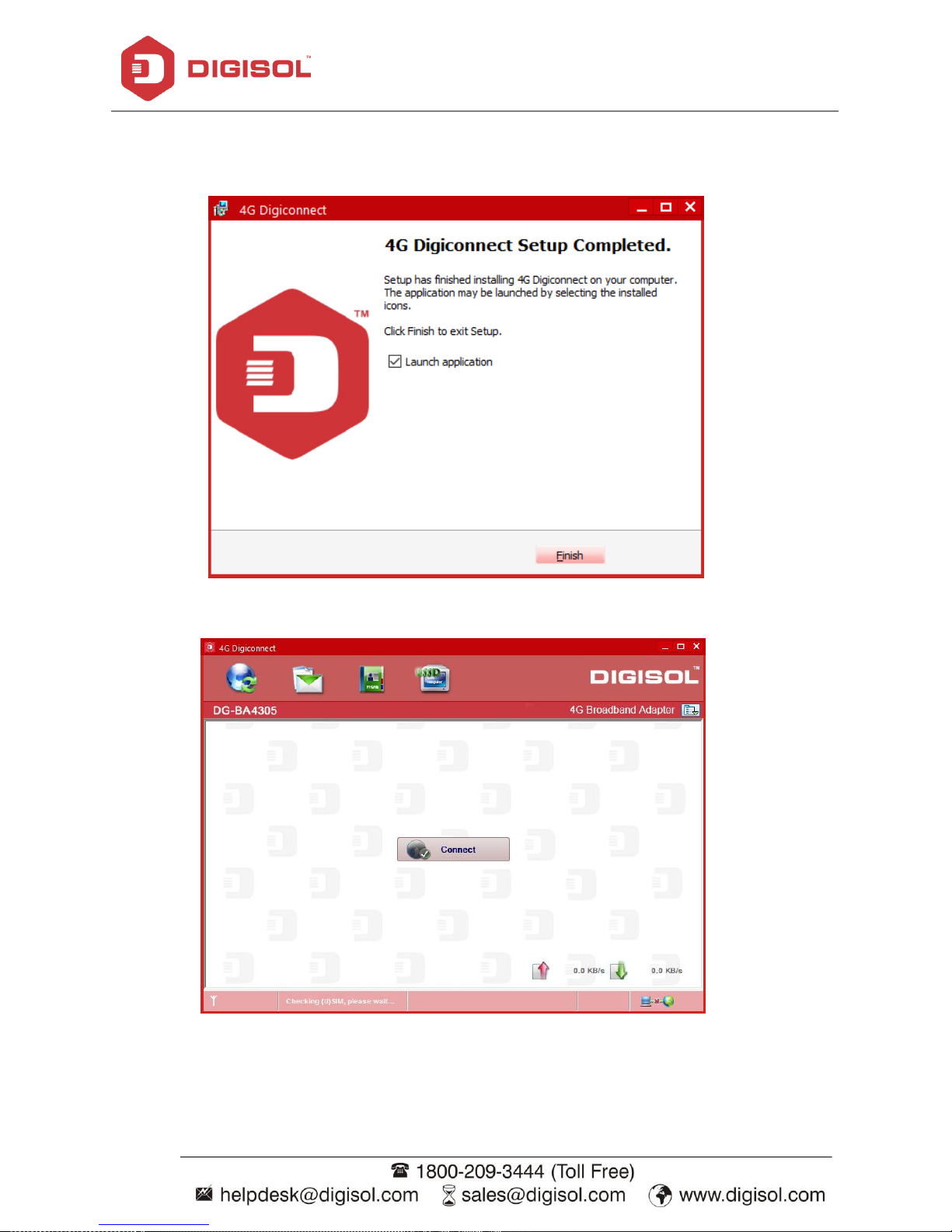

7. Click the „Finish‟ button to finish the software installation and tick the “Launch
application” if you wish to launch the utility once you exit the Setup.
8. The application runs automatically after finishing the installation.
Congratulations! Your 4G USB adapter installation is now finished.
11
Page 12
DG-BA4305 User Manual
2-2-1 Uninstalling the Application on Windows OS
There are two ways to uninstall the software:
1) Click App > 4G Digiconnect>Uninstall, follow the on-screen instructions to finish the
un-installation.
Choose 4G Digiconnect and click uninstall to remove the application from your PC.
12
Page 13
DG-BA4305 User Manual
3. 4G – Connect Utility
3-1 Logging into the utility
Double-click the shortcut icon of the 4G Digiconnect utility on the desktop to log in to the utility.
Note:
When you are required to enter the Personal Identification Number (PIN) code,
enter the correct PIN and click „OK‟. If you fail to enter the correct PIN or PIN
Unblocking Key (PUK) code, the network-related functions would be unavailable.
The (U) SIM card is supplied by the service provider. For more details, please
contact your service provider.
3-2 Utility Introduction

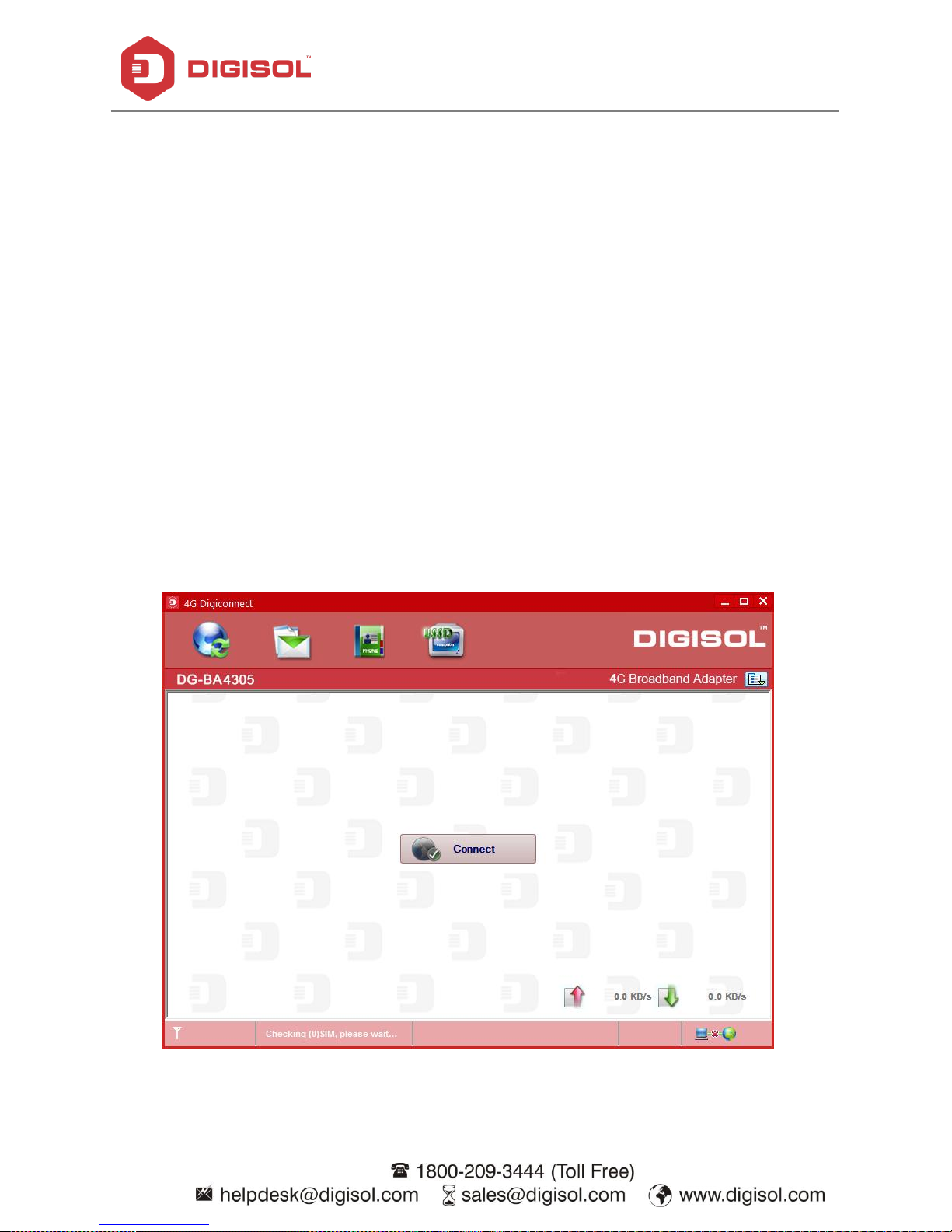

The main menus of the utility “4G Digiconnect” are displayed as follows:
13
Page 14
DG-BA4305 User Manual
Status Description
New Me s s age New mes s age(s) arrived.
Mes sa ge full Indicates the (U)SIM’s storage of SMS is ful l.
No de vice
Indica tes th a t s ys tem cannot fi nd the device .
Ini ti al i zing
Indica tes th a t th e device is i n the process of i nitial i zing.
Sea rching The devi ce i s s ea rchi ng for the network.
No service No suitable network.
No (U)SIM ca rd (U)SIM card not i ns e rted or the device cannot recogn i zed the (U)SI M.
Inval i d (U)SI M ca rd
The (U)SIM is o ut of s e rvice.
Network s ign a l Indicate the signal strength of the network.
Network type GSM/GPRS, UMTS.
Da ta se rvice EDGE available, HSPA available.
: Connect /disconnect to the internet
: Access to the SMS service interface
: Access to the Phonebook interface
：Access to USSD interface
: Set items
14
Page 15
DG-BA4305 User Manual
LED
Description
Red
No SIM detected
Green Steady
Registered 4G/HSPA/UMTS/EDGE/GPRS
Green
Blinking
Data transmitting
Blue
Registered 3G/HSPA/UMTS/EDGE/GPRS
LED indicator
15
Page 16
DG-BA4305 User Manual
4. INTERNET SERVICE

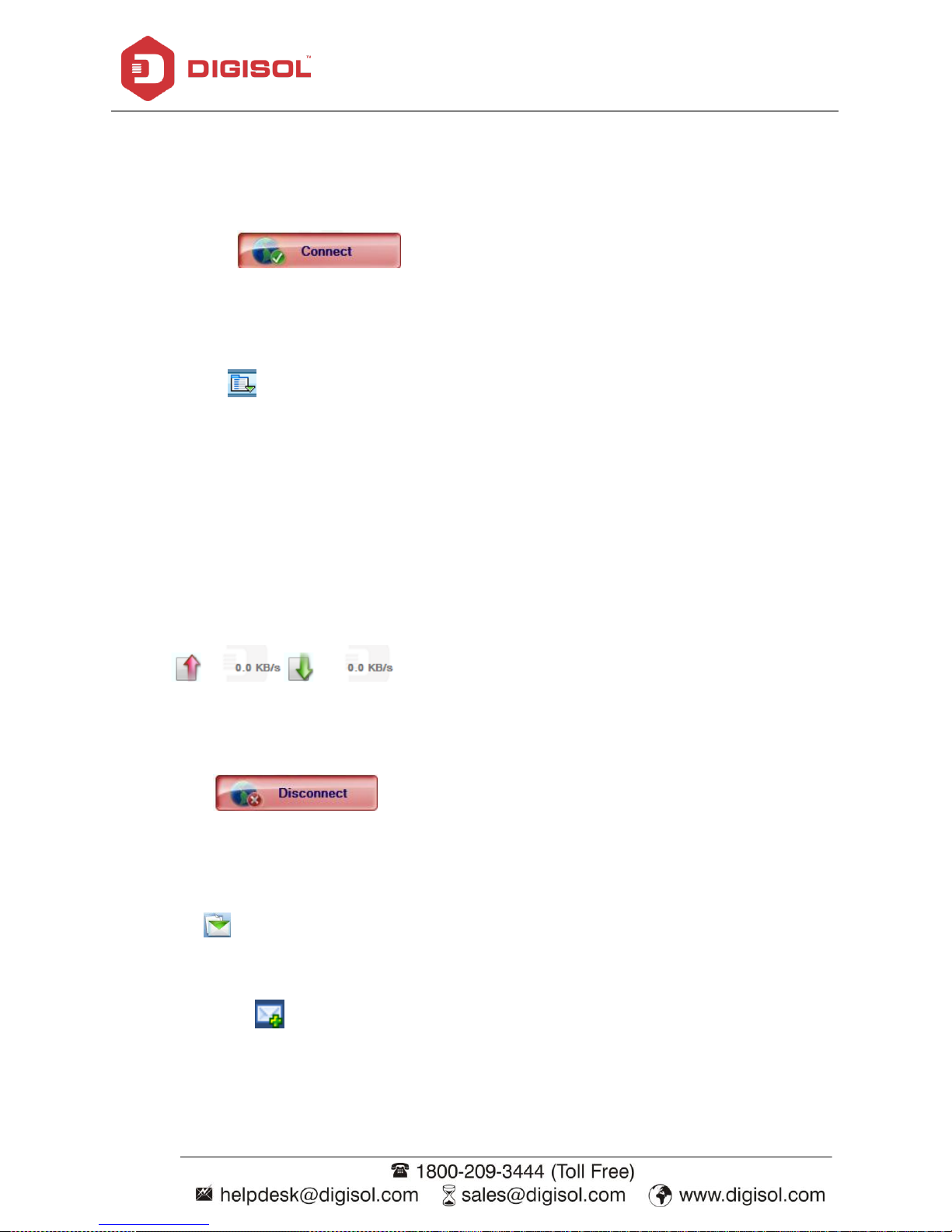

I. Connecting with the default connection profile.
Click to set up the connection.

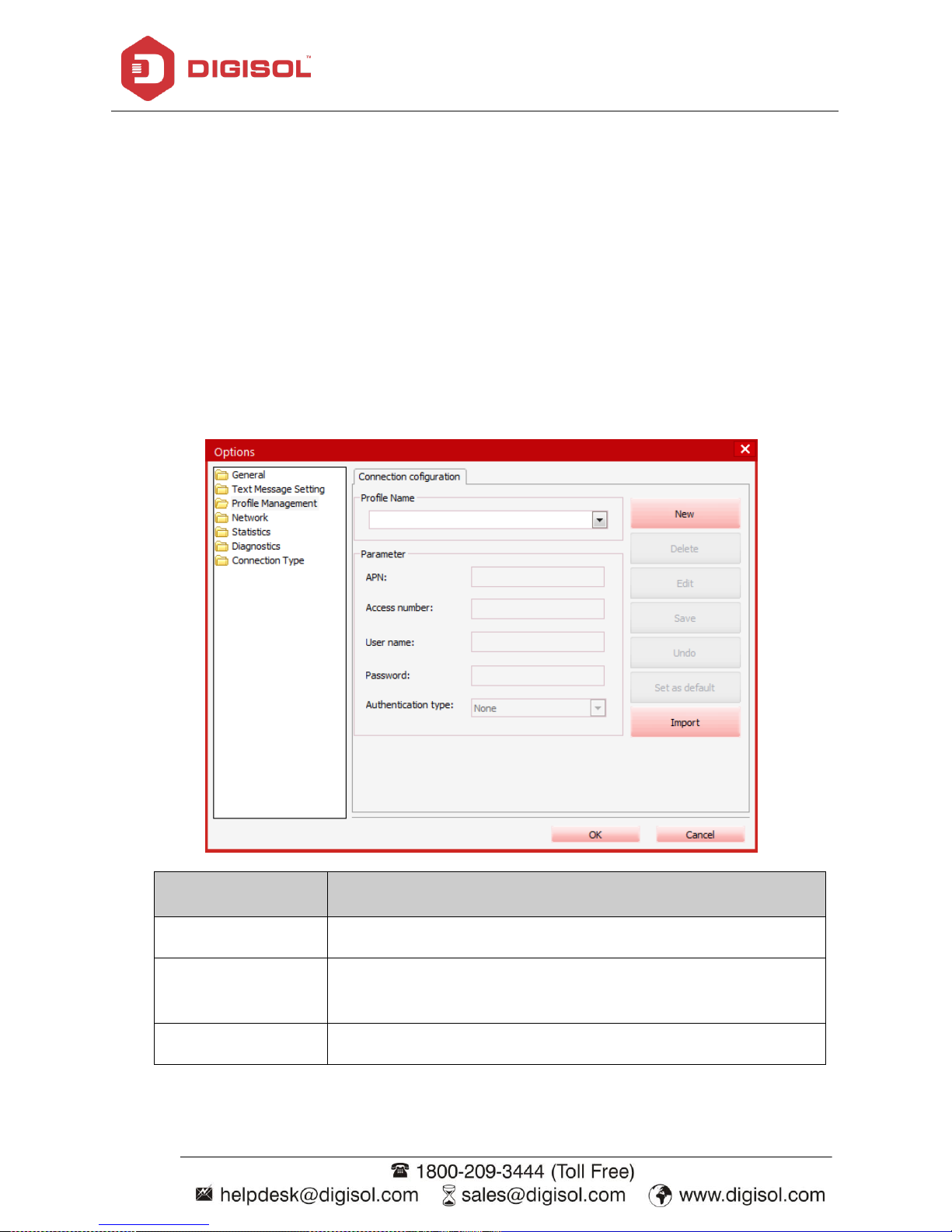

II. Connect to the Internet with the user-defined profile.
Click , select Connection Profile.
Click New, fill in all the parameters, then click OK.
Click Import, Select one item from the list and click OK.
III. Statistics Information
The following window will be displayed at the lower right corner of main interface when
connecting to the internet.
IV. Disconnect from the Internet
Click to disconnect the internet connection.
V. SMS Service
Click to enter SMS (Short Message Service) service interface.
1. Creating and sending a message.
Click :
16
Page 17
DG-BA4305 User Manual
Input the recipient number by one of the following options:
Enter the number directly.
Click Send to, choose the recipient number from the phonebook and add to
the send list, then click OK.
Enter the message content.
Click Send or Save to Draft. The message will be saved in the Draft when failed to
send.
Note:
You can send a group message at most to 100 recipients;
Each number should be separated by “,”;
The message cannot expand 2048 characters at most.
2. Inbox
The following prompt box will be displayed when a new message is being received;
Reply : Access the edit interface, write the content, click Send or Save to Draft.
Forward : Forward the selected message.
Delete : Delete the selected message.
3. Outbox
The message in the Outbox can be deleted or forwarded.
17
Page 18
DG-BA4305 User Manual
4. Draft
The message sent unsuccessfully will be saved in the Draft.
Click the selected message.
Confirm the recipient and the content, and click Send or Save to Draft.
5. Recycle
All deleted information will be saved in the Recycle.
6. The selected SMS can be operated as follows:
Save number
To save the sender‟s information to the (U) SIM card or PC.
Delete text message
To delete the selected message.
Move to
To move the selected message to Outbox or Draft.
Copy to
To copy the selected message to Outbox or Draft.
SMS Export
Right-click the selected message.
Click SMS Export.
Specify the path and the file name, and click Save.
Note: The exported message will be saved as a *.csv file.
18
Page 19
DG-BA4305 User Manual
VI. Phonebook
Click to enter Contacts interface.
1. New
Click ;
Enter the Name and Mobile, and save it in the (U) SIM card or PC.
2. Search a contact
Click .
Enter the key characters you want to find in the .
The result will be displayed in turn.
3. View a contact
Click Local or (U) SIM to display the contacts interface accordingly.
Select a contact, then you can operate as follows:
Edit : Modify the selected contact.
Delete : Delete the selected contact.
Send SMS : Send a message to the selected contact.
Copy to: Right click on the contact to copy the contact between (U) SIM card and
PC.
Note: The deleted contact information cannot be retrieved.
4. Import
Right-click the selected contact.
Click Contacts Import.
19
Page 20
DG-BA4305 User Manual
Select the *.vcf or *.csv file and click Open.
The import file will be saved in the current interface.
5. Export
Right-click the selected contact.
Click Contacts Export.
You can save the contact file as *.csv file or *.vcf file.
Confirm the name and the path where the file is saved, then click Save.
VII. USSD
Click to enter the USSD interface. The following screen will appear.
You can Add, Edit, Delete and Send USSD code. The result will be displayed on the USSD
result box.
20
Page 21
DG-BA4305 User Manual
VIII. SETTINGS

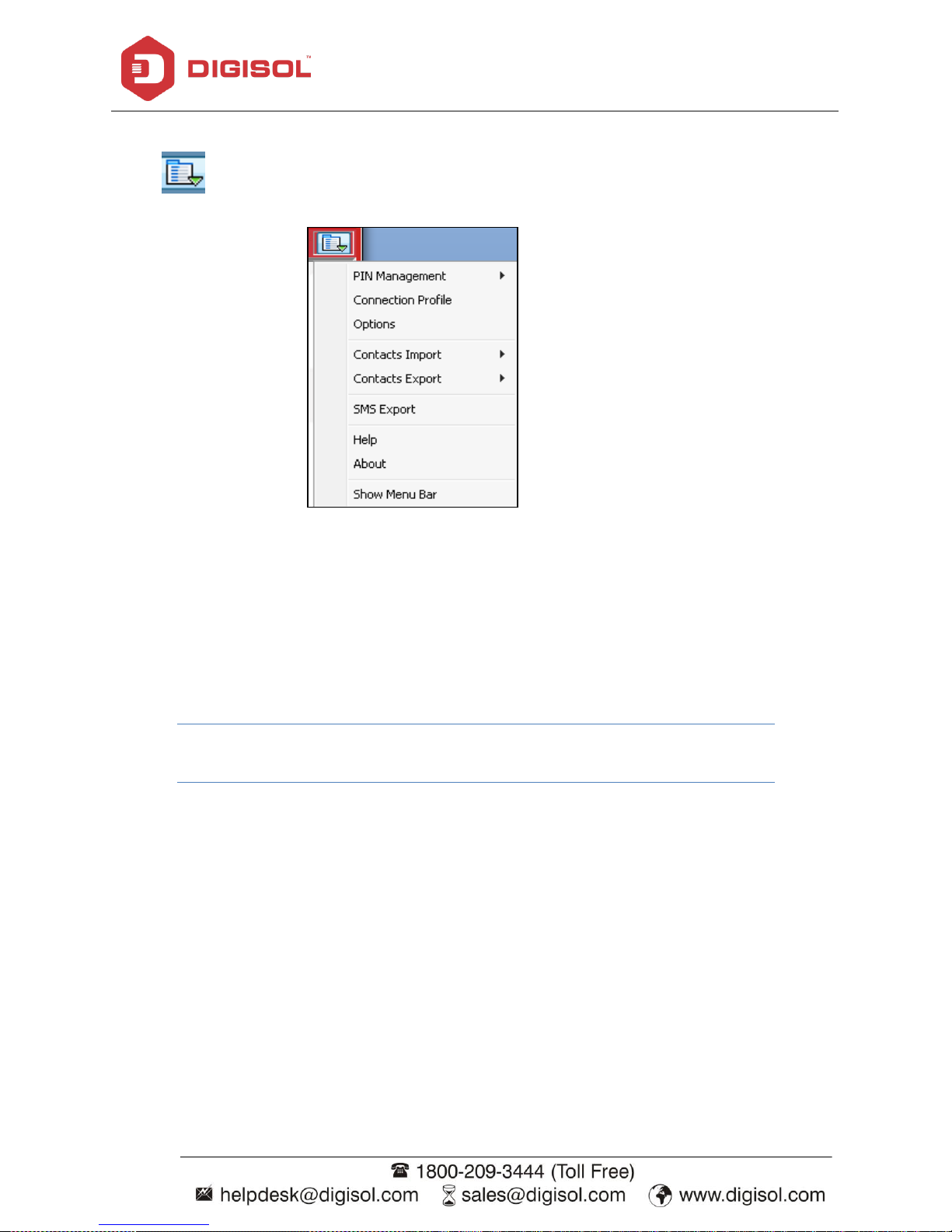

Click to list the available functions.
4-1 PIN Management
Enable PIN
Click Enable PIN.
Enter the correct PIN code and click OK.
NOTE: The PIN code should be a numeric string of 4-8 digits.
Disable PIN
Click Disable PIN.
Enter the correct PIN code and click OK.
Modify PIN
Click Modify PIN.
Enter the old PIN code and new PIN code, confirm the new PIN code and
click OK.
21
Page 22
DG-BA4305 User Manual
Parameter
Description
Profile Name
Enter the name of the profile.
APN
Enter the Access Point Name, you can contact your ISP to get
the APN.
Access Number
Enter *99# to dial.
Verify PIN
Click Verify PIN to verify the new PIN. (This will confirm the new
password).
Unlock PIN
Click Unlock PIN to retrieve the PUK/PIN code. If we enter three times
incorrect PIN, then your card is blocked so PUK (Personal Unlock Key)
is used to retrieve it.
4-2 Connection Profile
Click the shortcut button, you can enter Profile Management page to set APN information.
22
Page 23
DG-BA4305 User Manual
Username
Enter the username if required.
Password
Enter the password if required.
Authentication type
Enable if required or else keep none.
New
Click this button to create a new profile.
Delete
Click this button if you want to delete the profile.
Edit
Click this button to edit the existing profile.
Save
Click this button to save the profile.
Undo
Click this button to revert the settings.
Set as default
Click this button if you wish to set the profile as default profile.
Import
Click this button to import the profile from pre defined list.
Please select the profile from the list related to your Operator
(ISP).
23
Page 24
DG-BA4305 User Manual
4-3 Options
General
You may choose the alert tone when connected/disconnected to the Internet.
24
Page 25
DG-BA4305 User Manual

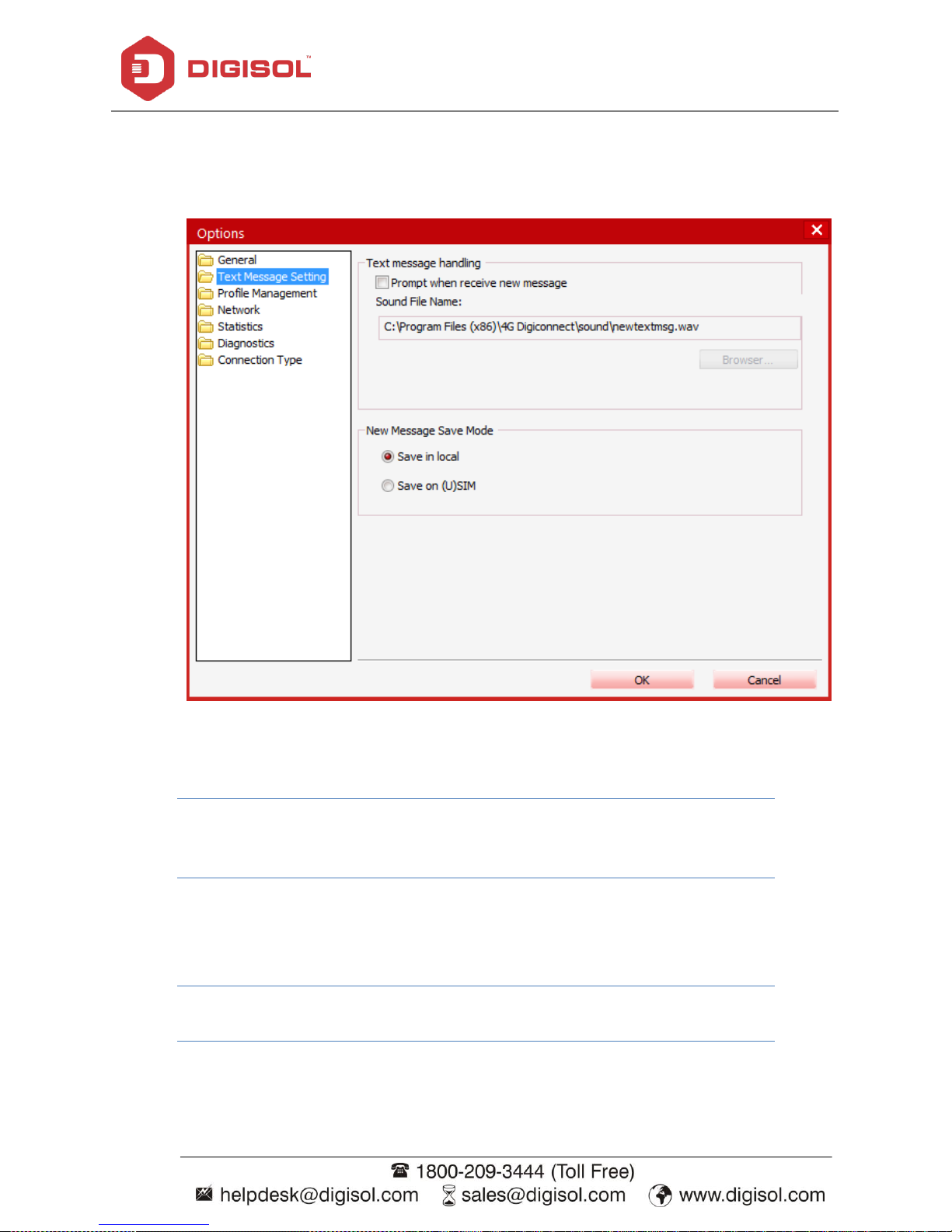

Text Message Setting
You may activate the message alert tone, and also can set up your favorite
tone via selecting a *.wav file in the PC.
The number showed in the SMS center is read from the (U) SIM card
automatically; modification is not recommended.
Note: SMS would not work with the wrong SMSC. Contact the service provider to
get the correct SMSC.
You may select the period in the drop-box “Message storage period”, it
specifies the validity which the message would save in the network;
Note: The validity setting of SMS should be supported by the network
25
Page 26
DG-BA4305 User Manual
Profile Management
Refer to section 4-2 for profile management description.
Network
Network Type
You can choose Auto or Only LTE or Only UMTS/HSPA or Only
GPRS/EDGE. The device will register to the network according to the
selected mode.
The default mode is Auto.
26
Page 27
DG-BA4305 User Manual

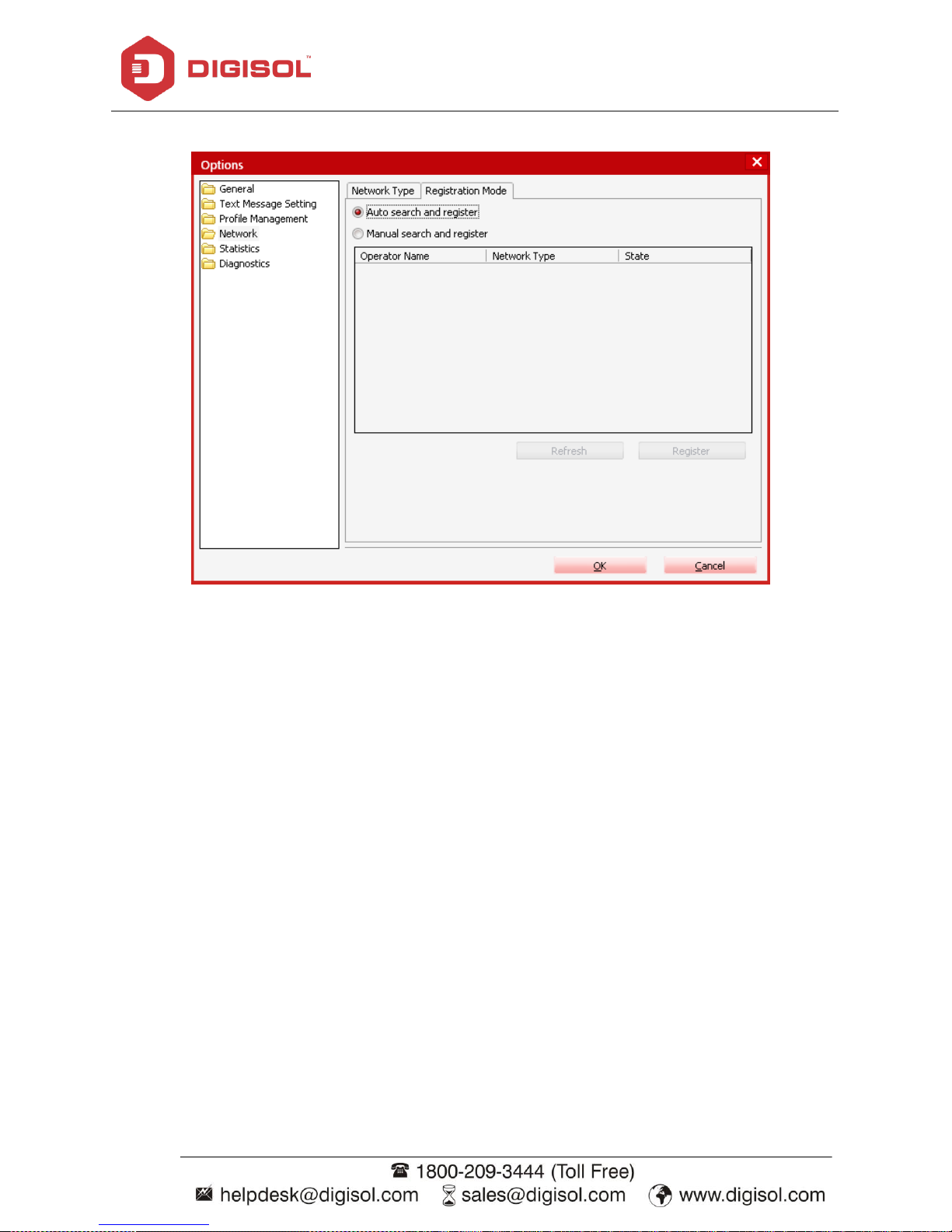

Registration Mode
Auto search and register is set as default value.
Select Manual search and register before dialing. Available networks will
be listed when finished.
Select an available network and click Register, and then the device will
try to register.
27
Page 28
DG-BA4305 User Manual
Statistics

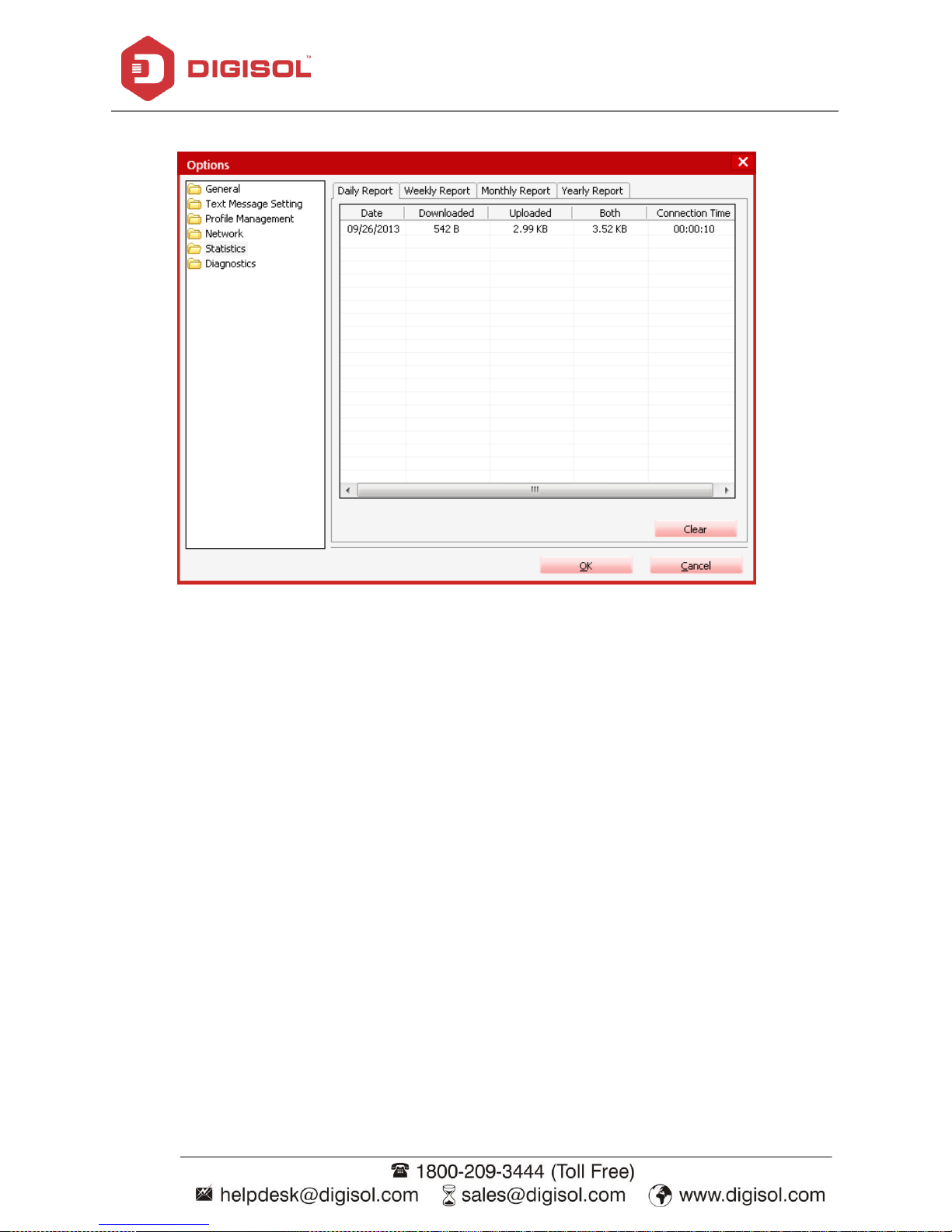

Daily report
You can view every day‟s network statistics information.
Weekly report
You can view every week‟s network statistics information.
Monthly report
You can view every month‟s network statistics information.
Yearly report
You can view every year‟s network statistics information.
28
Page 29
DG-BA4305 User Manual
Diagnostics connection type
You can view device information, operator information, network status and so on
information.
Connection Type
29
Page 30
DG-BA4305 User Manual
4-4 Contacts Import
Right-click the selected contact.
Click Contacts Import.
Select the *.vcf or *.csv file and click Open.
The import file will be saved in the current interface.
4-5 Contacts Export
Right-click the selected contact.
Click Contacts Export.
You can save the contact file as *.csv file or *.vcf file.
Confirm the name and the path where the file is saved, then click Save.
4-6 SMS Export
Right-click the selected message.
Click SMS Export.
Specify the path and the file name, and click Save.
4-7 Help & About
Help: To open the User Manual.

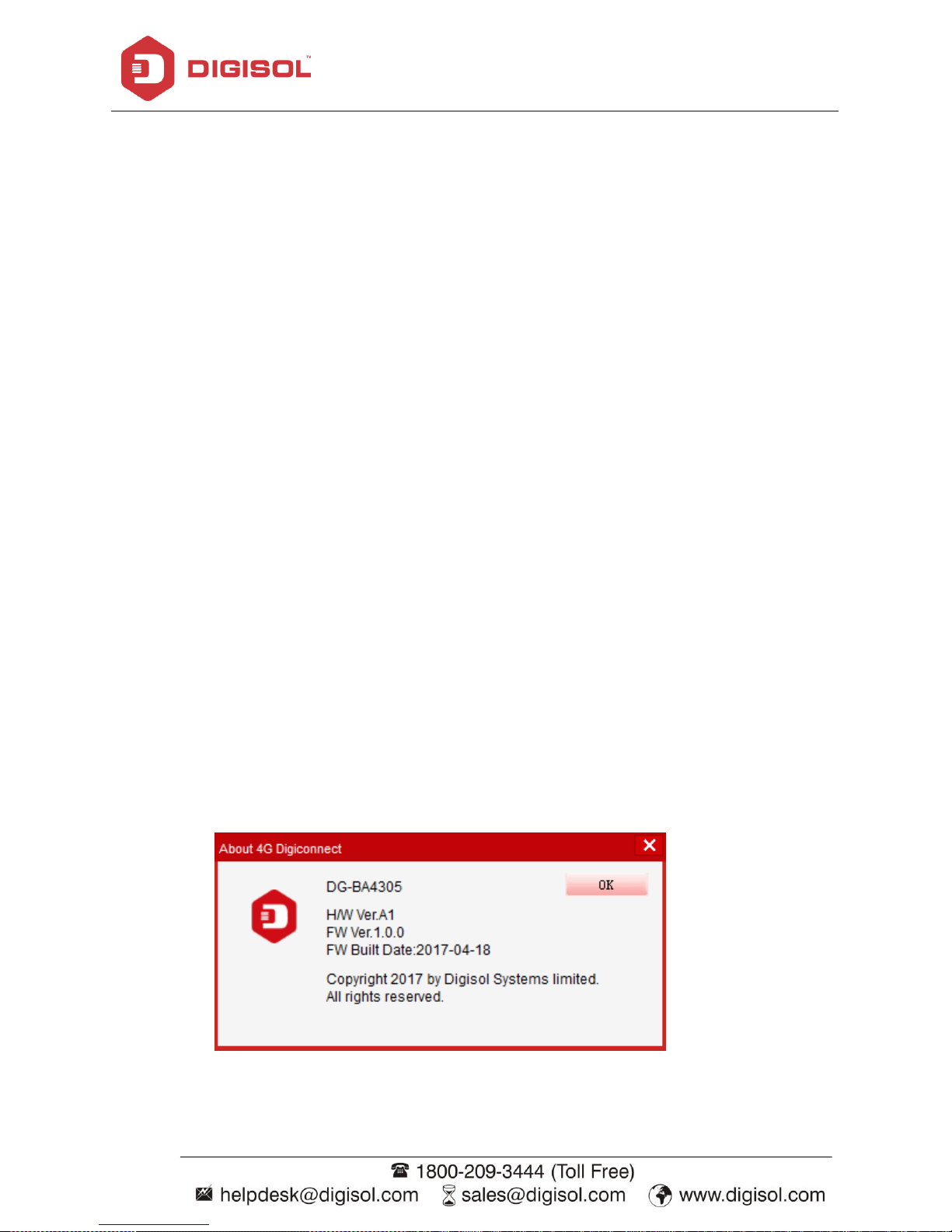

About: To get the PC Suite software information.
30
Page 31
DG-BA4305 User Manual
Scenario
Solution
Cannot connect to internet
1) Verify whether the 4G USB adapter is firmly inserted and the
LED is on.
2) Verify whether the driver/software for the adapter is installed
correctly.
3) Ensure that the correct profile is used to connect to internet.
Also, verify the 4G signal strength is appropriate.
4) If still the issue persists, then please contact DIGISOL TAC.
SIM Card inserted in 4G
dongle, but there is no
network display.
1) Verify if SIM card is inserted or not.
2) Verify whether the SIM card is inserted properly.
3) Uninstall and reinstall the utility.
This product comes with Limited Life time warranty. For
further details about warranty policy and Product Registration,
please visit support section of www.digisol.com
4-8 Show Menu Bar
You can display or hide the Menu Bar.
5. Troubleshooting
Please don‟t panic when you find that this device is not working properly. Before you send it
back to us, you can do some simple checks to save your time:
31
Loading...
