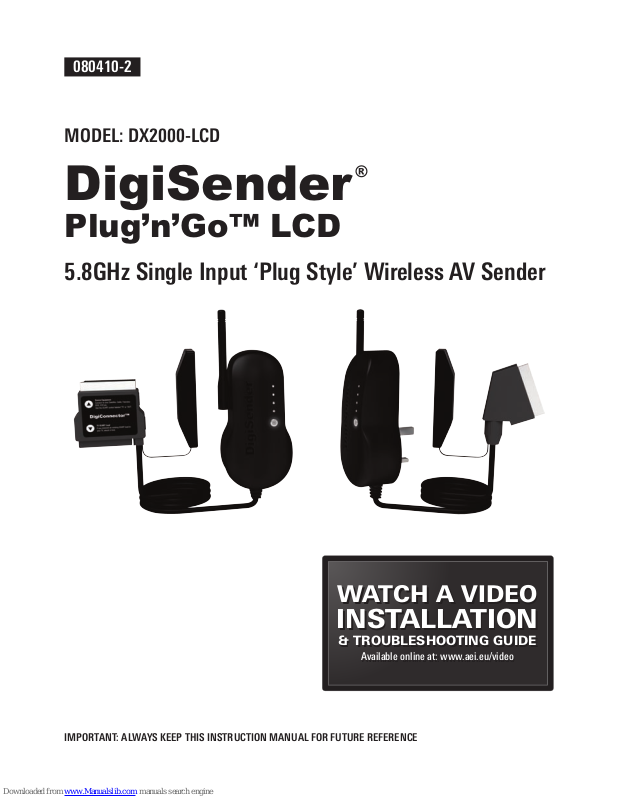

080410-2
DigiSender
Plug’n’Go™ LCD
MODEL: DX2000-LCD
5.8GHz Single Input ‘Plug Style’ Wireless AV Sender
®
IMPORTANT: ALWAYS KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Please read this instruction manual carefully prior to installationPage 02
Table of Contents
Introduction 03
Step 1 - Unpack your Plug’n’Go™ LCD 04
Step 2 - Install the Transmitter 05
Step 3 - Install the Receiver 06
Step 4 - Using the Plug’n’Go™ LCD 07-08
Plug’n’Go™ LCD Advanced Function 08
Upgrades and Accessories 09
Troubleshooting 10-13
Picture Problems 10-11
Audio Problems 12
Problems Controlling Your Source Equipment 13
Technical Support 14
Declaration of Conformity 15
Please read this instruction manual carefully prior to installation Page 03
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Introduction
Congratulations on purchasing the DigiSender® Plug’n’Go™ LCD - 5.8GHz Single Input ‘Plug Style’
Wireless AV Sender. This product represents state of the art wireless audio and video technology at
exceptional value for money.
You can now enjoy DVD quality video and Hi-Fi stereo sound from your Satellite, Cable, Freeview, DVD
or VCR in another room in your home.
Benefit from Compact and Discrete Transmitter and Receiver units, 4 Audio/Video Channels and
unsurpassed ease of use with the new DigiSender® Plug’n’Go™ LCD!
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Please read this instruction manual carefully prior to installationPage 04
Step 1: Unpack Your DigiSender® Plug’n’Go™ LCD
All DigiSender® orders are computer weight checked when packed. However, it is a good idea to check
all kit contents are present before proceeding with the installation.
DX2000-LCD Transmitter
1. Transmitter Unit
2. Pre-Wired IR Emitter
3. DigiConnector™ SCART Input
DX2000-LCD Receiver
4. Receiver Unit
5. Pre-Wired IR Sensor
6. SCART Output
1.
2.
3.
4.
5.
6.
Please read this instruction manual carefully prior to installation Page 05
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Step 2: Install the Transmitter
Connect the Transmitter into a Mains Extension
Lead. The positioning of the Transmitter can affect
the picture quality so being able to move it is an
advantage.
2.
Connect the DigiConnector™ to your Satellite,
Cable or Freeview box. Use the SCART socket la-
belled ‘TV’ or ‘OUT’. Connect any existing SCART
lead into the rear of the DigiConnector™.
1.
The DX2000-LCD Transmitter will send the audio and video from a connected source (your Satellite
receiver for example) to the DX2000-LCD Receiver, located in another room in your home.
Press and hold the power button for 5 seconds to
turn the Transmitter on. Pressing the button again
cycles through the 4 available channels. Make sure
it is set to channel 1.
3.
Position the IR Emitter in front of your Satellite,
Cable or Freeview box with the lens facing the
equipment’s IR sensor.
4.
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Please read this instruction manual carefully prior to installationPage 06
Step 3: Install the Receiver
Connect the Receiver into a Mains Extension
Lead. The positioning of the Receiver can affect
the picture quality so being able to move it is an
advantage.
2.
The DX2000-LCD Receiver will pick up the signals being sent by your DX2000-LCD Transmitter and output them to a connected TV.
Press and hold the power button for 5 seconds to
turn the Receiver on. Pressing the button again
cycles through the 4 available channels. Make sure
it is set to channel 1.
3.
Locate a vacant SCART socket on the back of your
receiving TV and insert the DigiSender® SCART
cable.
1.
Position the IR Sensor on the top, side or bottom of your receiving TV with the lens facing
out into the room.
4.
Please read this instruction manual carefully prior to installation Page 07
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Step 4: Using the DigiSender® Plug’n’Go™ LCD
Switch on the source equipment (Satellite, Cable,
Freeview, DVD, VCR, etc.).
1.
On the receiving TV, select the SCART channel
assigned to the SCART socket that you plugged
the DX2000-LCD Receiver in to. This may be la-
belled as SCART, AUX, AV, VIDEO, VCR or .
2.
When controlling your Satellite, Cable or Freeview box, point the remote control at the IR Sensor in the receiving location. Ensure you are using
the correct remote control for the source device.
3.
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Please read this instruction manual carefully prior to installationPage 08
Using the DigiSender® Plug’n’Go™ LCD
Advanced Functions
Changing the Audio/Video Channel
The DigiSender® Plug’n’Go™ LCD features 4 Audio/Video Channels. Each of these Audio/Video Channels slightly changes the frequency on which the DigiSender® Plug’n’Go™ LCD operates. Because
the Audio/Video Channel switch allows you to ‘fine tune’ the frequency on which your DigiSender®
Plug’n’Go™ LCD operates, it is possible to overcome most interference and reception troubles that may
occur.
To change the Audio/Video Channel on your DigiSender® Plug’n’Go™ LCD, simply press the button to
cycle through the 4 available channels.
For your DigiSender® Plug’n’Go™ LCD to function correctly it is very important that the Audio/Video
Channel settings are the same on both the Transmitter and Receiver.
Please read this instruction manual carefully prior to installation Page 09
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Upgrades & Accessories
Additional Receiver - DX200-LCDRX
• Get your Satellite channels to additional
TV’s in your home!
• Add as many Receivers as you require to
your DigiSender® system
• Connect to any SCART enabled TV or use
with the MOD01PIS Aerial Converter
• Supplied with Power Supply Unit
• Requires existing DigiSender®
Plug’n’Go™ LCD Transmitter
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Please read this instruction manual carefully prior to installationPage 10
Troubleshooting
Picture Problems
Q: What do you see on your second television?
The picture is present but
poor quality
I still see a Black Screen...
WR ON G AV CH AN NEL SELECTED
1. Switch the Transmitter back
on.
2. Ensure the correct SCART
channel is selected on your second television. Some televisions
feature multiple AV channels for
one or more SCART, phono and
S-Video inputs.
3. If available try another SCART
socket on the second television.
POOR RANGE
1. The picture & sound quality is
affected by the Transmitter and
Receiver’s location. Try positioning them in different locations.
The Transmitter and Receiver
should be connected to a mains
extension lead that can be
moved.
2. Try the other 3 available
Audio/Video channels ensuring
that the Audio/Video Channel
setting is the same on both the
Transmitter and Receiver.
3. Ensure the units are within the
usable range, normally this
would be 40m when passing
through 2 average internal walls.
Thicker or stone/granite walls
may lower the usable range of
this device.
RE C E I VI N G BL A N K
SIGNAL
1. Switch the Transmitter on.
2. Ensure the Transmitter is connected to your source device
(such as your Satellite, Cable,
Freeview, DVD or VCR).
3. Ensure that your source device
is switched on.
I now see a snowstorm or
blue screen...
I see a black or blank screen
Switch OFF your DigiSender® TRANSMITTER
What do you now see at the second TV?
Please read this instruction manual carefully prior to installation Page 11
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
I see a snowstorm effect or
plain blue screen
Switch OFF your DigiSender® RECEIVER.
Q: What do you now see at the second TV?
I see lines over the picture
NOT RECEIVING
SIGNAL
1. Switch the DigiSender® Receiver back on.
2. Ensure the DigiSender® Transmitter is switched on.
3. Try the other 3 available
Audio/Video channels ensuring
that the Audio/Video Channel is
set the same on both the Transmitter and Receiver.
I now see a Black screen
WRONG TV
CHANNEL SELECTED
This indicates that the correct
SCART Channel has NOT been
selected on the second television. Look for buttons on this televisions remote control which
could select the AV Channel such
as EXT, AV, VIDEO, VCR, AUX,
Channel 0 AND .
I still see a snowstorm or
blue picture
INTERFERENCE
This indicates one or more electrical devices are interfering with
the DigiSender®. Make sure the
Transmitter and Receiver are not
directly on top of other electrical
devices. Try all 4 Audio/Video
Channels on your DigiSender® as
one or more may still be available. Visit digisender.net or contact our helpline for information
on configuring your equipment to
work together.
cont...
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Please read this instruction manual carefully prior to installationPage 12
Troubleshooting
Audio Problems
Q: What seems to
be the problem
with the sound?
I can see the picture but
can’t hear anything.
The sound is distorted.
There is a buzzing sound
present. It seems to get
worse during on-screen
menus or bright pictures.
1. Disconnect both the Transmitter
AND Receiver SCART cables. Reconnect the cables ensuring they are
pushed into the sockets firmly.
2. If you are using a home cinema
DVD player with surround sound,
please ensure the analogue audio
output on SCART is switched on.
Turn down the volume on your source
device (Satellite, Cable, Freeview,
DVD or VCR).
Try changing the Contrast setting on
your source device.
There is a hissing sound
and the volume must be
turned up high on the second TV to hear anything.
1. Turn the output volume UP (if possible) on your source device (Satellite,
Cable, Freeview, DVD or VCR).
2. Ensure the Transmitter and Receiver are within the usable range
(40m avg).
3. Switch off your microwave oven if
present.
Please read this instruction manual carefully prior to installation Page 13
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Troubleshooting
Problems Controlling the Source Equipment
If you have any difficulty operating your source equipment remote control in your second room
please follow the advice below below:
1. Ensure you are using the correct remote control in the second room. For instance, if you are
trying to control your Satellite Receiver you will need to use the Satellite remote control.
2. Ensure the IR Emitter is facing the IR Sensor on your source equipment.
3. Move the IR Emitter further away from the source equipment.
4. Move the DigiSender® Plug’n’Go™ LCD Transmitter AND Receiver further away from other
electrical devices.
5. Try operating your source remote control closer to the IR Sensor.
6. Replace the batteries in your source remote control.
WATCH A VIDEO
INSTALLATION
& TROUBLESHOOTING GUIDE
Available online at: www.aei.eu/video
WATCH A VIDEO
INSTALLATION
& TROUBLESHOOTING GUIDE
Available online at: www.aei.eu/video
DX2000-LCD - DigiSender® Plug’n’Go™ LCD
Please read this instruction manual carefully prior to installationPage 14
Technical Support
AEI Security & Communications Ltd is dedicated to providing our customers with first class customer
care and technical support.
During busy periods we would suggest using the web option to obtain support.
1. On the web...
Free technical advice is available online 24/7 at our dedicated support web site:
www.aei.eu
2. By telephone...
We have a dedicated helpline, open Monday to Friday, 10AM - 3PM.
Please note that calls are charged at the local rate and your call may be recorded for training purposes.
01797 226 123
©2010 AEI Security & Communications Ltd. All rights reserved.
Registered in England: 02831823
AEI Security & Communications Ltd
Weslake Industrial Park
Rye Harbour Road, Rye
East Sussex
TN31 7TE
United Kingdom
Plug’n’Go and DigiConnector are trademarks of AEI Security & Communications Ltd.
DigiSender is a registered trademark of AEI Security & Communications Ltd.
SPECIFICATIONS
DX2000-LCD Transmitter :
Remote Relay Receiver 433.92MHz
Audio/Video Frequency 5.7250GHz ~ 5.8750GHz
Modulation FM
Video Input Level 1V PP/75Ω
Colour Video Input Phase Alternate Line (PAL)
Audio Input Level 1.0v PP (Mod 1KHz, Dev 15KHz)
Audio Bandwidth 20Hz - 20KHz (-1dB)
Input Connectors DigiConnector™ SCART
Power Source 240V AC
DX2000-LCD Receiver :
Remote Relay Transmitter 433.92MHz
Audio/Video Frequency 5.7250GHz ~ 5.8750GHz
Modulation FM
Video Output Level 1V PP/75Ω
Sensitivity -90dBm
Audio Output Level 1.0V PP (Mod 1KHz, Dev 15KHz)
Audio Bandwidth 20Hz - 20KHz (-1dB)
Output Connectors Euro SCART
Power Source 240V AC
Loading...
