Models: dgimd132
Miracast Setup
For most Android 4.2 and all Android 4.4 devices
Please read these instructions carefully prior to installation
Important Note: These steps are for devices running stock Android 4.2. The steps for Samsung,
HTC and other device manufacturers Android versions may differ.
HDM I
Miracast. Airplay. DLNA.
USB
Pow er
or
Pow er
Ada pte r
(Recommended)
TV
1 Connect the adaptor as outlined in the Quick Setup Guide.
DE: Schließen Sie den Dongle, wie in der Kurzanleitung beschrieben.
FR: Branchez le dongle comme indiqué dans le Guide d’installation rapide.
NL: Sluit de dongle, zoals beschreven in de installatiehandleiding.
Miracast. Airplay. DLNA.
2 Ensure the adaptor is set to Miracast Mode. Press the Fn button to swap between modes.
DE: Sicherstellen, dass der Dongle eingestellt auf Modus Miracast. Drücken Sie die Fn-Taste, um zwischen den Modi zu wechseln.
FR: S’assurer que le dongle est réglé sur le mode Miracast. Appuyez sur la touche Fn pour basculer entre les modes.
NL: Zorg ervoor dat de dongle is ingesteld op modus Miracast. Druk op de Fn-knop om te wisselen tussen de modi.
3 On your device, go to Settings.
DE: Auf Ihrem Gerät, gehen Sie zu Einstellungen.
FR: Sur votre appareil, allez dans Paramètres.
NL: Op je toestel, ga naar Instellingen.
4 Ensure that WiFi (WLAN) is turned ON.
DE: Stellen Sie sicher, dass WLAN eingeschaltet ist.
FR: Assurez-vous que le WiFi (WLAN) est activé.
NL: Ervoor zorgen dat WiFi (WLAN) is ingeschakeld.

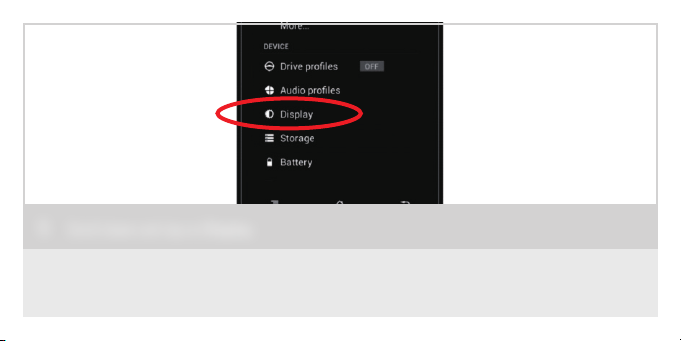

5 Scroll down and tap on Display.
DE: Blättern Sie nach unten und tippen Sie auf Anzeigen.
FR: Faites défiler vers le bas et tapez sur l’écran.
NL: Scroll naar beneden en tik op Weergeven.

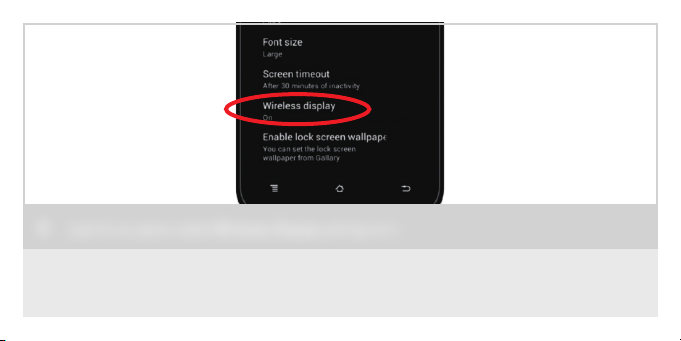

6 Look for an option called Wireless Display and tap on it.
DE: Suchen Sie nach einer Option namens Kabellose Übertragung und tippen Sie darauf.
FR: Recherchez une option appelée Affichage Sans Fil et appuyez dessus.
NL: Kijk voor een optie genaamd Draadloze Display en tik erop.
7 In the list of Available Devices, tap on Screencast-XXXXX.
DE: In der Liste der verfügbaren Geräte auf Screencast-XXXXX tippen.
FR: Dans la liste des périphériques disponibles, appuyez sur Screencast-XXXXX.
NL: In de lijst met beschikbare apparaten, tikt u op Screencast-XXXXX.
8 After a few moments you should see your Android screen on your TV.
DE: Nach ein paar Augenblicken sollten Sie Ihren Android-Bildschirm auf Ihrem TV.
FR: Après quelques instants, vous devriez voir votre écran Android sur votre téléviseur.
NL: Na een paar momenten moet je je Android-scherm op de tv te zien.
9 To stop the Miracast, simply turn Wireless Dispay OFF on your Android device.
DE: Um den Miracast zu stoppen, schalten Sie einfach drahtlose Dispay OFF auf Ihrem Android-Gerät.
FR: Pour arrêter la Miracast, il suffit de tourner Dispay sans fil OFF sur votre appareil Android.
NL: Om de Miracast te stoppen, zet u gewoon Wireless Dispay OFF op je Android toestel.
