TM-610 User`s Manual
1/7

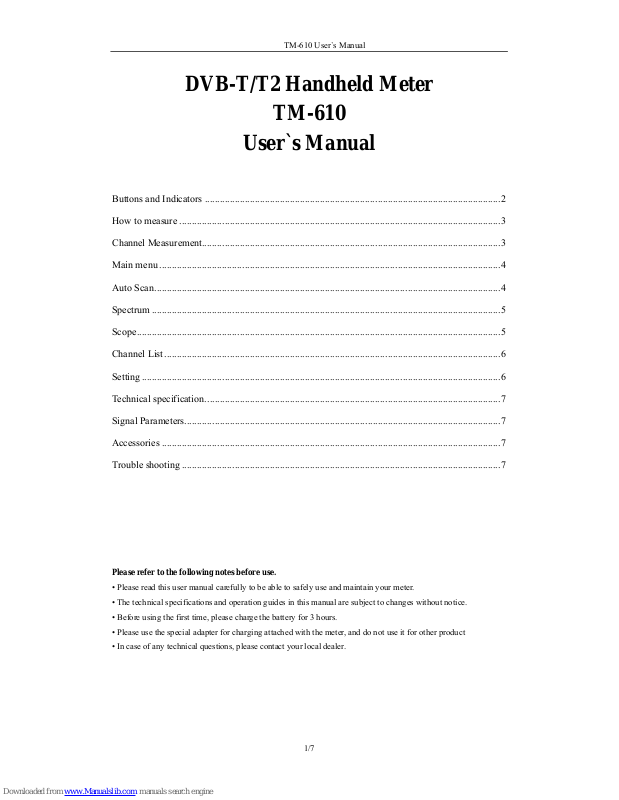

DVB-T/T2 Handheld Meter
TM-610
User`s Manual
Buttons and Indicators ...................................................................................................................... 2
How to measure ................................................................................................................................ 3
Auto Scan .......................................................................................................................................... 4

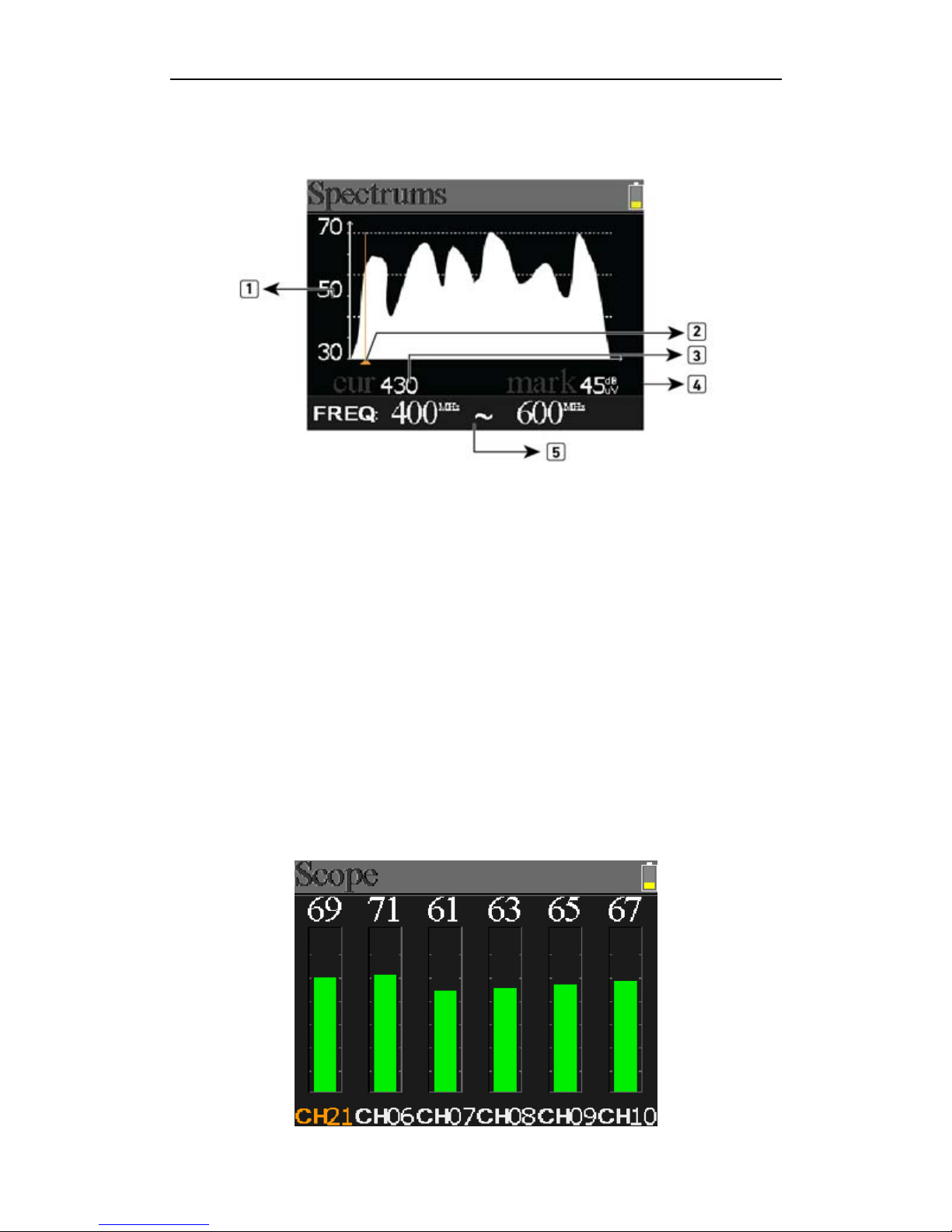

Spectrum ........................................................................................................................................... 5
Scope ................................................................................................................................................. 5

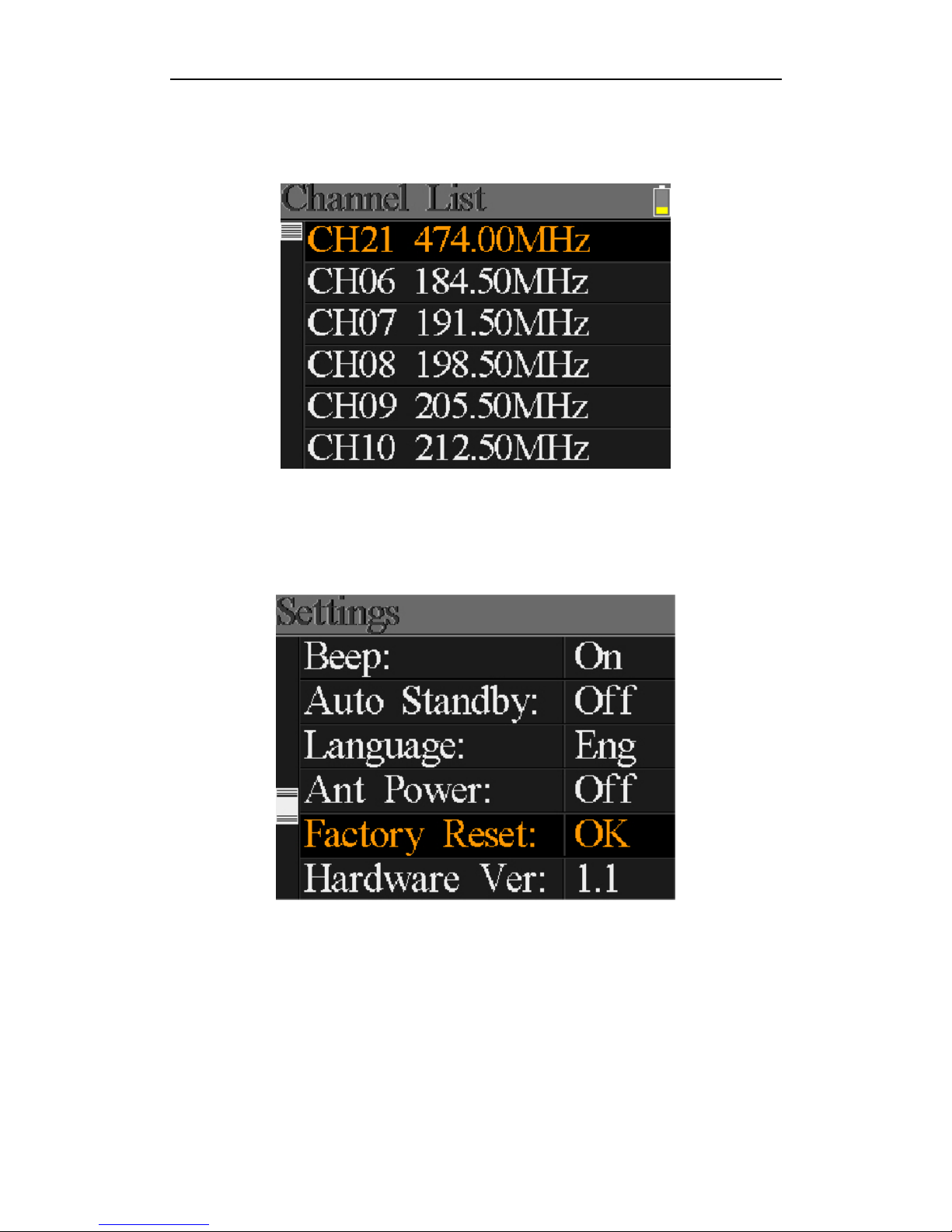

Channel List ...................................................................................................................................... 6
Setting ............................................................................................................................................... 6
Technical specification ...................................................................................................................... 7
Signal Parameters .............................................................................................................................. 7
Accessories ....................................................................................................................................... 7
Trouble shooting ............................................................................................................................... 7
Please refer to the following notes before use.
• Please read this user manual carefully to be able to safely use and maintain your meter.
• The technical specifications and operation guides in this manual are subject to changes without notice.
• Before using the first time, please charge the battery for 3 hours.
• Please use the special adapter for charging attached with the meter, and do not use it for other product
• In case of any technical questions, please contact your local dealer.
TM-610 User`s Manual
2/7
Buttons and Indicators
1 . LNB INPUT: DTT signal input port, connects directly to DTT antenna using coaxial cable.
2 . LCD Screen: Show menus and parameters.
3 . Charge Light:
Red: the battery is being charged.
Blue: the battery is full.
4 . Warn Light: Flash if LNB is short connected
5 . Working Light:
Green: The meter is in working status.
6. F1: Enter to Measure menu. F2: Enter to Auto Scan menu. F3: Enter to Spectrums menu. F4: Enter to Scope menu.
1
2
3
4
5
6
7
8
9
10
11
12
TM-610 User`s Manual
3/7
7. /: Move focus or change value, /: Move focus or change value.
8 . MENU: Go into main menu or exit from the current menu
9. OK: Confirm
10 . : Turn the meter on/off, press and hold for 2 seconds to power on the meter.
11 . Charging: Connect with the charger cord for charging the equipment.
12 . Reset: Reset the meter
How to measure
Connect the antenna to LNB INPUT port first.

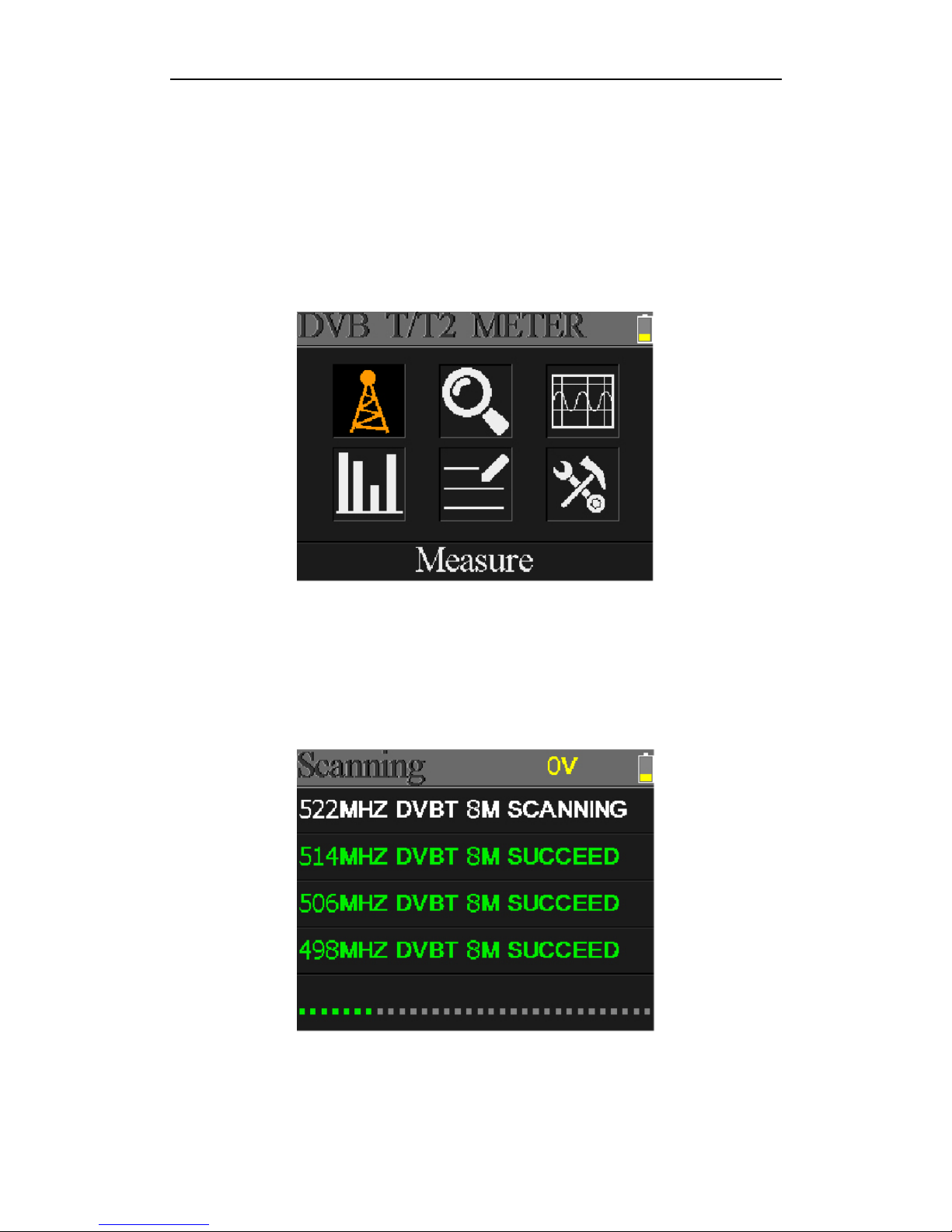

Power on the meter, then Main Menu will be show on the screen. Press [◄/►] to read the real level value of the
frequency that you want to measure. And press [▲/▼] to adjust the range of signal level. The display range is
30~100 dBµV. Press OK button to edit the range of spectrum and the range is 44.00 ~ 862.00 MHZ. If the antenna
needs the power supply, please enable power supply from SETTING sub Menu.
Please refer below descriptions if you want to learn all functions.
Channel Measurement
1. Channel No: [◄/►] button to change channel number or press [OK] button to choose channel from channel
list.
2. Lock Status: Show signal lock status.
3. Antenna Power:
OFF: The power to antenna is shutdown.
5V: DC5V is supplied to antenna.
4. Battery Status: Show power lever in battery.
5. DVB System: [◄/►] or [OK] button to change DVB system between DVBT and DVBT2.
6. Channel frequency: Show the frequency of current channel.
7. Bandwidth: [◄/►] or press [OK] to change channel bandwidth between 6MHz, 7MHz and 8MHz.
