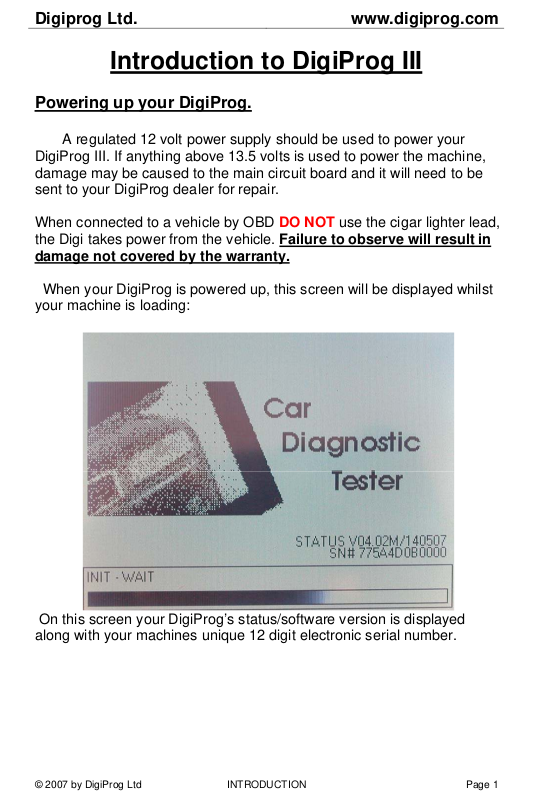

Introduction to DigiProg III
Powering up your DigiProg.
A regulated 12 volt power supply should be used to power your
DigiProg III. If anything above 13.5 volts is used to power the machine,
damage may be caused to the main circuit board and it will need to be
sent to your DigiProg dealer for repair.
When connected to a vehicle by OBD
the Digi takes power from the vehicle.
damage not covered by the warranty.
When your DigiProg is powered up, this screen will be displayed whilst
your machine is loading:
DO NOT use the cigar lighter lead,
Failure to observe will result in
On this screen your DigiProg’s status/software version is displayed
along with your machines unique 12 digit electronic serial number.
© 2007 by DigiProg Ltd INTRODUCTION Page 1
Digiprog Ltd. www.digiprog.com
When your DigiProg has finished loading an information screen will
appear with a disclaimer regarding the use of the machine. When you
are ready, press the check/tick button.
© 2007 by DigiProg Ltd INTRODUCTION Page 2
Digiprog Ltd. www.digiprog.com
The DigiProg will then ask for a password to be entered before the
machine can be used. The default password is set to
changed in the
SETUP function see page 5.
1 but can be
© 2007 by DigiProg Ltd INTRODUCTION Page 3
Digiprog Ltd. www.digiprog.com
Main menu screen
1. EEPROM menu
The first option on the main menu is the Eeprom menu. Reading,
writing and saving Eeprom information is all done using this menu.
A more detailed guide to using this menu follows later on in the
introduction.
2. CAR/TRUCK menu
This is the menu you will use for correcting and reprogramming
vehicles. Manufacturers are set out in alphabetical order and
models of vehicles are set out in a simple sub-menu format.
© 2007 by DigiProg Ltd INTRODUCTION Page 4
Digiprog Ltd. www.digiprog.com
3. Motorcycle Menu
This menu is the same as the CAR/TRUCK menu but is used for
reprogramming motorcycles.
4. Special Functions Menu
The special functions menu is for use only
dealers.
5. Setup Menu
by official DigiProg
This menu is where settings on your DigiProg can be changed.
Language, password, brightness, volume, and the time/date can all
be set and changed in this menu. You can also change whether
your machine is working in kilometres or miles.
© 2007 by DigiProg Ltd INTRODUCTION Page 5
Digiprog Ltd. www.digiprog.com
Using the EEPROM menu.
On some of the vehicles you will come across, an eight pin
Eeprom chip will be used to store the vehicle data. These chips
hold vital information from the vehicle such as ignition and
immobiliser codes. Loss of this information could result in anything
from minor faults, to major faults involving the vehicle not starting
and having to be taken to the main dealer. This is why it is very
important to read and save the original information from the
Eeprom before programming, this way if any errors do occur you
can always return to the point you started.
The process of reading and saving this information is very simple.
The Eeprom chip itself will have a mask number printed across the
top of it, for example a widely used chip is a 93C46.
You can connect the chip to your DigiProg by using adaptor ST1
or ST4. Most chips are surface mount eeproms which will use ST1,
but the larger DIL chips will use ST4.
© 2007 by DigiProg Ltd INTRODUCTION Page 6
Digiprog Ltd. www.digiprog.com
You must then tell your DigiProg which chip you are working on
before you read it. To do this you must press the
the top of the screen. A sub-menu will now appear.
EEPROM button at
Select the
is now set up to read a 93C46 chip. Press
selecting the
the chip, the information will be displayed on the DigiProg screen,
now press VERIFY this will ensure that the information on your
screen agrees with the Eeprom
SET TYPE button and choose 93C46. Your DigiProg
EEPROM again, this time
READ button. Once the machine has finished reading
.
© 2007 by DigiProg Ltd INTRODUCTION Page 7
Digiprog Ltd. www.digiprog.com
Now you have the original data file from the vehicle you must save
it to the DigiProg III.
© 2007 by DigiProg Ltd INTRODUCTION Page 8
Digiprog Ltd. www.digiprog.com
Press the
Another sub-menu will appear. When you press the
FILE button in the top right corner of your screen.
SAVE button
the machine will now ask you to enter a file name for the
information you are saving. Once a file name is entered your data
is safe and the vehicle is now ready to be reprogrammed, you can
only use 0 to 9 & A to F for file names but you can save them to
your PC in Eetool which is supplied with your DigiProg as any
name. I would suggest you create a folder in My Documents & call it
Eetool Data Files, then create sub folders in the folder for example
Audi, Alfa, Etc.
Please if you are stuck use the help desks on ICQ 178 762 503 or
MSN Digiprog, please read your instruction manual before using the
help desk almost all help desk enquiries can be dealt with if you
READ the manual.
© 2007 by DigiProg Ltd INTRODUCTION Page 9
Digiprog Ltd. www.digiprog.com
Finally some important points to remember.
Always connect the Eeprom to the ST01 or ST04 before you
connect to the DigiProg this will avoid Electro static feedback
(ESD).
Never solder the connections whilst the lead is connected to the
programmer, this will damage the DigiProg.
Please do not sit at home or in your car & play with the DigiProg to
see which cars it can do. If you press the DigiProg function keys the
DigiProg will start looking for the Cars protocol, you wouldn’t ask
your PC to print if there was no printer.
Always keep your DigiProg in its case when not in Use & keep it in a
dry environment at night (don’t leave it in the trunk of your car)
If you are using solvents to remove lacquers’ from Eeprom’s ensure
that they are cleaned completely as the solvent can damage the
clips.
We hope you will have many years of use from your DigiProg, don’t
forget if you are not sure ask the helpdesk.
