Digiplex DGP-319 Installer's Manual

16-Zone and 16-Remote Wireless Bus Module

V1.3

DGP-319

Installer’s Guide

TABLE OF CONTENTS

1.0 INTRODUCTION .............................................................................. 3

1.1 Technical Specifications .........................................................................3

1.2 System Features .....................................................................................3

2.0 INSTALLATION ............................................................................... 4

2.1 Location ..................................................................................................4

2.2 Connections and Mounting .....................................................................4

3.0 PROGRAMMING ............................................................................. 6

3.1 Programming Methods ............................................................................6

3.2 Low Battery Supervision .........................................................................7

3.3 Check-in Supervision ..............................................................................8

3.4 Tamper Supervision on Receiver Module ...............................................8

3.5 PGM Deactivation Mode .........................................................................9

3.6 PGM Base Time ......................................................................................9

3.7 PGM Timers ............................................................................................9

3.8 PGM Activation Event .............................................................................10

3.9 PGM Deactivation Event .........................................................................11

3.10 PGM Override .......................................................................................11

3.11 System Reset .......................................................................................12

3.12 Viewing Unknown Serial Numbers ........................................................12

4.0 DETECTORS AND CONTACT SWITCHES .................................... 13

4.1 Assigning Detectors & Contact Switches to Receiver .............................13

4.2 Assigning Detectors & Contact Switches to Zones .................................14

4.3 Viewing Signal Strength of Detectors & Contact Switches .....................14

5.0 REMOTE CONTROLS ..................................................................... 16

5.1 Assigning Remote Controls to the Receiver Module ..............................16

5.2 Assigning Remote Controls to User Access Codes ................................17

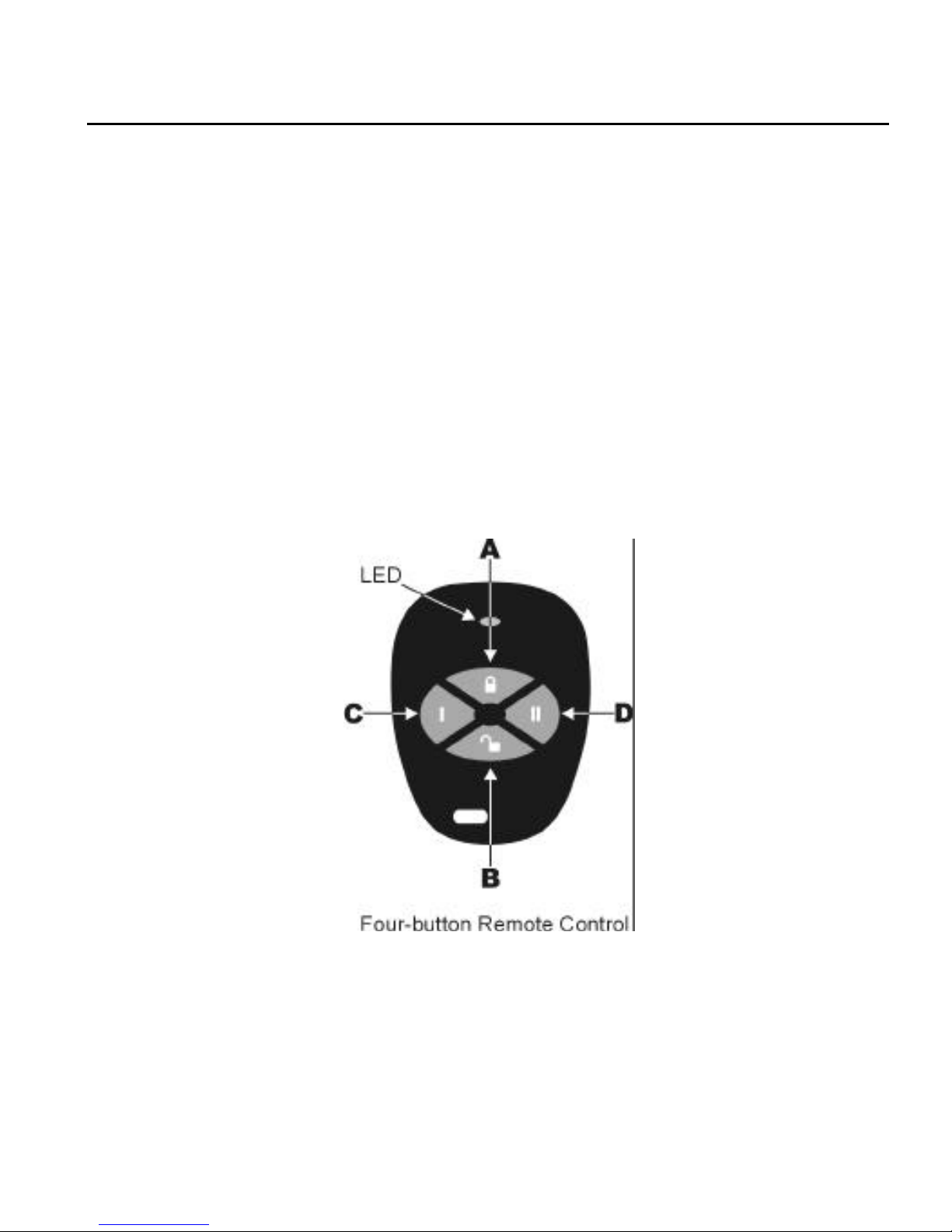

5.3 Programming Remote Control Buttons ...................................................18

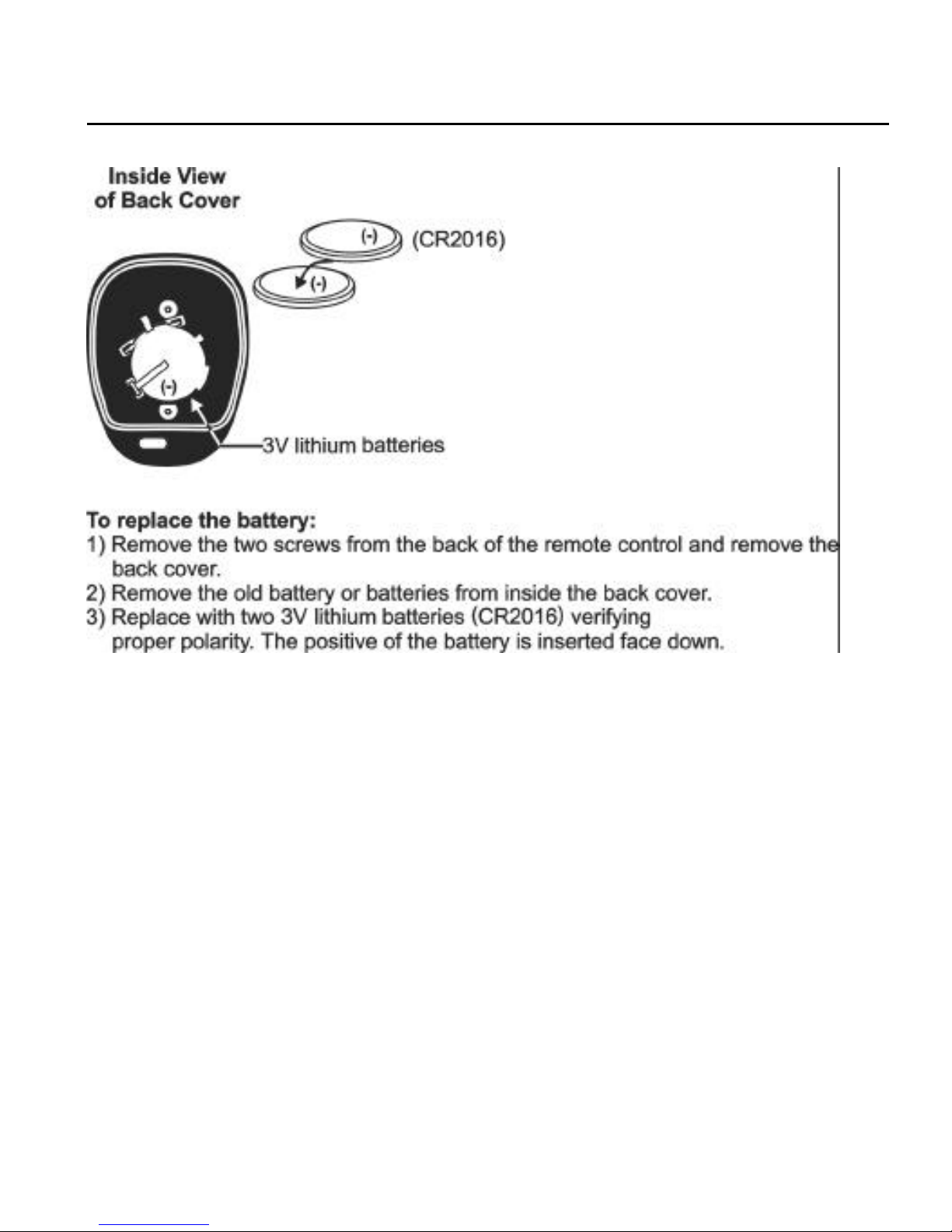

5.4 Replacing the Remote Control’s Battery .................................................22

2 Installer’s Guide

Digiplex Liberator 3

1.0 INTRODUCTION

1.1 TECHNICAL SPECIFICATIONS

Manchester Decoding
Diversity Antenna
Error Detection & Correction
Frequency Hopping: @ 902 MHz - 928 MHz or 868MHz
Range: Detectors & Contact Switches:

1000m (3280ft) or 300m (984ft) for 868 MHz

Remote Controls: 30m (100ft)
Sensitivity: -105dBm
Current Consumption: 70 mA
Dimension (without antennas) 15cm H x 16cm L x 3cm W

(6in H x 6.5in L x 1.1in W)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Operating Humidity: 85%
PGM Outputs: 1 relay (an additional PGM Output is available)
PGM Output current: 5A

1.2 SYSTEM FEATURES

Add 16 wireless detectors or contact switches to the Digiplex System
Add 16 remote controls to the Digiplex System
Reflow Design
No tuned Circuit
Tamper Switch
Low Battery, Check-in, and Tamper supervision through Digiplex Control Panel
Trouble Display through Digiplex Control Panel
Signal Strength Indicator

4 Installer’s Guide

2.0 INSTALLATION

2.1 LOCATION

Mount the Wireless Bus Module on a wall allowing at least 5cm (2ft) around the
module to permit adequate ventilation and heat dissipation. Select a site that is not
susceptible to drastic temperature changes. Avoid installation near or in the path of
strong RF fields (i.e. neon lights, computers), on or near metal objects, circuit
breaker boxes, air conditioners, and heater ducts since they may cause interference
and reduce its sensitivity. We recommend installing it in a centralized location on the
main floor. Avoid installing it in the basement. Refer to the Digiplex Control Panel's
Reference & Installation Manual for maximum allowable distances between the
control panel and the Wireless Bus Module.

2.2 CONNECTIONS AND MOUNTING

Firmly screw the two antennas into the connectors marked ANT on the Receiver
Module (see Figure 2.1). Using a drill or screwdriver, punch out the four mounting
holes on the back of the plastic case. Align the six holes of the printed circuit board
with the six pins on the back plastic mounting case and snap into place. If placed
correctly, the antennas will lean directly over the grooves in the mounting case.

Do not cut, bend, or alter the antennas. Avoid mounting the Receiver
Module near or on metal as this may affect its sensitivity.

The Wireless Bus Module is connected to the control panel's bus in a star and/or
daisy chain configuration. The bus is a 4-wire communication bus that provides
power and two-way communication between the control panel and all the modules
connected to it. Connect the GRN and YEL terminals from the Receiver Module to the
corresponding GRN and YEL terminals of the control panel. Connect the RED terminal
to the AUX+ of the control panel. Connect the BLK terminal to the AUX- of the control
panel.

Remove AC power and then remove the battery from the control panel
before adding a bus module to the system or it may cause communication
trouble.

Digiplex Liberator 5

Figure 2.1: Connections for Receiver Module to Control Panel

6 Installer’s Guide

3.0 PROGRAMMING

3.1 PROGRAMMING METHODS

All programming can be done through Module Programming Mode in the Digiplex
Control Panel from any keypad as shown in Figure 3.1. The sections referred to in

Step 5 and the data referred to in Step 6 from Figure 3.1 are explored in the
following sections of the manual.

Figure 3.1: Module Programming Mode
