Digiplex DGP2-641, DGP2-641R, DGP2-641BL, DGP2-641RB System Manager's Manual
LCD Keypad Module
System Manager’s Manual
for DGP-848 Systems
DGP2-641/DGP2-641R DGP2-641BL/DGP2-641RB
Also includes
Operating Instructions
LCD Keypad
Table of Contents
Introduction.................................................................. 1
Legend ............................................................................ 1
Basic Operation .......................................... ... .... ... ... ... . 1
Auditory Feedback (Beep Tones).................................... 1
Confidential Mode ........................................................... 2
Partitioned System.......................................................... 2
Area Status Display......................................................... 2
Arming .......................................................................... 2
Exit Delay Timer.............................................................. 2
Regular Arming ............................................................... 2
Stay Arming..................................................................... 3
Instant Arming................................................................. 3
Force Arming................................................................... 3
Bypass Programming...................................................... 3
One-Touch Buttons......................................................... 4
Keyswitch Arming............................................................ 4
Auto-Arming .................................................................... 4
Disarming ..................................................................... 4
Entry Delay Timer............................................................ 4
Disarming an Armed System........................................... 4
Alarm Memory Display.................................................... 5
Access Codes .............................................................. 5
System Master Code (Default: 123456).......................... 5
Deleting User Access Codes........................................... 5
Programming User Access Codes.................................. 5
User Options ................................................................... 8
Access Control User Options.......................................... 8
Using Access Control.................................................. 9
Entering & Exiting............................................................ 9
Arming and Disarming with Card..................................... 9
How Access Control Works........................................... 10
Trouble Display.......................................................... 11
Event Record Display.................................................... 11
Additional Features ........................................... ... ... .. 12
Programmable Outputs (PGMs).................................... 12
Keypad Settings............................................................ 12
Set Time & Date............................................................ 12
Programming Chime Zones .......................................... 13
Panic Alarms................................................................. 13
Quick Function Buttons................................................. 13
Testing and Maintenance.......................................... 13
Burglar Alarm Testing.................................................... 13
Fire Alarm Testing......................................................... 13
System Maintenance..................................................... 14
System Test .................................................................. 14
Fire and Burglar Alarms.......................................... .. 14
Standard Fire Zone ....................................................... 14
Delayed Fire Zone ......................................................... 14
Fire Safety Tips.............................................................. 15
Minimizing Home Fire Hazards...................................... 15
Home Fire Warning System........................................... 15
Burglar Alarm................................................................. 15
Voice-Assisted Arm/Disarm Module
Introduction................................................................ 16
Access Codes ............................................................ 16
How Do I Use It?......................................................... 16
Things You Should Know ......................................... 16
When Accessing your InTouch...................................... 16
When Arming or Disarming............................................ 16
When Activating or Deactivating a PGM........................ 16
When Using your InTouch... .......................................... 17
Telephone Button Features ...................................... 17
InTouch Example....................................................... 17
InTouch System Checklist........................................ 18
Index ........................................................................... 20
LCD Keypad 1
1.0 Introduction
Thank you for choosing Paradox Security Systems. Digiplex security systems offer advanced technology and
provide reliable security protection and powerful features that are easy to use. The elegant and user-friendly LCD
keypad allows you easy access to your security system's functions and information at the touch of a button. The 32character LCD screen displays messages and menus to guide you through the system’s operations. Your installer
can even customize the messages for your home or business.
Since you will communicate your instructions to your system through the keypad, please read this manual carefully
and have your installer explain basic system operation.
If you have the InTouch Voice Assisted Arm/Disarm Module (APR3-ADM2) connected to your Digiplex security
system, please refer to page 16 for operating instructions.
1.1 Legend
Indicates a warning or an important note.
Indicates useful information or a tip.
[
SQUARE BRACKETS] Indicates information that must be entered on the keypad.
2.0 Basic Operation
The following sections will introduce you to the roles of the buttons, lights, and messages on your LCD keypad.
Figure 1: Basic Overview
2.1 Auditory Feedback (Beep Tones)
When you enter information on the keypad, the keypad will guide you with beep tones to communicate the
acceptance or rejection of your entries.
Confirmation Beep: When an operation (i.e. arming/disarming) is successfully entered or when the system
switches to a new status/mode, the keypad emits an intermittent beep tone (“
BEEP-BEEP-BEEP-BEEP-BEEP”).
Rejection Beep: When the system reverts to a previous status, or when an operation is incorrectly entered, the
keypad emits a continuous beep tone (“
BEEEEEEEEEEP”).
The LCD screen will guide you
with detailed messages.
Use the arrow buttons to scroll
through the current menu when
the arrows appear in the LCD
screen.
ACTION BUTTONS:
Each button’s function is explained in the following sections of the manual.
STATUS Light:
When Green:
ON = All zones are closed.
OFF = One or more zones are open.
FLASH = Exit Delay
When Red:
ON = Area(s) armed
OFF = Area(s) disarmed
FLASH = System in Alarm
AC Light:
ON = AC power
OFF = Power failure
[CLEAR] = Erases current data entry
or reverts to the preceding step.
[
ENTER] = Saves current data and
exits current menu.
2 System Manager’s Manual
2.2 Confidential Mode
Your installer can program keypads to not display the status of your system automatically by changing the LCD
screen to Confidential Mode. In Confidential Mode:
• The zones and status messages will NOT be displayed
• The indicator lights will NOT illuminate
• Depending on how your keypad was programmed by your installer, you must either press a button or enter your
user access code to illuminate the indicator lights and activate Normal Mode.
2.3 Partitioned System
A separated system is called a Partitioned System, which can be useful in situations where shared security systems
are more practical. Your installer can design your system to recognize up to four separate protected areas. For
example, a company that has both an office area and a warehouse area can arm and disarm each area separately
and control the access to each area.
If you have access to more than one area, and you need to select a specific area(s) when prompted by your LCD
keypad, follow either one of the following three methods to make your selection:
• Press the keypad button corresponding to the area you wish to select (i.e. 1, 2,...4).
•Press the [0] button for all areas.
•Use the [S] and [T] buttons, and press [
ENTER] when the area you want to select appears on the screen.
2.4 Area Status Display
The Area Status Display allows you to view the status of the selected areas in a Partitioned System (for more
information, see section 2.3 on page 2).
To view the Area Status Display:
1. Enter your [
ACCESS CODE], then press the [1] button.
2. Press the button corresponding to the area (i.e. 1, 2,...4), or use the [S] and [T] buttons and press [
ENTER]
when the area you want to view appears on the screen.
3. Press [
CLEAR] to exit.
In Area Status Display mode, the following information will scroll on the LCD screen:
• ready: if all zones in the selected area are closed.
• not ready: if zones in the selected area are open.
• open zones within that area (i.e. “Front Door Open”).
• Trouble(s): (section 7.0 on page 11) if a trouble has occurred.
• Alarms in Memory: (section 4.3 on page 5) if an alarm has occurred.
• Armed; Force Armed; Instant Armed; Stay Armed: displays the arming status of the selected
area.
3.0 Arming
When your system is armed, it can respond to any breach in the protected zones by causing an alarm and sending
a report to your monitoring station.
3.1 Exit Delay Timer
When you arm your system, it will trigger the Exit Delay Timer to provide you with enough time to exit the protected
area before the system is armed.
3.2 Regular Arming
This method is used for the everyday arming of your system. All zones within the protected area must be closed to
Regular arm the system.
To Regular arm the system:
1. Enter your [
ACCESS CODE].
2. Press the [
ARM] button.
3. If you have access to more than one area, select the area(s) you wish to Regular arm (refer to section 2.3 on page 2).
LCD Keypad 3
3.3 Stay Arming
Stay arming partially arms your system, permitting you to remain in your home or office by arming only the outer
zones (perimeter) of the protected area (i.e. doors and windows).
To Stay arm:
1. Enter your [
ACCESS CODE].
2. Press the [
STAY] button.
3. If you have access to more than one area, select the area(s) you wish to St ay arm (refer to section 2.3 on p age 2).
3.4 Instant Arming
This feature is the same as Stay arming except that there is no Entry Delay. Therefore, any armed zone that is
breached will immediately generate an alarm.
To Instant arm:
1. Enter your [
ACCESS CODE].
2. Press the [5] button.
3. If you have access to more than one area, select the area(s) you wish to Instant arm (refer to section 2.3 on
page 2).
3.5 Force Arming
Force arming allows you to quickly arm your system when zones are open. However, once the open zone is closed,
your system will then arm that zone as well.
To Force arm:
1. Enter your [
ACCESS CODE].
2. Press the [
FORCE] button.
3. If you have access to more than one area, select the area(s) you wish to Force arm (refer to section 2.3 on
page 2).
3.6 Bypass Programming
You can bypass certain zones when you arm the protected area(s). When a zone is bypassed, it will be ignored the
next time your system is armed. Once your area is disarmed, the system will unbypass the zone.
To Bypass a zone:
1. Enter your [
ACCESS CODE].
2. Press the [
BYP] button.
3. Enter the zone number (i.e. 01, 02,...48), or use the [S] and [T] buttons and press [
BYP] once the zone you
want to bypass appears on the screen. If bypassed does not appear on the screen and the keypad emits a
rejection beep, you may not have access to bypass that zone.
4. Repeat step 3 until all zones you want to bypass have been selected.
5. Press the [
ENTER] button to save and exit.
In order to bypass a zone, the following conditions must be met:
• The zone must have the Bypass option programmed by the installer.
• Your user access code must be programmed to enable the Bypass option.
• Your user access code must have access to th e zon e’ s Area Assi gnment .
• The zone’s area must be disarmed before the zone can be bypassed.
Fire Zones cannot be bypassed.
3.6.1 Bypass Recall
Bypass Recall reinstates the zones that were bypassed the last time your system was armed.
To activate Bypass Recall:
1. Enter your [
ACCESS CODE].
2. Press the [
BYP] button.
3. Press the
[MEM] button. Zones bypassed the last time your system was armed are bypassed.
4. Press the [
ENTER] button to save and exit.
4 System Manager’s Manual
3.7 One-Touch Buttons
If enabled by your installer, you can access the following features without using your user access code by pressing
and holding the desired One-Touch button.
3.8 Keyswitch Arming
A key can be used to arm and disarm your system using two forms of keyswitches. With a Maintained Keyswitch,
place the key in the “ON” position to arm your system, and place the key in the “OFF” position to disarm your
system. With a Momentary Keyswitch, place the key in the “ON” position briefly then place it back in the “OFF”
position to arm the system. Repeat this process to disarm with a Momentary Keyswitch.
3.9 Auto-Arming
If enabled by your installer, you can set the time that an area will arm itself automatically.
3.9.1 Timed Auto-Arming
Your installer can set Timed Auto-Arming to function in either Force or Stay arming mode. A sixty-second
Exit Delay sequence will begin prior to your system automatically arming itself at the programmed time.
To set the Auto-Arming timer:
1. Enter your [
ACCESS CODE].
2. Press the [0] button.
3. Press the [
MEM] button.
4. If you have access to more than one area, press the area’s
number, or use the [S] and [T] buttons
and press the [
ACC] button when the area you want to program appears on the screen.
5. Enter the time you want the area to be armed according to the 24-hour clock (i.e. 9 a.m. is 09:00 and
9 p.m. is 21:00).
6. Press the [
ENTER] button to save and exit.
3.9.2 No Movement Auto-Arming
Your system can be programmed to send a report to your monitoring station and/or arm the system if
there is no activity in the area during a specified period of time. Your installer can set No Movement AutoArming to function in either Regular or Stay arming mode.
4.0 Disarming
When your system is disarmed, it deactivates any alarms in progress, and it deactivates the zones so the alarm will
not be triggered if zones are breached.
4.1 Entry Delay Timer
Your installer will program designated entry points (i.e. the front door) with an Entry Delay Timer. This delay gives
you time to enter the armed premises and enter your code to disarm your system before the alarm is triggered.
4.2 Disarming an Armed System
You can only disarm an area to which your user access code is assigned. User access codes with the “Arm Only”
(section 5.4 on page 8) option enabled cannot disarm an armed system.
To disarm the system:
1. Enter your [
ACCESS CODE].
2. Press the [
DISARM] button. If you have access to more than one area, select the area(s) you wish to disarm
(refer to section 2.3 on page 2).
Button Feature Button Feature
[
ARM] Regular arm [DISARM] Disarm a Stay/Instant armed area
[
STAY] Stay arm [5] Instant arm
[
FORCE] Force arm [6] Change display settings
[
BYP] Bypass Programming [7] View Event Record display
LCD Keypad 5
To disarm a system in alarm:
1. Enter your [
ACCESS CODE].
2. In the case of a false alarm, call your monitoring station quickly to advise them of the false alarm.
In the case of a burglar alarm, leave the premises and call the Police from a safe place.
4.3 Alarm Memory Display
Your system will record all of the alarms that occurred during the last armed period. The zones in alarm will remain
in the Alarm Memory until the next time that area is armed.
When an alarm has occurred, the LCD screen will display Alarms in Memory [mem] to View.
1. Press the [
MEM] button. Each zone that was breached while armed will appear below Alarm in:.
2. Press the [
CLEAR] button to exit the Alarm Memory Display.
5.0 Access Codes
Access Codes allow access to the system. Your system supports up to 96 user access codes. Codes are given a
User Number between 02 and 96 (User Number 01 is the System Master Code). Your installer will program user
access codes to be four, six, or variables of one to six digit s in length. Each digit can be any value between zero an d
nine. If your installer programmed your system to accept a variable code length, you have to press the [
ENTER]
button after entering your user access code.
5.1 System Master Code (Default: 123456)
The System Master Code will give you access to all the features available on your system, as well as the ability to
add, modify, or delete any user access codes. We suggest that you change this code to prevent others from
accessing and changing options without authorization. Y our insta ller can set the System Master Code to be either 4
or 6 digits in length.
To change the System Master Code:
1. Enter the current [
SYSTEM MASTER CODE] (Default: 123456).
2. Press the [0] button.
3. Press the [
ACC] button.
4. Enter the number [01].
5. Enter a [
NEW CODE].
6. Press the [
ENTER] button to save and exit.
The System Master Code has access to all Access Control Doors and all Access Control
features at all times. Only the card’s serial number and the choice of arming method can be
changed. If the other options are manually changed, the System Master Code will immediately
revert to its original programming.
5.2 Deleting User Access Codes
To delete user access codes, follow steps 1 to 5 in Figure 2 on page 6, but press the [CLEAR] button in step 5. Once
the information is erased, press the [
ENTER] button to save and exit.
5.3 Programming User Access Codes

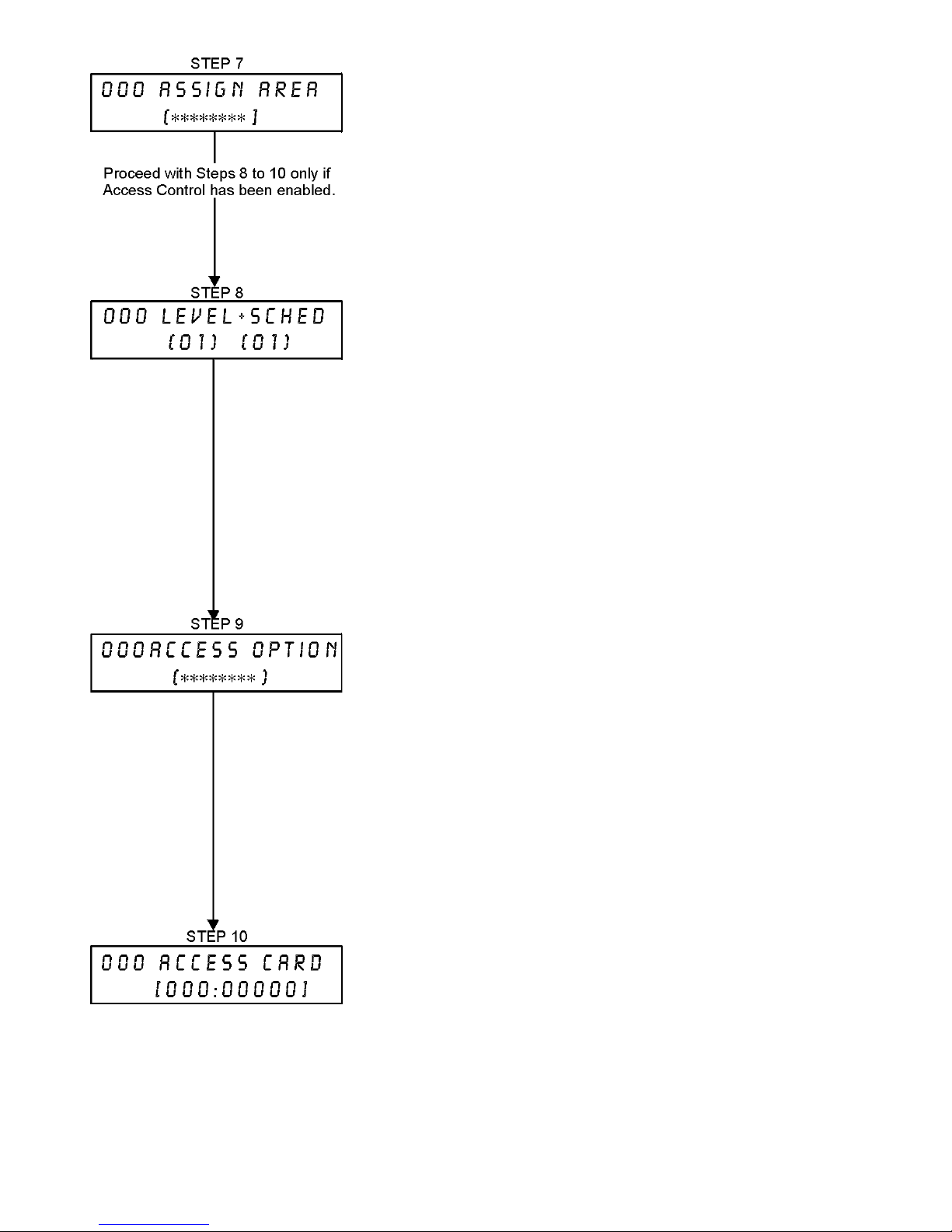

The System Master and users with the Master feature can program user access codes with User Options and Area
Assignments. Figure 2 on page 6 describes the steps you would follow to program user access codes.
If the keypad emits a rejection beep at any point during the programming procedure, you may have chosen an
existing user code or you do not have access to certain User Options (section 5.4) and Area Assignments (step 7 in
Figure 2 on page 6). Users with the Master feature can only assign User Options and Area Assignments that they
are assigned to. For example, if a user with the Master feature is assigned User Option 1 and Area 2, they can only
assign Options 1 and Area 2 to a user access code.
Loading...
