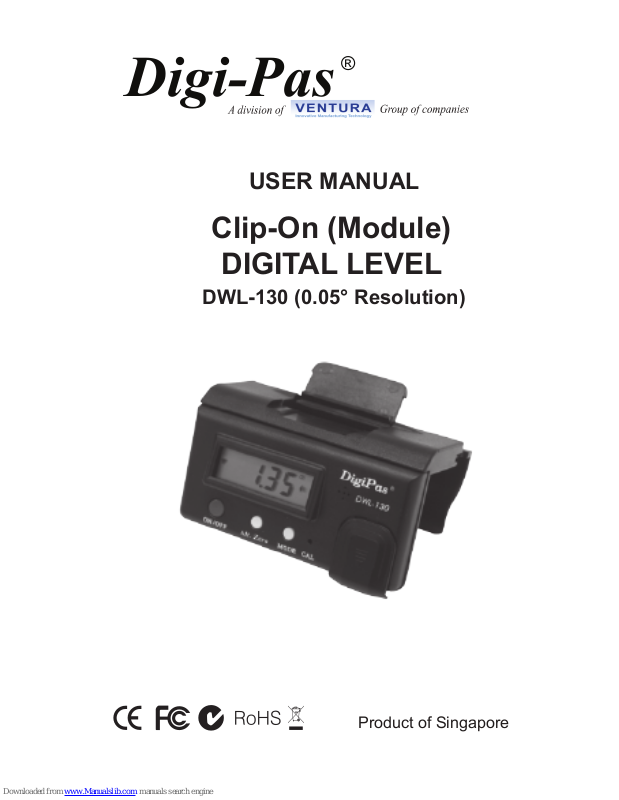

Product of Singapore
Clip-On (Module)
DIGITAL LEVEL
USER MANUAL
Digi-Pas
®
DWL-130 (0.05° Resolution)
Buzzer sound
Device Overview :
Adjustable Clip
Locking Flip
LCD Display
MODE SELECT :
- Press to change display unit
: °(Degree), %slope, mm/M, In/Ft
- Press & Hold to freeze Display value
CAL: Activate Calibration Mode
ON/OFF : Power on/o
device
Alt.Zero :
- Set any angle to 0° as reference
- Press & Hold to turn on/o buzzer sound
Dimension : 95 x 48 x 22mm
Weight : 110 Grams
Operating Temp : 0° ~ +50°(Celcius)
Storage Temp : -10° ~ +60°(Celcius)
Battery : 2 x CR2032 (3V)
Technical Specification
Cleaning
• Keep the level dry and clean. Remove
any moisture or dirt with a soft, dry cloth.
• Do not use harsh chemicals, strong
detergents or cleaning solvents to clean
the level.
• Do not submerge device in water while
cleaning .Wiping or cleaning on device
surface is sufficient
Battery Compartment
Push down the battery cover to slide open.
For the rst time usage, remove the plastic strip to
connect the battery
Caution
Digi-Pas device is calibrated in the factory for maximum
accuracy. User can re-calibrate when necessary.
Please refer to www.digipas.com for video demonstration
on how to calibrate the device.
®
Clip the device to a spirit level, make sure the device is
securely cliped on the level, turn on the device then press
‘CAL’ button once the screen will display flashing “CAL1”.
Place the device on a flat and clean surface, press
“MODE” button once, the screen will display countdown,
wait until screen countdown reach “0” and show “CAL2”.
Rotate the device (180°) parallel to the surface then press
“MODE” button again, the screen will display countdown,
wait until screen countdown reach “0” and show “CAL3”.
Position the device vertically (-90°) on a level surface,
press “MODE” button again, the screen will display
countdown, wait until screen countdown reach “0” and
show “CAL4”.
Rotate the device 180° parallel vertically to the surface
(+90°) then press “MODE” button again, the screen will
display countdown, wait until screen countdown reach “0”.
Calibration Done.
1.
2. a
b
c
d
3.
Calibration Instruction
Note: Ensure the device is kept still during calibration
Calibration Illustration
