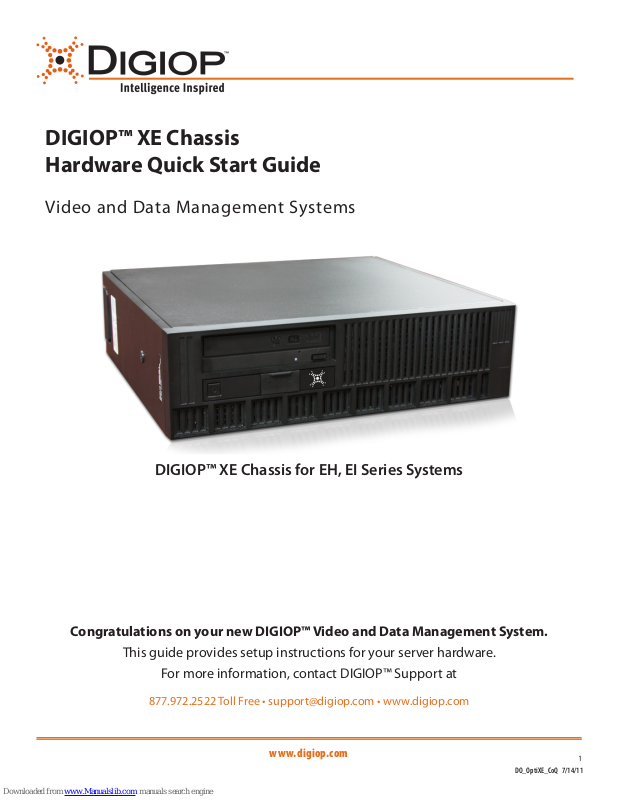

DIGIOP™ XE Chassis
Hardware Quick Start Guide

Video and Data Management Systems

DIGIOP™ XE Chassis for EH, EI Series Systems

Congratulations on your new DIGIOP™ Video and Data Management System.

This guide provides setup instructions for your server hardware.

For more information, contact DIGIOP™ Support at

877.972.2522 Toll Free • [e-mail] • www.digiop.com

www.digiop.com

DO_OptiXE_CoQ 7/14/11

1

1. Getting Started

Unpacking the Contents

The following are included with your system. Please inspect
these and the other system components while unpacking.

• Quick Start Guide

• Surge Protection Notice

• Mouse/Keyboard

• Video Input Cables (EH Series systems only)

• RS232 PTZ Control Cable

• Application DVD

• Recovery DVDs

• Power Cord

Choose a Proper Location

Select a location for the system that meets the following
requirements.

Notice: Excessive heat can shorten the life of electronics.

• Adequate ventilation to avoid excessive heat (climate

controlled environment)

• Uninterrupted Power Supply (UPS)

• Moisture-free environment

• A place away from direct sunlight

• An area with minimal dust or debris

Site Installation

Hardware Setup – Connect all input devices and external peripherals to the system. Please refer to the diagrams in regard to
what should be connected to your system.

• Indoor & Outdoor Camera(s)

• VGA Monitor

• Spot Out Monitor

• PTZ Camera(s) - Optional

• Audio in

• Speakers - Optional

• Ethernet

• Mouse

• Keyboard

• Relays and I/O

• Cash Register (RS 232) - Optional

• Power Cord

Notice: For proper indoor and outdoor cameras an in-line surge suppressor or equivalent should be used to reduce exposure to

surges and lightning strikes.

2. About Your System

Front View

2 31 4

5678

2

1. Drive activity light

2. Network activity light

3. Network activity light

4. DVD drive bay

5. USB 2.0 connectors (2)

www.digiop.com

6. External power button

connector

7. Diagnostic lights (4)

8. Power button, power light

Back View

2

1

1. Power supply diagnostic button

3

2. Power supply diagnostic light

4

5

3. Cover release latch

5. Security cable slot

6. Power cable connector

7. Back-panel connectors (see below)

4. Padlock rings

678

8. Expansion-card slots (4)

Back Panel Connectors

2 31 4 5 6 7 8

12131415

*NOTICE: Using the DisplayPort for video may require an optional adapter to connect to older monitors which only support VGA and/or DVI

(available at www.dell.com).

When connecting to a DisplayPort monitor or adapter, multi-monitor capability of the system is not be available during boot or when running DOS.
Output will be limited to the DisplayPort monitor only. When the system is booted to Windows and the graphics driver is loaded, multi-monitor support will

be fully functional.

1. Serial connector

2. Link-integrity light

9

3. Network connector

10

4. Network activity light

5. Link-integrity light

11

6. Network connector

7. Network activity light

8. Serial connector

9. PS/2 mouse connector

10. Line-out connector

11. Line-in connector

12. PS/2 keyboard connector

13. VGA video connector*

14. USB (4)

15. DisplayPort connector*

Expansion-card Slots

EI Series systems: No expansion cards are included.

EH Series Systems Expansion-card Slots

Video In

DVI Connector

EH only

Audio Inputs

Ch1 - CH4

(bottom to top)

EH30 Only

www.digiop.com

Sensors & Controls:
Output 1
Output 2
Ground
Input 1
Input 2

Input 3

Input 4
Ground

TRX+
TRX­RX+
RX-

3

3. Setting Up Your System

1. Connect the monitor using a VGA cable.

2. Connect a USB device, such as a keyboard or mouse.

3. Connect the network cable.

4. Connect the power cable(s).

5. For hDVR systems, connect the video adapter cable(s) to the video capture board.

6. Press the power buttons on the monitor and the computer.

8/16 Channel Systems

Copyright ©2011 DIGIOP, Inc. • Indianapolis, IN • tel: [phone] • fax: [phone] • support: 877.972.2522 • www.digiop.com
