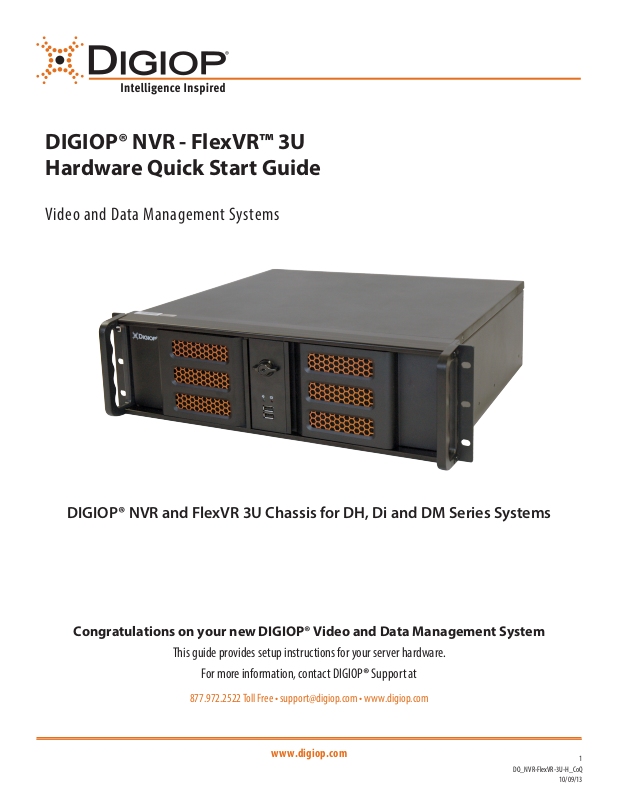

DIGIOP® NVR - FlexVR™ 3U
Hardware Quick Start Guide
Video and Data Management Systems
DIGIOP® NVR and FlexVR 3U Chassis for DH, Di and DM Series Systems
Congratulations on your new DIGIOP® Video and Data Management System
This guide provides setup instructions for your server hardware.
For more information, contact DIGIOP® Support at
877.972.2522 Toll Free • support@digiop.com • www.digiop.com
www.digiop.com
DO_NVR-FlexVR-3U-H_CoQ
1
10/09/13
1. Getting Started
Unpacking the Contents
The following are included with your system. Please inspect these and the other system
components while unpacking.
• Quick Start Guide
• Surge Protection Notice
• Video adapter dongle (DH and DM series systems only)
• Rail brackets and handles for rack mounting
• Rubber feet for desktop use
• USB Flash Drive loaded with backup image
• Power cord
Choose a Proper Location
Select a location for the system that meets the following requirements.
NOTICE: Excessive heat can shorten the life of electronics.
• Adequate ventilation to avoid excessive heat (climate-controlled environment)
• Uninterrupted Power Supply (UPS)
• Moisture-free environment
• A place away from direct sunlight
• An area with minimal dust or debris
Site Installation
Hardware Setup – Connect all input devices and external peripherals to the system. Follow the order of connections displayed in Step 3.
• Indoor & Outdoor Camera(s)
• VGA Monitor
• Spot Out Monitor
• PTZ Camera(s) - Optional
• Audio in
• Speakers - Optional
NOTICE: For proper indoor and outdoor cameras an in-line surge suppressor or equivalent should be used to reduce exposure to surges and lightning strikes.
• Ethernet
• Mouse
• Keyboard
• Relays and I/O
• Power Cord
2. About Your System
Front View
* Front panel Power and Reset switches are located behind the left access door.
2
Maintenance access door (2)*
Rail brackets
and handle
Maintenance access
door knob (with lock)
Power on LED
USB 2.0 ports (2)
www.digiop.com
HDD activity LED
Rail brackets
and handle

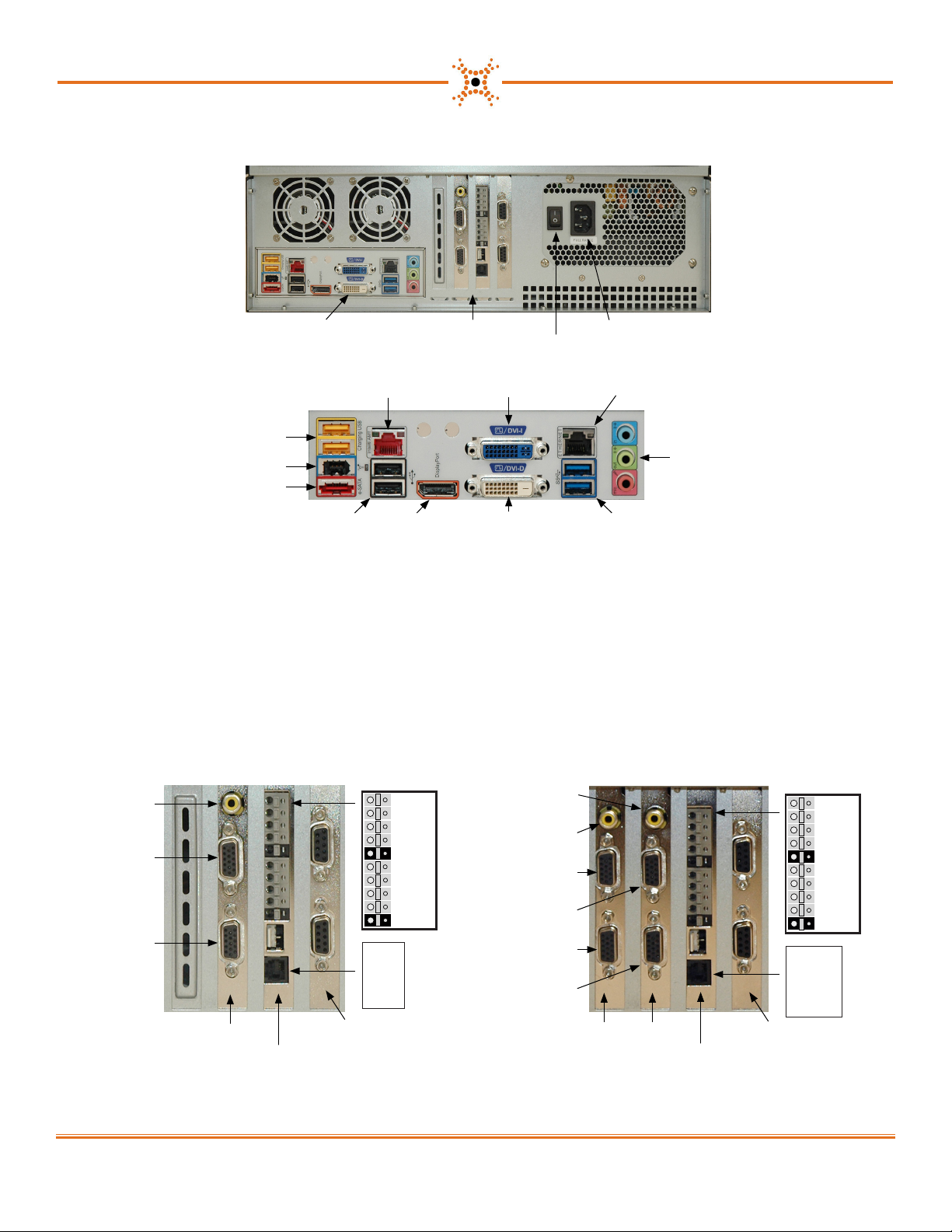

Back View
Back panel Power cable connectorExpansion cards
Power On / O switch
Intel® AMT port
DVI-I* monitor port
Ethernet RJ-45 port
Back Panel
Charging USB
ports (2)
1394 port
e-SATA p ort
DisplayPort**
* DVI-I port with a DVI to VGA adapter can connect to a VGA monitor.
** Using the DisplayPort for video may require an optional adapter to connect to older monitors which only support VGA and/or DVI. When connecting to
a DisplayPort monitor or adapter, multi-monitor capability of the system is not available during boot or when running DOS. Output will be limited to the
DisplayPort monitor only. When the system is booted to Windows and the graphics driver is loaded, multi-monitor support will be fully functional.
DVI-D monitor
port
USB 3.0 (SS) ports (2)USB 2.0 ports (2)
Line-in,
Line-out,
Mic-in
connectors
Expansion Cards
The Di32 series chassis has no expansion c ards.
The DM32 series chassis has one expansion card: Video capt ure card with CH 1 - 16 in and Spot out 1, 2.
DH16 Series Expansion Cards DH32 Series Expansion Cards
Spot out
Ch 9 - 16 in
Ch 1 - 8 in
Video capture card
Sensor and Control,
RS485 Terminals
Control 1
Control 2
Control 3
Control 4
Ground
Sensor 1
Sensor 2
Sensor 3
Sensor 4
Ground
RS485
TX+
TX–
RX+
RX–
Audio capture card:
Upper: Ch 9 - 16 in
Lower: Ch 1 - 8 in
Spot out
(Ch 1 - 16)
Spot out
(Ch 25 - 32)
Ch 25 - 32 in
Ch 9 - 16 in
Ch 17 - 24 in
Ch 1 - 8 in
Video capture cards
Sensor and Control,
RS485 Terminals
Control 1
Control 2
Control 3
Control 4
Ground
Sensor 1
Sensor 2
Sensor 3
Sensor 4
Ground
RS485:
TX+
TX–
RX+
RX–
Audio capture card:
Upper: Ch 9 - 16 in
Lower: Ch 1 - 8 in
www.digiop.com
3

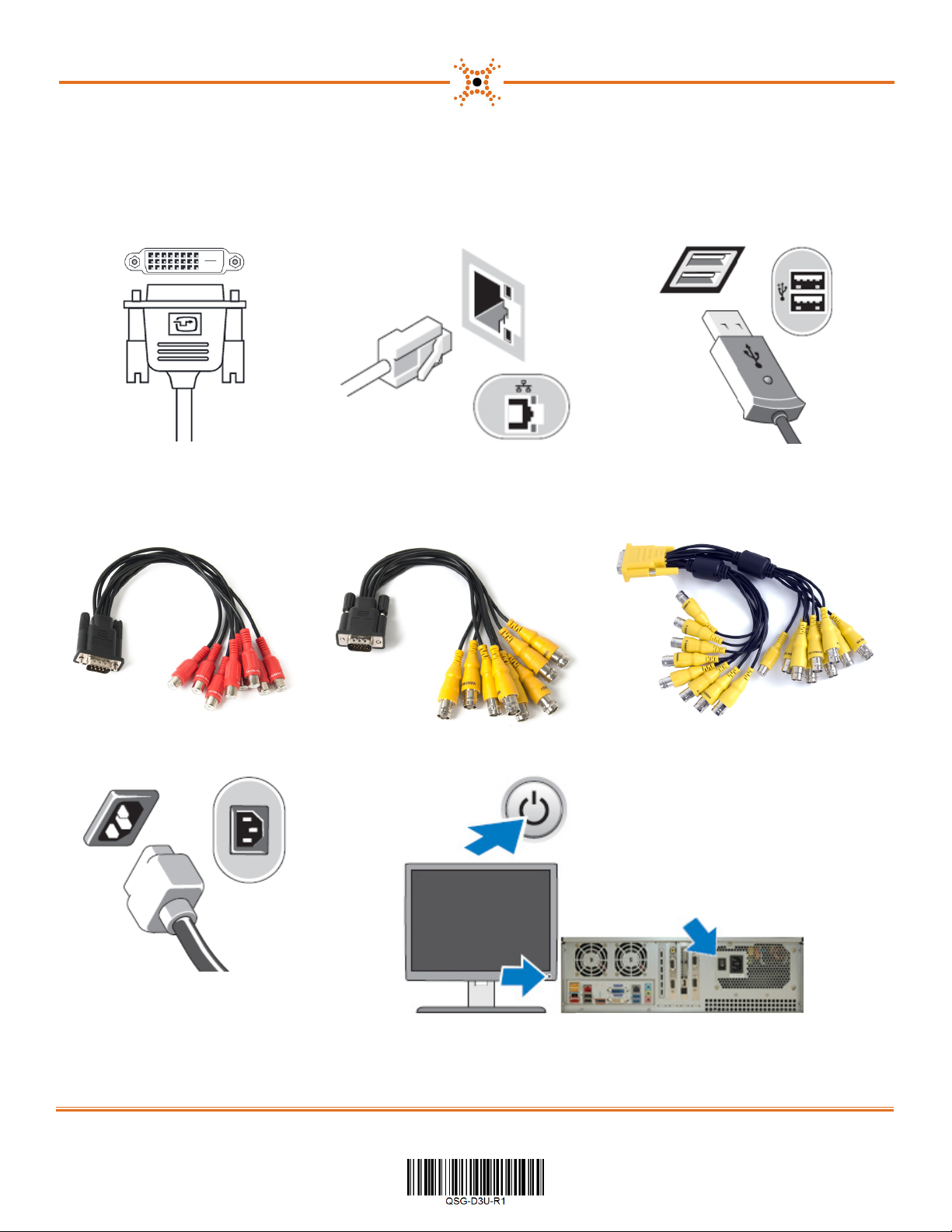

3. Setting Up Your System
1. Connect a monitor(s) to any of the following:
DVI-I, DVI-D, DisplayPor t
4. Connect analog video and audio cables to the ex pansion cards.
DH16 and DH32: Connect the re d/black (audio) dongles to the audio c apture card connectors.
Connect the yellow/black (video) dongles to the video capture c ard connectors.
Audio connector dongle (with DB9 connector) Video connector dongle (with DB15 connector)
2. Connect the network cable to the Ethernet port. 3. Connect the keyboard and mouse to the
USB 2.0 connectors
DM16: Connect the yellow/black video dongle (with DVI-style
connector) to the video capture card.
5. Connect the power cable 6. Press the power button on the monitor and computer.
NOTE: A chassis power switch is also located behind the maintenance access door.
