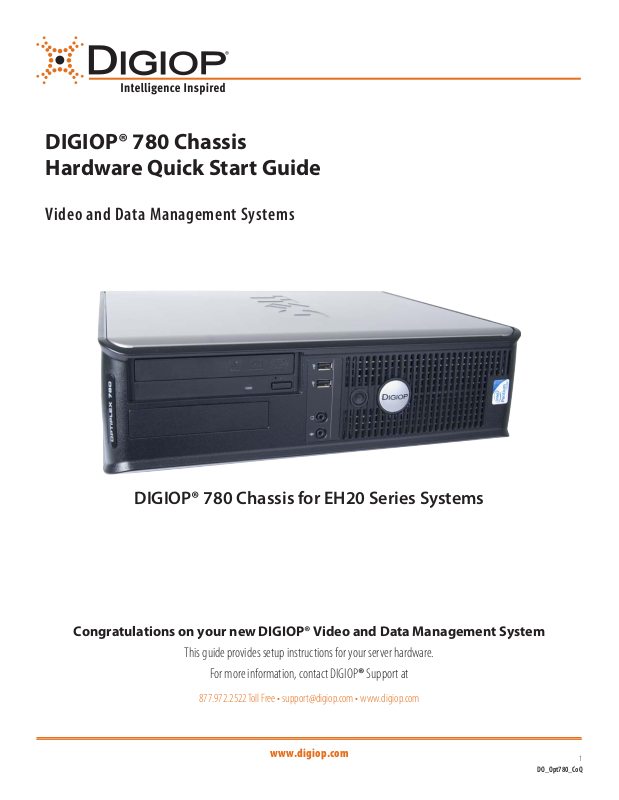

DIGIOP® 780 Chassis Hardware Quick Start Guide

Video and Data Management Systems

DIGIOP® 780 Chassis for EH20 Series Systems

Congratulations on your new DIGIOP® Video and Data Management System

This guide provides setup instructions for your server hardware.

For more information, contact DIGIOP® Support at

877.972.2522 Toll Free • [email protected] • www.digiop.com

www.digiop.com

DO_Opt780_CoQ

Page 2

1. Getting Started

Unpacking the Contents

The following are included with your system. Please inspect these and t he other system components while unpacking.

• Quick Start Guide

• Surge Protection Notice

• Mouse/Keyboard

• Video Input Cable

• RS232 PTZ Control Cable

• Application DVD

• Recovery DVDs

• Power Cord

Choose a Proper Location

Select a location for the system that meets the following re quirements.

NOTICE: Excessive heat can shorten the life of electronics.

• Adequate ventilation to avoid excessive heat (climate-controlled environment)

• Uninterrupted Power Supply (UPS)

• Moisture-free environment

• A place away from direct sunlight

• An area with minimal dust or debris

Site Installation

Hardware Setup – Connect all input devices and external peripherals to the system. Follow the order of connections displayed in Step 3.

• Indoor & Outdoor Camera(s)

• VGA Monitor

• Spot Out Monitor

• PTZ Camera(s) - Optional

• Audio in

• Speakers - Optional

NOTICE: For proper indoor and outdoor cameras an in-line surge suppressor or equivalent should be used to reduce exposure to surges and lightning strikes.

• Ethernet

• Mouse

• Keyboard

• Relays and I/O

• Power Cord

2. About Your System

Front View

9528

1. Optical drive

2. Optical disk eject button

3. USB 2.0 connectors (2)

4. Drive activity light

5. Power button, power light

6. Diagnostic lights (4)

7. Network connectivity light

8. Microphone connector

9. Headphone connector

www.digiop.com

Page 3

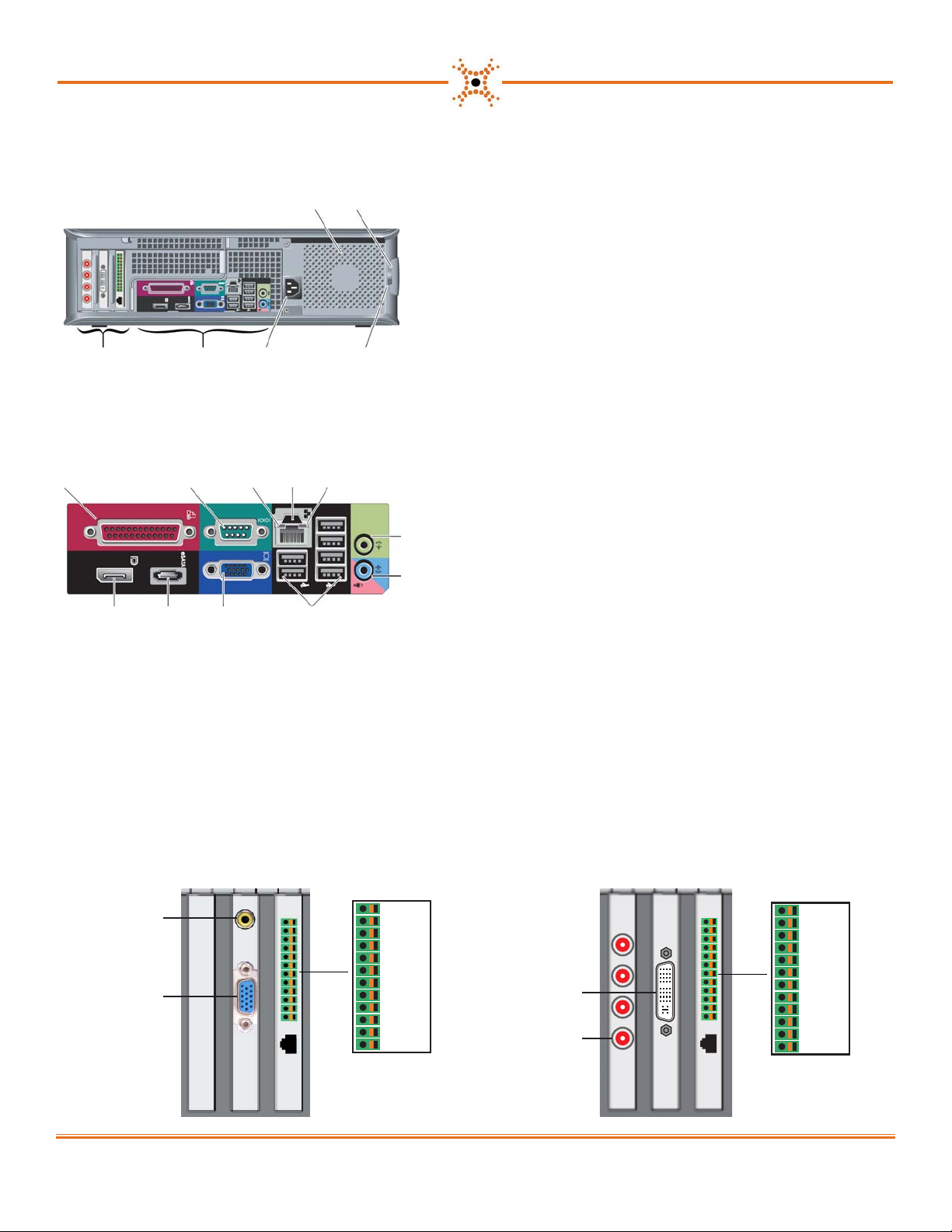

Back View

1 2

1. Padlock ring

2. Cover release latch

3. Security cable slot

4. Power cable connector

5. Back-panel connectors (see below)

6. Expansion-card slots (3)

3456

Back Panel

2 3

4 5

891011

1. Parallel connector

2. Serial connector

3. Link integrity light

4. Network connector

5. Network activity light

7. Line-in / microphone connector

8. USB connectors (6)

9. VGA connector

10. eSATA connector

11. DisplayPort*

6. Line-out connector

*NOTICE: Using the DisplayPort for video may require an optional adapter to connect to older monitors which only support VGA and/or DVI (available at www.

dell.com).

When connecting to a DisplayPort monitor or adapter, multi-monitor capability of the system is not available during boot or when running DOS. Output will be limited to the DisplayPort monitor only. When the system is booted to Windows and the graphics driver is loaded, multi-monitor support will be fully functional.

Expansion Cards

EH2004 Expansion Cards EH2008 / EH2016 Expansion Cards

Spot Out

Connector

Video In

Connector

Output 1 Output 2 Ground Input 1 Input 2 Input 3 Input 4 Ground TRX + TRX − RX + RX −

Video In

Connector

Audio

Inputs

CH1 - CH4

(bottom

to top)

Output 1 Output 2 Ground Input 1 Input 2 Input 3 Input 4 Ground TRX + TRX − RX + RX −

www.digiop.com

Page 4

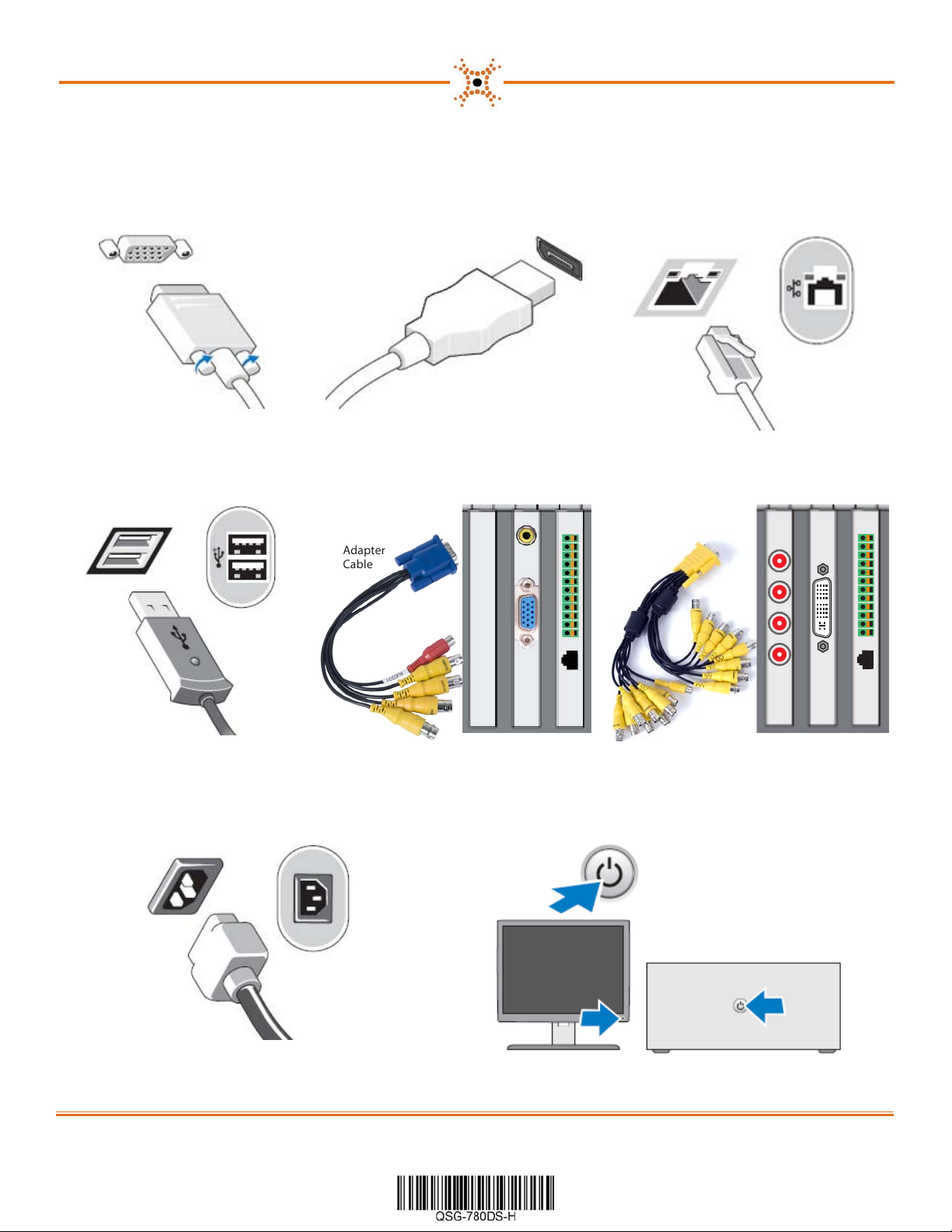

3. Setting Up Your System

1. Connect the monitor using one of the two met hods 2. Connect the network cable.

a. Using the VGA port. b. Using the DisplayPort.

3. Connect the USB key board and mouse 4. a. For EH2004 s ystems, connect the vide o adapter cable to the capture card. NOTE: AUDIO IN (audio input) is not supported.

Video In Adapter Cable

5. Connect the p ower cable 6. Press the power bu tton on the monitor and computer.

b. For EH2016 systems, connec t the video adapter cable(s) to the capture card.

Video In Adapter Cable
