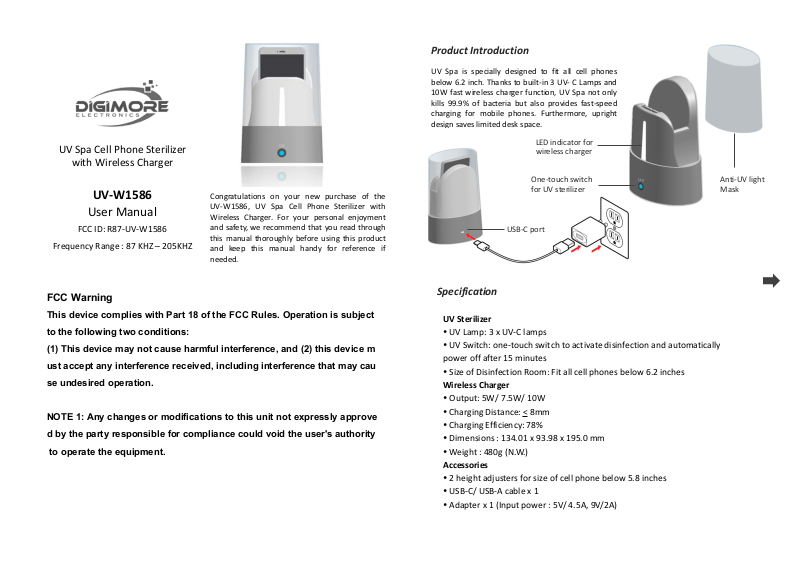

Digimore Electronics UV W1586 User Manual

Product Introduction

g

UV Spa is specially designed to fit all cell phones
below 6.2 inch. Thanks to built‐in 3 UV‐ C Lamps and
10W fast wireless charger function, UV Spa not only
kills 99.9% of bacteria but also provides fast‐speed
charging for mobile phones. Furthermore, upright

n saves limited desk space.

desi

UV Spa Cell Phone Sterilizer

with Wireless Charger

UV‐W1586

User Manual

FCC ID: R87‐UV‐W1586

Frequency Range : 87 KHZ – 205KHZ

FCC Warning

This device complies with Part 18 of the FCC Rules. Operation is subject

to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device m

ust accept any interference received, including interference that may cau

se undesired operation.

NOTE 1: Any changes or modifications to this unit not expressly approve

d by the party responsible for compliance could void the user's authority

to operate the equipment.

Congratulations on your new purchase of the
UV‐W1586, UV Spa Cell Phone Sterilizer with
Wireless Charger. For your personal enjoyment
and safety, we recommend that you read through
this manual thoroughly before using this product
and keep this manual handy for reference if
needed.

LED indicator for
wireless charger

One‐touch switch
for UV sterilizer

USB‐C port

Specification

UV Sterilizer

 UV Lamp: 3 x UV‐C lamps
 UV Switch: one‐touch switch to activate disinfection and automatically

power off after 15 minutes
 Size of Disinfection Room: Fit all cell phones below 6.2 inches

Wireless Charger

 Output: 5W/ 7.5W/ 10W
 Charging Distance: <
 Charging Efficiency: 78%
 Dimensions : 134.01 x 93.98 x 195.0 mm
 Weight : 480g (N.W.)

Accessories

 2 height adjusters for size of cell phone below 5.8 inches
 USB‐C/ USB‐A cable x 1
 Adapter x 1 (Input power : 5V/ 4.5A, 9V/2A)

8mm

Anti‐UV light
Mask

LED Indication

Sterilizer Your Device

White LED Green LED

Flash one time

Power On Flash Flash

at the same
time

Charging On Off

Charge Completed Off On

While charging

Samsung Cell
phone only

Over Voltage Off Off

Safety
Protection

Low Voltage Flash Off
Over Current Flash 2 times Flash 1 time
Over Temperature Flash 4 times Flash 1 time
Receiver Abnormal Off Flash

UV Switch Blue LED in solid and power off after 15 minutes

Charging Your Device

1. Remove Anti‐UV mask and place your Qi enabled cell phone
in disinfection room.

2. The white LED indicator is solid if UV‐W1586 detect device.

Finding Your Charging Spot

In case of UV‐W1586 not detect your cell phone,
put a height adjuster in guild slot. There are 2
height adjusters, one for 5.8” and one for 4.7”.

TroubleShooting

Ensure that no metal objects or metallic material interferes with wireless

charger. If your case or back cover accessory contains metal material, please

remove before charging.

It is highly recommended to put anti‐UV mask back to the base of UV‐W1586

before sterilizering your cell phone.

Touch UV switch to activate disinfection and blue
LED is On. The sterilizer will be automatically off
after 15 minutes.

Care and Maintenance

 Keep Device Dry. Do NOT expose the device to
liquids. If device gets wet, immediately unplug it and
allow it to dry.

 Do not disassembly or attempt repair.
 Use device under temperature only between 0 ~ 45

IMPORTANCE

(How to output 5W/ 7.5W/ 10 W?)

Output Power Adapter Type Compatible Device

It is compatible with any
Qi‐enabled cell phones

5W

7.5W

10W

How to work with 5W
wireless charging power?

How to work with 7.5W
wireless charging power
(Max output power up to

7.5W fast wireless
charging standard)?
How to work with 7.5W
wireless charging power
(Max output power up to
10W fast wireless
charging standard)?

ALL BRAND NAMES, TRADEMARKS AND LOGOS ARE THE PROPERTIES OF THEIR

RESPECTIVE OWNERS.

Using 5V, 4.5A adapter

Using QC 2.0/QC3.0 fast
charging adapter, 9V 2A

Using QC 2.0/QC3.0 fast
charging adapter, 9V 2A

below 6.2 inch, like iPhone
8/ iPhone 8 Plus/ iPhone X;
Samsung S6, Samsung S10
and so on.
It is only compatible with
iPhone 8/ iPhone 8 plus,
iPhone X, iPhone XR, iPhone
XS, iPhone 11, iPhone 11
Pro,
It is only compatible with
fast charging cell phones
below 6.2 inch, like Samsung
Galaxy S10 series and Note 5

o

C
