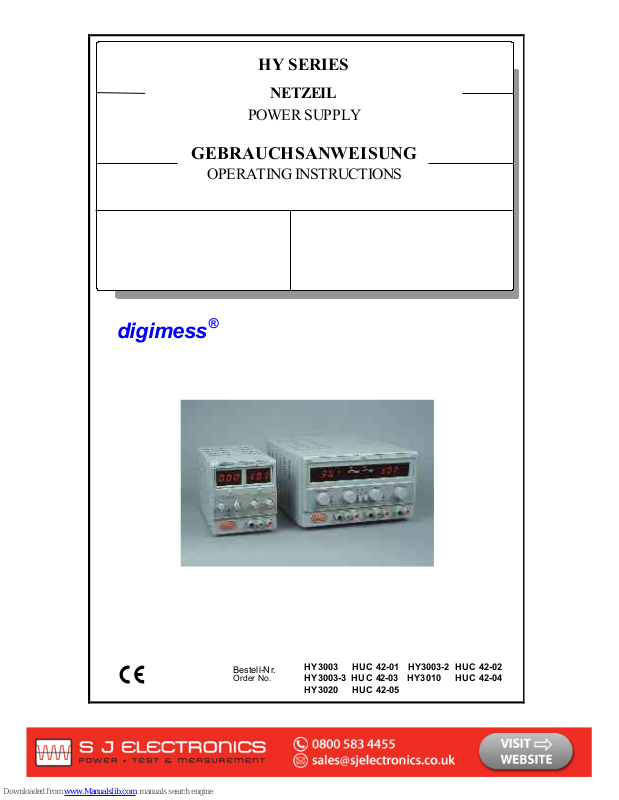

digimess HY3003, HY3003-2, HUC 42-02, HUC 42-01, HUC 42-03 Operating Instructions Manual [de, en]

...
Page 1
1
HY3003 HUC 42-01 HY3003-2 HUC 42-02 HY3003-3 HUC 42-03 HY3010 HUC 42-04 HY3020 HUC 42-05
®
GEBRAUCHSANWEISUNG
OPERATING INSTRUCTIONS
Bestell-Nr.
Order No.
NETZEIL
POWER SUPPLY
HY SERIES
Page 2
Copyright 2003
Änderungen und Irrtümer vorbehalten.
Nachdruck, auch auszugsweise, nur mit schriftlicher Genehmigung des Herstellers.
Alle Rechte vorbehalten.
Subject to alterations, errors excepted.
Reprints, also in extracts, are only allowed with written permission of the manufacturer.
All rights reserved.
2
Page 3
HY Series Power Supplies
Operating Instructions
1.0 Mains Connection
The design of the unit meets the requirements of safety class I according to EN 61010-1, i.e. all metal parts accessible from outside and exposed to contact are connected with the protective conductor of the supply network. Power is supplied via a mains cable with earthing contact.
1.1Installing the power supply
The power supply should not be operated close to equipment that develops heat. To protect the power supply from thermal overload the air vents must not be covered and a free space of about 10 cm should be ensured.
1.2Switching on
The power supply is switched on using the power switch at the front. The power switch separates the unit completely from the primary side of the transformer. Refer to para 3.1 and 3.2 for correct mains voltage and fuse settings.
1.3EMC
The power supply is interference-free according to EN 50081-1 and EN 50081-2. In order to fulfil the limit values in line with present standards, it is absolutely necessary that only cables which are in perfect condition be connected to the unit.
1.4Inspection and Maintenance
If service is needed, due attention should be paid to the regulations according to VDE 0701. The power sup­ply should only be repaired by trained personnel.
3
Page 4
1.5Warranty
The perfect working order of the power supply is guaranteed for 12 months as from delivery. There is no warranty for faults arising from improper operation or from changes made to the power supply or from inappropriate application. If a fault occurs please contact or send your power supply to:
The power supply should be sent in appropriate packing - if possible in the original packing. Please enclose a detailed fault report (functions working incorrectly, deviating specifications and so on) including unit type and serial number. Would you also kindly verify warranty cases by enclosing your supply delivery note. Any repairs carried out without reference to a valid warranty will initially be at the owner’s expense. Should the warranty have expired, we will, of course, be glad to repair your power supply as per our General Terms Of Assembly And Service.
1.6Description
The digimess
®
HY series is a comprehensive range of low cost general purpose linear power supply units containing single, dual and triple output models. All models can operate in either constant voltage or constant current modes and feature large red LED displays for ease of viewing. The dual and triple output types also include external switching for independent, tracking, series and parallel modes of operation.
2Technical Data
2.1General Data
Nominal temperature: + 23 °C 1 1 °C
Operating temperature: + 5°C to + 40 °C Relative humidity: 20 to 80 % Atmospheric pressure: 70 to 106 kPa
Operating position: horizontal or inclined by 115 °
Operating voltage: sinusoidal alternating voltage (distortion factor < 5 %)
115/230 V (+ 10 %/− 15 %)
Frequency: 50 to 60 Hz (1 5 %)
Safety class: 1, according to EN 61010 Part 1 Radio interference suppression: EN 55011 Class B
4
Agents details :
Page 5
2.2Specifications
Specification
Model No HY3003 HY3003-2 HY3003-3 HY3010 HY3020
Order No HUC42-01 HUC42-02 HUC42-03 HUC42-04 HUC42-05
No of outputs Single Dual Triple Single Single
Output voltage 0-30V 2 x 0-30V 2 x 0-30V, 5V 0-30V 0-30V
Output current 0-3A 2 x 0-3A 2 x 0-3A, 3A 0-10A 0-20A
Line regulation <0.02% + 1mV <0.02% + 1mV <0.02% + 1mV <0.02% + 3mV <0.02% + 3mV
Load regulation <0.01% + 5mV <0.01% + 5mV <0.01% + 5mV <0.02% + 10mV <0.02% + 25mV
Ripple & noise <1mVrms <1mVrms <1mVrms <3mVrms <3mVrms
Display 2 x 3.5 digit LED
Accuracy : V - 1.0% + 2 dig I - 1.5% + 2 dig
2 x 3.5 digit LED Accuracy : V - 1.0% + 2 dig I - 1.5% + 2 dig
2 x 3.5 digit LED Accuracy : V - 1.0% + 2 dig I - 1.5% + 2 dig
2 x 3.5 digit LED Accuracy : V - 1.0% + 2 dig I - 1.5% + 2 dig
2 x 3.5 digit LED Accuracy : V - 1.0% + 2 dig I - 1.5% + 2 dig
Input voltage 110/220V +/- 10% AC (external selector switch) Dimensions 291 x 158 x
136mm
365 x 265 x 164mm
365 x 265 x 164mm
365 x 265 x 164mm
365 x 265 x 164mm
Weight 4kg 10kg 11kg 10kg 20kg
5
Page 6
3.0 Operating instructions
3.1 Mains input
The mains input connector is located on the rear of the unit. Before connecting to the mains supply the user should verfy that the unit is set to the correct voltage for the country of use. The mains voltage is set by the external mains voltage selector switch located on the rear of the unit.
3.2 Mains input fuse
The mains fuse is located on the rear of the unit. The correct fuse for each supply voltage is as follows :
Model 110Vac 220Vac
HY3003 T4A 250V T2A 250V HY3003-2 T6.3A 250V T3.15A 250V HY3003-3 T6.3A 250V T3.15A 250V HY3010 T10A 250V T5A 250V HY3020 T15A 250V T8A 250V
3.3 Power on/off
The mains power to the unit is switched on and off using the POWER on/off pushbutton.
3.4 Voltage and current display
Single output models - HY3003, HY3010 and HY3020 feature independent displays for both output voltage and output current. Multiple output models - HY3003-2 and HY3003-3 feature a single display for each adjustable output and can be switched to display either output voltage or output current.
3.5 Single output unit or multple output unit in Independent mode
For multple output units, Independent mode is set by selecting the two Tracking switches to the Independent postion. The output voltage is adjusted to the desired value using both the Coarse and Fine (if fitted) Voltage controls. The output current level is adjusted to the desired value usng both the Coarse and Fine (if fitted) Current controls. If the output current exceeds the set current value the power supply will limit the output current to the set value.
3.6 Multiple output unit in Series mode
Multple output units can be set to Series mode by selecting the two Tracking switches to the Series position. The output voltage is set by the Master Voltage control and the Slave output will track the Master output voltage level. Current adjustment is independent and requires the Slave output current setting to be high enough otherwise tracking will not occur as the Slave output will current limit. In this mode the +ve terminal of the Slave output should be connected with a thick wire to the –ve output terminal of the Master to avoid damage to the unit in the event of an overload. In this mode the maximum output voltage is the sum of the Master and Slave output voltages.
6
Page 7
3.7 Multiple output unit in Parallel mode
Multiple output units can be set to Parallel mode by selecting the two Tracking switches to the Parallel positi­on. The output voltage is set by the Master Voltage control and the Slave output will track the Master output voltage level. Current adjustment is achieved using the Master Current control and the Slave current control has no effect. In this mode the +ve terminal of the Master output should be connected to the +ve terminal of the Slave output, the –ve terminal of the Master output should be connected to the -ve terminal of the Slave output with a thick wire to avoid damage to the unit in the event of an overload. In this mode the maximum output current is the sum of the Master and Slave output currents.
3.8 Caution
In the event of a short circuit at the output the current will limit at the value set by the current controls, how­ever the unit should be turned off and the short circuit removed before continuing use.
7
Page 8
Netzteile der Serie HY
Bedienungsanweisung
1.0 Netzanschluss
Das Design des Netzteils erfüllt die Anforderungen der Schutzklasse I gemäß EN 61010-1, d.h. alle Metalltei­le, die von außen zugänglich sind und berührt werden können, sind mit dem Schutzleiter des Zufuhrnetzes verbunden. Die Stromzufuhr erfolgt über ein Netzkabel mit Erdkontakt.
1.1 Installation des Netzteils
Das Netzteil sollte nicht in Nähe von wärmeentwickelnden Einrichtungen operiert werden. Zum Schutz des Netzteils vor thermischer Überlastung dürfen die Luftschlitze nicht bedeckt sein und ein Spielraum von ca. 10 cm sollte gewährleistet sein.
1.2 Einschalten
Das Netzteil wird mit dem Stromschalter vorne eingeschaltet. Der Stromschalter trennt die Einheit völlig von der Primärseite des Transformators. Siehe Paragr. 3.1 und 3.2 für korrekte Netzspannung und Sicherungsein­stellungen.
1.3 EMV
Das Netzteil ist gemäß EN 50081-1 und EN 50081-2 entstört. Zur Erfüllung der Grenzwerte entsprechend der geltenden Normen ist es unbedingt notwendig, dass nur Kabel in perfektem Zustand an die Einheit ange­schlossen werden.
Inspektion und Wartung
Wenn Wartungsarbeiten notwendig sind, dann sollten die Vorschriften gemäß VDE 0701 entsprechend be­achtet werden. Das Netzteil darf nur von fachlich ausgebildetem Personal repariert werden.
8
Page 9
Garantie
Die perfekte Funktion des Netzteils wird für einen Zeitraum von 12 Monaten ab Lieferung garantiert. Die Garantie gilt nicht für Fehler infolge unsachgemäßer Operation oder am Netzteil vorgenommenen Änderungen oder unsachgemäßer Anwendung.
Das Netzteil sollte in geeigneter Verpackung - wenn möglich in der Originalverpackung versandt werden. Bitte legen Sie einen detaillierten Fehlerbericht (inkorrekt arbeitende Funktionen, Abweichung von Spezifika­tionen und so weiter) sowie Einheitstyp- und Seriennummer bei. Wir bitten Sie zudem, den Garantieanspruch durch Beilegen Ihres Lieferscheins zu bestätigen. Alle Repara­turen, die ohne Bezugnahme auf eine gültige Garantie stattfinden, erfolgen zunächst zu Kosten des Besitzers. Falls die Garantie abgelaufen ist, dann sind wir selbstverständlich gerne bereit, Ihr Netzteil gemäß unserer All­gemeinen Montage- und Servicebedingungen zu reparieren.
Beschreibung
Die digimess
®
-Einheiten der Serie HY umfassen ein umfangreiches Angebot von kostengünstigen, linearen Netzteilen für Allgemeinzwecke an Modellen mit Einzel-, Doppel- und Dreifachausgabe. Alle Modelle können entweder bei konstanter Spannung oder konstanten Strommodi operieren und haben ein großes, rotes LED-Display zum einfachen Ablesen. Die Versionen mit Doppel- und Dreifachausgabe haben zudem externe Schaltung für unabhängige, Nachlauf­Serien- und Parallelmodusoperation.
Technische Daten
2.1 Allgemeine Daten
Nenntemperatur: + 23 °C ± 1 °C
Betriebstemperatur: + 5°C bis + 40 °C Relative Feuchtigkeit: 20 bis 80 % Atmosphärischer Druck: 70 bis 106 kPa
Betriebsposition: horizontal oder um ±15 ° geneigt
Betriebsspannung: sinusförmige Wechselspannung (Verzerrungsfaktor < 5 %)
115/230 V (+ 10 %/− 15 %)
Frequenz: 50 bis 60 Hz (± 5 %)
Schutzklasse: 1, gemäß EN 61010 Teil 1 Funkentstörung: EN 55011 Klasse B
9
Händlerdetails :
Page 10
Spezifikationen
Spezifikation
Modell-Nr. HY3003 HY3003-2 HY3003-3 HY3010 HY3020
Bestell-Nr. HUC42-01 HUC42-02 HUC42-03 HUC42-04 HUC42-05
Zahl der Aus­gaben
Einzel Doppel Dreifach Einzel Einzel
Ausgangs­spannung
0-30V 2 x 0-30V 2 x 0-30V, 5V 0-30V 0-30V
Ausgangsstrom 0-3A 2 x 0-3A 2 x 0-3A, 3A 0-10A 0-20A
Leitungs-regu­lierung
<0,02% + 1mV <0,02% + 1mV <0,02% + 1mV <0,02% + 3mV <0,02% + 3mV
Lastregulierung <0,01% + 5mV <0,01% + 5mV <0,01% + 5mV <0,02% + 10mV <0,02% + 25mV
Brumm & Stö­rung
<1mVrms <1mVrms <1mVrms <3mVrms <3mVrms
Display 2 x 3,5-stell. LED
Genauigkeit : V - 1,0% + 2 stell. I - 1,5% + 2 stell.
2 x 3,5 stell. LED Genauigkeit : V - 1,0% + 2 stell. I - 1,5% + 2 stell.
2 x 3,5 stell. LED Genauigkeit : V - 1,0% + 2 stell. I - 1,5% + 2 stell.
2 x 3,5 stell. LED Genauigkeit : V - 1,0% + 2 stell. I - 1,5% + 2 stell.
2 x 3,5 stell. LED Genauigkeit : V - 1,0% + 2 stell. I - 1,5% + 2 stell.
Eingangs­spannung
110/220V +/- 10% WS (externer Wahlschalter)
Ausmaße 291 x 158 x 136mm365 x 265 x 164mm365 x 265 x 164mm365 x 265 x 164mm365 x 265 x 164
mm
Gewicht 4 kg 10 kg 11 kg 10 kg 20 kg
10
Page 11
3.0 Betriebsanweisung
3.1 Netzeingabe
Der Netzeingabeanschluss befindet sich hinten an der Einheit. Vor Anschluss an die Netzzufuhr sollte der Verwender prüfen, dass die Einheit auf die jeweils für das Land korrekte Spannung eingestellt ist. Die Netz­spannung wird durch den externen Netzspannungsschalter hinten an der Einheit eingestellt.
3.2 Netzeingabesicherung
Die Netzsicherung befindet sich hinten an der Einheit. Die korrekte Sicherung für jede Netzspannung ist folgende :
Modell 110V WS 220 V WS
HY3003 T4A 250V T2A 250V HY3003-2 T6.3A 250V T3.15A 250V HY3003-3 T6.3A 250V T3.15A 250V HY3010 T10A 250V T5A 250V HY3020 T15A 250V T8A 250V
Strom ein/aus
Die Netzzufuhr zur Einheit wird mit der Drucktaste POWER (STROM)-Ein/Aus ein- und ausgeschaltet.
3.4 Spannungs- und Stromanzeige
Modelle mit einer Ausgabe - HY3003, HY3010 und HY3020 - haben für die Spannungs- und Stromausgabe unabhängige Displays. Modelle mit mehreren Ausgaben - HY3003-2 und HY3003-3 - haben für jede nach­stellbare Ausgabe ein Einzeldisplay und können zur Anzeige von Spannung oder Ausgabestrom geschaltet werden.
3.5 Einheit mit einer Ausgabe oder Einheit mit mehreren Ausgaben im sog. Independent-Modus (unabhängigen Modus)
Bei Einheiten mit mehreren Ausgaben wir der Independent-Modus durch Stellen der zwei Nachlaufschalter (Tracking) auf die Position 'Independent' gewählt. Die Ausgangsspannung wird durch Verwendung (wenn vorhanden) der Spannungssteuerungen 'Coarse' (Grob) und 'Fine' (Fein) auf den gewünschten Wert einge­stellt. Der Ausgangsstrom wird durch Verwendung (wenn vorhanden) der Stromsteuerungen 'Coarse' und 'Fine' auf den gewünschten Wert eingestellt. Wenn die Ausgabe den eingestellten Stromwert überschreitet, dann beschränkt das Netzteil den Ausgangsstrom auf den eingestellten Wert.
3.6 Einheit mit mehreren Ausgaben im Serienmodus
Einheiten mit mehreren Ausgaben können durch Einstellen der beiden Tracking-Schalter auf die Serienpositi­on gestellt werden. Die Ausgangsspannung wird durch die Hauptspannungskontrolle eingestellt und Nebenausgabe wird die Hauptausgangsspannungsstufe verfolgen. Die Stromnachstellung erfolgt unabhängig und erfordert, dass die Nebenausgangsstromeinstellung hoch genug ist, da sonst kein Nachlauf stattfindet, das die Nebenausgabe den Strom begrenzt. In diesem Modus sollte der positive Anschluss der Nebenausgabe mit einem dicken Draht an den negativen Ausgabeanschluss des Hauptausgangs verbunden werden, um im Falle einer Überlastung eine
11
Page 12
Beschädigung der Einheit zu vermeiden. In diesem Modus beläuft sich die maximale Ausgangsspannung auf die Summe der Haupt- und Nebenausgangsspannungen.
3.7 Einheiten mit mehreren Ausgaben im Parallelmodus
Einheiten mit mehreren Ausgaben können durch Einstellen der beiden Tracking-Schalter auf die Parallelposi­tion gestellt werden. Die Ausgangsspannung wird durch die Hauptspannungskontrolle eingestellt und Neben­ausgabe wird die Hauptausgangsspannungsstufe verfolgen. Die Stromnachstellung erfolgt unter Verwendung der Hauptstromregelung und die Nebenstromregelung hat keinerlei Auswirkung. In diesem Modus sollte der positive Anschluss der Hauptausgabe an den positiven Anschluss Nebenausgangs angeschlossen werden, der negative Anschluss des Hauptausgangs sollte mit einem dicken Draht mit dem negativen Anschluss des Nebenausgangs verbunden werden, um im Falle einer Überlastung eine Beschädigung der Einheit zu vermeiden. In diesem Modus beläuft sich der maximale Ausgangsstrom auf die Summe der Haupt- und Nebenausgangsströme.
3.8 Vorsicht
Im Falle eines Kurzschlusses an der Ausgabe wird der Strom auf den durch die Stromregelungen eingestellten Wert beschränkt, wobei die Einheit jedoch ausgeschaltet und der Kurzschluss beseitigt werden sollte, bevor die Einheit weiter verwendet wird.
12
Page 13
13
digimes
s
®
Konformitätserklärung
Declaration of Conformity / Declaration de Conformite
C
E
Der Hersteller/importeu
r The manufacturer/importer Le producteur/importateur
Anschrift/Address/Adresse
erklärt hiermit eigenverantwortlich, dass das Produkt : hereby declares that the product
:
declare, que le produit :
Bezeichnung/Name/Descriptio
n
Type/Modell/Typ
e
Bestell-Nr/Order No/No de ref
folgenden Normen entspricht : is in accordance with the following specifications
:
correspond aux normes suivantes :
Das Produkt erfüllt somit die Forderungen folgender EG-Richtlinien
: Therefore the product fulfills the demands of the following EC-Directives : Le produit satisfait ainsi aux conditions des directives suivantes de la CE :
73/23/EWG
89/336/EW
G
Derby, 1.8.2001
Vann Draper Electronics Ltd
Stenson House Stenson Derby DE73 1H
L
ENGLAND
Netzeil Power suppl
y
Bloc d’alimentation
HY3003, HY3003-2, HY3003-3, HY3010, HY302
0
HUC42-01, 42-02, 42-03, 42-04, 42-0
5
EN61010-1 (1994
) DIN EN 50081-1 (1993) DIN EN 50081-2 (1994) EN 55011 (1991) Class B EN 55022 (1987) Class B IEC 801-2 (1991)/prEN 55024-2 (1992) 2k
V
IEC 801-4 (1988)/prEN 55024-4 (1993) 1kV Burs
t
IEC 801-3 (1984) 3V/m ; 0,15-150MHz
Richtlinie betreffend elektrische Betriebsmittel zu
r
Verwendung innerhalb bestimmter Spannungsgrenze
n Directive relating to electrical equipment designed for use within certain voltage limits Directive relatives au materiel electrique destine a etr
e
employe dans certaines limites de tension
Richtlinie über die elektromagnetische Verträglichke
it Directive relating to electromagnetic compatibility Directive relatives a la compatibilitie electromagnetique
A Smith
A.P. Smit
h
Leiter Qualitätsmanagemen
t
Quality Manager/Directeur Controle de Qualite
