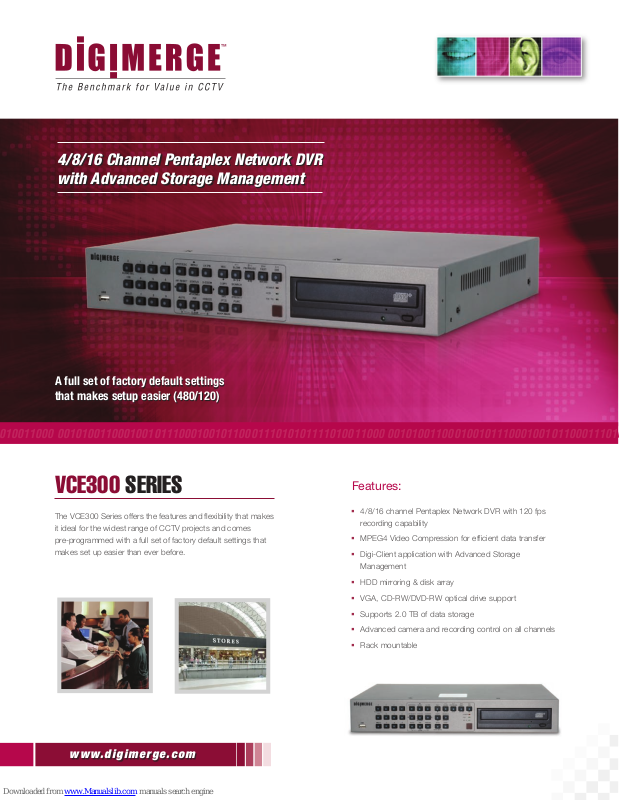

Digimerge VCE304161, VCE308161, VCE316161, VCE304, VCE308 Specifications

4/8/16 Channel Pentaplex Network DVR
with Advanced Storage Management

A full set of factory default settings
that makes setup easier (480/120)

VCE300 SEriES

The VCE300 Series offers the features and flexibility that makes

it ideal for the widest range of CCTV projects and comes

pre-programmed with a full set of factory default settings that

makes set up easier than ever before.

www.digimerge.com

Features:

4/8/16 channel Pentaplex Network DVR with 120 fps

ß

recording capability

MPEG4 Video Compression for efficient data transfer

ß

Digi-Client application with Advanced Storage

ß

Management

HDD mirroring & disk array

ß

VGA, CD-RW/DVD-RW optical drive support

ß

Supports 2.0 TB of data storage

ß

Advanced camera and recording control on all channels

ß

Rack mountable

ß

Specifications:

ITEM VCE304 VCE308

Case

VIDEO

Video Input Format

Operating system

Video Input Channels

Video Output

Loop Through Output

Input Level

Main TV Output 1

Spot monitor output

Display Resolution

Display frame rate

(Total frames/sec)

Screen Split Control

RECORDING

Recording frame rate

Recording Mode

Record Resolution

Compression format
(Each channel)

Scheduling

Internal EIDE Storage

AUDIO

Compression

Input Channel

Input Level

Live Output

SEARCHING & PLAYBACK

Searching Method

NETWORK

Monitoring Environment

Connection

NTSC/PAL 720 x 480(NTSC) / 720x576 (PAL)

NTSC 120 fps (4 x 30 fps) 240 fps (8 x 30 fps)

PAL 100 fps (4 x 25 fps) 200 fps (8 x 25 fps)

NTSC

PAL

NTSC 360 x 240 (CIF), 720 x 240 (D1/2), 720 x 480 (D1)

PAL 360 x 288 (CIF), 720 x 288 (D1/2), 720 x 576 (D1)

1.5 unit case 1.5 unit case

NTSC / PAL / AUTO DETECTION

Linux

4CH Composite
video (BNC)

1 Composite video (BNC) / 1 S-Video /
1 VGA / 1 Analog Spot

4CH Composite
video (BNC)

1.0Vp-p+/-10% Composite

1.0Vp-p Composite

1.0Vp-p Composite

1 / 4 1 / 4 / 8

Max. 120 fps(120fps / number of video source = frame rate
of each channel)

Max. 100 fps (100fps / number of video source = frame rate
of each channel)

Manual / Programmed / Event(Sensor, Motion Detection,
Video loss)

MPEG4 - Low: 2KB / frame
Fine: 3KB / frame - Superfine: 5KB / frame

Set up per hour

2 HDDs+1 R-HDD // optional CDRW/DVDRW

ADPCM

4CH (Connectable to any video channel)

200mVp-p @ 20KOhm

1CH

Time / Event / File/ Block / Log

Client Software

Supporting 16 Clients (16 Units x 16 Clients)

8CH Composite
video (BNC)

8CH Composite
video (BNC)

VCE316

1.5 unit case

16CH
Composite
video (BNC)

16CH
Composite
video (BNC)

480 fps
(16 x 30 fps)

400 fps
(16 x 25 fps)

1 / 4 / 9 / 16

ITEM VCE304 VCE308

ALARM

Sensor Input

Alarm Output

* Motion Detection

CONNECTOR

Video Input

Loop Through Output

Audio Input (mono)

Audio Output (mono)

Main Monitor Output

Spot Monitor Output

Sensor Input

Alarm Output

External Control (RS-232C)

Firmware upgrade

External Control (RS-485)

IEEE 1394

USB 2.0

Ethernet

ELECTRICAL

Power Source

Power Consumption

ENVIRONMENTAL

Operating Temp.

Storage Temp.

Humidity

PHYSICAL

Dimension(W) x(H) x(D)mm

Weight

OTHERS

OSD Language

Remote Controller

Composite 1 port (BNC)

S-Video 4 pins mini DIN

VGA 15 pins female DSUB

4 Port ( NC or
NO Non-isolated
TTL input Ground
Common)

4 Ports / NO Isolated Relay Output

Available for each camera Multi Detection
Level & Grid(16 X 12)

4 Ports (BNC) 8 Ports (BNC)

4 Ports (BNC) 8 Ports (BNC)

RCA 4 ports (White)

Line Output, RCA 1 Port (Red)

1 port (BNC)

4CH 8CH

8 pins Terminal Block( 4 NO Relay Output)

9 pins male DSUB

USB , Network

3 pins Terminal Block

N/A

3 ports

RJ-45, 10Mbps / 100Mbps

DC12V, 7A

Appx. 50Watt

+5 ~ +40°C

+5 ~ +60 °C

30 ~ 80 %RH (non-condensing)

420(W)×66(H) ×410(D) mm

Appx. 4.5kg / 10 lbs

(English, Japanese, Chinese, Korean,
French, Portuguese, Spanish, Polish, Russian)

Yes

8 Ports (NC or
NO Non-isolated
TTL input Ground
Common)

VCE316

16 Ports (NC
or NO Non­isolated TTL
input Ground
Common)

16 Ports
(BNC)

16 Ports
(BNC)

16CH

Dimensions:

16.5 in / 420 mm

13 in / 330 mm

®

Back Jack Panel:

Standard Configurations:

2.7 in /
69 mm

Digimerge Technologies Inc.
300 Alden Road, Markham, ON Canada L3R 4C1
Tel: [phone] Fax: [phone]

VCE304301 - 4 Channel Network DVR with 300 GB Hard Disk Drive

VCE308301 - 8 Channel Network DVR with 300 GB Hard Disk Drive

VCE316301 - 16 Channel Network DVR with 300 GB Hard Disk Drive

Because our products are subject to continuous

improvement, Digimerge reserves the right to

modify product design and specifications without

notice and without incurring any obligation. E&O.E.

0-12122006
