Digimerge Flir DBV44TL Quick Start Manual

Product Information

User Manuals

Quick Start Guides

Specification Sheets

WARNING - A REGULATED UL / CSA APPROVED 12V DC power

supply is REQUIRED for use with this camera. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty.

Video Tutorials & DemosLatest News

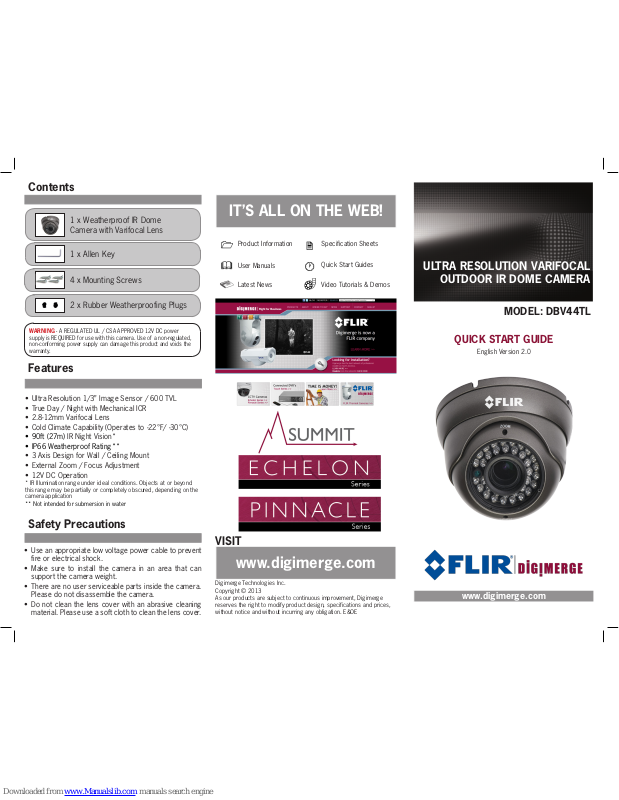

Contents

ULTRA RESOLUTION VARIFOCAL

OUTDOOR IR DOME CAMERA

MODEL: DBV44TL

QUICK START GUIDE

English Version 2.0

www.digimerge.com

IT’S ALL ON THE WEB!

www.digimerge.com

VISIT

Digimerge Technologies Inc.
Copyright © 2013
As our products are subject to continuous improvement, Digimerge
reserves the right to modify product design, specifications and prices,
without notice and without incurring any obligation. E&OE

1 x Weatherproof IR Dome
Camera with Varifocal Lens

1 x Allen Key

Features

Safety Precautions

• Use an appropriate low voltage power cable to prevent
fire or electrical shock.

• Make sure to install the camera in an area that can
support the camera weight.

• There are no user serviceable parts inside the camera.
Please do not disassemble the camera.

• Do not clean the lens cover with an abrasive cleaning
material. Please use a soft cloth to clean the lens cover.

• Ultra Resolution 1/3” Image Sensor / 600 TVL

• True Day / Night with Mechanical ICR

• 2.8-12mm Varifocal Lens

• Cold Climate Capability (Operates to -22°F/ -30°C)

• 90ft (27m) IR Night Vision*

• IP66 Weatherproof Rating**

• 3 Axis Design for Wall / Ceiling Mount

• External Zoom / Focus Adjustment

• 12V DC Operation

* IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on the
camera application

** Not intended for submersion in water

2 x Rubber Weatherproofing Plugs

4 x Mounting Screws

ZOOM

FOCUS

Camera Base

4. Insert rubber weatherproofing plugs

(2x) firmly into the ZOOM and FOCUS
screw-holes to ensure a weatherproof
seal.

Ensure that both the
ZOOM and FOCUS
screw-holes are covered.

Installing the Camera

ATTENTION - Test the camera prior to selecting a permanent

mounting location by temporarily connecting the camera(s) and
cables to the DVR.

Image Sensor 1/3” Color Image Sensor

Video Format NTSC

Effective Pixels H: 728 V: 488

Horizontal Resolution 600 TVL

Scan System 2:1 Interlace

Sync System Internal

S / N Ratio 52dB (AGC Off)

Iris AES

AES Shutter Speed 1/60 ~ 1/12,000 sec.

Min. Illumination 0.2 LUX (IR Off)

0 LUX (IR LEDs ON)

Video Output Composite 1.0Vpp @ 75ohm

Lens Focal Length / Type 2.8–12mm F1.4 / Varifocal

FOV (Diagonal) 27° ~ 92°

Termination Video: BNC Female

IR Range / Qty. 90ft / 27m; 35 IR LED’s

Power Requirement 12V DC ± 10%

Power Consumption 12V: 270mA MAX with IR LED

Operating Temp. Range –22° ~ 122°F / –30° ~ 50°C

Environmental Rating IP66

Dimensions Diameter: 4.7” (120mm)

Height: 3.2” (80mm)

Weight (including stand) 1.4lbs / 0.6kg

Dimensions

Camera SpecificationsSetting up the Camera

1. Connect the BNC connector of the camera
to the video cable.

2. DC Power—Power Adapter: Connect a
12V DC Power Adapter (not included) to
the camera. Plug the Power Adapter into a
local power outlet.

• DC Power—Power Pigtail (not included):
Connect a Power Pigtail to the camera.
Connect the terminating wires of the cable
directly to the DC power source.

NOTE: For pigtail connection with 12V DC, make sure to
check polarity specifications on the power adapter.

3. Use a flat-head screwdriver (not included)
to adjust the ZOOM and FOCUS control
screws as required.

1. Mount the camera base to the wall or
ceiling using the included screws.

NOTE: You may need to disassemble the camera using
the provided Allen key. Loosen the tighening screw on the
outer ring of the Dome Cover and twist the Dome Cover
off.

2. Position the Ball Camera to the desired
position and angle.

3. Position the Dome Cover over the Ball
Camera and twist into place. Holding
the cover firmly in place, use the Allen
key to tighten the screw on the outer
ring of the Dome Cover.

120mm / 4.7”

80mm / 3.2”

NOTE: Once the camera is mounted, you can adjust the
position and angle of the Ball Camera by slightly loosening
the Dome Cover.

Weatherproofing
Plugs

ATTENTION - This camera includes an Auto Mechanical IR Cut Filter.

When the camera changes between Day/Night viewing modes, an
audible clicking noise may be heard from the camera. This clicking is
normal, and indicates that the camera filter is working.
