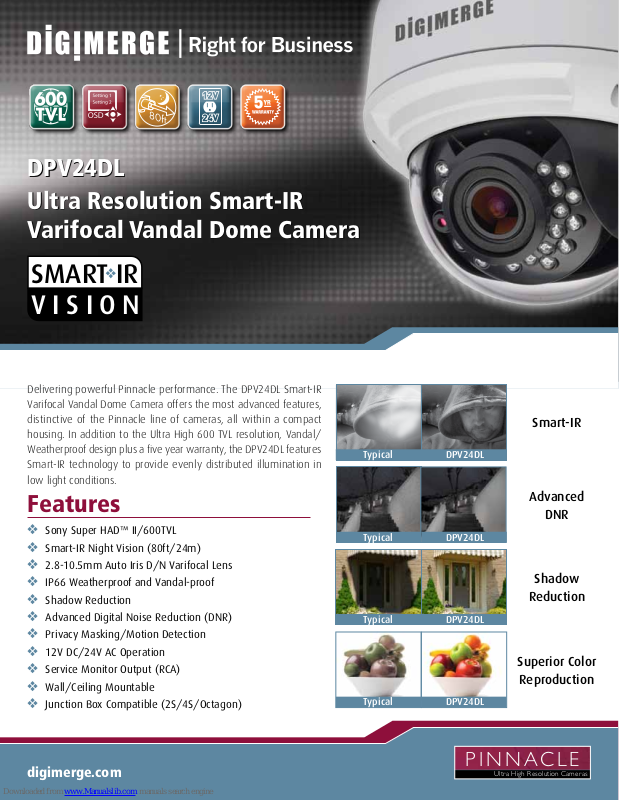

Digimerge DPV24DL Specifications
DPV24DL
Ultra Resolution Smart-IR
Varifocal Vandal Dome Camera
SMART IR
VISION
Delivering powerful Pinnacle performance. The DPV24DL Smart-IR
Varifocal Vandal Dome Camera offers the most advanced features,
distinctive of the Pinnacle line of cameras, all within a compact
housing. In addition to the Ultra High 600 TVL resolution, Vandal/
Weatherproof design plus a five year warranty, the DPV24DL features
Smart-IR technology to provide evenly distributed illumination in
low light conditions.
Features
❖❖ Sony❖Super❖HAD™❖II/600TVL
❖❖ Smart-IR❖Night❖Vision❖(80ft/24m)
Typical DPV24DL
Typical
DPV24DL
Smart-IR
Advanced
DNR
❖❖ 2.8-10.5mm❖Auto❖Iris❖D/N❖Varifocal❖Lens
❖❖ IP66❖Weatherproof❖and❖Vandal-proof
❖❖ Shadow❖Reduction
❖❖ Advanced❖Digital❖Noise❖Reduction❖(DNR)
❖❖ Privacy❖Masking/Motion❖Detection
❖❖ 12V❖DC/24V❖AC❖Operation
❖❖ Service❖Monitor❖Output❖(RCA)
❖❖ Wall/Ceiling❖Mountable
❖❖ Junction❖Box❖Compatible❖(2S/4S/Octagon)
digimerge.com
Typical DPV24DL
Typical
DPV24DL
PINNACLE
Shadow
Reduction
Superior Color
Reproduction
Ultra High Resolution Cameras
Specifications
2 13
4
56789101112
C
D
E
F
G
H
变更版次标记
变更处数
变更内容描述
签名和日期
59.2
112.24
Power Source:
Power Consumption:
Minimum Power Requirement:
Image Sensor:
Total Pixels:
Effective Pixels:
Scanning System:
Scanning Frequency:
Sync. System:
Resolution:
Min. Illumination:
Video Output:
S/N Ration:
DNR:
ATR
BLC:
Motion Detection:
Privacy Masking:
White Balance:
Auto Gain Control:
Electronic Shutter Speed:
Sharpness:
Flip:
Setup Method:
OSD Language:
Power Input:
Video Output:
Lens Mount:
Lens:
Operating Temperature:
Operating Humidity:
Ingress Rating
Junction Box Compatibility
External Dimension:
Weight:
DC❖12V❖/❖AC❖24V❖±❖10%
3.0❖Watts
300mA❖(IR❖on)
1/3”❖SONY❖Super❖HAD❖II™❖High❖
Sensitivity❖Color❖CCD
811❖(H)❖x❖508❖(V)
768❖(H)❖x❖494❖(V)
2:1❖Interlace
15.734KHz❖(H)❖x❖59.94Hz❖(V)
Internal/Line❖Lock
600❖TV❖Lines
0❖Lux❖(IR❖on)
1.0❖Vp-p❖(75❖ohm,❖composite)
50dB❖(AGC❖OFF)
On/Off❖(Adjustable)
On/Off
BLC/HLC/OFF❖Adjustable❖Size❖&❖Gain
On/Off❖(4❖Programmable❖zone)
On/Off❖(4❖Programmable❖zone)
ATW/Manual/User❖1/User❖2/Anti❖CR/
Push/Push❖Lock
Auto/manual
Auto/Manual
On/Off❖(level❖adjustable)
Horizontal
OSD❖setup❖menu
English/German/French/Russian/
Portuguese/Spanish/Japanese/Chinese
2-Pin❖terminal❖block
BNC❖Connector
Fixed❖mount
2.8~10.5mm❖AI❖day/night❖varifocal❖
lens
-10ºC❖~❖+50ºC❖/❖14ºF❖~❖122ºF
0❖~❖90%❖(non-condensing)
IP66
2S,❖4S,❖Octagon❖(with❖incl.❖mounting❖
adapter❖plate)
130❖x❖112❖mm❖(Bubble❖Diameter❖Ø97)
1.6lbs/0.8kg
Dimensions
112mm/
4.4”
130mm/
5.1”
Product Information
UPC: 8-41430-00680-0
Weight: 2.7lbs / 1.3kg
Package
Dimensions:
(W x D x H)
Package Cube: 0.0049 cbm / 0.173cu ft
170mm x 160mm x 180mm
6.7” x 6.3” x 7.1”
What’s Included:
User Manual
RCA - BNC Test Cable
2S / 4S / Octagon Junction Box Adapter
Surface Mounting Template
Accessories:
MNTV2XC MNTV2XJ MNTV2XP
Pendant Mount
Junction Box Pole Mount
®
digimerge.com
MNTV2XW MNTV2XPC MNTV2XR
Wall Mount Pendant Cap Corner Mount
Digimerge Technologies Inc.
250 Royal Crest Court, Markham, ON Canada L3R 3S1
Tel: 905.946.8477 Fax: 905.947.0138
Because our products are subject to continuous
improvement, Digimerge reserves the right to modify
product design and specifications without notice and
without incurring any obligation. E&O.E.
