Digimerge DPP22W User Manual

Model : DPP22W

Ultra Resolution WDR Day/ Night Camera

Printed in KOREA

Model : DPP22W

Ultra Resolution WDR

Day/Night Camera

Instruction Guide

Digimerge Technologies Inc.

The lightning flash with an arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of uninsulated
dangerous voltage within the product's enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.

INFORMATION - This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at
his own expense.

WARNING - Changes or modifications not expressly approved by the
manufacturer could void the user's authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

◆

Do NOT use power sources other than those specified.

◆

Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and

should conform to all local codes.

1

Ultra Resolution WDR Day/ Night Camera

■

Contents

Features

Warnings and Precautions

Components

Names and Functions of Parts

■ Front

■ Bottom

■ Back

Installation

■ Lens
ㆍUsing auto iris
ㆍUsing C/CS mount lens
ㆍUsing a C-Mount lens

■ Connecting to a monitor

■ Connecting to power

2

3

8

9

9

10

11

12

12

15

15

How to Use the Camera

■ Menu

■ Settings
ㆍ PRESETS

ㆍ EXPOSURE
ㆍ WDR
ㆍ WHITE BALANCE
ㆍ DAY/NIGHT
ㆍ IMAGE ADJ.
ㆍ SPECIAL

- CAMERA ID

- VIDEO OUT

- DZOOM

- MOTION

- PRIVACY SETUP

ㆍ RESET

ㆍ EXIT MENU

Troubleshooting

Specifications

Limited Warranty

16

16
17
18
19
20
21
23
24
25
26

27

27

27

28

29

29

30

31

32

Ultra Resolution WDR Day/ Night Camera

2

3

Ultra Resolution WDR Day/ Night Camera

■

Features

Warning ■

High Resolution Color for Crisp,
Clear Video

ㆍProgressive image capture
ㆍ690TVL Effective

Wide Dynamic Range (WDR)

The camera delivers high quality pictures,
even when backlit, by increasing exposure
in dark areas while decreasing it in bright
areas;

ㆍ120dB maximum dynamic range

Day & Night

The camera identifies whether it is day or night
and automatically switches to the appropriate
mode, depending on its environment. By day,
the camera switches to color mode in order to
maintain optimal color. At night, it switches to
B/W mode so as to obtain better picture definition.

DNR (Digital Noise Reduction)

The amount of low illuminance noise is
significantly reduced, and the signal-to-noise
ratio (S/N ratio) as well as horizontal resolution,
have been improved resulting in a clear and
sharp images even in low light.

High Sensitivity for low-light
images

The built-in high sensitivity
PIXIM SEAWOLF Sensor enables
a clear image even at 0.1Lux

Motion Detection

Since the camera detects motion without any
additional external sensor, you can monitor
activity more efficiently.

VIDEO / DC Drive Lens

The video drive lens and the DC drive lens
can be selected by the touch of a switch.

Additional Functions

SYNC (INT/LL), SENS-UP, FLIP(H/V-REV),
D-ZOOM, SHARPNESS and PRIVACY
functions are provided.

The camera requires periodic inspection.

Contact an authorised technician to carry out the inspection.

Do not Install the camera on a surface that can not support it.

If the camera is installed on an inappropriate surface, it may fall
and cause injury.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not dis-assemble the camera.

It may result in an electric shock or other hazards.

Ultra Resolution WDR Day/ Night Camera

4

5

Ultra Resolution WDR Day/ Night Camera

Precautions

■

Do not install the camera in
extreme temperature conditions.

Only use the camera under conditions
where temperatures are between

-10˚C and +50˚C. Be especially
careful to provide ventilation when
operating under high temperatures.

Do not install the camera under
unstable lighting conditions.

Severe lighting change or flicker can
cause the camera to work improperly.

Do not install or use the camera in an
environment where the humidity is high.

It can cause the image quality to be
poor.

Do not touch the front lens of the
camera.

This is one of the most important parts of
the camera. Be careful not to leave
fingerprints on the lens cover.

Do not drop the camera and protect
it from physical shocks.

It can cause malfunctions to occur.

Do not expose the camera to rain
or spill beverage on it.

If it gets wet, wipe it dry immediately.
Liquids can contain minerals that
corrode the electronic components.

ㆍPlease check the power supply satisfies the normal specification before

connecting the camera.

Never keep the camera pointed
directly at strong light.

It can damage the CMOS.

Do not expose the camera to
radioactivity.

If exposed to radioactivity the CMOS
will fail.

Ultra Resolution WDR Day/ Night Camera

6

7

Ultra Resolution WDR Day/ Night Camera

■

Components

1. COLOR BOX CAMERA

2.

AUTO IRIS LENS CONNECTION PLUG

3. L-WRENCH

4. C-MOUNT ADAPTOR

5. INSTRUCTION GUIDE

Names and Functions of Parts ■

Front

② ③

①

①

Lens protection cap

Cover the lens when not using it.

②

CS-Mount lens adaptor

Attach the CS-Mount lens here.

③

Back Focus clamp screw

Loosen the clamp screw with a screwdriver before adjusting the Back
Focal length.

Ultra Resolution WDR Day/ Night Camera

8

9

Ultra Resolution WDR Day/ Night Camera

■

Names and Functions of Parts

Names and Functions of Parts

■

Bottom

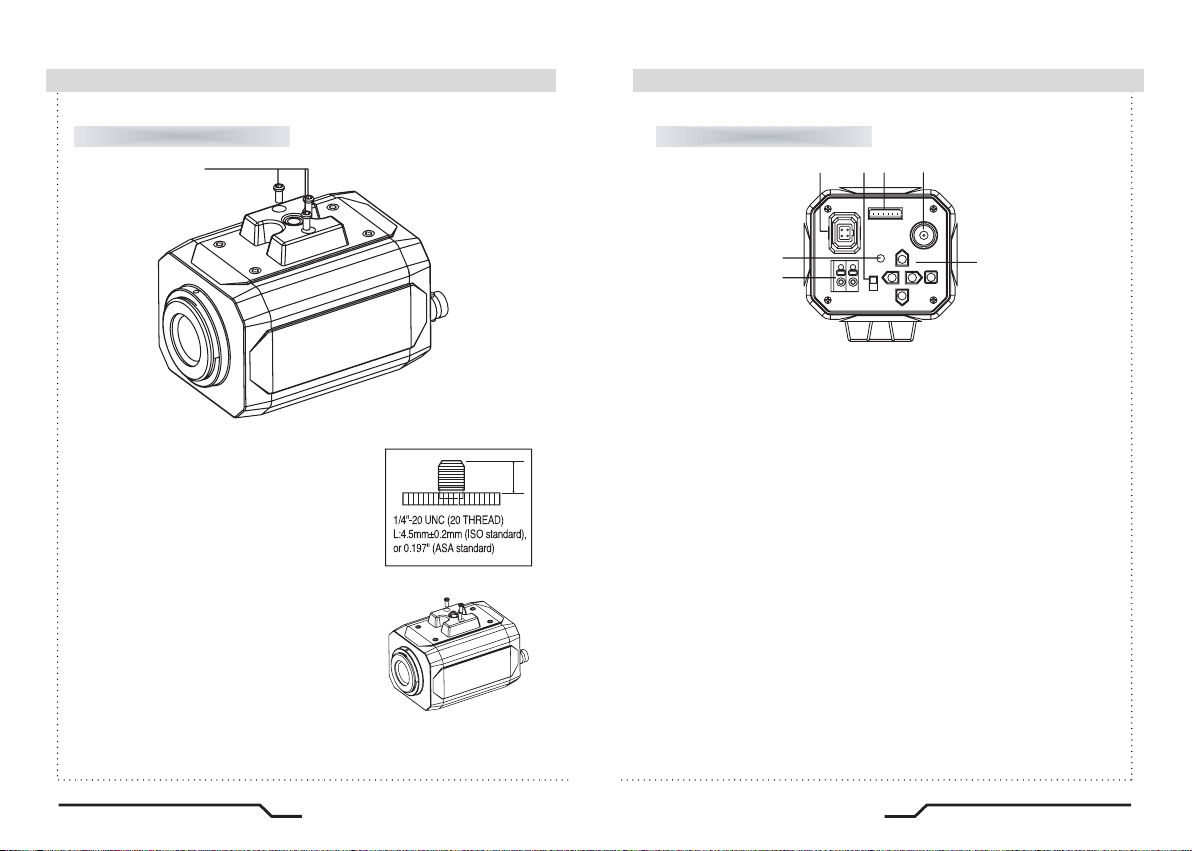

④

④

Mounting bracket screw hole

Use the screw hole when fixing the
camera onto the mounting bracket. Please use
the clamp screw as specified in the picture.

※

The mounting bracket can be separated and
attached on the top of the camera.
please do not tighten the screw to a depth of
more than 5mm, otherwise serious damage
can occur to the inside of the camera.

Back

⑤ ⑥ ⑦ ⑧

OSD EXTRA

⑨
⑪

⑤ Auto iris lens connector

IRIS JACK

AC24V IN
DC12V IN

VIDEO

POWER

DC

VIDEO OUT

⑩

SET

This is the connection terminal for the auto iris lens.

⑥ Auto iris lens selection switch

Change the mode to DC or VIDEO depending on the type of auto iris
lens being used.

⑦ OSD Extra

L

Connectstothe remote controller(option) whenyou want to installremotely.

⑧ Video output terminal

Sends video signals and connects to the video input terminal of the
monitor.

⑨ Power lamp

Lights up when the correct power is supplied to the camera.

⑩

Setting button

●

SET button

: Used for the menu display. This button can be used to
confirm settings after changing the value of the selected function or
current conditions.

●

UP & DOWN buttons :

Used for selecting items by moving the

cursor up or down on the menu screen.

●

LEFT & RIGHT buttons :

Used when changing item values, by

moving the cursor to the left or right on the menu screen.

⑪

Power input terminal

Connects to the power appropriate to each power requirement.

Ultra Resolution WDR Day/Night Camera

10

11

Ultra Resolution WDR Day /Night Camera

■

Installation

Installation ■

■

Lens

Lenses are sold separately. Lenses such as auto iris lens,
CS-Mount lens and C-Mount lens can be used.

Note

ㆍUse of the DC auto iris lens is recommended to achieve the best

results for operating this product effectively.

ㆍKeep the lens clean.
ㆍAny foreign objects and fingermarks on the lens can cause inferior

image quality in low light level conditions.

When using an auto iris lens

1. Peel off about 8mm of the outer skin of the auto iris lens cable.

2. Peel off about 2mm of the outer skin of the insulated conductor inside the
lens cable.

3. Remove the cover of the auto iris lens connection plug and solder the
lens cable to the connector pin in the plug.

Pin No.

DC VIDEO

LENS

No.1 Pin Damping- Red(power)
No.2 Pin Damping+ NC
No.3 Pin Drive+ White(video signal)
No.4 Pin Dreve- Black(GND)

4. Replace the auto iris lens connection plug cover and take off the lens
protection cap, and then attach the auto iris lens to the camera by
screwing it in clockwise.

5. Insert the connection plug that is connected to the auto iris lens cable into
the auto lens connector, which is located on the back of the camera.

OSD EXTRA

IRIS JACK

VIDEO OUT

AC24V IN
DC12V IN

POWER

DC

SET

VIDEO

6. Set the lens selection switch, located on
the back of the camera, to DC or VIDEO
depending on the type of auto iris lens which is
being used.

Ultra Resolution WDR Day/ Night Camera

12

13

Ultra Resolution WDR Day/ Night Camera

■

Installation

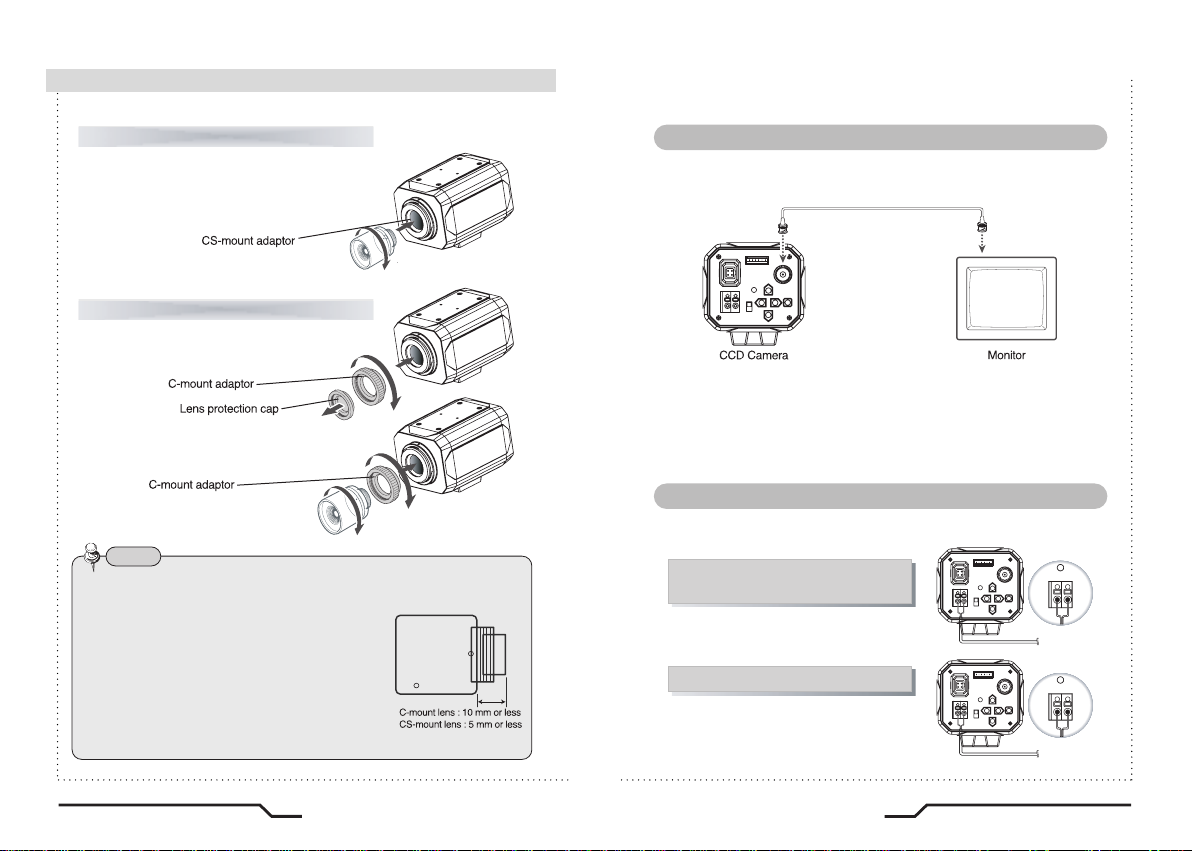

When using a CS-Mount lens

Take off the lens protection cap and attach
the CS-Mount lens to the camera by screwing it in
clockwise.

When using a C-Mount lens

1. Take off the lens protection cap and
attach the C-mount adaptor.

2. Attach the C-Mount lens to the
camera by screwing it in clockwise.

Note

ㆍUse the specified lens connection parts as shown in the picture below.

The use of the wrong sized parts may cause damage
to the inside of the camera or result in poor fitting.

ㆍUse of a lens which is too heavy affects the balance

of the camera and may cause a malfunction. Please
use a lens that weighs less than 450g.

ㆍSelect Av mode if possible when adjusting

the automatic light control (ALC) of an auto lens.
Use of PK mode may cause hunting.

■

Connecting to a monitor

Connect the video output terminal located on the back of the camera to
the monitor.

OSD EXTRA

IRIS JACK

VIDEO OUT

POWER

DC

SET

VIDEO

AC24V IN
DC12V IN

ㆍThe connection method varies depending on the type of monitor and

accessories. Please refer to the user's manual for each instrument.

ㆍTurn off the power when connecting.

■

Connecting to power

Check the standard power requirement before connecting to power.

OSD EXTRA

IRIS JACK

AC24V IN
DC12V IN

IRIS JACK

AC24V IN
DC12V IN

POWER

DC

VIDEO

OSD EXTRA

POWER

DC

VIDEO

VIDEO OUT

VIDEO OUT

POWER

SET

AC24V IN
DC12V IN

POWER

SET

AC24V IN
DC12V IN

Dual Power Type
(AC 24V/DC 12V, AC 24V Class2)

DC Power Type (DC 12V, 500mA)

Ultra Resolution WDR Day/ Night Camera

14

15

Ultra Resolution WDR Day/ Night Camera

■

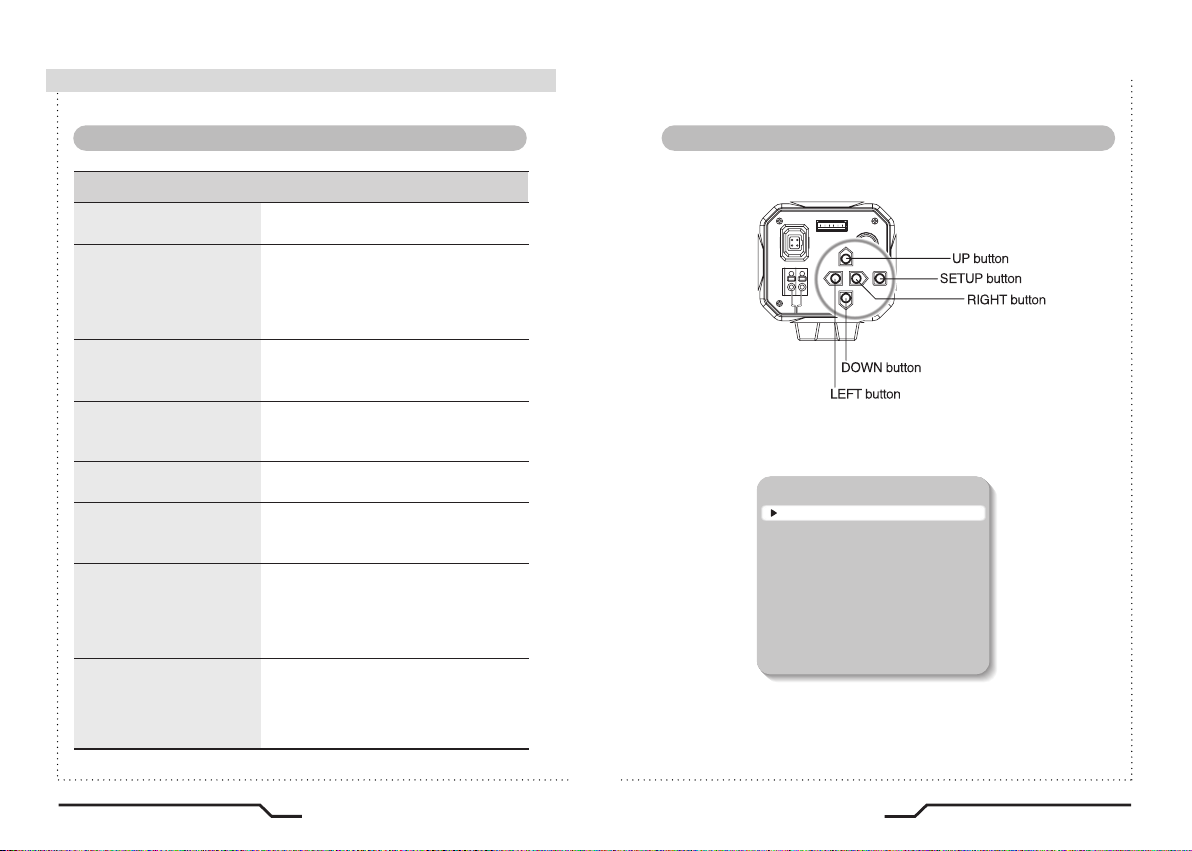

How to Use the Camera

Menu

■

PRESETS

EXPOSURE

WDR

WHITE BALANCE

DAY/NIGHT

IMAGE ADJ.

SPECIAL

EXIT MENU

SETUP menu

ㆍOUTDOORㆍINDOORㆍNORMAL

ㆍLENS

ㆍDNR

ㆍCOLOR ROLL

ㆍMIDDLE

ㆍHIGH

ㆍAGC

ㆍBLC

ㆍSENS-UP

ㆍUSER

ㆍLOW

ㆍATW

ㆍINDOOR ㆍOUTDOOR

ㆍAWB ㆍMANUAL

ㆍAUTO

ㆍFLIP

ㆍCOLOR ㆍBW

ㆍSHARPNESS

ㆍCOLOR GAIN ㆍGAMMA

ㆍCAMERA ID

ㆍDZOOM

ㆍVIDEO OUT

ㆍMOTION

ㆍPRIVACY SETUP ㆍRESET

Settings

■

Settings can be made using the 5 buttons on the rear of the camera.

OSD EXTRA

IRIS JACK

AC24V IN
DC12V IN

VIDEO

POWER

DC

VIDEO OUT

SET

SET

1. Press the SET button

󰼿󰼿󰼿ㆍSettings can now be accessed. The SETUP menu is displayed
on the monitor.

SETUP

PRESETS
EXPOSURE..
WDR
WHITE BALANCE
DAY/NIGHT
IMAGE ADJ..
SPECIAL..
EXIT MENU.

2. Select a menu item from the list available by using the UP and DOWN
buttons.

OUTDOOR

MIDDLE
ATW
AUTO..

ㆍFuntions are selected using up and down buttons.
ㆍThe selected position is displayed in blue.

Ultra Resolution WDR Day/ Night Camera

16

17

Ultra Resolution WDR Day/ Night Camera

How to Use the Camera

■

Select the function using

the UP or DOWN button.

3.

Set up a selected item by using the Left and Right buttons.

4.

To finish and save the settings, select 'EXIT' and press the SET button.

SETUP

PRESETS
EXPOSURE..
WDR
WHITE BALANCE
DAY/NIGHT
IMAGE ADJ..
SPECIAL..
EXIT MENU.

OUTDOOR

MIDDLE
ATW
AUTO..

Change the status using
the LEFT or RIGHT button.

Note

•

An item with the ".." icon contains a sub-menu. To access a sub-menu,
press the SET button.

PRESETS

SETUP

PRESETS
EXPOSURE..
WDR
WHITE BALANCE
DAY/NIGHT
IMAGE ADJ..
SPECIAL..
EXIT MENU.

●󰼿

NORMAL : Normal environment.

●󰼿

INDOOR : Indoor environment.

●󰼿

OUTDOOR : Outdoor environment.

OUTDOOR

MIDDLE
ATW
AUTO..

EXPOSURE

SETUP

PRESETS
EXPOSURE..
WDR
WHITE BALANCE
DAY/NIGHT
IMAGE ADJ..

OUTDOOR

MIDDLE
ATW
AUTO..

When the SETUP menu screen is displayed, select‘EXPOSURE’by
using the Up and Down buttons so that the arrow indicates‘EXPOSURE’.

EXPOSURE

LENS
AGC
DNR
BLC
COLOR ROLL
SENS-UP
PREVIOUS PAGE.

DC..
MIDDLE
MIDDLE
OFF
LOW
2X

●󰼿LENS : Using this function, you can control the screen brightness.
ㆍDC / VIDEO / Manual : Select Lens Type

LENS MENU

DC GAIN
VIDEO GAIN
AI THRESH
PREVIOUS PAGE.

0 120 255

500 255

-24-48 60

Ultra Resolution WDR Day/ Night Camera

18

19

Ultra Resolution WDR Day/ Night Camera

How to Use the Camera

■

●󰼿AGC (AUTO GAIN CONTROL) : In low light the higher the gain level,

the brighter the screen but the higher the noise level.

- OFF / LOW / MIDDLE / HIGH selectable

●󰼿DNR (Digital Noise Reduction) : The level of background noise in low
light decreases automatically as the level of gain changes.

- OFF / LOW / MIDDLE / HIGH selectable

●󰼿BLC : To optimize the scene when there is a strong backlight behind
the object.

- ON / OFF selectable

ADVANCED BLC SETUP

PERCENTILE

PREVIOUS PAGE.

-30

3035

●󰼿COLOR ROLL : Controls color rolling suppression under fluorescent
lighting conditions.

- OFF / LOW / MIDDLE / HIGH selectable

●󰼿SENS-UP : When it is night or dark, the camera automatically detects
the light level and maintains a clear picture if this mode is activated.

- 2X, 4X, 8X, 16X, 32X, 64X

- OFF : Deactivates the SENS-UP function.

WDR

SETUP

PRESETS
EXPOSURE..
WDR
WHITE BALANCE

OUTDOOR

MIDDLE
ATW

●󰼿WDR : When the image has simultaneous bright and dark areas, the
Wide Dynamic Range makes both areas distinct.

- LOW / MIDDLE / HIGH / USER selectable

WDR LEVEL

BIAS
LIMIT
PREVIOUS PAGE.

2

34

-30
0

30
36

WHITE BALANCE

Use the White Balance function to adjust the screen colors.

1. Position the cursor to point to WHITE BAL on the SETUP menu screen,
select using the Up and Down buttons.

2. Select the desired mode using the Left and Right buttons.

SETUP

PRESETS
EXPOSURE..
WDR
WHITE BALANCE
DAY/NIGHT
IMAGE ADJ..
SPECIAL..
EXIT MENU.

OUTDOOR

MIDDLE
ATW
AUTO..

※Select one of the following 5 modes, as appropriate.
󰼿󰼿󰼿●󰼿ATW : The ATW mode continuously monitors.

󰼿󰼿󰼿●󰼿INDOOR : Select when the color temperature is between 4000˚K
and 8500˚K

󰼿󰼿󰼿●󰼿OUTDOOR : Select when the color temperature is between 2000˚K
and 11000˚K

Ultra Resolution WDR Day/ Night Camera

20

21

Ultra Resolution WDR Day/ Night Camera

How to Use the Camera

■

󰼿󰼿󰼿●󰼿AWB : To obtain the optimum state under the current luminance

levels, direct the camera to point toward a sheet of white paper and
press the SET button. If the environment changes, including the light
source, the white balance will require re-adjustment.

󰼿󰼿󰼿●󰼿MANUAL : Select to "fine-tune" the White Balance manually. Set
White Balance first using the ATW or AWB mode. Afterwards switch
to MANUAL mode, fine-tune the White Balance and then press
the SET button.

MANUAL WHITE BALANCE

RED

-18

BLUE

13

PREVIOUS PAGE.

-20

-20

20
20

Note

• Under the following conditions White Balance may not work properly.
In such cases, select the AWC mode.

① When the color temperature of the subject environment has a very

high temperature range (e.g. clear sky, or sunset)

② When the ambient illumination of the subject is low.
③ If the camera is directed toward a fluorescent light, or is installed in

a place where illumination changes dramatically, the White Balance
operation may become unstable.

DAY/NIGHT

SETUP

PRESETS
EXPOSURE..
WDR
WHITE BALANCE
DAY/NIGHT
IMAGE ADJ..
SPECIAL..
EXIT MENU.

●󰼿AUTO : This camera has an IR Cut-Filter and automatically changes
to the appropraite mode according to lighting levels.To set up the switching

OUTDOOR

MIDDLE
ATW
AUTO..

time and switching speed for the AUTO mode press the SET button.

DAY&NIGHT SETUP

TIME DELAY
PREVIOUS PAGE.

1020

●󰼿COLOR : The picture is displayed in color.

●󰼿B/W : The picture is always displayed in black and white.

Ultra Resolution WDR Day/ Night Camera

22

23

Ultra Resolution WDR Day/ Night Camera

How to Use the Camera

■

IMAGE ADJ.

When the SETUP menu screen is displayed, select 'IMAGE ADJ.' using
the Up and Down buttons.

SETUP

PRESETS
EXPOSURE..
WDR
WHITE BALANCE
DAY/NIGHT
IMAGE ADJ..
SPECIAL..

OUTDOOR

MIDDLE
ATW
AUTO..

● SHARPNESS : The outline of the video image becomes cleaner and
more distinctive as the level of SHARPNESS increases. If the level is set
too high, it may affect the video image and generate noise.

-

The available range is -8 ~ 8

● COLOR GAIN : To control the color level in the video.

- The available range is -8 ~ 8

● GAMMA : Users can change the gamma setting between 25 and100

FLIP
SHARPNESS
COLOR GAIN
GAMMA
PREVIOUS PAGE..

OFF

-8 0

-8

2545

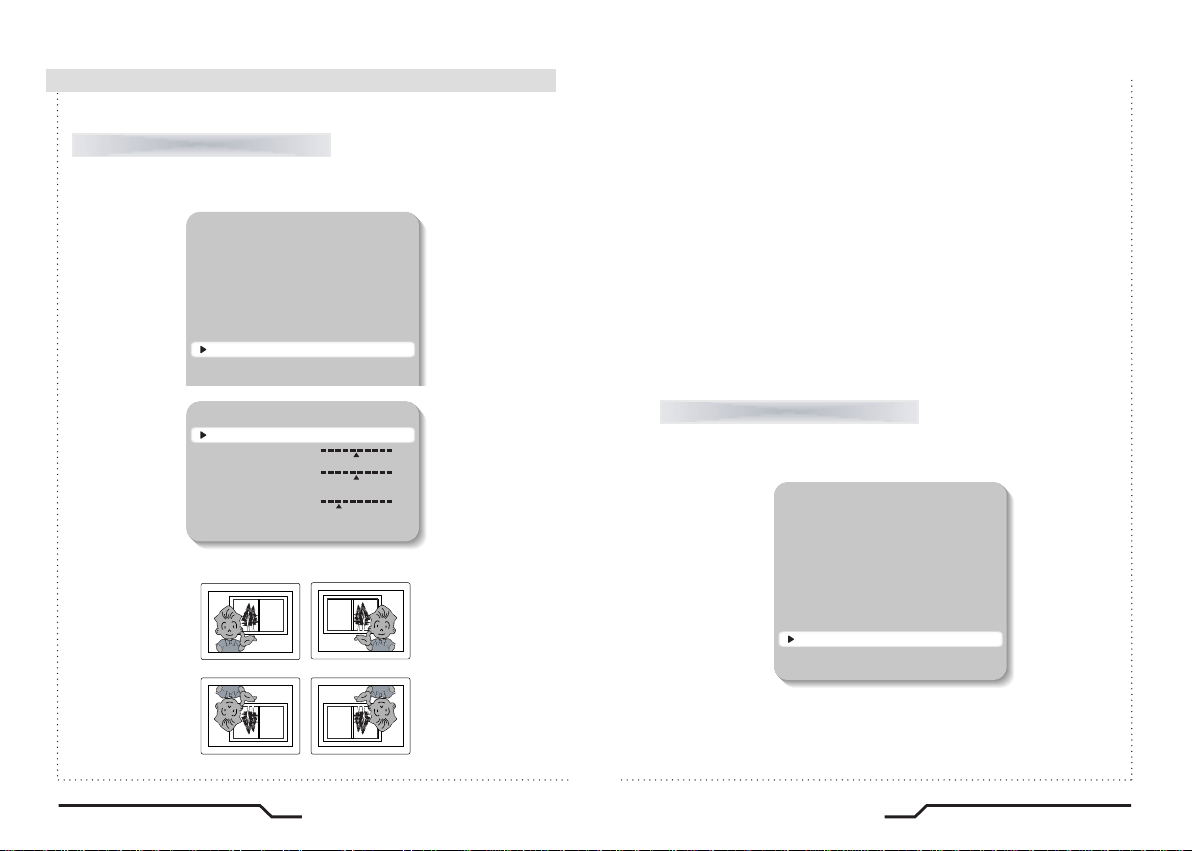

● FLIP : OFF / HORIZ / VERT / BOTH selectable


Ultra Resolution WDR Day/ Night Camera

24

SPECIAL

When the SETUP menu screen is displayed, select 'SPECIAL' by using

8

0

8

100

HORIZOFF

BOTHVERT

the Up and Down buttons so that the arrow indicates 'SPECIAL'.

SETUP

PRESETS
EXPOSURE..
WDR
WHITE BALANCE
DAY/NIGHT
IMAGE ADJ..
SPECIAL..
EXIT MENU.

OUTDOOR

MIDDLE
ATW
AUTO..

25

Ultra Resolution WDR Day/ Night Camera

How to Use the Camera

■

SPECIAL

CAMERA ID
VIDEO OUT..
DZOOM
MOTION
PRIVACY SETUP..
RS485 SETUP..
RESET
RETURN

OFF

OFF
OFF

● CAMERA ID : User can enter a unique name for the respective camera.
The maximum length of the ID is ten characters.

󰼿󰼿󰼿ㆍYou can choose ON and OFF with the selector. If you select ON,
the entered camera ID is displayed at the selected position in the video
picture (normal operation).

󰼿󰼿󰼿ㆍPress the setup button while in ON mode.
󰼿󰼿󰼿ㆍSelect the desired position with the selector.

CAMERA ID

ID
POSITION
PREVIOUS PAGE.

PIXIM
UP-LEFT

󰼿󰼿󰼿①󰼿Move the cursor to the desired letter by using the Set-Up button.
󰼿󰼿󰼿②󰼿Select an ID from A,B~Y,Z, a,b~y,z, 0,1~8,9 by using the LEFT and

RIGHT buttons.
󰼿󰼿󰼿③󰼿Repeat the above steps until the ID is complete.

CAMERA ID

ID
POSITION
PREVIOUS PAGE.

PIXIM
UP-LEFT

󰼿󰼿󰼿①󰼿Select the position where the ID is to be displayed by using the
LEFT and RIGHT buttons.

● VIDEO OUT : Move the cursor to select the video system

- VIDEO STANDARD : You can select NTSC / PAL, Video level,
Sync level, Burst level.

VIDEO STANDARD

VIDEO SELECT
VIDEO LEVEL
SYNC LVL
BURST LVL
VIDEO OUT
COLOR BAR
VERSION
PREVIOUS PAGE..

0
0

80 100 150

-16 15

-16

NTSC

15

INTERLC

OFF

● DZOOM : Digital P/T/Z are used to create a zoom lens effect.
Zoom Factor (1X to 4X), Pan(±100%, center of image can be moved
to left and right edges of screen), Tilt(±100%, center of image can
be moved to top and bottom edges of screen)

DZOOM

ZOOM

1

-100

0

PAN
TILT
PREVIOUS PAGE..

-100

0

1

4
100
100

● MOTION : Motion detection feature allows camera to trigger alarm
message upon detecting motion based on set parameters.
The camera detects an object's movement by sensing disparity of
outline, and level of brightness and color.

Ultra Resolution WDR Day/ Night Camera

26

27

Ultra Resolution WDR Day/ Night Camera

How to Use the Camera

■

MOTION DETECTION

ACTIVITY THR.
MESSAGE TIME
SETUP MOTION ZONE..

PREVIOUS PAGE.

0 25 225

1 5 10

MOTION ZONE SETUP

󰼿󰼿󰼿ㆍWhite : MOTION ZONE Position movement
Green : MOTION ZONE Size enlargement
Red : MOTION ZONE Size reduction

󰼿󰼿󰼿ㆍFor MOTION ZONE confirmation, keep SET button pressed for
a few seconds

● PRIVACY SETUP : Mask selected area to ensure privacy.

PRIVACY MASK SETUP

PRIVACY MASK
MASK COLOR
PREVIOUS PAGE.

OFF
WHITE

ENABLE MASKS (1 to 6)

MASK 1
MASK 2
MASK 3
MASK 4
MASK 5
MASK 6
PREV. NEXT.

ON
OFF
OFF
OFF
OFF
OFF

ENABLE MASKS (7 to 12)

MASK 7
MASK 8
MASK 9
MASK 10
MASK 11
MASK 12
PREV.

ㆍWhite : PRIVACY-ZONE
Position movement

Blue : PRIVACY-ZONE Size
enlargement or reduction

ㆍFor PRIVACY-ZONE confirmation,
keep SET button pressed for a few
seconds.

RESET

Resets the camera settings to the factory defaults.

EXIT MENU.

Saves all the setting menus and then exits.

OFF
OFF
OFF
OFF
OFF
OFF

Ultra Resolution WDR Day/ Night Camera

28

29

Ultra Resolution WDR Day/ Night Camera

Troubleshooting

■

If you have trouble operating your camera, refer to the following table.
If the guidelines do not enable you to solve the problem, contact an
authorized technician.

Problem

Nothing appears on
the screen.

The image on the
screen is dim.

The image on the
screen is dark.

The camera is not working
properly, and the surface
of the camera is hot.

The Motion Detection
function does not
work.

Color is not correct.

The screen flickers
continually.

• Check the power connections.

• Check the VIDEO signal line connection.

•

Make sure the lens is clean. Clean the lens with a
soft clean lint free cloth.

• Adjust the monitor contrast & brightness controls.

•

Re-position the camera if necessary.

• Adjust the contrast control of the monitor.
If you have an intermediate device, set the 75Ω/ Hi-z

•
properly.

• Check that an appropriate power source is
connected to the camera.

• Check that MOTION DET in the SPECIAL SETUP
is not set to 'OFF'.

•

Check the WHITE BAL settings in the SETUP menu.

• Check that the camera is not facing toward the
sun.

Solution

ITEM

Power Consumption

Image Sensor
Effective Pixels
Dynamic Range
Horizontal Resolution
Min. Illumination
Day & Night
White Balance
WB Range
Shutter Speed
Sens-up
Privacy Masking
AGC
Image Flip
Camera ID
S/N Ratio
Video Output
OSD
Sync. System
Iris Control
Operating Humidity
Operating Temp.

Specifications

NTSC

AC24V / DC12V

170mA(AC24V) / 250mA(DC12V)

PIXIM 1/3" High Sensitivity Digital Sensor

758(H) x 540(V)

120dB(Max)

690TVL Effective

0.1Lux

AUTO / COLOR / B/W

Auto / AWB / Indoor / Outdoor / Manual

2000˚K~11,000˚K

up to 1/30, 720 sec

Auto / Off (Selectable x2 ~ x64)

12 Zones

Low / Auto / High / Off

Horizontal and Vertical

On / Off

More than 50dB

Composite video output 75 ohm terminated

Built-in

Internal / Line Lock

DC / VIDEO

30% ~ 90% RH

-10˚C to 50˚

■

Ultra Resolution WDR Day/ Night Camera

30

31

Ultra Resolution WDR Day/ Night Camera

Limited Warranty

■

Digimerge “Pinnacle Series” Cameras . 5 Year Limited Hardware Warranty
Warranty : Subject to the exclusions, limitations and exceptions, Digimerge warrants to the initial

end-user purchaser that this hardware product is free from manufacturing defects in material and
workmanship under normal use for a period of five (5) years from the date of purchase.

Warranty Details :

The five (5) year warranty period consists of :

ㆍOne (1) year over-the-counter replacement warranty covering parts and labor
ㆍFour (4) additional years of repair depot warranty covering parts and labor with proof of RA

issued by Digimerge tech
ㆍNote: Return Authorization number (RA) must be issued by Digimerge Technical Support
to the Dealer prior to product replacement at the Distributor.

Exceptions to the above warranty are :
ㆍCamera components including, but not limited to, moving parts, motors, fans, heaters, camera
image sensors, IR Cut Filters, DC iris and lens assemblies are warranted for a one (1) year period
ㆍPan Tilt Zoom (PTZ) Cameras and related components including electrical slip ring contacts,
and pan/tilt/lens motors are warranted for a one (1) year period.

NOTE : Products are subject to continuous improvement. DIGIMERGE Technologies Inc. and
its subsidiaries reserve the right to modify product design, specifications and prices, without
notice and without incurring any obligation.

For valid warranty claims made during the warranty period, upon proper proof of purchase (which
is defined as a "valid form of a bill of sale or receipt from an authorized retailer or distributor
showing the original date of purchase"), defective products will, at the sole discretion of Digimerge,
be repaired or replaced with equal or better product in terms of hardware features without charge
if all the conditions set forth in this document are met. Any products repaired or replaced within
the warranty period, shall be warranted by Digimerge to the initial end-user purchaser for 90 days
from the return shipment date, or the remainder of the warranty term, whichever is longer.
Products and parts, at Digimerge's sole discretion, may be replaced with new or refurbished items,
and the products and parts replaced become the property of Digimerge. Product returned to
Digimerge must be in its original packaging or in packaging which provides the product with
protection equivalent to the original packaging, and sent with the postage charges prepaid via
a shipping method that provides for tracking of your package, to the address provided at the
time the RA (Return Authorization) was requested (see "Warranty Service" for explanation of
how to obtain an RA). The customer is responsible for all shipping costs associated with the return
of the defective products for warranty service to Digimerge warranty/repair depot facilities.
Products will be returned to the end-user freight prepaid.

Exclusions and Limitations: Any of the following will void this warranty:

1. Installation or use of the product other than strictly in accordance with the instructions
contained in the product's instruction manual;

2. If the product is subjected to operating conditions (including atmospheric, moisture and humidity
conditions) outside of the acceptable conditions specified in the product's instruction manual;

3. If the product is subjected to misuse (not adhering to instructions supplied with the product),
negligence, modification (of hardware, firmware or software) or abuse;

4. If the product is subjected to electrical short circuits or transients, accident, fire, flood or Acts
of God;

5. Adjustment, maintenance or repair of the product other than in accordance with Digimerge
approved procedures; and

6. Use of replacement parts other than those specified by Digimerge.

7. If the products original identification (trademark, serial number, model number) markings
have been removed, defaced or altered

DIGIMERGE MAKES NO CLAIMS OR WARRANTIES OF ANY KIND WHATSOEVER
REGARDING THE PRODUCT'S ABILITY OR EFFECTIVENESS IN PREVENTING OR
REDUCING THE RISK OF, OR DAMAGES RESULTING FROM, LOSS OR THEFT OF
PROPERTY OR PERSONAL INJURY. THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED
WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE.
REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS THE
EXCLUSIVE REMEDY OF THE PURCHASER. DIGIMERGE SHALL IN NO EVENT BE LIABLE
FOR ANY SPECIAL, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES
OF ANY KIND OR CHARACTER, INCLUDING, WITHOUT LIMITATION, PERSONAL INJURY,
LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS,
OR CLAIMS AGAINST THE PURCHASER BY ANY THIRD PERSON, EVEN IF DIGIMERGE
HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

No claims or statements regarding the product, whether written or verbal, by salespeople, retailers,
dealers or distributors, that are not contained in this limited warranty or in the owner's manual
are authorized by Digimerge and do not modify or expand this warranty. Some countries, states,
or provinces do not allow the exclusion or limitation of implied warranties or the limitation of
incidental or consequential damages for certain products supplied to consumers or the limitation
of liability for personal injury. To the extent that such restrictions on limitations apply to the products,
the above limitations and exclusions may be limited in their application. In that case, when the
implied warranties are not allowed to be excluded in their entirety, they will be limited to the
duration of the applicable written warranty, and if damages may not be limited then the above
limitations on damages apply, but only to the greatest extent permitted by local law.

Warranty Service :

Warranty service can be received by contacting your Digimerge dealer (during the warranty
period). The dealer is required to first contact Digimerge Technical Support for assistance.
In the event the problem cannot be resolved over the phone or via email, Digimerge will advise
to return the product, at customer's expense, for repair or replacement. Upon receipt of the
defective camera, Digimerge will send a repaired or replacement camera at Digimerge's
expense to the customer. Dealer should send product to:

In United States :

Digimerge Returns
Schenker Logistics
2363 E. Perry Road
Suite 171, Dock Door 44
Plainfield, IN 46168

In Canada :

Digimerge Technologies Inc.,
Attention: Repair Department
250 Royal Crest Court
Markham, Ontario, Canada
L3R 3S1

Out of warranty service : Please visit our web site (www.digimerge.com) for the name and
location of the Digimerge authorized service centers.

Ultra Resolution WDR Day/ Night Camera

32

33

Ultra Resolution WDR Day/ Night Camera

■

MEMO

MEMO ■

■

MEMO
