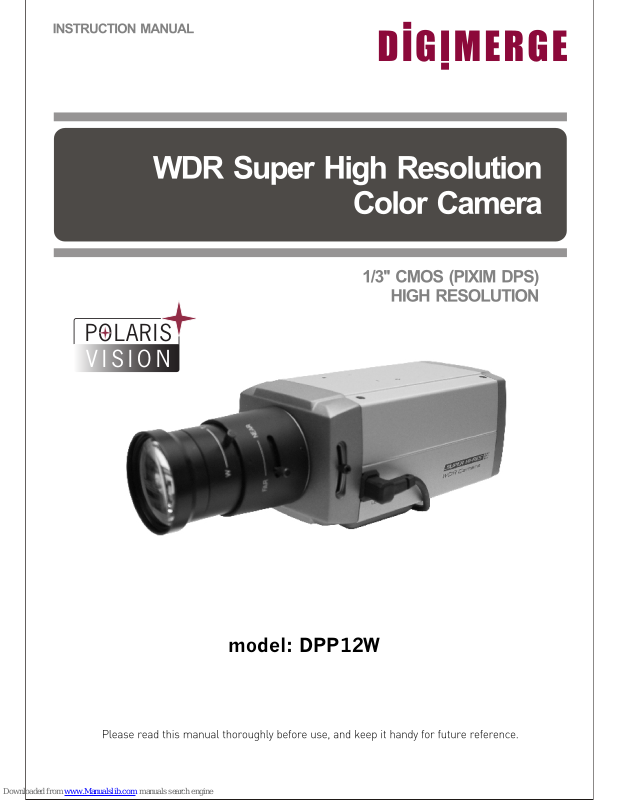

Digimerge DPP12W Instruction Manual

model: DPP12W

V I S I O N

POLARIS

WARNINGS AND CAUTIONS:

CAUTION:

CAUTIONCAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER(OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (servicing) instructions in the
literature accompanying the product.

Should any liquid or solid object fall into the cabinet,
unplug the unit and have it checked by the qualified
personnel before operating it any further.

Unplug the unit from the wall oulet if it is not going to
be used for several days or more. To disconnect the
cord, pull it out by the plug. Never pull the cord itself.

Allow adequate air circulation to prevent internal heat
build-up. Do not place the unit on surfaces (rugs,
blankets, etc.) or near materials(curtains, draperies)
that may block the ventilation holes.

Height and vertical linearity controls located at the
rear panel are for special adjustments by qualified
personnel only.

Do not install the unit in an extremely hot or
humid place or in a place subject to excessive
dust, mechanical vibration.

The unit is not designed to be waterproof.
Exposure to rain or water may damage the unit.

Clean the unit with a slightly damp soft cloth.
Use a mild household detergent. Never use
strong solvents such as thinner or benzine as
they might damage the finish of the unit.

Retain the original carton and packing
materials for safe transport of this unit in the
future.

Safety ----------------------------------------- Installation -----------------------------------

Cleaning --------------------------------------

PRECAUTIONS

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR
MOISTURE. DO NOT INSERT ANY METALLIC OBJECTS THROUGH THE VENTILATION GRILLS OR
OTHER OPENINGS ON THE EQUIPMENT.

- ii -

FCC INFORMATION : THIS EQUIPMENT HAS BEEN TESTED

AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL
DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE
LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION
AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS
OPERATED IN A COMMERCIAL ENVIRONMENT. THIS EQUIPMENT
GENERATES, USES, AND CAN RADIATE RADIO FREQUENCY
ENERGY AND IF NOT INSTALLED AND USED IN ACCORDANCE WITH
THE INSTRUCTION MANUAL, MAY CAUSE HARMFUL INTERFERENCE
TO RADIO COMMUNICATIONS. OPERATION OF THIS EQUIPMENT IN
A RESIDENTIAL AREA IS LIKELY TO CAUSE HARMFUL
INTERFERENCE IN WHICH CASE THE USER WILL BE REQUIRED TO
CORRECT THE INTERFERENCE AT HIS OWN EXPENSE.

CAUTION : CHANGES OR MODIFICATIONS NOT EXPRESSLY

APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE
COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.

THIS CLASS A DIGITAL APPARATUS COMPLIES WITH CANADIAN
ICES-003.

NORME NMB-003 DU CANADA.

WARNING

This is a Class A product. In a domestic environment this product
may cause radio interference in which case the user may be required
to take adequate measures.

CE COMPLIANCE STATEMENT

FCC COMPLIANCE STATEMENT

- iii -

IMPORTANT SAFEGUARDS

1 -1 Class 2 power source only.

7

-2 Do NOT use power source other than that specified.

17

17. CAUTION-these servicing instructions are

for use by qualified service personnel only.
to reduce the risk of electric shock do not
perform any servicing other than that contained
in the operating instructions unless you are
qualified to do so.

5. ACCESSORIES

- iv -

- 1 -

The camera provides high-quality images using PIXIM DPS(Digital Pixel System) 1/3" Wide
Dynamic Range Sensor.

Features:

High resolution and high performance 1/3" CMOS(PIXIM DPS) technology
Wide Dynamic Range(WDR)
Excellent picture quality

Minimal blooming

Zero smear
Built-in NTSC/PAL video encoder

540 lines(Color) of resolution

0.5 Lux(Color) @ F1.2 Sensitivity
C/CS, backfocus cam for easy adjustment
Upto 1/22,000sec electronic shutter at f/1.2
OSD (On Screen Display)
Auto white balance modes
Day & Night (Auto /off)
AGC (Auto Gain Control)
VIDEO OUT(BNC)
Internal/AC line lock
Compatible with Slide Switch
with 4-pin connector
Operates in 12VDC or 24VAC
Use Certified / Listed Class 2 power supply only.

video- or DC-type lenses with select

Quick connect for video or DC lens

INTRODUCTION

IMPORTANT : The user of this camera is responsible for

checking and complying with local, state, and federal laws
and statutes concerning the recording and monitoring of
audio signals.

- 2 -

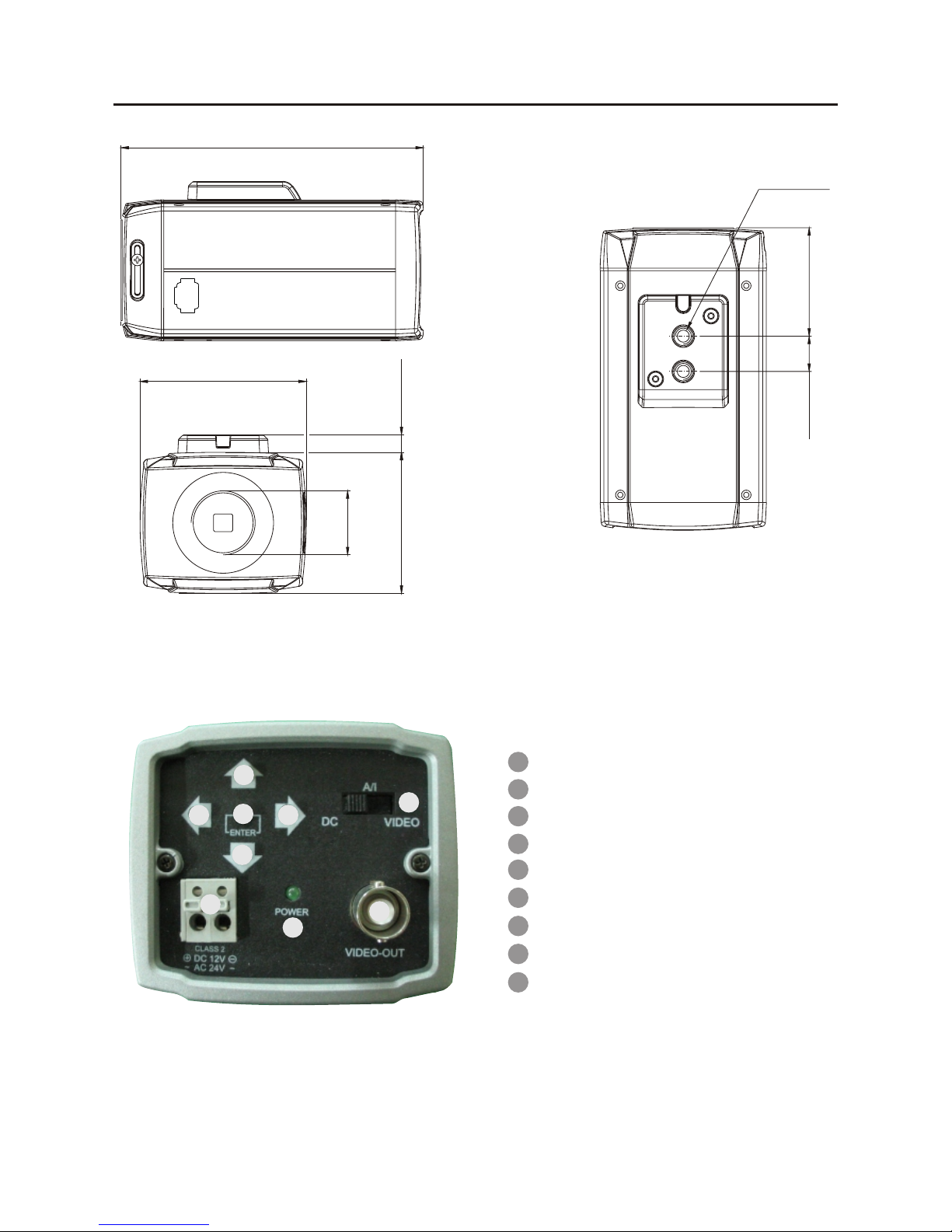

CAMERA OVERVIEW

SIDE VIEW

1-32UNEF

56.0mm

66.0mm

7.0mm

FRONT VIEW

120.0mm

TOP VIEW

14.0mm

43.0mm

1/4-20UNC

REAR VIEW

1

2

3

4

5

6

7

Left Button

Up Button

Enter Button

Right Button

Down Button

Power Indicator

Video Out Connector (BNC)

AC /DC Compatible Input Terminal

DC or VIDEO Lens Select Switch

8

9

9

7

4

2

3

1

5

8

6

- 3 -

Installation of the camera must be performed by qualified service personnel in accordance
with all local and national electrical and mechanical codes.

Carefully remove the color camera and its accessories from the carton
and verify that they were not damaged in shipment.

The contents of the package includes:

1. Color camera

2. Mini-DIN connector (for video-or dc-type auto-iris lens)

3. CS adapter ring for C mounting “C” lenses

4. This manual

CONTENTS OF PACKAGE

- 4 -

CAMERA SETUP

PRESETS

NORMAL

INDOOR

OUTDOOR

WD NORMAL

AGC LOW

NORMAL

HIGH

WHITE BALANCE

ATW Normal

ATW Xtnd

AWB

SYNC

INTERNAL

LINELOCK

AUTO

OFF

D/N CONTROL

SAVE. EXIT. CANCEL

PUSH AWB CONFIRM

> Save AWB & ALL Chngs.

CANCEL

''' WARNING '''

will

ALL User
be written to ROM

properties

LINELOCK MENU

V PHASE

DAY/NIGHT THRESHOLD SETUP

IN

OUT

- 5 -

CAMERA ADJUSTMENT

<SETTINGS>

Setting can be made using the 5 buttons located on the back of the camera.

<CAMERA SETUP>

1) PRESETS

1) The CAMERA SETUP is displayed on the monitor when press and hold
the ENTER button for more than 1 second.

2) Press the UP and DOWN buttons in the vertical direction and move the cursor(>)
to the desired submenu.

3) ".." indicated submenus.

- NORMAL

- WD NORMAL Standard video with Wide Dynamic Range Limit Max

- INDOOR To brighten the video taken indoors

Standard video

Auto Gain Control selected (LOW / NORMAL / HIGH)

2) AGC

- DEFAULT

Standard video

- INDOOR

To brighten the video taken indoors

- OUTDOOR

3) WHITE BALANCE
hite balance is automatically followed up

- A T W Normal

W

(Limits the range of auto tracking by the value of two properties).

When shooting in a bright area outdoors

W

- ATW Xtnd hite balance is automatically followed up.

- AWB One-push automatic white balance control.
Shoot a target white subject and press the ENTER button,

and the white balance will be adjusted.

4) SYNC

- OUTDOOR When shooting in a bright area outdoors

- INTERNAL

This mode is necessary for using the internal synchronization.

- LINELOCK

This mode is necessary for the operation of multi camera because
it synchronizes the camera phase by using the external signal
(AC Signal).

5) D/N CONTROL

- AUTO

This camera has a function which automatically changes to
the appropriate mode for daytime or night-time.

- OFF

In this mode, the camera outputs the video image only in color.

CONNECTIONS

- 6 -

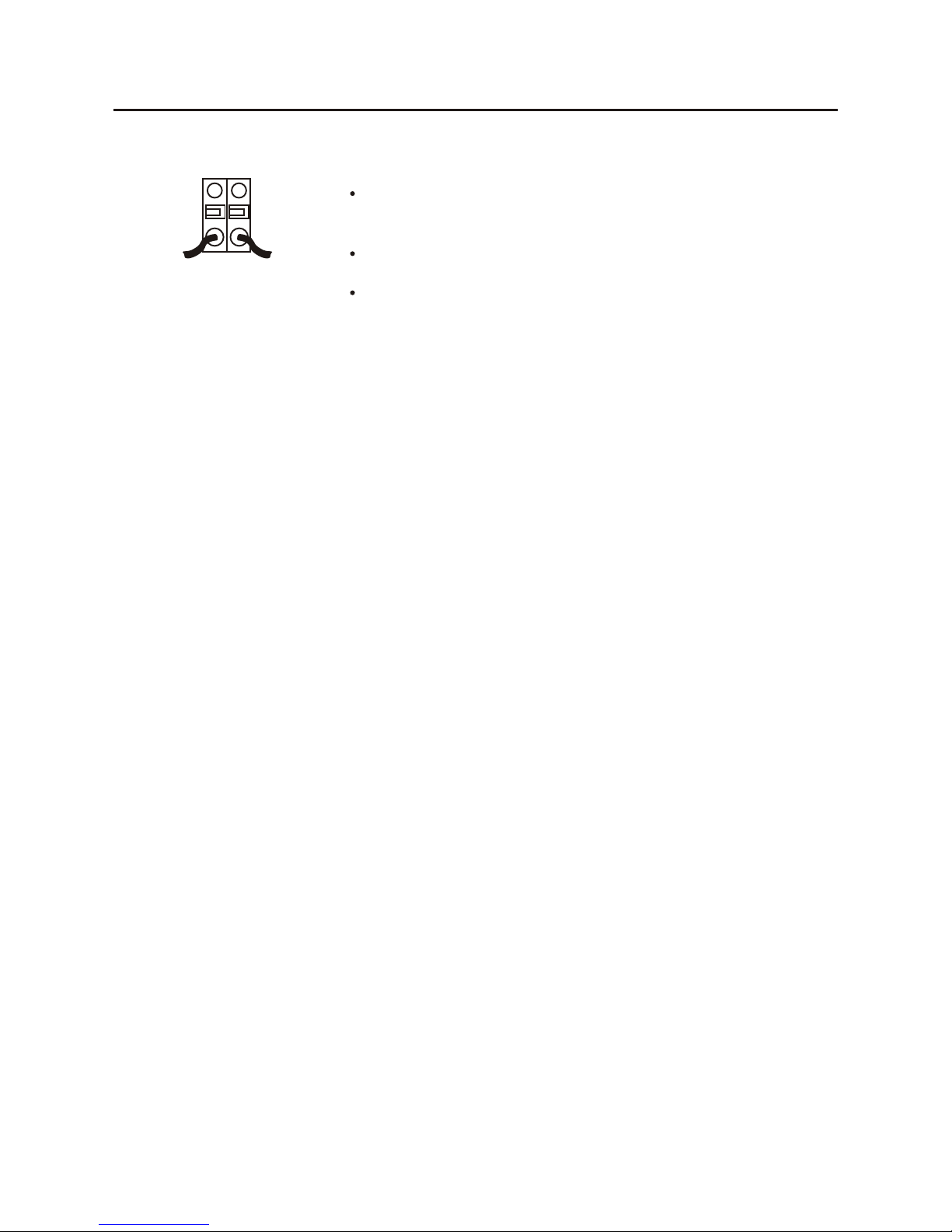

CLASS 2
+ DC 12V ­~ AC 24V ~

This terminal accepts a DC12V or AC24V power
source from a DC12V or AC24V ac +/-10% 60/50Hz +/- 1Hz.

Use Certified/Listed Class 2 power supply only.

In DC power, use the Adapter mode than DC 12V
500mA Capacity.

1) POWER INPUT TERMINAL

2) VIDEO OUT CONNECTOR

BNC : This BNC connector provides a 1.0Vp-p/75 ohms composite video Signal.

The lens is not supplied with this camera. Purchase a lens suitable for your environment.
This camera accepts the auto iris lens and both C-and CS-mount lens.

Pin 3

Pin 1

Pin 4

Pin 2

Rib

Connector
Cover

Iris Control

Cable

Connector

Automatic

Iris Lens

Heat

Shrinkable

Tubes

2. Remove the protective cap, and attach the lens to the camera by turning clockwise.

- 7 -

LENS

For using main functions it is recommended to use Auto Iris Lens with DC type.
If the lens is marked with fingerprints other marks, the image quality might be poor.
It is recommended to use a high quality lens to improve the image quality under
low illumination.

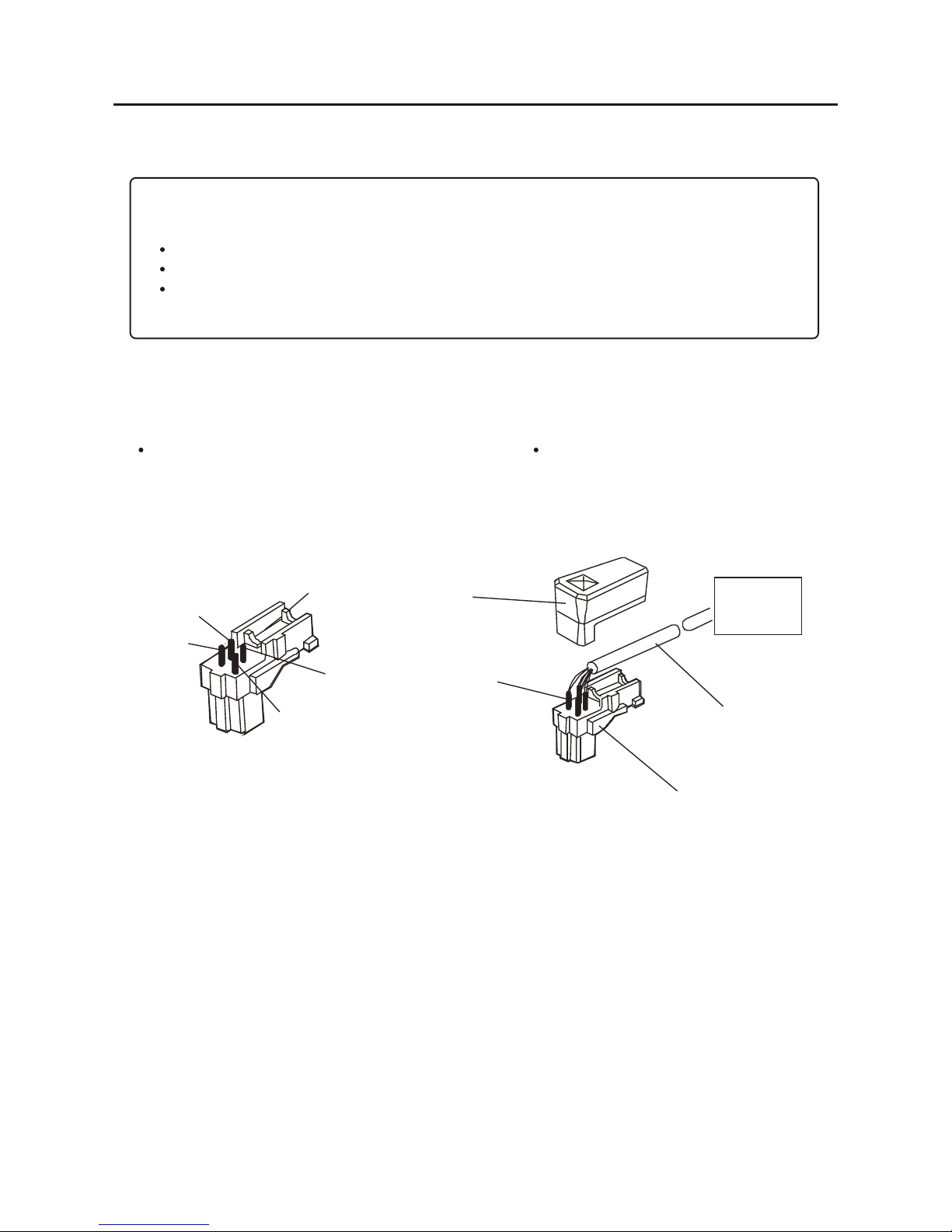

<INSTALLING AUTO IRIS LENS>

1. Remove the cover from the iris lens plug supplied, and solder the lens cable to the plug as
shown below.

Video type :
Pin 1 --- Red (Power source)
Pin 2 --- N.C
Pin 3 --- White (Video signal)
Pin 4 --- Black (GND)

DC type :
Pin 1 --- Damping­Pin 2 --- Damping+
Pin 3 --- Drive+
Pin 4 --- Drive-

* Notes *

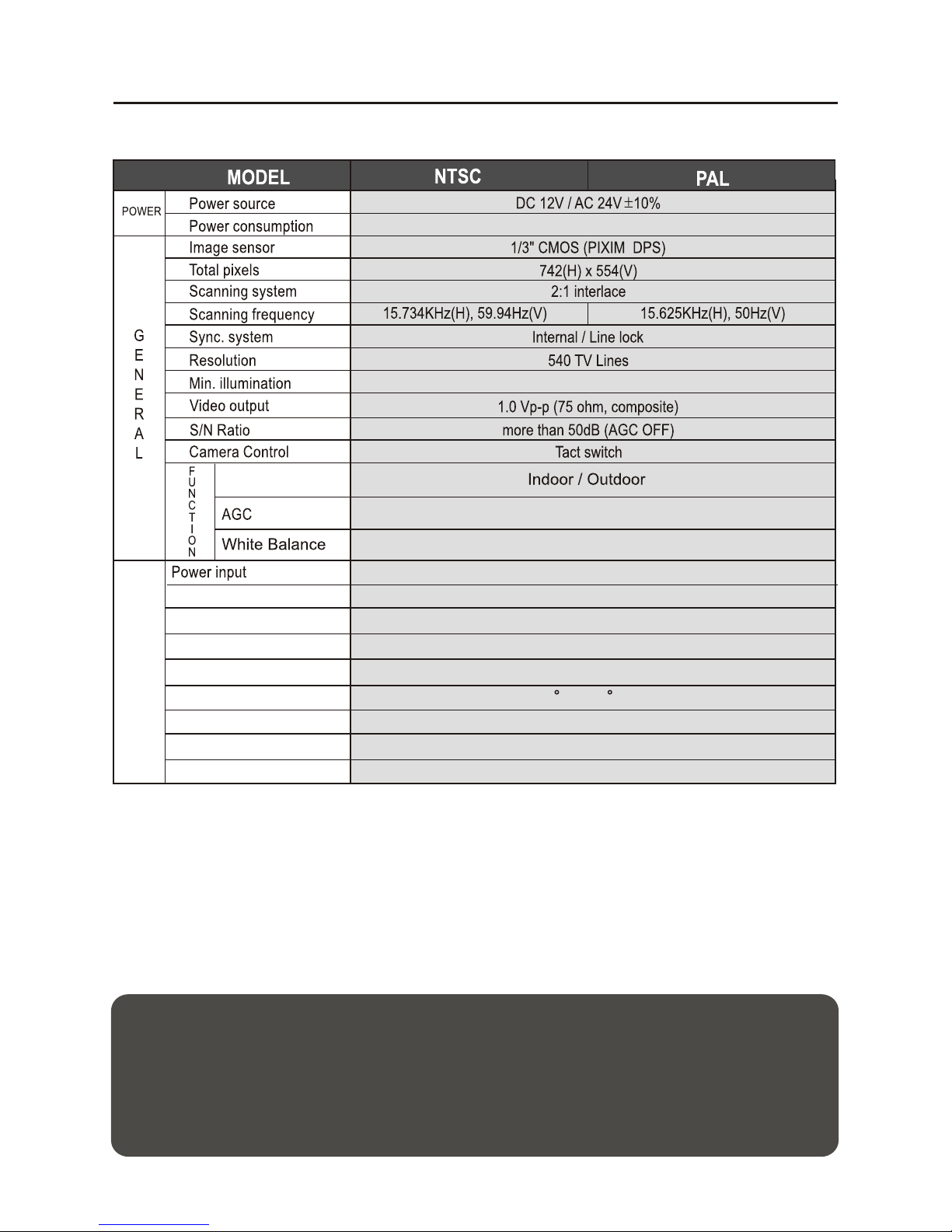

SPECIFICATIONS

50302661A

WDR Super High Resolution
Color Camera

PRINTED IN KOREA

2-Pin terminal block

0.5 Lux @ F1.2

PRESETS

/ WD Normal

Default / Indoor / Outdoor

ATW Normal / ATW Xtn d / AWB

Norm al /

Lens mount

1/4''-20 UNC (top or bottom)

66 (W) x 56 (H) x 120 (D)mm

250g

4-Pin mini din jack (standard connection)

C/CS mount (Selected through back focus)

Mounting hole

External dimension

Weight

Video output

Auto iris output

Operating temperature

Operating humidity

BNC Connector

0 ~ 96% (non-condencing)

C
O
N
N
E
C
T
O
R
&

ETC.

-10 C ~ +50 C

3.0 Watts
