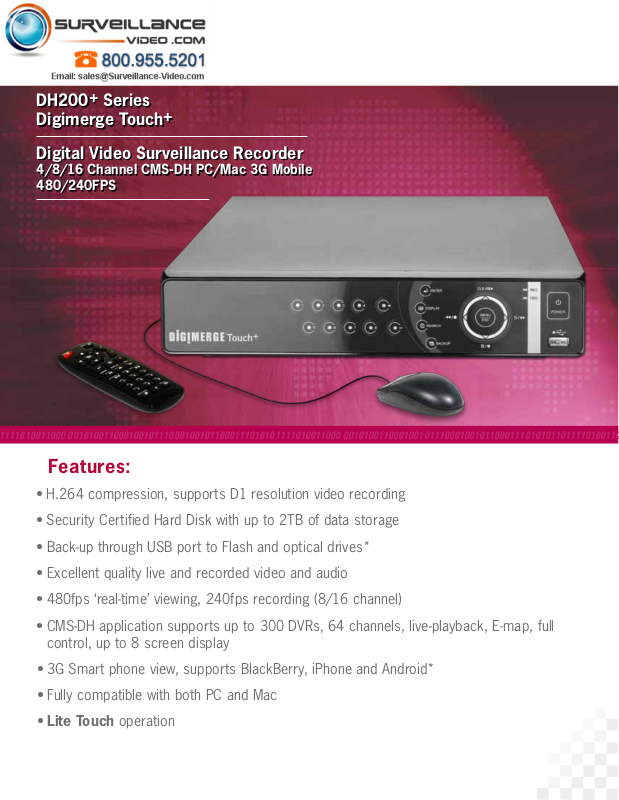

Digimerge DH2041TB, DH204501 Specsheet

DH200+ Series
Digimerge Touch

+

Digital Video Surveillance Recorder

4/8/16 Channel CMS-DH PC/Mac 3G Mobile
480/240FPS

Features:

• H.264 compression, supports D1 resolution video recording

• Security Certified Hard Disk with up to 2TB of data storage

• Back-up through USB port to Flash and optical drives*

• Excellent quality live and recorded video and audio

• 480fps ‘real-time’ viewing, 240fps recording (8/16 channel)

• CMS-DH application supports up to 300 DVRs, 64 channels, live-playback, E-map, full
control, up to 8 screen display

• 3G Smart phone view, supports BlackBerry, iPhone and Android*

• Fully compatible with both PC and Mac

• Lite Touch operation

SPECIFICATIONS:

Video inputs: 8/16 x 1.0Vp-p, CVBS, 75ohms, BNC

Video outputs: 1 composite (BNC)
1 spot output, programmable
1 VGA

Audio inputs: 1 x line-in, RCA

Audio output: 1 x line-out, RCA

Audio: 1-way audio conference (via network)

Video Compression: H.264 hardware codec

Audio compression: G.711

Supply voltage: 100VAC - 240VAC, 12VDC , 3A, 50/60Hz

Power consumption: Approx. 19.2 watts (HDD 250GB)

Operating Temp. Range: -32°~104° F / 0° ~ 40° C

Hard disk capacity: 1 HDD (Max 2TB), 100% duty cycle

Operating System: Linux (embedded)

OSD Navigation: USB mouse, IR controller or 20 key front panel

Backup: Via USB to Flash & optical drives*

Back-up file formats: Embedded player/Convertible to AVI

Recording resolution: 360 x 240 : 240/200 (NTSC/PAL)
720 x 240 : 120/100 (NTSC/PAL)
720 x 480 : 60/50 (NTSC/PAL)

Image size: 5-30 KB (720 x 480, 720 x 576) FPS
3-19 KB (720 x 240, 720 x 288) FPS
2-12 KB (360 x 240, 360 x 288) FPS

Record Scheduling: Daily, Weekly adjust specific Hr per channel

Pre/Post alarm recording: 5 seconds (Pre); 5 minutes (Post), programmable
per camera

Event/Log search: For user login/out, configuration changes,
remote access, connects/disconnects

Playback: Single, Quad, 8, 16 CH Simultaneous

Alarm inputs: 4/8/16 x TTL, programmable as NC/NO

Alarm outputs: 1 x Relay with NO/NC contact; 24VDC/2A,
240VAC/2A resistive

Activity detection: 4x4 grid (SET)/ 28 x 24grid (CLIENT S/W)/
Sensitivity levels: 20

PTZ Control: RS-485/RS-422 Interface

Mobile Viewing: 3G Smart Phone viewing, supports BlackBerry,
iPhone & Android*

Front Key: Max 20 (Touch Sensor)

Front LED: Power, REC, HDD

Unit Weight: 1.91 kg/4.2 Lbs

Unit Dimensions : 11.0” / 280mm 12.7”/315mm 2.2”/55mm
(W x D x H)

Carton Weight: 3.16 kg/6.8 lbs

Carton Dimensions: 13.4” /340mm 5.7”/145mm 16.14”/410mm
(W x D x H)

Networking

Remote Functions: Live View, Live Recording, Search, Set-up, Back-up

Network Speed Control: 8 levels (64KB ~ 8MB)/sec.

Network Protocol: TCP/IP, DDNS and Web

Network Interface: 10/100-Base-TX, RJ-45

*check website for compatibility listing

DH200+ SerieS

GUI CMS-DH

3G Smart Phone
Viewing, BlackBerry,

iPhone & Android*

BACK JACK PANEL:

Video In

NTSC/PAL

Setting

Video Out

Audio In

Audio Out

VGA

LAN

Alarm Block

Mouse

DIMENSIONS:

280mm/11.0”

Front

315mm/12.7”

Side

PRODUCT INFORMATION:

UPC:

Weight:

Package
Dimensions:

Includes:

DH204000+ 4 Channel, no HDD 8-41430-00640-4
DH204501+
DH2041TB+
DH208000+
DH208501+
DH2081TB+
DH216000+
DH216501+
DH2161TB+

3.16kg/6.8lbs

340mm x 145mm x 410mm / 13.4” x 5.7” x 16.1”
(W x H x D)

DVR, HDD Pre-Installed, Remote Control, Power
Supply, Software application CD

4 Channel 500GB HDD 8-41430-00641-1
4 Channel 1TB HDD 8-41430-00642-8
8 Channel, no HDD 8-41430-00636-7
8 Channel 500GB HDD 8-41430-00634-3
8 Channel 1TB HDD 8-41430-00638-1
16 Channel, no HDD 8-41430-00637-4
16 Channel 500GB HDD 8-41430-00635-0
16 Channel 1TB HDD 8-41430-00639-8

DC-12V

55mm/

2.2”
