Digimerge DGR104 Installation & User Manual

Download

Page 1

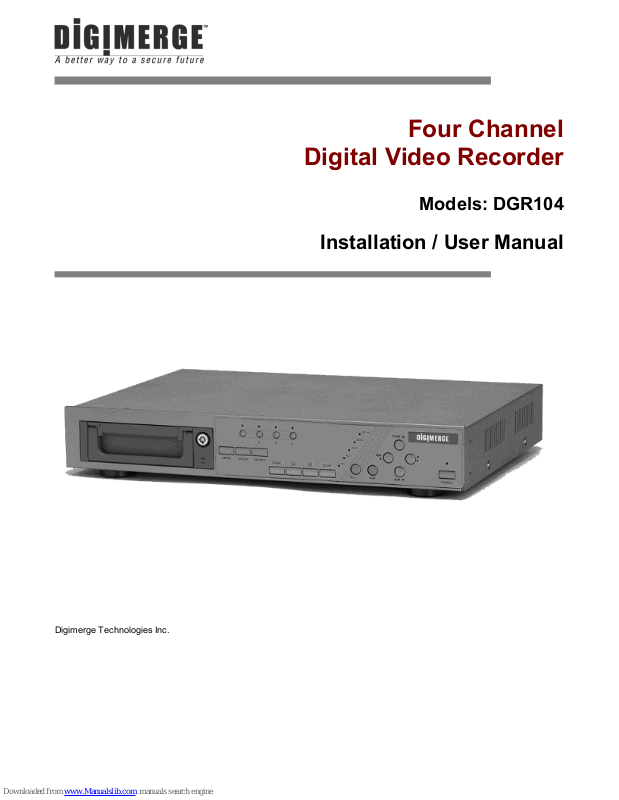

Four Channel

Digital Video Recorder

Models: DGR104

Installation / User Manual

Digimerge Technologies Inc.

Page 2

Under the copyright laws, this documentation may not be copied, photocopied, reproduced, translated, or reduced to any electronic medium or machine-readable form, in whole or part without the prior written consent of Digimerge Technologies Inc., except in the manner described in the documentation.

Digimerge Technologies Inc.

300 Alden Road

Markham, Ontario

L3R 4C1 CANADA

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:

1. THIS DEVICE MAY NOT CAUSE HARMFULL INTERFERENCE, AND

2. THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at one’s own expense.

CAUTION: CHANGES OR MODIFICATIONS NOT EXPRESSLY APPROVED BY THE PARTY RESPONSIBLE FOR COMPLIANCE COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT.

Page 3

Table of Contents

Important Safety Instructions........................................................................................................................................................3

Introduction ..................................................................................................................................................................................4

Features ....................................................................................................................................................................................... 4

System Contents..........................................................................................................................................................................5

Getting Started .............................................................................................................................................................................5

Front Panel Controls ....................................................................................................................................................................6

Back Panel ................................................................................................................................................................................... 8

Accessing the Main Menu ............................................................................................................................................................9

Main Menu...............................................................................................................................................................................9

System Set Up.......................................................................................................................................................................10

Setting the Audio Input Channel..........................................................................................................................................10

Setting the Internal Audible Alarm Buzzer...........................................................................................................................10

Setting the External Audible Alarm device ..........................................................................................................................10

Setting the Alarm Duration .................................................................................................................................................. 11

Setting the Dwell Time ........................................................................................................................................................11

Setting the Message Latch..................................................................................................................................................11

System Time/Date Set up......................................................................................................................................................11

Selecting the Date Display Format...................................................................................................................................... 11

Setting System Time & Date ............................................................................................................................................... 11

Changing the System Password .........................................................................................................................................12

Clearing the Hard Drive Data ..............................................................................................................................................12

Resetting System to Factory Defaults.................................................................................................................................12

Remote Protocol Setup ....................................................................................................................................................... 12

Timer Recording Setup .......................................................................................................................................................13

Timer...................................................................................................................................................................................13

Record Settings...................................................................................................................................................................15

HDD Overwrite Setup:.........................................................................................................................................................15

Record IPS Setup: ..............................................................................................................................................................15

Record Quality Setup ..........................................................................................................................................................15

Alarm REC IPS setup..........................................................................................................................................................15

Alarm REC Quality setup ....................................................................................................................................................15

Motion Trigger Record ........................................................................................................................................................15

Camera Channel Setup.......................................................................................................................................................16

Motion Detection....................................................................................................................................................................18

Event Log Viewing ..............................................................................................................................................................20

Operation ...................................................................................................................................................................................21

On Screen Display (OSD) ...................................................................................................................................................21

Recording Methods .............................................................................................................................................................21

Viewing Options: .................................................................................................................................................................21

Individual Camera Select (1 - 4):......................................................................................................................................... 21

Quad View Select:...............................................................................................................................................................21

Picture in Picture (PIP):.......................................................................................................................................................22

Zoom:..................................................................................................................................................................................22

Video Search ......................................................................................................................................................................22

Playing Back Video .............................................................................................................................................................22

Key Lock .............................................................................................................................................................................23

Troubleshooting .........................................................................................................................................................................24

Technical Specifications.............................................................................................................................................................25

Appendix 1: Installing the HDD ..................................................................................................................................................26

Appendix 2: Connection Diagram to Cameras and Monitor .......................................................................................................28

Appendix 3: Pin Configurations ..................................................................................................................................................29

Pin References for RS-232 / Alarm Block ...........................................................................................................................30

Appendix 4: Rack Mount Installation ..........................................................................................................................................31

Appendix 5: Recording Times (in Hours)....................................................................................................................................32

Appendix 6: RS232 Remote Protocol......................................................................................................................................... 33

Appendix 7: Compatible HDD Brands ........................................................................................................................................34

Limited Warranty ........................................................................................................................................................................35

Page 4

Important Safety Instructions

All the safety and operating instructions should be read before operating this equipment. The improper operation may cause irreparable damage to the appliance.

Lift and place this equipment gently. Do not expose this equipment to direct sunlight. Do not use this equipment near water or in contact with water. Do not spill liquid of any kind on the equipment. Do not unplug the power connector before turning the power off correctly. This equipment should be operated using only the power source from standard package. Unauthorized repair or parts substitutions may result in fire, electric shock or other hazards. Do not switch the Power On & Off within short period (within 3 seconds). Do not attempt to service this equipment by yourself. Refer all servicing to qualified service personnel. This installation should conform to all local codes.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

Page 5

Introduction

The DGR104 combines a 4 channel multiplexer with a Digital Video Recorder (DVR).

The DVR offers many advantages over traditional time lapse VCR’s, allowing you to quickly access and search for a specific time segment or event which has been recorded. This high quality recorded video can be viewed at various playback speeds as well as frame-by-frame with the Jog Button feature

To learn more about Digimerge products, please visit our website at www.digimerge.com

Features

• Wavelet Compression Format

• 4 Audio inputs and 2 outputs

• Resolution: 704X564 - full screen, 352X282 - 4 channels, 224X188 9 - channels and 176X141- 16 channels

• Independent main and call monitor outputs allow simultaneous or full screen viewing

• Multi screen display mode

• 4 channel alarm input, alarm display and 1 alarm output

• Video loss detection able to record 160 events on each channel

• Power-loss memory feature (In case of power failure, set-up parameter will remain)

• Supports 1 removable HDD, IDE type (up to a maximum of 120GB)

• Display refresh rate up to 72 IPS (NTSC) and 50 IPS(PAL)

• Record refresh rate up to 15 IPS (NTSC) and 12 IPS (PAL)

• Quick multiple search by date/time, alarm or full list

• Multiple speed playback

• Security password protection

• RS-232, RS-485 communication protocol

Page 6

System Contents

The DGR104 box should include the items listed below. Please take a moment to verify that no items are missing from the package.

DGR104 Digital Video Recorde

Hard Disk Drive in Cartridge (not included in all models)

Installation / User Manual

2 Keys for

Hard Drive Cartridge

Power Adapter and Cord

KEEP THE KEYS IN A SAFE PLACE. THEY ARE NECESSARY FOR INSTALLATION / REMOVAL OF THE HARD

NOTE:

DISK DRIVE.

Getting Started

If the purchased DVR model did not contain a hard disk drive, please refer to Appendix #1 for HDD installation instructions.

1. Connect video sources and monitor(s) following the configuration example shown in Appendix # 2

2. Connect the AC Power Cord to the Power Adapter and plug into an electrical outlet. A Red LED indicator light will be ON to indicate that the DVR is in Standby mode.

3. Press the Power button. The POWER LED will turn from red to orange, and other red LED indicators will turn ON. Note: the system takes approximately 5 to 15 seconds to power up. During the power-up, you will see the following messages: “HDD Detecting”, followed by “Master HDD Connected”.

Once connected, the POWER LED will change to green, and the red indicator lights will be ON next to the Alarm and Timer buttons.

IF YOU GET THE MESSAGE “HDD NOT FOUND”, PLEASE SEE APPENDIX #1 AS THE HDD IS LIKELY NOT

NOTE:

INSTALLED CORRECTLY.

Page 7

9876543

Front Panel Controls

1. REMOVABLE HDD CARTRIDGE Please refer to page.19 Appendix #1.

2. LED LIGHT

The LED Light is ON under following condition.

HDD Full: HDD is full •

•

ALARM: If you want to turn off the ALARM LED light, please refer to page 13 and set the Camera / ALARM item as OFF (all of the cameras should be set as OFF.)

•

TIMER: When Timer is set as Enabled

•

PLAY: On Play mode

•

REC: On Recording mode

3. MENU

Press MENU to enter main menu.

4. ENTER

Press ENTER for confirmation.

5. SEARCH

Press SEARCH for searching recording video.

6. ZOOM Press ZOOM to enlarge the picture display.

7. Picture in Picture

Press PIP button for Picture in Picture screen.

8. 4 channels display mode

9. STOP / Down

•

STOP: Under DMR Record / Play mode, it can stop the moment action.

•

DOWN: Under setup mode, it works as Down button.

10. PLAY

Press PLAY to playback recorded video.

11. POWER

Press Power to turn ON / OFF the DMR.

12. FF / Right

•

FF: It can play video forward at high speed, and press FF again to adjust speed from 1, 2, 4, 8, 16, 32 times.

•

Right: Under setup mode, it can work as Right button.

13. PAUSE / Up

•

Pause: Under DMR play mode, it can pause the action.

•

UP: Under setup mode, it works as Up button.

14. REW / Left

•

REW: Under DMR play mode, it can play video backward at different speeds. (Press REW again to adjust speed as 1, 2, 4, 8, 16, 32 times)

•

Left: Under setup mode, it works as Left button.

17 14

15 10 1112

Page 8

15. REC

Press REC to start recording. •

16. SLOW

•

To slow down speed of play mode.

17. CAMERA SELECT (1-4)

•

Press the Camera Select (1-4) to select specified camera

Page 9

Back Panel

1. POWER INPUT

Connects to the Power cord.

2. EXTERNAL I/O

Connects to a PC for Remote Control via RS-232 or to an Alarm Block. (see appendix 6 for more info)

3. 75/HI

When using the LOOP function, allows for HI impedance or 75ohms.

4. VIDEO INPUT (1-4)

Connects to a video source i.e (camera).

5. LOOP

Allows connection to other video devices

6. AUDIO INPUTS (1-4)

Connects to an audio source for recording purposes (i.e. microphone)

7. AUDIO OUTPUTS (R/L)

Connects to a speaker (or a monitor with audio speaker)

8. MONITOR

Connects to main monitor

9. CALL

Connects to the CALL monitor for real time sequencing.

Page 10

Accessing the Main Menu

The Menu allows you to configure your DVR settings and program various recording options. Follow these steps in order to access the Menu:

Press the MENU button. The password screen will appear:

The default Password is 0000.

To change the number of the Password, use the ◄ / ► buttons to scroll left and right between numbers, and use the ▲ / ▼ buttons to change the value of the number that is flashing.

Press the ENTER button once the correct Password is entered. The menu options screen will appear.

: If you get a message “Password Error”, you have entered an incorrect password.

NOTE

Password: 0000

Main Menu

When the correct password is entered, the main menu options will be displayed.

There are 5 options available in the Main Menu:

Timer: Scheduling Recording Record: Record mode set-up Camera: Camera channel set-up System: System Setup (Sets the date, chooses an HDD overwrite setting, changes

password, resets system settings, or clears the HDD)

Event: Event List - Allows you to view video from a list of recorded events

Navigating the Menu:

▲ / ▼: Scroll up and down through menu options; change values when an option is selected and is blinking ◄ / ►: Scroll sideways within a menu option that has been selected

ENTER: Selects a submenu / an option in a submenu for browsing / modification MENU: Completes modification of a menu option; exits a menu

NOTE:

The Menu setup will timeout after 1 minute of no key presses.

(Menu) ► Timer Record Camera System Event

Page 11

System Set Up

The system menu is used to configure the system level options of the DGR104…

To access the System features, press MENU followed by the 4-digit password. Use the ▲ / ▼ to scroll to the ‘System’ option and press ENTER.

(SYSTEM) Audio Input: 1 Int Audible Alarm: ON Ext Audible Alarm: ON Alarm Duration: 10 SEC Dwell Time: 02 SEC Message Latch: NO Title Display: ON Time Display: Y/M/D 2003-JAN-02 (THU) 17:37:09 New Password: XXXX Clear HDD: NO System Reset: NO Remote Mode: RS-232 Baud Rate: 9600 Remote ID: 000

Using the ▲ / ▼ buttons, scroll to the desired option and press ENTER to select it.

Setting the Audio Input Channel

This Feature is used to select the audio channel to record. To set this Audio Input Channel:

1. On the System screen, press ▲ / ▼ to select Audio Input, then press ENTER.

2. Press ▲ / ▼ to select the desired time audio channel (1-4)

3. Press MENU to confirm your change.

4. Press ▲ / ▼ to move to another field on the System screen or press MENU to exit.

Setting the Internal Audible Alarm Buzzer

To enable or disable the internal audible alarm buzzer:

1. On the System screen, press ▲ / ▼ to select Internal audible alarm buzzer, then press ENTER.

2. Press ▲ / ▼ to enable or disable the internal audible alarm buzzer. Options are:

ON = Buzzer is on. When the DVR detects an alarm, the system sounds the internal buzzer to alert the user. OFF = Buzzer is off.

3. Press MENU to confirm your change.

4. Press ▲ / ▼ to move to another field on the System screen or press MENU to exit.

Setting the External Audible Alarm device

To enable or disable the External Audible Alarm Device:

1. On the System screen, press ▲ / ▼ to select External Audible Alarm Device, then press ENTER.

2. Press ▲ / ▼ to enable or disable the External Audible Alarm Device. Options are:

ON = External Device is on. When the DVR detects an alarm, the system triggers the external audible alarm. OFF = External Device is Off

3. Press MENU to confirm your change.

4. Press ▲ / ▼ to move to another field on the System screen or press MENU to exit.

Page 12

Setting the Alarm Duration

To set the duration of the Alarm:

1. On the System screen, press ▲ / ▼ to select Alarm Duration, then press ENTER.

2. Press ▲ / ▼ to select the desired time (10s, 15s, 20, 30, 1min, 2min, 3min, 5min, 10min, 15min, 30min, always)

3. Press MENU to confirm your change.

4. Press ▲ / ▼ to move to another field on the System screen or press MENU to exit.

Setting the Dwell Time

This timer is used to select the amount of time (between 1-10s) a channel appears on the call monitor before sequencing to the next channel. To Set the Dwell Time:

1. On the System screen, press ▲ / ▼ to select Dwell Time, then press ENTER.

2. Press ▲ / ▼ to select the desired time (1-10s)

3. Press MENU to confirm your change.

4. Press ▲ / ▼ to move to another field on the System screen or press MENU to exit.

Setting the Message Latch

This feature determines if the On Screen messages will remain on the screen or disappear after 10s. To set the Message Latch:

1. On the System screen, press ▲ / ▼ to select Message Latch, then press ENTER.

2. Press ▲ / ▼ to enable or disable the Message Latch feature. Options are:

NO = Screen messages will disappear after a 10 sec. (this is the default setting) YES = On Screen messages will remain on the screen for the duration of the event.

3. Press MENU to confirm your change.

4. Press ▲ / ▼ to move to another field on the System screen or press MENU to exit.

System Time/Date Set up

Selecting the Date Display Format

1. On the System screen, press ▲ / ▼ to select Date Display, then press ENTER.

2. Press ▲ / ▼ to choose a display format. Options are:

Y-M-D = Year - Month - Day M-D-Y = Month - Day - Year D-M-Y = Day – Month - Year Off = The date and time will not show on the screen.

3. Press MENU to confirm your change.

4. Press ▲ / ▼ to move to another field on the System screen or press MENU to exit this screen and confirm the

current operation.

Setting System Time & Date

1. On the System screen, press ▲ / ▼ to select System Time & Date, then press ENTER.

2. Press ▲ / ▼ to choose a number, then press ◄ / ►to move to the next digit:

2003-Jan-01 (Mon) 22:38:29

3. Press MENU to confirm your change.

4. Press ▲ / ▼ to move to another field on the System screen or press MENU to exit this screen and confirm the

current operation.

Page 13

Changing the System Password

1. On the System screen, press ▲ / ▼ to select New Password, then press ENTER.

2. Press ▲ / ▼ to choose a number, then press ◄ / ► to move to the next digit:

3. Press MENU to confirm your change.

4. Press ▲ / ▼ move to another field on the System screen or press MENU to exit this screen and confirm the current

operation.

5. If you have completed all your system configuration changes, press MENU again to exit and close menu setup.

Clearing the Hard Drive Data

This option will erase all data from the hard drive.

Ensure that there are no important recordings on the disk before using this option.

1. On the System screen, press ▲ / ▼ to select Clear HDD, and then press ENTER.

2. Press ▲ / ▼ to choose YES to clear the HDD or NO to leave as is.

3. When you choose “Yes” on this option and press ENTER, the DVR will prompt:

4. Press ►to confirm clearing, or ◄ to cancel.

5. Press MENU to confirm your change.

6. Press ▲ / ▼ to move to another field on the System screen or press MENU to exit this

screen and confirm the current operation.

NOTE

: Clearing the data from the Hard Drive results in permanent, irreversible loss of all video and related data currently

stored on the Hard Drive.

All Data in HDD Will Be Cleared

Are you sure?

(◄ : No ► : Yes )

Resetting System to Factory Defaults

Using the System Reset option will set all options back to factory default settings. Use the steps below to perform this option.

1. On the System screen, press ▲ / ▼ to select System Reset, and then press ENTER.

2. Press ▲ / ▼ to choose:

Yes = Confirm the system reset and load the default settings. No = Do not reset the system at this time.

3. Press MENU to exit this screen and confirm the current operation.

4. If you have completed all your system configuration changes, press MENU again to exit and close menu setup.

NOTE

: This will not affect the time and date settings.

Remote Protocol Setup

This feature is used to set the basic RS-232/RS-485 protocols to control the DVR remotely from a PC.

Pressing ENTER after scrolling to the Remote option will bring up the following menu options:

Remote mode: Selects whether to use an RS-232 or RS-485 interface.

Baud rate:

The available settings are: 115200, 57600, 19200, 9600, 3600, 2400, 1200.

ID:

Selects a numerical number representing the DVR being controlled if multiple

The available setting are: 000 – 255

Selects the baud rate (bps) to be used for the connection.

units are being used.

(Menu) Timer Record Alarm

►Remote

System Event

Page 14

The remote connection on the DVR uses 8 data bits, 1 start bit, and 1 stop bit, no Parity.

Below is an example of the data stream with the control codes shown.

ACT – OxFF OxCO ID STOP – Ox7F

Please refer to Appendix 3 application.

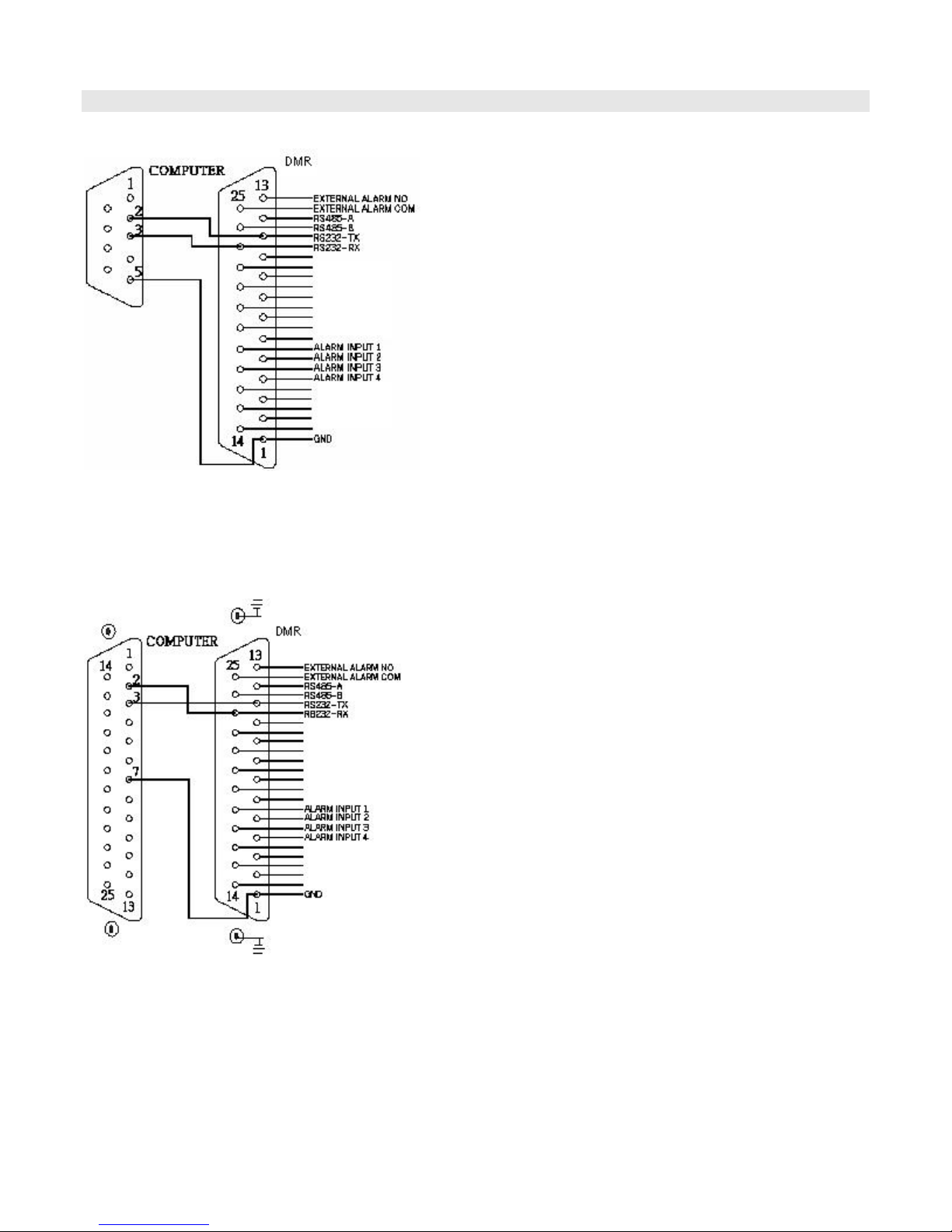

for information on the Pin connections and command protocols that would be used in this

FUNCTION

Timer Recording Setup

On the Main menu, selecting the Timer option will allow you to set daily schedules in which you would like the DVR to automatically record.

Pressing ENTER after scrolling to the Timer option will bring up the following menu options:

Timer

(Timer) Day Start End IPS Daily 01:00 02:00 Off SUN 12:00 13:00 Off MON 08:00 09:00 Off MO~FR 00:00 01:00 Off SA~SU 20:00 21:00 Off JAN-01 15:00 16:00 Off Timer Enable: No

(Menu)

►Timer

Record Alarm

Remote

System Event

1. Press ▲ / ▼ to select the day(s) to record on, the available options are…

Daily: Everyday SUN: Sunday MON: Monday TUE: Tuesday WED: Wednesday THU: Thursday FRI: Friday SAT: Saturday MO-FR: Monday to Friday SA-SU: Saturday & Sunday JAN-01: Special Date OFF: Not activated

2. Use the ◄ / ► scroll keys to move to START record time 00:00 (HH:MM) Press ▲ / ▼ to set the start time

3. Press ◄ / ► move to END record time 00:00 (HH:MM) Press ▲ / ▼ to change END record Time numerical digit

4. Press ◄ / ► move to QUALITY Press▲ / ▼ to choose options of

BEST, HIGH, NORMAL, BASIC

5. Press ◄ / ► move to Record IPS (Images Per Second) Press▲ / ▼ to choose one of the following options

NTSC: 15A, 15, 8, 4, 2, 1 PAL: 12A, 12, 6, 3, 2, 1

6. Press MENU to confirm current operation, and enter to next Timer Record setup.

Page 15

7. Press ◄ / ► move location to Timer EnableYes or No setup

YES : To confirm Timer EnableScheduling Timer Record feature NO : To confirm no Timer EnableNo Scheduling Timer Record feature

8. Press MENU to exit and confirm current operation.

9. Press MENU again to exit and close TIMER setup mode.

WHEN THE TIMER IS SET, THE REC LED INDICATOR WILL BE ON. ALTHOUGH THE LIGHT MAY BE ON, THE

NOTE:

SYSTEM IS NOT NECESSARILY RECORDING SINCE IT WILL ONLY RECORD DURING ITS SCHEDULED TIME.

Page 16

Record Settings

On the Main menu, selecting the Record option will allow you to set the quality and speed of recordings.

Pressing ENTER after scrolling to the Record option will bring up the following menu options:

(RECORD) HDD Overwrite: NO Record IPS: 25A Record Quality: Normal

larm Rec IPS: 25A larm Rec Quality: Normal

Motion Trigger Record: ON

HDD Overwrite Setup:

1. Press ENTER to confirm HDD OVERWRITE setup.

2. Press ▲ / ▼ to choose HDD OVERWRITE.

NO: When HDD full will stop recording YES: When HDD full will overwrite the HDD recording

3. Press MENU to exit and confirm current operation.

4. Press MENU again to exit and close HDD OVERWRITE setup mode.

Record IPS Setup:

1. Press ENTER to confirm RECORD IPS setup.

2. Press ▲ / ▼ to choose IPS record speed. Note that ‘15A’ indicates 15 ips with audio.

NTSC: 25A, 15, 8, 4, 2, 1 PAL: 18A, 12, 6, 3, 2, 1

3. Press MENU to exit and confirm current operation.

4. Press MENU again to exit and close RECORD IPS setup mode.

Record Quality Setup

1. Press ENTER to confirm Record Quality setup.

2. Press▲ / ▼ to choose Record Quality level.

BEST, HIGH, NORMAL, BASIC

3. Press MENU to exit and confirm current operation.

4. Press MENU again to exit and close RECORD QUALITY setup mode.

Alarm REC IPS setup

1. Press ENTER to confirm ALARM REC IPS setup.

2. Press ▲ / ▼ to choose ALARM REC IPS record speed.

NTSC: 15A, 15, 8, 4, 2, 1 PAL: 12A, 12, 6, 3, 2, 1

3. Press MENU to exit and confirm current operation.

4. Press MENU again to exit and close ALARM REC IPS setup mode.

Alarm REC Quality setup

1. Press ENTER to confirm ALARM REC QUALITY setup.

2. Press▲ / ▼ to choose ALARM REC QUALITY level.

BEST, HIGH, NORMAL, BASIC

3. Press MENU to exit and confirm current operation.

4. Press MENU again to exit and close ALARM REC QUALITY setup mode.

(Menu) Timer

► Record

Alarm Remote System Event

Motion Trigger Record

1. Press ENTER to confirm MOTION TRIGGER RECORD setup.

2. Press▲ / ▼ to toggle the option between ON and OFF.

Page 17

Camera Channel Setup

To access the Camera option, press MENU followed by the 4-digit password. Use the ▲ / ▼ to scroll to the Camera option and press ENTER.

TITLE DWELL ALARM RECORD

---01 ON 5 5 5 LOW EVENT

---02 ON 5 5 5 LOW EVENT

---03 ON 5 5 5 LOW EVENT

---04 ON 5 5 5 LOW EVENT

The options available in this section are as follows…

Title

This feature is used to assign a 6-character title to each camera input.

1. Press ▲ / ▼ to select the desired time camera channel (1-4), then press ENTER.

2. Press ▲ / ▼ to select the desired character and ◄ / ►to move to the next character

3. Press MENU to confirm and exit the Title setting.

4. Press MENU again to exit the Camera Setup Option

Dwell

This feature is used to enable or disable the dwell feature for each camera when viewing using the call monitor output.

1. Press ▲ / ▼ to select the desired time camera channel (1-4), then press ENTER.

2. Press ◄ / ► to select the Dwell feature on the screen.

3. Press MENU to confirm and exit the dwell setting.

4. Press MENU again to exit the Camera Setup Option

Brightness / Contrast / Color

This feature is used to adjust the video settings on each channel.

1. Press ▲ / ▼ to select the desired time camera channel (1-4), then press ENTER.

2. Press ◄ / ► to select the Brightness, Contrast, or Color feature on the screen.

3. Press ▲ / ▼ to select 0~9 on the screen.

4. Press MENU to confirm and exit the Brightness, Contrast, or Color control feature

5. Press MENU again to exit the Camera Setup Option

Alarm Polarity

This feature is used to select the alarm polarity as LOW / OFF / HIGH.

1. Press ▲ / ▼ to select the desired time camera channel (1-4), then press ENTER.

2. Press ◄ / ► to select the Alarm Polarity feature on the screen.

3. Press ▲ / ▼ to select LOW / OFF / HIGH on the screen.

4. Press MENU to confirm and exit the Alarm Polarity feature

5. Press MENU again to exit the Camera Setup Option

Page 18

Record Method

This feature is used to select the DVR record method as either EVENT / NORMAL / OFF.

1. Press ▲ / ▼ to select the desired time camera channel (1-4), then press ENTER.

2. Press ◄ / ► to select the Record Method feature on the screen.

3. Press ▲ / ▼ to select EVENT/ NORMAL/ OFF on the screen.

EVENT: when the alarm input is triggered, the DVR will increase the recording time to that channel.

i.e. the normal record sequence for cameras is camera 1, camera 2, camera 3 etc… In Event mode, when an alarm in triggered from channel 1, the DVR will record using the following sequence…., Camera 1, Camera 2, Camera 1, Camera 3, Camera 1, Camera 4 etc….

NORMAL: When an External Audible Alarm is triggered, the DVR will record normally as set up. OFF: An Alarm Trigger will not cause the DVR to start recording

4. Press MENU to confirm and exit the Record Method feature

5. Press MENU again to exit the Camera Setup Option

Page 19

Motion Detection

The Motion Detect feature provides a visual indication on the monitor when movement is detected in the picture. Note that this does not trigger recording.

Press MENU to enter the menu set up, then ▼ to CAMERA setup. Press ENTER twice to enter the Motion Detection Setup.

Each screen displays the current camera picture overlaid with the motion targets (as Figure 1 buttons will toggle the motion detection between ON or OFF.

The targets on each motion setup can be turned to ON or OFF individually by row. To set up targets, using the following front panel buttons:

1. Press ENTER to confirm the channel

2. Press ENTER to enter motion mode

3. ▲ moves the target cursor up one row at a time.

4. ▼ moves the target cursor down one row at a time.

5. ◄ moves the target cursor left one column at a time.

6. ► moves the target cursor right one column at a time.

7. Press ENTER to turn the target cursor ON Press ENTER again to turn the target cursor OFF

8. Camera Select (1-15) toggles the corresponding target on the cursor line ON or OFF. (see Figure 1.1 only 15 targets in a row, therefore; only Camera Selected (1-15) can be operated.

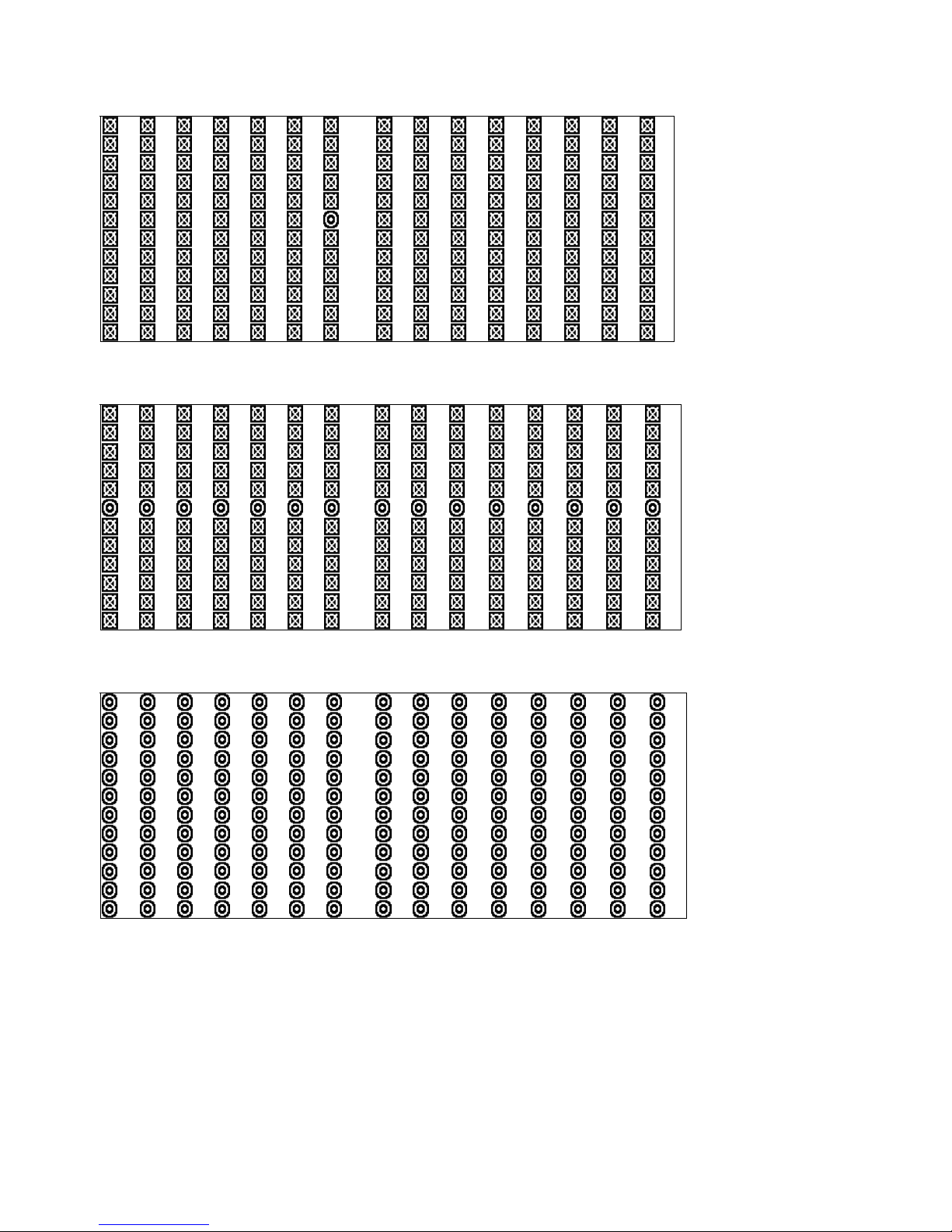

9. Zoom: turns all targets in the current row ON or OFF. (Figure 1-2)

10. PIP: turns all targets on the screen ON or OFF. (Figure 1-3

Press SLOW button to setup the Sensitivity list up to 255

1. Press REC button to setup the Sensitivity list down to 000

2. Sensitivity value is related to motion and brightness change.

3. Low value (as 001) means higher sensitivity on motion and brightness change.

4. High value (as 255) means lower sensitivity on motion and brightness change. User can choose the suitable sensitivity value in different locations. The default value is set on 32.

)

Figure 1 MOTION DETECTION SETUP

2 3 4 5 6 7 8 9 10 11 12 13 14 15

-- -- -- -- --

032

-- -- -- -- -- --

). Pressing the ◄ / ►, ▲ / ▼

) There are

-- --

Page 20

Figure 1-1 MOTION DETECTION SETUP – 1~4

2 3 4 5 6 7 8 9 10 11 12 13 14 15

-- -- -- -- -- --

032

-- -- -- -- -- -- -- --

Figure 1-2 MOTION DETECTION SETUP – LINE

2 3 4 5 6 7 8 9 10 11 12 13 14 15

-- -- -- -- -- --

032

Figure 1-3 MOTION DETECTION SETUP – ALL

-- -- -- -- -- --

2 3 4 5 6 7 8 9 10 11 12 13 14 15

-- -- -- -- -- --

032

-- -- -- -- -- --

Page 21

Event Log Viewing

To access the Event Log Viewing option, press MENU followed by the 4-digit password. Use the ▲ / ▼ to scroll to the Event option and press ENTER to view the list of logged events.

Use the ▲ / ▼ to scroll through the events on the display and ◄ / ► to go to the next page. To view the video associated with an event, scroll to the event and press ENTER.

The following is a list of events that can be displayed on the DGR104.

M-HDD WARNING: Master HDD might be failed M-HDD LOSS: Master HDD does not exist. User can use other HDD. M-HDD ERROR: Master HDD may contain error. S-HDD WARNING: Slave HDD may have failed. S-HDD LOSS: Slave HDD does not exist. User can use other HDD S-HDD ERROR: Slave HDD may contain error. HDD FULL: HDD is full. SYSTEM ERROR: System may have failed.

------02 VLOSS: Channel: 2 Video Loss

------03 ALARM: Channel: 3 External I/O Alarm triggered. POWER RESTORE: Power restore.

(Menu) Timer Record Alarm Remote System ► Event

Page 22

Operation

On Screen Display (OSD)

The DGR100/101 will display all current status on the OSD.

Here is an example of the display.

The following status will be shown:

Time and Date – The current time and date will be shown on the first line.

Record Type – The current recording method will be shown:

M= Manual, T= Timer, A= Alarm, E= External Trigger

Record Status – An

icon will be displayed when the unit is currently recording

HDD Status – This will display either the remaining HDD capacity in GB or OW to indicate that it is set to Overwrite.

Video Loss - Screen will display if the video input is not connected properly.

2002 – JAN –01 01:02:03

32GB

Recording Methods

The DGR104 offers a variety of flexible recording modes. The unit can be set up to record continually, following a schedule, or by record events. In addition, the recording speed and resolution is also configurable (these options are configurable through the system menu). Under the recording status, if power is stopped accidentally, recorded video will still be stored in the HDD and will be available when the power is restored, and the original recording setup will remain.

When recording, the top line of the display will show the date, time, and the amount of available HDD memory (in GB).

In the example below, the letter “A” represents the alarm trigger and the letters “OW” represents HDD over write.

2002 – JAN –01 01:02:03

●OW

There are 3 record modes for DGR104: Alarm Record, Timer Record, and Manual Record.

1. Alarm Record

The display will indicate a recording triggered by an Alarm using the letter “A”.

2. Timer Record The display will indicate a scheduled recording using the letter “T”.

3. Manual Record

The display will indicate a manual recording (by pressing the REC button) using the letter “M”.

4. Motion Trigger Record

Recording will be triggered by motion sensing and is indicated with the letter ‘D’.

Viewing Options:

Individual Camera Select (1 - 4):

Press Camera Select (1 - 4) button to select the desired camera to display in full screen mode.

Quad View Select:

This button is used to select the ideal viewing configuration.

1. Press the button to toggle from an individual camera to a quad display.

Page 23

Picture in Picture (PIP):

This button is used to configure the monitor so a full screen is displayed in the background with a 1/16th size screen insert.

1. Press the button to display the PIP mode.

2. Press SELECT then ◄ / ► button to move the insert screen.

3. Press MENU to exit

Zoom:

Feature is used to enlarge the display (2X) the size of the main picture. The screen will now display the “zoomed” picture as the main picture with a small window inserted containing a moveable 1/4 view size of the appointed camera.

1. Select the desired camera by pressing Camera Select (1-4).

2. Press the Zoom button to zoom the image on the display.

3. Press the Zoom button again to move the zoom pointer.

4. Press MENU to exit

Video Search

The DVR allows you to easily find sections of recorded video using the Search feature.

Press the SEARCH button and you will see the following options:

Last Record: Plays the last recorded piece of video.

Full List: Shows a listing of all recorded video on the HDD, sorted by time.

Alarm List: Shows a listing of all recorded video triggered by an Alarm.

Time Search: Finds video recorded on a specific date that is entered.

►M 2002-JAN-01 01:02:03 M 2002-JAN-01 01:02:03 A 2002-JAN-01 01:02:03 T 2002-JAN-01 01:02:03 E 2002-JAN-01 01:02:03 M 2002-JAN-01 01:02:03

◄: Page Up ►: Page Down

n example of a Full List search is shown on the left.

Note that the date and time appear, along with the letter representing the method of recording that took place.

Simply press ENTER to view a selected piece of video on the list. The DVR will play that video, followed by the next video in chronological order, until it hits the End of the list. You can stop the video at any time by pressing the STOP button.

►Last Record

Full List Alarm List Time Search

Playing Back Video

Pressing PLAY while in Normal operation will play back the most recently recorded video clip. The controls below will allow you further controls over the playback whether in this mode or when viewing video from the Search mode.

Fast forward - Press PLAY on the front panel, then press FF/► to open the fast forward search screen.

Fast Reverse - Press PLAY on the front panel, then press REW/◄ to open the fast reverse search screen.

Slow forward - Press PLAY on the front panel, then press SLOW for slow play. Press FF/► to play images at slow speed

Press FF/► once to increase the speed to 2X, twice to increase the speed to 4X, and so on. The maximum fast forward speed is 32X.

Press REW/◄ once to increase the reverse speed to 2X, twice to increase the reverse speed to 4X, and so on. The maximum fast rewind speed is 32X.

(1/2X). Press FF/► again to slow the speed to 1/4X. Continue to press FF/► to slow down the speed. The minimum slow speed is 1/32X.

Page 24

Slow reverse Press PLAY on the front panel, then press SLOW for slow forward. Press REW/◄ to play images slowly

forward (1/2X). Press REW/◄ again to slow the speed to 1/4X. Continue to press REW/◄ to slow down the speed. The minimum slow forward speed is 1/32X.

Image Jog Press PLAY on the front panel, then press PAUSE to lock the current image on the screen.

Press FF/► to select single image play. Each time you press FF/► the next image will display. Continuing to press FF/► will result in forward image-by-image playback. Pressing REW/◄ will result in reverse image by image playback.

Pause Press PLAY on the front panel, and then press PAUSE/▲ to lock the current image on the screen.

Stop Press STOP on the front panel whenever you want to return the DVR to live monitoring mode.

Key Lock

For added security, you can Lock the buttons on your DGR104. Locking disables the functionality of the buttons and prevents accidental key presses from altering the operation of the DGR104.

To enable the Key Lock feature, press and hold the ENTER and MENU at the same time. To disable the Key Lock feature when it is locked, press and the ENTER and MENU at the same time.

Page 25

Troubleshooting

SOLUTION PROBLEM

HDD not found

No Power

Buttons aren’t working when pressed

No video

Need to insert HDD Make sure that the HDD Cartridge is locked, then press any key to continue

Check the power source cord connections Check that there is power at the outlet

Check if the system is in Key Lock mode Press MENU and ENTER at the same time to escape the Key Lock mode

Check that the HDD has been installed correctly No recorded video

Check that Timer / Alarm Enable is set to YES Timer / Alarm recording isn’t working

Check camera’s video cables and connections Check monitor’s video cables and connections Make sure that the camera is receiving power

Page 26

Technical Specifications

Video format NTSC/EIA or PAL/CCIR

HDD storage IDE type, UTMA 66 above, 2 removable HDD’s supported

Record mode Manual / Alarm / Timer

Camera input signal Composite video signal 1 Vp-p 75Ω BNC, 4 Channels

Camera loop back Composite video signal 1 Vp-p 75Ω BNC, 4 Channels

Main monitor output Composite video signal 1 Vp-p 75Ω BNC

Call monitor output Composite video signal 1 Vp-p 75Ω BNC

Audio input/ output 4 audio inputs, (RCA) and 2 audio outputs, (RCA)

Motion detect area 15 X 12 Targets per camera (NTSC)/ 15*14 targets per camera (PAL)

Motion detect sensitivity 256 Levels

Video loss detection Yes

Refresh rate 72 IPS for NTSC / 100 IPS for PAL

Recording rate 15 IPS for NTSC / 12 IPS for PAL

Dwell time Programmable (1 - 10 Sec)

Picture in picture Yes (Moveable)

Key lock Yes

Picture zoom 2X (Moveable)

Camera title 6 Characters

Video adjustable Color / Contrast / Brightness Adjustable

Alarm input / output Input: TTL input, Hi (5V), Low (GND) Output: COM,/N.O/N.C

Remote control RS-232 or RS-485

Time display format YY/NN/DD, DD/MM/YY, MM/DD/YY, OFF

Power source AC 100-240V +/- 10% switching adaptor

Power consumption <45W

Operation temperature 10 - 40 degrees C

RS - 232c / RS-485 115200, 57600, 19200, 9600, 4800, 3600, 2400, 1200 bps

Dimension (mm) 432 (W) x 110 (H) x 325 (D)

Net weight 5.7 Kgs

Page 27

Appendix 1: Installing the HDD

NOTE: The HDD has the same purpose in a DGR104 as a videocassette does in a VCR. However, installing the HDD is a bit

more complicated. Please follow the next steps carefully in order to ensure proper installation.

The compartment (with the handle) located on the front panel of the DGR104 is the removable Cartridge Casing where the HDD is inserted. The various parts of the Cartridge Casing are labeled for your reference.

1. Keyhole

2. LED indicator lights (Power indicator & HDD Access indicator)

3. Handle

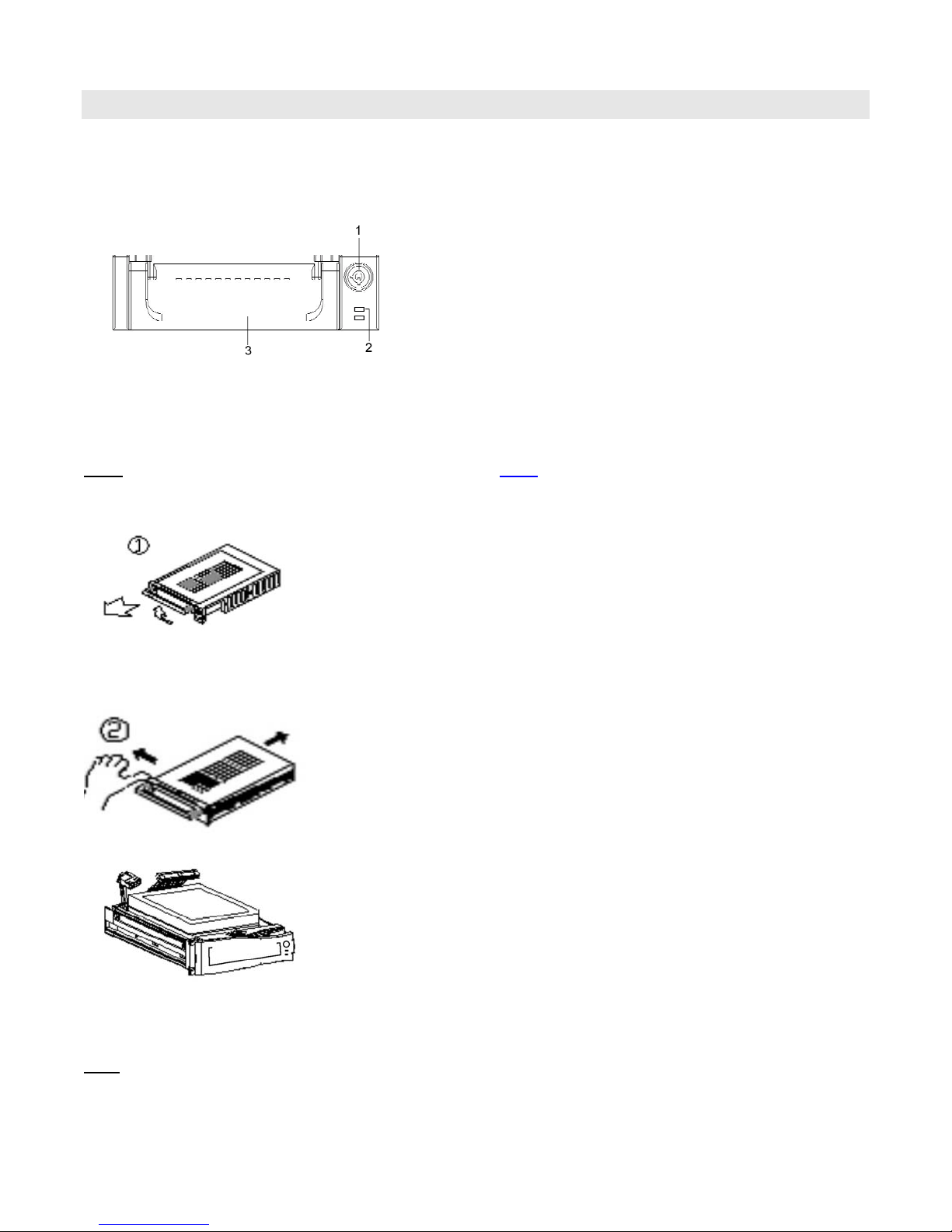

Step 1: Remove the Cartridge Casing from the DGR104

Lift the Handle and pull towards you. The Cartridge Casing will slide out of the DGR104.

: The Cartridge must be unlocked to remove it, (please see step 8 for more information on locking and unlocking the

NOTE

Step 2: Remove the Cover from the Cartridge Casing

Step 3: Unclip the release latch with the word “OPEN,” printed beside it by gently pushing on the latch.

Step 4: Slide the cover off the Cartridge Casing.

Cartridge Casing

removable HDD cartridge).

Step 5: Insert the HDD into the Cartridge Casing

Take the Hard Disk Drive and connect the two cables from the back of the Cartridge Casing to the HDD.

The cables should be pushed in firmly, but not forcibly.

When using more than 1 HDD, configure the jumpers on the HDD so one is selected ad the Master, and the other as

Note:

Slave, OR configure the jumpers on the HD for CS (Cable Select), and the DVR 104 will do this automatically.

The jumper settings for Master / Slave / Cable Select are usually labeled on the top side of the HDD and the location of the jumpers can usually be found beside the cable connector on the HDD

Page 28

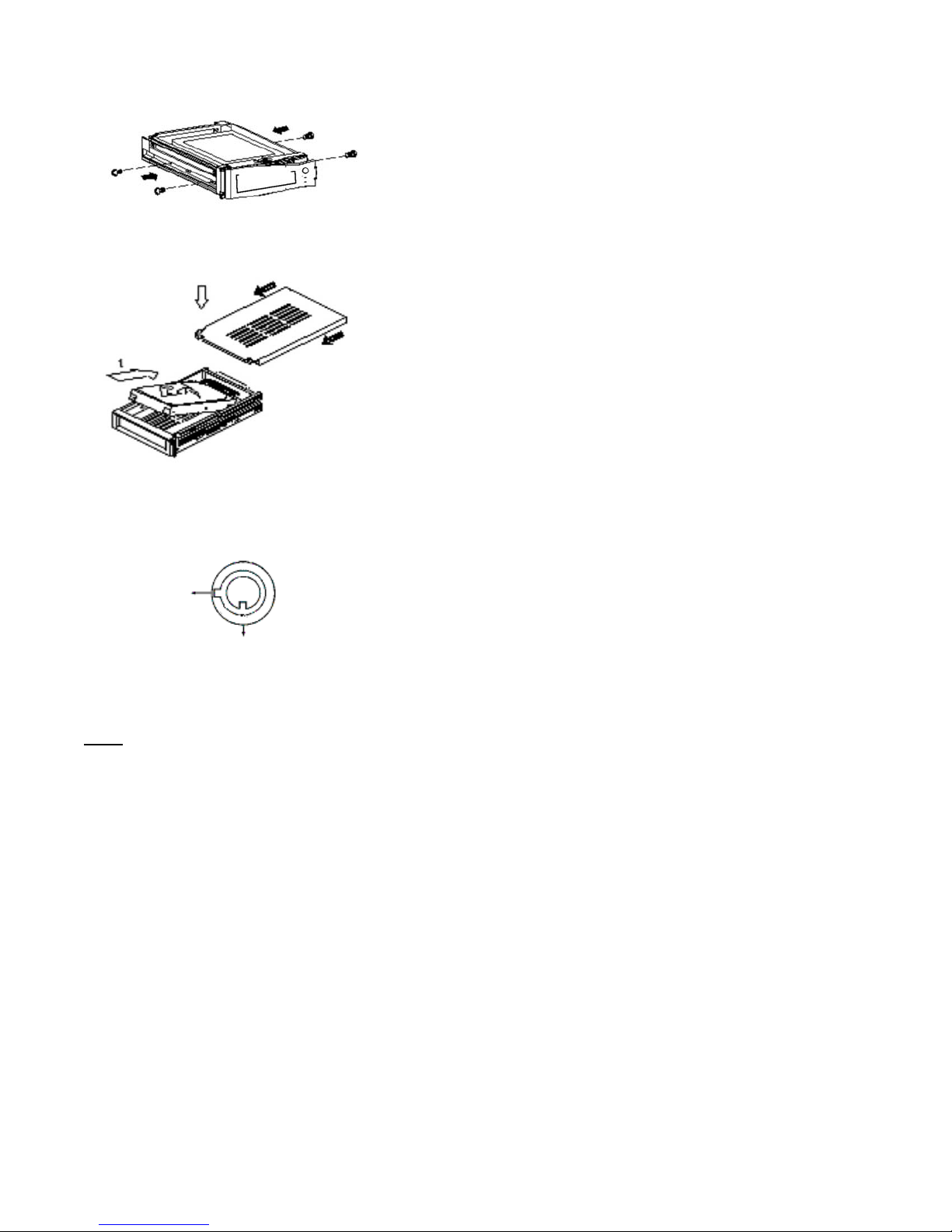

Step 6: Secure the HDD in the cartridge casing.

Position the HDD into place and secure it using the six screws supplied.

Step 7: Slide the top Cover over the Cartridge Casing

Slide the Cover forward over the Cartridge Case. Ensure it is secured in place over the release latch.

Reinsert the Cartridge Casing into the DGR104

Step 8: Lock the Cartridge

To Lock the cabinet, turn the key clockwise to Position A.

(locked)

B (unlocked)

To unlock the cabinet, turn the key counter-clockwise to Position B.

: The DGR104 will not function if the key is not in the locked position.

NOTE

Page 29

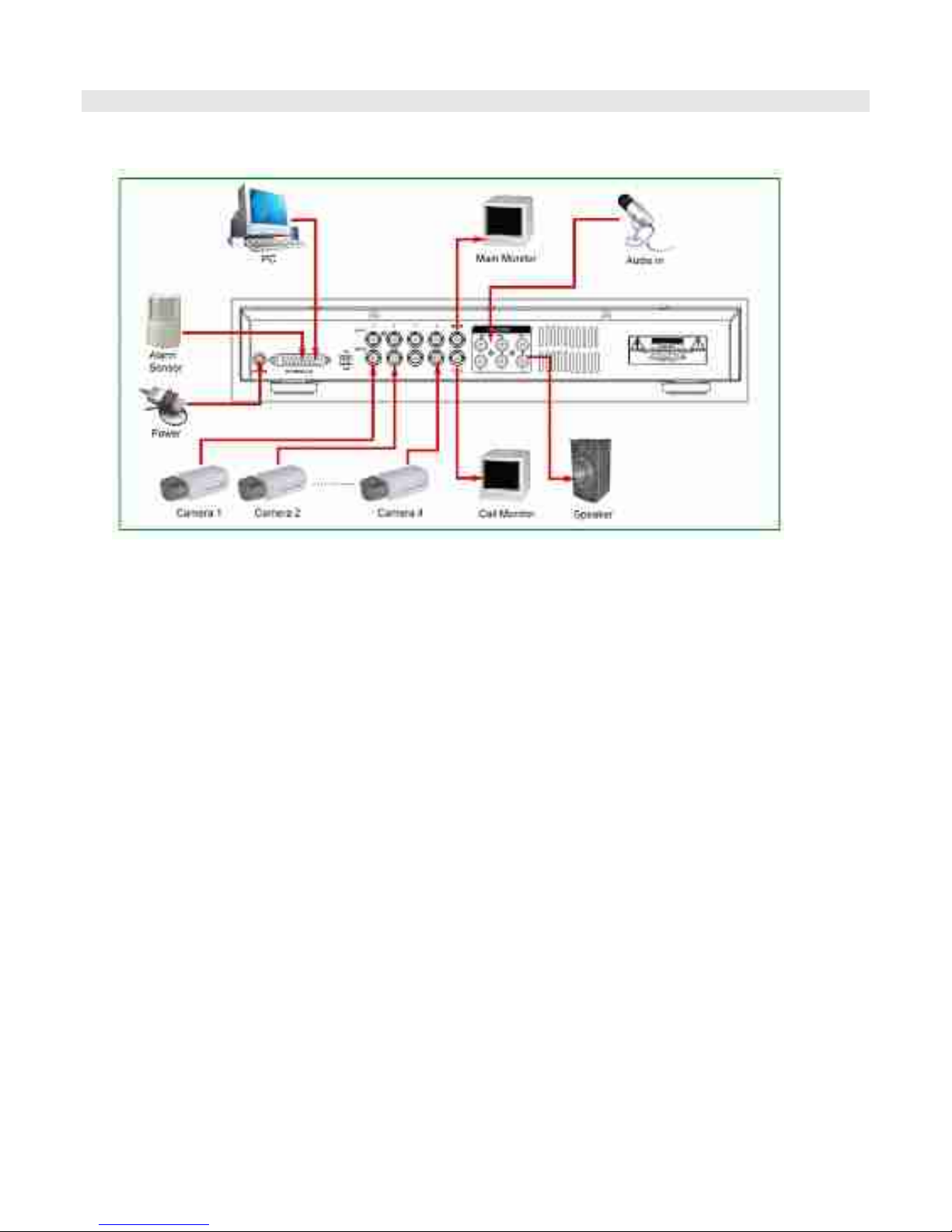

Appendix 2: Connection Diagram to Cameras and Monitor

Page 30

Appendix 3: Pin Configurations

9 pin Comm Port

25 Pin Comm Port

Page 31

Pin References for RS-232 / Alarm Block

PIN 1. GND

GROUND

PIN 18. ALARM INPUT 1

Used to connect an alarm sensor between ALARM INPUT 1 (PIN 18) and GND (PIN 1) to trigger an alarm on Camera 1, which can activate the internal audible alarm and start recording.

PIN 5. ALARM INPUT 2

Used to connect an alarm sensor between ALARM INPUT 2 (PIN 5) and GND (PIN 1) to trigger an alarm on Camera 5 which can activate the internal audible alarm and start recording.

PIN 17. ALARM INPUT 3

Used to connect an alarm sensor between ALARM INPUT 3 (PIN 17) and GND (PIN 1) to trigger an alarm on Camera 3 which can activate the internal audible alarm and start recording.

PIN 4. ALARM INPUT 4

Used to connect an alarm sensor between ALARM INPUT 4 (PIN 4) and GND (PIN 1) to trigger an alarm on Camera 4 which can activate the internal audible alarm and start recording.

PIN 11. RS232-TX

The DVR can be controlled remotely by an external device or control system, such as a control keyboard, using RS232 serial communications signals.

PIN 23. RS232-RX

The DVR can be controlled remotely by an external device or control system, such as a control keyboard, using RS232 serial communications signals.

PIN 12. RS485-A

The DVR can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 serial communications signals.

PIN 24. RS485-B

The DVR can be controlled remotely by an external device or control system, such as a control keyboard, using RS485 serial communications signals.

PIN 13. EXTERNAL ALARM NO

Under normal operation COM disconnect with NO. But when Alarm triggered, COM connect with NO.

PIN 25. EXTERNAL ALARM COM

Under normal operation COM disconnect with NO. But when alarm triggered, COM connect with NO.

Page 32

Appendix 4: Rack Mount Installation

Screws and brackets for rack mounting applications can be purchased as an optional accessory.

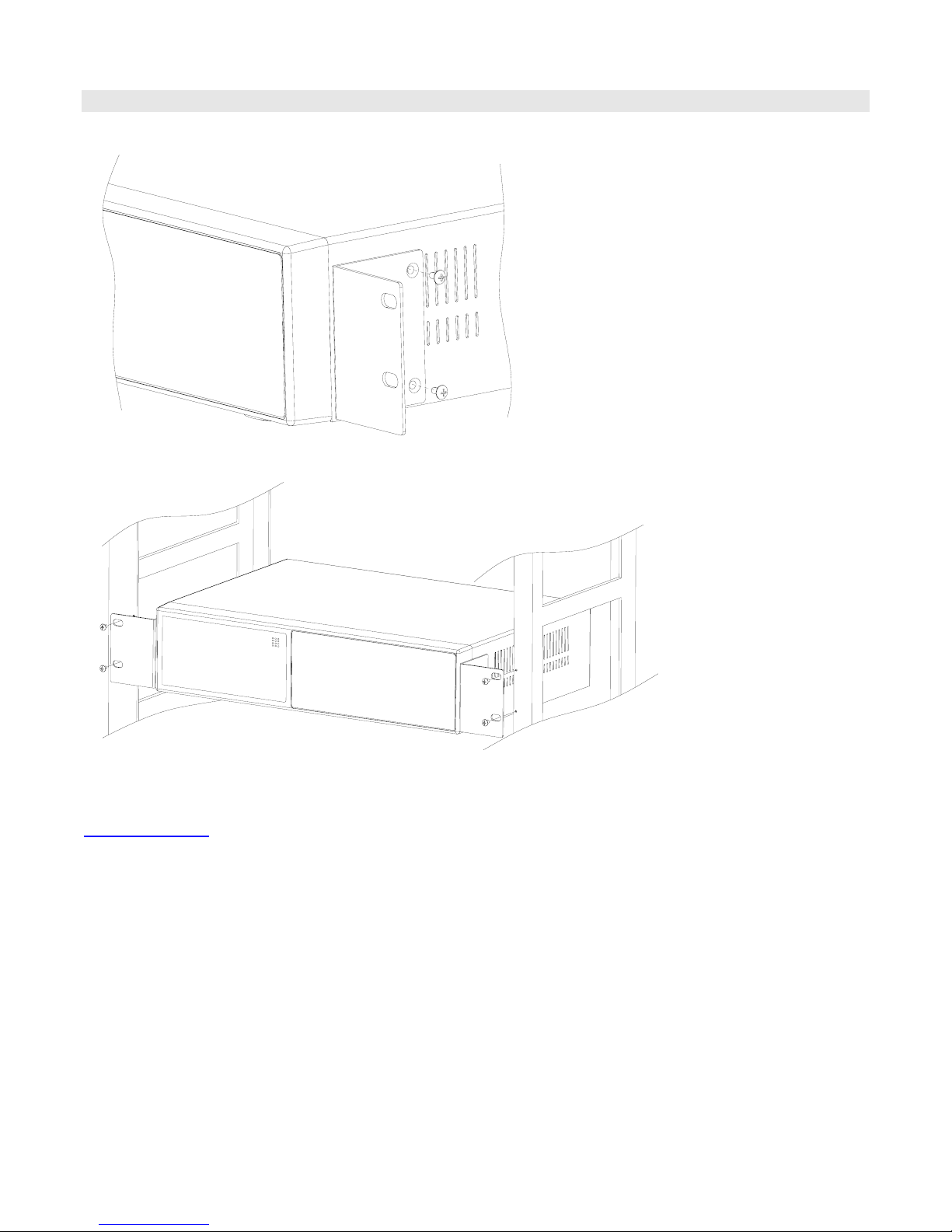

Front Angle with Rack Mount

Side View with Rack Mount

For more information about the rack mount & other accessories through Digimerge, please visit:

www.digimerge.com.

Page 33

Appendix 5: Recording Times (in Hours)

NTSC SYSTEM

IPS 25A 15 8 4 2 1

Best 16hr 32hr 60hr 120hr 240hr 480hr

Record Quality

High 20hr 40hr 75hr 150hr 300hr 600hr

Normal 32hr 64hr 120hr 240hr 480hr 960hr

Basic 54hr 105hr 200hr 400hr 800hr 1600hr

HDD Type 80GB

IPS 25A 15 8 4 2 1

Best 24hr 48hr 90hr 180hr 360hr 720hr

High 30hr 60hr 1136hr 225hr 450hr 900hr

Record Quality

Normal 48hr 96hr 1600hr 360hr 720hr 1440hr

Basic 80hr 160hr 300hr 600hr 1200hr 2400hr

HDD Type 120GB

NOTE

: The above data has been taken from actual test data obtained using recordings from a normal TV program and is to be

used for reference purposes only.

Page 34

Appendix 6: RS232 Remote Protocol

The RS-232 protocol allows you to control the DGR104 from a PC or any other serial device. Data: 8 bit data, 1 start bit, 1 stop bit

0xCO ID FUNCTION STOP

(0xFF)

FEATURE CODE ASCII

MENU Key 0x4D M

SELECT Key 0x73 s

ENTER Key 0x0D ENTER

4CUT Key 0x61 a

ZOOM Key 0x5A Z

9CUT Key 0x62 b

PIP Key 0x70 p

16CUT Key 0x63 c

SLOW Key 0x53 S

REC Key 0x72 r

PLAY Key 0x50 P

0X7F

FEATURE CODE ASCII

LEFT Key 0x4C L

RIGHT Key 0x52 R

UP Key 0x55 U

DOWN Key 0x4E N

POWER Key 0x57 W

LOCK Key 0x4B K

CH1 Key 0x31 1

CH2 Key 0x32 2

CH3 Key 0x33 3

CH4 Key 0x34 4

Page 35

Appendix 7: Compatible HDD Brands

Manufacturer Model Capacit

Rotation

HITACHI Deskstar 180 GXP (120 GB) 120GB 7200 rpm

HITACHI Deskstar 7K250, HDS722516VLAT20

160GB

7200rpm

HITACHI Deskstar 7K250, HDS722525VLAT80 250GB 7200rpm

IBM Deskstar 120GXP (80GB) 80GB 7200 rpm

IBM Deskstar 120GXP (120GB) 120GB 7200 rpm

Maxtor DiamondMax 536DX(60GB) 4W060H4 60GB 5400rpm

Maxtor DiamondMax Plus 9 80GB 7200 rpm Maxtor DiamondMax Plus 9, Model#6Y120L 120GB 7200 rpm

Maxtor DiamondMax Plus 9, Model#6Y160L0 160GB 7200rpm

Seagate Barracuda ATA IV, ST380021A 80GB 7200rpm

Seagate Barracuda ATA V, ST3120023A 120GB 7200 rpm

Seagate Barracuda 7200.7 Plus, ST3160023A 160GB 7200 rpm

Western Digital Caviar WD1200BB-00CAA1 120GB 7200rpm

Western Digital Caviar WD2000BB-00DWA0 200GB 7200rpm

Note: The above brands and models of HDD have been tested and they are compatible with the DGR104.

Page 36

Limited Warranty

Warranty: Subject to the exclusions and limitations below, Digimerge warrants to the initial end-user purchaser that the

product will be free from defects in material and workmanship for a period of one year from the date of purchase. For valid warranty claims made during the warranty period, upon proof of purchase, defective products will, at the election of Digimerge, be repaired or replaced without charge. Any products repaired or replaced within the warranty period, shall be warranted by Digimerge to the initial end-user purchaser for 90 days from the return shipment date, or the remainder of the warranty term, whichever is longer, and if outside of the warranty period then for 90 days from the return shipment date. Products and parts may be replaced with refurbished items, and the products and parts replaced become the property of Digimerge. You are responsible for all shipping costs associated with the return of the defective products for warranty service.

Exclusions and Limitations: Any of the following will void this warranty:

(i) installation or use of the product other than strictly in accordance with the instructions contained in the product’s

instruction manual;

(ii) if the product is subjected to operating conditions (including atmospheric, moisture and humidity conditions) outside of the

acceptable conditions specified in the product's instruction manual; (iii) if the product is subjected to misuse or abuse; (iv) if the product is subjected to electrical short circuits or transients, accident, fire, flood or Acts of God; (v) adjustment, maintenance or repair of the product other than in accordance with Digimerge approved procedures; and (vi) use of replacement parts other than those specified by Digimerge.

DIGIMERGE MAKES NO CLAIMS OR WARRANTIES OF ANY KIND WHATSOEVER REGARDING THE PRODUCT’S ABILITY OR EFFECTIVENESS IN PREVENTING OR REDUCING THE RISK OF, OR DAMAGES RESULTING FROM, LOSS OR THEFT OF PROPERTY OR PERSONAL INJURY.

THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE.

REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE PURCHASER. DIGIMERGE SHALL IN NO EVENT BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL, PUNITIVE, OR CONSEQUENTIAL DAMAGES OF ANY KIND OR CHARACTER, INCLUDING, WITHOUT LIMITATION, PERSONAL INJURY, LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR CLAIMS AGAINST THE PURCHASER BY ANY THIRD PERSON, EVEN IF DIGIMERGE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

No claims or statements regarding the product, whether written or verbal, by salespeople, retailers, dealers or distributors, that are not contained in this limited warranty or in the owner's manual are authorized by Digimerge and do not modify or expand this warranty.

Some countries, states, or provinces do not allow the exclusion or limitation of implied warranties or the limitation of incidental or consequential damages for certain products supplied to consumers or the limitation of liability for personal injury. To the extent that such restrictions on limitations apply to the products, the above limitations and exclusions may be limited in their application. In that case, when the implied warranties are not allowed to be excluded in their entirety, they will be limited to the duration of the applicable written warranty, and if damages may not be limited then the above limitations on damages apply, but only to the greatest extent permitted by local law.

Warranty and Non-Warranty Service:

applicable, to obtain service. Non-warranty service is subject to Digimerge's then current service terms and prices. If the dealer fails to respond, cannot be reached or fails to provide you with the required service, you may obtain service directly from Digimerge by calling our service department at (866) 344-4674. You must provide Digimerge with the defective product's model number, serial number, date of purchase, sales or invoice number, proof that you were the original end-user purchaser for warranty work, and a brief description of the problem. You must obtain a return authorization number from the service department and must mark the number clearly on the shipping box. You must ship the item prepaid in appropriate packaging to the following address:

Contact the dealer that sold you this product, during the warranty period if

Digimerge Technologies Inc.,

Attention: Repair Department,

300 Alden Rd,

Markham, Ontario, Canada,

L3R 4C1

Page 37

Digimerge Technologies Inc.

300 Alden Road

Markham Ontario

L3R 4C1

www.digimerge.com

rev04
