WARNING - A REGULATED UL / CSA APPROVED 12V DC / 24V AC
power supply is REQUIRED for use with this camera. Use of a nonregulated, non-conforming power supply can damage this product and
voids the warranty.
Video Tutorials & DemosLatest News

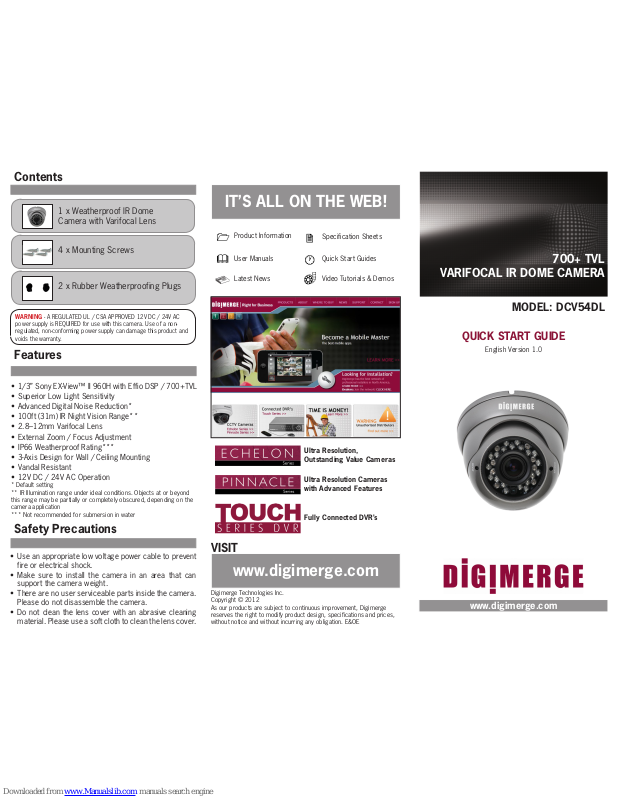

Contents
700+ TVL
VARIFOCAL IR DOME CAMERA
MODEL: DCV54DL
QUICK START GUIDE
English Version 1.0
www.digimerge.com
IT’S ALL ON THE WEB!
www.digimerge.com
VISIT
Digimerge Technologies Inc.
Copyright © 2012
As our products are subject to continuous improvement, Digimerge
reserves the right to modify product design, specifications and prices,
without notice and without incurring any obligation. E&OE
1 x Weatherproof IR Dome
Camera with Varifocal Lens
4 x Mounting Screws
Features
Safety Precautions
• Use an appropriate low voltage power cable to prevent
fire or electrical shock.
• Make sure to install the camera in an area that can
support the camera weight.
• There are no user serviceable parts inside the camera.
Please do not disassemble the camera.
• Do not clean the lens cover with an abrasive cleaning
material. Please use a soft cloth to clean the lens cover.
Ultra Resolution,
Outstanding Value Cameras
Ultra Resolution Cameras
with Advanced Features
Fully Connected DVR’s
• 1/3” Sony EX-View™ II 960H with Effio DSP / 700+TVL
• Superior Low Light Sensitivity
• Advanced Digital Noise Reduction*
• 100ft (31m) IR Night Vision Range**
• 2.8–12mm Varifocal Lens
• External Zoom / Focus Adjustment
• IP66 Weatherproof Rating***
• 3-Axis Design for Wall / Ceiling Mounting
• Vandal Resistant
• 12V DC / 24V AC Operation
* Default setting
** IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on the
camera application
*** Not recommended for submersion in water
2 x Rubber Weatherproofing Plugs
ZOOM
FOCUS
Camera Base
Installing the Camera
ATTENTION - Test the camera prior to selecting a permanent
mounting location by temporarily connecting the camera(s) and
cables to the DVR or Observation System.
Image Sensor 1/3” Sony EX-View™ II 960H
Video Format NTSC
Effective Pixels H: 976 V: 494
Horizontal Resolution 700+ TVL
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio >50dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/100,000 sec.
Min. Illumination 0.15 LUX @ F2.0 (IR Off)
0 LUX (IR LEDs ON)
Video Output Composite 1.0Vpp @ 75ohm
Lens Focal Length / Type 2.8–12mm F1.4 / Varifocal
FOV (Diagonal) 28–93°
Termination Video: BNC Female
IR Range / Qty. 100ft / 31m; 28 LED’s
Power Requirement 12V DC ± 10% / 24V AC ± 10%
Power Consumption 12V: 600mA max / 24V: 400mA max
Operating Temp. Range –4° ~ 122°F / –20° ~ 50°C
Environmental Rating IP66
Dimensions (LxWxH) 4.8” x 4.8” x 4.1”
120mm x 120mm x 102mm
Weight (including stand) 1.6lbs / 0.7kg
Dimensions
Camera SpecificationsSetting up the Camera
1. Connect the BNC connector of the camera
to the video cable.
2. DC Power—Power Adapter: Connect a
12V DC Power Adapter (not included) to
the camera. Plug the Power Adapter into a
local power outlet.
•DC Power—Power Pigtail (not included):
Connect a Power Pigtail to the camera.
Connect the terminating wires of the cable
directly to the DC power source.
NOTE: The Power Pigtail is a non-polarity input. You can
connect the wires to either the positive or negative ports of
the DC power source.
•AC Power—Connect a Power Pigtail
(not included) to the camera. Connect the
terminating wires of the cable directly to
the 24V AC power source.
3. Use a screwdriver to adjust the ZOOM and
FOCUS control screws as required.
1. Rotate the camera base counter
clockwise to separate it from the ball
camera and dome cover.
2. Mount the camera base to the wall or
ceiling using the included screws.
3. Feed the BNC/power termination cable
through the camera base. Connect
video and power cable as described
in the next section, ‘Setting up the
Camera’.
4. Position the dome cover over the
camera and screw it clockwise half way
onto the camera base.
5. Move the ball camera to the desired
position, and while holding the ball
camera firmly in place, screw the dome
cover the rest of the way to secure it to
the camera base. Holding the camera
prevents it from moving while installing
the dome cover.
120mm / 4.8”
102mm
4.1”
4. Insert rubber weatherproofing plugs
(2x) firmly into the Zoom and Focus
screw holes to ensure a weatherproof
seal.
Weatherproofing Plugs
Weatherproofing
plug inserted in
Focus screw hole
