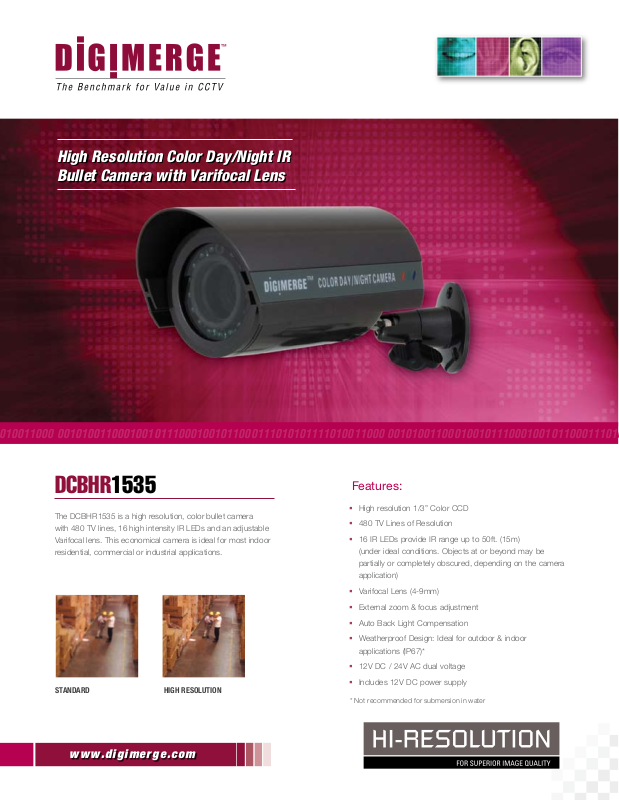

Digimerge DCBHR1535 User Manual
High Resolution Color Day/Night IR
Bullet Camera with Varifocal Lens
DCBHR1535
The DCBHR1535 is a high resolution, color bullet camera
with 480 TV lines, 16 high intensity IR LEDs and an adjustable
Varifocal lens. This economical camera is ideal for most indoor
residential, commercial or industrial applications.
STANDARD HIGH RESOLUTION
ww w. di gi me rg e. co m
Features:
High resolution 1/3” Color CCD
ß
480 TV Lines of Resolution
ß
16 IR LEDs provide IR range up to 50ft. (15m)
ß
(under ideal conditions. Objects at or beyond may be
partially or completely obscured, depending on the camera
application)
Varifocal Lens (4-9mm)
ß
External zoom & focus adjustment
ß
Auto Back Light Compensation
ß
Weatherproof Design: Ideal for outdoor & indoor
ß
applications (IP67)*
12V DC / 24V AC dual voltage
ß
Includes 12V DC power supply
ß
* Not recommended for submersion in water
IR Illumination Range & Day/Night Mode:
530 TV lines
Up to 50 ft. / 15M
16 IR LEDS
IR Range
16 IR LEDs provide IR range up to 50ft. / 15m (under ideal conditions.
ß
Objects at or beyond may be partially or completely obscured, depending
on the camera application)
Specifications:
Image Sensor: 1/3” High Resolution Color CCD
Lens:
Horizontal Res.:
# Effective Pixels:
Varifocal (4 - 9 mm)
480 TV lines
768 (H) x 494 (V) (380K)
DAY / NORMAL LIGHT
Picture automatically switches camera to B&W
ß
delivering better clarity in low light conditions
LOW LIGHT CONDIITION
Dimension:
3in/77 mm
5.3in/134mm
4.7in/
118mm
Sync. System:
S/N Ratio: 45dB (AGC Off)
Electronic Shutter:
LED:
MIn. Illumination:
IR Distance:
Video Output: 1.0Vp-p @ 75 ohms
Power Requirement:
IP Rating: IP67
Operating Temp:
Storage Temp:
Dimension: 3”/77mm (w) x 5.3”/134mm(D) X 4.7”/118mm (H)
Internal Sync.
1/60 ~ 1/10,000 Sec.
16 LEDs
0 Lux (LED on)
50 ft. / 15 m.
12V DC / 24V AC
-10°~ 50°C (14°F ~ 122°F)
-20°~ 60°C (-4°F ~ 140°F )
Includes:
Camera
Mounting Bracket
Power Supply
®
Digimerge Technologies Inc.
300 Alden Road, Markham, ON Canada L3R 4C1
Tel: 905.946.8477 Fax: 905.947.0138
Because our products are subject to continuous
improvement, Digimerge reserves the right to
modify product design and specifications without
notice and without incurring any obligation. E&O.E.
0-16082007
