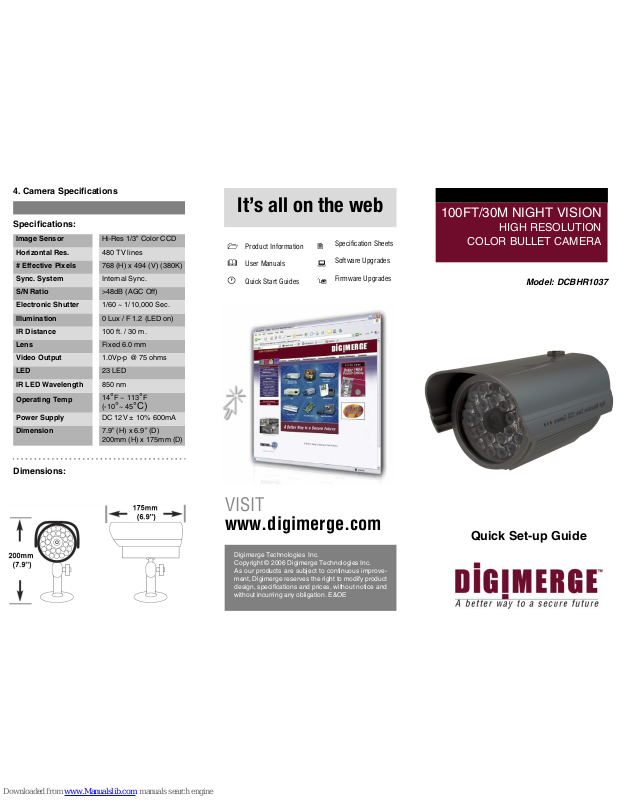

Page 1
Digimerge Technol ogi es I nc.
Copyright © 2006 Digimerge Technologies Inc.
As our products are subject to continuous improvement, Digimerge reserves the right to modify product
design, specifications and prices, without notice and
without incurring any obligation. E&OE
Quick Set-up Guide
It’s all on the web
Product Information
User Manuals
Quick Start Guides
Specification Sheets
Software Upgrades
Firmware Upgrades
VISIT
www.digimerge.com
100FT/30M NIGHT VISION
HIGH RESOLUTION
COLOR BULLET CAMERA
4. Camera Specifications
Model: DCBHR1037
Specifications:
Dimensions:
Horizontal Res. 480 TV lines
# Effective Pixels
Sync. System
S/N Ratio
Electronic Shutter
Illumination
IR Distance
Lens
Video Output
LED
Power Supply
Operating Temp
IR LED Wavelength
Dimension
768 (H) x 494 (V) (380K)
Internal Sync.
>48dB (AGC Off)
0 Lux / F 1.2 (LED on)
100 ft. / 30 m.
Fixed 6.0 mm
1.0Vp-p @ 75 ohms
23 LED
14°F ~ 113°F
(-10
°~ 45°C)
850 nm
Image Sensor Hi-Res 1/3” Color CCD
1/60 ~ 1/10,000 Sec.
7.9” (H) x 6.9” (D)
200mm (H) x 175mm (D)
DC 12V ± 10% 600mA
Page 2
1. Package Contents 2. Installing the Video Camera 3. Connecting the Camera
1. Attach the camera to the supplied stand.
2. Mount the camera stand to the desired
mounting surface
Setup Diagram:
The mounting stand is designed to
permanently mount the camera to a
surface (i.e. a Wall or Ceiling)
3. Connect the BNC end of the Camera
Cable to the DVR or to a TV/VCR.
4. Connect the A/C Power Adaptor to the
Camera (Black connector). Plug the
Power adaptor to a wall outlet
Connect a BNC to RCA Adaptor as
needed to allow for proper connectivity.
1 x AC Power Adaptor
1 x DCBHR1037 Hi- Res
Color Day/Night IR
Camera
1 x Mounting Bracket /
Stand
Features:
• High resolution 1/3” Color CCD Image Sensor
(480 TV Lines and 380,000 effective pixels)
• 23 High Intensity IR LEDs provide effective night
vision range of over 100ft.*
• Weatherproof** Design (IP67) with Armor Cable:
ideal for indoor and outdoor installations.
• Day/Night Mode: Picture automatically switches
camera to B&W delivering better clarity in low
light conditions
• Ceiling or Wall Mountable
* IR Illumination range of 100ft under ideal conditions. Objects at
or beyond this range may be partially or completely obscured,
depending on the camera application.
** Not recommended for direct exposure to water, rain, or snow.
