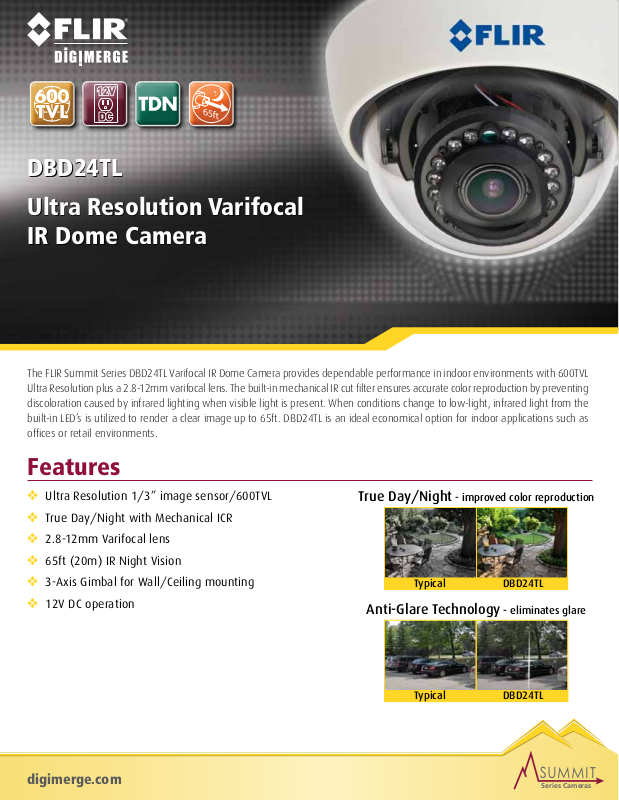

Digimerge DBD24TL Specsheet
DBD24TL
Ultra Resolution Varifocal
IR Dome Camera
The FLIR Summit Series DBD24TL Varifocal IR Dome Camera provides dependable performance in indoor environments with 600TVL
Ultra Resolution plus a 2.8-12mm varifocal lens. The built-in mechanical IR cut filter ensures accurate color reproduction by preventing
discoloration caused by infrared lighting when visible light is present. When conditions change to low-light, infrared light from the
built-in LED’s is utilized to render a clear image up to 65ft. DBD24TL is an ideal economical option for indoor applications such as
offices or retail environments.
Features
❖❖ Ultra❖Resolution❖1/3”❖image❖sensor/600TVL
❖❖ True❖Day/Night❖with❖Mechanical❖ICR
❖❖ 2.8-12mm❖Varifocal❖lens
❖❖ 65ft❖(20m)❖IR❖Night❖Vision
❖❖ 3-Axis❖Gimbal❖for❖Wall/Ceiling❖mounting
❖❖ 12V❖DC❖operation
True Day/Night - improved color reproduction
Typical DBD24TL
Anti-Glare Technology - eliminates glare
Typical DBD24TL
digimerge.com
Series Cameras
Specifications
128mm / 5.0”
91mm /
Image Sensor: 1/3” Color Image Sensor
Video Format: NTSC
Effective Pixels: H: 728 V: 488
Horizontal Resolution: 600 TVL
Scan System: 2:1 Interlace
Sync System: Internal
S/N Ratio: 52dB (AGC Off)
Iris: AES
AES Shutter Speed: 1/60 ~ 1/12,000 sec.
Min. Illumination: 0.2 LUX (IR Off)
0 LUX (IR LEDs ON)
Video Output: Composite 1.0Vpp @ 75ohm
Lens Focal Length/Type: 2.8–12mm F1.4/Varifocal
FOV (Diagonal): 27° ~ 92°
Termination: Video: BNC Female
IR Range/Qty.: 65ft/20m; 17 IR LEDs
Power Requirement: 12V DC ± 10%
Power Consumption: 12V: 200mA MAX with IR LED
Operating Temp. Range: 14° ~ 122°F/–10° ~ 50°C
Environmental Rating: Indoor Only
Dimensions: Diameter: 5.0” (128mm)
Height: 3.6” (91mm)
Weight: 0.6lbs/0.3kg
Dimensions
Product Information
UPC: 8-41430-00810-1
Weight: 1.9lbs/0.9kg
Package
Dimensions:
(W x D x H)
Package Cube: 0.0030 cbm/0.107cu ft
148mm x 148mm x 138mm
5.8” x 5.8” x 5.4”
What’s Included:
Dome camera
Mounting screws x 3
Dome cover key
User manual
3.6”
www.digimerge.com
Digimerge Technologies Inc.
250 Royal Crest Court, Markham, ON Canada L3R 3S1
Tel: 905.946.8477 Fax: 905.947.0138
Digimerge is a FLIR® company.
Because our products are subject to continuous
improvement, Digimerge reserves the right to modify
product design and specifications without notice and
without incurring any obligation. E&O.E.
1-23052013
