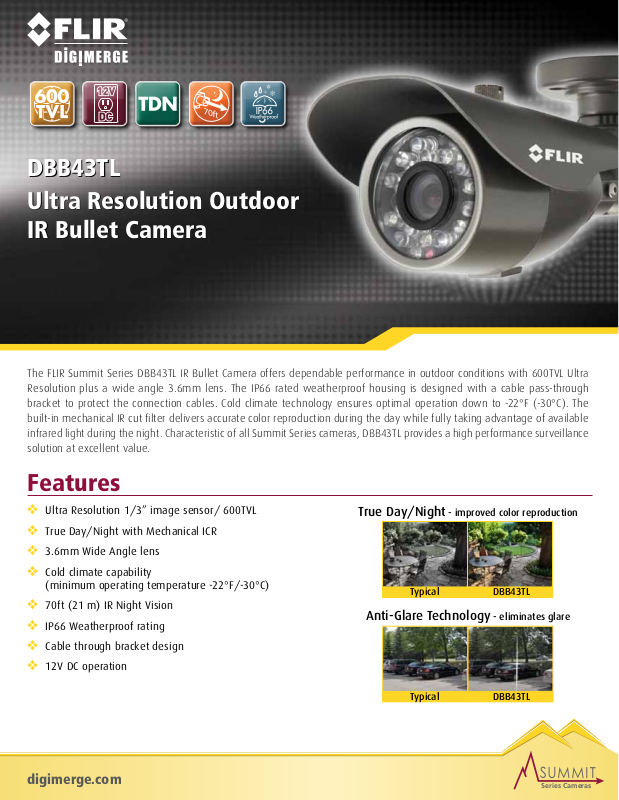

Digimerge DBB43TL Specsheet
DBB43TL
Ultra Resolution Outdoor
IR Bullet Camera
The FLIR Summit Series DBB43TL IR Bullet Camera offers dependable performance in outdoor conditions with 600TVL Ultra
Resolution plus a wide angle 3.6mm lens. The IP66 rated weatherproof housing is designed with a cable pass-through
bracket to protect the connection cables. Cold climate technology ensures optimal operation down to -22°F (-30°C). The
built-in mechanical IR cut filter delivers accurate color reproduction during the day while fully taking advantage of available
infrared light during the night. Characteristic of all Summit Series cameras, DBB43TL provides a high performance surveillance
solution at excellent value.
Features
❖❖ Ultra❖Resolution❖1/3”❖image❖sensor/❖600TVL
❖❖ True❖Day/Night❖with❖Mechanical❖ICR
❖❖ 3.6mm❖Wide❖Angle❖lens
❖❖ Cold❖climate❖capability❖❖
(minimum❖operating❖temperature❖-22°F/-30°C)
❖❖ 70ft❖(21❖m)❖IR❖Night❖Vision
❖❖ IP66❖Weatherproof❖rating
❖❖ Cable❖through❖bracket❖design
❖❖ 12V❖DC❖operation
True Day/Night - improved color reproduction
Typical DBB43TL
Anti-Glare Technology - eliminates glare
Typical DBB43TL
digimerge.com
Series Cameras
Specifications
189mm / 7.4”
Image Sensor 1/3” Color Image Sensor
Video Format NTSC
Effective Pixels H: 728 V: 488
Horizontal Resolution 600 TVL
Scan System 2:1 Interlace
Sync System Internal
S / N Ratio 52dB (AGC Off)
Iris AES
AES Shutter Speed 1/60 ~ 1/12,000 sec.
Min. Illumination 0.2 Lux without IR LED
0 Lux with IR LED
Video Output Composite 1.0Vpp @ 75ohm
Lens Focal Length / Type 3.6mm F2.0 / Fixed
FOV (Diagonal) 78°
Termination BNC Type
IR Range / Qty. 70ft / 21m; 20 IR LED’s
Power Requirement 12V DC ±10%
Power Consumption 12V: 200mA Max with IR LED
Operating Temp. Range –22° ~ 122°F / –30° ~ 50°C
Environmental Rating IP66
Dimensions (LxWxH) 7.4” x 2.6” x 2.4”
189mm x 67mm x 60mm
Weight (including stand) 0.7lbs / 0.3kg
Dimensions
67mm / 2.6”
60mm / 2.4”
Product Information
UPC: 8-41430-00809-5
Weight: 1.0lbs / 0.5kg
Package
Dimensions:
(W x D x H)
Package Cube: 0.0015 cbm / 0.051cu ft
170mm x 95mm x 90mm
6.7” x 3.7” x 3.5”
What’s Included:
Camera w/ stand
User manual
Mounting screws x3
Hex allen key
www.digimerge.com
Digimerge Technologies Inc.
250 Royal Crest Court, Markham, ON Canada L3R 3S1
Tel: 905.946.8477 Fax: 905.947.0138
Digimerge is a FLIR® company.
Because our products are subject to continuous
improvement, Digimerge reserves the right to modify
product design and specifications without notice and
without incurring any obligation. E&O.E.
1-02052013
