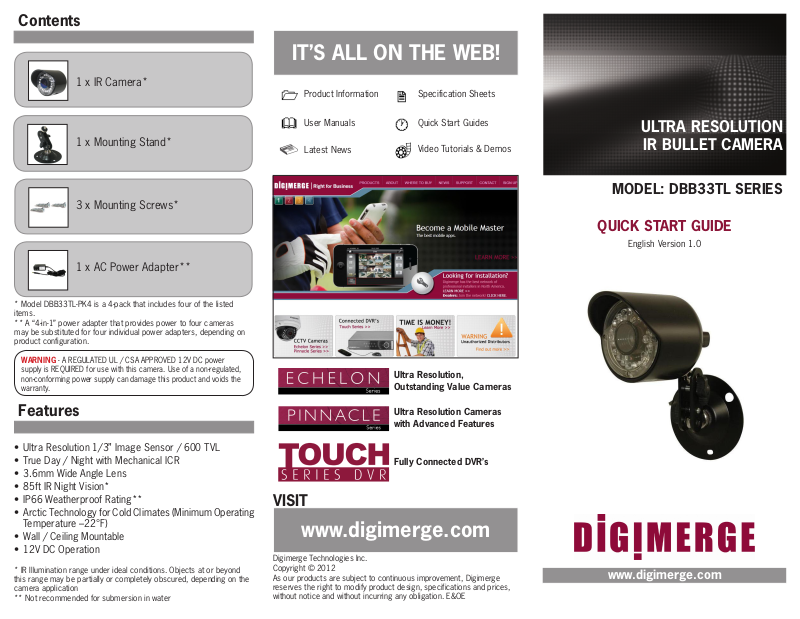

Digimerge DBB33TL-PK4 User Manual

Contents

1 x IR Camera*

IT’S ALL ON THE WEB!

Product Information

Specification Sheets

1 x Mounting Stand*

3 x Mounting Screws*

1 x AC Power Adapter**

* Model DBB33TL-PK4 is a 4-pack that includes four of the listed
items.
** A “4-in-1” power adapter that provides power to four cameras
may be substituted for four individual power adapters, depending on
product configuration.

WARNING - A REGULATED UL / CSA APPROVED 12V DC power

supply is REQUIRED for use with this camera. Use of a non-regulated,
non-conforming power supply can damage this product and voids the
warranty.

Features

User Manuals

Latest News

Quick Start Guides

Video Tutorials & Demos

Ultra Resolution,
Outstanding Value Cameras

Ultra Resolution Cameras
with Advanced Features

ULTRA RESOLUTION

IR BULLET CAMERA

MODEL: DBB33TL SERIES

QUICK START GUIDE

English Version 1.0

• Ultra Resolution 1/3” Image Sensor / 600 TVL

• True Day / Night with Mechanical ICR

• 3.6mm Wide Angle Lens

• 85ft IR Night Vision*

• IP66 Weatherproof Rating**

• Arctic Technology for Cold Climates (Minimum Operating

Temperature –22°F)

• Wall / Ceiling Mountable

• 12V DC Operation

* IR Illumination range under ideal conditions. Objects at or beyond
this range may be partially or completely obscured, depending on the
camera application
** Not recommended for submersion in water

Fully Connected DVR’s

VISIT

www.digimerge.com

Digimerge Technologies Inc.
Copyright © 2012
As our products are subject to continuous improvement, Digimerge
reserves the right to modify product design, specifications and prices,
without notice and without incurring any obligation. E&OE

www.digimerge.com

Camera SpecificationsSetting up the CameraSafety Precautions

• Use an appropriate low voltage power cable to
prevent fire or electrical shock.

• Make sure to install the camera in an area that can
support the camera weight.

• There are no user serviceable parts inside the
camera. Please do not disassemble the camera.

• Do not clean the lens cover with an abrasive
cleaning material. Please use a soft cloth to clean
the lens cover.

Installing the Camera

ATTENTION - Test the camera prior to selecting a permanent

mounting location by temporarily connecting the camera(s) and
cables to the DVR or Observation System.

1. Mount the camera stand to the desired
mounting surface.

2. Attach the camera to the stand at either
of the two connection points at the back
of the camera.

Table Mount Ceiling Mount

1. Connect the BNC connector of the camera
to the video cable.

2. DC Power—Power adapter: Connect a
12V DC power adapter** (included) to the
camera(s). Plug the power adapter into a
local power outlet.

** A “4-in-1” power adapter that provides power to four cameras

may be substituted for four individual power adapters, depending on
product configuration.

Single Power Adapter

4-in-1 Power Adapter**

3. DC Power—Power Pigtail (not included):
Connect a Power Pigtail to each camera.
Connect the terminating wires of the cable
directly to the DC power source.

NOTE: The Power Pigtail is a non-polarity input. You can
connect the wires to either the positive or negative ports of
the DC power source.

Connection Diagram

Image Sensor 1/3” Color Image Sensor

Video Format NTSC

Effective Pixels H: 720 V: 480

Horizontal Resolution 600 TVL

Scan System 2:1 Interlace

Sync System Internal

S / N Ratio 48dB (AGC Off)

Iris AES

AES Shutter Speed 1/60 ~ 1/25,000 sec.

Min. Illumination 0.1 LUX @ F2.4 (IR Off)

0 LUX (IR LEDs ON)

Video Output Composite 1.0Vpp @ 75ohm

Lens Focal Length / Type 3.6mm F2.0 / Fixed

FOV (Diagonal) 78°

Termination Video: BNC Female

IR Range / Qty. 85ft / 26m; 18 LED’s

Power Requirement 12V DC ± 10%

Power Consumption 12V: 300mA max

Operating Temp. Range –22° ~ 122°F / –30° ~ 50°C

Environmental Rating IP66

Dimensions (LxWxH) 4.2” x 2.6” x 5.2”

107mm x 66mm x 132mm

Weight (including stand) 0.6lbs / 0.3kg

Dimensions

Wall Mount

Use the stand for ceiling, table or wall mounting.

Top Thread - Ceiling Mount

Bottom Thread - Table /
Wall Mount

ATTENTION - This camera includes an Auto Mechanical IR Cut Filter.

When the camera changes between Day/Night viewing modes, an
audible clicking noise may be heard from the camera. This clicking is
normal, and indicates that the camera filter is working.

66mm / 2.6”

132mm / 5.2”

107mm / 4.2”
